Aprilaire 8810M Setup guide

Model 8810 Wi-Fi
Automation Thermostat with
Event Based™Air Cleaning
READ AND SAVE THESE INSTRUCTIONS
Safety &
Installation
Instructions

2 3
Installation location recommendations................................................................3
Outdoor temperature sensor (optional) ................................................................4
Thermostat mounting..............................................................................5
Power & reset options.............................................................................5
Wiring terminal ..................................................................................6
Wiring diagrams .................................................................................7
Wi-Fi setup......................................................................................3
TABLE OF CONTENTS
INSTALLATION
WI-FI SETUP
SETUP & TESTING
REFERENCES
System setup instructions ..........................................................................9
System test mode ...............................................................................16
Quick reference to controls & display................................................................20
Thermostat features .............................................................................21
Troubleshooting .................................................................................22
Specifications...................................................................................24
INSTALLATION
INSTALLATION LOCATION RECOMMENDATIONS
Thermostat should be mounted:
• On an interior wall, in a frequently occupied space.
• Approximately 5‘ above floor.
• At least 18” from outside wall.
• Thermostat can be mounted to a vertical junction box.
Do not mount thermostat:
• Behind doors, in corners, or other dead air spaces.
• In direct sunlight, near lighting fixtures, or other
appliances that give off heat.
• On an outside or unconditioned area wall.
• In the flow of a supply register, in stairwells, or near
outside doors.
• On a wall with concealed pipes or ductwork.
WI-FI SETUP
For detailed instructions for connecting the thermostat to a Wi-Fi network and registering it to an Aprilaire account,
refer to the Wi-Fi Quick Start Guide included in the box.

4 5

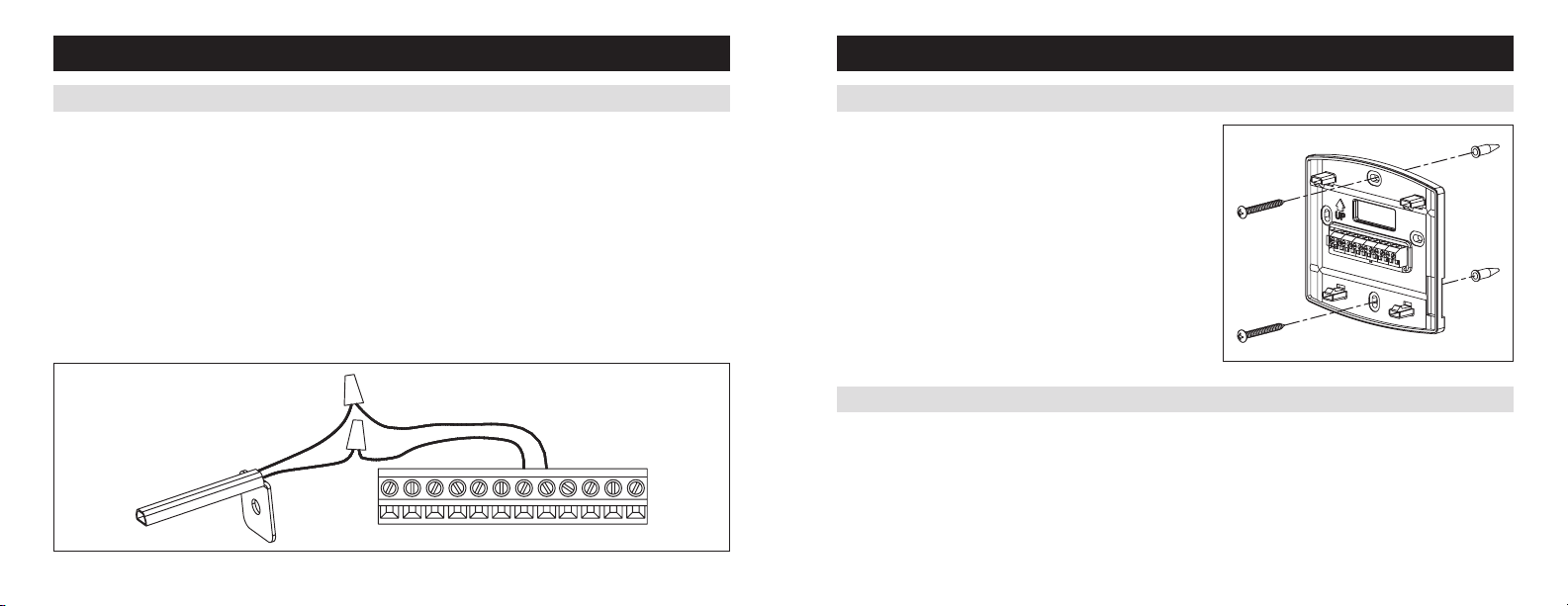

OUTDOOR TEMPERATURE SENSOR (OPTIONAL)
Outdoor temperature can be measured by attaching an
8052 sensor to the S1 and S2 terminals. System setting
#15 (Outdoor Sensor) is used to enable sensor.
Heat pump applications can use the outdoor temperature
to effectively utilize the heat pump:
• When the outdoor temperature is less than the Low
Balance Point, the heat pump will be locked out and
only auxiliary heating will be used to provide heating.
• When the outdoor temperature is higher than the High
Balance Point, the auxiliary heating will be locked out
and only the heat pump will be used to provide heating.
INSTALLATION
C
G
Y
W
RL
S1 S2 O/B W2 Y2
RC
• Install on side of building out of direct sunlight
(north side recommended).
• Mount above snow line.
• Mount at least 3’ away from exhaust vents and
condensing lines.
• Maximum wire length is 300’.
• Do not route wires along 120 VAC lines.
THERMOSTAT MOUNTING
1. Remove the rear mounting plate from the thermostat.
2. Pull wires through the opening on the back of the rear
mounting plate.
3. Position and level the mounting plate of the thermostat on
wall and mark the hole locations with a pencil.
4. Drill 1/4” holes and insert supplied anchors (drywall only).
5. Place mounting plate over anchors, insert and tighten screws.
6. Seal wire entry holes to prevent drafts affecting temperature
readings.
INSTALLATION
POWER & RESET OPTIONS
The thermostat is powered from 24VAC. In the case of power loss the thermostat will maintain the clock for 24
hours. The thermostat has a memory backup that saves the thermostat settings in case of power interruption.
The reset button located under the cover on the front of the thermostat can be used to reset the thermostat to
factory defaults. The system settings will also be set to default.
90-2033

6 7
WIRING TERMINAL
Wire specifications
18-24 gauge thermostat wire
Installation notes
• Ensure power at the HVAC
equipment is off.
• Loosen screw terminals,
insert stripped wire and
re-tighten.
• Push the excess wire
back into the opening and
plug the wall opening to
prevent drafts.
INSTALLATION
RC – 24 VAC supply cooling*
R– 24 VAC supply heating*
W– First stage heat (conventional) / First stage auxiliary (heat pump)
Y– First stage cooling (conventional) / First stage compressor (heat pump)
G– Fan
C– Common
S1 & S2 – Outdoor temperature sensor (optional)
O/B – Reversing valve
L– System fault indicator
W2 – Second stage heat (conventional) / Second stage auxiliary (heat pump)
Y2 – Second stage cooling (conventional) / Second stage compressor (heat pump)
*Jumper between RC & R is used in single transformer systems (see wiring diagrams).
C
G
Y
W
RL
S1 S2 O/B W2 Y2
RC
WIRING – SINGLE TRANSFORMER (USE
JUMPER WIRE) FOR HEAT/COOL SYSTEM
INSTALLATION
1st HEATING
1st COOLING
FAN
2nd HEATING
2nd COOLING
OUTDOOR TEMP
SENSOR
NOT USED NOT USED
JUMPER
TRANSFORMER
C
G
Y
W
RL
S1 S2 O/B W2 Y2
RC
WIRING – TWO TRANSFORMERS (REMOVE
JUMPER WIRE) FOR HEAT/COOL SYSTEM
1st HEATING
1st COOLING
FAN
2nd HEATING
2nd COOLING
OUTDOOR TEMP
SENSOR
NOT USED NOT USED
HEATING
TRANSFORMER
COOLING
TRANSFORMER
C
G
Y
W
RL
S1 S2 O/B W2 Y2
RC

8 9
INSTALLATION

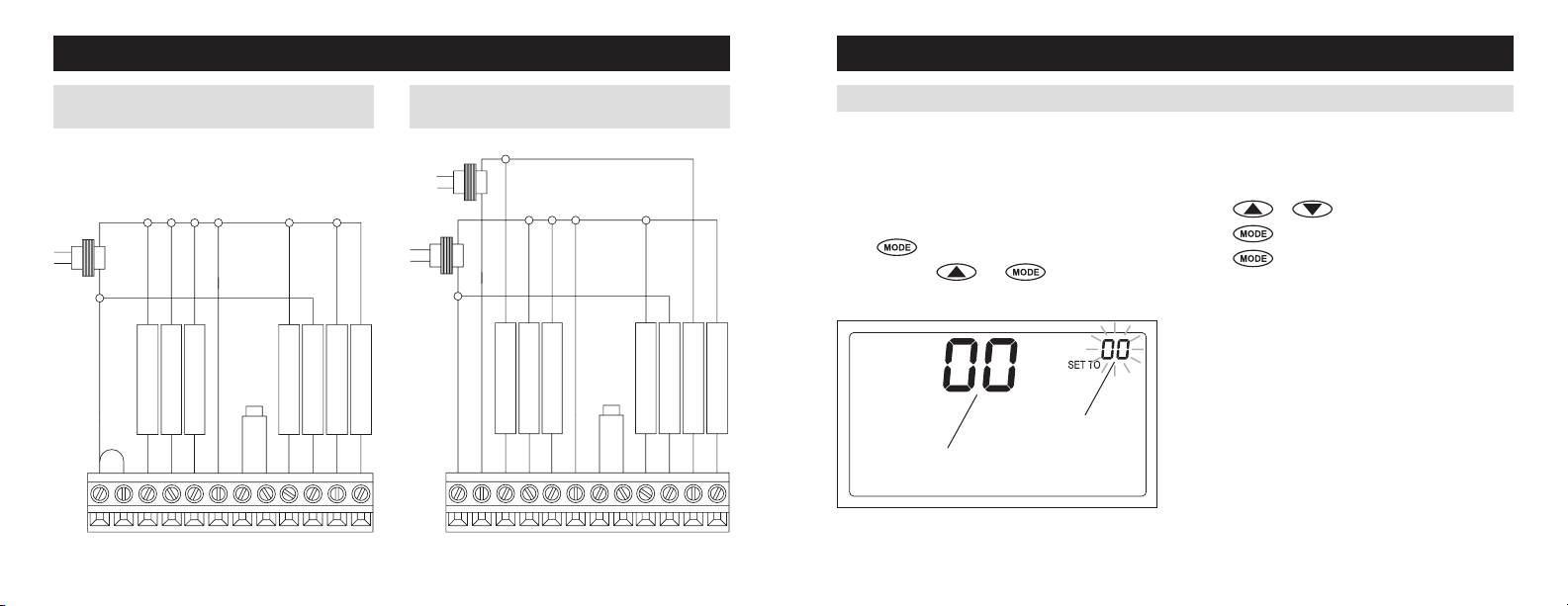

WIRING – SINGLE TRANSFORMER (USE
JUMPER WIRE) FOR HEAT PUMP SYSTEM
1st AUX HEATING
1st COMPRESSOR
FAN
REVERSE VALVE
FAULT DETECT
2nd AUX HEATING
2nd COMPRESSOR
OUTDOOR TEMP
SENSOR
HEAT PUMP
TRANSFORMER
C
G
Y
W
RL
S1 S2 O/B W2 Y2
RC
JUMPER
1st AUX HEATING
1st COMPRESSOR
FAN
REVERSE VALVE
FAULT DETECT
2nd AUX HEATING
2nd COMPRESSOR
OUTDOOR TEMP
SENSOR
HEATING
TRANSFORMER
HEAT PUMP
TRANSFORMER
C
G
Y
W
RL
S1 S2 O/B W2 Y2
RC
WIRING – TWO TRANSFORMERS (REMOVE
JUMPER WIRE) FOR HEAT PUMP SYSTEM
SYSTEM SETUP INSTRUCTIONS
How to enter the system setup menu to change
system settings
Press repeatedly until system is set to OFF.
Press and hold and for three seconds.
The screen of the first setting will be displayed.
SETUP & TESTING
Press or to change the setting.
Press to change to the next option.
Press after the last setting. “DONE” will be
displayed.
The thermostat will return to Normal mode if no button
is pressed in 3 seconds.
To reset all system settings back to default, press the
RESET button located under the cover on the front of
the thermostat.
Includes Event-Based™Air Cleaning
The following instructions show how to enter the system setup menu and change settings. The table on the
following pages lists the settings and their details. Default settings are shown in bold. Some settings are only
available based on other setting values.
SYSTEM SETTING NUMBER
SETTING VALUE

10 11
SETUP & TESTING
SYSTEM SETUP INSTRUCTIONS (CONTINUED)
The Model 8810 thermostat has the option of being used in heat pump or heat/cool systems. Switch SW1 located on
the back of the thermostat is used to select this. System setting number 01 will only be shown on these models to
display the position of SW1.
HC
HP
SW1
HEAT/COOL
HEAT PUMP
SETUP & TESTING
System setting Description
Factory default setting (bold)
and setting range
00. Automation Enable Selects if the thermostat connects with an
automation system or an Aprilaire account.
0: Aprilaire Cloud
1: Automation System
01. Equipment Type Equipment type set by SW1. 0: Heat/Cool
1: Heat Pump
02. Temperature Scale Set the thermostat to Fahrenheit or Celsius
mode.
0: Fahrenheit
1: Celsius
03. Reversing Valve Selects O or B operation. 0: O – On in cooling
1: B – On in heating
04. Control Setup Used to lockout heating or cooling outputs.
Note: Only available if Equipment Type is set to
Heat/Cool.
0: Heat and Cool
1: Heat Only
2: Cool Only
05. Heat/Cool: Cooling Stages
Heat Pump: Compressor
Stages
Heat/Cool: Number of Cooling Stages.
Heat Pump: Number of Compressor Stages.
0: One
1: Two
06. Heat/Cool: Heating Stages
Heat Pump: Aux Heat
Stages
Heat/Cool: Number of Heat Stages.
Heat Pump: Number of Auxiliary Heat Stages.
0: One
1: Two
SYSTEM SETUP INSTRUCTIONS (CONTINUED)
90-2070

12 13
SETUP & TESTING
System setting Description
Factory default setting (bold)
and setting range
07. Heat/Cool: Fan Control
in Heating
Heat Pump: Auxiliary
Equipment Type
Heat/Cool: Determines if the thermostat or
equipment controls the fan in heating.
Heat Pump: Auxiliary Equipment type.
0: Gas/Oil Heat (equipment controls
fan)
1: Electric Heat (thermostat controls fan)
10. Temperature Sensor Offset Field adjustment of temperature sensor. 0° (no offset applied)
-4°F to +4°F (-2°C to +2°C)
12. Auto Changeover Enable or disable auto changeover mode. 0: Disable
1: Enable
13. Deadband Auto Changeover mode deadband. 3°F (1.5°C)
2°F to 9°F (1°C to 4.5°C)
15. Outdoor Sensor Selects if an outdoor temperature sensor is
not installed, a wired sensor is installed, or
the outdoor temperature is provided by the
automation system.
Note: Automation is only available if
Automation Enable is set to Automation.
0: Not installed
1: Installed
2: Automation
18. Compressor Min Off Time Minimum off time for compressor protection. 5 minutes
1 to 5 minutes
SYSTEM SETUP INSTRUCTIONS (CONTINUED)
SETUP & TESTING
System setting Description
Factory default setting (bold)
and setting range
19. Heating Min Off Time Minimum off time for heating. 2 minutes
1 to 5 minutes
20. Equipment Min On Time Minimum on time for heating and cooling. 2 minutes
1 to 5 minutes
22. First Stage Differential First stage differential. 1°F (0.5°C)
1°F to 9°F (0.5°C to 4.5°C)
23. Second Stage Differential Second stage differential. 1°F (0.5°C)
1°F to 9°F (0.5°C to 4.5°C)
24. Third Stage Differential Third stage differential. 1°F (0.5°C)
1°F to 9°F (0.5°C to 4.5°C)
25. Fourth Stage Differential Fourth stage differential. 1°F (0.5°C)
1°F to 9°F (0.5°C to 4.5°C)
26. Away Enables the Away feature. The Away feature
allows the automation system or Aprilaire
mobile and web apps to use a single button
press to set the thermostat to a predefined
setpoint(s). The thermostat will hold the
setpoint(s) until Away is canceled with the
automation system or app or at the thermostat.
0: Disable
1: Enable
SYSTEM SETUP INSTRUCTIONS (CONTINUED)

14 15
SETUP & TESTING
System setting Description
Factory default setting (bold)
and setting range
27. Heat Blast Enables the Heat Blast®feature. The Heat Blast
feature is only available with the automation
system or Aprilaire mobile and web apps, and
will raise the current room temperature 3°F to
5°F based on the Blast Offset and then resume
normal operation. Heat Blast can be canceled
with the automation system or the Aprilaire
mobile and web apps, or at the thermostat.
0: Disable
1: Enable
28. Blast Offset Amount of heating when Heat Blast is initiated. 3°F (1.5°C)
3°F to 5°F (1.5°C to 2.5°C)
37. Stage Rate Accumulation of equipment run time in
equipment staging determination.
1 = more rapid staging of equipment (comfort).
5 = slower staging of equipment (economy).
2
1 to 5 or “OFF” to ignore accumulated
run time.
38. Progressive Recovery Enable or disable progressive recovery. 0: Disable
1: Enable
39. Low Balance Point Outdoor temperature low balance point.
Note: This option is only available if the outdoor
sensor is set to Installed or Automation.
20°F or -8°C
0°F to 60°F (-18°C to 12°C) or OFF to
ignore LBP
SYSTEM SETUP INSTRUCTIONS (CONTINUED)
SETUP & TESTING
System setting Description
Factory default setting (bold)
and setting range
40. High Balance Point Outdoor temperature high balance point.
Note: This option is only available if the outdoor
sensor is set to Installed or Automation.
65°F or 14.5°C
0°F to 80°F (-18°C to 22°C) or OFF to
ignore HBP
41. Program Format Enables the 7 day program. 0: 7-Day
1: Non-Prog
54. Change Air Filter Reminder The period displaying the Change Air Filter
reminder.
OFF
1 to 12 months
55. Change Water Panel
Reminder
The time until the first Change Water Pnl
message is displayed.
OFF
1 to 12 months
56. Humidifier Type Selects the type of humidifier. If humidifier type
is set to Drain-less, then the first reminder is
based on the system setting 55, the second
reminder will activate 3 months later. If
humidifier type is set to Flow through, then the
first reminder is based on system setting 55, the
second reminder will activate 12 months later.
0: Flow through type humidifier
(1 reminder per season)
1: Drain-less type humidifier
(2 reminders per season)
SYSTEM SETUP INSTRUCTIONS (CONTINUED)

16 17
SYSTEM TEST MODE
The system test mode is used to test a system after installation. The outputs of the thermostat can be manually
activated one at a time to test their function. The following instructions show how to enter the test mode and turn
outputs on and off. The charts on the following pages show the output status for each test step for Heat/Cool and
Heat Pump mode.
The test steps are:
SETUP & TESTING
Test Number Heat/Cool Heat Pump
50 Heating (W) (W2) Compressor Heating (Y) (Y2)
51 Aux Heating (W) (W2)
52 Cooling (Y) (Y2) Compressor Cooling (Y) (Y2)
53 Fan (G) Fan (G)
How to enter the system test menu
Press repeatedly until system is set to OFF.
Press and hold and for three seconds.
The screen of the first test step #50 is displayed:
Includes Event-Based™Air Cleaning
SYSTEM TEST MODE (CONTINUED)
SETUP & TESTING
Press to turn on the output (01). For multi stage
output, press again to turn on the 2nd stage (02).
Press to turn off the output (00).
Press to change to the next test step.
Press after the last test step. “DONE” will be
displayed.
The thermostat will return to Normal mode if no button is
pressed in 3 seconds.
SYSTEM TEST
NUMBER
OUTPUT STATUS
MODE
(SW1 SETTING)

18 19
SETUP & TESTING
Test steps for Heat/Cool
Step Key Input
System Setting Display (Output)
#07
01
HEATING
ON (W)
02
HEATING
ON (W2)
01
COOLING
ON (Y)
02
COOLING
ON (Y2)
01
FAN ON
(G)
#50 Heat
1st [UP] 0 : Gas ON
1 : Elec ON ON
2nd [UP] 0 : Gas ON ON
1 : Elec ON ON ON
[DOWN]
#52 Cool
1st [UP] ON ON
2nd [UP] ON ON ON
[DOWN]
#53 Fan [UP] ON
[DOWN]
Test steps for Heat Pump
Step Key Input
System Setting Display (Output)
#07 #03
01 AUX
HEATING
ON (W)
02 AUX
HEATING
ON (W2)
01
COOL/HEAT
ON (Y)
02
COOL/HEAT
ON (Y2)
01
FAN ON
(G)
O/B
#50 Heat
1st [UP] 0 : O ON ON
1 : B ON ON ON
2nd [UP] 0 : O ON ON ON
1 : B ON ON ON ON
[DOWN] 0 : O
1 : B ON
#51 Aux
1st [UP] 0 : Gas ON
1 : Elec ON ON
2nd [UP] 0 : Gas ON ON
1 : Elec ON ON ON
[DOWN]
#52 Cool
1st [UP] 0 : O ON ON ON
1 : B ON ON
2nd [UP] 0 : O ON ON ON ON
1 : B ON ON ON
[DOWN] 0 : O ON
1 : B
#53 Fan [UP] ON
[DOWN]
SETUP & TESTING

20 21
QUICK REFERENCE TO CONTROLS & DISPLAY THERMOSTAT FEATURES
• Remote access and control over Wi-Fi.
• Event-Based™Air Cleaning.
• Large, clear, backlit display is easy to read – even in the dark.
• Displays room temperature, temperature setting, and optional outdoor temperature.
• Built in compressor protection.
• Water panel and air filter service indicators.
• System test mode.
• 7 day programmability.
• Easy to use temperature control can override program schedule at any time.
• Progressive recovery. Progressive Recovery feature allows the thermostat to activate the heating and cooling
equipment prior to an event in order to reach the desired temperature at the start of the next scheduled event.
NOTE: BACKLIGHT IS ACTIVATED WITH FIRST BUTTON PRESS AND AUTOMATICALLY TURNS OFF.
Includes Event-Based™Air Cleaning
CURRENT INDOOR TEMPERATURE
SYSTEM MODE
SETTING
CLEAN AIR
SETTING
SYSTEM MODE
CLEAN AIR
CURRENT SCHEDULE PERIOD MESSAGE CENTER WI-FI SIGNAL STRENGTH
QUICK REFERENCE CARD
OUTDOOR TEMPERATURE (OPTIONAL)
TEMPERATURE SETTING
EQUIPMENT STATUS
INDICATORS SHOW THROUGH HOUSING
HEAT PUMP ONLY
EMERGENCY HEAT OR
AUXILIARY HEAT (RED)
SYSTEM FAULT (YELLOW)
MAINTENANCE REMINDER
(YELLOW FLASHING)
UP
DOWN
PROGRAM
COVER
HOLD
CURRENT TIME

22 23
TROUBLESHOOTING
DISPLAY IS BLANK
• Check circuit breaker and reset if necessary.
• Make sure power switch at heating & cooling
system is on.
• Make sure furnace door is closed securely.
TEMPERATURE SETTINGS DO NOT CHANGE
Make sure heating and cooling temperatures are set to
acceptable ranges:
• Heat: 40° to 90°F (4° to 32°C).
• Cool: 50° to 99°F (10° to 37°C).
HEATING SYSTEM DOES NOT RESPOND
(“HEATING” APPEARS ON SCREEN)
• Check for 24 VAC at the equipment on the secondary
side of the transformer between power and
common. If voltage is not present, check the heating
equipment to find the cause of the problem.
• Check for 24 VAC between the heat terminal (W)
and the transformer common. If 24 VAC is present,
the thermostat is functional. Check the heating
equipment to find the cause of the problem.
• Check for loose or broken wires between the
thermostat and the heating equipment.
TROUBLESHOOTING
COOLING SYSTEM DOES NOT RESPOND
(“COOLING” APPEARS ON SCREEN)
• Check for 24 VAC at the equipment on the secondary
side of the transformer between power and
common. If voltage is not present, check the cooling
equipment to find the cause of the problem.
• Check for 24 VAC between the cooling terminal (Y)
and the transformer common. If 24 VAC is present,
the thermostat is functional. Check the cooling
system to find the cause of the problem.
• Check for loose or broken wires between the
thermostat and the cooling equipment.
FAN DOES NOT TURN ON IN A CALL FOR HEAT
• Check System Setting #07 (Fan Control), to make
sure the fan control is properly set to match the type
of system (see page 12).
HEAT PUMP ISSUES COOL AIR IN HEAT MODE,
OR WARM AIR IN COOL MODE
• Check System Setting #03 (Reversing Valve), to make
sure it is properly configured for your system (see
page 11).
HEAT/COOL BOTH ON AT SAME TIME
• Check SW1 (Equipment Type), to make sure it is set
to match the installed heating/cooling equipment
(see page 10).
• Check to make sure heating and cooling wires are
not shorted together.
HEATING EQUIPMENT IS RUNNING IN
COOL MODE
• Check SW1 (Equipment Type), to make sure it is set
to match the installed heating/cooling equipment
(see page 10).
“HEATING” IS NOT DISPLAYED
• Change the System Mode to Heat, and set
the temperature level above the current room
temperature.
“COOLING” IS NOT DISPLAYED
• Change the System Mode to Cool, and set
the temperature level below the current room
temperature.

24
P.O. Box 1467 • Madison, WI 53701-1467 • Phone: [phone] • Fax: [phone]
www.aprilairepartners.com
B2207187A 2.17
U.S. Patent Numbers 8,146,376, 8,596,078 and other patents pending.
© 2017 Aprilaire – A division of Research Products Corporation
SPECIFICATIONS
Electrical
Operating voltage 24 VAC (18 – 30 VAC)
Current
Maximum: 2.5A (total),
1.0A (single output)
Maximum surge current: 5A
Environment
Temperature
Operating: 32° to 120°F
(0° to 48.9°C)
Shipping: -30° to 140°F
(-34.4° to 60°C)
Relative humidity Operating: 5% to 90% R.H.
(non-condensing)
Thermal
Outdoor temperature
sensor Maximum distance: 300 feet
Room temperature
measurement
Display range: 32° to 99°F
(0° to 40°C)
Outdoor temperature
measurement
Display range: -40° to 130°F
(-40° to 55°C)
Temperature setting
range
Heat: 40° to 90°F
(4° to 32°C)
Cool: 50° to 99°F
(10° to 37°C)
