APV Flowturn SLSG Series Instruction manual

SIGHT GLASS SLSG SERIES
www.australianpipelinevalve.com.au
INSTALLATION, OPERATION & MAINTENANCE MANUAL

View our catalogues at www.australianpipelinevalve.com.au
AUSTRALIAN PIPELINE VALVE BRAND RANGE -CATALOGUES
APV FAMILY OF BRANDS RANGE - CATALOGUES
COMPLETE
PRODUCT LINE
“Australian Pipeline Valve
produces isolation,
control and flow reversal
protection products for
severe and critical service
media in utility, steam,
pipelines, oil & gas
and process industries.
APV valves and pipeline
products form the most
competitive portfolio
in the market.”
Oilfield Products
Valves & Wellheads
Gate, Globe & Check
Valves - Forged Steel
Plug Valves Lubricated,
Sleeved & Lined
Gate, Globe & Check
Valves - Cast Steel
Diamond Gear
Gearboxes
Flowturn Gate, Globe
& Check Valves
Flowturn
Instrument Valves
Flowturn Ball Valves
Multiway & Deadman
Flowturn Strainers
& Sight Glasses
Supercheck
Wafer Check Valves
Superseal
Butterfly Valves
Steamco
Steam Valves
Superseal
Industrial Ball Valves
TwinLok Tube Fittings Uniflo Check ValvesTorqturn Actuators
Ball Valves Floating
& Trunnion Mounted
Ball Valves
Floating Small Bore
Ball Valves
Special Service
Product Brochure
Contact us for your local stockist/distributor

SIGHT GLASSES - SLSG SERIES
INDEX
Australian Pipeline Valve - Installation, Operation and Maintenance Manual 1
Introduction 2
Safety Information 3-4
1.0 Installation 5
1.1 Installation positions 5
1.2 Preparation for installation 5
1.3 Post-installation procedures 5
2.0 Handling 5-6
3.0 Operation 6
4.0 Maintenance During Operation 6-7
4.1 Leaking between sight glass body and sight glass cap 6-7
5.0 Disassembling Sight Glasses 7
6.0 Repair 7
6.1 Repairing the leak at the body-cap joint & replacing body gasket 7
7.0 Reassembly 8
8.0 Preventative Maintenance 8
9.0 Leakage Across Gasket 8
10.0 Major Maintenance 8-9
10.1 Gasket replacement 8
10.2 Sight Glass internals disassembly inspection repair 8-9
11.0 Pressure Temperature Rating 9
Appendix A - Bolting torque sequence 10

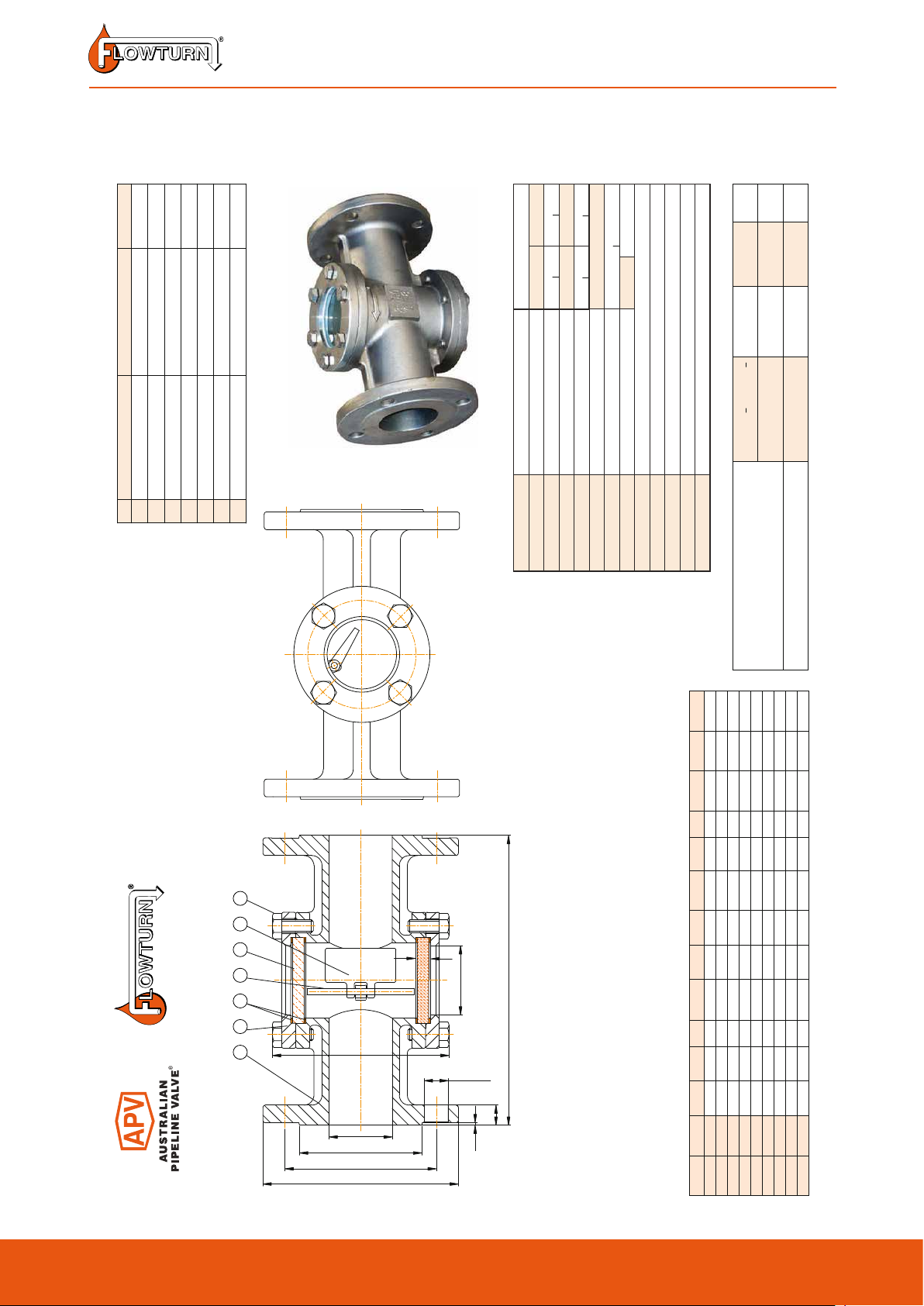

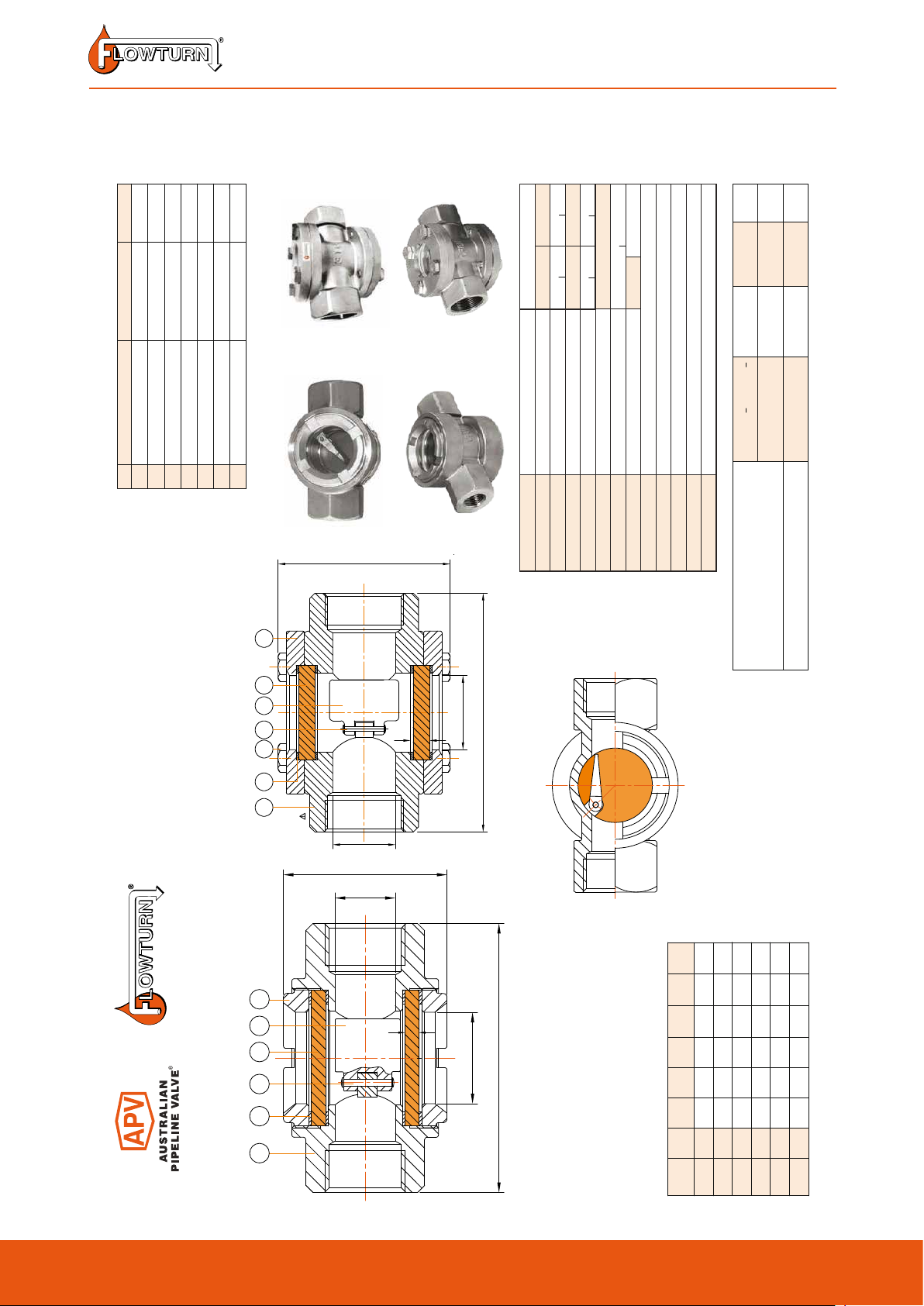

Appendix B - Drawings SLSG Series 11-14

SIGHT GLASSES - SLSG SERIES
Australian Pipeline Valve - Installation, Operation and Maintenance Manual2
INTRODUCTION
The majority of this information is common knowledge to experienced valve users. When properly
installed in applications for which they were designed, Flowturn valves will give long reliable service.
This instruction is only a guide for installation and operation on standard service and covers general
maintenance and minor repairs. A professional APV approved valve engineering facility should be utilised
for reconditioning or major repairs.
Note
We do recommend however that this entire document be read prior to proceeding
with any installation or repair. Australian Pipeline Valve and it’s parent company
take no responsibility for damage or injury to people, property or equipment. It is
the sole responsibility of the user to ensure only specially trained valve repair
experts perform repairs under the supervision of a qualified supervisor.
RESPONSIBILITY FOR SIGHT GLASS APPLICATION
The User is responsible for ordering the correct valves. The user is responsible for ensuring APV-Flowturn
Valves are selected and installed in conformance with the current pressure rating and design temperature
requirements. Prior to installation, the valves and nameplates should be checked for proper identification
to ensure the valve is of the proper type, material and is of a suitable pressure class and temperature
rating to satisfy the requirements of the service application.
Do not use sight glasses in applications where either the pressure or temperature is
higher than the allowable working values. Also sight glasses should not be used in
service media if not compatible with the sight glass material of construction, as this
will cause chemical attacks, leakage, valve failure.
RECEIVING INSPECTION AND HANDLING
Valves should be inspected upon receipt to ensure:
- Conformance with all purchase order requirements.
- Correct type, pressure class, size, body and trim materials and end connections.
- Any damage caused during shipping and handling to end connections, hand wheel or stem.
The User is advised that specifying an incorrect valve for the application may result
in injuries or property damage. Selecting the correct valve type, rating, material
and connections, in conformance with the required performance requirements is
important for proper application and is the sole responsibility of the user.

SIGHT GLASSES - SLSG SERIES
Australian Pipeline Valve - Installation, Operation and Maintenance Manual 3
SAFETY INFORMATION
The following general safety information should be taken in account in addition to the specific warnings
and cautions specified in this manual. They are recommended precautions that must be understood and
applied during operation and maintenance of the equipment covered in this I.O.M.
To avoid injury, never attempt disassembly while there are pressures either
upstream or downstream. Caution is necessary to avoid possible injury.
To prevent bending, damage, inefficient operation, or early maintenance problems,
support piping on each side of the sight glass.
• A sight glass is a pressurised mechanism containing energised fluids under pressure
and consequently should be handled with appropriate care.
• Valve surface temperature may be dangerously too hot or too cold for skin contact.
• Upon disassembly, attention should be paid to the possibility of releasing
dangerous and or ignitable accumulated fluids.
• Ensure adequate ventilation is available for service.
This manual provides instructions for storing, general servicing, installation and removal of SLSG Series
Sight Glasses.
APV and it’s resellers refuse any liability for damage to people, property or plant as well as loss of
production and loss of income under any circumstances but especially if caused by: Incorrect installation
or utilisation of the valve or if the valve installed is not fit for intended purpose. It is the sole
responsibility of the user to ensure the valve type and materials are correctly specified.

SIGHT GLASSES - SLSG SERIES
Australian Pipeline Valve - Installation, Operation and Maintenance Manual4
DURING OPERATION TAKE INTO ACCOUNT THE FOLLOWING WARNINGS:
a- Graphite body gaskets are very brittle, any impacting, twisting or bending should be avoided. PTFE
gaskets must not have any scrathes to surface.
b- The sight glass’s internal parts such as flow indicator, pin & gasket shall be handled with care.
c- All tools and equipment for handling the internal parts shall be soft coated.
d- Valves can be fitted with gaskets or seals in PTFE, Buna, EPDM, NBR, Viton, etc., hence chemicals or high
temperatures will damage sealing components.
For all operations make reference to position number on part list of the applicable drawing listed.
Bonnet seal could result in personal injury. Bonnet is tightened prior to shipping but
may require replacement seal or tightening to meet specific service conditions.
Personal injury may result from sudden release of any process pressure. APV
recommends the use of protective clothing, gloves and eye wear when performing
any installation or maintenance.
Isolate the sight glass from the system and relieve pressure prior to performing
maintenance.
Disconnect any operating line providing air pressure, control signals or electrical
power to actuators.
If a gasket seal is disturbed while removing or adjusting gasketed parts, APV
recommends installing a new gasket while reassembling. A proper seal is required
to ensure optimum operation.

SIGHT GLASSES - SLSG SERIES
Australian Pipeline Valve - Installation, Operation and Maintenance Manual 5
1.0 INSTALLATION
Piping should be properly aligned and supported to reduce mechanical loading on
the end connections.
1.1 INSTALLATION POSITIONS
Sight valves fitted with flow indicators are uni-directional, the direction of flow will be indicated on the
valve body. Sight glasses with indicators should be used for horizontal lines with the bonnet facing up,
and vertical lines where the direction of flow as indicated on the valve body is upwards.
1.2 PREPARATION FOR INSTALLATION
• Remove protective end caps or plugs and inspect valve ends for damage to flange faces.
• Thoroughly clean adjacent piping system to remove any foreign material that could cause damage to
seating surfaces during valve operation.
• Verify that the space available for installation is adequate to allow the valve to be installed and to be
operated.
1.3 POST-INSTALLATION PROCEDURES
After installation, the line should be cleaned by flushing to remove any foreign material. When caustics
are to be used to flush the line, additional flushing with clean water is required. The valve should be
tested after installation to ensure proper operating function.
With the line pressurised, check the valve end connections, body to bonnet/cover joints and plugs for
leaks.
2.0 HANDLING
1. Take care in handling sight glasses especially the sealing faces.
2. Make sure that piping and equipment is clean of dust, rust and pipeline scale. Clean all adjoining pipe
and fittings. Remove end protector covers from the valves immediately prior to installation. Blow
compressed air inside the valves to remove residual dust, dirt, etc., from inside the sight glasses as this
could hamper the valves functioning and could also damage the seats.
3. Make bonnet joints tight but do not overstress them. Always tighten in a diagonal pattern, gradually
increasing torque settings. Refer to Appendix A, Diagram 1.
4. Install sight glasses in the connecting piping so that the arrow mark on the valve body coincides with
the flow direction in the pipe.
5. After installation it is advisable to once again flush the piping. Check carefully for visible leaks if any
and tighten bonnet nuts accordingly.

SIGHT GLASSES - SLSG SERIES
Australian Pipeline Valve - Installation, Operation and Maintenance Manual6
6. If the leakage still persists change the bonnet gasket.
Proper safety equipment and apparel should be worn when preparing to service the
sight glass.
3.0 OPERATION
The sight glass operation is automatic and requires no assistance. When the flow exerts sufficient
pressure against the disc to overcome the flow indicator’s weight, the disc allows the flow to continue
through the piping system.
Flow indicators do not act as check valves.
4.0 MAINTENANCE DURING
OPERATION
The sight glass may experience leakage after a certain period of operation; maintenance should be
performed as follows:
4.1 LEAKING BETWEEN SIGHT GLASS BODY AND SIGHT GLASS CAP
After a period of operation, the tightening force between the sight glass body and sight glass cap could
become weaker, resulting in less pressure against the gasket and therefore a leak.
Adequately tighten the bolts connecting the cap to the body with a proper wrench, so as to enhance the
sealing effect of the gasket between the cap and the body by increasing the pressure and therefore
stopping the leak. Refer to Appendix A for bolting torques. For screwed bonnet deisng, utilise tightening
lugs on bonnet. If there is still a leak replace the bonnet gaskets.

SIGHT GLASSES - SLSG SERIES
Australian Pipeline Valve - Installation, Operation and Maintenance Manual 7
Personal injury may result from sudden release of any process pressure. APV
recommends the use of protective clothing, gloves and eye wear when performing
any installation or maintenance.
Isolate the sight glass from the system and relieve pressure prior to performing
maintenance.
Disconnect any operating line providing air pressure, control signals or electrical
power actuators.
5.0 DISASSEMBLING SIGHT
GLASSES
1. Check that the line is in a complete shut down phase.
2. Pre-order all necessary jointing gaskets and parts.
3. Check to ensure the flow indicator is functioning correctly.
4. If the bolts and nuts are too tight, apply deep penetrating oil and then unscrew.
6.0 REPAIR
After a certain period of operation, the the product still leaks after the above mentioned maintenance,
repair should be performed as follows:
6.1 REPAIRING THE LEAK AT THE BODY-CAP JOINT & REPLACING BODY GASKET
Dis-assembly
a. Remove stud bolts joining the body and cap (or unscrew the bonnet in the case of screwed bonnet
version).
b. Remove the gasket
c. Remove the sight glass
d. Remove the gasket
Assembly
a. Place the new gasket in position; ensure that the gasket is smoothly placed.
b. Place the sight glass onto the gasket.
c. Place the new gasket onto the glass; ensure that the gasket is smoothly placed.
d. Place the cap onto the body and tighten the stud bolts.

SIGHT GLASSES - SLSG SERIES
Australian Pipeline Valve - Installation, Operation and Maintenance Manual8
7.0 REASSEMBLY
1. Re-assemble in reverse order of disassembly.
2. Refer Appendix A for bonnet bolt re-tightening procedure and torques.
8.0 PREVENTATIVE MAINTENANCE
Sight glasses require virtually no maintenance but ensure during normal functioning the flow indicator is
not hammering or slamming.
9.0 LEAKAGE ACROSS GASKET
Should any bonnet gasket leaks occur, tighten the bolts/nuts & studs (refer Diagram 1, Appendix A). If
leakage still persists, the bonnet gasket should be changed, refer to 10.1 below.
10.0 MAJOR MAINTENANCE
Only an expert valve re-conditioner should attempt the following major maintenance/repairs.
Sight glasses require very little maintenance. Generally, the only viable repairs are replacement of bonnet
gasket. However, see below for further extraordinary repairs.
Always replace the bonnet gasket whenever a sight glass is disassembled. Gasket seating surfaces should
be scraped clean (avoid radial marks). Bonnet bolts should be tightened in a diagonal pattern at several
different increasing torque settings in accordance with the recommended torque value (see Diagram 1,
Appendix A).
10.1 GASKET REPLACEMENT
1. Disassemble all cover bolts and nuts (or unscrew if a screwed bonnet).
2. The bonnet should be easy to remove without the aid of a mechanical lifting device. Gently break the
seal with a lever, gradually lifting the bonnet flange at intervals 360° around the bonnet.
3. Clean gasket surface areas, replace gasket and refit bonnet as detailed in 10.0 above.
10.2 SIGHT GLASS INTERNALS DISASSEMBLY INSPECTION AND REPAIR
1. Check that the (where applicable) hinge pin, nut and sight flow indicator are in good condition and
firmly connected. Replace damaged parts as necessary.
2. Lift and remove the sight flow indicator assembly. Movement should be free and not hindered by any

SIGHT GLASSES - SLSG SERIES
Australian Pipeline Valve - Installation, Operation and Maintenance Manual 9
malfunction of the hinge pin. Where sight flow indicator travel is not sufficiently smooth, remove hinge
pin. Fit a new hinge pin and indicator.
11.0PRESSURE TEMPERATURE
RATING
Flange & Body Rating Refer to Pressure/temperature rating of supplied standard anging and
pressure rating of glass (see as-built drawing, see Appendix A)
Working temperature* -20ºC ~ 200ºC (-4ºF ~ 392ºF)
*PTFE bonnet gasket 200ºC maximum
The glass will down-rate the pressure rating.

SIGHT GLASSES - SLSG SERIES
Australian Pipeline Valve - Installation, Operation and Maintenance Manual10
APPENDIX A
DIAGRAM 1
Bolting torque sequence: 1 – 2 – 3 – 4 – 5 – 6 – 7 - 8
Example only, number of bolts will vary, apply the same criss cross process, gradually tightening more after each revolution.
BOLTING TORQUES
NPS DN
Bolt
N-m in/lb
1/2” 15 35 310
3/4” 20 35 310
1” 25 35 310
1 1/4” 32 45 398
1 1/2” 40 45 398
2” 50 50 443
2 1/2” 65 50 443
3” 80 50 443
4” 100 55 487
5” 125 65 575
6” 150 65 575
8” 200 80 708

SIGHT GLASSES - SLSG SERIES
Australian Pipeline Valve - Installation, Operation and Maintenance Manual 11
www.australianpipelinevalve.com.au
1 3 4 265
H
d
K
L
15NB ~ 25NB
Top View
K1
L
øK
K1
H
1 1/4” ~ 2”
26 5
47
31
ød
32NB ~ 50NB
15NB ~ 25NB 32NB ~ 50NB
BILL OF MATERIALS
Dimensions in millimeters
Screwed End Sight Glass,
Model SLSGSS-S,
NPS 1/2” ~ 1” (DN15~DN25) 1378 kPa
(200 PSI) WOG
ORDER No/ DWG No
REV.
APPROVED
CHECKED
DRAWN
43 00
NO. PART NAME MATERIAL NOTES
1
2
3
4
5
6
BODY
CAP
GASKETS (4) STEM
GLASS
INDICATOR
ASTM A351 CF8M ASTM A351 CF8M
PTFE SUS316
BOROSILICATE GLASS ASTM A351 CF8M
DIMENSIONS (MM) & WEIGHT (KG)
DN d L H K
15
20
25
40 50
15 112 68 38
20 112 68 38
25 112 68 38
40 145 110 45
50 168 131 55
APV DWG FRM 43
-
- - - - -
Australian Pipeline Valve
B.T.
S.Q.
C.C.
Inch
1/2”
3/4”
1”
1 1/2”
2”
Weight
2.5
2.6
3.6
7
10
RATING DESIGN & MFG. PRESS-TEMP RATING FACE TO FACE DIM. TEST & INSPECTION PORT SIZE TRIM END CONNECTION END DIMENSION MARKING & PAINT OTHER REQ. NOTES OTHER
1378 kPa / 200 PSI CWP
ASME B16.34
SEE TABLE
MFG STANDARD
API 598/ISO 5208
FULL
316
BSPT OR NPT
BS21/ ISO7-1-RC (AS1722.1) BSPT OR ASME B1.20.1 NPT
MSS SP-25 PICKLED &PASSIVATED
INVESTMENT CAST BODY DOUBLE SIDED
TEST PRESSURE
SHELL HYDRO SEAT HYDRO
SEAT AIR BACKSEAT
TEMPERATURE
MEDIUM Water, Oil, Gas
ºC
MAX 200
ºF
MAX 392
Mpa Psi
Mpa Psi
Mpa Psi Mpa Psi
2.07 300
32 32 145 110 45
1 1/4” 5
7BOLT A2-70 (304 SS) 32~50 NB
K1
10
10
10
10
10
10
SLSG SERIES - SCREWED ENDS

SIGHT GLASSES - SLSG SERIES
Australian Pipeline Valve - Installation, Operation and Maintenance Manual12
www.australianpipelinevalve.com.au
63 4 521 7
øD
øC
øG
ød
H
f
T
N-øM
L
d1
K
BILL OF MATERIALS
Dimensions in millimeters
Sight Glass,
Model SLSG150CS-L2,
NPS 1/2”~4” (DN15~DN100) Class 150,
Flanged End
ORDER No/ DWG No
REV.
APPROVED
CHECKED
DRAWN
660
00
NO. PART NAME MATERIAL NOTES
1
2
3
4
5
6
BODY
CAP
GASKETS (4) HINGE PIN
GLASS WINDOW
INDICATOR
ASTM A216 WCB ASTM A216 WCB
PTFE SUS316
BOROSILICATE GLASS ASTM A351 CF8M
DIMENSIONS (MM) & WEIGHT (KG)
APV DWG FRM 660
-
- - - - -
Australian Pipeline Valve
B.T.
S.Q.
C.C.
RATING DESIGN & MFG. PRESS-TEMP RATING FACE TO FACE DIM. END DIMENSION END CONNECTION TEST & INSPECTION MARKING & PAINT OTHER REQ. PORT SIZE TRIM NOTES OTHER
CL 150 BODY/FLANGES
ASME B16.34 (WALL)
ASME B16.34
DIN 3202-F1
ASME B16.5
RF 3.2~6.3Ra (125~250AARH)
API 598/ISO 5208
MSS-SP25, PAINT PPWF07.002
1960 KPA CWP (285 PSI) BODY &GLASS P/T ASME B16.34
FULL
316
INVESTMENT CAST BODY DOUBLE SIDED FLOW INDICATOR
TEST PRESSURE
SHELL HYDRO GLASS HYDRO
SEAT AIR BACKSEAT
TEMPERATURE
MEDIUM Water, Oil, Gas
ºC
MAX 200
ºF
MAX 392
Mpa Psi
Mpa Psi
Mpa Psi Mpa Psi
2.16 313
7BOLT SUS304 8.8 ZINC PLATED
Inch DN d d1 L H D C G f T N-M Weight
1/2” 3/4”
1”
1 1/4” 1 1/2”
2”
2 1/2”
3” 4”
15 20 25 32 40 50 65 80
100
15 20 25 32 40 50 65 80
100
35 35 35 55 55 55 85 85
110
130 150 160 180 200 230 290 310 350
115 115 115 143 143 143 185 196 228
89 98
108 117 127 152 178 190 229
60.5 70.0 79.5 89.5 98.5
120.5 139.5 152.5 190.5
35 43 51 64 73 92
105 127 157
1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6
11.1 11.1 11.1 12.7 14.3 15.9 17.5 19.1 23.9
4-16 4-16 4-16 4-16 4-16 4-19 4-19 4-19 8-19
3.0 4.0 5.6 6.8 9.0
11.0 14.0 19.0 25.0
K
10 10 10 10 10 10 12 12 15
*BOROSILICATE GLASS RATED TO 1960 KPA CWP
SLSG SERIES (15NB ~ 100NB)

SIGHT GLASSES - SLSG SERIES
Australian Pipeline Valve - Installation, Operation and Maintenance Manual 13
www.australianpipelinevalve.com.au
63 4 521 7
øD
øC
øG
ød
H
f
T
N-øM
L
d1
K
BILL OF MATERIALS
Dimensions in millimeters
Sight Glass,
Model SLSG150CS-L2,
NPS 5”~6” (DN125~DN150) Class 150,
Flanged End
ORDER No/ DWG No
REV.
APPROVED
CHECKED
DRAWN
661
00
NO. PART NAME MATERIAL NOTES
1
2
3
4
5
6
BODY
CAP
GASKETS (4) HINGE PIN
GLASS WINDOW
INDICATOR
ASTM A216 WCB ASTM A216 WCB
PTFE SUS316
BOROSILICATE GLASS ASTM A351 CF8M
DIMENSIONS (MM) & WEIGHT (KG)
APV DWG FRM 661
-
- - - - (1)
Australian Pipeline Valve
B.T.
S.Q.
C.C.
RATING DESIGN & MFG. PRESS-TEMP RATING FACE TO FACE DIM. END DIMENSION END CONNECTION TEST & INSPECTION MARKING & PAINT OTHER REQ. PORT SIZE TRIM NOTES OTHER
CL 150 BODY/FLANGES
ASME B16.34 (WALL)
ASME B16.34
DIN 3202-F1
ASME B16.5
RF 3.2~6.3Ra (125~250AARH)
API 598/ISO 5208
MSS-SP25, PAINT PPWF07.002
*1600 KPA MAXIMUM CWP BOROSILICATE GLASS
FULL
316
INVESTMENT CAST BODY DOUBLE SIDED FLOW INDICATOR
TEST PRESSURE
SHELL HYDRO GLASS HYDRO
SEAT AIR BACKSEAT
TEMPERATURE
MEDIUM Water, Oil, Gas
ºC
MAX 200
ºF
MAX 392
Mpa Psi
Mpa Psi
Mpa Psi Mpa Psi
2.16 313 * *
7BOLT SUS304 8.8 ZINC PLATED
Inch DN d d1 L H D C G f T N-M Weight
5” 6”
125 150
125 150
135 160
400 480
268 310
254 279
216.0 241.5
186 216
1.6 1.6
23.9 25.4
8-22 8-22
30.0 48.0
K
15 18
(1) 200ºC MAXIMUM
*1600 KPA MAXIMUM COLD WORKING PRESSURE BOROSILICATE GLASS, BODY IS FULL ANSI 150 RATED B16.34
SLSG SERIES (125NB ~ 150NB)

SIGHT GLASSES - SLSG SERIES
Australian Pipeline Valve - Installation, Operation and Maintenance Manual14
www.australianpipelinevalve.com.au
63 4 521 7
øD
øC
øG
ød
H
f
T
N-øM
L
d1
K
BILL OF MATERIALS
Dimensions in millimeters
Sight Glass,
Model SLSG150CS-L2,
NPS 8” (DN200) Class 150,
Flanged End
ORDER No/ DWG No
REV.
APPROVED
CHECKED
DRAWN
662
00
NO. PART NAME MATERIAL NOTES
1
2
3
4
5
6
BODY
CAP
GASKETS HINGE PIN
GLASS WINDOW
INDICATOR
ASTM A216 WCB ASTM A216 WCB
PTFE SUS316
BOROSILICATE GLASS ASTM A351 CF8M
APV DWG FRM 662
-
- - - - -
Australian Pipeline Valve
B.T.
S.Q.
C.C.
RATING DESIGN & MFG. PRESS-TEMP RATING FACE TO FACE DIM. END DIMENSION END CONNECTION TEST & INSPECTION MARKING & PAINT OTHER REQ. PORT SIZE TRIM NOTES OTHER
CL 150* BODY/FLANGES
ASME B16.34 (WALL)
ASME B16.34
DIN 3202-F1
ASME B16.5
RF 3.2~6.3Ra (125~250AARH)
API 598/ISO 5208
MSS-SP25, PAINT PPWF07.002
*1378 KPA MAX CWP BOROSILICATE GLASS
FULL
316
INVESTMENT CAST BODY DOUBLE SIDED FLOW INDICATOR
TEST PRESSURE
SHELL HYDRO GLASS HYDRO
SEAT AIR BACKSEAT
TEMPERATURE
MEDIUM Water, Oil, Gas
ºC
MAX 200
ºF
MAX 392
Mpa Psi
Mpa Psi
Mpa Psi Mpa Psi
2.16 313 * *
7BOLT SUS304 8.8 ZINC PLATED
DIMENSIONS (MM) & WEIGHT (KG)
Inch DN d d1 L H D C G f T N-M Weight
8” 200 200 200 600 400 343 298.5 270 1.6 28.6 8-22 75.0
K
19
*1378 KPA MAXIMUM COLD WORKING PRESSURE BOROSILICATE GLASS, BODY IS FULL ANSI 150 RATED B16.34
SLSG SERIES (200NB)

NOTES
Australian Pipeline Valve - Installation, Operation and Maintenance Manual

NOTES
Australian Pipeline Valve - Installation, Operation and Maintenance Manual

NOTES
Australian Pipeline Valve - Installation, Operation and Maintenance Manual
© Copyright Australian Pipeline Valve 1990 - 2021 Edition
Catalogues, photos, brochures and technical publications are the exclusive property of Australian Pipeline Valve.
Any unauthorised reproduction in total or in part, shall result in prosecution. Products and data sheets in this publication are subject
to change at anytime without notice. Australian Pipeline Valve reserves the right to carry out amendments to products and materials.

www.australianpipelinevalve.com.au
AUSTRALIAN PIPELINE VALVE® HEAD OFFICE
70-78 Stanbel Road Salisbury Plain South Australia 5109 Telephone [phone] Fax [phone]
email: [e-mail]
If you have any requirements in the field of valves, please contact us for a prompt response. Continuous development of Australian Pipeline Valve products
may necessitate changes in the design or manufacture process. Australian Pipeline Valve reserves the right to effect any such changes without prior notice.
© Australian Pipeline Valve 1990 - 2021 Edition
LOCAL DISTRIBUTOR/AGENT
IOM Flowturn Sight Glass
ADELAIDE • BRISBANE • PERTH
•
T
h
o
u
s
a
n
d
s
o
f
S
u
c
c
e
s
s
f
u
l
I
n
s
t
a
l
l
a
t
i
o
n
s
W
o
r
l
d
-
W
i
d
e
s
i
n
c
e
1
9
8
9
