INSTALLATION
AND
OPERATING
INSTRUCTIONS
INTENDED FOR OTHER THAN HOUSEHOLD USE
Models: DMXS-H
DMXS-S
DMXD-H
DMXD-S
RETAIN THIS MANUAL FOR FUTURE REFERENCE
UNIT MUST BE KEPT CLEAR OF COMBUSTIBLES AT ALL TIMES
P/N 8817100 1/06
1
RACER MERCHANDISERS
APW WYOTT
1938 Wyott Drive
Cheyenne, WY 82007
This equipment has been engineered to provide you with year-round dependable service when used
according to the instructions in this manual and standard commercial kitchen practices.
Initial heating of appliance may generate smoke or fumes and must be done in a well ventilated area.
Overexposure to smoke or fumes may cause nausea or dizziness.
FOR YOUR SAFETY: Do not store or use gasoline or other flammable vapors and
liquids in the vicinity of this or any other appliance. !!
WARNING: Improper installation, adjustment, alteration, service or maintenance can
cause property damage, injury or death. Read the Installation, Operating and
Maintenance Instructions thoroughly before installing or servicing this equipment. !!
ANSI/NSF4

TABLE OF CONTENTS
SECTION ITEM PAGE
1 Important Safety Instructions
2 Installation
3 Operation
4 Electrical Specifications & Diagrams
3
4
All Models 4
Location 4
4
Unit Dimensions 5
Plug/Cordset Configuration 5
6
Wiring Diagram 120V Units, DMXS-30 thru 42 7
Wiring Diagram 120V Units, DMXS-48 thru 60 7
Wiring Diagram 120V Units, DMXD-30 thru 42 8
Wiring Diagram 120V Units, DMXD-48 thru 60 9
Wiring Diagram 240V Units, 50Hz 10
11
General 11
Cleaning 11
Display Light Replacement 11
11
Stainless Steel Dividers 11
12
DMXS-H 12
DMXS-S 14
DMXD-H 16
DMXD-S 18
20
5 Maintenance
6 Accessories
7 Parts Lists w/Exploded Views
8 Warranty
!WARNING: This symbol refers to a potential hazard or unsafe practice, which could result in
serious injury or death. !
!
!DANGER: This symbol warns of imminent hazard which will result in serious injury or death.
!
!CAUTION: This symbol refers to a potential hazard or unsafe practice, which may result in minor or
moderate injury or product or property damage.
!
!NOTICE: This symbol refers to information that needs special attention or must be fully understood
even though not dangerous.
IMPORTANT FOR FUTURE REFERENCE: Please complete this information and retain this manual for the life
of the equipment. For Warranty Service and/or Parts, this information is required.
Model Number: Serial Number: Date Purchased:
APW Wyott takes pride in the design and quality of our products. When used as intended and with proper
care and maintenance, you will experience years of reliable operation from this equipment. To ensure best
results, it is important that you read and follow the instructions in this manual carefully.
Installation and start-up should be performed by a qualified installer who thoroughly read, understands and
follows these instruction.
If you have questions concerning the installation, operation, maintenance or service of this product, contact
APW Wyott Foodservice Equipment Company’s “ Technical Service Department”.
Before installing and operating this equipment be sure everyone involved in its operation are fully trained
and are aware of all precautions. Accidents and problems can result by a failure to follow fundamental rules
and precautions.
The following words and symbols, found in this manual, alert you to hazards to the operator, service
personnel or the equipment. The words are defined as follows:
SAFETY PRECAUTIONS
2

1. IMPORTANT SAFETY INSTRUCTIONS
!
!
WARNING: Genuine APW Wyott Replacement Parts are specified to operate safely in the
environments in which they are used. Some aftermarket or generic replacement parts do not have
the characteristics that will allow them to operate safely in APW Wyott equipment. It is essential to
use APW Wyott Replacement Parts when repairing APW Wyott equipment. Failure to use APW
Wyott Replacement Parts may subject operators of the equipment to hazardous electrical voltage,
resulting in electrical shock or burn.
!
!WARNING: This product has no “user” serviceable parts. To avoid damage to the unit or injury to
personnel, use only Authorized APW Wyott Service Agents and genuine APW Wyott Parts when
service is required..
!
!WARNING: If service is required on this unit, contact your authorized APW Wyott Service Agent, or
contact theAPW Wyott Service Department directly at [phone] or [phone]; fax (214)
565-0976.
!
!
WARNING: Plug unit into a properly grounded electrical outlet of the correct voltage, size and plug
configuration. If the plug and receptacle do not match, contact a qualified electrician to determine
the proper voltage and size and install the proper electrical outlet.
!
WARNING: Unit is not waterproof. DO NOT submerge in water. Do not operate if it has been
submerged in water.
!
!
IMPORTANT: Read the following important safety instructions to avoid personal injury or
death, and to avoid damage to the equipment or property.
!
!
!
WARNING: To avoid any injury, turn the power switch off at the fuse disconnect switch/circuit
breaker or unplug the unit from the power source and allow to cool completely before performing
any maintenance or cleaning.
!
WARNING: To avoid electrical shock, always unplug the unit before performing cleaning or
maintenance.
!
!
!WARNING: Do not place food product directly onto hardcoat surface. Food product must be
wrapped, boxed or on a food pan.
!
WARNING: To avoid electrical shock or personal injury, do not steam clean or use excessive water
on the unit.
!
!
!WARNING: Only light bulbs which meet or exceed N.S.F. Standards, specifically designed for food
holding areas must be used. Breakage of light bulbs not specially coated could result in personal
injury and/or food contamination.
!
!CAUTION: Some exterior surfaces on the unit will get hot. Use caution when touching these areas
to avoid injury.
!
CAUTION: Locate the unit at the proper counter height, in an area that is convenient for use. The
location should be level to prevent the unit or it’s contents from accidentally falling, and strong
enough to support the weight of the unit and food.
!
!
!
CAUTION: The National Sanitation Foundation (NSF) requires that units over 36” (91 cm) in length
or weighing more than 80 lbs. (36 kg) to be either sealed or raised on the installation surface. If this
unit cannot be sealed at the point of use, 4” (10 cm) legs are included to allow for proper cleaning
access below unit.
!
!CAUTION: Use only non-abrasive cleaners. Abrasive cleaners could scratch the finish of your unit,
marring it’s appearance and making it susceptible to dirt accumulation.
!
!CAUTION: Only soft cleaning cloths should be used to clean breath protector(s). Breath
protector(s) are made of shatterproof polycarbonate and will scratch if proper care is not taken.
3

2. INSTALLATION
ALL MODELS
LOCATION
All APW/Wyott Racer Merchandisers are shipped with most components pre-assembled. Care should be
taken when unpacking shipping carton to avoid damage to unit and components enclosed.
1. Remove unit from box.
2. Remove information packet.
3. Remove tape and protective packaging from all surfaces of unit.
4. The unit is supplied with product divider bars. To install them, simply place the bars in the
channels provided. The bars can be readily adjusted to separate your holding areas as
needed.
For proper operation and maximum performance, locate the Racer Merchandiser in an area where the
ambient air temperature is constant and is a minimum of 70°F (21°C). Areas which are susceptible to active
air movements or currents should be avoided, i.e. near exhaust fans or hoods and air conditioning ducts.
NOTE: The unit must be transported in the upright position.
The data plate for the unit is located on the bottom of the unit near the power cord. Check the voltage
requirements on the data plate. Connect the unit only the the voltage configuration specified on the data
plate.
3. OPERATION
The Racer Merchandiser’s power is controlled by the ON/OFF toggle switch.
The switch must
be on the ON position for the unit to function.
The thermostatically controlled base and rear overhead element can be set to any desired heating level as
indicated on the control plate.
NOTE: Main power switch must be in the ON position for the heated base to function.
For units with two shelves
there are two toggle switches, one for each shelf. You can power the shelves independently.
!
!CAUTION: Some exterior surfaces on the unit will get hot. Use caution when touching these areas
to avoid injury.
!
!WARNING: Do not place food product directly onto hardcoat surface. Food product must be
wrapped, boxed or on a food pan.
!
CAUTION: Locate the unit at the proper counter height, in an area that is convenient for use. The
location should be level to prevent the unit or it’s contents from accidentally falling, and strong
enough to support the weight of the unit and food.
!
!
!
CAUTION: The National Sanitation Foundation (NSF) requires that units over 36” (91 cm) in length
or weighing more than 80 lbs. (36 kg) to be either sealed or raised on the installation surface. If this
unit cannot be sealed at the point of use, 4” (10 cm) legs are included to allow for proper cleaning
access below unit.
CE Provision for Earthing
Provision for Earthing is located at the rear of the unit. It is designated by this symbol
and provides means of earthing terminals to be properly secured to the frame of the
unit. Earthing terminals shall not be connected to the neutral terminal. External
bonding conductors connected to earthing terminals shall be 2.5 mm to 6 mm in
diameter.
22
4

BS 1363
CEE 7/7 Schuko
NEMA 5-15P
NEMA 14-20P
NEMA 5-20P
PLUG/CORDSET CONFIGURATION
The Model Numbers And What They Mean:
DMX is just the model name. The "S" or the "D" after the DMX stands for Single shelf or Double shelf. The
number after the first part of the model number is the complete width of the countertop area. The (H) after the
number stands for Horizontal units. The (S) after the number stands for Slanted units.
DMX UNIT DIMENSIONS
DMX RACER MERCHANDISERS
DMXS-30H
DMXS-36H
DMXS-42H
DMXS-48H
DMXS-54H
DMXS-60H
DMXD-30H
DMXD-36H
DMXD-42H
DMXD-48H
DMXD-54H
DMXD-60H
30"
36"
42"
48"
54"
60"
30"
36"
42"
48"
54"
60"
18"
18"
18"
18"
18"
18"
29"
29"
29"
29"
29"
29"
27.25"
27.25"
27.25"
27.25"
27.25"
27.25"
27.25"
27.25"
27.25"
27.25"
27.25"
27.25"
DMXS-30S
DMXS-36S
DMXS-42S
DMXS-48S
DMXS-54S
DMXS-60S
DMXD-30S
DMXD-36S
DMXD-42S
DMXD-48S
DMXD-54S
DMXD-60S
30"
36"
42"
48"
54"
60"
30"
36"
42"
48"
54"
60"
22.125"
22.125"
22.125"
22.125"
22.125"
22.125"
33.312"
33.312"
33.312"
33.312"
33.312"
33.312"
27.25"
27.25"
27.25"
27.25"
27.25"
27.25"
27.25"
27.25"
27.25"
27.25"
27.25"
27.25"
MODEL # WIDTH HEIGHT DEPTH MODEL # WIDTH HEIGHT DEPTH
USA Canada
Model Voltage USL CNL Voltage Voltage
DMXS-30S 120 5-15 5-15 220 CEE7/7 SCHUKO 240 BS-1363
DMXS-30H 120 5-15 5-15 220 CEE7/7 SCHUKO 240 BS-1363
DMXD-30S 120 5-15 5-15 220 CEE7/7 SCHUKO 240 BS-1363
DMXD-30H 120 5-15 5-15 220 CEE7/7 SCHUKO 240 BS-1363
DMXS-36S 120 5-15 5-15 220 CEE7/7 SCHUKO 240 BS-1363
DMXS-36H 120 5-15 5-15 220 CEE7/7 SCHUKO 240 BS-1363
DMXD-36S 120 5-15 5-20 220 CEE7/7 SCHUKO 240 BS-1363
DMXD-36H 120 5-15 5-20 220 CEE7/7 SCHUKO 240 BS-1363
DMXS-42S 120 5-15 5-15 220 CEE7/7 SCHUKO 240 BS-1363
DMXS-42H 120 5-15 5-15 220 CEE7/7 SCHUKO 240 BS-1363
DMXD-42S 120 5-20 5-30 220 CEE7/7 SCHUKO 240 BS-1363
DMXD-42H 120 5-20 5-30 220 CEE7/7 SCHUKO 240 BS-1363
DMXS-48S 120 5-15 5-15 220 CEE7/7 SCHUKO 240 BS-1363
DMXS-48H 120 5-15 5-15 220 CEE7/7 SCHUKO 240 BS-1363
DMXD-48S 120/208 14-20 14-20 220 CEE7/7 SCHUKO 240 BS-1363
DMXD-48H 120/208 14-20 14-20 220 CEE7/7 SCHUKO 240 BS-1363
DMXS-54S 120 5-15 5-15 220 CEE7/7 SCHUKO 240 BS-1363
DMXS-54H 120 5-15 5-15 220 CEE7/7 SCHUKO 240 BS-1363
DMXD-54S 120/208 14-20 14-20 220 CEE7/7 SCHUKO 240 BS-1363
DMXD-54H 120/208 14-20 14-20 220 CEE7/7 SCHUKO 240 BS-1363
DMXS-60S 120 5-15 5-20 220 CEE7/7 SCHUKO 240 BS-1363
DMXS-60H 120 5-15 5-20 220 CEE7/7 SCHUKO 240 BS-1363
DMXD-60S 120/208 14-20 14-20 220 CEE7/7 SCHUKO 240 BS-1363
DMXD-60H 120/208 14-20 14-20 220 CEE7/7 SCHUKO 240 BS-1363
Export Model
5

WARNING: Plug cabinet into a properly grounded electrical outlet of the correct voltage, size and
plug configuration. If the plug and receptacle do not match, contact a qualified electrician to
determine the proper voltage and size and install the proper electrical outlet. !
!
4. DMX ELECTRICAL SPECIFICATIONS
DMXS-30S
DMXS-30H
DMXD-30S
DMXD-30H
DMXS-36S
DMXS-36H
DMXD-36S
DMXD-36H
DMXS-42S
DMXS-42H
DMXD-42S
DMXD-42H
DMXS-48S
DMXS-48H
DMXD-48S
DMXD-48H
DMXS-54S
DMXS-54H
DMXD-54S
DMXD-54H
DMXS-60S
DMXS-60H
DMXD-60S
DMXD-60H
120
120
120
120
120
120
120
120
120
120
120
120
120
120
120/208
120/208
120
120
120/208
120/208
120
120
120/208
120/208
185
185
185
185
235
235
235
235
285
285
285
285
335
335
335
335
380
380
380
380
435
435
435
435
2
2
4
4
2
2
4
4
2
2
4
4
2
2
4
4
2
2
4
4
2
2
4
4
DMX
UNITS VOLTS WATTS WATTS WATTS WATTS
QTY QTY QTY QTY
OVER HEAD BOTTOM BLANKET
HEATER
TOP BLANKET
HEATER BULBS
TOTAL
WATTS
UNIT
AMPS
225
225
225
225
275
275
275
275
325
325
325
325
350
350
350
350
400
400
400
400
450
450
450
450
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
NA
NA
175
175
NA
NA
225
225
NA
NA
260
260
NA
NA
300
300
NA
NA
325
325
NA
NA
375
375
NA
NA
1
1
NA
NA
1
1
NA
NA
1
1
NA
NA
1
1
NA
NA
1
1
NA
NA
1
1
60
60
60
60
60
60
60
60
60
60
60
60
60
60
60
60
60
60
60
60
60
60
60
60
2
2
4
4
2
2
4
4
2
2
4
4
4
4
8
8
4
4
8
8
4
4
8
8
715
715
1380
1380
865
865
1680
1680
1015
1015
1965
1965
1260
1260
2470
2470
1400
1400
2725
2725
1560
1560
3045
3045
5.96
5.96
11.5
11.5
7.21
7.21
14
14
8.46
8.46
16.38
16.38
10.5
10.5
10.29
10.29
11.67
11.67
11.35
11.35
13
13
12.69
12.69
CAUTION: Electrical outlet be
configured the same as the plug
configuration. Consult your electrician
before installing the unit. If the plug
configuration is not correct the unit will
not function correctly and may damage
the unit.
must
!!
20 AMPS
125/250V
Line
Line
Earth Ground
Neutral Line
72.000
6

WIRING DIAGRAM 120V UNITS, DMXS-30 THRU 42
411 10 573
15 13
2
12
9681
23
14 25 26
24
22
21
23
14
15 16
17
27 18
13
BUTT SPLICE
BUTT SPLICE
BUTT SPLICE
BUTT SPLICE
WIRING DIAGRAM 120V UNITS, DMXS-48 THRU 60
2
12
929 631 81
23
411 10 30 532 73
15
18
17
23 15 16 13
22
21
24
14
13
14 25 26
SPLICE
SPLICE
120 VOLT
7

WIRING DIAGRAM 120V UNITS, DMXD-30 THRU 42
411 10 573
15
13
2
12
9681
23
14 25 26
24
22
21 14
23 15 16 13
17
20
27
19
18
15
13
19
20
23
23
16
1
8
21
14 25 26
22 24
14
15
13
3
2
12
96
7
5
10
11
4
BUTT
SPLICE
BUTT SPLICE
BUTT SPLICE
BUTT SPLICE
BUTT SPLICE
8

WIRING DIAGRAM 120/208V UNITS, DMXD-48 THRU 60
411 10 30 5 32 73
15
13
14 25 26
24
22
21 14
23
23
17
15 16 13
19
1
8
31
6
2
12
929
SPLICE
SPLICE
SPLICE
SPLICE
20
18
19
15
13
23
23
28
16
21
22 24
14 25
14
26
13
15
2
12
929 631 1
8
411 10 30 532 73
9

WIRING DIAGRAM 240V, 50HZ UNITS
10
1
1
17
17
6
2
16
16
33
33
12
12
12 13
13
13
13
13
11 11
15
15
14
14
10
7
8
3
94
5
6
19 34
34
34
34
30
30
30
29
29
23
23
2828
31
31
31
27
24
25 26 20 21
22
32
32
32
EXISTING WIRE
EXISTING WIRE
BLANKET HEATER FOR
MIDDLE SHELF
BLANKET HEATER FOR
BOTTOM SHELF
HEATERS & LIGHTS
FOR TOP SHELF
HEATERS & LIGHTS
FOR MIDDLE SHELF
THERMOSTAT THERMOSTAT
SWITCH SWITCH
PILOT LIGHT
18
PILOT LIGHT
EXISTING WIRE
EXISTING WIRE
EXISTING WIRE
EXISTING WIRE
35
REMOVE JUMPER FROM END TERMINALS SHIFT JUMPER OVER ONE SPOT
L1L2
1
1
2
34
5
6
6
7
89
10
11
11
12
12
12
13
13
13
13
13
14
14
15
15
16
16
17
17
18
19
20 21
22
23
23
24
25 26
27
28 28
29 29
30
30
30
31
31
31
32
32
32
33
33
34
34
34
34
35

11
5. MAINTENANCE
GENERAL
The APW/Wyott Racer Merchandisers are designed for maximum durability and performance, with
minimum maintenance.
CLEANING
DISPLAY LIGHT BULB REPLACEMENT
To preserve the bright finish of the Racer Merchandiser, it is recommended that the exterior and
interior surfaces be wiped daily with a damp cloth. Stubborn stains may be removed with a good non-
abrasive cleanser. Hard to reach areas should be cleaned with a small brush and mild soap.
Clean the glass sides using a common glass cleaner.
The display light is an incandescent light bulb which illuminates the warming area. The bulb has a
special coating to guard against injury and food contamination in the event of breakage.
1. To replace the light bulb, disconnect the power supply and wait until the unit has cooled.
2. Bulbs have a threaded base. Unscrew the light bulb from the unit and replace it with a new
specially coated incandescent bulb.
NOTE: APW Wyott shatter-resistant light bulbs meet N.S.F. Standards for food holding and display areas.
!
!WARNING: To avoid any injury, turn the power switch off at the fuse disconnect switch/circuit
breaker or unplug the unit from the power source and allow to cool completely before performing
any maintenance or cleaning.
!
!WARNING: Only bulbs which meet or exceed N.S.F. Standards, specifically designed for food
holding areas must be used. Breakage of bulbs not specially coated could result in personal injury
and/or food contamination.
!
!WARNING: If service is required on this unit, contact your authorized APW Wyott Service Agent, or
contact the APW Wyott Service Department directly at [phone] or [phone]; fax (214)
565-0976.
!
!WARNING: This product has no “user” serviceable parts. To avoid damage to the unit or injury to
personnel, use only Authorized APW Wyott Service Agents and genuine APW Wyott Parts when
service is required..
!
!
WARNING: Genuine APW Wyott Replacement Parts are specified to operate safely in the
environments in which they are used. Some aftermarket or generic replacement parts do not have
the characteristics that will allow them to operate safely in APW Wyott equipment. It is essential to
use APW Wyott Replacement Parts when repairing APW Wyott equipment. Failure to use APW
Wyott Replacement Parts may subject operators of the equipment to hazardous electrical voltage,
resulting in electrical shock or burn.
!
!
CAUTION: Use only non-abrasive cleaners. Abrasive cleaners could scratch the finish of your unit,
marring it’s appearance and making it susceptible to dirt accumulation. Do Not use steel wool, other
abrasive cleaners or cleaners/sanitizers containing chlorine, iodine, ammonia or bromine
chemicals as these will deteriorate the stainless steel and glass material and shorten the life of the
unit.
!
WARNING: To avoid electrical shock or personal injury, do not steam clean or use excessive water
on the unit.
!
!
WARNING: Unit is not waterproof. DO NOT submerge in water. Do not operate if it has been
submerged in water. Do not clean the unit with a water jet.
!
!
WARNING: To avoid electrical shock, always unplug the unit before performing cleaning or
maintenance.
!
!
CAUTION: Do not use a water jet (pressure sprayer) to clean the unit, or component failure could
result.
!
6. ACCESSORIES
STAINLESS STEEL DIVIDER RODS
Additional stainless steel divider rods help to keep product separate in the channels.

1
2
3
4
5
6
7
N/S
N/S
N/S
N/S
N/S
N/S
N/S
N/S
N/S
N/S
N/S
N/S
N/S
N/S
N/S
N/S
N/S
N/S
1481510
1301900
8700700
45653000
21779885
21779601
21779886
21779887
21779888
21779889
21779880
21779602
21779881
21779882
21779883
21779884
21779860
21779761
21779861
21779862
21779863
21779864
21779865
21779766
21779866
21779867
21779868
21779869
21779715
21779620
21779716
21779717
21779718
21779624
21779720
21779671
21779724
21779726
21779728
21779730
ELEMENT BLNKT 120V 195W/OUTER 80W/INNER
THERMOSTAT
TOGGLE SWITCH DPST
KNOB
INDICATOR LIGHT AMBER
INSERT, EXTRUSION 30" RED
INSERT, EXTRUSION 36" RED
INSERT, EXTRUSION 42" RED
INSERT, EXTRUSION 48" RED
INSERT, EXTRUSION 54" RED
INSERT, EXTRUSION 60" RED
PANEL, CONTROL 30" DMX RED
PANEL, CONTROL 36" DMX RED
PANEL, CONTROL 42" DMX RED
PANEL, CONTROL 48" DMX RED
PANEL, CONTROL 54" DMX RED
PANEL, CONTROL 60" DMX RED
EXTRUSION, FRONT SIDE DMX 30" BLACK
EXTRUSION, FRONT SIDE DMX 36" BLACK
EXTRUSION, FRONT SIDE DMX 42" BLACK
EXTRUSION, FRONT SIDE DMX 48" BLACK
EXTRUSION, FRONT SIDE DMX 54" BLACK
EXTRUSION, FRONT SIDE DMX 60" BLACK
EXTRUSION, CONTROL SIDE 30" DMX BLACK
EXTRUSION, CONTROL SIDE 36" DMX BLACK
EXTRUSION, CONTROL SIDE 42" DMX BLACK
EXTRUSION, CONTROL SIDE 48" DMX BLACK
EXTRUSION, CONTROL SIDE 54" DMX BLACK
EXTRUSION, CONTROL SIDE 60" DMX BLACK
ELEMENT, 185W 120V 25.438" DMX-30
ELEMENT, 235W @ 120V DMX 36"
ELEMENT, 285W 120V 37.438" DMX-42
ELEMENT, 335W 120V 43.438" DMX-48
ELEMENT, 380W 120V 49.438" DMX-54
ELEMENT, 435W @ 120V DMX 60"
ELEMENT, BLANKET 120V 225W 23.750X21.750
ELEMENT,BLANKET 120V 325W 35.750X21.750
ELEMENT,BLANKET 120V 350W 41.750X21.750
ELEMENT,BLANKET 120V 400W 47.750X21.750
ELEMENT,BLANKET 120V 450W 53.750X21.750
1
1
1
1
3
3
3
3
3
3
1
1
1
1
1
1
3
3
3
3
3
3
1
1
1
1
1
1
2
2
2
2
2
2
1
1
1
1
1
1
30
36
42
48
54
60
30
36
42
48
54
60
30
36
42
48
54
60
30
36
42
48
54
60
30
36
42
48
54
60
30
36
42
48
54
60
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
21779625
8816300
21779606
21779786
21779680
21779618
54001400
1107301
21776245
21776246
21776276
21776216
21776300
21776323
21776348
21776370
21779617
21779617
21779617
21779617
21779617
21779617
54001500
1311800
8430800
8632000
21779811
21779813
21779815
21779817
21779819
21779821
21779828
21779829
21779830
21779831
21779832
21779833
GLASS, TEMPERED DMX FLAT
DECAL, MECHANDIZER CONTROL PANEL BOTTOM
COVER, FLAT SIDE SINGLE RED
WELDMENT, RT UPRIGHT FLAT SINGLE
WELDMENT,LT UPRIGHT FLAT SINGLE
MOUNT, DIODE & RELAY
RECTIFIER 600Vrrm 40AMPS
TERMINAL BLOCK TUBULAR SCREW RAISED BASE
CAP, END RIGHT SIDE
CAP, END LEFT SIDE
BRACKET, DIVIDER 30"
BRACKET, DIVIDER 36"
BRACKET, DIVIDER 42"
BRACKET, DIVIDER 48"
BRACKET, DIVIDER 54"
BRACKET, DIVIDER 60"
ROD, DIVIDER
ROD, DIVIDER
ROD, DIVIDER
ROD, DIVIDER
ROD, DIVIDER
ROD, DIVIDER
WASHER, SHOULDER FIBRE
RELAY,SPDT 120V COIL 15 AMPS
NUT, HEX 1/4-28
LEG, 4 INCH ADJ. 2000 LB LOAD CAPACITY
DMXS-30H 120V BASE ASSY FRC-BLACK,INSERTS-RED
DMXS-36H 120V BASE ASSY FRC-BLACK,INSERTS-RED
DMXS-42H 120V BASE ASSY FRC-BLACK,INSERTS-RED
DMXS-48H 120V BASE ASSY FRC-BLACK,INSERTS-RED
DMXS-54H 120V BASE ASSY FRC-BLACK,INSERTS-RED
DMXS-60H 120V BASE ASSY FRC-BLACK,INSERTS-RED
DMX-30 120V TOP ASSY. FRC-BLACK,INSERTS-RED
DMX-36 120V TOP ASSY FRC-BLACK,INSERTS-RED
DMX-42 120V TOP ASSY FRC-BLACK,INSERTS-RED
DMX-48 120V TOP ASSY FRC-BLACK,INSERTS-RED
DMX-54 120V TOP ASSY FRC-BLACK,INSERTS-RED
DMX-60 120V TOP ASSY FRC-BLACK,INSERTS-RED
ITEM ITEM
P/N P/NDESCRIPTION DESCRIPTION
QTY QTY
UNIT SIZE UNIT SIZE
2
1
2
1
1
1
1
1
4
4
4
4
4
4
4
4
10
12
14
16
18
20
2
1
1
4
1
1
1
1
1
1
1
1
1
1
1
1
30
36
42
48
54
60
30
36
42
48
54
60
30
36
42
48
54
60
30
36
42
48
54
60
PARTS LIST DMXS-H
N/S = NOT SHOWN
12
7. PARTS LISTS & EXPLODED VIEWS

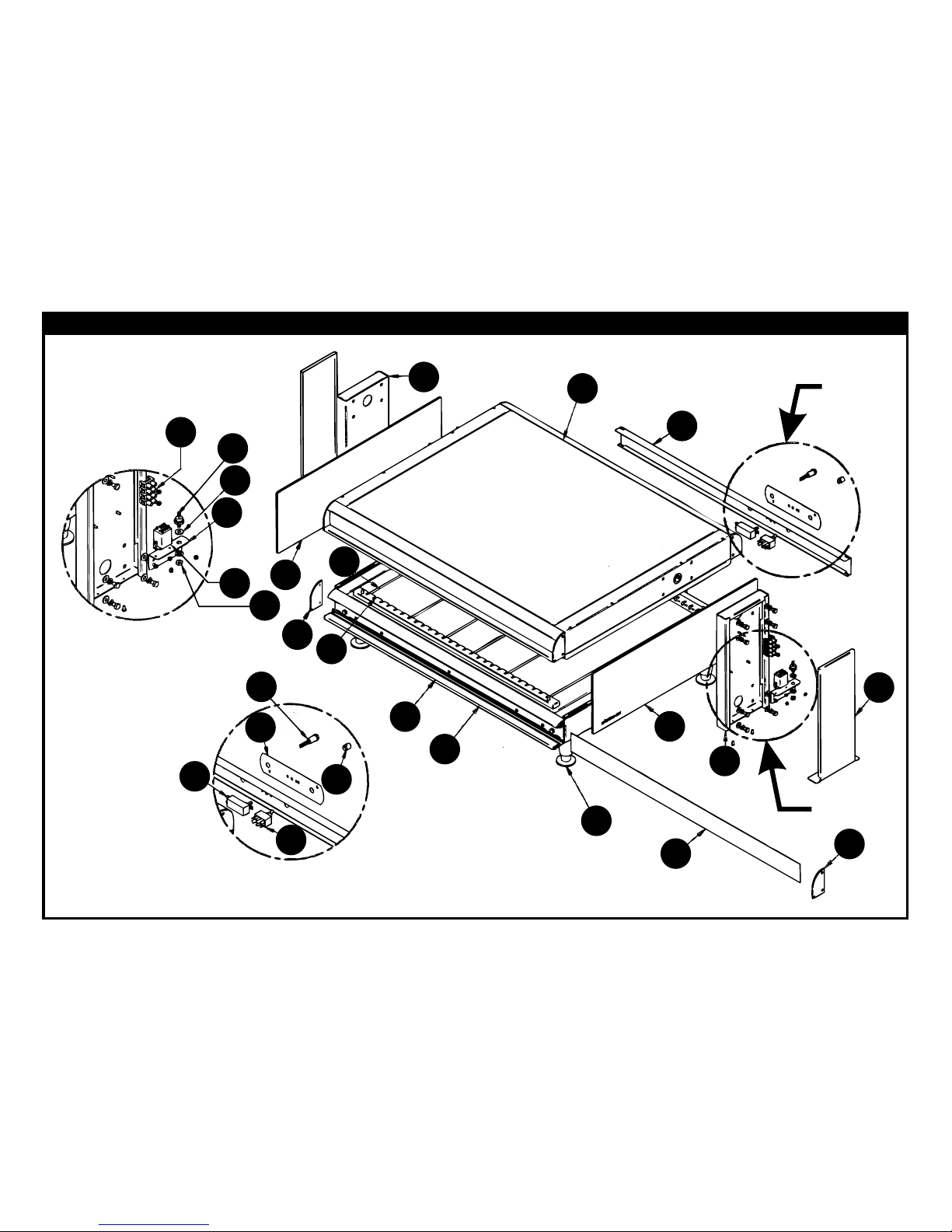

EXPLODED VIEW DMXS-H
“A”
“B”
DETAIL “B”
1
2
9
3
4
DETAIL “A”
15
14
20
13
22
21
12 25
6
8
8
10
5
7
19
17 18
24
23
11
16
13

ITEM ITEM
P/N P/N
DESCRIPTION DESCRIPTION
QTY QTY
UNIT SIZE UNIT SIZE
PARTS LIST DMXS-S
N/S = NOT SHOWN
1
2
3
4
5
6
7
N/S
N/S
N/S
N/S
N/S
N/S
N/S
N/S
N/S
N/S
N/S
N/S
N/S
N/S
N/S
N/S
N/S
N/S
1481510
1301900
8700700
45653000
21779885
21779601
21779886
21779887
21779888
21779889
21779880
21779602
21779881
21779882
21779883
21779884
21779860
21779761
21779861
21779862
21779863
21779864
21779865
21779766
21779866
21779867
21779868
21779869
21779715
21779620
21779716
21779717
21779718
21779624
21779720
21779671
21779724
21779726
21779728
21779730
THERMOSTAT
TOGGLE SWITCH DPST
KNOB
INDICATOR LIGHT AMBER
INSERT, EXTRUSION 30" RED
INSERT, EXTRUSION 36" RED
INSERT, EXTRUSION 42" RED
INSERT, EXTRUSION 48" RED
INSERT, EXTRUSION 54" RED
INSERT, EXTRUSION 60" RED
PANEL, CONTROL 30" DMX RED
PANEL, CONTROL 36" DMX RED
PANEL, CONTROL 42" DMX RED
PANEL, CONTROL 48" DMX RED
PANEL, CONTROL 54" DMX RED
PANEL, CONTROL 60" DMX RED
EXTRUSION, FRONT SIDE DMX 30" BLACK
EXTRUSION, FRONT SIDE DMX 36" BLACK
EXTRUSION, FRONT SIDE DMX 42" BLACK
EXTRUSION, FRONT SIDE DMX 48" BLACK
EXTRUSION, FRONT SIDE DMX 54" BLACK
EXTRUSION, FRONT SIDE DMX 60" BLACK
EXTRUSION, CONTROL SIDE 30" DMX BLACK
EXTRUSION, CONTROL SIDE 36" DMX BLACK
EXTRUSION, CONTROL SIDE 42" DMX BLACK
EXTRUSION, CONTROL SIDE 48" DMX BLACK
EXTRUSION, CONTROL SIDE 54" DMX BLACK
EXTRUSION, CONTROL SIDE 60" DMX BLACK
ELEMENT, 185W 120V 25.438" DMX-30
ELEMENT, 235W @ 120V DMX 36"
ELEMENT, 285W 120V 37.438" DMX-42
ELEMENT, 335W 120V 43.438" DMX-48
ELEMENT, 380W 120V 49.438" DMX-54
ELEMENT, 435W @ 120V DMX 60"
ELEMENT, BLANKET 120V 225W 23.750X21.750
ELEMENT BLNKT 120V 195W/OUTER 80W/INNER
ELEMENT,BLANKET 120V 325W 35.750X21.750
ELEMENT,BLANKET 120V 350W 41.750X21.750
ELEMENT,BLANKET 120V 400W 47.750X21.750
ELEMENT,BLANKET 120V 450W 53.750X21.750
1
1
1
1
3
3
3
3
3
3
1
1
1
1
1
1
3
3
3
3
3
3
1
1
1
1
1
1
2
2
2
2
2
2
1
1
1
1
1
1
30
36
42
48
54
60
30
36
42
48
54
60
30
36
42
48
54
60
30
36
42
48
54
60
30
36
42
48
54
60
30
36
42
48
54
60
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
21779669
8816300
21779608
21779607
21779630
21779635
21779618
54001400
1107301
21776245
21776246
21776276
21776216
21776300
21776323
21776348
21776370
21779617
21779617
21779617
21779617
21779617
21779617
54001500
1311800
8430800
8632000
21779810
21779812
21779834
21779836
21779838
21779840
21779828
21779829
21779830
21779831
21779832
21779833
GLASS, TEMPERED DMX
DECAL, MECHANDIZER CONTROL PANEL BOTTOM
COVER LT SINGLE SLANT LT SIDE RED
COVER, SINGLE SLANT RT SIDE RED
UPRIGHT, RT SIDE WELDMENT
UPRIGHT, LT SIDE WELDMENT
MOUNT, DIODE & RELAY
RECTIFIER 600Vrrm 40AMPS
TERMINAL BLOCK TUBULAR SCREW RAISED BASE
CAP, END RIGHT SIDE
CAP, END LEFT SIDE
BRACKET, DIVIDER 30"
BRACKET, DIVIDER 36"
BRACKET, DIVIDER 42"
BRACKET, DIVIDER 48"
BRACKET, DIVIDER 54"
BRACKET, DIVIDER 60"
ROD, DIVIDER
ROD, DIVIDER
ROD, DIVIDER
ROD, DIVIDER
ROD, DIVIDER
ROD, DIVIDER
WASHER, SHOULDER FIBRE
RELAY,SPDT 120V COIL 15 AMPS
NUT, HEX 1/4-28
LEG, 4 INCH ADJ. 2000 LB LOAD CAPACITY
DMX-30S 120V BASE ASSY FRC-BLACK,INSERTS-RED
DMX-36S 120V BASE ASSY FRC-BLACK,INSERTS-RED
DMX-42S 120V BASE ASSY FRC-BLACK,INSERTS-RED
DMX-48S 120V BASE ASSY FRC-BLACK,INSERTS-RED
DMX-54S 120V BASE ASSY FRC-BLACK,INSERTS-RED
DMX-60S 120V BASE ASSY FRC-BLACK,INSERTS-RED
DMX-30 120V TOP ASSY FRC-BLACK,INSERTS-RED
DMX-36 120V TOP ASSY FRC-BLACK,INSERTS-RED
DMX-42 120V TOP ASSY FRC-BLACK,INSERTS-RED
DMX-48 120V TOP ASSY FRC-BLACK,INSERTS-RED
DMX-54 120V TOP ASSY FRC-BLACK,INSERTS-RED
DMX-60 120V TOP ASSY FRC-BLACK,INSERTS-RED
2
1
1
1
1
1
1
1
1
4
4
2
2
2
2
2
2
5
6
7
8
9
10
2
1
1
4
1
1
1
1
1
1
1
1
1
1
1
1
30
36
42
48
54
60
30
36
42
48
54
60
30
36
42
48
54
60
30
36
42
48
54
60
14

EXPLODED VIEW DMXS-S
DETAIL “B”
DETAIL “A”
“A”
“B”
25
26
24
23
22
21
15
14
13
12
11
17
18
19
20
16
1
2
8
8
10
5
7
6
9
4
3
15

30
36
42
48
54
60
30
36
42
48
54
60
30
36
42
48
54
60
30
36
42
48
54
60
30
36
42
48
54
60
30
36
42
48
54
60
10
1
2
3
4
5
6
7
N/S
N/S
N/S
N/S
N/S
N/S
N/S
N/S
N/S
N/S
N/S
N/S
N/S
N/S
N/S
N/S
N/S
N/S
8
9
21779605
1481510
1301900
8700700
45653000
21779885
21779601
21779886
21779887
21779888
21779889
21779880
21779602
21779881
21779882
21779883
21779884
21779860
21779761
21779861
21779862
21779863
21779864
21779865
21779766
21779866
21779867
21779868
21779869
21779715
21779620
21779716
21779717
21779718
21779624
21779720
21779671
21779724
21779726
21779728
21779730
21779625
8816300
COVER, FLAT SIDE SINGLE RED
THERMOSTAT
TOGGLE SWITCH DPST
KNOB
INDICATOR LIGHT AMBER
INSERT, EXTRUSION 30" RED
INSERT, EXTRUSION 36" RED
INSERT, EXTRUSION 42" RED
INSERT, EXTRUSION 48" RED
INSERT, EXTRUSION 54" RED
INSERT, EXTRUSION 60" RED
PANEL, CONTROL 30" DMX RED
PANEL, CONTROL 36" DMX RED
PANEL, CONTROL 42" DMX RED
PANEL, CONTROL 48" DMX RED
PANEL, CONTROL 54" DMX RED
PANEL, CONTROL 60" DMX RED
EXTRUSION, FRONT SIDE DMX 30" BLACK
EXTRUSION, FRONT SIDE DMX 36" BLACK
EXTRUSION, FRONT SIDE DMX 42" BLACK
EXTRUSION, FRONT SIDE DMX 48" BLACK
EXTRUSION, FRONT SIDE DMX 54" BLACK
EXTRUSION, FRONT SIDE DMX 60" BLACK
EXTRUSION, CONTROL SIDE 30" DMX BLACK
EXTRUSION, CONTROL SIDE 36" DMX BLACK
EXTRUSION, CONTROL SIDE 42" DMX BLACK
EXTRUSION, CONTROL SIDE 48" DMX BLACK
EXTRUSION, CONTROL SIDE 54" DMX BLACK
EXTRUSION, CONTROL SIDE 60" DMX BLACK
ELEMENT, 185W 120V 25.438" DMX-30
ELEMENT, 235W @ 120V DMX 36"
ELEMENT, 285W 120V 37.438" DMX-42
ELEMENT, 335W 120V 43.438" DMX-48
ELEMENT, 380W 120V 49.438" DMX-54
ELEMENT, 435W @ 120V DMX 60"
ELEMENT, BLANKET 120V 225W 23.750X21.750
ELEMENT BLNKT 120V 195W/OUTER 80W/INNER
ELEMENT,BLANKET 120V 325W 35.750X21.750
ELEMENT,BLANKET 120V 350W 41.750X21.750
ELEMENT,BLANKET 120V 400W 47.750X21.750
ELEMENT,BLANKET 120V 450W 53.750X21.750
GLASS, TEMPERED DMX FLAT
DECAL, MECHANDIZER CONTROL PANEL BOTTOM
2
2
2
2
2
4
4
4
4
4
4
2
2
2
2
2
2
4
4
4
4
4
4
2
2
2
2
2
2
4
4
4
4
4
4
1
1
1
1
1
1
4
1
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
21779785
21779685
21779618
54001400
1107301
21776245
21776246
21776276
21776216
21776300
21776323
21776348
21776370
21779617
21779617
21779617
21779617
21779617
21779617
54001500
1311800
8430800
8632000
8816600
21779811
21779813
21779815
21779817
21779819
21779821
21779828
21779829
21779830
21779831
21779832
21779833
21779822
21779823
21779824
21779825
21779826
21779827
WELDMENT, RT UPRIGHT DOUBLE FLAT
WELDMENT,LT UPRIGHT DOUBLE FLAT
MOUNT, DIODE & RELAY
RECTIFIER 600Vrrm 40AMPS
TERMINAL BLOCK TUBULAR SCREW RAISED BASE
CAP, END RIGHT SIDE
CAP, END LEFT SIDE
BRACKET, DIVIDER 30"
BRACKET, DIVIDER 36"
BRACKET, DIVIDER 42"
BRACKET, DIVIDER 48"
BRACKET, DIVIDER 54"
BRACKET, DIVIDER 60"
ROD, DIVIDER
ROD, DIVIDER
ROD, DIVIDER
ROD, DIVIDER
ROD, DIVIDER
ROD, DIVIDER
WASHER, SHOULDER FIBRE
RELAY,SPDT 120V COIL 15 AMPS
NUT, HEX 1/4-28
LEG, 4 INCH ADJ. 2000 LB LOAD CAPACITY
DECAL,MERCHANDISER CONTROL PANEL TOP
DMXS-30H 120V BASE ASSY -
FRC BLACK,INSERTS-RED
DMXS-36H 120V BASE ASSY -FRC BLACK,INSERTS-RED
DMXS-42H 120V BASE ASSY -FRC BLACK,INSERTS-RED
DMXS-48H 120/208V BASE ASSY -FRC BLACK,INSERTS-RED
DMXS-54H 120/208V BASE ASSY -FRC BLACK,INSERTS-RED
DMXS-60H 120/208V BASE ASSY -FRC BLACK,INSERTS-RED
DMX-30 120V TOP ASSY. -FRC BLACK,INSERTS-RED
DMX-36 120V TOP ASSY -FRC BLACK,INSERTS-RED
DMX-42 120V TOP ASSY -FRC BLACK,INSERTS-RED
DMX-48 120V TOP ASSY -FRC BLACK,INSERTS-RED
DMX-54 120V TOP ASSY -FRC BLACK,INSERTS-RED
DMX-60 120V TOP ASSY -FRC BLACK,INSERTS-RED
DMX-30 120V MID ASSY. -FRC BLACK,INSERTS-RED
DMX-36 120V MID ASSY -FRC BLACK,INSERTS-RED
DMX-42 120V MID ASSY -FRC BLACK,INSERTS-RED
DMX-48 120V MID ASSY -FRC BLACK,INSERTS-RED
DMX-54 120V MID ASSY -FRC BLACK,INSERTS-RED
DMX-60 120V MID ASSY -FRC BLACK,INSERTS-RED
1
1
2
2
2
6
6
4
4
4
4
4
4
10
12
14
16
18
20
4
2
2
4
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
30
36
42
48
54
60
30
36
42
48
54
60
30
36
42
48
54
60
30
36
42
48
54
60
30
36
42
48
54
60
ITEM ITEM
P/N P/N
DESCRIPTION DESCRIPTION
QTY QTY
UNIT SIZE UNIT SIZE
PARTS LIST DMXD-H
N/S = NOT SHOWN
16

EXPLODED VIEW DMXD-H
DETAIL “B”
15
14
20
13
22
21
DETAIL “A”
24
1
2
9
3
4
“A”
“B”
27
26
12
25
17
18
23
11
16
8
8
6
6
5
7
10
10
19
17

ITEM ITEM
P/N P/N
DESCRIPTION DESCRIPTION
QTY QTY
UNIT SIZE UNIT SIZE
PARTS LIST DMXD-S
N/S = NOT SHOWN
30
36
42
48
54
60
30
36
42
48
54
60
30
36
42
48
54
60
30
36
42
48
54
60
30
36
42
48
54
60
30
36
42
48
54
60
1
2
3
4
5
6
7
N/S
N/S
N/S
N/S
N/S
N/S
N/S
N/S
N/S
N/S
N/S
N/S
N/S
N/S
N/S
N/S
N/S
N/S
8
9
10
11
1481510
1301900
8700700
45653000
21779885
21779601
21779886
21779887
21779888
21779889
21779880
21779602
21779881
21779882
21779883
21779884
21779860
21779761
21779861
21779862
21779863
21779864
21779865
21779766
21779866
21779867
21779868
21779869
21779715
21779620
21779716
21779717
21779718
21779624
21779720
21779671
21779724
21779726
21779728
21779730
21779625
8816300
21779608
21779607
THERMOSTAT
TOGGLE SWITCH DPST
KNOB
INDICATOR LIGHT AMBER
INSERT, EXTRUSION 30" RED
INSERT, EXTRUSION 36" RED
INSERT, EXTRUSION 42" RED
INSERT, EXTRUSION 48" RED
INSERT, EXTRUSION 54" RED
INSERT, EXTRUSION 60" RED
PANEL, CONTROL 30" DMX RED
PANEL, CONTROL 36" DMX RED
PANEL, CONTROL 42" DMX RED
PANEL, CONTROL 48" DMX RED
PANEL, CONTROL 54" DMX RED
PANEL, CONTROL 60" DMX RED
EXTRUSION, FRONT SIDE DMX 30" BLACK
EXTRUSION, FRONT SIDE DMX 36" BLACK
EXTRUSION, FRONT SIDE DMX 42" BLACK
EXTRUSION, FRONT SIDE DMX 48" BLACK
EXTRUSION, FRONT SIDE DMX 54" BLACK
EXTRUSION, FRONT SIDE DMX 60" BLACK
EXTRUSION, CONTROL SIDE 30" DMX BLACK
EXTRUSION, CONTROL SIDE 36" DMX BLACK
EXTRUSION, CONTROL SIDE 42" DMX BLACK
EXTRUSION, CONTROL SIDE 48" DMX BLACK
EXTRUSION, CONTROL SIDE 54" DMX BLACK
EXTRUSION, CONTROL SIDE 60" DMX BLACK
ELEMENT, 185W 120V 25.438" DMX-30
ELEMENT, 235W @ 120V DMX 36"
ELEMENT, 285W 120V 37.438" DMX-42
ELEMENT, 335W 120V 43.438" DMX-48
ELEMENT, 380W 120V 49.438" DMX-54
ELEMENT, 435W @ 120V DMX 60"
ELEMENT, BLANKET 120V 225W 23.750X21.750
ELEMENT BLNKT 120V 195W/OUTER 80W/INNER
ELEMENT,BLANKET 120V 325W 35.750X21.750
ELEMENT,BLANKET 120V 350W 41.750X21.750
ELEMENT,BLANKET 120V 400W 47.750X21.750
ELEMENT,BLANKET 120V 450W 53.750X21.750
GLASS, TEMPERED DMX FLAT
DECAL, MECHANDIZER CONTROL PANEL BOTTOM
COVER LT SINGLE SLANT LT SIDE RED
COVER, SINGLE SLANT RT SIDE RED
2
2
2
2
4
4
4
4
4
4
2
2
2
2
2
2
4
4
4
4
4
4
2
2
2
2
2
2
4
4
4
4
4
4
1
1
1
1
1
1
4
1
1
1
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
21779630
21779635
21779618
54001400
1107301
21776245
21776246
21776276
21776216
21776300
21776323
21776348
21776370
21779617
21779617
21779617
21779617
21779617
21779617
54001500
1311800
8430800
8632000
8816600
21779810
21779812
21779814
21779816
21779818
21779820
21779828
21779829
21779830
21779831
21779832
21779833
21779822
21779823
21779824
21779825
21779826
21779827
UPRIGHT, RT SIDE WELDMENT
UPRIGHT, LT SIDE WELDMENT
MOUNT, DIODE & RELAY
RECTIFIER 600Vrrm 40AMPS
TERMINAL BLOCK TUBULAR SCREW RAISED BASE
CAP, END RIGHT SIDE
CAP, END LEFT SIDE
BRACKET, DIVIDER 30"
BRACKET, DIVIDER 36"
BRACKET, DIVIDER 42"
BRACKET, DIVIDER 48"
BRACKET, DIVIDER 54"
BRACKET, DIVIDER 60"
ROD, DIVIDER
ROD, DIVIDER
ROD, DIVIDER
ROD, DIVIDER
ROD, DIVIDER
ROD, DIVIDER
WASHER, SHOULDER FIBRE
RELAY,SPDT 120V COIL 15 AMPS
NUT, HEX 1/4-28
LEG, 4 INCH ADJ. 2000 LB LOAD CAPACITY
DECAL,MERCHANDISER CONTROL PANEL TOP
DMX-30S 120V BASE ASSY FRC-BLACK,INSERTS-RED
DMX-36S 120V BASE ASSY FRC-BLACK,INSERTS-RED
DMX-42S 120V BASE ASSY FRC-BLACK,INSERTS-RED
DMX-48S 120/208V BASE ASSY FRC-BLACK,INSERTS-RED
DMX-54S 120/208V BASE ASSY FRC-BLACK,INSERTS-RED
DMX-60S 120/208V BASE ASSY FRC-BLACK,INSERTS-RED
DMX-30 120V TOP ASSY FRC-BLACK,INSERTS-RED
DMX-36 120V TOP ASSY FRC-BLACK,INSERTS-RED
DMX-42 120V TOP ASSY FRC-BLACK,INSERTS-RED
DMX-48 120V TOP ASSY FRC-BLACK,INSERTS-RED
DMX-54 120V TOP ASSY FRC-BLACK,INSERTS-RED
DMX-60 120V TOP ASSY FRC-BLACK,INSERTS-RED
DMX-30 120V MID ASSY. FRC-BLACK,INSERTS-RED
DMX-36 120V MID ASSY FRC-BLACK,INSERTS-RED
DMX-42 120V MID ASSY FRC-BLACK,INSERTS-RED
DMX-48 120V MID ASSY FRC-BLACK,INSERTS-RED
DMX-54 120V MID ASSY FRC-BLACK,INSERTS-RED
DMX-60 120V MID ASSY FRC-BLACK,INSERTS-RED
1
1
2
2
2
6
6
4
4
4
4
4
4
10
12
14
16
18
20
4
2
2
4
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
30
36
42
48
54
60
30
36
42
48
54
60
30
36
42
48
54
60
30
36
42
48
54
60
30
36
42
48
54
60
18

EXPLODED VIEW DMXD-S
DETAIL “A”
25
1
2
9
4
3
DETAIL “B” 23
22
21
16
15
14
“A”
“B”
26
24
27
8
819
10
5
13
17
20
6
12
11
7
28
18
19

8. APW WYOTT EQUIPMENT LIMITED WARRANTY
APW Wyott Foodservice Equipment Company warrants it's equipment against defects in materials and workmanship, subject to the
following conditions:
This warranty applies to the original owner only and is not assignable.
Should any product fail to function in its intended manner under normal use within the limits defined in this warranty, at the option of
APW Wyott such product will be repaired or replaced by APW Wyott or its Authorized Service Agency. APW Wyott will only be
responsible for charges incurred or service performed by its Authorized Service Agencies. The use of other than APW Wyott
Authorized Service Agencies will void this warranty and APWWyott will not be responsible for such work or any charges associated
with same. The closestAPW WyottAuthorized Service Agent must be used.
This warranty covers products shipped into the 48 contiguous United States, Hawaii, metropolitan areas ofAlaska and Canada. There
will be no labor coverage for equipment located on any island not connected by roadway to the mainland.
One year for parts and one year for labor, effective from the date of purchase by the original owner. The Authorized Service Agency
may, at their option, require proof of purchase. Parts replaced under this warranty are warranted for the un-expired portion of the
original product warranty only.
Models GCB, GCRB, GF, GGM, GGT, CHP-H, EF, EG, EHP. Three (3) Year Warranty on all
component parts, except switches and thermostats. (2 additional years on parts only. No labor on second or third year.)
In all cases, parts covered by extended warranty will be shipped FOB the factory after the first year.
Equipment weighing over 70 pounds or permanently installed will be serviced on-site as per the terms of this warranty. Equipment
weighing 70 pounds or under, and which is not permanently installed, i.e. with cord and plug, is considered portable and is subject to
the following warranty handling limitations. If portable equipment fails to operate in its intended manner on the first day of
connection, or use, atAPWWyott's option or itsAuthorized Service Agency, it will be serviced on site or replaced.
From day two through the conclusion of this warranty period, portable units must be taken to or sent prepaid to the APW Wyott
Authorized Service Agency for in-warranty repairs. No mileage or travel charges are allowed on portable units after the first day of use.
If the customer wants on-site service, they may receive same by paying the travel and mileage charges. Exceptions to this rule: (1)
countertop warmers and cookers, which are covered under the Enhanced Warranty Program, and (2) toasters or rollergrills which have
in store service.
The following conditions are not covered by warranty:
*Equipment failure relating to improper installation, improper utility connection or supply and problems due to
ventilation.
*Equipment that has not been properly maintained, calibration of controls, adjustments, damage from improper cleaning
and water damage to controls.
*Equipment that has not been used in an appropriate manner, or has been subject to misuse or misapplication, neglect,
abuse, accident, alteration, negligence, damage during transit, delivery or installation, fire, flood, riot or act of god.
*Equipment that has themodel number or serialnumber removed or altered.
If the equipment has been changed, altered, modified or repaired by other than an Authorized Service Agency during or after the
warranty period, then the manufacturer shall not be liable for any damages to any person or to any property, which may result from the
use of the equipment thereafter.
This warranty does not cover services performed at overtime or premium labor rates. Should service be required at times which
normally involve overtime or premium labor rates, the owner shall be charged for the difference between normal service rates and such
premium rates.APWWyottdoes not assume anyliability for extended delays inreplacing or repairing anyitems beyond its control.
In all cases, the use of other thanAPW WyottAuthorized OEM Replacement Parts will void this warranty.
This equipment is intended for commercial use only. Warranty is void if equipment is installed in other than commercial application.
Water supply intended for a unit that has in excess of 3.0 grains of hardness per gallon (GPG) must be treated or softened before
being used. Water containing over 3.0 GPG will decrease the efficiency and reduce the operation life of the unit.
9/05
Warranty coverage on products used outside the 48 contiguous United States, Hawaii, and metropolitan areas of Alaska and Canada
may vary. Contact the internationalAPWWyottdistributor, dealer,or service agency for details.
Models FD, FDL, FDD, FDDL. Two (2) Year Warranty on element only. No labor second year.
Time Period
Exceptions*Gas/Electric Cookline:
*Glass Windows, Doors, Seals, Rubber Seals, Light Bulbs:
Portable Carry In Products
Exclusions
Water Quality Requirements
Note: Product failure caused by liming or sediment buildup is not covered under warranty.
THE FOREGOING WARRANTY IS IN LIEU OFANY AND ALL OTHER WARRANTIES EXPRESSED OR IMPLIED
INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR PARTICULAR PURPOSES
AND CONSTITUTES THE ENTIRE LIABILITY OFAPW WYOTT. IN NO EVENT DOES THE LIMITED WARRANTY
EXTEND BEYOND THE TERMS STATED HEREIN.
*BroilerBriquettes,
*Heat Strips: Rock Grates, CookingGrates, BurnerShields,Fireboxes:
90Day Material Only.NoLabor.
90 Day Material Only. No Labor.
20
