APW Wyott IBB-05F User manual

IBB-05F
1
2013/04/22
USER’S MANUAL
Model# IBB-05F
Induction Range
120Volt, 60Hz, 500watt

IBB-05F
2
2013/04/22
USE AND CARE INSTRUCTIONS – IMPORTANT SAFEGUARDS
READ ALL INSTRUCTIONS BEFORE OPERATION
1. Use an individual 120Volt electrical socket.
2. DO NOT connect more than 3 units in the same power source if it’s connected to a 15A circuit.
3. DO NOT block the air-intake panel; blocking it may cause overheating of the unit.
4. Use pans with a bottom plate diameter of 4.75” or larger. We recommend pots/pans have a maximum
bottom plate diameter of 10” or less. DO NOT use chafing dish larger than glass dimension (320mm x
320mm) (12.5” x 12.5”). Please refer to the next page for a list of suitable and unsuitable pans.
5. DO NOT touch the hot surface of the glass ceramic plate. NOTE: The induction range itself does not
produce any heat during warming. However, the heat from the pan will leave the surface of the glass-
top hot!
6. DO NOT heat empty pots or pans. Heating an empty pan may automatically activate the overheating
protection device and the unit will shut off. This can also permanently discolor the glass top.
7. Place the induction range on a level, stable surface and at least 4” away from any walls or other objects
for proper ventilation.
8. DO NOT place any objects or tools in the air-intake panel. Doing so may cause electrical shock.
9. To protect against electrical shock, DO NOT immerse the unit, the cord or the plug in or near water or
other liquids.
10. Close supervision is necessary when the induction range is used by or near children.
11. DO NOT operate the induction range if it has been damaged in any manner or if the unit malfunctions.
Return the unit to the nearest authorized service facility for examination or repair.
12. The use of any accessories not recommended by the manufacturer may cause injuries.
13. Keep the power cord away from heat.
14. DO NOT place the induction range in, on or near open flames, electric burners, heated ovens or other
high temperature surroundings.
15. DO NOT heat any sealed cans on the induction range. A heated can may explode.
16. DO NOT move the induction range while cooking or when the pot/pan is on top.
17. After the induction range has cooled down, unplug the cord and clean as follows,
GLASS PLATE: wipe with damp cloth or use a mild, non-abrasive cleaning solution.
BODY: wipe the control panel with soft cloth or use a mild cleaner.
18. DO NOT use induction range for other than intended use.
19. Unplug when not in use.
20. When storing, DO NOT place any objects on top of the induction range.
21. When using an induction range (smooth top range) for cooking, keep your pacemaker 60cm (approx.
2feet) from the heating areas.

IBB-05F
3
2013/04/22
SUITABLE USTENSILS- FOR INDUCTION HEATING PLATES,
SUITABLE POTS,
1. Iron
2. Cast iron
3. Stainless steel
4. Enamelware
All pots and pans must have a magnetic bottom.
All pots and pans must have a flat bottom.
All pots and pans should have a diameter between 12cm (4 3/4”) and 24cm (10”).
Stainless Steel
Pan
Iron Pan (Iron
Griddle)
Enamel Pan Stainless Steel
kettle
Iron pan
Stainless steel
fry pan
UNSUITABLE POTS,
1. Pot with diameter below 5cm (2”).
2. Stainless steel pans with aluminum bottom
3. Pottery
4. Glass pans
5. Aluminum pans
6. Bronze pans
7. Copper pots
8. Pans with feet
Ceramic Pan Aluminum Pan Bottom not flat Dia. smaller than 12
cm (4 3/4”)
Pan with legs

IBB-05F
4
2013/04/22
SAFETY DEVICE
Automatic Safety Shut-Off,
If the induction range is left on for more than 60 seconds without a pan or with an incompatible pan,
the unit will automatically shut off.
Material Compatibility Detector
If the pan’s material or it’s dimensions are not suitable for this induction range, the “Heating”
indicator light will not light on. And the induction range will be shut off automatically after 60
seconds.
Small Object Detector
The induction range will not recognize any objects or utensils smaller than 5cm(2”) in diameter.
For best results, use pans that are between 12cm (4 3/4”) and 24cm (10”) in diameter.
Overheating Protection Device,
If the pan’s temperature becomes too high, the unit will shut off automatically.
HOW DOES YOUR INDUCTION HOB WORK?
A high frequency (20-35KHz) induction coil underneath the surface ceramic top plate
heats the cooking utensil by magnetic friction. The heat is produced directly within the
pan. It is controlled by electronic circuit to offer superior performance and functions.
During cooking, no energy is lost between the hob and the food. When you switch off,
the cooking is stopped immediately.

IBB-05F
5
2013/04/22
PRECAUTION BEFORE USING YOUR INDUCTION HOB
1. In case of breakage on glass-top, even if it's only slightly cracked, disconnect the appliance from
the power supply immediately and contact after-sales service.
2. The appliance is equipped with 'small object detector'. But, it's recommended not to place metal
kitchen utensils, pan lids, knives, or other metal objects on the induction heating zone. If an
inductor is switched on, there is a risk of becoming hot.
3. When using your induction hob, don't place any magnetic objects on the glass top, such as credit
cards, cassettes, etc.
4. Scientific tests have shown that the induction hob presents no danger. However, for persons
using a pacemaker, please keep 24” of distance from the unit while the induction hob is in use.
5. To prevent from overheating, do not place aluminum-foiled or iron plate on the top plate.
6. Put the appliance on a horizontal surface but keep away from wall or articles at least 5-10cm (2”
~ 4”).
7. Do not put any articles like iron wire or tools into the air entrance or outlet to prevent from electric
shock.
8. Immediate clean-up is recommended when water left on the top plate.
*** Please use an individual outlet for each induction cooker.

IBB-05F
6
2013/04/22
OPERATION INSTRUCTION
1. Plug power cord into 120 volt power socket.
2. Place a suitable pot/pan on center position of top plate.
3. Turn on power by pressing the on/off key, digital-display will display will light on and show “0”
4. After pushing on/off button to turn-on the unit, if you don’t press any other buttons in 10 seconds,
the unit will turn off automatically.
5. Press “High” button, the digital-display will display H to hold at 85ɗ(185ə) by 480watt.
6. Press “Low” button, the digital-display will display L to hold at 75ɗ(167ə) by 350watt.
7. If LED-light is flashing: it’s not reaching the desired holding temperature yet.
8. If there’s no pan on the top, the LED-light won’t flash.
9. If the pot/pan isn’t suitable for induction heating, the LED-light won’t light-on.
10. The unit is equipped with an over-heating protection feature, which will stop power
temporally when top plate temperature reaches 230ɗ+/-20ɗ(446ə: 410ə~480ə)

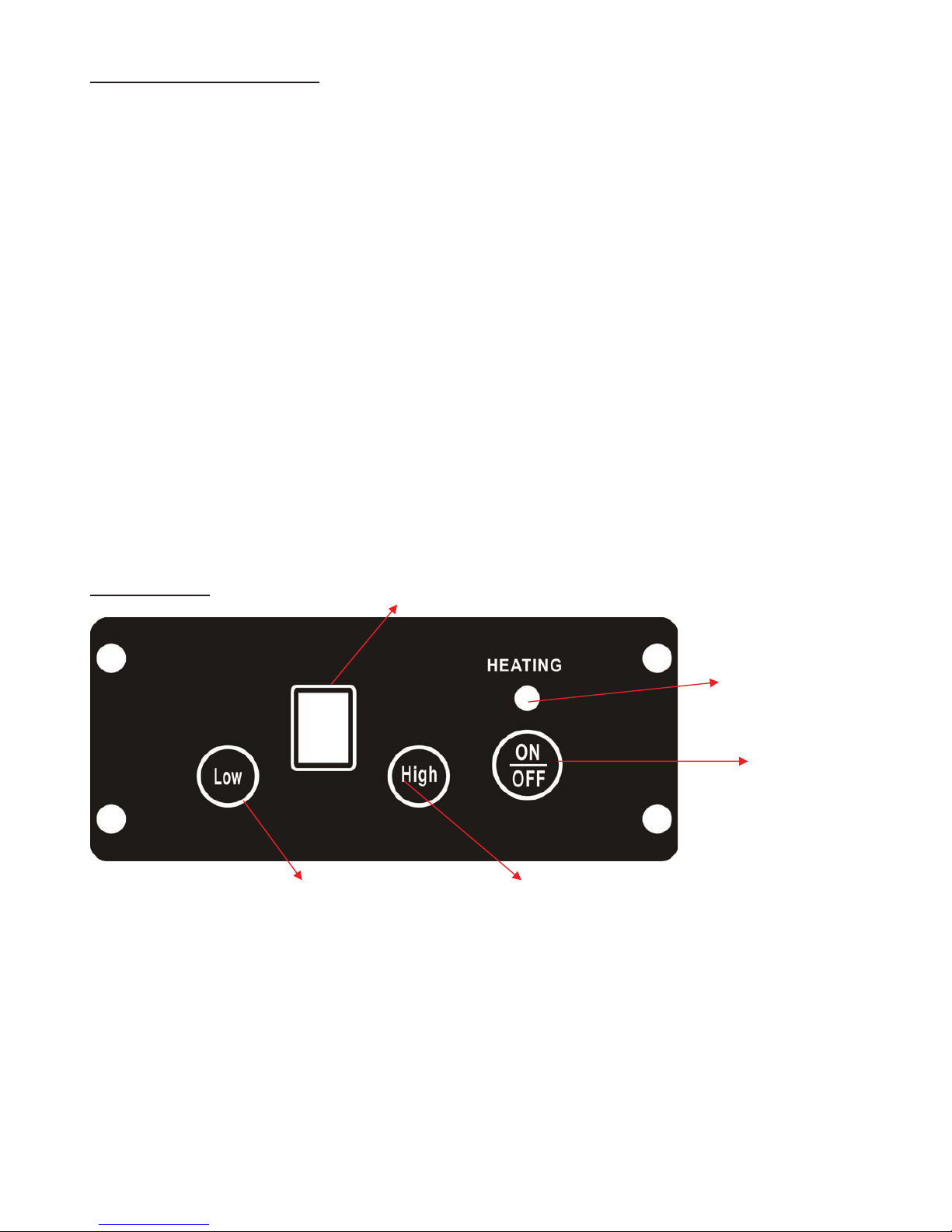

Control Panel:
Low-power /
temperature
level
High-power /
temperature
level
Power on/off
button
Heating-LED-
light
Digital–display: H or L level, also
for error-code display

IBB-05F
7
2013/04/22
FEATURES & DESCRIPTION:
Table cut off size: 298 mm x
295mm
Control box cut off size: 55mm
(H) x 120mm (W)
Air In-Take Hole: 55(H) x 160 (W)
mm
Air Out-Take Hole: 55(H) x280 (W) mm

IBB-05F
8
2013/04/22
Remarks: Keep good air intake and outlet space is very important for good quality and function for
this induction cooking device. Recommend to keep a open underneath the table not smaller than
200cm2(50x400mm) for fresh and cool air can be used for cooling the induction components (Air
in-take hole, and air out-take hole).
SPECIFICATION:
Model No. IBB-05F
Voltage 120 V ~ 60Hz
Ceramic Top Plate Approx. 320mm x 320mm
Electrical Power
Consumption
Max. 500w
Safety Device !Automatic Safety Shut-Off
!Material Compatibility Detector
!Small Object Detector
!Overheating Protection Device
Remark: The switching frequency is verified by different power setting,
it’s to be between 20 ~ 35 K Hz.

IBB-05F
9
2013/04/22
TROUBLE SHOOTING
1. If your induction range seems to be working improperly, it doesn't necessarily mean it's defective.
In all cases, check the following points.
2. If you fail to identify the problem, contact after-sales service without delay.
If...... It might be caused by......
No indication light when power "on" Cable/terminal block is loosed
Tripped circuit breaker or blown fuse at power panel.
Power supply stopped.
Heating indicator does not light-on, Unsuitable cooking vessel.
Appliance fails to heat up Cooking vessel is not centered on glass top.
Cooking vessel is smaller than 4.75”.
Over-heating protection is activated.
Appliance suddenly stops heating
during operation.
High ambient temperature.
Air entrance or outlet blocked.
Over-heating protection activated.
Error-Code: by beeper & by display
Definition error-code by beeper error-code by display
No pot/pan in 60seconds beeper for 60seconds
(30 slow beeper) without display
NTC-sensor (on heating-coil) is open
or short 1long 2short "E"
Heating an empty pot 19short 1long
"h" (in order to confuse with "H"
power level, this over-heat error-
code, is a Minuscule (small caps)
Over Voltage Protection 1long 4short "U"
AC current circuit is open 1long 11short "C"
IGBT NTC-sensor is open/short, or
over-heat 1long 7short "F"

IBB-05F
10
2013/04/22
APW WYOTT EQUIPMENT
LIMITED WARRANTY
APW Wyott Food service Equipment Company warrants it's equipment against defects in
materials and workmanship, subject to the following conditions:
This warranty applies to the original owner only and is not assignable.
Should any product fail to function in its intended manner under normal use within the limits
defined in this warranty, at the option of APW Wyott such product will be repaired or replaced
by APW Wyott or its Authorized Service Agency. APW Wyott will only be responsible for
charges incurred or service performed by its Authorized Service Agencies. The use of other than
APW Wyott Authorized Service Agencies will void this warranty and APW Wyott will not be
responsible for such work or any charges associated with same. The closest APW Wyott
Authorized Service Agent must be used.
This warranty covers products shipped into the 48 contiguous United States, Hawaii,
metropolitan areas of Alaska and Canada. There will be no labor coverage for equipment located
on any island not connected by roadway to the mainland.
Warranty coverage on products used outside the 48 contiguous United States, Hawaii, and
metropolitan areas of Alaska and Canada may vary. Contact the international APW Wyott
distributor, dealer, or service agency for details.
Time Period
One year for parts and one year for labor, effective from the date of purchase by the original
owner. The Authorized Service Agency may, at their option, require proof of purchase. Parts
replaced under this warranty are warranted for the un-expired portion of the original product
warranty only.
Exceptions
* Gas/Electric Cookline: Models HCB, HCRB, HMG, HTG, HHP, HHPS, GCB,
GCRB, GF, GGM, GGT, CHP-H, EF, EG, EHP. Three (3) Year Warranty on all
component parts, except switches and thermostats. (2 additional years on parts only.
No labor on second or third year.)
* Broiler Briquettes, Rock Grates, Cooking Grates, Burner Shields, Fireboxes: 90
Day Material Only. No Labor.
* Heat Strips: Models FD, FDL, FDD, FDDL. Two (2)Year Warranty on element only.
No labor second year.
* Glass Windows, Doors, Seals, Rubber Seals, Light Bulbs: 90 Day Material Only.
No Labor.
In all cases, parts covered by extended warranty will be shipped FOB the factory after the first
year.
Portable Carry In Products
Equipment weighing over 70 pounds or permanently installed will be serviced on-site as per the
terms of this warranty. Equipment weighing 70 pounds or under, and which is not permanently
installed, i.e. with cord and plug, is considered portable and is subject to the following warranty
handling limitations. If portable equipment fails to operate in its intended manner on the first day
of connection, or use, at APW Wyott's option or its Authorized Service Agency, it will be
serviced on site or replaced.
9/05

IBB-05F
11
2013/04/22
APW WYOTT EQUIPMENT
LIMITED WARRANTY
From day two through the conclusion of this warranty period, portable units must be taken to or
sent prepaid to the APW Wyott Authorized Service Agency for in-warranty repairs. No mileage or
travel charges are allowed on portable units after the first day of use. If the customer wants on-site
service, they may receive same by paying the travel and mileage charges. Exceptions to this rule:
(1) countertop warmers and cookers, which are covered under the Enhanced Warranty Program,
and (2) toasters or rollergrills which have in store service.
Exclusions
The following conditions are not covered by warranty:
* Equipment failure relating to improper installation, improper utility connection or supply
and problems due to ventilation.
* Equipment that has not been properly maintained, calibration of controls, adjustments,
damage from improper cleaning and water damage to controls.
* Equipment that has not been used in an appropriate manner, or has been subject to
misuse or misapplication, neglect, abuse, accident, alteration, negligence, damage during
transit, delivery or installation, fire, flood, riot or act of god.
* Equipment that has the model number or serial number removed or altered.
If the equipment has been changed, altered, modified or repaired by other than an Authorized
Service Agency during or after the warranty period, then the manufacturer shall not be liable for
any damages to any person or to any property, which may result from the use of the equipment
thereafter.
This warranty does not cover services performed at overtime or premium labor rates. Should
service be required at times which normally involve overtime or premium labor rates, the owner
shall be charged for the difference between normal service rates and such premium rates. APW
Wyott does not assume any liability for extended delays in replacing or repairing any items
beyond its control.
In all cases, the use of other than APW Wyott Authorized OEM Replacement Parts will void this
warranty.
This equipment is intended for commercial use only. Warranty is void if equipment is installed in
other than commercial application.
Water Quality Requirements
Water supply intended for a unit that has in excess of 3.0 grains of hardness per gallon (GPG)
must be treated or softened before being used. Water containing over 3.0 GPG will decrease the
efficiency and reduce the operation life of the unit.
Note: Product failure caused by liming or sediment buildup is not covered under warranty.
"THE FOREGOING WARRANTY IS IN LIEU OF ANY AND ALL OTHER
WARRANTIES EXPRESSED OR IMPLIED INCLUDING ANY IMPLIED WARRANTY
OF MERCHANTABILITY OR FITNESS FOR PARTICULAR PURPOSES AND
CONSTITUTES THE ENTIRE LIABILITY OF APW WYOTT. IN NO EVENT DOES
THE LIMITED WARRANTY EXTEND BEYOND THE TERMS STATED HEREIN."
9/05
