Aqua Blaster FE100 User manual

FE100 MANUAL
Custom Elite Manufacturing, LLC · PO Box 968 · Lake Geneva, WI 53147

2
BELLY PLATEVELCRO STRIPS
FRAME
BOTTOM
SECTION
FRAME
MIDDLE
SECTION
ASSEMBLY
INSTRUCTIONS
The Aqua Blaster belly plate unit is shipped assembled. The
water ow components and adjustable locking clamp are
ready to use. The Aqua Blaster height adjustment range is 4”.

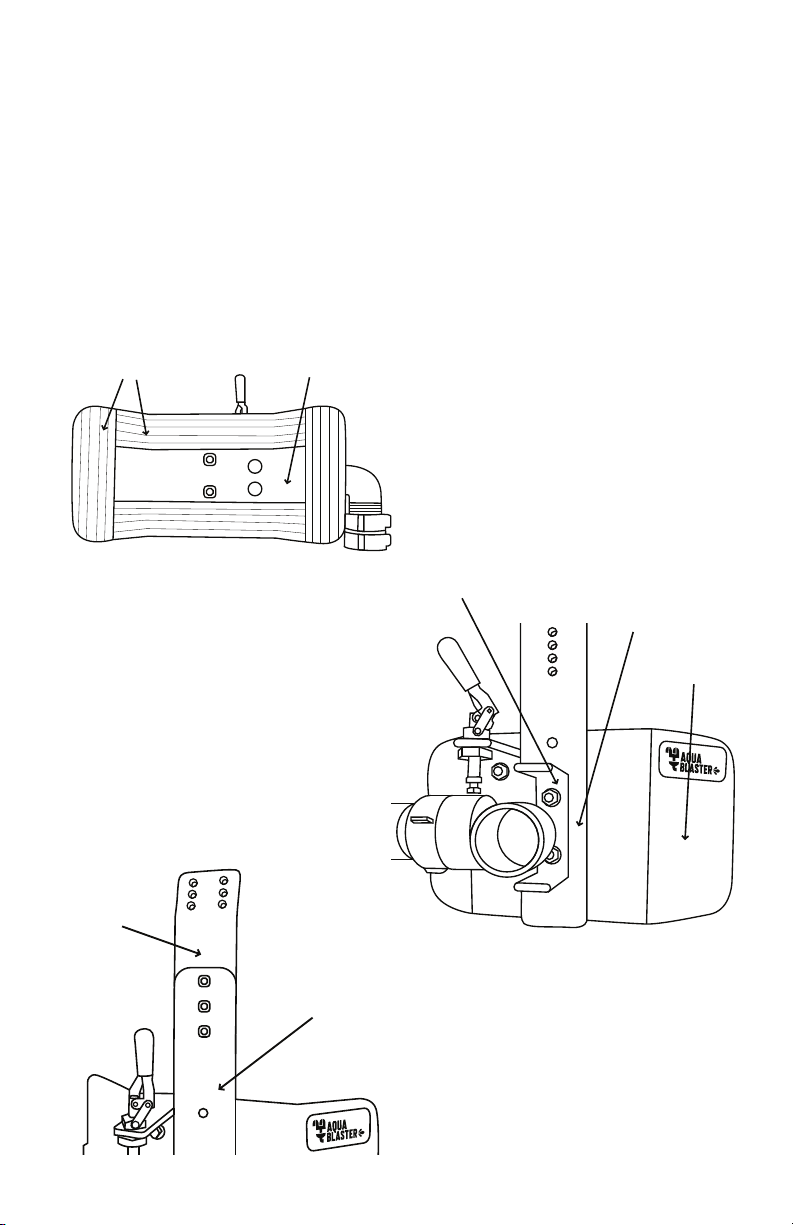

STEP 1.
Attach radiused vertical
Velcro pieces to belly plate.
Then attach upper and lower
horizontal Velcro strips.
STEP 3.
Attach frame middle section
(with angle towards user) to
frame bottom section using
two ¼” – 20 x 1” carriage
bolts and two ¼” - 20
serrated ange lock nut.
STEP 2.
Attach frame bottom
section and nozzle rotation
stop bracket to belly plate
assembly using two 5/16”
– 18 x 1” carriage bolts
and two 5/16” - 18 serrated
ange lock nuts. Slide on
stop bracket rubber covers.
NOZZLE ROTATION
STOP BRACKET
BELLY
PLATE
ASSEMBLY
FRAME
BOTTOM
SECTION

3
STEP 4.
Attach frame top section to frame middle section with two ¼” –
20 x ¾” carriage bolts and two ¼” - 20 serrated ange lock nuts.
STEP 5.
Attach arm hooks to frame top section using four ¼” – 20 x ¾”
carriage bolts with four ¼” – 20 serrated ange lock nuts. Slide
arm hook pads on arm hooks. Lift up tab and attach 1” Velcro
square to secure arm hook pad from sliding off arm hook.
STEP 6.
Attach belly plate pad to
belly plate.
FRAME TOP
SECTION
FRAME
MIDDLE
SECTION
ARM
HOOKS
FRAME
MIDDLE
SECTION
FRAME TOP
SECTION
BELLY PLATE PAD

4
NO. PART NO. QTY DESCRIPTION
1. FE100-P0000 1Belly plate unit, shipped completely
assembled
2. FE100-P0005 1 Belly plate only
3. FE100-P0009 1 Belly plate pad
4. FE100-P0001 2 Arm hook
5. FE100-P0008 2 Arm hook pad
6. FE100-P0002 1 Frame top section
7. FE100-P0003 1 Frame middle section
8. FE100-P0004 1 Frame bottom section
9. FE100-P0006 2 Swivel elbow, brass
10. FE100-P0007 1 Double female coupling
11. FE100-P0022 1Welded adjustable clamp bracket
12. FE100-0012 1Adjustable locking clamp
13. FE100-0015 15/8” internal tooth lock washer
14. FE100-0016 35/16” – 18 x ¾” carriage bolt
15. FE100-0017 55/16” – 18 serrated ange lock nut
16. FE100-0018 6¼” – 20 x ¾” carriage bolt
17. FE100-0019 2 ¼” – 20 x 1” carriage bolt
18. FE100-0020 2 5/16” – 18 x 1” carriage bolt
19. FE100-0021 8¼” – 20 serrated ange lock nuts
20. FE100-0022 1 Rotation stop bracket
21. FE100-0023 2 Rotation stop bracket rubber cover
22. FE100-0024 1Adjustable locking clamp rubber
handle
PARTS
LIST

5
1. Read and follow the manual before use.
2. Use only for reghting by trained operators.
3. Do not exceed a maximum pressure of 300 psi. 20.68 bars)
4. Operating temperature range, -30F to 150F. (-34C to 66C)
5. Charge the Aqua Blaster slowly. Rapid charging many
cause a pressure surge with the potential to cause injury
or damage to the Aqua Blaster.
6. Arm hook and belly pads are not re resistant.
7. Make sure the Aqua Blaster is pointed in a safe direction
before charging.
8. During freezing conditions, the Aqua Blaster must be
drained when not in use to prevent damage.
9. Replace any tags on the Aqua Blaster that have become
warn or damaged.
10. The Aqua Blaster must be on the user before charging.
11. When changing locations it is recommended that water
ow be stopped
12. It is important to keep the rotation clamp properly
adjusted to maintain proper locking pressure.
13. Keep hands on nozzle when in use.
14. Periodically check tension on assembly bolts. Replace
worn parts.
SAFETY
INFORMATION
