AQUA FORTE Vacuum Cleaner XL User manual

AQUAFORTE IS A TRADEMARK OF SIBO BV, HOLLAND
www.aqua-forte.com
AquaForte Vacuum Cleaner XL
User manual
AQUAFORTE IS A TRADEMARK OF SIBO FLUIDRA NETHERLANDS B.V.
www.aqua-forte.com

EN
AQUAFORTE VACUUM CLEANER XL MANUAL • 2
Important Please readthese instructions foruse carefullybefore using this device.
WARNING
• This appliance is not suitable for use by persons (including children) with limited physical, sensory
or mental capabilities or lacking experience and/or knowledge, except if they are supervised by a
person responsible for their safety or have been instructed in the use of the appliance.
• Children should be supervised in order to make sure that they do not
play with the appliance.
• The pond sludge suction cleaner must not be used as a vacuum cleaner
for dry matter, only as a water extractor. Do not use without the lter
bag (1) and the protection lter (2). Incorrect handling will result in the
nullication of the warranty claim.
• It must be ensured that the pond sludge suction cleaner is set up in
such a way that it cannot fall into the water, and that it cannot tip.
Wherever possible, position the pond sludge suction cleaner on a level
surface at the height of the water surface, but no lower than the water
level. The lower the suction height, the better the suction performance.
(see g. A + B)
• Do not swim in the water while cleaning is taking place.
• Operate the suction cleaner only in dry weather
• If the pond sludge suction cleaner is not used during the winter months, empty it and store it indoors
to prevent internal freezing.
Technical Data:
1200 W Suction turbine
240 mbar
8.000 l/h Suction power
900 W Sewage pump
13.000 l/h Pomp power
10 m
14 kg
Attention!
Only suitable with a FI-switch 30mA and has to
be connected to a regular safety plug socket.
Never let the pump run dry.
Follow the operating instructions!

AQUAFORTE VACUUM CLEANER XL MANUAL • 3
EN
Suction hose
Waste hose
Handle
Telescopic pole
PARTS LIST
OPTIONAL PARTS
Suction nozzle
suction hose
Big wheel
Power
Brake wheel
Suction hose Ø38mm
10 m
Professional breglass telescopic pole L = 2,4 to 4,8 m or 3,4 to 9,7 m
Waste hose Ø38mm
5 or 10 m
Bottom
cleaner
Oval gravel
cleaner
Round gravel
cleaner
Wheel
Locking clips
Waste water
container
Water drain
On/O switch
Blower (air output)
Socket for dirty
cable
connector
connector
water pump
connection

EN
AQUAFORTE VACUUM CLEANER XL MANUAL • 4
hose connector

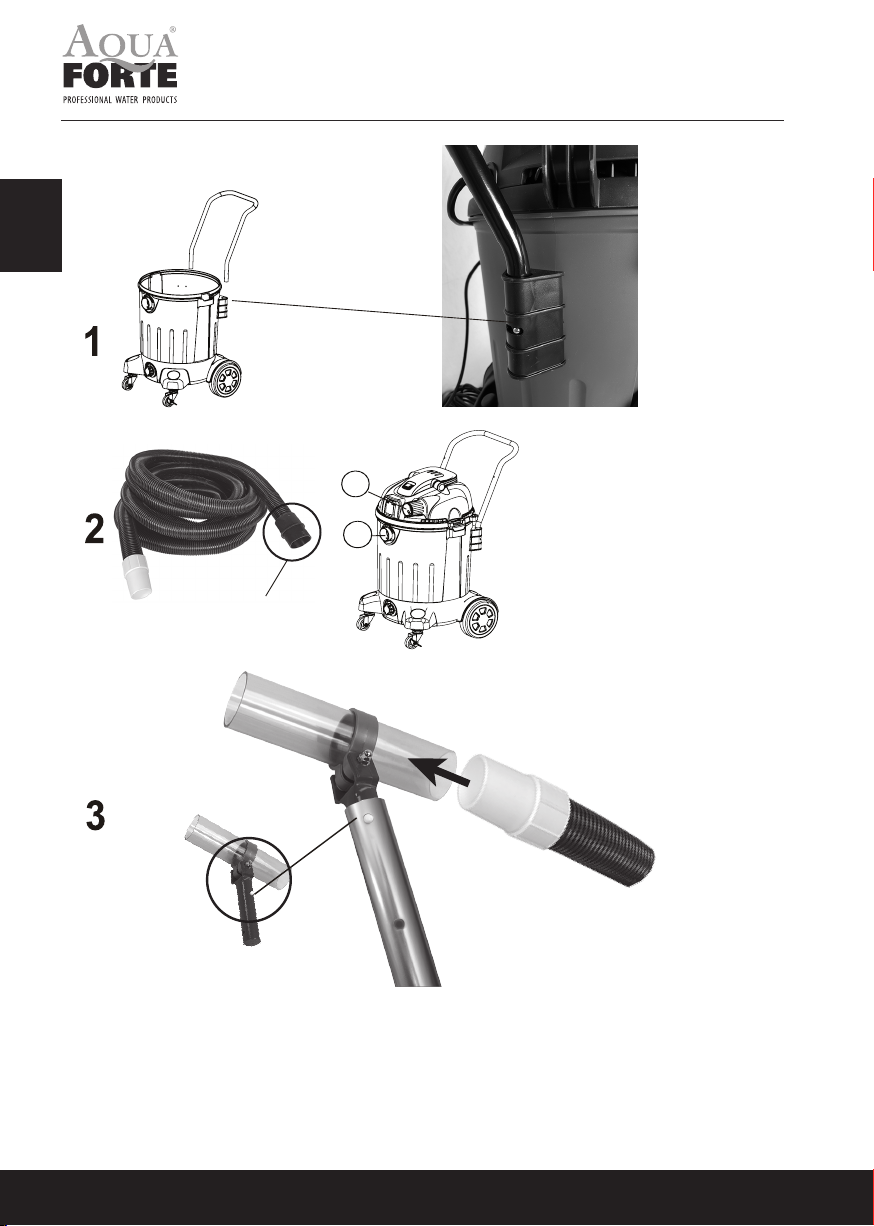

Put the hose connector in the suction inlet (2)
If you need blowing air you can choose to put it
in the blower output (1).
1
2
INSTRUCTIONS
Assemble the metal handle
as picture shows
A
B
A) Connect the suction nozzle with the telescopic pole by clicking the white “wishbone”clip connection
into the telescopic pole.
B) Connect the suction hose with the suction nozzle by pressing the white tting over the end of the
transparent pipe.

AQUAFORTE VACUUM CLEANER XL MANUAL • 5
EN
Now connect the waste outlet hose into the side connection (bayonet
connection on the pressure side) and position the hose end on
the ground or in a drain.
during the suction process, examine the end of the outlet hose and conrm that the sludge water which is
being extracted is also being pumped out. When only smaller amounts of water are being pumped out, remove
the plug of the dirty the pump from the socket on the suction head. In this way, you will prevent the dirty
pump from being damaged by dry running.To empty the dirty water tank, re-insert the plug of the pump.
Safety information! When pumping out a ooded cellar, ensure that the water which has been pumped out
cannot ow back in again.
Note! To protect the pond sludge suction cleaner, a cut-o switch is installed; when triggered, this stops the
suction power even though the turbine is running.
No/low suction power can have the following causes:
– the lter bag is full of dirt. Open the zip at the side of the lter bag, and empty/clean the lter bag.
– the dirty water pump has not been plugged in.
– the dirty water pump is blocked at the intake opening. Check the lter bag for damage. Disconnect the pond
sludge suction cleaner from the mains, and clean the dirty water tank and the pump.
– the outlet hose is blocked. Examine and clean the hose end.
– the head pressure is too great for the pump; the waste outlet hose is pointing upwards.
– the suction hose is blocked, e.g. by a stone or weed.
– the suction height is too large. Place the pond sludge suction cleaner in a lower position, but never lower
than the water level (this creates the risk of self-priming and therefore of ooding, as well as leakage from the
pond sludge suction cleaner). The pond sludge suction cleaner may be positioned no more than 80 cm higher
than the waterlevel of the pond. (see g. B)
– the protection lter below the suction head is blocked with dirt. Remove, and wash carefully.
4
Starting suction cleaning
Start up the pond suction cleaner with the on/o
switch and hold the suction hose together with the
telescopic rod and the suction attachments under the
water. The dirty water can then be sucked out and
continuously pumped o. Pay attention to the end of
the outlet hose. If no water is discharged after approx.
30 sec., then switch o the device for about 1 min.,
and restart the suction operation. From time to time

EN
AQUAFORTE VACUUM CLEANER XL MANUAL • 6
Cleaning the suction cleaner
Disconnect the vacuum cleaner from the mains. Pull out the plug of the dirty water for the pump from the
socket on the suction head and open the clips on the container.
After this, lift the suction head o the container and wipe it with a dry cloth.The suction head and the
cable plug must not become wet. Now tip the dirt out of the container and rinse it with water.
Also clean the protection lter underneath the suction head.
If necessary, clean the dirty water pump
– Follow the safety instructions! Remove the mains plug from the socket!
– You can remove the dirt pump for cleaning as described below.
– Use a at tool to remove the (bayonet) connection from the container.
– Loosen the 2 nuts on the clip of the dirt pump and take the dirt pump out.
– You can unscrew the tubing on the dirt pump!
– Spray-wash dirty water pump and attachments with a jet of water and remove all coarse dirt particles.
Do not cause any damage!
– Check if the dirty water pump starts up by briey inserting the mains plug into the socket!
Warning: Do not reach into the suction openings with your hands!
– The user is not allowed to perform any other maintenance or cleaning steps (such as screwing open the
pump)! Contact your dealer or service workshop when you are experiencing problems!
During extended work breaks, disconnect the vacuum cleaner from the mains (remove the plug from the
socket).The vacuum cleaner must be stored clean and dry. If the vacuum cleaner is not used during the
winter months, empty it and store it indoors to prevent internal freezing.
Safety requirements for the pond vacuum cleaner
Attention! Immediately on delivery, please examine the goods for transport damage and for completeness
(see parts list). Make a complaint to the carrier immediately.
When using this appliance, all basic safety instructions must be complied with, especially the following:
Attention! Handling water in combination with electrical devices requires absolute care and attention!
A frequent cause of accidents is lack of attention during routine procedures.
Ensure that your hands are dry when inserting or removing the mains plug.
Repairs may only be carried out by an expert. Before use, all parts must be correctly assembled.
Under no circumstances whatsoever may materials such as explosive or poisonous liquids, glowing ash, or
petrol be pumped (danger of explosion).

AQUAFORTE VACUUM CLEANER XL MANUAL • 7
EN
WARNING!
To reduce the risk of re, electric shock, or injury:
• Do not leave vacuum cleaner when plugged in. Turn o the switch and unplug the electrical cord when
not in use and before servicing.
• Do not allow to be used as a toy. Close attention is necessary when used by or near children and pets.
• Use only as described in this manual. Use only manufacturers' recommended attachments.
• Do not use with damaged cord or plug.
• Do not pull or carry by cord, use cord as a handle, close door on cord, or pull cord around sharp edges or
corners. Do not run vacuum cleaner over cord. Keep cord away from heated surfaces.
• Do not use extension cords or outlets with inadequate current carrying capacity.
• Turn o all controls before unplugging.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not handle plug or vacuum cleaner with wet hands or operate without shoes.
• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair,
and anything that may reduce airow.
• This vacuum cleaner creates suction. Keep hair, loose clothing, ngers, and all parts of body away from
openings and moving parts.
• Do not use to pick up ammable or combustible liquids such as gasoline, or use in areas where they may
be present.
• Store your cleaner indoors in a cool, dry area.
• ENSURE you turn the unit o at the very minimum every 15 minutes (for 1 minute) to let the motor cool
down- failure to do so may cause motor failure.
• DO NOT use this unit for more than 4 hours (including rest breaks) on any given day.
Guarantee conditions
Fot private use this device is warranted for 24 months, from the date of delivery. Proof of purchase is
required. Defects in material or workmanship will be repaired or replaced at our discretion and free of charge
during the warranty period. Damages resulting from faulty installation or operation, calcium deposits,
inadequate care, frost, normal wear, or unauthorized repair attempts are not covered under the warranty.
Modications to the device, such as separating the mains connection lines or the mains connector,
invalidate the warranty. We assume no liability for consequential damages resulting from a failure of the
device or proper operation. In the event of a claim under this warranty, please return the device with the
proof of purchase to us postage-paid through the authorized dealer from whom you purchased the device.
Waste disposal
waste disposal of electronic devices by the user in private households of the EU It is not allowed to dispose
the product along with the regular waste disposal, instead it has to be collected separately. It is your
responsibility to dispose and recycle the device in a proper place and protect the environment through this.
More information, where to dispose your devices can be obtained at the local departments.

EN
AQUAFORTE VACUUM CLEANER XL MANUAL • 8
Remove the net from the HEPA-Filter
Rotate the lock nut anti-clockwise and remove the lter
Clean carefully
Air dry both parts Put the parts back
EU Conformity Declaration
MAINTENANCE
Hubert Rössle
Name des Bevollmächtigten der
technischen Unterlagen nach
MRL 2006/42/EG:
Rössle AG
Pater-Hartmann-Str. 23
87616 Marktoberdorf, Germany
WARNING! When the lter is dirty or the suction power is low, please clean the
HEPA lter and its protection net. Regular cleaning prolongs the lifetime of the
vacuum cleaner. Do not use the pond vacuum cleaner without this lter!
We herby declare that the following electric appliances in their design and construction and in all versions distributed by us comply with the essential
requirements of the following standards. Alterations and modications of the appliances not approved by us invalidate this declaration.
Description of the electric appliances: Pond Vacuum Cleaner Appliance types: Mainstream Power consumption: 1400 W / 900 W
EU Directive: 2006/42/EG
Harmonised standards
EN 60 335-1 : 2002 + A1 : 2004 + A11 : 2004 + A2 : 2006 + A12 : 2006 + A13 : 2008 + A14 : 2010/Part1
EN 60 335-2-69 : 2003 + A1 : 2004 + A2 : 2008/Part 2-69 EN 60335-2-41: 2003 + A1 : 2004/Part 2-41
EN 62 233 : 2008
Signature:
Name of signer: Hubert Rössle
Signer‘s function: CEO
Rössle AG Pater-Hartmann-Str. 23 87616 Marktoberdorf, Germany
Date: 10.10.2017
