FOAM CANNON + SPRAYER
HOSE POWERED | ALL-PURPOSE | ADJUSTABLE
Model AJ-SPXN
1

Know Your Foam Cannon + Sprayer
Read the owner’s manual and safety rules carefully before using your car wash sprayer + foam
cannon. Compare the illustration below to the actual unit in order to familiarize yourself with the
location of the various controls and adjustments. Save this manual for future reference.
1
2
3
4
5
8
6
7
9

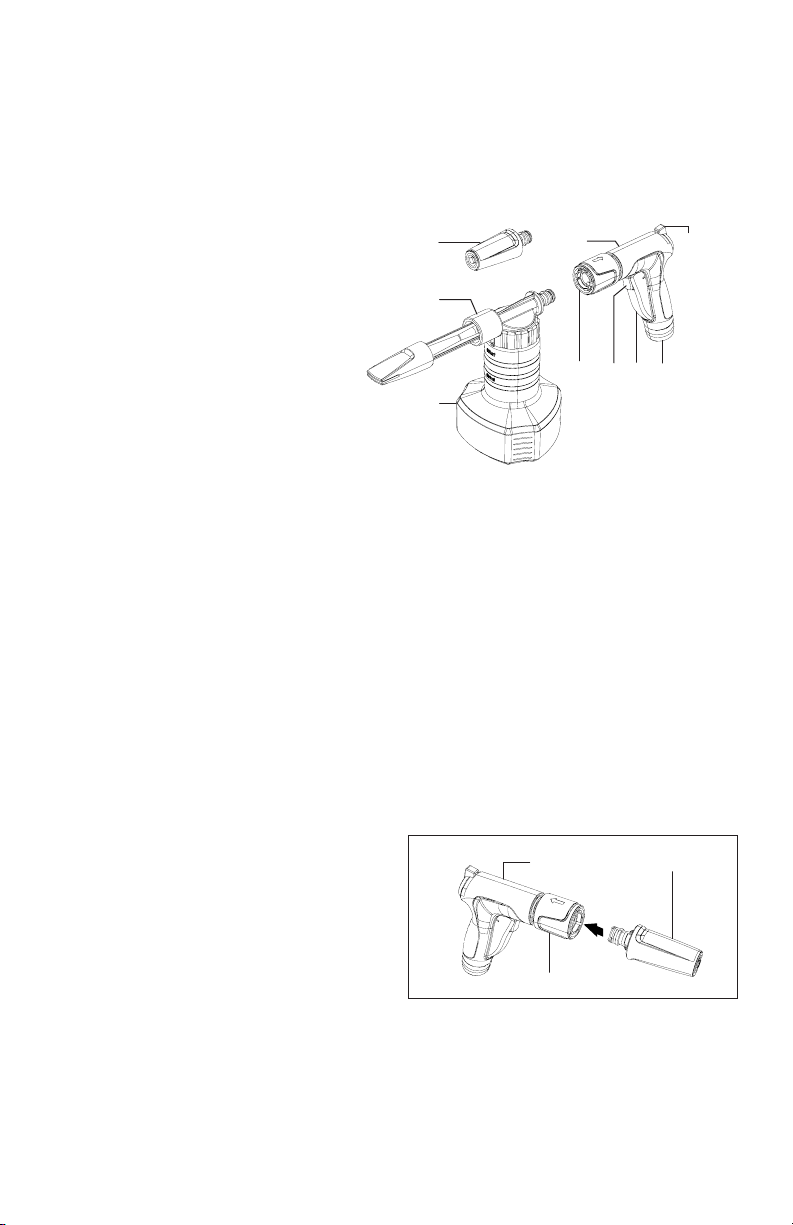

1. Adjustable spray nozzle
2. Foam cannon
3. Detergent bottle
4. Garden hose connection
5. Trigger
6. Trigger lock
7. Quick-Connect collar
8. Trigger gun
9. Water ow throttle
mWARNING! To reduce the risk of injury, the
user must read and understand this operator’s
manual before using this product. Failure to
follow all warnings and precautions may result in
personal injury, or property damage.
General Safety
1. Keep clear of the nozzle. Keep bystanders
and children a safe distance away from the
work area. Never direct discharge stream at
people, pets, or electrical devices.
2. Do not abuse the water hose. Keep hose
away from sharp objects. Damaged or
entangled hoses increase the risk of personal
injury. Examine hoses regularly and replace if
damaged. Do not attempt to mend a damaged
hose.
3. Store properly. After using, store the sprayer
and foam cannon in a dry area. Avoid direct
sunlight.
Connection
1. To connect the nozzle to the trigger gun, snap
it onto the Quick-Connect collar until it clicks
into place (Fig. 1).
2. Thread the garden hose (male end) into the
garden hose connection at the end of the
trigger gun (Fig. 2). Attach the other end of
garden hose to water supply.
Fig. 1 Trigger gun
Quick-Connect collar
Spray Nozzle
Technical Data
Foam Cannon Mixing Ratio ......................... 1:10
Detergent Tank Capacity ........... 23  oz (680 ml)
Detergent Tank Mixing Ratio* ........................ 1:5
Foam Cannon Spray Angle ........................... 25°
Spray Nozzle Spray Angle .................... 0° to 65°
Connection .......................... Standard GHT inlet
Quick-Connect outlet
Net Weight ................................... 0.9 lbs (0.4 kg)
*Standard concentrated detergent to water
2

Operation
Starting + Stopping
1. With the water supply turned on and the
nozzle pointed to the car, squeeze the trigger.
To keep the water owing without squeezing,
engage the trigger lock (Fig. 3).
2. To stop, disengage the trigger lock and
release the trigger.
Adjusting Water Flow and
Spray Angle
1. During operation, use the water ow throttle to
adjust the water ow (Fig. 4).
NOTE: The water ow rate can be adjusted
from as low as 2.8 GPM to as high as 3.3
GPM. Generally, with a higher water ow rate
there will be more water released from the
trigger gun. If the foam cannon is used, the
detergent in the bottle will be used up sooner
with a higher water ow setting.
2. When using the spray nozzle tip, the spray
can be adjusted from 0° pencil spray to 65°
fan spray as needed by turning the nozzle tip
(Fig. 5).
Fig. 2 Garden hose
connection
Garden hose
Fig. 3
Squeeze the
trigger
Trigger lock
Fig. 4
Water ow Throttle
Increase Decrease
Working with Foam Cannon
For additional cleaning power, the unit comes
equipped with a foam cannon spray bottle.
1. Remove the foam cannon cap with detergent
suction tube from the detergent bottle. Fill the
detergent bottle with proper detergent mixed
with water as instructed on the detergent
label/manual (Fig. 6).
2. With the trigger released and the water supply
shut o, disconnect the spray nozzle by
pulling back the Quick-Connect collar (Fig. 7).
NOTE: Do not make change to nozzles when
the sprayer is on.
3. Snap the foam cannon onto the Quick-
Connect collar until it clicks into place (Fig. 8).
Fig. 5
0° Pencil Spray 65° Fan Spray
Fig. 6
Foam cannon
cap with
suction tube
Detergent bottle
Fig. 7
Spray nozzle
Quick-Connect
collar
3

4. Turn on the water supply, and squeeze the
trigger. The detergent in the bottle will be
sprayed on the car.
General Car Washing Process
1. Using the adjustable nozzle on the sprayer,
rinse the car to remove loose debris and grime.
2. Connect the foam cannon and foam the car
from top to bottom.
3. Using a wash mitt for car soaked with
detergent water, wipe the whole car. After each
panel, rinse the wash mitt in clean water before
working on another panel.
4. After the whole car is wiped, reattach the spray
nozzle and rinse the car from top to bottom.
Cleaning + Maintenance
1. Remove the detergent bottle from the foam
cannon and rinse the bottle with water to
remove any detergent residue.
2. Fill the detergent bottle with water, then
reinstall. Spray the full bottle of water through
the foam cannon to clean any detergent
residue from inside the foam cannon.
3. Remove the foam cannon from the trigger gun.
Rinse the outside of the foam cannon and
sprayer completely to remove any detergent
residue. Allow all parts to dry completely before
storage.
Fig. 8
Trigger gun
Foam cannon
Service + Support
If your Aqua Joe® AJ-SPXN Car Wash Sprayer +
Foam Cannon requires service or maintenance,
please call Snow Joe®+ Sun Joe®customer
service at 1-866-SNOWJOE (1-866-766-9563) for
assistance.
Model + Serial Numbers
When contacting the company or arranging
service from an authorized dealer, you will need
to provide the model and serial numbers, which
can be found on the registration card. Copy these
numbers into the space provided below.
Record the following numbers from the registration card
of your new product: Model #:
Serial #:
A J - S P X N
