Safety Information
This appliance can be used by children aged from 3 years and above
and persons with reduced physical, sensory or mental capabilities
or lack of experience and knowledge if they have been given
supervision or instruction concerning use of the appliance in a
safe way and understand the hazards involved. Children shall not
play with the appliance. Cleaning and user maintenance shall not
be made by children without supervision. For further information
regarding the installation of your product, refer to the Smart
Installation Guide.
Declaration of Conformity
Aqualisa Products Limited declares that the Aqualisa SmartValveTM
and supplied controller, in conjunction with pairing remotes and
diverter, complies with the essential requirements and other relevant
provisions of the Low Voltage Directive (2014/35/EU), the EMC
Directive (2014/30/EU) and the RED Directive (2014/53/EU).
2

LEVER
MENU ACCESS
CONFIRM A
SELECTION
BEZEL
ROTARY
TEMPERATURE
CONTROL TOUCH SWITCH
ON/OFF
PROXIMITY
SENSOR
ACCENT
RINGDISPLAY
Optic Q™ Controller
GET SMART CONNECTED
Unlock the potential of your shower; from water consumption analysis to
enhanced user functions. Keep up to date with latest features for the Aqualisa app
and voice activation by visiting the Aqualisa website.
Download and open the free Aqualisa app. Find instructions on page 15
“Connecting to the App”. If you have any trouble downloading the Aqualisa app,
check www.aqualisa.co.uk/smartapp for device compatibility.
SMART SPEAKER SET-UP
Once the above has been completed go to the app for your smart speaker and
follow their instructions to add the Aqualisa home to your devices.
3

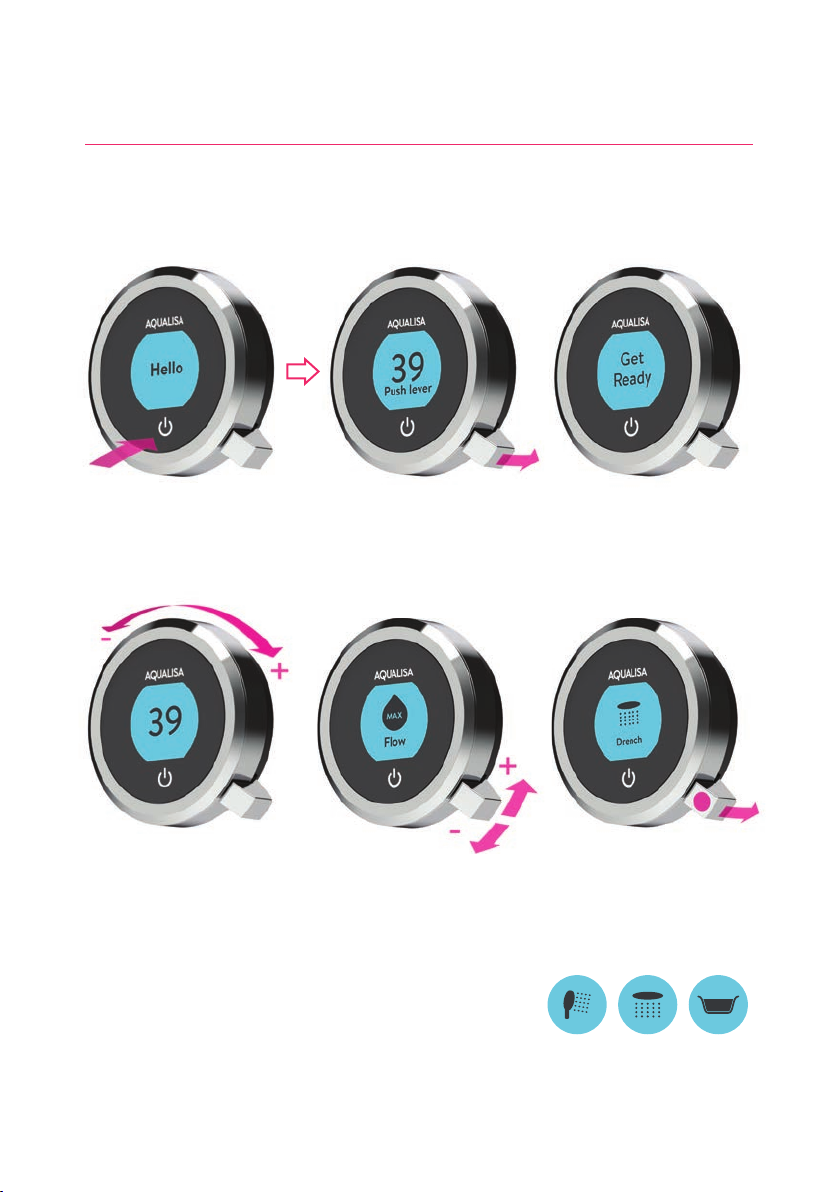

Quick Start
WAKE UP, (POWER ON)
AND POWER OFF
SHOWER ON
TEMPERATURE FLOW SELECT OUTLET*
Push and hold QTM lever for over
3 seconds then release when
desired outlet icon appears.
Adjust during
showering only.
Adjust before or
during showering.
* Divert models only
You can prepare your temperature and outlet before you switch on the shower, or
adjust with ease while showering.
4

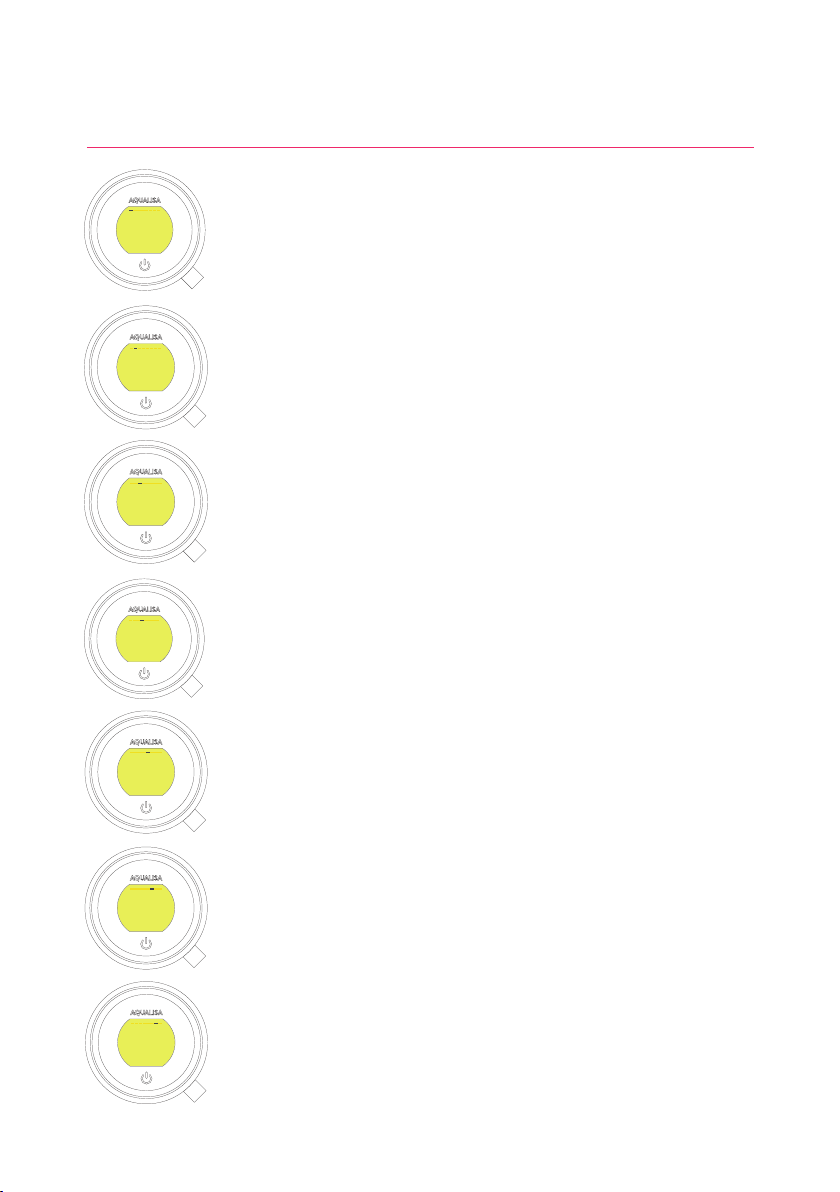

The controller has a proximity sensor, so as you approach or move your hand towards
the controller, the display wakes up and is ready to go.
(You can disable this feature in the Settings menu - see page 12).

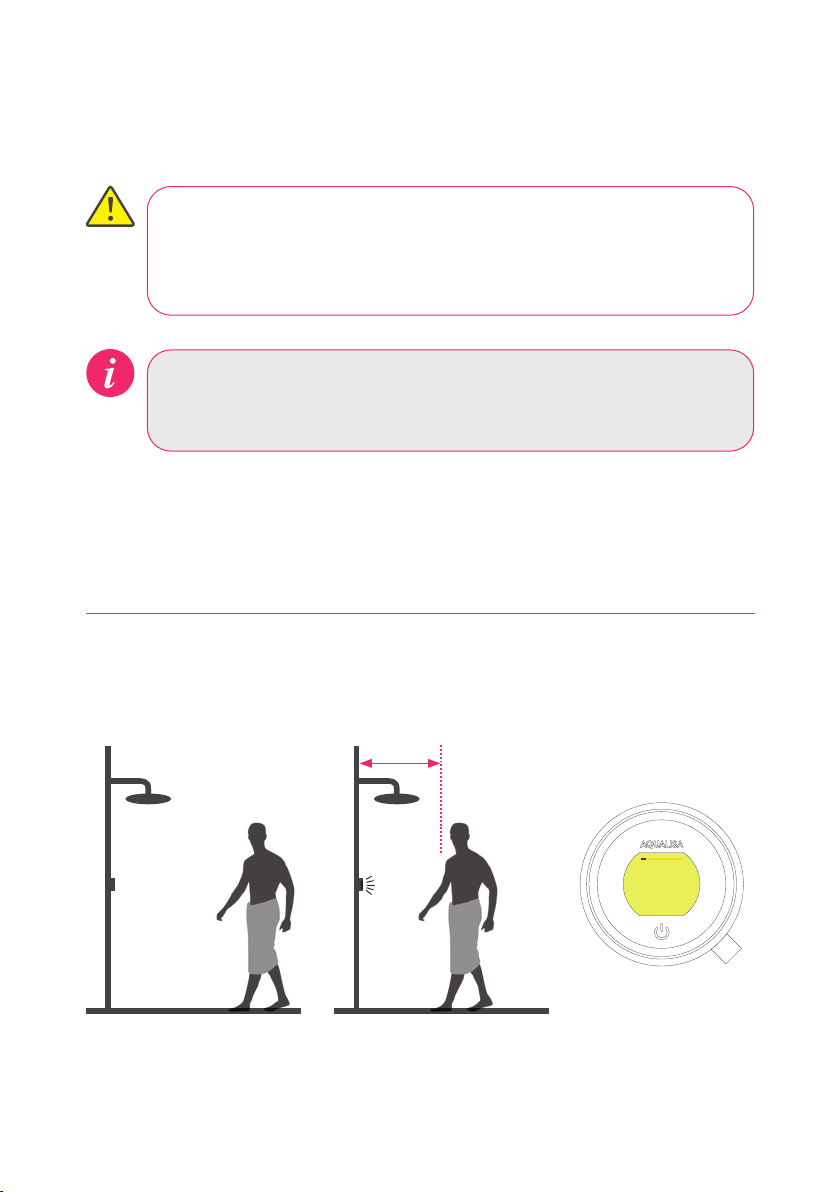

Wake-up
The proximity sensor detects
any object directly in front, at
approximately 0.5m away from
the controller. See page 17 for
more information.
0.5 metres
5

The controller features a secondary method to turn the shower o. This
is done using the lever: joggle the lever down until the flow is set to ECO,
then joggle the lever down three more times in succession.
39
Hello
Warming
39
Get
Ready
39
Push Lever
Your
shower was
9:20
Goodbye
Push lever
to power o
water turns o
Switching On and O
ENDING YOUR SHOWER

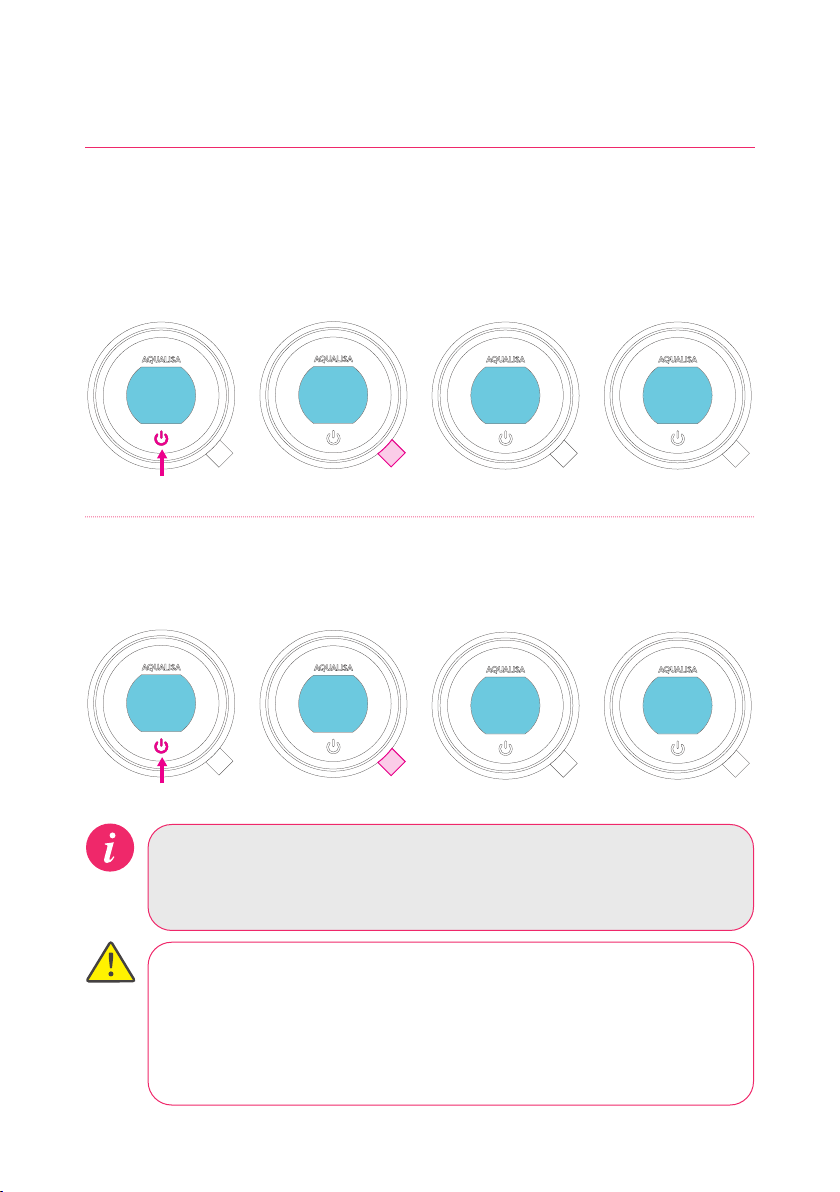

Touch the power symbol for approximately 1 second, then push the lever when
prompted, to confirm and end the shower.
STARTING YOUR SHOWER
To activate the controller, use the proximity sensor, or touch the power symbol until
the screen wakes up, then push and release the lever to start the shower. The Get Ready
screen will appear on the display. After a moment the target temperature will flash
until it is reached. It will then display the thermostatically controlled temperature.
water turns on
As a safety feature, the Aqualisa SmartValveTM has a maximum run time of
20 minutes. The flow can be stopped and started at any time by following
the instruction on this page.
This can be enhanced by activating and using the free Aqualisa app.
See pages 3 and 15 for details.
6

TIP: This is your Home screen.
When in any of the Menu or
Settings screens, you can easily
return to the home screen by
turning the temperature bezel.
42 35
43
Warming Cooling
34
TEMPERATURE FEEDBACK DISPLAY*
Adjusting the Temperature
From the Home screen you can
adjust the temperature at any
time, before or during
showering, by turning the bezel.
Turn clockwise to increase the
temperature. While the temperature is
adjusting the screen will flash and the
display will show Warming. When the
desired temperature is reached, the
display will stop flashing.
Turn anti-clockwise to decrease the
temperature. While the temperature is
adjusting the screen will flash and the
display will show Cooling. When the
desired temperature is reached, the
display will stop flashing.
* Very small changes in temperature may not result in Warming or Cooling messages showing,
only the temperature value will change.
7

Emerency Stop: When the flow settin is at ECO, jole the QTM lever
down 3 times in succession to turn the shower o.
Flow
MED MAX
Flow
39
FLOW FEEDBACK DISPLAY
After adjusting the flow, the display will return to the temperature Home screen
after a few seconds.

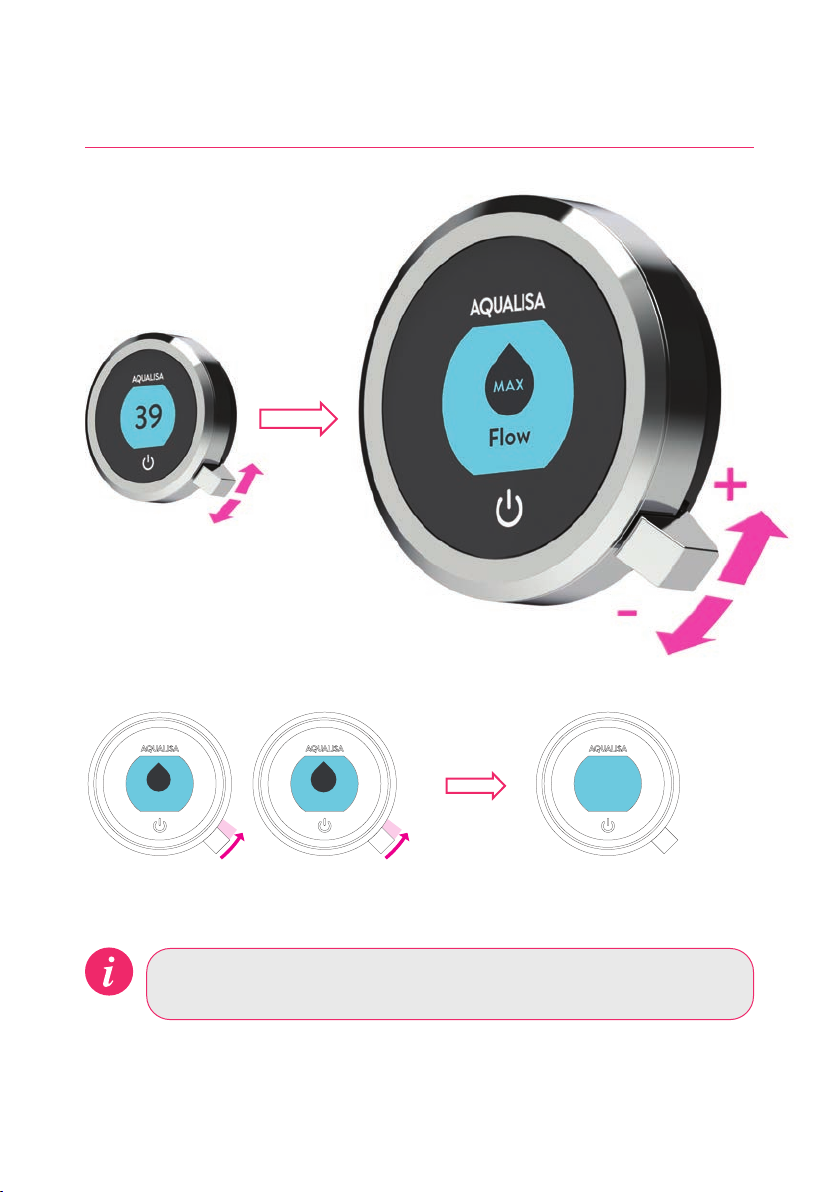

From the Home screen you can
adjust the flow during showering,
by moving the lever left or right.*
*Flow cannot be adjusted when in Settings mode, or when the shower is awake and not flowing.
Adjusting the Flow
8

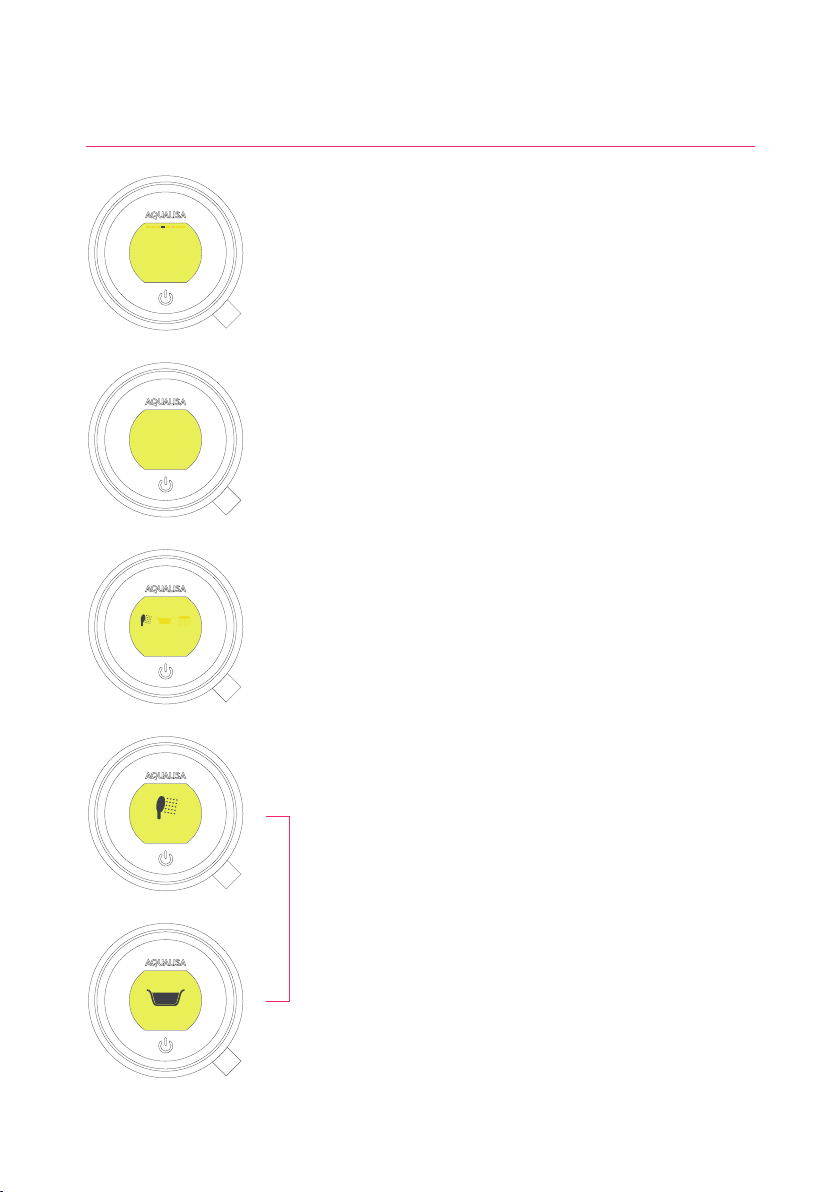

Drench
Shower
Push and hold for
over 3 seconds Release lever when
desired outlet icon appears
Selecting your Outlet Divert models only

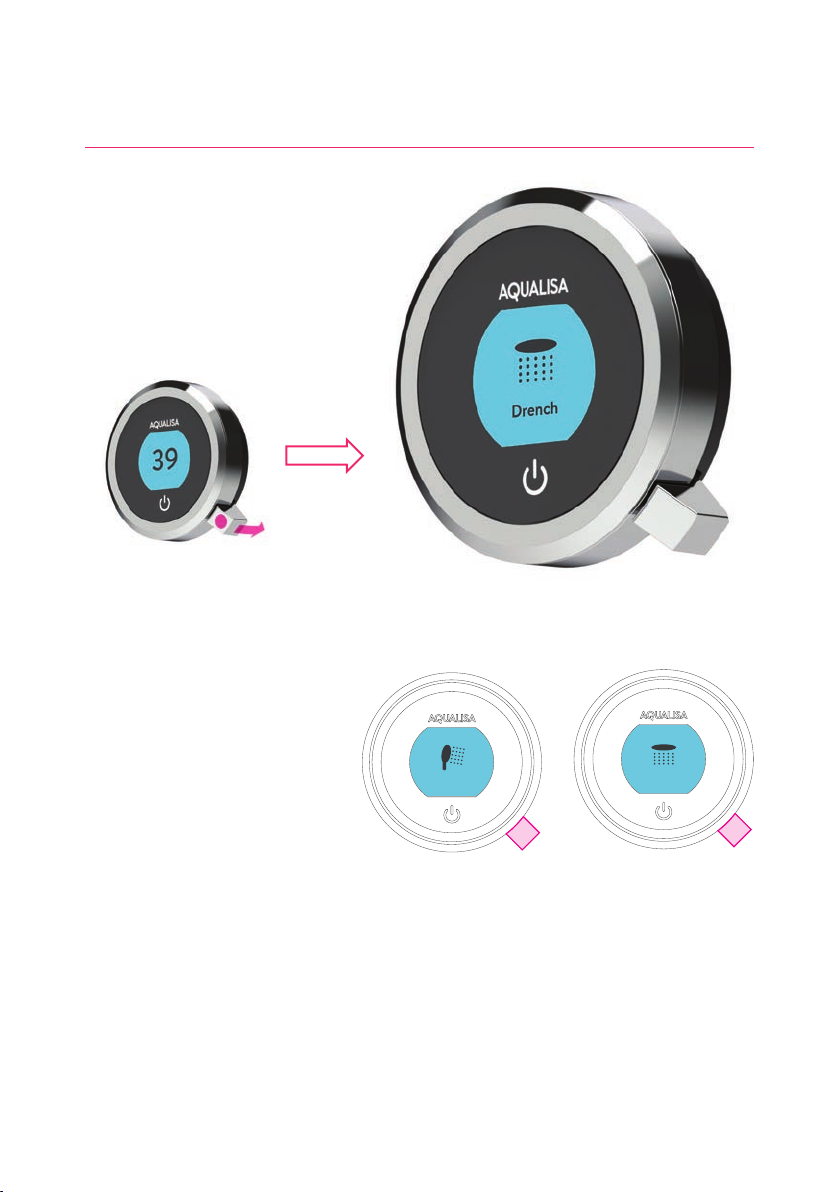

From the Home screen, you can
alternate between outlets by
pushing and holding the lever for
over 3 seconds and releasing when
the desired outlet icon appears.
This can be done upon starting the
shower, or during showering.
OUTLET ICONS
By default your
controller will show the
Shower icon as the primary
outlet and the Drench icon
as secondary. To change, go
to Settings menu, Configure
Outlets (page 14).
9

Adjustable Head
To avoid water dripping from the shower head after
use, we advise to tilt the head back to allow residual
water to drain out.
The above recommendation applies to both adjustable
and fixed shower heads.

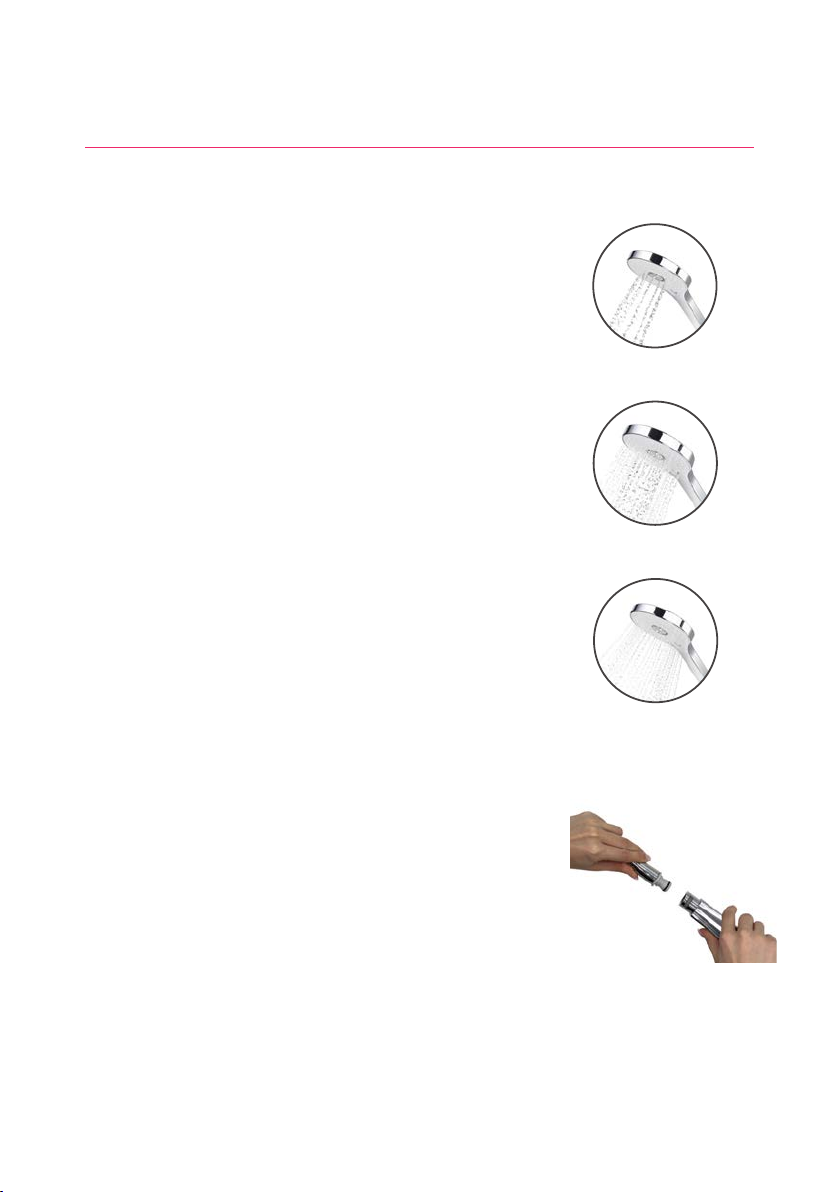

Rotate the spray plate lever clockwise or anticlockwise
to select the desired spray pattern.
To select the preferred height for the shower head,
squeeze the side levers together to allow the handset
holder to move up or down the rail.
Angular adjustment is made by carefully but firmly
pulling forwards or pushing back the shower head
against the ratchet in the holder.
Removing the shower head: With the hose still
attached, disengage the pivot clip by pushing in the
outer grey button located on the front of the shower
head (near to the hose connection). Remove the
threaded spigot from the bottom of the handset by
using the hose to pull clear. To reattach: Ensure the
hose washer is in the correct position, tighten the
threaded spigot into the hose using a suitable spanner,
taking care not to over-tighten. Reinsert the spigot
into the handset and engage the pivot clip prior to
placing the handset into the handset holder.
3. Outer
2. Middle
1. Inner
Vita™ Head
10

1. Push the waste cover to engage the plug fitting.
2. Push the waste cover again to disengage the plug.
Bath Overflow Filler
Do not leave the bath filler running
unattended. Although the overflow will
remove excess water once the bath is
overfilled, this may not be sucient
to prevent the bath from overflowing
(depending on system conditions).
The angle of the fixed shower head can be
adjusted. The shower head is mounted on
a multi directional ball joint to allow for
minor angular adjustment in any direction
by carefully holding the shower head and
moving the head to the desired angle.
N.B. Do not force the angle of the head
beyond its natural stopping point.
Fixed Head
11

SETTINGS
Wifi
Auto Wake up
Auto Wake up
EDITING A SETTING

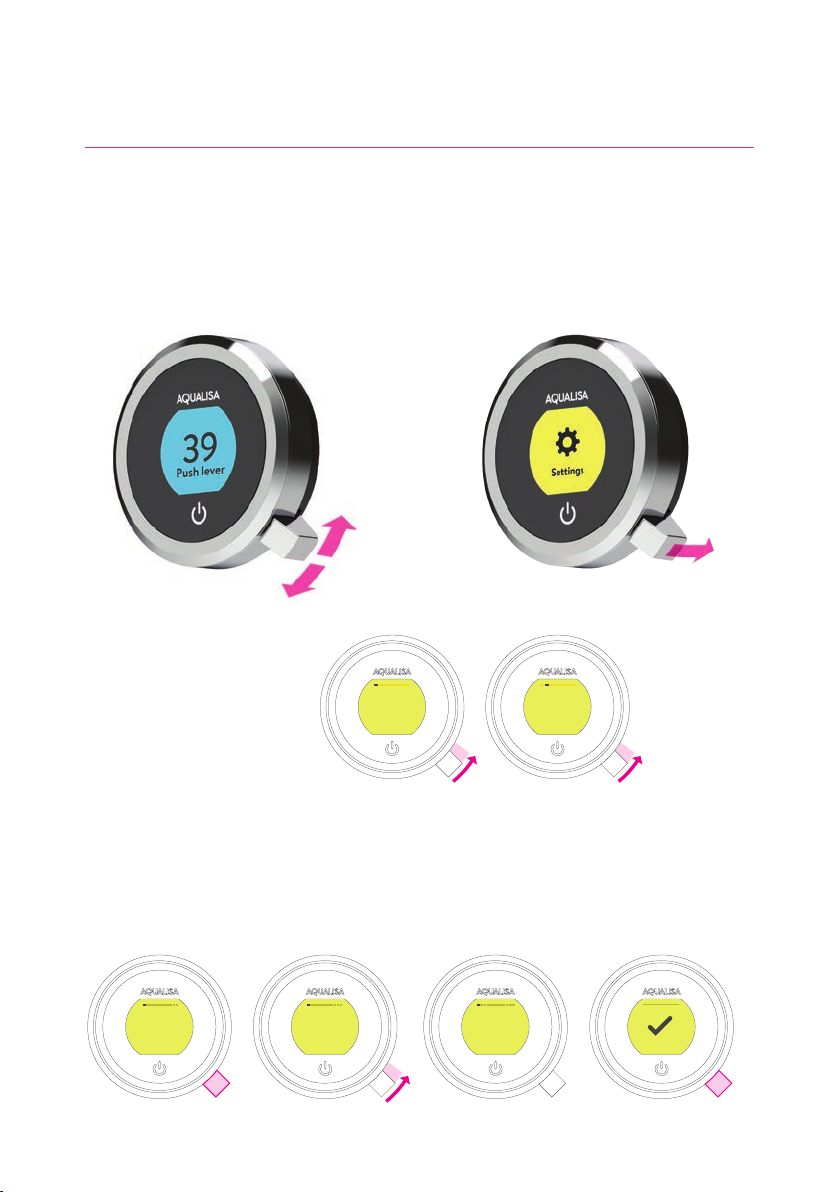

To change a setting, push the lever. Move the lever left or right to choose your
preference, (the active setting is in darker type) and push the lever to confirm. A tick
will briefly appear to confirm your choice.
Settings
Optic Q™ features optional settings to enhance your shower.
To enter Settings, from the Home Screen, move the lever left or right until the
Settings screen appears. Push the lever to enter. Access to the settings menu is only
available when water is not flowing.
BROWSING THE
SETTINGS MENU
When in the Settings menu,
move the QTM lever left or
right to browse.
Auto Wake up
ON OFF
Auto Wake up
ON OFF
HOME
12

Settings
Confi gure outlets
CONFIGURE OUTLETS
This setting enables you to choose the icons that represent your
outlets, and change the primary outlet. (See page 14 for details).
Pair a remote
PAIR A REMOTE
If you have purchased a remote control, please refer to the separate
instructions supplied.
WIFI
To connect to the Aqualisa app and enable shower functionality using
your personal smart devices.
Wifi
Auto Wake up
AUTO WAKE UP
This setting allows the Wake Up feature to be turned o. This may be
required if you have a small shower enclosure, and the controller is
permanently active. Factory default: ON.
Factory
reset
Firmware update
About My Q
FACTORY RESET
Reset all settings to factory default.
FIRMWARE UPDATE
This setting should only be used under advice from Aqualisa Customer
Service or by an Aqualisa Service Technician.
ABOUT MY Q
For Aqualisa Service Technician use.
13

Configuring your Outlets
When you enter this setting you will first be asked to switch
on the shower. You will then be prompted to confirm if the
outlet running is the desired Primary Outlet.
Next, move the lever left or right to browse icons. Push the
lever to select the icon that matches your installation.
When you have selected the icons, your choice will be
confirmed with OK.
This setting enables you to choose the icons that represent
your outlets. If you have multiple outlets, you can also
select the most commonly used, this is known as the
primary outlet. Water will divert to this outlet unless you
select otherwise.
NB: Only available with divert models. You can not configure outlets whilst the shower is in use.
OK
Primary Outlet?
YES NO
OK
Choose an icon
Configure Outlets
YES NO
14

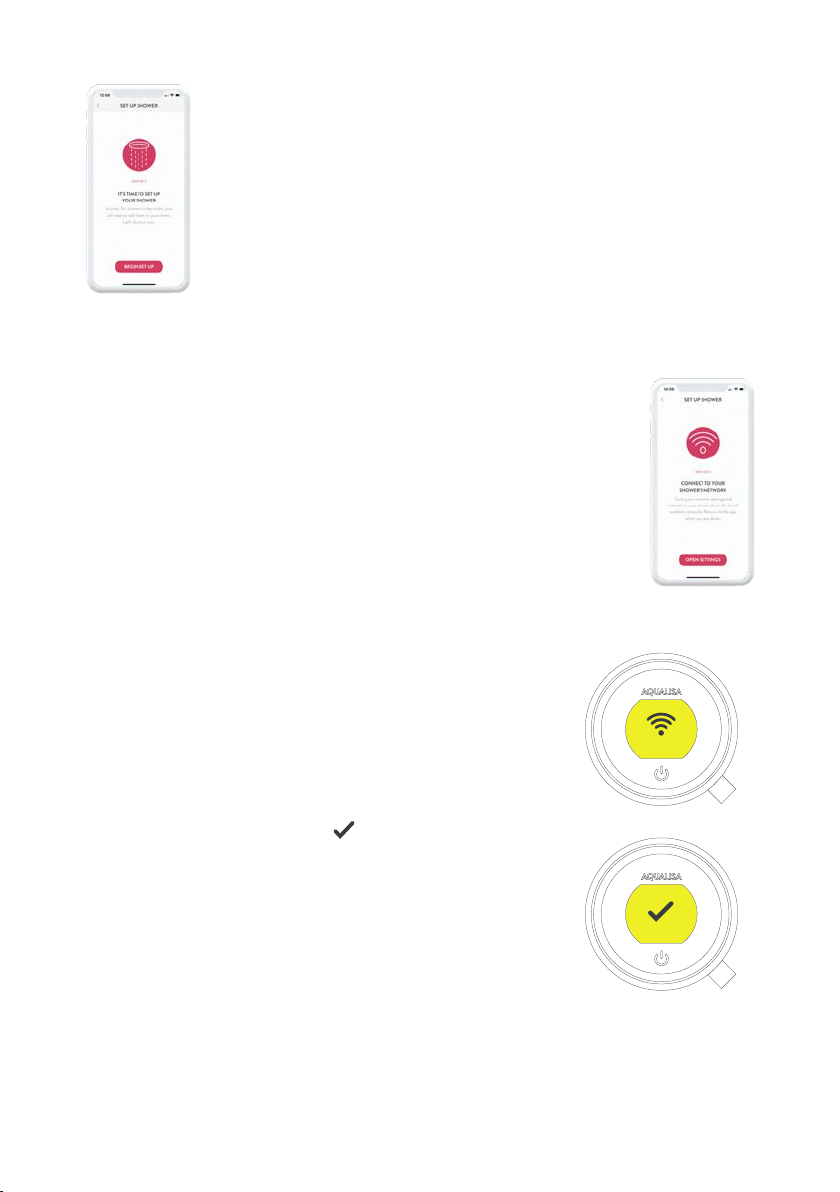

Connecting to the App
Download and open the Aqualisa app on your
personal smart device and follow the instructions
to create Your Home profile before continuing with
this section.
An instructional video and information on
compatible devices are available by scanning the
QR code or by visiting aqualisa.co.uk/smartapp.
Refer to the troubleshooting section of this guide
for guidance and advice.
The Aqualisa app utilises the Instabug platform; this tool can be used to:
Report an issue, suggest an improvement, or ask a question.
If you experience problems connecting your shower, or with the app
functions, then an Instabug report can be raised. To trigger the Instabug
service either shake your smartphone from side to side or tap on the
message bubble then simply follow the instructions.
Home Wifi Network
Before starting you will need your Network Name (SSID code) and
password as they are required during the Aqualisa app setup journey.
These can normally be found on your internet router.
For Wifi set up, the Aqualisa SmartValveTM must be powered, but the
shower must not be in use.
Permissions Request
During the process you may be requested to allow permissions
(e.g. location data), these are requirements from your app provider and
need your confirmation to ensure a successful set up and use of the app.
We do not retain, store or pass this information on to any third parties or
use this permission to access the GPS functionality of your phone.
15

Connecting
The controller will display a Wifi symbol and have the
message “Connecting”. This indicates that the Aqualisa
SmartValveTM is connecting to the Aqualisa app.
The message "Connected" will briefly flash up on the
controller screen followed by a
To exit the controller menu, either rotate the
temperature bezel or allow the Settings menu
to time out.
If connection is unsuccessful a message will appear
in your Aqualisa app. Redo the steps above or refer
to app trouble shooting on page 23 or at
www.aqualisa.co.uk/smartapp.
Set up Shower - Wifi
The Aqualisa app will direct you to the Wifi settings menu on your
mobile device.
From the list of available Networks select: QSVC XXXX
The password is: SmartShower (case sensitive).
N.B. Depending on signal strength, the connection may take a few
minutes. You do not need to wait for connection confirmation. Go
back to the Aqualisa app and follow the steps, for these stages you
will need your home Wifi SSID code and password.
Set up Shower - Controller
Wake the controller and navigate to the Settings Menu.
From the settings menu, navigate to and select the Wifi setting.
Following the instruction on the screen of the controller – push
the lever to connect.
16

If the timer setting is adjusted within the Aqualisa app, then the shower
will run for the newly set duration, overriding the default maximum run
time. N.B. The water flow will stop at the end of the timer.
The Aqualisa app gives you the capability to operate your product
remotely using your mobile device. It is the responsibility of the user
to ensure that it is safe to remotely activate the water flow. Aqualisa
recommend that baths and showers in operation are not left unattended.
Auto Wake up
The Proximity Sensor
AUTO WAKE-UP*
The controller has a proximity sensor, so as you approach, or move your hand
towards the controller, the display wakes up and is ready to go.
0.5 metres
*In some circumstances, in smaller shower enclosures, Auto Wake Up may cause the control to
remain active. If this occurs, you should disable Auto Wake Up in Settings (see page 12).
SMART SPEAKER SET-UP
Once the Aqualisa app is set up and the shower connected, go to the app for your
smart speaker and follow their instructions to add the Aqualisa home to your devices.
17

Cleaning tip: To keep your shower eortlessly clean, we recommend
drying all shower components with a soft cloth after use.
Caring for your Shower
Over time, your shower may be aected by hard water scaling. To keep your shower
working eectively, we recommend that you clean your shower regularly.
Your product should be cleaned using only a soft cloth and washing up liquid. The
bath system ‘click clack’ waste plug mechanism (if applicable) should be kept clear of
debris to ensure the plug maintains a watertight seal. The plug can be unscrewed and
removed to check and clean the mechanism.
Cleaning the shower head
To reduce the need for chemical descaling in hard water areas, your shower head
incorporates a ‘clear flow’ system, whereby any scale build-up can be broken down
by gently rubbing the flexible tips of the jets during use. This procedure should be
completed regularly, as often as once a week in some hard water areas, as scale
build-up can aect the spray pattern and cause the shower to perform poorly. Failure
to descale the shower head can aect the internal seals and may aect the warranty.
Should descaling of the head using a cleaning agent become necessary, remove the
shower head fully and immerse in a mild proprietary descaler (e.g. vegetable based or
plain white vinegar). Cleaning and maintenance should not be undertaken by children
without supervision by a person responsible for their safety.
DO NOT USE ABRASIVE CLEANERS. It is imperative that descaling
is carried out in accordance with the manufacturer’s instructions,
substances that are not suitable for plastics and electroplated surfaces
must not be used.
Changing water system?
If switching from a gravity-fed water system to a mains pressure system (e.g.
Combination boiler) you will need to change your Aqualisa SmartValveTM. Contact a
member of our Customer Service team for further information.
18

Troubleshooting
Symptom Possible cause Action
Controller
unresponsive -
No Lights / Blank
Power supply turned
o to Aqualisa
SmartValveTM
Check power supply is turned on - Green power
light should be illuminated on the Aqualisa
SmartValveTM. Additionally check the following
2 action points.
Controller
displaying
“Preparing, please
wait….” for longer
than 2 minutes
Loss of
communications
Check data cable connections are making good
contact and are fully inserted and that there
is no visible damage. Power reset the Aqualisa
SmartValveTM.
Check that the wiring schematics are as
per installation instructions in the Smart
Installation Guide. Power reset the Aqualisa
SmartValveTM.
Pump noisy and
low / no flow
Air lock (for Gravity
fed systems only)
For models utilising an adjustable head kit;
disconnect the handset from the hose, see
Head section on page 10, lower the hose into
the shower tray or bath, set the temperature
to fully cold and then start the shower. As
the water starts to flow and increase in
volume gradually increase the temperature.
If the flow starts to splutter, stop moving
the temperature control until the flow again
stabilises, then continue to move the dial
towards the hottest setting.
Restriction in the
waterway
Check for debris in the inlet filters of the
Aqualisa SmartValveTM, diverter and Fixed Head
connection washer. Must be conducted by a
qualified person. NOTE: The water supplies
MUST be isolated when checking the inlet filters.
Blocked or kinked
hose liner
Where a flexible hose is fitted, unscrew the
shower hose from the outlet connection and
turn the shower on.
Auto wake up
(proximity) not
activating
Auto wake up turned
o
Go to Settings menu and ensure Auto wake up
is ON. See page 13 for instructions.
Flow does not
change when
adjusted with lever
Combination boiler
output does not
meet the flow
demand
Check with boiler manufacturer for
specification details.
Aqualisa SmartValveTM
is set to ECO mode
Refer to Setting Water System Mode section in
the Smart Installation Guide. Ensure mode is set
to normal or ECO gravity setting.
Seasonal conditions During the cooler months the mains water
temperature drops and this will reduce the
performance of combination boilers. Check with
your boiler manufacturer for details.
Refer to page 23 for App Troubleshooting.
19

Low / no flow Seasonal conditions See previous point.
Incorrect Aqualisa
SmartValveTM fitted
If water supplies are gravity fed, the PUMPED
Aqualisa SmartValveTM must be used (unless a
separate stand alone pump is being utilised).
Refer to the Smart Installation Guide.
Water supply issue For the Standard Aqualisa SmartValveTM - Ensure
water is turned fully on at the mains and at the
servicing valve in the supply.
Ensure isolation valves are fully open.
Mixed water supplies For standard Aqualisa SmartValveTM - ensure
hot and cold supplies are from the mains water
supply.
Restriction in the
waterway
See same cause in 'Pump noisy and low / no
flow' symptom.
Blocked or kinked
hose liner
Where a flexible hose is fitted, unscrew the
shower hose from the outlet connection and
turn the shower on.
Incoming mains water
pressure or flow too
low (Standard Aqualisa
SmartValveTM only)
After confirming that the filters are clear,
check with the local water authority.
Separate, stand alone
pump not activating
(Standard Aqualisa
SmartValveTM only)
Ensure sucient flow to activate the flow
switches of the pump. Refer to IMPORTANT
INFORMATION section in the Smart
Installation Guide.
Aqualisa
SmartValveTM pump
not activating
Refer to Setting Water System Mode section
in the Smart Installation Guide, ensure mode is
set to Normal or ECO Gravity setting.
Aqualisa SmartValveTM
is set to ECO mode
Refer to the above point.
Unable to adjust or
control temperature Reversed inlet water
supplies (i.e. Hot
supply feeding cold
inlet and vice-versa)
Ensure correct water supply to specified inlet
connection of the Aqualisa SmartValveTM.
Fluctuating water
temperature
Incorrect setting
on Logic Module
of Aqualisa
SmartValveTM
If hot water supply is from a combination
boiler- the Logic module mode MUST be set to
COMBI. Refer to Setting Water System Mode
section in the Smart Installation Guide.
Airlock in water
supplies (for gravity
fed systems only)
See “Air lock” in Possible Cause section on
page 19.
20
