HiQu Digital Concealed installation instructions Page 2

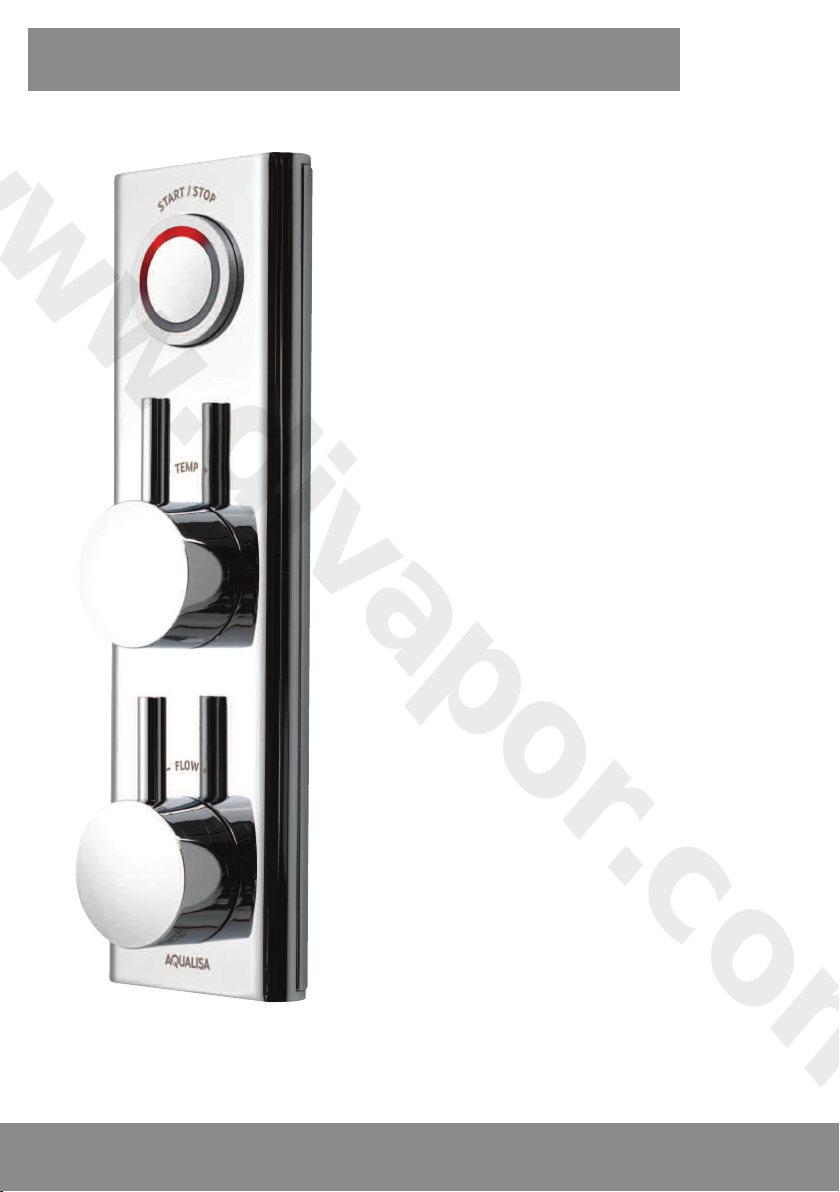

HiQu Digital Concealed
HiQu Digital on ealed
www.divapor.com

iterature not shown.
HiQu Digital Concealed installation instructions Page 3

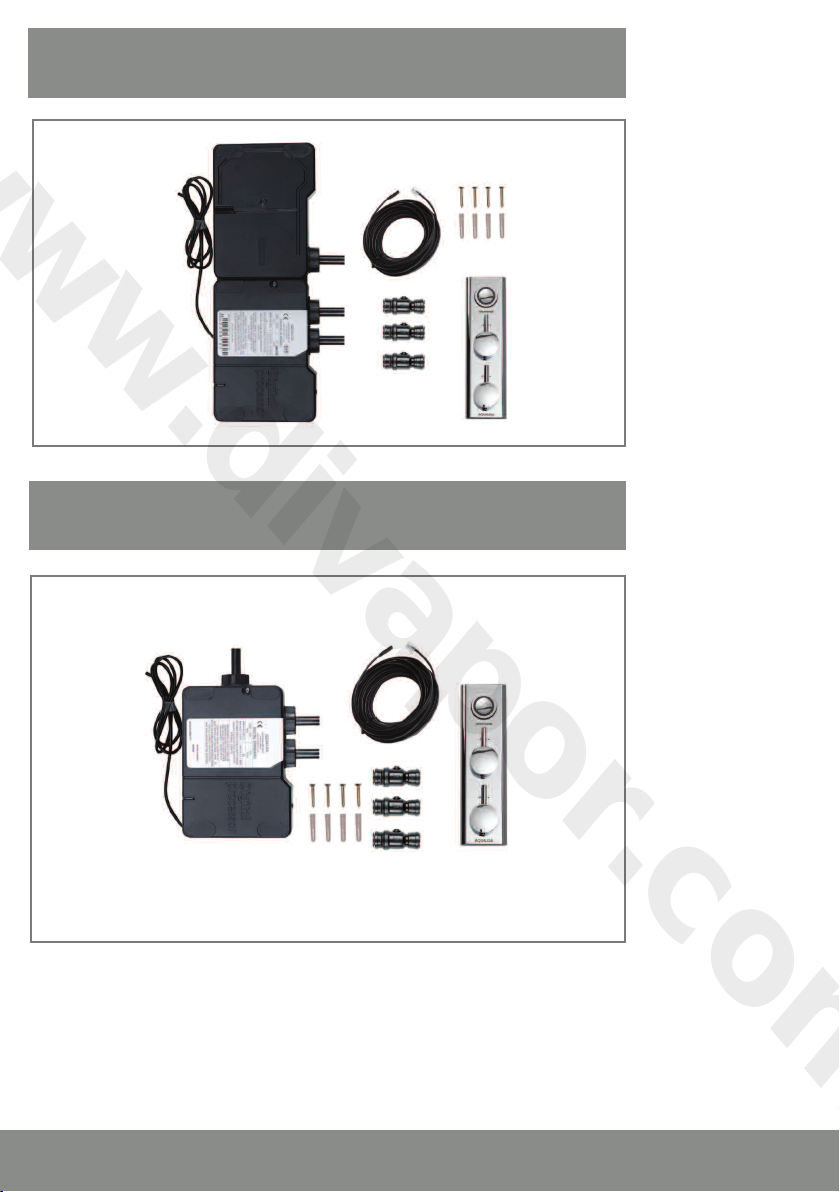

Components ((GGrraaiittyy PPuummppeedd))
Components ((HHPP//CCoommbbii))
www.divapor.com

HiQu Digital Concealed installation instructions Page 4
Important information
Safety information
This product must be installed by a competent person in accordance with all relevant current Water Supply Regulations.
A SHOWERS REQUIRING AN E ECTRICA CONNECTI0N MUST BE INSTA ED BY A QUA IFIED PERSON
FO OWING THE ATEST REVISION OF BS 7671 (WIRING REGU ATIONS) AND CERTIFIED TO CURRENT BUI DING
REGU ATIONS.
This system should be installed so that other taps or appliances operated elsewhere within the premises do not
significantly affect the flow.
The shower must not be used with a hot water supply temperature of over 65ºC.
The processor is supplied factory pre-set at maximum temperature of 45ºC. The maximum temperature is fully
adjustable to suit site conditions. If adjusted, we recommend the outlet temperature is set to a MAXIMUM of 46ºC.
The Digital processor must be installed in an accessible location for servicing and maintenance.
The Digital processor must not be installed in situations where either the ambient temperature is likely to exceed 40ºC
or where freezing may occur.
The control must not be installed in situations where the ambient temperature is likely to fall below 5ºC or rise above
40ºC.
We do not recommend the use of HiQu Digital in steam therapy facilities.
This appliance must be earthed.
Cables which are chased into the wall must be protected by a suitably sized conduit or sheathing to allow for
removal in the event of service and maintenance purposes.
Surface mounted cables must also be protected by a suitable approved conduit, even in a loft, where there may be a
risk of damage from vermin.
The power lead must only be replaced by the manufacturer or his accredited agent.
The user control is supplied from a safety low voltage source.
This product is suitable for domestic use only.
HiQu Digital is supplied complete with a 5 year guarantee.
This product is not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities or lack of experience and knowledge, unless they have been given initial supervision or instruction
concerning the use of the product by a person responsible for their safety.
Children should be supervised to ensure they do not play with the product.
www.divapor.com

HiQu Digital Concealed installation instructions Page 5
Installation of Digital pumped pro essor (for gravity stored systems)
The HiQu Digital pumped shower system is designed to operate up to maximum static pressure of 100kPa ((1
bar)(10 metres head)(14.5psi)).
Under no circumstances must the pumped processor be connected directly to the water main or in line with another
booster pump.
The minimum actual capacity of the cold water storage cistern should be not less than 225 litres (50 gallons). The
capacity of the hot water cylinder must be capable of meeting anticipated demand.
Installation of Digital standard pro essor (for balan ed high pressure and
unvented systems, ombination boiler systems and separately pumped gravity
systems)
Pressures: The HiQu Digital standard shower system is designed to operate up to a maximum static pressure of
700kPa ((7 bar)(100psi)). Where pressures are likely to exceed 700kPa ((7 bar)(100psi)), a pressure reducing valve
must be fitted to the incoming mains supply. A setting of 400kPa ((4 bar)(60psi)) is recommended. It should be
noted that daytime pressures approaching 600kPa ((6 bar)(80psi)) can rise above the stated maximum overnight.
Spe ial notes for ombination boiler systems
The appliance must have a minimum domestic hot water rating of 24kW (80,000BTU) and be of the type fitted with
a fully modulating gas valve.
If in any doubt, please contact the appliance manufacturer before installation commences.
P EASE NOTE: DUE TO PERFORMANCE CHARACTERISTICS OF COMBINATION BOI ERS, SEASONA IN ET
TEMPERATURE CHANGE WI AFFECT THE PROCESSOR OUT ET F OW RATE RESU TING IN VARYING SHOWER F OW
RATE AND F OW CONTRO RANGE. IN ET TEMPERATURE CHANGE MAY A SO CAUSE THE TEMPERATURE ED’S TO
F ASH; THIS IS NOT NECESSARI Y CHANGING THE OUT ET TEMPERATURE.
Spe ial notes for separately pumped gravity systems
We recommend a twin ended pump with a MINIMUM pump rating of 1.5 bar. For optimum performance a twin
ended 2.5 bar pump should be used.
The minimum actual capacity of the cold water storage cistern should be not less than 225 litres (50 gallons). The
capacity of the hot water cylinder must be capable of meeting the anticipated demand.
THIS PRODUCT IS NOT SUITAB E FOR USE WITH A SING E ENDED PUMP.
Conne tions
This product incorporates ‘push-fit’ type connections. Tube should be cut using a rotary type cutter and lubricated
using a silicone-based lubricant or petroleum jelly (Vaseline or similar) prior to insertion into the fitting.
If plastic pipe is used, the tube insert must not increase the tube diameter or extend the cut-off length by more than
2mm.
THESE FITTINGS ARE NOT SUITAB E FOR STAIN ESS STEE TUBE.
www.divapor.com

HiQu Digital Concealed installation instructions Page 6
Pipe sizing
ong pipe runs, on both inlet and outlet, will reduce the flow rate at the shower head. 22mm pipe work should be
used on the inlets and reduce down to 15mm as close to the valve as possible to reduce pressure losses and help
maintain flow rate. If using 15mm then copper pipe is preferred, and minimise the number of elbows used.
If long pipe runs are unavoidable on the outlet, use copper pipe rather than plastic, particularly if a diverter is used,
and minimise the number of elbows as the pipe inserts are very restrictive.
Flushing
Some modern fluxes can be extremely corrosive and, if left in contact, will attack the working parts of this unit. All
soldering must be completed and the pipe work thoroughly flushed out in accordance with current Water Supply
Regulations prior to connection of the product.
After installation
Familiarise the end user with the HiQu Digital operation and hand them this guide. Complete and post the
guarantee card or register online at www.aqualisa.co.uk
www.divapor.com

HiQu Digital Concealed installation instructions Page 7
Installation instructions

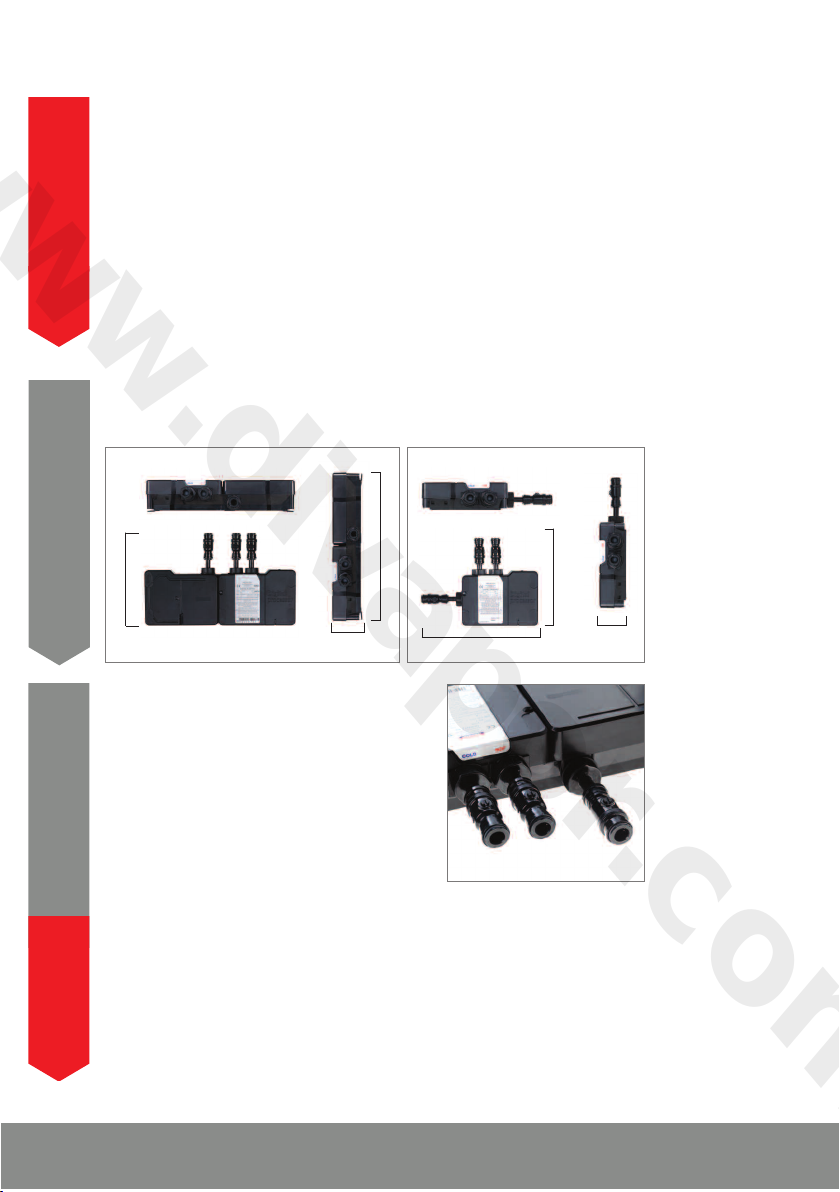

90mm
445mm
270mm
350mm
265mm
70mm
To ensure safe operation and installation of this product, the processor MUST be
installed in one of the orientations shown.
1
This product must be installed by a competent person in accordance with the
relevant current Water Supply Regulations.
In addition to the guide below it is essential that the written instructions
overleaf are read and understood and that you have all the necessary
components (shown overleaf) before commencing installation.
!
The HiQu Digital shower system is supplied with universal fixings intended to
secure it to a suitable wall.
!
!
Isolation valves are supplied with the Digital
processor and must be fitted on both inlets
and the blended water outlet. All pipe work
should be run in 15mm pipe. All pipe work
should be supported. For externally pumped
gravity fed installations, 22mm pipe work
should be run as close to the processor as
possible before reducing down to 15mm.
2
The inlet supply centres are 48mm. The inlet supply centres deviate from
EN1111 and EN1287, but are deemed to be a special case.
Please note arrow on isolation valve to indicate direction of flow.
Compression fittings should not be used on the inlet and outlet spigots and
may affect the warranty if fitted.
!
www.divapor.com

HiQu Digital Concealed installation instructions Page 8

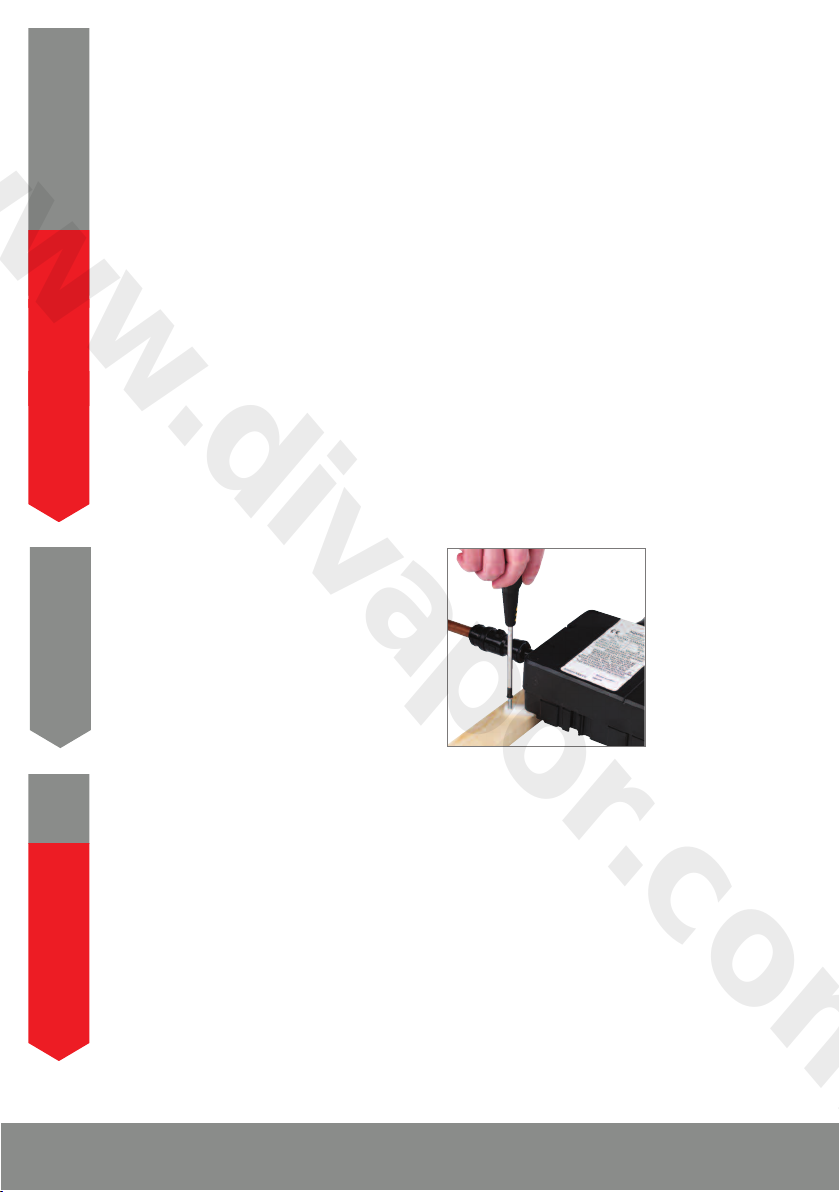

Place the Digital processor on a solid
mounting surface, and place the fixing feet
into suitable positions. Mark then drill and
prepare suitable fixings before securing the
processor to the mounting surface using the
screws provided.
4
Flush out the hot and cold supply pipes.
5
The maximum hot water inlet temperature must be no more than 65˚C
!
Choose the position for your Digital processor as close to the shower control
as possible.
The processor may be sited in the roof space above the proposed shower
site, in the airing cupboard or behind a screwed bath panel if more
convenient. If siting in the roof space, ensure that freezing cannot occur and
that no insulation material is placed under or over the processor.
Please refer to the system layout diagrams.
3
!THE PROCESSOR MUST BE SITED IN A POSITION THAT IS SAFE Y ACCESSIB E
FOR SERVICING AND COMMISSIONING PURPOSES. WHEN FITTED IN THE OFT
SPACE, THE ROUTE TO AND THE AREA AROUND THE PROCESSOR MUST BE
BOARDED TO ENSURE A SAFE WORKING ENVIRONMENT.
The optimum position for the Digital processor is in the roof space above the
shower site to take full advantage of the ease and speed of installation -
please refer to the note above.
The distance between the Digital processor and shower control must be
within range of the 10m data cable supplied.
www.divapor.com

HiQu Digital Concealed installation instructions Page 9
Run a pipe from the mixed water outlet on the Digital processor
through the wall to the proposed siting for the shower outlet.
7
Drill and prepare the fixing points and 15mm data cable entry point
using the fixings provided, if suitable.
10
Undo the fixing screw, remove the
controller assembly away from the
back plate and set aside.
8
Place the shower control back plate onto the finished wall surface in
the desired location and mark the fixing and data cable entry
points.
9
Attach the supply pipes to the
Digital processor, ensuring that the
cold and hot feeds are fitted into
the appropriately marked inlets.
6
DO NOT SO DER NEAR TO P ASTIC COMPONENTS.
!
Care should be taken to ensure the mounting holes do not pierce
the data cable conduit.
!
www.divapor.com

HiQu Digital Concealed installation instructions Page 10
11
Hook the top of the controller into
position and secure the controller
onto the back plate assembly.
13
Connect the data cable to the rear of the controller.
12
To remove the controller from the back
plate,
undo the screw and remove
from the base of the controller assem-
bly. Carefully pull the
controller away from the back plate
and set aside.
!
Apply a thin bead of mastic to the
mastic groove at the rear of the
back plate. Secure the back plate
to the wall using the screws provided
(if suitable).
www.divapor.com

HiQu Digital Concealed installation instructions Page 11
Connect the 15mm copper pipe to the mixed water outlet on the
Digital processor. Using pipe clips as appropriate, ensure that all
pipe work is perpendicular to the processor, i.e. not putting any
strain on the fittings.
14

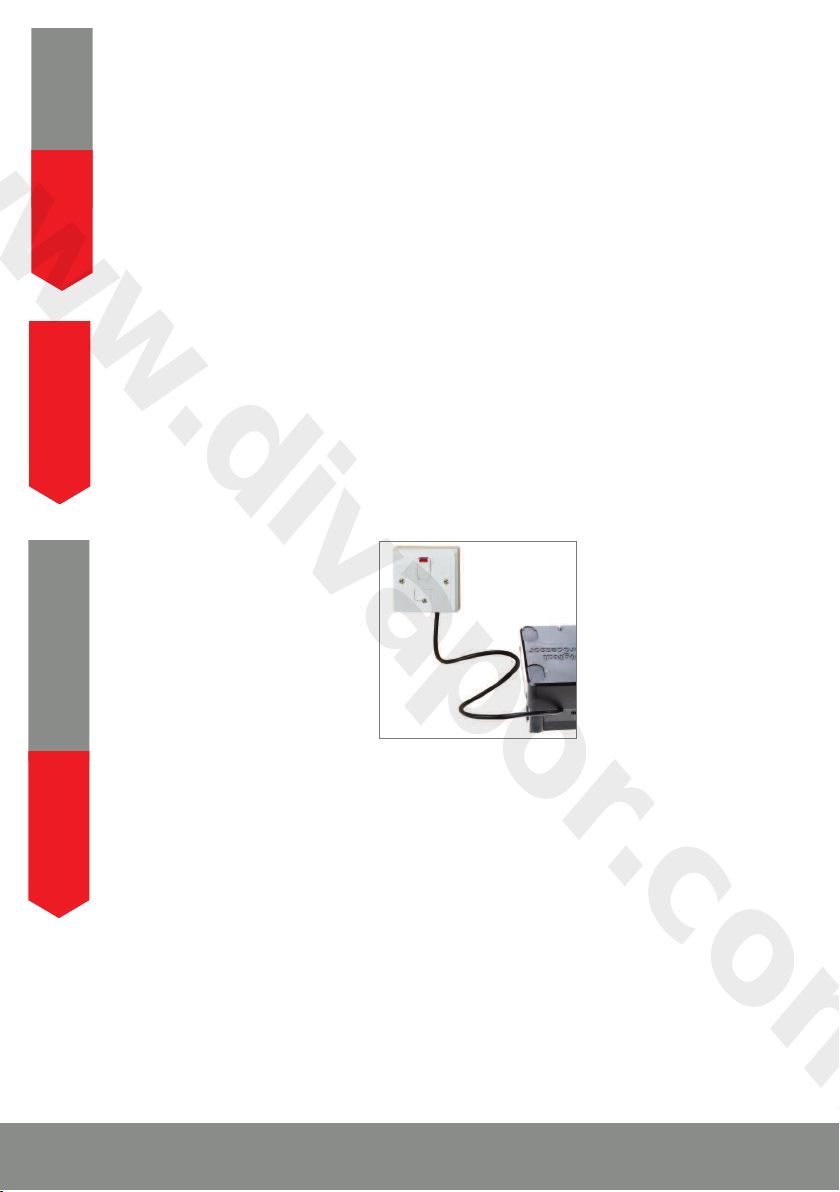

Connect the processor power lead to
a double pole 3 amp fuse switched
spur incorporated in the fixed wiring
circuit, in accordance with current
wiring rules. Ensure that this is
located in an accessible, dry location
and not in the bathroom.
15
THIS APP IANCE MUST BE EARTHED
We recommend protecting surface mounted cables in suitable
approved conduit to avoid the risk of damage from vermin.
The data cable and power lead should also be clipped in place with
‘P’ clips or similar to avoid accidents.
!
TO ENSURE OPTIMUM PERFORMANCE USE THE MINIMUM AMOUNT
OF E BOWS.
TO MAXIMISE F OW RATES WE RECOMMEND USING COPPER PIPE
WITH THE MINIMUM AMOUNT OF E BOWS.
BEFORE ANY E ECTRICA ADJUSTMENT IS ATTEMPTED, THE
E ECTRICITY SUPP Y MUST BE TURNED OFF AT THE MAINS SWITCH.
E ECTRICA INSTA ATION MAY ON Y BE CARRIED OUT BY
A QUA IFIED PERSON.
!
!
www.divapor.com

HiQu Digital Concealed installation instructions Page 12
Unscrew the single fixing on top
of the processor box and
carefully tilt the lid up and off
the location lugs and pull the lid
clear.
16
Connect the low voltage data cable
into the socket adjacent to the
temperature adjuster as indicated
on the label. Feed the cable out of
the processor box ensuring it is
correctly routed within the data cable
channel.
17
A further data cable socket has been provided for use with the
secondary Digital remote control. This can be accessed by carefully
snapping and removing the entry pillar and connecting the cable as
described above.
!
www.divapor.com

HiQu Digital Concealed installation instructions Page 13

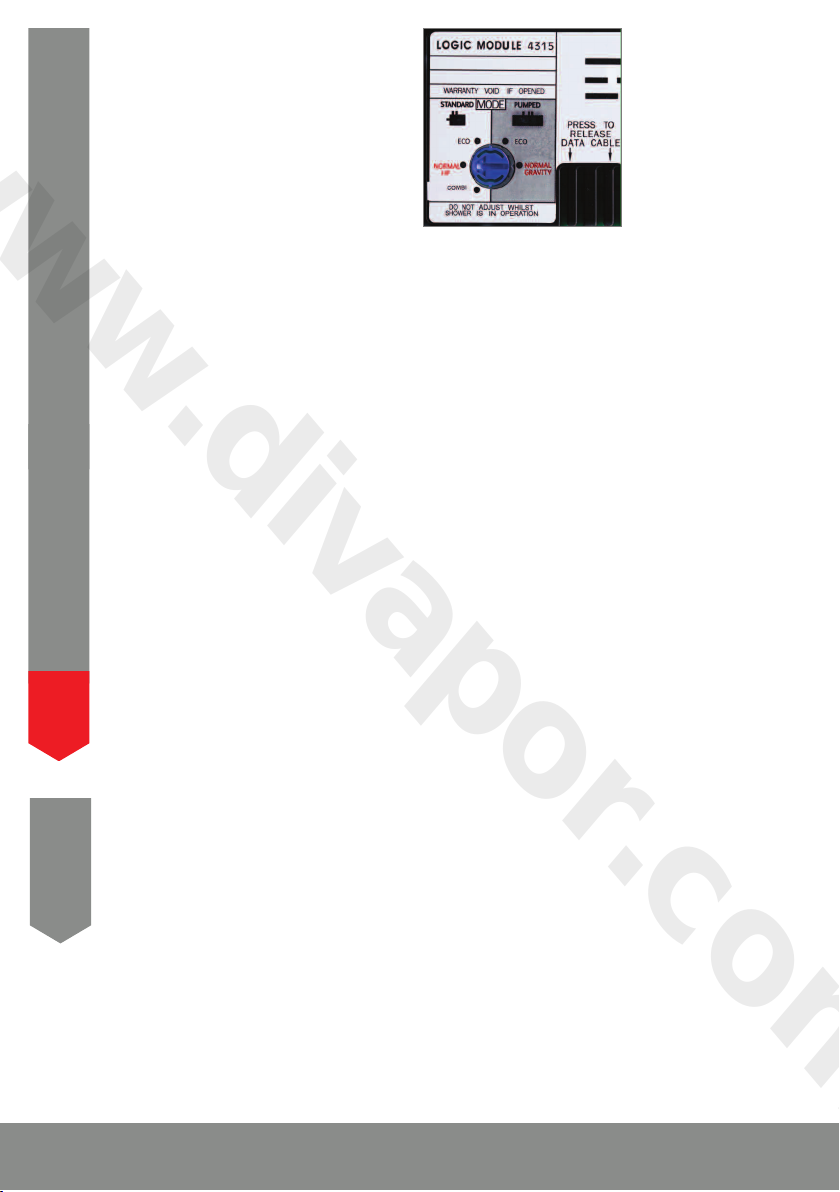

The Digital processors are supplied factory set
with the flow rate at either ‘NORMA HP’ or
‘NORMA GRAVITY’ mode depending on
which shower system has been ordered.
STANDARD PROCESSORS ON BA ANCED HP
SYSTEMS:
Standard processors fitted to balanced high
pressure systems may be set to ‘NORMA HP’
or for water economy ‘ECO’ modes.
N.B. As ‘ECO’ flow can be achieved by the HiQu Digital controller,
we recommend the processor is set to ‘NORMA HP’ mode.
STANDARD PROCESSORS ON COMBINATION BOI ER SYSTEMS:
For Standard Digital processors installed on combi boiler systems, for optimum
performance we recommend setting the flow rate to the ‘COMBI’ mode.
18
N.B. The ‘ECO’ flow rate mode should not be selected for shower systems
fitted to combination boilers.
PUMPED PROCESSORS:
Pumped processors fitted to gravity systems may be set to ‘NORMA GRAVITY’
or for water economy ‘ECO’ flow rate modes.
N.B. As ‘ECO’ flow can be achieved by the HiQu Digital controller,
we recommend the processor is set to ‘NORMA GRAVITY’ mode.
WHEN MAKING ANY ADJUSTMENT TO THE PROCESSOR SETTINGS THE
POWER MUST BE ISO ATED.
!
Re-instate the electricity supply to the processor and press the ‘start/stop’
button on the controller to turn the shower on.
19
www.divapor.com

HiQu Digital Concealed installation instructions Page 14
Run the shower at maximum temperature
(factory pre set to 45
0
C). If required,
maximum temperature adjustment can be
made with a flat bladed screwdriver using
the ‘MAX’ TEMP ADJUSTMENT’ control as
indicated. When the temperature has been set
to the desired position carefully replace the
Digital processor lid and secure the fixing hand tight only.
20
Site conditions can affect temperature settings, installer to adjust as
required.
A COPPER PIPE WORK MUST BE CROSS-BONDED AND CONNECTED TO
A RE IAB E EARTHING POINT
!
www.divapor.com

Aqualisa Products imited
The Flyer’s Way
Westerham Kent TN16 1DE
Customer helpline: 01959 560010
Brochure Hotline: [phone]
Website: www.aqualisa.co.uk
Email: [email protected]
Republic of Ireland
Sales enquiries: 01-864-3363
Service enquiries: 01-844-3212
Part No:700390 Issue 01 Jun 12
Please note that calls may be recorded for training and quality purposes
The company reserves the right to alter, change or modify the product specifications without prior warning
® Registered Trademark Aqualisa Products imited
The Waste Ele tri al and Ele troni Equipment (Produ er Responsibility) Regulation 2004
This product is outside the scope of the European Waste Electrical and Electronic Equipment Directive as interpreted within the UK.
In the UK this product can therefore be disposed of through commercial non-WEEE waste facilities.
The original manufacturer does not accept any liability under the WEEE directive.
www.divapor.com
