Important information
Safety information
This product must be installed by a competent person in accordance with all relevant current Water Supply Regulations.
A PRODUCTS REQUIRING AN E ECTRICA CONNECTI0N MUST BE INSTA ED BY A QUA IFIED PERSON
FO OWING THE ATEST REVISION OF BS 7671 (WIRING REGU ATIONS) AND CERTIFIED TO CURRENT BUI DING
REGU ATIONS.
This system should be installed so that other taps or appliances operated elsewhere within the premises do not
significantly affect the flow.
The Digital Bath must not be used with a hot water supply temperature of over 65ºC.
The processor is supplied factory pre-set at maximum temperature of 45ºC. The maximum temperature is fully
adjustable to suit site conditions. If adjusted, we recommend the outlet temperature is set to a MAXIMUM of 46ºC.
THE DIGITA PROCESSOR MUST BE INSTA ED IN AN ACCESSIB E OCATION FOR SERVICING AND MAINTENANCE.
The Digital processor must not be installed in situations where either the ambient temperature is likely to exceed 40ºC
or where freezing may occur.
The control must not be installed in situations where the ambient temperature is likely to fall below 5ºC or rise above
40ºC.
We do not recommend the use of HiQu Digital in steam therapy facilities.
This appliance must be earthed.
Cables which are chased into the wall must be protected by a suitably sized conduit or sheathing to allow for
removal in the event of service and maintenance purposes. Ensure that the conduit is run to avoid the controller
fixing holes.
Surface mounted cables must also be protected by a suitable approved conduit, even in a loft, where there may be
a risk of damage from vermin.
The power lead must only be replaced by the manufacturer or his accredited agent.
The user control is supplied from a safety low voltage source.
This product is suitable for domestic use only.
HiQu Digital is supplied complete with a 5 year guarantee.
This product is not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities or lack of experience and knowledge, unless they have been given initial supervision or instruction
concerning the use of the product by a person responsible for their safety.
Children should be supervised to ensure they do not play with the product.
Insta ation of Digita pumped processor (for gravity stored systems)
The HiQu Digital pumped bath system is designed to operate up to maximum static pressure of 100kPa
((1 bar)(10 metres head)(14.5psi)).
Under no circumstances must the pumped processor be connected directly to the water main or in line with
another booster pump.
The minimum actual capacity of the cold water storage cistern should be not less than 225 litres (50 gallons).
The capacity of the hot water cylinder must be capable of meeting anticipated demand.
www.divapor.com

HiQu Digital Bath installation instructions Page 5
Insta ation of Digita standard processor (for ba anced high pressure and
unvented systems, combination boi er systems and separate y pumped
gravity systems)
Pressures: The HiQu Digital standard bath system is designed to operate up to a maximum static pressure of
700kPa ((7 bar)(100psi)). Where pressures are likely to exceed 700kPa ((7 bar)(100psi)), a pressure reducing valve
must be fitted to the incoming mains supply. A setting of 400kPa ((4 bar)(60psi)) is recommended. It should be
noted that daytime pressures approaching 600kPa ((6 bar)(80psi)) can rise above the stated maximum overnight.
Specia notes for combination boi er systems
The appliance must have a minimum domestic hot water rating of 24kW (80,000BTU) and be of the type fitted
with a fully modulating gas valve. If in any doubt, please contact the appliance manufacturer before installation
commences.
P EASE NOTE: DUE TO PERFORMANCE CHARACTERISTICS OF COMBINATION BOI ERS, SEASONA IN ET TEMPERATURE
CHANGE WI AFFECT THE PROCESSOR OUT ET F OW RATE RESU TING IN VARYING BATH F OW RATE. THIS WI AFFECT
PRE-SET DEPTH EVE S. IN ET TEMPERATURE CHANGE MAY A SO CAUSE THE TEMPERATURE ED’S TO F ASH; THIS IS NOT
NECESSARI Y CHANGING THE OUT ET TEMPERATURE.
Specia notes for separate y pumped gravity systems
We recommend a twin ended pump with a MINIMUM pump rating of 1.5 bar. For optimum performance a twin
ended 2.5 bar pump should be used.
The minimum actual capacity of the cold water storage cistern should be not less than 225 litres (50 gallons).
The capacity of the hot water cylinder must be capable of meeting the anticipated demand.
THIS PRODUCT IS NOT SUITAB E FOR USE WITH A SING E ENDED PUMP.
Connections
This product incorporates ‘push fit’ type connections. Tube should be cut using a rotary type cutter and lubricated
using a silicone-based lubricant or petroleum jelly (Vaseline or similar) prior to insertion into the fitting.
If plastic pipe is used, the tube insert must not increase the tube diameter or extend the cut-off length by more than
2mm.
TO MAXIMISE F OW RATES WE RECOMMEND USING COPPER PIPE WITH THE MINIMUM AMOUNT OF E BOWS. THESE
FITTINGS ARE NOT SUITAB E FOR STAIN ESS STEE TUBE.
Pipe sizing
ong pipe runs, on both inlet and outlet, will reduce the flow rate at the shower head. If long pipe runs are
unavoidable, use copper pipe rather than plastic. If plastic pipe is used, minimise the number of elbows as the pipe
inserts are very restrictive, consideration should be given to using 22mm plastic or copper pipe.
Flushing
Some modern fluxes can be extremely corrosive and, if left in contact, will attack the working parts of this unit. All
soldering must be completed and the pipe work thoroughly flushed out in accordance with current Water Supply
Regulations prior to connection of the product.
Afte installation
Familiarise the end user with the HiQu Digital bath operation and hand them this guide. Complete and post the
guarantee card or register online at www.aqualisa.co.uk
www.divapor.com

HiQu Digital Bath installation instructions Page 6
Installation instructions
This product must be installed by a competent person in accordance
with the relevant current Water Supply Regulations.
70mm
In addition to the guide below it is essential that the written in-
structions overleaf are read and understood and that you have all
the necessary components (shown overleaf) before com-
mencing installation.
!
The HiQu Digital Bath system is supplied with universal fixings in-
tended to secure it to a suitable wall.
!
90mm
445mm
270mm
350mm
265mm
To ensure safe operation and installation of this product, the
processor MUST be installed in one of the orientations shown.
1
!
www.divapor.com

HiQu Digital Bath installation instructions Page 7
Isolation valves are supplied with the Dig-
ital processor and must be fitted on both
inlets and the blended water outlet. All
pipe work should be run in 15mm pipe. All
pipe work should be supported. For exter-
nally pumped gravity fed installa-
tions, 22mm pipe work should be run
as close to the processor as possible before re-
ducing down to 15mm.
2
The inlet supply centres are 48mm. The inlet supply centres de-
viate from EN1111 and EN1287, but are deemed to be a
special case.
Please note arrow on isolation valve to indicate direction of flow.
Compression fittings should not be used on the inlet and outlet
spigots and may affect warranty if fitted.
!
Choose the position for your Digital processor as close to the bath
control as possible.
The processor may be sited in the roof space above the proposed
bath site, in the airing cupboard or behind a screwed bath panel if
more convenient. If siting in the roof space, ensure that freez-
ing cannot occur and that no insulation material is placed under
or over the processor. Please refer to the system layout dia-
grams.
3
!The distance between the Digital processor and bath control
must be within range of the 10m data cable supplied.
THE PROCESSOR MUST BE SITED IN A POSITION SO THAT AC-
CESS CAN BE GAINED FOR TESTING AND SERVICE PURPOSES.
www.divapor.com

HiQu Digital Bath installation instructions Page 8
Place the Digital processor on a solid
mounting surface, and place the fixing
feet into suitable positions. Mark then
drill and prepare suitable fixings before
securing the processor to the mounting
surface using the screws provided.
4
Flush through both hot and cold supply pipes.
5
The maximum hot water inlet temperature must be no more than
65˚C.
!
Attach the supply pipes to the Digital
processor, ensuring that the cold and
hot feeds are fitted into the
appropriately marked inlets.
6
DO NOT SO DER NEAR TO P ASTIC COMPONENTS.
!
Run a pipe from the mixed water outlet on the Digital processor through
to the proposed siting for the bath fill outlet.
7
Suitable non restrictive double check valves (not supplied) MUST
be fitted to the blended outlet pipe in line with current Water
Supply Regulations.
!
www.divapor.com

HiQu Digital Bath installation instructions Page 9
Drill and prepare the fixing points and 15mm data cable entry point
using the fixings provided, if suitable.
10
11
Undo the fixing screw, remove the
controller assembly away from the
back plate and set aside.
8
Place the bath control back plate onto the finished wall surface in
the desired location and mark the fixing and data cable entry
points.
9
Connect the data cable to the rear of the controller.
12
Apply a thin bead of mastic to the mas-
tic groove at the rear of the
back plate. Secure the back plate
to the wall using the screws provided,
if suitable.
Care should be taken to ensure the mounting holes do not pierce
the data cable conduit.
!
www.divapor.com

HiQu Digital Bath installation instructions Page 10

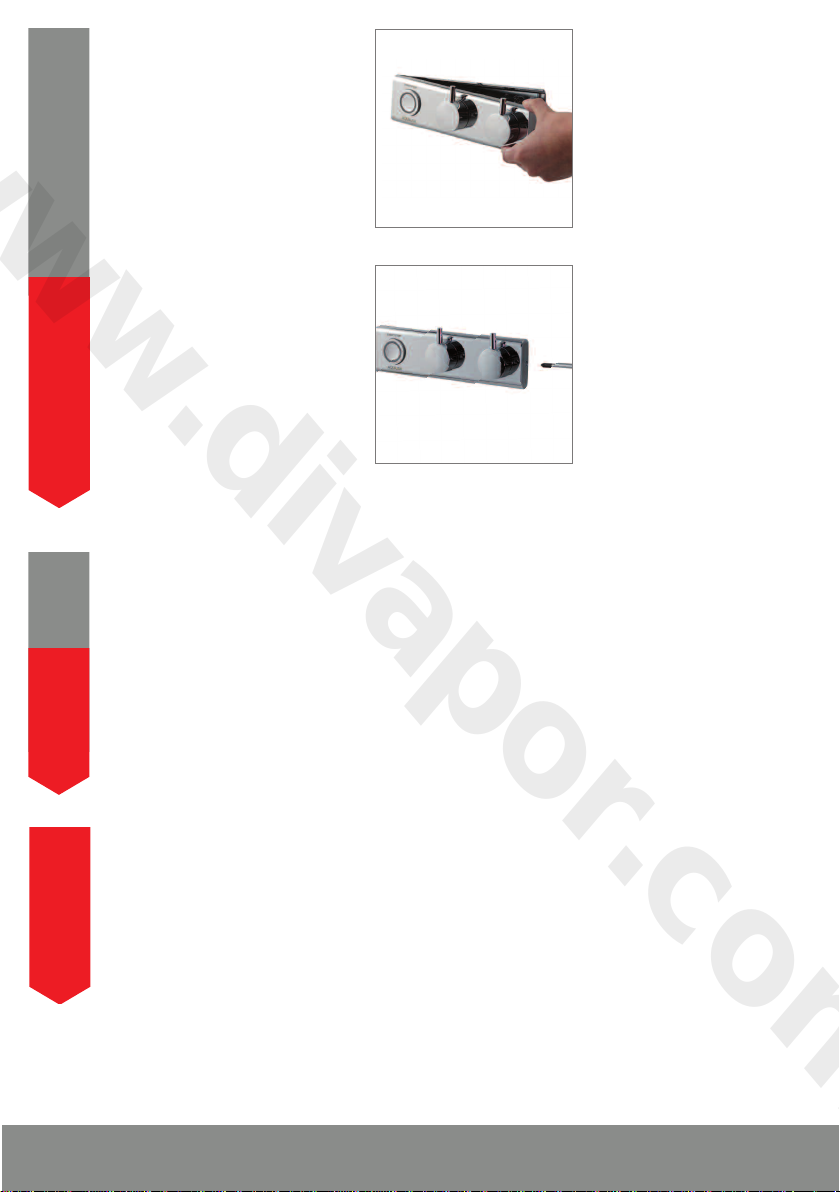

Hook the left side of the controller into
position and secure the controller
onto the back plate assembly.
13
To remove the controller from the back
plate,
undo the screw and remove
from the base of the controller assem-
bly. Carefully pull the
controller away from the back plate
and set aside.
!
BEFORE ANY E ECTRICA ADJUSTMENT IS ATTEMPTED, THE
E ECTRICITY SUPP Y MUST BE TURNED OFF AT THE MAINS SWITCH.
E ECTRICA INSTA ATION MAY ON Y BE CARRIED OUT BY A
QUA IFIED PERSON.
!
Connect the outlet pipe to the mixed water outlet on the Digital processor.
Using pipe clips as appropriate, ensure that all pipe work is perpendicular to
the processor, i.e. not putting any strain on the fittings.
14
TO ENSURE OPTIMUM PERFORMANCE USE THE MINIMUM AMOUNT
OF E BOWS.
TO MAXIMISE F OW RATES WE RECOMMEND USING COPPER PIPE WITH
THE MINIMUM AMOUNT OF E BOWS.
!
www.divapor.com

HiQu Digital Bath installation instructions Page 11
Unscrew the single fixing on top of the
processor box and carefully tilt the lid up
and off the location lugs and pull the lid
clear.
16
Connect the processor power lead to a
double pole 3 amp fuse switched spur in-
corporated in the fixed wiring circuit, in
accordance with current wiring rules. En-
sure that this is located in an ac-
cessible, dry location and not in the
bathroom.
15
THIS APP IANCE MUST BE EARTHED
We recommend protecting surface mounted cables in suitable ap-
proved conduit to avoid the risk of damage from vermin.
The data cable and power lead should also be clipped in place with ‘P’
clips or similar to avoid accidents.
!

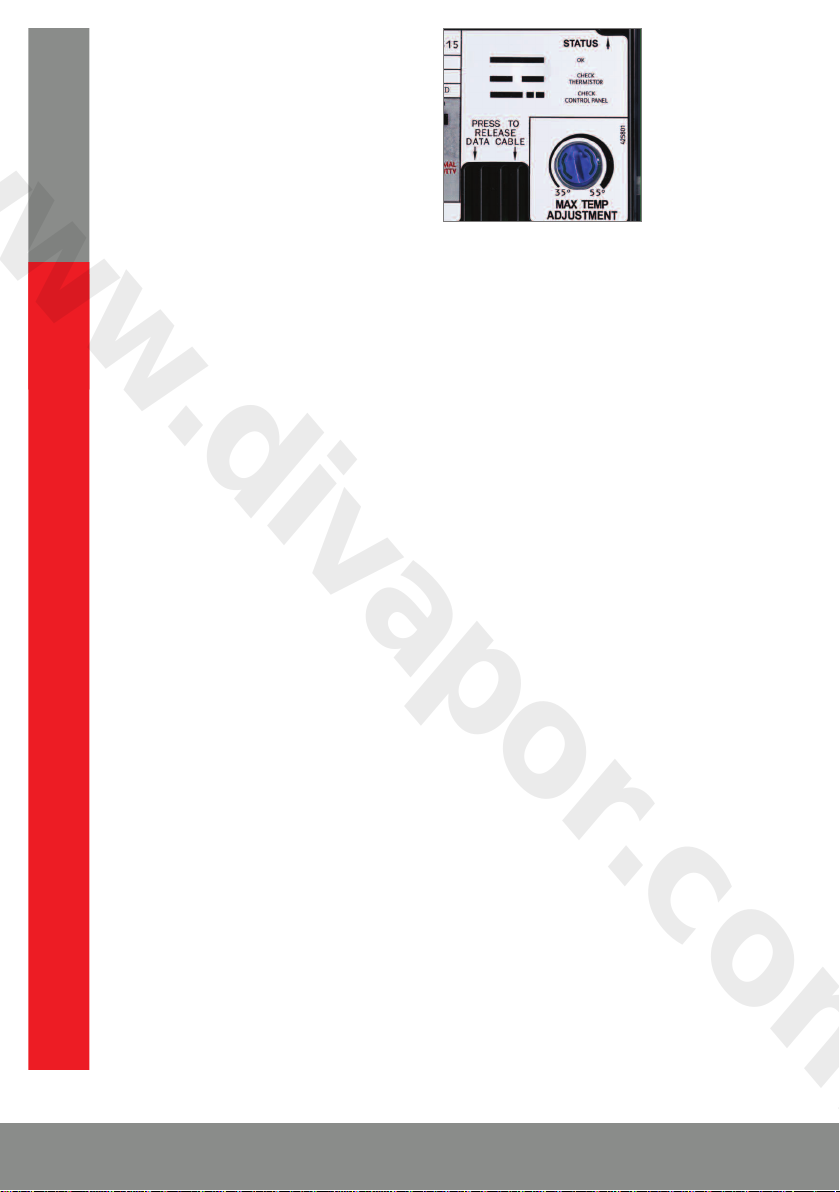

Connect the low voltage data cable into
the socket adjacent to the temperature ad-
juster as indicated on the label. Feed
the cable out of the processor box en-
suring it is correctly routed within the data
cable channel.
17
A further data cable socket has been provided for use with a secondary
Digital remote start/stop controller. This can be accessed by carefully
snapping and removing the entry pillar and connecting the cable as de-
scribed above.
!
www.divapor.com

HiQu Digital Bath installation instructions Page 12

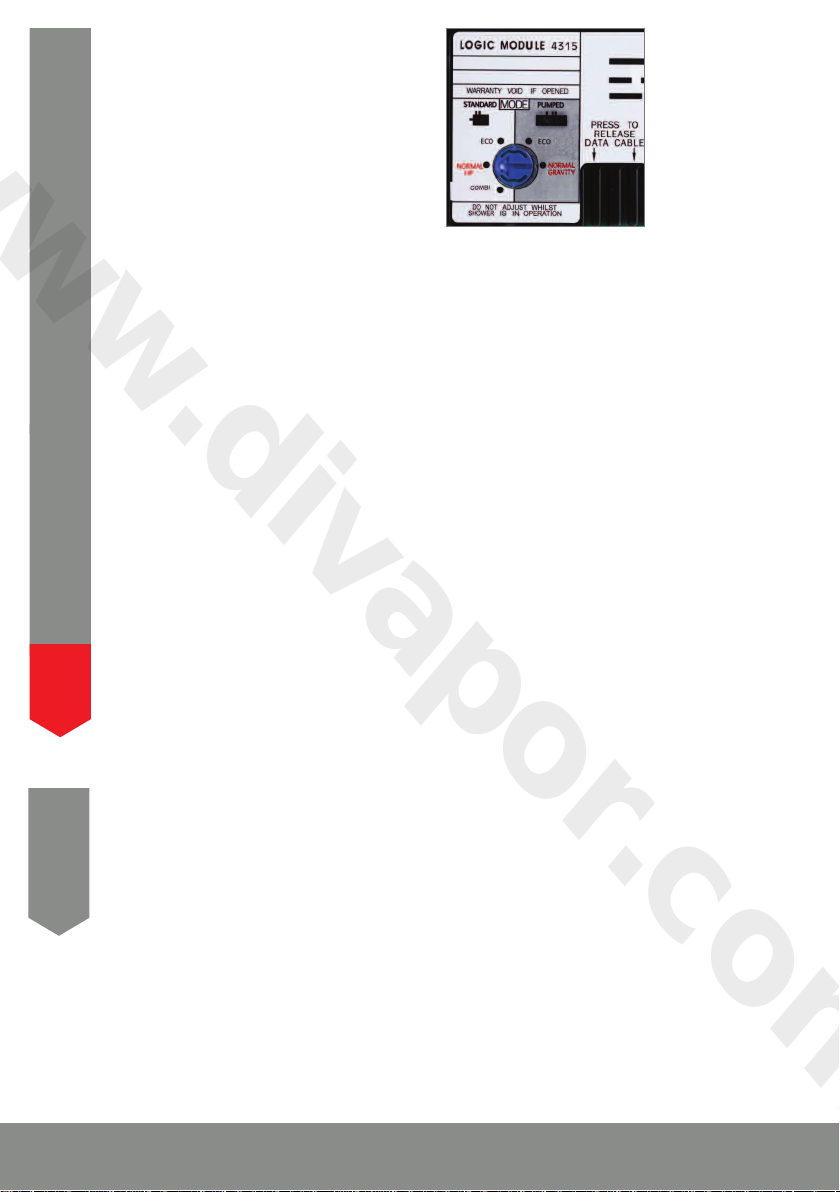

The Digital processors are supplied factory set
with the flow rate at either ‘NORMA HP’ or
‘NORMA GRAVITY’ mode depending on which
bath system has been ordered.
STANDARD PROCESSORS ON BA ANCED HP
SYSTEMS:
Standard processors fitted to balanced high pres-
sure systems may be set to ‘NORMA HP’ or for water economy ‘ECO’ modes.
N.B. We recommend the processor is set to ‘NORMA HP’ mode.
STANDARD PROCESSORS ON COMBINATION BOI ER SYSTEMS:
For Standard Digital processors installed on combi boiler systems, for op-
timum performance we recommend setting the flow rate to the ‘COMBI’
mode.
18
N.B. The ‘ECO’ flow rate mode should not be selected for bath systems fitted
to combination boilers.
PUMPED PROCESSORS:
Pumped processors fitted to gravity systems may be set to ‘NORMA
GRAVITY’ or for water economy ‘ECO’ flow rate modes.
N.B. We recommend the processor is set to ‘NORMA GRAVITY’ mode.
WHEN MAKING ANY ADJUSTMENT TO THE PROCESSOR SETTINGS
THE POWER MUST BE ISO ATED.
!
Re-instate the electricity supply to the processor and press the ‘start/stop’ but-
ton on the controller to turn the bath on.
19
www.divapor.com

HiQu Digital Bath installation instructions Page 13
Run the bath at maximum temperature (fac-
tory pre set to 45
0
C). If required, maxi-
mum temperature adjustment can be made
with a flat bladed screwdriver using the
‘MAX’ TEMP ADJUSTMENT’ control as
indicated. When the temperature has been set
to the desired position carefully replace the Digi-
tal processor lid and secure the fixing hand tight only.
20
Site conditions can affect temperature settings, installer to adjust as required.
A COPPER PIPE WORK MUST BE CROSS-BONDED AND CONNECTED TO A
RE IAB E EARTHING POINT.
!
www.divapor.com

Aqualisa Products imited
The Flyer’s Way
Westerham Kent TN16 1DE
Customer helpline: 01959 560010
Brochure Hotline: [phone]
Website: www.aqualisa.co.uk
Email: [email protected]
Republic of Ireland
Sales enquiries: 01-864-3363
Service enquiries: 01-844-3212
Part No:700392 Issue 01 Jun 12
Please note that calls may be recorded for training and quality purposes
The company reserves the right to alter, change or modify the product specifications without prior warning
® Registered Trademark Aqualisa Products imited
The Waste E ectrica and E ectronic Equipment (Producer Responsibi ity) Regu ation 2004
This product is outside the scope of the European Waste Electrical and Electronic Equipment Directive as interpreted within the UK.
In the UK this product can therefore be disposed of through commercial non-WEEE waste facilities.
The original manufacturer does not accept any liability under the WEEE directive.
www.divapor.com
