Aqualisa Siren SL User manual

Siren
Thermostatic mixer shower with 90mm
Harmony head
Installation guide
SL
Siren 2 installation guide:Dolphin install Guide 17/1/11 10:27 Page 1

Siren 2 installation guide:Dolphin install Guide 17/1/11 10:27 Page 2

Index
Introduction p.4
- Safety information p.4
- Product specification p.4
Connection to supplies p.4
- Pipe sizing p.5
- Flushing p.5
- Filters p.5
- Isolating valves p.5
- Pressures p.5
Gravity system p.5
- Siting p.6
- Pump installation p.6
- Stored water capacities p.6
Combination boiler systems p.6
Balanced high pressure systems p.7
Typical water systems p.8
System components p.10
Valve installation instructions p.11
- Siren exposed valve p.11
- Siren concealed valve p.14
Harmony shower head installation p.17
- Adjustable height Harmony head p.17
User guide - Shower valves p.21
User guide - Shower valves p.21
- Adjustable height Harmony head p.21
Cleaning & maintenance p.21
Commissioning p.22
Trouble shooting guide p.23
3
Siren 2 installation guide:Dolphin install Guide 17/1/11 10:27 Page 3

4
Introduction
The Siren product range includes an exposed or a concealed valve complete with an adjustable height shower head.
Siren valves feature a single lever control to turn the shower on and off and to control temperature.
Siren thermostatic valves provide close temperature stability and fail safe protection on appropriate high and low
pressure systems. Please refer to the product specification section below.
If at any stage during installation you have any questions, please contact the Aqualisa customer helpline
on 01959 560010 for assistance.
Safety information
This product must be installed by a competent person in accordance with all relevant current Water Supply
Regulations.
THE SHOWER MUST NOT BE USED WITH A HOT WATER SUPPLY TEMPERATURE OVER 65ºC.
The Siren range is designed for domestic use only.
Product specification
Siren products are suitable for all gravity, boosted gravity, balanced high pressure and combination boiler systems*.
Pressure range 0.1bar – 10bar max (static).
*The combination boiler MUST have a minimum rating of 24kW (80,000 Btu) and be of the type fitted with a fully
modulating gas valve.
If any doubt, please contact the appliance manufacturer before installation commences.
When fitted to combination boiler systems, Siren shower valves have been designed to give optimum temperature
control and stability from fully modulating combination boilers and instantaneous gas water heaters. The Siren
valves are supplied complete with flow regulators to control the incoming hot water flow rate into the cartridge.
The following regulators should be fitted to suit the relevant rated appliance as listed below:
YELLOW = 24kW (80,000Btu)
GREEN = 28kW (100,000Btu)
BLUE = 35+kW (120,000+Btu)
Please refer to pages 12 and 15 for fitting the regulator instructions.
Connections
Siren products are designed for conventional supplies with HOT on the left and COLD on the right as viewed from
the front.
Siren shower valves incorporate 15mm compression fittings. Tube should be cut using a rotary type cutter.
If plastic pipe is used, the tube insert must not increase the tube diameter or extend the cut off length by more
than 2mm.
Supply lines must be flushed clear of any debris before installation of the unit. Any debris accumulation in the
shower valve and head may result in damage and poor performance.
Important information
Siren 2 installation guide:Dolphin install Guide 17/1/11 10:27 Page 4

Pipe sizing
Long pipe runs, on both inlet and outlet, will reduce the flow rate at the shower head. If long pipe runs are
unavoidable, use copper pipe rather than plastic. If plastic pipe is used, minimise the number of elbows as pipe
inserts are very restrictive. Consideration should be given to using 22mm plastic or copper pipe especially if a
diverter valve is to be fitted.
Flushing
Some modern fluxes can be extremely corrosive and, if left in contact, will attack the working parts of the unit. All
soldering must be completed and the pipe work thoroughly flushed out in accordance with current Water Supply
Regulations prior to connection of the product.
Filters
To ensure ongoing optimum performance, Siren products are protected by inlet filter assemblies in the internal
waterways. Debris accumulation may result in reduced flow from the shower head and noisy operation.
As this condition is not covered by our standard warranty terms, it is suggested that the filters be removed and
checked by a competent person. In the event of any difficulties please contact the Aqualisa customer helpline
for assistance.
Isolating valves
Suitable full way isolation valves must be fitted to both supplies in accordance with current Water Supply
Regulations and our terms of warranty.
Due to their restrictive characteristics, stopcocks and ball type valves that reduce the pipe bore size must not be
used on gravity and boosted gravity installations.
Pressures
The Siren cartridge is designed to operate from the mains at a maximum of 10bar. If the mains pressure is likely to
exceed 10bar, a ‘drop tight’ PRV must be fitted on the supply pipe after the main stopcock. A setting of 3bar is
recommended. It should be noted that daytime pressures approaching 8bar can rise above the stated maximum
overnight.
A suitable PRV is available from Aqualisa.
Siren products are not suitable for mixed supply systems, e.g. gravity hot and mains cold.
Gravity fed hot and cold supplies
Services must be installed according to good plumbing practice having regard to pipe sizing, long pipe runs and low
head situations.
The cold supply for the valve assembly must be taken directly from the cold water storage system. The hot supply
may be taken from the vent/draw off pipe of the hot water cylinder at a point below the cylinder connection or
alternatively from the underside of the horizontal draw off.
Rising pipe work must NOT be connected into the horizontal draw off from the cylinder or to any point in the
vent/draw off pipe above the cylinder connection.
5
Siren 2 installation guide:Dolphin install Guide 17/1/11 10:27 Page 5

6
CYLINDER TEMPERATURE IN EXCESS OF 65°C MAY RESULT IN POOR SHOWER
PERFORMANCE
To minimise pressure loss we recommend that the hot and cold supplies are run in 22mm as close as reasonably
possible to the mixing valve before reducing to 15mm.
Siting
For optimum performance, with gravity fed systems the distance between the bottom of the storage cistern and the
shower head should be not less than 1m (when using an adjustable height head). If using a fixed head, the highest
point of the pipe work must be below the underside of the cistern.
Please refer to the typical system layout on page 8.
Pump installation
UNDER NO CIRCUMSTANCES MUST A PUMP BE FITTED DIRECTLY TO THE WATER
MAIN
A pump must only be used to boost the pressure from tank fed supplies.
A minimum 1 bar twin ended booster pump is recommended.
ENSURE THE MINIMUM GRAVITY FLOW RATE IS SUFFICIENT TO OPERATE THE PUMP
FLOW SWITCHES.
PLEASE REFER TO THE MANUFACTURERS PUMP INSTALLATION GUIDE FOR PUMP
INSTALLATION INFORMATION.
Please refer to the typical system layout on page 8.
Stored water capacities
The minimum capacity of the cold storage cistern should be not less than 225 litres (50 gallons). The capacity of
the hot cylinder must be capable of meeting the anticipated demand.
Combination boiler/multipoint system
Siren products are suitable for use with combination boiler systems. The combination boiler MUST have a minimum
rating of 24kW (80,000 Btu) and be of the type fitted with a fully modulating gas valve. This is sufficient to operate
one outlet at a time.
If in any doubt, please contact the appliance manufacturer before installation commences.
The cold supply can be taken from the nearest convenient mains supply and the hot supply can be taken from the
nearest hot water draw off point. Account must be taken of the pressure drops that will occur when other draw off
points are used while the shower is in use.
Please refer to the typical system layout on page 9.
When fitted to combination boiler systems, Siren shower valves have been designed to give optimum temperature
control and stability from fully modulating combination boilers and instantaneous gas water heaters. The Siren
valves are supplied complete with flow regulators to control the incoming hot water flow rate into the cartridge.
Siren 2 installation guide:Dolphin install Guide 17/1/11 10:28 Page 6

7
The following regulators should be fitted to suit the relevant rated appliance as listed below:
YELLOW = 24kW (80,000Btu)
GREEN = 28kW (100,000Btu)
BLUE = 35+kW (120,000+Btu)
Please refer to pages 12 and 15 for fitting the regulator instructions.
Balanced high pressure system
The cold water supply must be drawn from the same mains supply as that to the hot water system (down stream of
the cylinder manufacturer’s pressure limiting valve, where supplied) and the hot supply from the nearest convenient
draw off point. Account must be taken of pressure drops that may occur when other draw off points are used while
the shower is in use.
Please refer to the typical system layout on page 9.
Siren 2 installation guide:Dolphin install Guide 17/1/11 10:28 Page 7

8

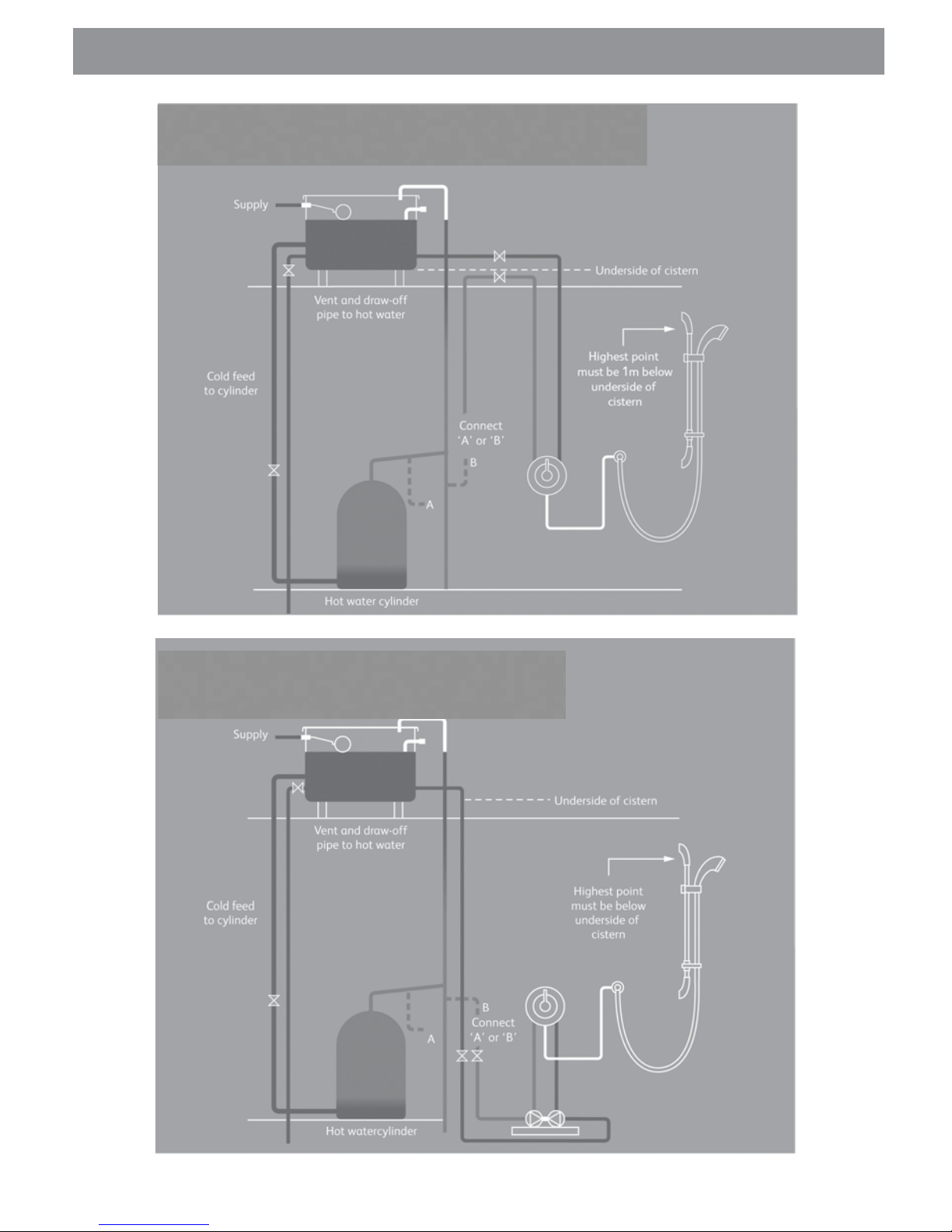

Typical system diagrams
Typical pumped system installation
Typical gravity system installation
Siren 2 installation guide:Dolphin install Guide 17/1/11 10:28 Page 8

Typical system diagrams continued
Typical combination boiler system installation
Typical thermal storage unit system installation
Typical UHW system installation
9
Siren 2 installation guide:Dolphin install Guide 17/1/11 10:28 Page 9

Components - Siren concealed with adjustable 90mm Harmony head
10
Components - Siren exposed with adjustable 90mm Harmony head
Siren 2 installation guide:Dolphin install Guide 17/1/11 10:28 Page 10

11
!In addition to the guide below it is essential that the written instructions overleaf are read and
understood and that you have all the necessary components (shown on page 10) before commencing
installation. Failure to install the product in accordance with these instructions may adversely affect
the warranty terms and conditions. Do not undertake any part of this installation unless you are
competent to do so. Prior to starting, ensure that you are familiar with the necessary plumbing
regulations required to install the product correctly and safely.
3Prepare the suitable 15mm pipe work ensuring 15-25mm protrudes measured from the finished wall
surface.
Utilising existing pipe work
The inlet elbows are supplied at factory set 150mm centres. If required, the inlet
centres can be adjusted from 148 – 155mm by winding the elbows into the body
to reduce the inlet centre or out to increase the inlet centres.
If using existing pipe work, ensure the 15mm pipe protrudes 15-25mm from the
finished wall and adjust the elbows accordingly. Alternatively, leave the existing nuts and olives
attached if suitable, ensuring there is adequate purchase on the pipe work to create a water tight seal.
Offer the mounting plate onto the finished wall centred between the existing protruding pipe.
Mark and prepare the fixing points using the fixings provided, if suitable.
Rising or falling exposed pipe work
The multi-directional inlet elbows are supplied at factory set 150mm centres.
If required, the inlet centres can be adjusted from 148 – 155mm by winding the
elbows into the body to reduce the inlet centre or out to increase the inlet centres.
Siren exposed valve installation
1Remove the black plastic protective cover from valve and set aside.
2Fix the self adhesive fixing template to the wall and mark and prepare the fixing
points and pipe entry positions, using the fixings provided, if suitable.
!
Siren 2 installation guide:Dolphin install Guide 17/1/11 10:28 Page 11

12
Prepare suitable 15mm pipe work in the desired location.
If using existing 15mm pipe work, adjust the elbow centres accordingly.
Offer the mounting plate onto the finished wall centred between the existing exposed pipe.
Mark and prepare the fixing points using the fixings provided, if suitable.
!
4Secure the mounting plate to the finished wall using the screws provided, if suitable.
5If the valve is being installed for use with a gas fired instantaneous (multipoint) water heater or a
combination boiler, a flow regulator should be fitted to the hot water inlet. The inlet flow regulators are
supplied as part of the system components and should be fitted to suit the relevant appliance as listed
below:
YELLOW = 24kW (80,000Btu)
GREEN = 28kW (100,000Btu)
BLUE = 35+kW (120,000+Btu)
6Place the relevant flow regulator within the small inlet flow regulator housing,
ensuring the flow regulator o’ring faces the incoming flow when fitted.
7Remove the hot inlet elbow from the valve assembly.
8Fit the inlet flow regulator housing assembly within the elbow ensuring the flow
regulator o’ring faces the incoming flow.
Siren 2 installation guide:Dolphin install Guide 17/1/11 10:29 Page 12

13
9Place the brass fitting into the elbow and tighten using a suitable hexagonal key to
secure the flow regulator assembly into position.
10 Refit the elbow to the valve assembly.
11 Place the grub screws into position in the valve body.
12 Offer the valve onto the mounting plate ensuring the elbows
correctly align with the relevant pipework.
13 Secure the valve to the mounting plate using the hexagonal
key provided.
14 Secure the elbow fittings to the pipe work using a suitable
tool, taking care not to overtighten.
15 Remove the grub screw from the control lever.
Siren 2 installation guide:Dolphin install Guide 17/1/11 10:29 Page 13

16 Secure the grub screw to the valve control knob using the hexagonal key provided.
17 Secure the control lever to the control knob.
If fitting this product for use with a high pressure system,
the outlet flow regulator provided MUST be fitted. Place
the flow regulator into the housing to create an assembly.
Place the flow regulator assembly into position within the
valve outlet, ensuring the flow regulator o’ring faces the
incoming flow.
Siren concealed valve installation
!In addition to the guide below it is essential that the written instructions overleaf are read and
understood and that you have all the necessary components (shown on page 10) before commencing
installation. Failure to install the product in accordance with these instructions may adversely affect
the warranty terms and conditions. Do not undertake any part of this installation unless you are
competent to do so. Prior to starting, ensure that you are familiar with the necessary plumbing
regulations required to install the product correctly and safely.
!
18 Ensure the hose washer is in position and secure the hose to the valve outlet.
Please refer to pages 17 to 20 for shower kit installation instructions.
1If installing the product into a solid wall, chase out a
suitable recess in the wall to receive the valve and pipe
work. If installing the valve in a concealed panel mounted
situation, in most cases it will be necessary to first install
a suitable sound fixing in the cavity area before fixing the
valve. A hole of Ø140mm is required to install the valve
and gain access to the inlet and outlet connectors.
The valve needs to be mounted to the depth shown below.
The distance between the 15mm inlet pipe centres is
149mm.
14
80mm max. to finished/tiled wall surface
60mm min from
back face of valve
to finished/tiled
wall surface
(10mm allowance
for tiles)
Siren 2 installation guide:Dolphin install Guide 17/1/11 10:29 Page 14

15
2Remove the black protective cover / mortar guard from the valve assembly and set
aside.
3Place the mounting plate into position on the valve body ensuring the flat face
aligns with the rear of the valve and secure using the bolts and hexagonal key
provided.
4If the valve is being installed for use with a gas fired instantaneous (multipoint) water heater or a
combination boiler, a flow regulator should be fitted to the hot water inlet. The inlet flow regulators are
supplied as part of the system components and should be fitted to suit the relevant appliance as listed
below:
YELLOW = 24kW (80,000Btu)
GREEN = 28kW (100,000Btu)
BLUE = 35+kW (120,000+Btu)
5Place the relevant flow regulator within the inlet flow regulator housing and place into
the valve hot water inlet, ensuring the flow regulator o’ring faces the incoming flow
when fitted.
6Place the flow regulator retaining ring into position over the flow regulator housing
assembly.
7Ensuring the rubber washers/filters are in position, secure the
elbows and outlet assemblies to the valve.
The Siren concealed valve is supplied with an outlet cap
at the bottom of the valve assembly allowing for a top
outlet connection. If required the cap can be removed with
a suitable tool and refitted to the top outlet of the valve.
!
Siren 2 installation guide:Dolphin install Guide 17/1/11 10:29 Page 15

16
8Prepare suitable 15mm inlet pipe work and construct a suitable 15mm outlet supply pipe to the desired
location for the wall outlet or fixed head.
9Place the vale into the required position within the wall and mark and prepare the
fixing points using the fixings provided, if suitable.
11 Secure the pipe work to the fittings using a suitable tool.
12 The valve can now be checked for leaks by rotating the flow control knob, ensuring the flow can discharge
safely to waste. If all is sound, turn the valve off.
10 Secure the valve to the wall using the screws provided if suitable.
13 Reft the black mortar guard to the valve assembly and fill in the chase. Once the
in-filling material has set, carefully remove the black mortar guard to expose the
valve body.
THE MORTAR GUARD MUST BE USED
!
14 Using a silicone based lubricant or liquid soap, lubricate the wall plate seal. Apply a
thin bead of silicone mastic to the rear of the wall plate and carefully push the wall
plate into position flush with the finished wall surface.
15 Remove the grub screw from the control lever.
Siren 2 installation guide:Dolphin install Guide 17/1/11 10:29 Page 16

16 Secure the grub screw to the valve control knob using the hexagonal key
provided.
17 Secure the control lever to the control knob.
Please refer to pages 17 to 20 for shower kit installation instructions.
Adjustable height Harmony head installation
Adjustable height head installation
The adjustable height heads are suitable to be fitted with either concealed or exposed shower valves.
A wall outlet assembly is supplied for installation with a concealed valve. If fitting with an exposed valve
please proceed to instruction 10.
1Prepare pipework from the shower valve to the required position for the hose outlet
using a Ø15mm copper pipe. Slide the wall spacer down the projecting pipe flush with
the finished wall surface.
2Slide the 15mm gripper ring down the projecting pipe flush with the wall spacer
fitting.
3Trim the projecting pipe to a length of 15-20mm, measured from the front face of the grip ring, using
a rotary type cutter. If a hacksaw is used, the pipe end must be carefully de-burred and chamfered.
4Clean and lubricate the pipe using a suitable (silicone based) lubricant.
17
Siren 2 installation guide:Dolphin install Guide 17/1/11 10:30 Page 17

18
5Remove the locking screw, rotate the chrome outlet assembly and remove the outlet
from the wall mounting plate.
6Place the wall outlet mounting plate onto the pipe assembly and mark and prepare
the fixing points, using the fixings provided, if suitable.
7Secure the wall mounting plate to the wall using the screws provided, if suitable.
8Place the wall outlet onto the mounting plate with the hose connection in the
5 o’clock position and rotate clockwise until a stop is reached.
9Refit the locking screw taking care not to overtighten.
10 Drill and plug 2 holes 776mm ± 3mm apart using the fixings provided, if suitable.
11 Fix the bottom rail bracket into position using the screws provided, if suitable.
Siren 2 installation guide:Dolphin install Guide 17/1/11 10:30 Page 18

19
12 Ensuring the lever is in the upright position, pass the rail through the handset holder.
13 Carefully slide the gel hook onto the rail under the handset holder.
14 Current water supply regulations state that the handset should not be allowed to pass a point 25mm above
the spill over level of the bath or shower tray. If this cannot be achieved, the hose must be passed through
the gel hook which has also been designed to be utilised as a hose restraint.
15 Place the rail assembly onto the bottom fixing bracket taking care to engage the rail
location slots on the bracket lugs.
16 Place the top fixing bracket into position and secure to the wall using the screws provided, if suitable.
17 Slide the rail end covers onto the rail brackets and click into position.
18 If fitting this product with a high pressure system, the outlet flow regulator assembly provided
MUST BE FITTED.
Concealed valve
If required, ensure the washer is in the correct position and secure the assembly
to the wall outlet ensuring the flow regulator o’ring faces the incoming flow.
!
Siren 2 installation guide:Dolphin install Guide 17/1/11 10:40 Page 19

19 Ensuring the hose washer is in position secure the hose to the valve or wall outlet hand
tight only.
20 Pass the hose through the gel hook.
21 Ensuring the hose washers are in the correct position, depress the anti-swivel locking
button on the handset and secure the handset to the hose. Place the handset into the
handset holder.
20
Exposed valve
If required, place the flow regulator into the recess in the flow regulator housing.
Place the flow regulator assembly into position inside the valve outlet ensuring
the flow regulator o’ring faces the incoming flow.
!
Siren 2 installation guide:Dolphin install Guide 17/1/11 10:30 Page 20
