AQUALUX Aqua 3 User manual

IN00352(rev A)
Curved Bath Screen
Instruction suitable for both Right and Left Hand fixing variations.•

Help Line: 0870 241 6131

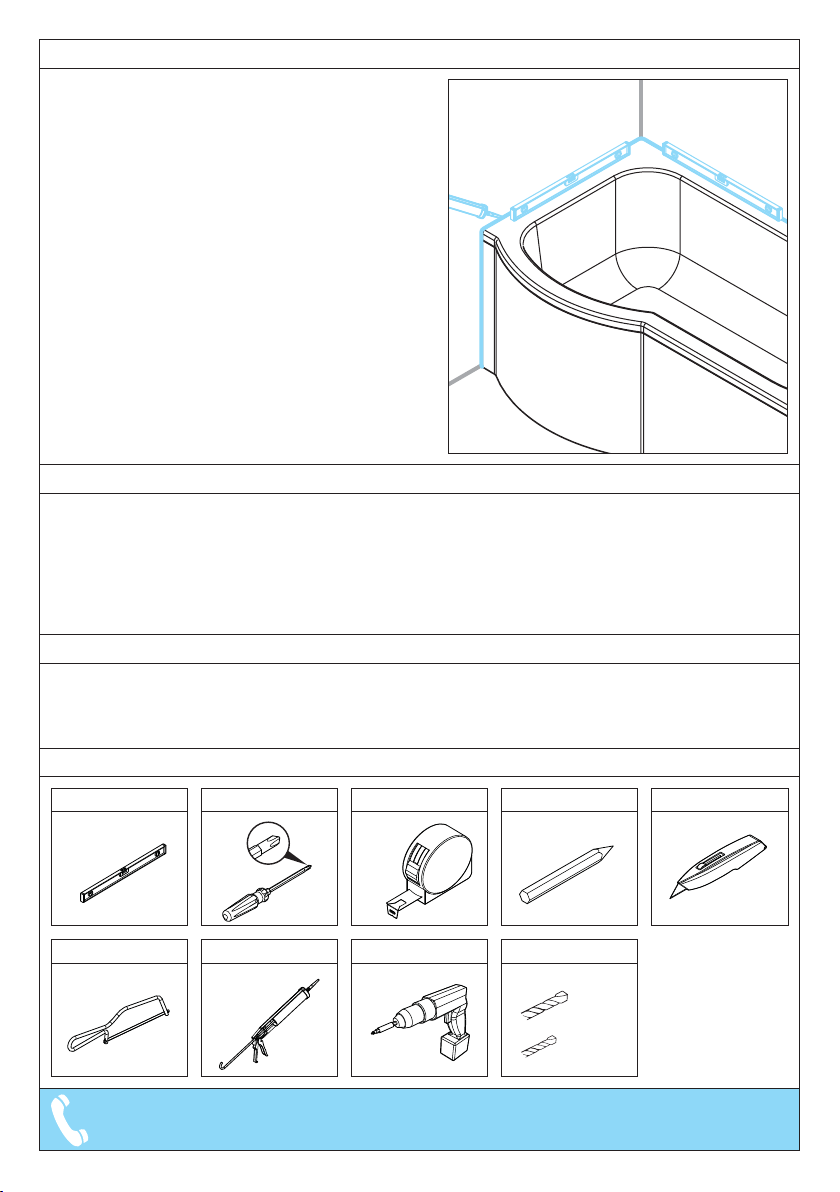

Check that the bath has been installed correctly•
and that it is level (Fig. A), tiled down onto and
sealed to the manufacturerʼs guidelines. Please
Note: All product supplied without bath.
Check that there is sufficient space on the bath•
for the product and that the screen movement
does not foul other items such as sinks and
taps.
Ensure the product is fitted to a non-porous•
surface ie. tiled. Check that the wall surface is
flat.
Unpack and check the product is complete and•
undamaged.
Fixings are supplied for solid walls only. Ensure•
that the correct fixings are used for the wall type
– if in doubt seek professional advice
Ensure the area is clean, dry and dust free.•
Read the instructions in full.•
Have the correct tools available, (as shown•
below, see ʻTools Requiredʼ).
Handle all glass with care - support on cardboard to avoid risk of breakage.•
This product is heavy and requires 2 people to carry and install it.•
When drilling walls check first for hidden pipes and cables.•
All glass is toughened – it cannot be reworked or replaced by ordinary glass.•
Use safety eyewear when drilling.•
Use safety eyewear when handling glass.•
Keep all small parts away from children.•
Safety
Please notify the retailer immediately of any damage or faults. The manufacturer cannot be held•
responsible for any installation costs that may arise from damaged or faulty product being installed.
Please dispose of all packaging with due regard to the environment.•
Disclaimer
Before You Start
Tools Required (not supplied)
Fig.A.
Spirit Level Screwdriver Tape Measure
Junior Hacksaw
Pencil Utility Knife
Silicone Gun & Sealant Power Drill Suitable Drill Bits
6mm dia. *
3mm dia.
HSS
* Ensure drill bit
used is suitable for
wall surface
Lines open: 8.30am - 5.00pm Monday to Friday
Standard National call charge rate from BT landlines

Parts & Fittings Supplied
Please notify the retailer immediately
of any damage or faults. The
manufacturer cannot be held
responsible for any installation costs
that may arise from a damaged or
faulty product being installed.
!
Keep small parts away from children
!
D1
Curved Glass
Panel
X1
Horizontal Seal
X1
(Supplied Straight)

(actual size)
Wall Plugs
B
x3
Qty
(actual size)
(actual size)
No.7 x 1½” Pan Head Screws
C
Screw Snap Cap
D
x3
Qty
(actual size)
No.7 x ½” CSK Screws x3
Qty
A
x3
Qty
D1
Loose Screws & Fittings Supplied
Wall Channel
X1
C
D
B
A
Wall Channel
Cap
X1

Ensure Glass Screen is level
Handle unframed glass with care - Support
on cardboard to avoid risk of breakage.
!
Ensure Glass
Screen is level
!
1
Mark Wall
Channel position
IMPORTANT NOTE:
Ensure radius of Bath Screen
matches Bath, (refer to Fig. B
for details).
DO NOT push Bath Screen
fully into Wall Channel to
ensure adjustment when
fixing.
!
Fig. B Plan View
2.1
2.2
2.3
2
Wall plugs supplied are for solid walls only.
Ensure correct wall plug for wall type is
used. If in doubt seek professional advice.
!
Position wall channel on wall. Ensure
channel is vertically level and does not
overhang the bath.
!
Tip: When drilling tiles apply masking tape
to surface to stop drill bit slipping.
*
Mark position
of pre-drilled
channel holes
6mm dia. holes
with drill bit suitable
for wall surface
B
A

INSIDE
OF BATH
OUTSIDE
OF BATH
3Tip: To push fit Horizontal
Seal, start in the corner and
work the seal across the
Curved Glass Panel.
*
IMPORTANT NOTE:
Ensure radius of Bath Screen
matches Bath, (refer to Fig. B for
details).
DO NOT push Bath Screen fully
into Wall Channel to ensure
adjustment when fixing.
!
4
Please Note:
Ensure Horizontal Seal is
positioned with the ʻEdge Bladeʼ
on the inside face of the bath.
Ensure compression of Horizontal
Seal on the bath.
!

5
5.1*
5.2
5.3
Inside View
D
C
*3mm dia. holes
through pre-drilled
holes using HSS
drill bit.
Inside View
6
Take Care not to let Wall
Channel Cap slip down the
Wall Channel.
*
Push fit Wall Channel Cap
into position.
!
!Ensure Bath Screen is level prior
to fixing, adjust to suit.

150mm
7
Apply Silicone
Sealant, (not supplied).
!
Product Care:
Use a non abrasive cleaner.
Water marks may be removed
with a proprietary limescale
remover or household vinegar.
*
8
Inside View
Apply Silicone
Sealant, (not supplied).
!
