AQUAMA Compact Atomizer Operating manual

www.aquama.com
USER AND INSTALLATION MANUAL

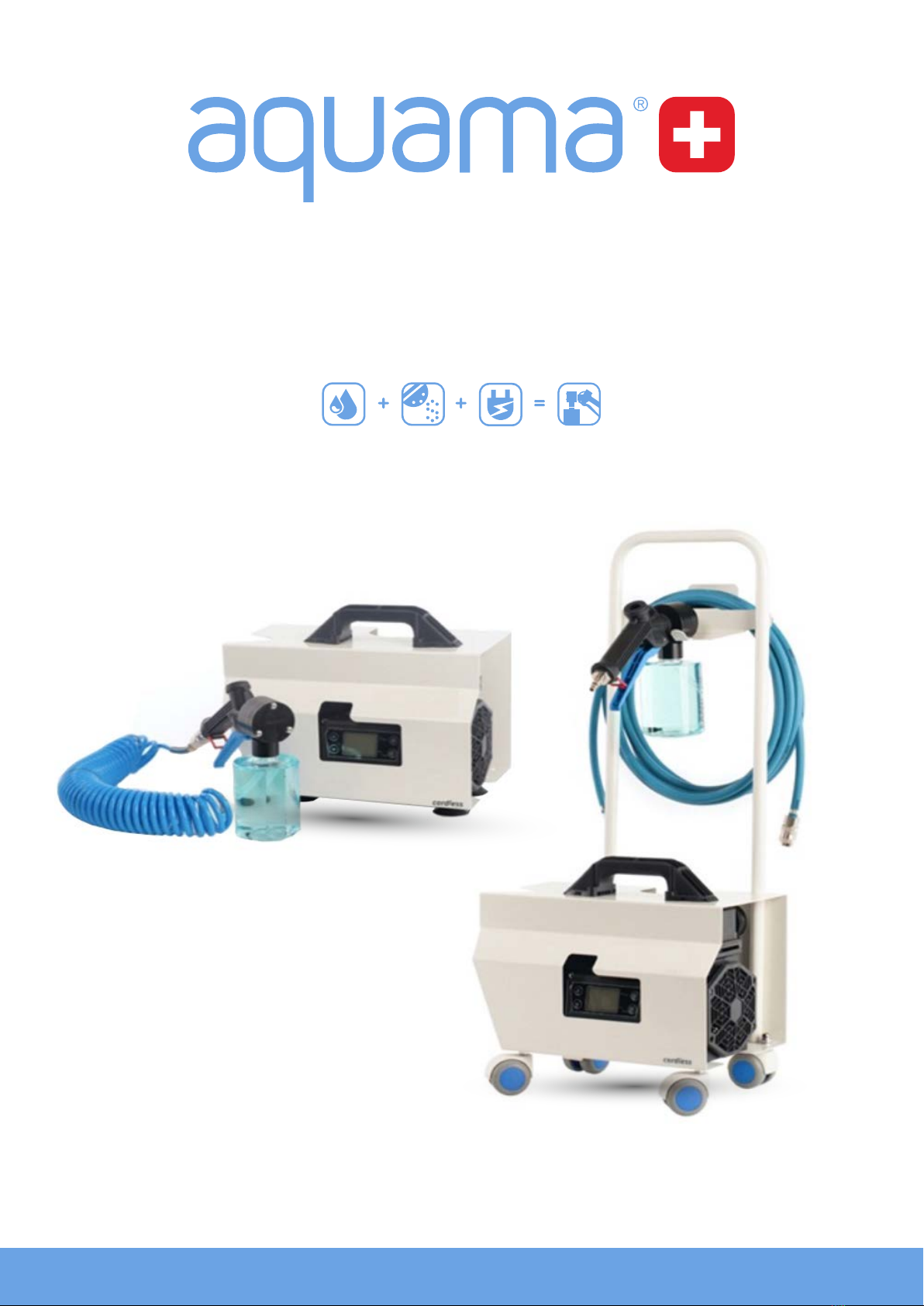

Compact Atomizer

USER MANUAL – aquama
® compact Atomizer 3
The best of world technology!
The aquama®compact Atomizer is a liquid atomizing equipment designed for quick and easy surface disinfection.
Does not wet surfaces or damage electronic components (minimum spraying distance of 1.5 metres). The
aquama®compact Atomizer works with Indigo® aquama®solutions (light, normal, medium and high).
Your aquama®compact Atomizer includes:
• 1 aquama®disinfection trolley with a mini compressor / Atomizer (4 wheels)
• 1 spray gun with a tank of 600 ml (aquama®bottle)
• 1 battery 20V 4A
• 1 charger for 20V 4A battery
• 1.5 metres spiral exible hose with quick connectors
• a user manual (also downloadable from our website)
Options: possibility of adding extensions (6 or 10 m at hose). These hoses have quick connectors and can be
put end to end to increase the working length.
Water Salt Electricity aquama® solution
aquama®: eco-responsible detergent and disinfection, based on water, salt and produced using electricity. With
its anti-bacterial activity, aquama®solutions kill bacilli, salmonella, pneumonia and legionella. aquama®benets
from an alkaline pH, it turns out to be a powerful detergent, allowing you to clean greasy surfaces (non-porous).
The aquama®solution contains no endocrine disruptors*, no chloramines*, no allergens*.
Solution Standards*:
TP02 / TP03 / TP04
• EN 1650: condition of cleanliness
• EN 1276: condition of cleanliness
• EN 13624: condition of cleanliness
• EN 14476: dirty condition
• EN 17126: dirty condition
• EN 13727: dirty condition
TP01
• EN 1500: hand disinfection
• CHZN3975 / CHZN5805: Authorizations from the Federal Ofce
of Public Health for the disinfection of surfaces in the private sec-
tor, public health, as well as any eld of professional and general
public use.
• CHZN6423: Authorization from the Federal Ofce of Public Health
for the disinfection of surfaces and hands.
Machine standards*:
*As standards may change, the application or website are kept up to date. More information on www.aquama.com
© Copyright aquama
®
- All rights reserved. aquama
®
is a registered trademark of aquama Holding SA - Switzerland
aquama Holding SA - Lake Geneva Park - Lully 5C - 1131 Tolochenaz - Switzerland

USER MANUAL – aquama
® compact AtomizerUSER MANUAL – aquama ® compact Atomizer 54
Summary
Part 1 – Introduction........................................................................................................................................5
1.1 Ecology in the literal sense with your aquama®compact Atomizer...............................................................5
Part 2 – Safety instructions.............................................................................................................................6
2.1 Caution .......................................................................................................................................................6
2.2 Remarks......................................................................................................................................................6
2.3 Error codes .................................................................................................................................................7
Part 3 – Assembly and operating advice.......................................................................................................8
3.1 Compact Atomizer overview........................................................................................................................8
3.2 Operating mode ..........................................................................................................................................9
3.3 Pressure equivalence table ..........................................................................................................................9
Part 4 – Cleaning, dismantling and maintenance.......................................................................................10
4.1 Check list ..................................................................................................................................................10
PART 1
INTRODUCTION
1.1 ECOLOGY IN THE LITERAL SENSE WITH YOUR AQUAMA®COMPACT ATOMIZER
The compact Atomizer is designed for the application of aquama®solutions on surfaces by spraying. It is made
of high quality components and with a quick connection system. The composition of the gun head is made of
technical polymer.
The atomization, unlike other spraying systems, creates micro-droplets and allows the application of the disinfectant
on large surfaces with minimal liquid consumption. The device is equipped with a high performance, light and
compact compressor. In addition, it is equipped with a pressure gauge and a digital pressure regulator.
If you spray on a surface at a distance of less than 1.5 metres or if you insist on spraying the same surface, the
liquid may accumulate on the treated surface and require manual drying. If you wish to increase the size of the
micro-droplets diffused by the gun you must reduce the pressure of the compressor. Conversely, if you want to
produce ner micro-droplets, simply increase the pressure of the compressor.
The surfaces on which the liquid is applied must be clean and dry to guarantee the effectiveness of the disinfectant.
The aquama
®
compact Atomizer was developed to meet safety and durability requirements. We invite you to
read the manual carefully and watch the videos available on our website or on your aquama
®
application. These
instructions will allow you to better understand the use of your machine and to keep it as long as possible.
We hope that our aquama
®
solutions will bring you complete satisfaction.

USER MANUAL – aquama
® compact AtomizerUSER MANUAL – aquama ® compact Atomizer 76
PART 2
SAFETY INSTRUCTIONS
2.1 CAUTION
2.3 ERROR CODES
2.2 REMARKS
• This device has been designed for the use
described. Any other use will exclude aquama®
from any liability and warranty.
• Do not get the compact Atomizer wet. To clean,
use a damp cloth and dry immediately.
• Do not use this equipment in an environment
containing explosive or ammable gases.
• Keep children and other persons not connected
with the use of the compact Atomizer at least
10 m away.
• Always use the accessories supplied by an
authorized dealer.
• If you detect air leakage or any other type of
malfunction, stop using the device, disconnect the
gun and contact your dealer.
• Do not attempt to disassemble or repair the unit.
Any tampering will invalidate the warranty.
• Only a qualied adult should handle the equipment.
The aquama® compact Atomizer may display various error messages. If any of these codes appear, proceed as
described in the table below:
The PURE compressor does not have a separate tank to store a reserve of pressurized air. It is therefore free of
rust, dirt and moisture. The aquama® compact Atomizer equipment does not require regular purging like most
compressors.

The battery has a thermal protection. It is possible that in case of intensive use the battery will heat up and cut off
the power supply. This safety feature temporarily blocks its use during charging and discharging. In this case, let
the battery cool down before using it again.

Before long periods of inactivity, it is recommended to store the battery with a half charge, do not store the battery
without charge.

The battery, when fully charged, allows approximately 12-18 minutes of operation of the PURE equipment.
If you have any questions, contact aquama®by telephone on [phone] (head ofce in Switzerland)
or the representative for your country, list available on www.aquama.com
Error code Description Check / Solution
E01 Low battery The electrical current supplied to the equipment is too low. The battery needs
to be recharged or replaced. If the problem persists, contact your dealer.
E02 Overcharge
Turn off the equipment and unplug it from the wall outlet. Wait one minute,
reconnect it to the mains and then switch it on. If the problem persists, contact
your dealer.
E04 Engine
fault
Turn off the equipment and unplug it from the wall outlet. Wait one minute,
reconnect it to the mains and then switch it on. If the problem persists, contact
your dealer.
E08 Controller
fault
Turn off the equipment and unplug it from the wall outlet. Wait one minute,
reconnect it to the mains and then switch it on. If the problem persists, contact
your dealer.
E16 Controller
overheat
The controller has overheated. Let it cool down. If the problem persists,
contact your dealer.
E32 Engine
overheating
The engine has overheated. Let it cool down. If the problem persists, contact
your dealer.

USER MANUAL – aquama
® compact AtomizerUSER MANUAL – aquama ® compact Atomizer 98
1Handle for transportation
2Main switch
3Control panel
4Pressure regulation
5ON / OFF button
6Speed selector
7Wheels
8Quick coupler for hose
9Safety
:Battery slot (option)
;Nozzles
<Handle
= Trigger
> Trigger safety
?Air inlet connector
@Suction pipe
€Filter
№600 ml disinfectant solution tank
™Battery (option)
∂Battery charger
∆Compressed-air hose
∏Female quick connector
∑Male quick connector
3.2 OPERATING MODE
1. Make sure the gun’s >safety is engaged to prevent
accidental trigger =activation during assembly.
2. Connect the male tting ∑of the compressed
air hose ∆to the quick connector 8of the
compressor.
3. Connect the female tting ∏of the compressed air
hose to the quick air inlet connector ?of the gun.
4. Fill the disinfectant solution tank №and screw it
onto the gun so that the suction pipe @and lter
€are positioned inside and at the bottom of the
tank.
5. Connect the power outlet of the compressor to the
mains. The control panel will light up. If your device
is battery operated, insert a charged battery into
the slot : on the back of the unit and then turn on
your unit using the switch 2 on the top left of the
control panel.
6. Turn on the PURE compressor with the 5on/off
button on the control panel. When the equipment is
on, you can change the working pressure with the
4pressure adjustment buttons.
The pressure gauge continuously indicates the air
supply pressure to the gun. It is recommended to
work in the pressure range of 0.2 to 0.8 MPa.
7. The speed selector 6allows you to choose the
motor speed between slow (50%) or fast (99%). The
slow speed, reduces the airow and sound volume
of the aquama®compact Atomizer. High speed
maximizes airow and increases sound volume. To
temporarily stop the aquama®compact Atomizer,
press the on/off button 5. When you are nished
using the equipment, unplug the power plug from
the mains or remove the battery.
8. While working, hold the gun rmly by the handle <
and remove the safety >.
9. Squeeze the trigger =to atomize the disinfectant
liquid by pointing the gun nozzles at a distance of
1.0 to 1.5 metres towards the surfaces to be treated.
10. If you need to rell the liquid tank, be sure to engage
the safety >to prevent accidental triggering.
3.3 PRESSURE EQUIVALENCE TABLE
PART 3
ASSEMBLY AND OPERATING ADVICE
3.1 AQUAMA® COMPACT ATOMIZER OVERVIEW
Setting
Pressure
0.80
0.50
0 15599
Current
Pressure MPa
MPa
Running
Speed %
Running
Time Hour
PURE AIR COMPRESSOR
ATOMIZING SPRAY GUN ACCESSORIES
™
∂
1
4
5
6
3
?
<
∆
∑
∏
7
8
9
:
№
@
€
;
=
>
2
MPa Bar PSI
0.1 1 14.5
0.2 2 29
0.3 3 43.5
0.4 4 58
0.5 5 72.5
0.6 6 87
0.7 7 101.5
0.8 8 116
0.9 9 130.5

USER MANUAL – aquama
® compact Atomizer10
PART 4
CLEANING, DISMANTLING AND
MAINTENANCE
The disinfectant liquid may leave residues in the gun after use. It is imperative to rinse the gun after each use to
avoid premature wear.
To clean the inside of the gun, ll the tank with clean water and operate the gun for 5-10 seconds. Then drain the
excess water from the tank before storing the gun.

For disassembly, the hose must be depressurized. Turn off the PURE compressor and squeeze the trigger on the
gun = until the air is completely exhausted before disconnecting the hose.
4.1 CHECK LIST
1. After each use, check that the system is free of air.
2. Check that the gun screws are always still tight.
3. Make sure there is always enough disinfectant liquid in the tank
4. Check that the screws on the cart are tight.

www.aquama.com
A present to the Future™
