aquanique QFUVP User manual

Before returning to your retailer, call our customer service department at
1-888-314-2588, 8 a.m.-6 p.m., EST, Monday-Friday.
Floating Fountain with UV Filter and
Pump Item # QFUVP

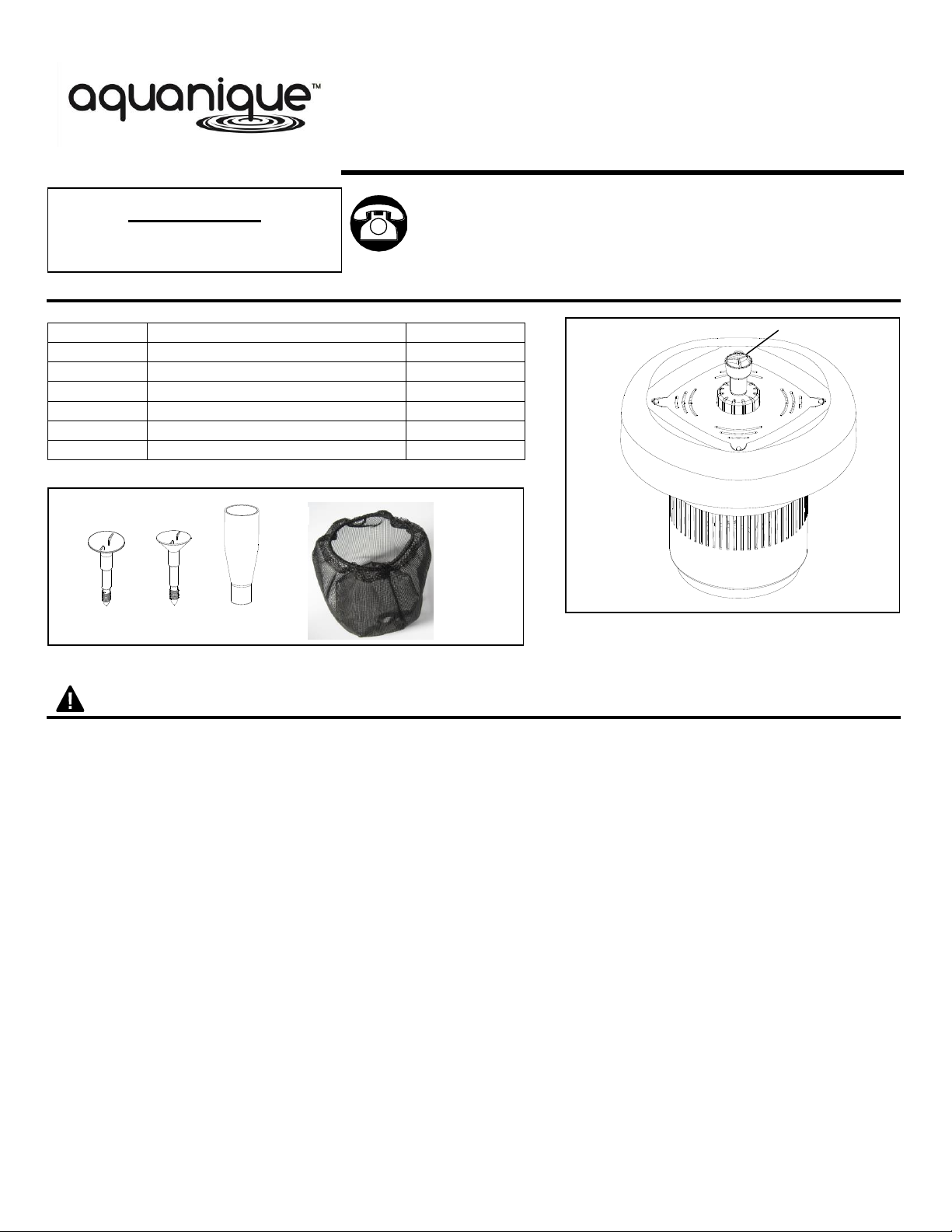

PACKAGE CONTENTS
WARNINGS AND CAUTIONS
WARNING
Risk of electrical shock. This unit is supplied with a grounding conductor and grounding–type
attachment plug. To reduce the risk of electric shock, be certain that it is connected only to a properly
grounded, grounding-type receptacle.
Do not exceed 120 volts.
Always disconnect unit from the power source before beginning any maintenance or work on the unit.
Inspect cord for damage before installation and/or maintenance. Replace the entire pump assembly if
damage is found.
Do not remove the grounding pin from the power cord plug.
Risk of electrical shock: This unit has not been investigated for use in swimming pools or marine areas.
CAUTION
This unit has been evaluated for use with water only.
Use a proper power source as indicated on the unit label.
Keep the cord away from high temperatures or other heat sources.
Do not pump heated liquids.
Do not let the unit run dry. Unit must be completely submerged up to the flotation ring for proper
operation and cooling.
Operate in fresh water only. Avoid heavily chlorinated water and water with high pH levels.
Do not lift the unit by its power cord.
Part
Description
Quantity
A
Floating pump and filter
1
B
Waterspray nozzle
1
C
Waterbell nozzle insert
1
D
Trumpet nozzle insert
1
E
Lower fountain head nozzle
1
F
Pump barrier bag
1
REMINDER
CALL 1-888-314-2588
BEFORE RETURNING TO STORE.
Questions, problems, missing parts? Before returning
to your retailer, call our customer service department at
1-888-314-2588, 8 a.m.-6 p.m., EST, Monday-Friday
A
B
C
D
E
F

Before returning to your retailer, call our customer service department at
1-888-314-2588, 8 a.m.-6 p.m., EST, Monday-Friday.
CAUTION
UV light may cause irritation to the skin and/or eyes. Avoid exposure.
DANGER –ULTRAVIOLET RADIATION –disconnect power before replacing lamp.
Prolonged or repeated exposure to UV light may have adverse physical effects including, severe
damage to your skin and eyes. Seek immediate medical attention for overexposure to UV radiation.
This light assembly has not been investigated for use in swimming pools or hot tubs.
PREPARATION
Before beginning assembly or operation of product, make sure all parts are present. Compare parts with
package contents list and diagram above. If any part is missing or damaged, do not attempt to assemble,
install or operate the product. Contact customer service for replacement parts.
Estimated Assembly Time: 5 minutes
Tools Required for Assembly: Philipshead screwdriver, string, rock.
OPERATION INSTRUCTIONS
1. Choose a fountain head for the desired water effect, and assemble
your choice as shown in Fig. 1.
Fig. 1
1. Run the cord through the hole in the bottom of pumpshield™, then
secure the pump barrier bag to the floating pump and filter with UV
assembly. Hang the string to the hook on brace. Fig. 2
Fig. 2
C
D
B
E
E

Before returning to your retailer, call our customer service department at
1-888-314-2588, 8 a.m.-6 p.m., EST, Monday-Friday.
2. If desired, anchor the fountain in the pond using a heavy object (such
as a rock) and some string. Cut a length of string slightly longer than
the depth of the pond. Tie one end of the string to the anchor and the
other end to the ring at the bottom of the float. Fig. 3
Fig. 3
3. Place the unit into the water and connect to a proper power source.
Fig. 4
Fig. 4
DISASSEMBLY PROCEDURE
In order to insure optimal operation of the Floating Pump and Filter with UV, the following procedures
should be performed periodically. When the performance of the water flow through the fountain head
is reduced –it is an indication that cleaning of the unit is needed.
1. Unplug the power cord, and then carefully remove the Floating Pump
and Filter assembly from the pond. Fig. 5
Fig. 5
2. Remove the string from the hook then remove the pumpshield™ from
floating pump and filter with UV assembly. Clean the pumpshield™
then install on to the floating pump and filter with UV assembly. Test
the unit and inspect the performance. Fig. 6
NOTE: If the unit performance is still unsatisfactory, unplug the unit
and proceed to step 3.
Fig. 6
GFCI

Before returning to your retailer, call our customer service department at
1-888-314-2588, 8 a.m.-6 p.m., EST, Monday-Friday.
3. Turn the Floating Pump and Filter assembly upside down. Remove the
locking screw. Fig. 7
Fig. 7
4. Remove the fountain head and the top locking nut. Then remove the
top cover. Fig. 8
Fig. 8
5. Twist the top section counterclockwise. Then pull the top section from
the lower. Unscrew the wire connector that connects the top section to
the rest of the unit. Fig. 9
Fig. 9

Before returning to your retailer, call our customer service department at
1-888-314-2588, 8 a.m.-6 p.m., EST, Monday-Friday.
6. Lift the pump and UV light assembly up from the fountain. NOTE: In
order to extract the pump and UV light assembly from the flotation
basket, the main power cord must be fed up through the bottom of the
flotation basket. Fig. 10
Fig. 10
7. Remove the pump, unscrew the wire connector that connects the UV
light assembly to pump. Fig. 11
Fig. 11
8. Disassemble the pump, clean parts of the pump in warm, soapy water
then reassemble the pump. Fig. 12
Fig. 12
9. Remove the locking nut by turning it counterclockwise then pulling it
away from the light housing. Then remove UV bulb assembly by
gently pulling on lamp holder. Be careful to pull assembly straight out
so as not to damage the UV assembly. Fig. 13
NOTE:After removing the UV assembly, flush the inside of the light
housing with water to clear out any debris.
Fig. 13

Before returning to your retailer, call our customer service department at
1-888-314-2588, 8 a.m.-6 p.m., EST, Monday-Friday.

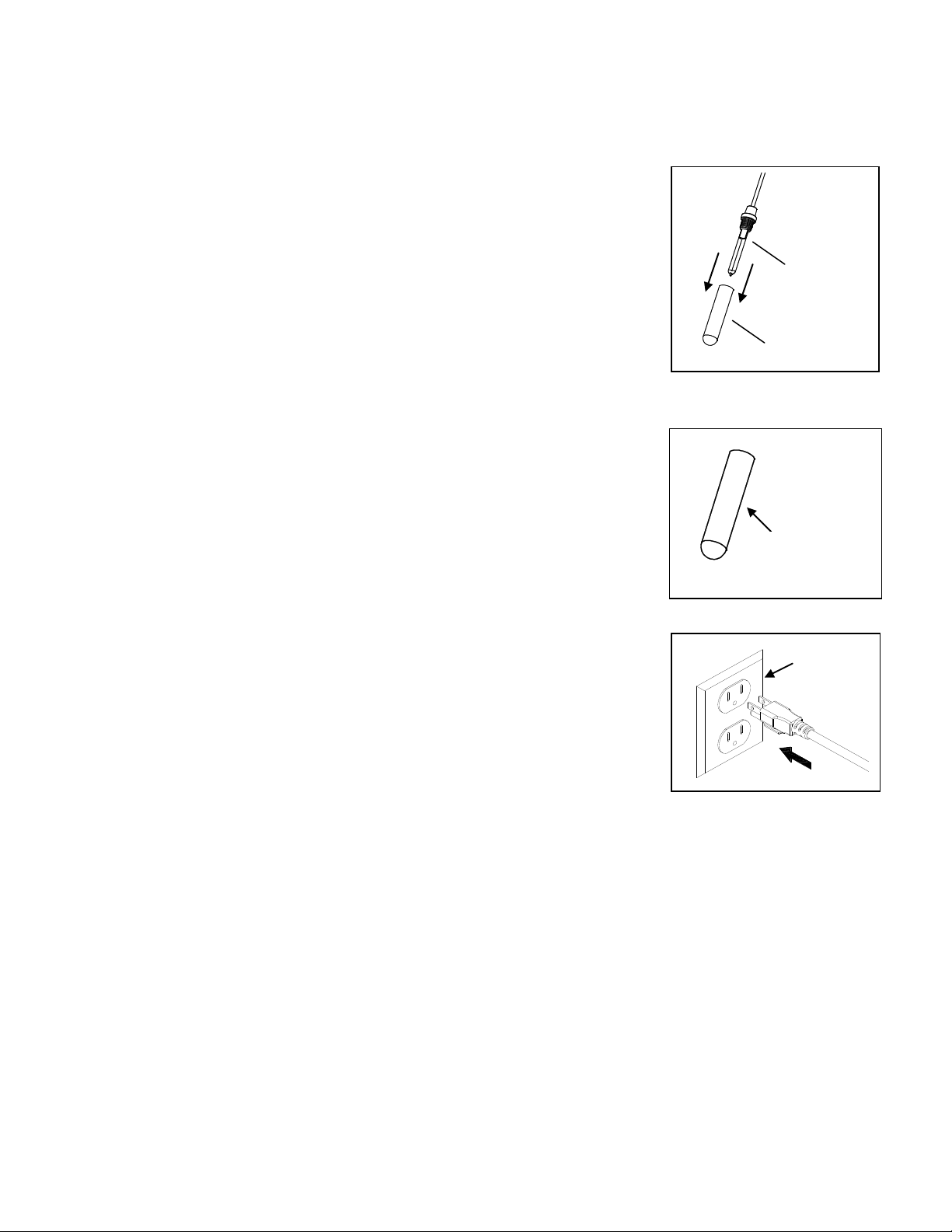

10. Note: In the unlikely event the UV bulb needs replacing, remove glass
tube by pulling straight apart by holding the base of the lamp. Gently
pull bulb straight apart from the bulb socket and insert the replacement
bulb in the reverse manner careful not to bend the wires at the stem of
the bulb. Fig. 14
Fig. 14
11. Clean the exterior of the UV glass tube with warm soapy water.
Fig. 15
Fig. 15
12. Reassemble all of the components (Notes: Don’t forget connect the
low voltage power cables), place the unit into the water and connect to
a proper power source. Fig. 16
Fig. 16
UV Bulb
Glass tube
Clean with soap
GFCI

Before returning to your retailer, call our customer service department at
1-888-314-2588, 8 a.m.-6 p.m., EST, Monday-Friday.
CARE AND MAINTENANCE
General
●A visible drop in waterflow or increased algae in the pond is your indication that filter
pad, pump, and/or UV clarifier portion of the unit require cleaning.
●Before attempting to disassemble the unit or clean the pump, UV clarifier or any
portion of the unit, always disconnect the unit from the power source.
●Disassemble the unit in accordance with the Disassembly Procedure section of this
instruction sheet.
Cleaning the Pump
●Insure the pump is disconnected from all other components comprising the unit.
●Inspect the pump by removing the front screen and impeller assembly and clean parts
of the pump and clean in warm, soapy water.
●Reassemble the pump and reposition and connect the low voltage power cables
Fig. 17
To maximize the performance of the UV clarifier portion of the unit, periodically disassemble the unit to
clean dirt and debris from the exterior of the glass tube and reflector located in the lamp housing.
IMPORTANT NOTE:
Be sure that the entire unit is completely dry and gaskets are properly seated when reassembling the UV
clarifier.
Failure to do so will result in water leakage, which can cause damage to the light unit.
1. Disconnect the UV light from the outlet. Be sure to allow sufficient time for the light to cool before
disassembling the light.
2. Unscrew the locking ring, and pull out the light unit.
3. Carefully pull out the glass tube holder by twisting and then pull out.
4. Use warm, soapy water to clean the glass tube. Be sure to use biodegrable soap.
5. Reassemble the UV clarifier, and be sure that all gaskets and o-rings are seated properly.
TROUBLESHOOTING
If the LED lights fail to operate:
Check to make sure the power cord is plugged in and the light is getting power and the unit is
getting power.
If the UV Clarifier fails to operate:
Check bulb to make sure that it has not burned out. Replace the bulb as necessary or after
every season. Bulbs are available by calling the customer service department.
If the pump fails to operate:
Check to make sure the power cord is plugged in, the pump is getting power and the pump is
fully submerged.
Remove the inlet screen and/or pump cover, and impeller housing to expose the impeller. Turn
the impeller to ensure that it is not broken or jammed.
If the performance of the pump is not satisfactory or the pump does not flow evenly:
Check to make sure the pump is completely submerged in water.
Check to make sure the impeller, filter pad and the housing are clean clear of debris.
Check the pump outlet and any tubing, fountains, spitters etc. for kinks or obstructions. Adjust
flow control.

Before returning to your retailer, call our customer service department at
1-888-314-2588, 8 a.m.-6 p.m., EST, Monday-Friday.
REPLACEMENT PARTS LIST
For replacement parts, call our customer service department at 1-888-314-2588, 8 a.m.-6 p.m., EST,
Monday-Friday.
Part
Description
B
Waterspray nozzle
C
Waterbell nozzle insert
D
Trumpet nozzle insert
E
Lower fountain head nozzle
F
pumpshield™
G
Flow control knob
H
Front cover
I
Locking ring
J
Impeller cover
K
O-ring
L
Shaft support
M
Washer
N
Shaft
O
Impeller assembly
P
Float (upper)
Q
Float (lower)
R
Screw
S
Brace
T
Plug seal
U
Lamp housing
V
Locking nut
W
Lamp holder
X
Small locking nut
Y
Inlet
Z
Foil reflector
A1
Glass tube
B1
UV bulb
L
G
I
J
K
L
M
H
O
L
N
M
C
D
E
F
P
S
Q
T
Y
R
V
U
W
V
X
Z
B

Before returning to your retailer, call our customer service department at
1-888-314-2588, 8 a.m.-6 p.m., EST, Monday-Friday.
LIMITED WARRANTY
All pumps and electrical products are warranted to the user against defective material and workmanship,
under normal working conditions. This warranty period begins on the date of purchase by the original
purchaser.
All aquanique™ electrical products are warranted to the user against defective material and workmanship,
under normal working conditions for 1 year from the date of purchase. All aquanique™ liners are
warranted to the user against defective workmanship, under normal working conditions for 20 years from
the date of purchase. All other aquanique™ product is warranted to the user against defective material
and workmanship, under normal working conditions for 90 days.
Application
Warranty covers only properly installed and maintained units. Pump warranty is limited to applications
pumping fresh water in a pond or fountain only. Other liquid applications or extreme temperature uses
must be approved in writing by the manufacturer. Receipt and product date code are required for warranty
claims.
Warranty Claim
Warranty claims must be made by calling customer service (at 1-888-314-2588). If the item is
determined to be defective, you will be given authorization to return the defective part(s), freight pre-paid,
along with proof of purchase.
Disposition
The manufacturer will make a good faith effort for prompt disposition regarding all warranty claims.
Returned product will be inspected to determine cause of failure before warranty is applied. Warranty does
not cover any costs associated with the shipping, handling, installation or removal of products or parts
subject to this warranty. For products damaged in transit, a claim should be filed with the carrier.
Disclaimer
Any oral statements made about the product by the seller, the manufacturer, the representatives, or any
other parties do not constitute warranties, should not be relied upon by the user, and are not part of the
contract for sale. The seller’s and manufacturer’s only obligation, and buyer’s only remedy shall be for the
manufacturer to either replace and/or repair at the manufacturer’s sole discretion, the product as described
above. Neither seller nor the manufacturer shall be liable for injury, loss or damages for lost profits, lost
sales, injury to person or property, or any other incidental or consequential loss arising from any cause
whatsoever, no matter whether based upon warranty, contract, negligence or other misuse, and the buyer
and user agree that no other remedy shall be available to them. Before using, the buyer and user shall
determine the suitability of the product for the intended use, and assume all risk and liability whatsoever in
connection therewith. The warranty and remedy described in this limited warranty is an exclusive warranty
and remedy in lieu of any other warranty or remedy expressed or implied. All other warranties and
remedies are hereby expressly excluded, including but not limited to any implied warranty of
merchantability of fitness for any particular purpose. This warranty gives the buyer and user specific legal
rights, and buyer and user may also have other rights which vary from state to state. Some states do not
allow exclusions or limitations of incidental or consequential damages, so the above limitations or
exclusions may not apply to you.
REMINDER
CALL 1-888-314-2588
BEFORE RETURNING TO STORE.
