aquanique QDLS12B User manual

Waterfall Cascade with White LED
Lights
ITEM # QDLS12B

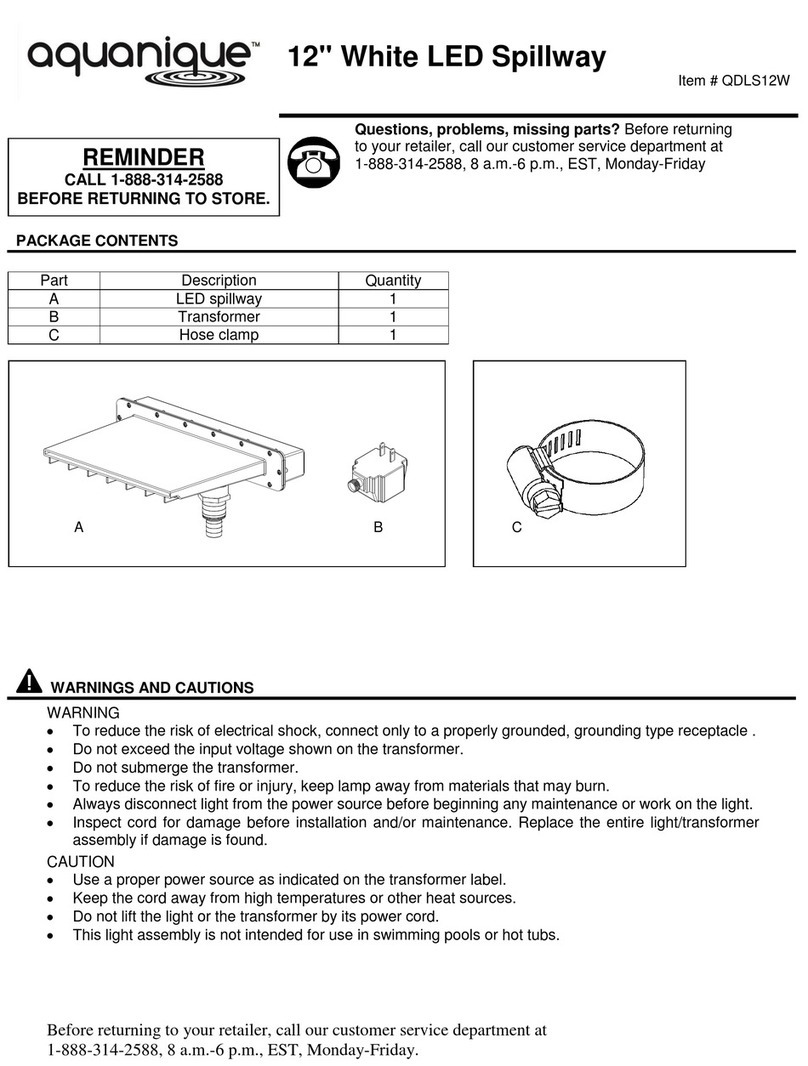

PACKAGE CONTENTS
WARNINGS AND CAUTIONS
WARNING
•To reduce the risk of electrical shock, connect only to a properly grounded, grounding type receptacle .
•Do not exceed the input voltage shown on the transformer.
•Do not submerge the transformer.
•To reduce the risk of fire or injury, keep lamp away from materials that may burn.
•Always disconnect light from the power source before beginning any maintenance or work on the light.
•Inspect cord for damage before installation and/or maintenance. Replace the entire light/transformer
assembly if damage is found.
CAUTION
•Use a proper power source as indicated on the transformer label.
•Keep the cord away from high temperatures or other heat sources.
•Do not lift the light or the transformer by its power cord.
•This light assembly is not intended for use in swimming pools or hot tubs.
Part
Description
Quantity
A
Spillway
1
B
Transformer
1
C
Hose clamp
1
A
C
B
REMINDER
CALL 1-888-314-2588
BEFORE RETURNING TO STORE.
Questions, problems, missing parts? Before returning
to your retailer, call our customer service department at
1-888-314-2588, 8 a.m.-6 p.m., EST, Monday-Friday. Or
visit our website www.aquanique.com.

PREPARATION
Before beginning assembly or operation of product, make sure all parts are present. Compare parts with
package contents list and diagram above. If any part is missing or damaged, do not attempt to assemble,
install or operate the product. Contact customer service for replacement parts.
•Estimated Assembly Time: 1.5 hours
•Tools required for assembly: hammer, chisel, flathead screwdriver.
•The instructions that follow will show a block wall and pond installation. Your lighted waterfall can be
used in a variety of applications.
OPERATION INSTRUCTIONS
1. Select a level location to build the Lit Waterfall kit. Begin building
the kit by placing the tub on the ground and building the stones
around it. It is very important that the stones are level, so be sure
to check that the structure is level from front to back as well as left
to right. Fig. 1
Fig. 1
2. The two stones in the picture need to be cut in order to fit the half
round tub. The pump power cord and tubing will fit through this
hole. Fig. 2
Fig. 2
3. HINT: To assist with keeping the wall plumb, place a layer of
roofing shingles along the back wall on this layer. This will keep the
wall from leaning back due to the lip of the tub. Fig. 3
Fig. 3
4. For maximum water flow, cut the adapter as shown using a
hacksaw. Fig. 4
Fig. 4
Cut ring

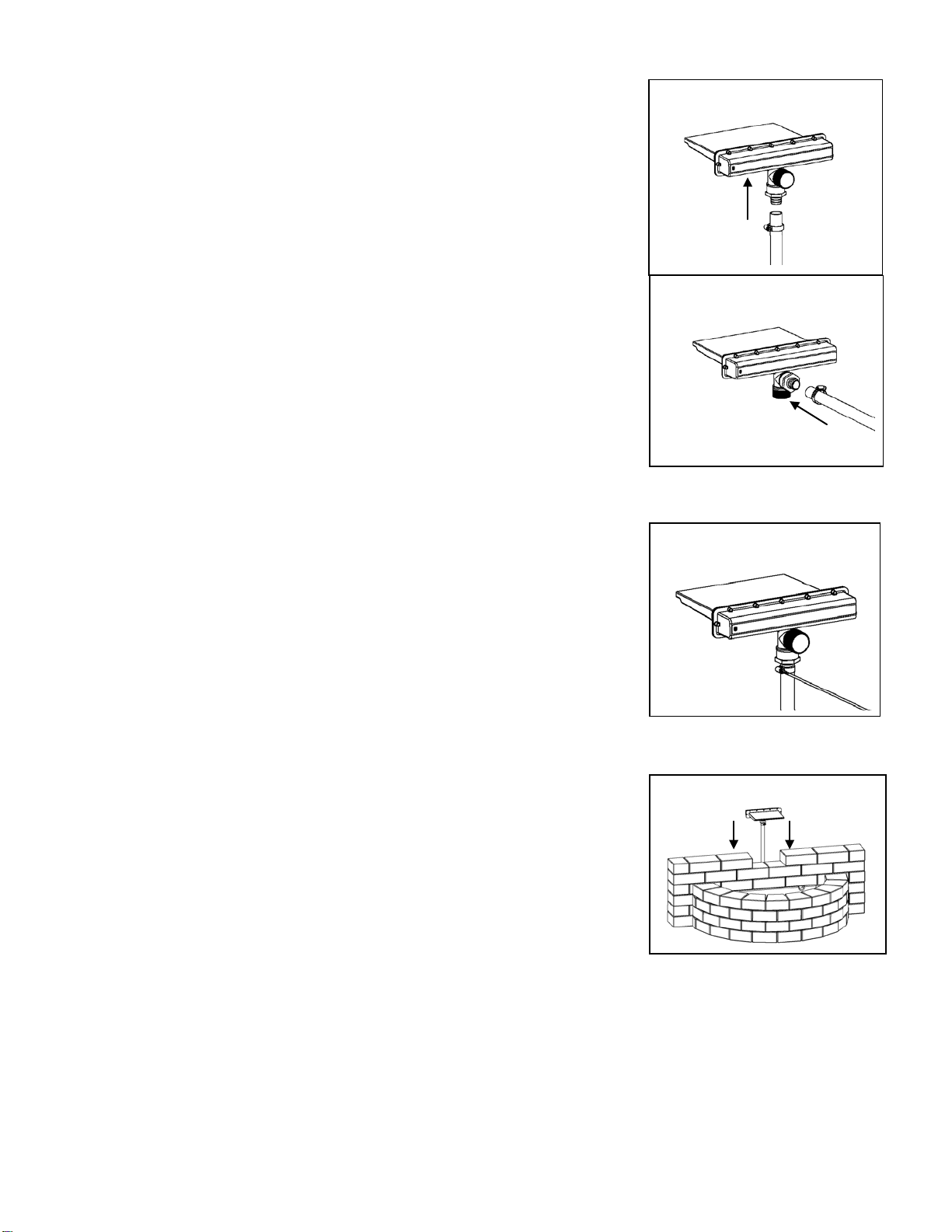

5. Connect the tubing to the inlet of the spillway using the adapter.
Slip the hose clamp on to the tubing but do not tighten it. Fig. 5
NOTE: The spillway has two ports to install the inlet. For installing
with this kit, using connection (a) is preferred. For other
installs use (b).
Fig. 5
6. Tighten the hose clamp using a flathead screwdriver. Fig. 6
Fig. 6
7. Place the spillway onto the wall. Then continue building the rest of
the wall. Fig. 7
NOTE: You will need to cut the stone that goes on the top of the
spillway before building the next layer of stones.
Fig. 7
Connection method (a)
Connection method (b)

8. This unit also can be used in new and existing ponds and is
an ideal way to add color to a waterfall. For existing ponds
with a waterfall simply re-plumb the tube/pipe that discharges
into the existing waterfall and place the lit spillway at the top
of the waterfall insuring that the unit is level. Carefully cover
the housing with natural material for a professional look. For
new ponds and waterfalls, this unit will take the place of a
weir allowing for a much simpler and more natural looking
waterfall installation. Fig. 8
Fig. 8
9. Cut the stone that goes on the top of the spillway before building
the next layer of stones. Or use a retaining wall block cap in place
of the cut and add an inch of roofing shingles under the spillway.
Fig. 9
NOTE: The thickness of the weir is approximately 1”. You can cut
several pieces of stone to make this fit.
Fig. 9
10. Route the power cord of the pump through the hole in the tub and
then route the tubing through the same hole. Fig. 10
Fig. 10

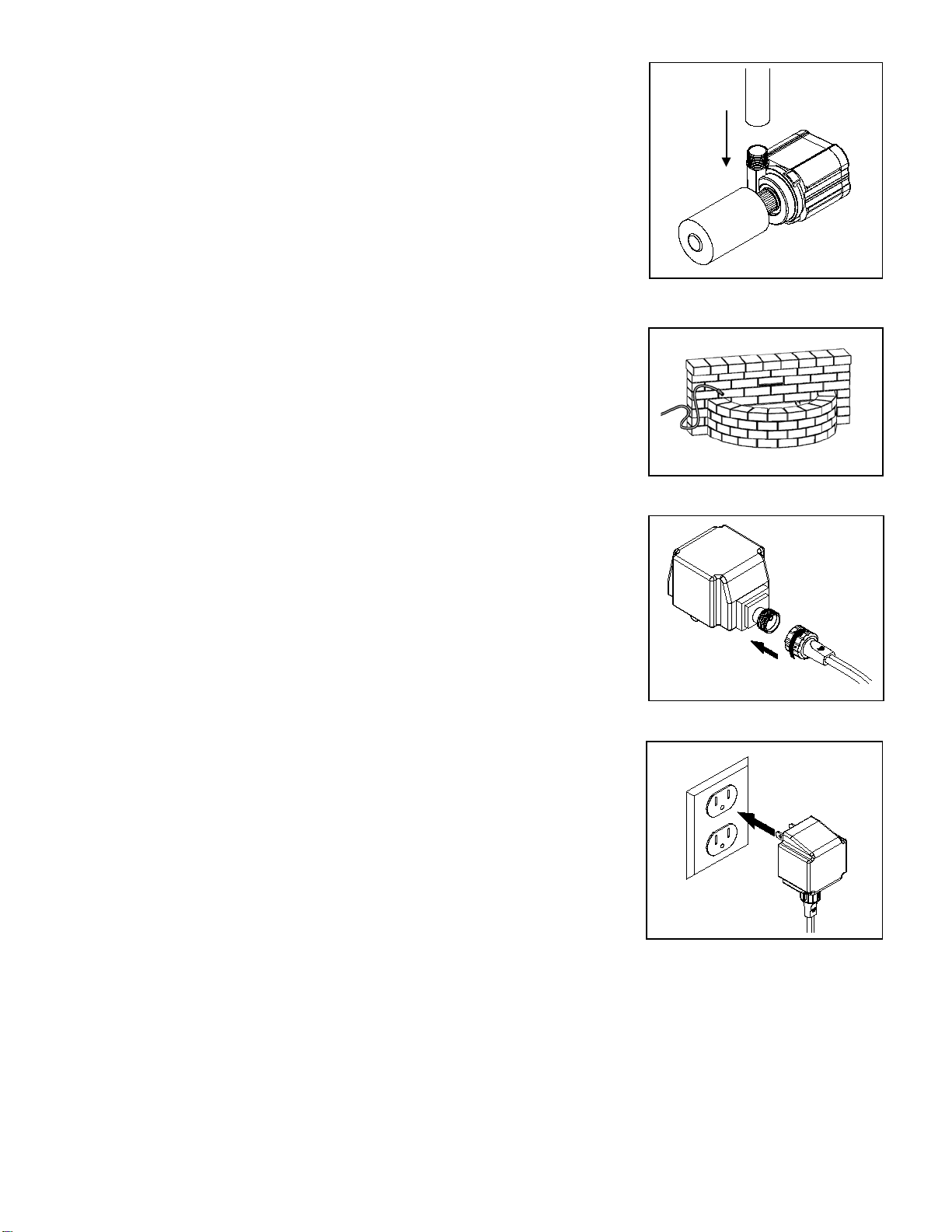

11. Remove the front screen from the pump and connect the prefilter to
the front of the pump. Fig. 11
Fig. 11
Pump
Weir
Tubing

12. Connect the tubing to the pump and place it in the tub. Fig. 12
Fig. 12
13. Fill the tub with water. Fig. 13
Fig. 13
14. Connect the spillway to the transformer by pushing the plug into the
transformer socket until it is firmly seated. Hand tighten the nut from
the plug to the socket. Fig. 14
Fig. 14
15. Plug the transformer into a properly grounded electrical outlet.
Fig. 15
Fig. 15
Transformer
Plug from
Lighted
GFCI

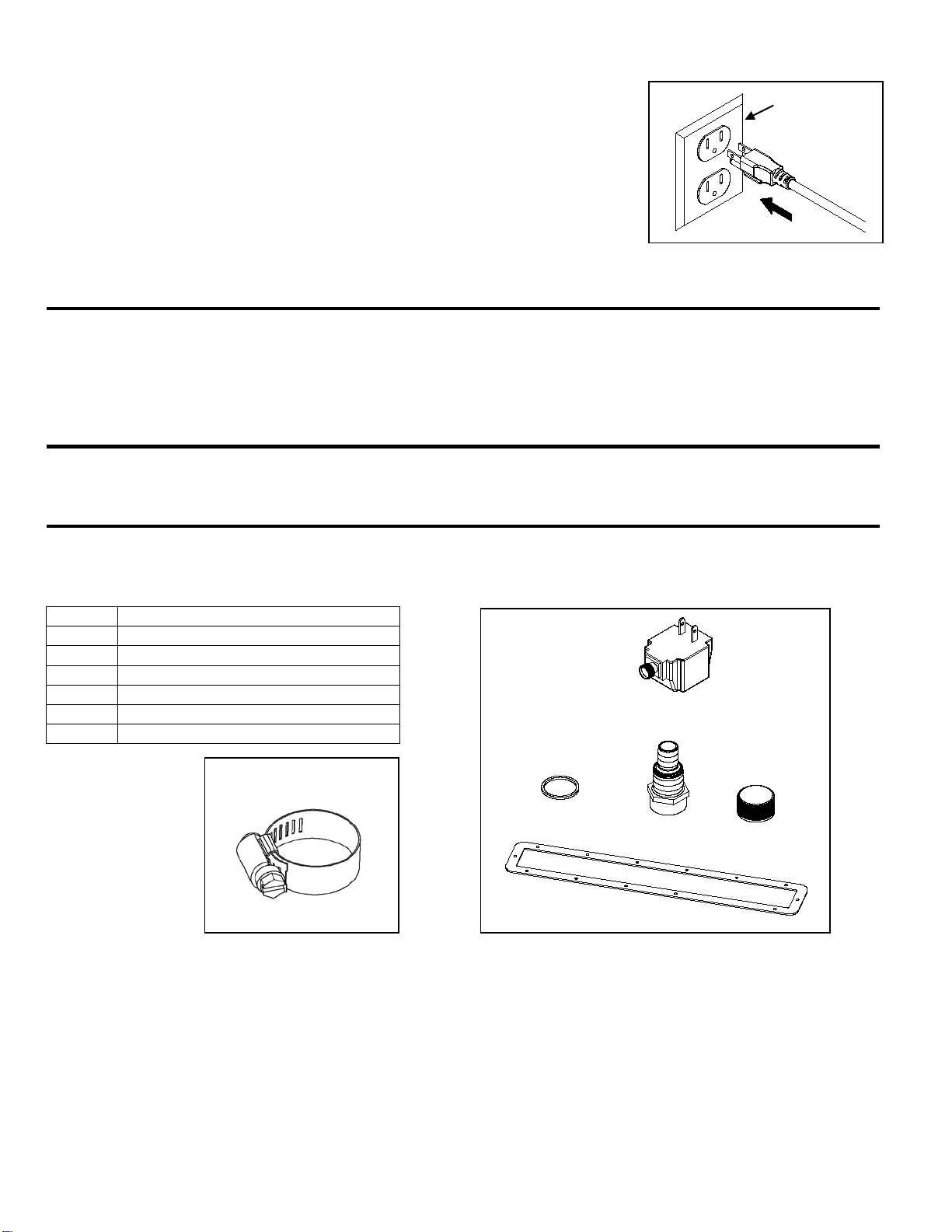

16. Connect the pump to a proper power source. Fig. 16
Fig. 16
CARE AND MAINTENANCE – SPILLWAY
•Clean the spillway regularly depending upon the environment in which it is operated. Clean the
spillway when it is visibly soiled or when a drop in performance is detected.
•Before cleaning, always disconnect the transformer from the power source.
•Use a dryer brush to clean the inside of the spillway. We recommend using a 10” long brush,
approximately 1” thick or any brush that will fit inside the front of the spillway opening.
TROUBLESHOOTING
If the light fails to illuminate:
•Check that it is getting power by testing another appliance in the same power outlet.
REPLACEMENT PARTS LIST
For replacement parts, call our customer service department at 1-888-314-2588, 8 a.m.-6 p.m., EST, Monday-
Friday.
Printed in China
Part
Description
B
Transformer
C
Hose clamp
D
Waterfall gasket
E
Adapter gasket
F
Adapter
G
Cap
F
C
D
E
B
GFCI
G

LIMITED WARRANTY
All pumps and electrical products are warranted to the user against defective material and workmanship,
under normal working conditions. This warranty period begins on the date of purchase by the original
purchaser.
All aquanique™ electrical products are warranted to the user against defective material and workmanship,
under normal working conditions for 1 year from the date of purchase. All aquanique™ liners are
warranted to the user against defective workmanship, under normal working conditions for 20 years from
the date of purchase. All other aquanique™ product is warranted to the user against defective material
and workmanship, under normal working conditions for 90 days.
Application
Warranty covers only properly installed and maintained units. Pump warranty is limited to applications
pumping fresh water in a pond or fountain only. Other liquid applications or extreme temperature uses
must be approved in writing by the manufacturer. Receipt and product date code are required for warranty
claims.
Warranty Claim
Warranty claims must be made by calling customer service (at 1-888-314-2588). If the item is
determined to be defective, you will be given authorization to return the defective part(s), freight pre-paid,
along with proof of purchase.
Disposition
The manufacturer will make a good faith effort for prompt disposition regarding all warranty claims.
Returned product will be inspected to determine cause of failure before warranty is applied. Warranty does
not cover any costs associated with the shipping, handling, installation or removal of products or parts
subject to this warranty. For products damaged in transit, a claim should be filed with the carrier.
Disclaimer
Any oral statements made about the product by the seller, the manufacturer, the representatives, or any
other parties do not constitute warranties, should not be relied upon by the user, and are not part of the
contract for sale. The seller’s and manufacturer’s only obligation, and buyer’s only remedy shall be for the
manufacturer to either replace and/or repair at the manufacturer’s sole discretion, the product as described
above. Neither seller nor the manufacturer shall be liable for injury, loss or damages for lost profits, lost
sales, injury to person or property, or any other incidental or consequential loss arising from any cause
whatsoever, no matter whether based upon warranty, contract, negligence or other misuse, and the buyer
and user agree that no other remedy shall be available to them. Before using, the buyer and user shall
determine the suitability of the product for the intended use, and assume all risk and liability whatsoever in
connection therewith. The warranty and remedy described in this limited warranty is an exclusive warranty
and remedy in lieu of any other warranty or remedy expressed or implied. All other warranties and
remedies are hereby expressly excluded, including but not limited to any implied warranty of
merchantability of fitness for any particular purpose. This warranty gives the buyer and user specific legal
rights, and buyer and user may also have other rights which vary from state to state. Some states do not
allow exclusions or limitations of incidental or consequential damages, so the above limitations or
exclusions may not apply to you.
REMINDER
CALL 1-888-314-2588
BEFORE RETURNING TO STORE.
