AQUARK MR.SILENCE MS70 User manual

MR. SILENCE
INVERTER POOL HEAT PUMP
USER MANUAL

Table of contents
A. Foreword 1
B. Safety Precautions 1
1. Warning 2
2. Attention 2
3. Safety 3
C. About your heat pump 4
1. Transportation 4
2. Accessories 4
3. Features 5
4. Operating range 5
5. Introduction of different modes 5
6. Technical parameter 6
7. Dimension 7
D. Installation guidance 8
1. Installation reminder 8
2. Wiring 10
3. Electric wiring diagram 10
4. References for protecting devices and cable specification 11
E. Operation guidance 12
1. Key Function 12
2. Operation Instruction 13
F. Testing 15
1. Inspect heat pump before use 15
2. Leakage detection notice and method 15
3. Trial 16
G. Maintenance 16
H. Trouble shooting for common faults 17
I. Water pump control connection 19
J. Wi-Fi operation 24

Inverter heat pump solution
1
A. Foreword
Thank you for choosing our inverter pool heat pump, which is designed for more silent and energy
saving user experience. It is an ideal way for green pool heating.
We hope you'll enjoy using our heat pumps.
Thank you!
B. Safety Precautions

Inverter heat pump solution
2
We have provided important safety messages in this manual and on your heat pump.
Please always read and obey all safety messages.
1. Warning
The WARNING sign denotes a hazard. It calls attention to a procedure, practice, or the
like, which, if not correctly performed or adhered to, could result in personal injury or injury
to a third party. These signs are rare, but are extremely important.
a. Keep the heat pump away from fire source.
b. It must be placed in well ventilated area, indoor or closed area is not allowed.
c. Repair and disposal must be carried out by trained service personnel
d. Vacuumize completely before welding. Welding can only be carried out by
professional personnel in service center.
2. Attention

Inverter heat pump solution
3
a. Please read the following instructions before installation, use and maintenance.
b. Installation must be done by professional staff only in accordance with this manual.
c. Leakage test must be performed after installation.
d. Please don’t stack substances, which will block air flow near inlet or outlet area, otherwise the
efficiency of the heat pump will be reduced or even stopped.
e. Set proper temperature in order to get comfortable water temperature to avoid overheating or
overcooling.
f. In order to optimize the heating effect, please install heat preservation insulation on pipes between
swimming pool and the heat pump, and please use a recommended cover on the swimming pool.
g. Connecting pipes of the swimming pool and the heat pump should be ≤10m.
h. Except for the methods recommended by the manufacturer, do not use any methods to accelerate
the defrosting process or clean the frosted parts.
i. If a repair is required, please contact the nearest after-sales service center. The repair process must
be strictly in accordance with manual. All repair practice by non-professional is prohibited.
j. Don’t use or stock combustible gas or liquid such as thinners, paint and fuel to avoid fire.
k. This unit can only be installed outdoors.
l. This unit can only be connected to a power source with a single complete cord.
3. Safety
a. Please keep the main power supply switch far away from the children.
b. When a power cut happens during operating, and later the power is restored, the heat pump will
start up.
c. Please switch off the main power supply in lightning and storm weather to prevent from machine
damage that caused by lightning.
d. Safety inspection must be carried before the maintenance or repair for heat pumps with R410A gas
in order to minimize the risk.
e. Installation and any repairing should be conducted in the area with good ventilation. The ignition
source is prohibited during the operation.
f. If R410A gas leaks during the installation process, all operations must be stopped immediately and
call the service center.

Inverter heat pump solution
4
C. About your heat pump
1. Transportation
a. Always keep upright
b. Do not lift the water union
(Otherwise the titanium heat exchanger may be damaged)
2. Accessories
Connection of the condensate drainage kit:

Inverter heat pump solution
5
3. Features
a. DC Twin-rotary inverter compressor of Mitsubishi
b. DC Brushless fan motor
c. EEV Technology
d. Reverse cycle defrosting with 4-way valve
e. High-efficiency twisted titanium heat exchanger
f. Sensitive and accurate temp control and water temp display
g. High pressure and low-pressure protection
h. Full protection on electrical system
4. Operating range
To provide you comfort and pleasure, please set swimming pool water temperature efficiently and
economically.
The heat pump can work between air -10°C～43°C, and its ideal operation range is between air 15°C ~
25°C.
5. Introduction of different modes
a. The heat pump has two modes: Boost and Silence.
b. They have different strengths under different conditions.
Mode
Modes
Strength
Boost mode
Heating capacity: 20% to 100% capacity
Intelligent optimization
Fast heating

Inverter heat pump solution
6
.
6. Technical parameter
Model
MS70
MS90
MS110
MS130
MS150
MS170
MS210
MS210S
MS280
MS280S
MS350S
PERFORMANCE CONDITION: Air 27°C/ Water 27°C/ Humid. 80%
Heating
capacity(k
W)
7
9
11
13
15
17.5
21
21
28
28
35.2
COP
Range
14.0~7.
2
14.0~7.
2
14.0~7.
0
14.5~7.
0
15.0~7.
0
15.6~7.
0
14.8~7.
1
14.8~7.
1
16.0~7.2
15.8~7.
1
15.5~7
PERFORMANCE CONDITION: Air 15°C/ Water 26°C/ Humid. 70%
Heating
capacity(k
W)
5
6.6
7.7
9
10.5
12.5
14.5
14.5
19
19
24.2
Silence mode
Heating capacity: 20% to 80% capacity
Sound level: 3dB (A) lower than Boost mode

Inverter heat pump solution
7
COP
Range
7.3~4.5
7.5~4.8
7.3~4.7
7.5~5.0
7.7~4.9
7.7~5.0
7.1~5.0
7.1~5.0
8.0~5.0
8.0~5.0
7.5~5
TECHNICAL SPECIFICATION
Advised
pool
volume
(m3) *
15~30
20~45
30~55
35~65
40~70
40~80
50~95
50~95
60~120
60~120
85~160
Operating
air
temperatur
e (°C)
-10°C~43°C
Power
supply
230V 1Ph
400V
3Ph
230V
1Ph
400V 3Ph
Rated
input
power
(kW)
0.14~1.
12
0.19~1.
38
0.22~1.
64
0.26~1.
8
0.28~2.
15
0.33~2.
50
0.38~2.
90
0.38~2.
90
0.49~3.8
0
0.49~3.
80
0.65~4.
84
Rated
input
current
(A)
0.61~4.
83
0.83~5.
98
0.96~7.
13
1.13~7.
83
1.22~9.
32
1.44~10
.9
1.66~12
.7
0.55~4.
20
2.15~16.
53
0.71~5.
51
0.95~7.
01
Sound
level at
10m dB(A)
16.5~26
.0
16.8~26
.1
16.6~27
.9
20.1~28
.7
19.3~32
21.1~31
.8
18.9~32
.2
18.9~32
.2
21.5~32.
9
21.5~32
.9
20.6~32
.6
Advised
water flux
(m³/h)
2~4
2~4
3~5
4~6
5~7
6~8
8~10
8~10
10~12
10~12
12~18
Water
connectio
n (mm)
48.3
Remarks:
This heat pump is able to perform normal within air temp -10°C～+43°C, efficiency will not be
guaranteed out of this range. Please take into consideration that the pool heat pump performance and
parameters are different under various conditions.
Related parameters are subject to adjustment periodically for technical improvement without further
notice. For details please refer to nameplate.

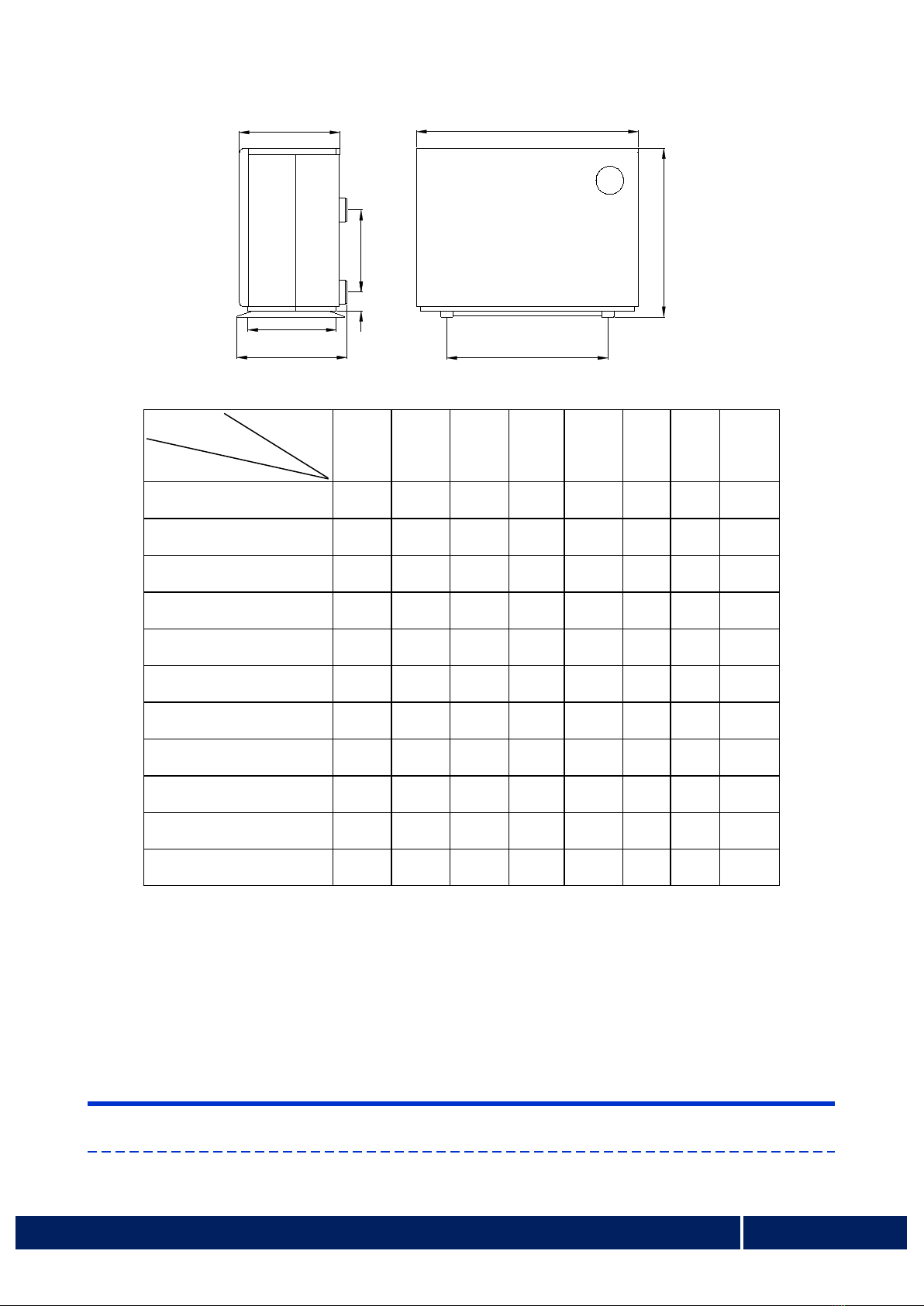

7. Dimension

Inverter heat pump solution
8
E
D
C
FG
A
H
B
※Above data is subject to modification without notice.
Note: The picture above is the specification diagram of the pool heat pump, for technician’s installation
and layout reference only. The product is subject to adjustment periodically for improvement without
further notice.
D. Installation guidance
1. Installation reminder
Only a professional staff can install the heat pump. The users are not qualified to install by themselves,
otherwise the heat pump might be damaged and risky for users’ safety.
A
B
C
D
E
F
G
H
MS70
410
645
404
430
890
250
75
657
MS90
410
645
404
430
890
250
75
657
MS110
410
645
404
430
890
290
75
657
MS130
410
645
404
430
890
280
75
657
MS150
410
645
404
430
970
320
75
657
MS170
410
710
404
430
1060
390
75
657
MS210
410
710
404
430
1060
460
75
757
MS210S
410
710
404
430
1060
460
75
757
MS280
410
710
404
430
1060
640
75
957
MS280S
410
710
404
430
1060
640
75
957
MS350S
492
950
486
512
1314
650
75
957
Name
Size(mm)
Model

Inverter heat pump solution
9

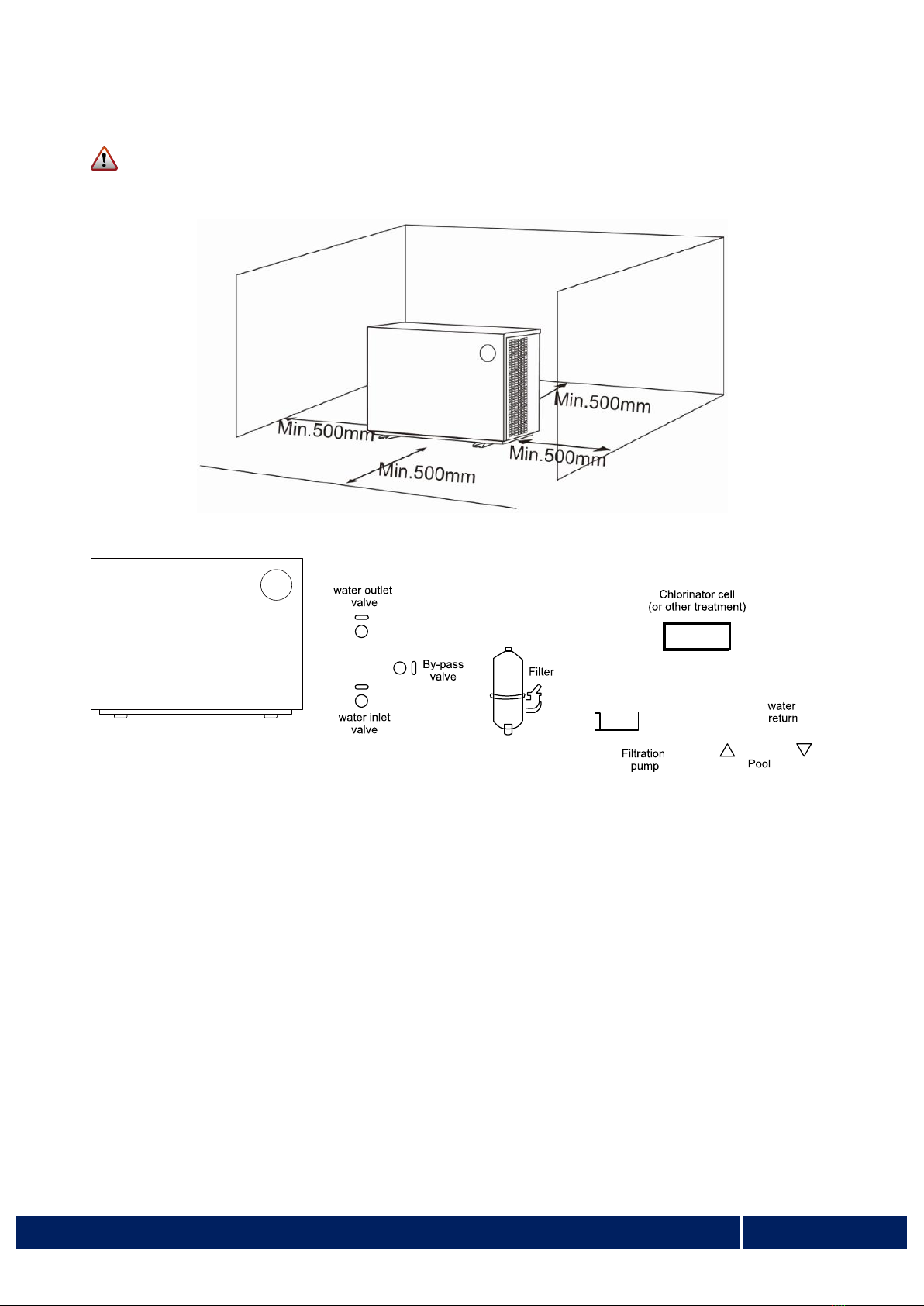

a. Location and water pipe connection
The inverter pool heat pump should be installed in a good ventilation place.
1) The frame must be fixed by bolts (M10) to concrete foundation or brackets. The concrete foundation
must be solid and fastened; the bracket must be strong enough and antirust treated;
2) Please don’t stack substances that will block air flow near inlet or outlet area, and there is no barrier
within 50cm behind the main machine, or the efficiency of the heat pump will be reduced or even
stopped;
3) The machine needs an appended pump (Supplied by the user). The recommended pump
specification-flux: refer to Technical Parameter, Max. lift ≥10m;
4) When the machine is running, there will be condensation water discharged from the bottom, please
pay attention to it. Please hold the drainage nozzle (accessory) into the hole and clip it well, and then
connect a pipe to drain the condensation water out.

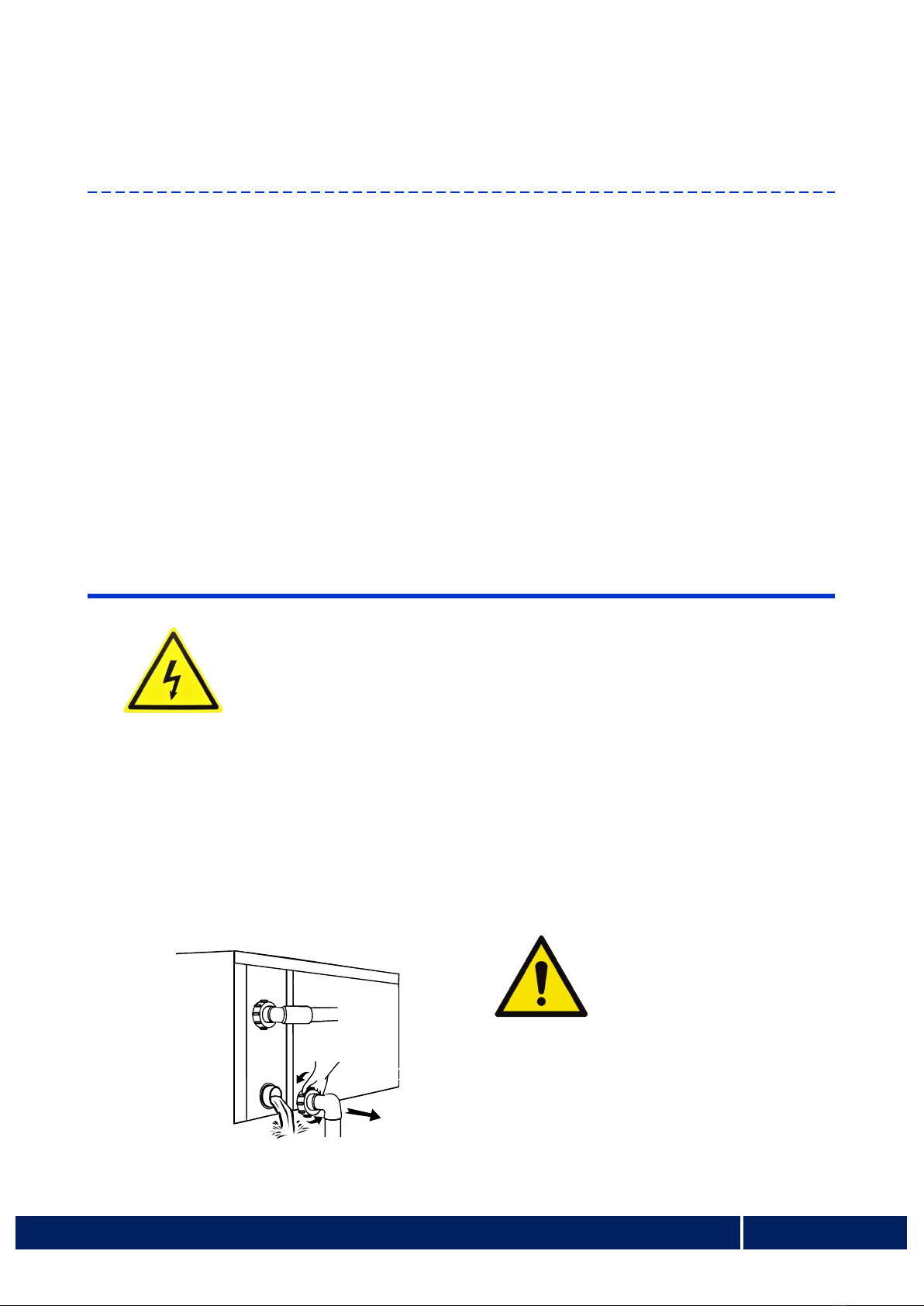

b. Water pipe connection

Inverter heat pump solution
10

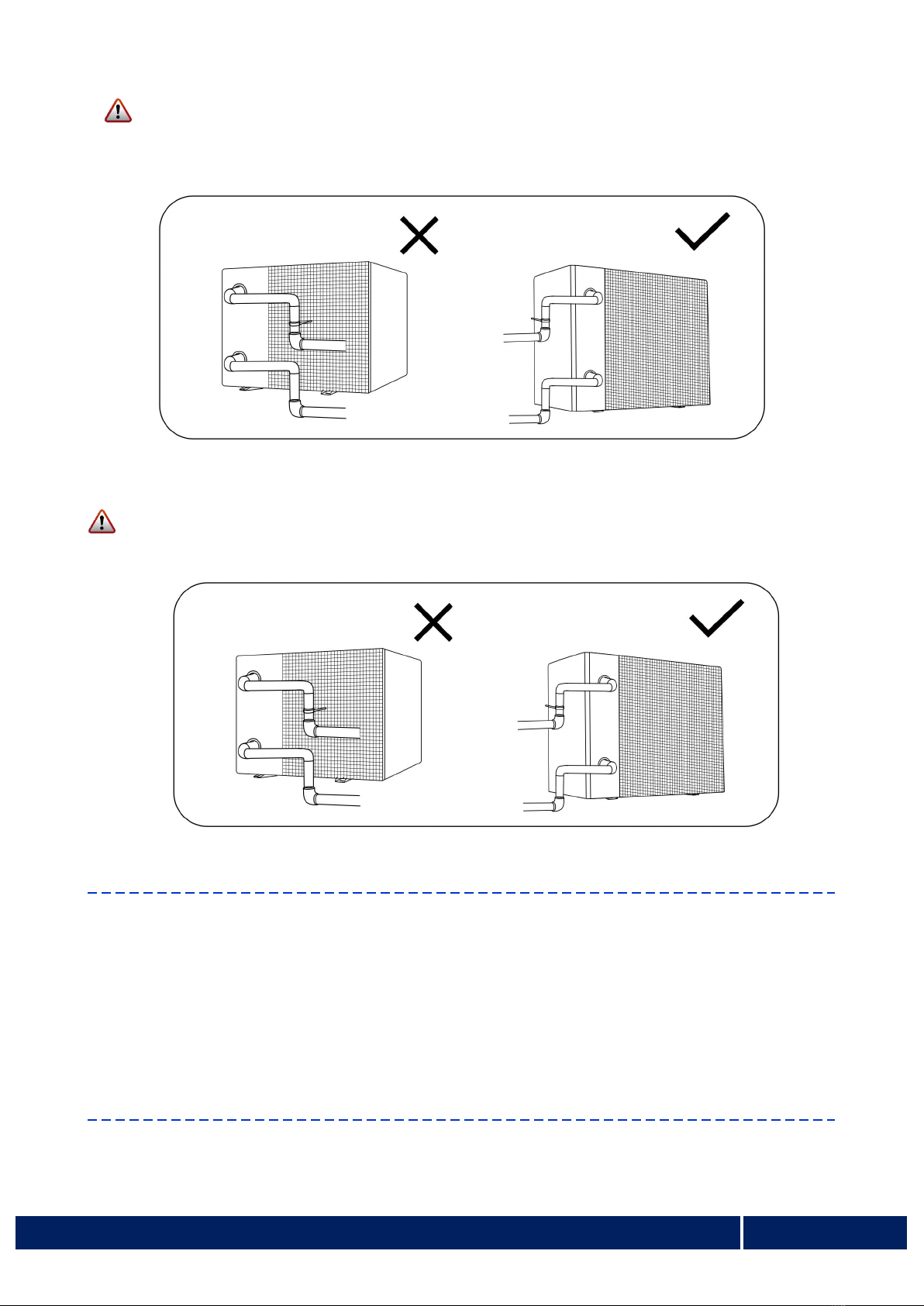

The inlet and outlet water unions can’t stand the weight of soft pipes. The heat pump must be
connected with hard pipes!
DO NOT install water pipes in a way that they pass behind the heat pump's evaporator. In case this
cannot be avoided, cover the pipes with thermal insulation foam.
2. Wiring
a. Connect to appropriate power supply, the voltage should comply with the rated voltage of the
products.
b. Earth the machine well.
c. Wiring must be handled by a professional technician according to the circuit diagram.
d. Set leakage protector according to the local code for wiring (leakage operating current ≤ 30mA).
e. The layout of power cable and signal cable should be orderly and not affecting each other.
3. Electric wiring diagram
For power supply: 230V 50Hz

Inverter heat pump solution
11
1) Must be hard wired, plug is not allowed.
2) The swimming pool heat pump must be earthed well.
4. References for protecting devices and cable specification
※Above data is subject to modification without notice.
MODEL
MS70
MS90
MS110
MS130
MS150
MS170
MS210
MS210S
MS280
MS280S
MS350S
Breaker
Rated Current
(A)
9
10.5
12
14.5
16.5
18
21
10
24
10
12
Rated Residual
Action Current
(mA)
30
30
30
30
30
30
30
30
30
30
30
Fuse (A)
9
10.5
12
14.5
16.5
18
21
10
24
10
12
Power Cord (mm2)
3x1.5
3 x 2.5
3 x 2.5
3 x 2.5
3 x 2.5
3 x 4
3 x 4
5 x 2.5
3 x 6
5 x 2.5
5 x 2.5
Signal cable (mm2)
3×0.5
3×0.5
3×0.5
3×0.5
3×0.5
3×0.5
3×0.5
3x0.5
3×0.5
3×0.5
3 x 0.5
Distribution Box (Customer prepare)
Earthing
Power Supply
230V 50Hz
Breaker
Fuse
Power Cord
Swimming Pool Heat Pump Wiring Board

Inverter heat pump solution
12
Note: The above data is adapted to power cord ≤ 10m. If power cord is＞10m, wire diameter must be
increased. The signal cable can be extended to 50m maximum.
E. Operation guidance

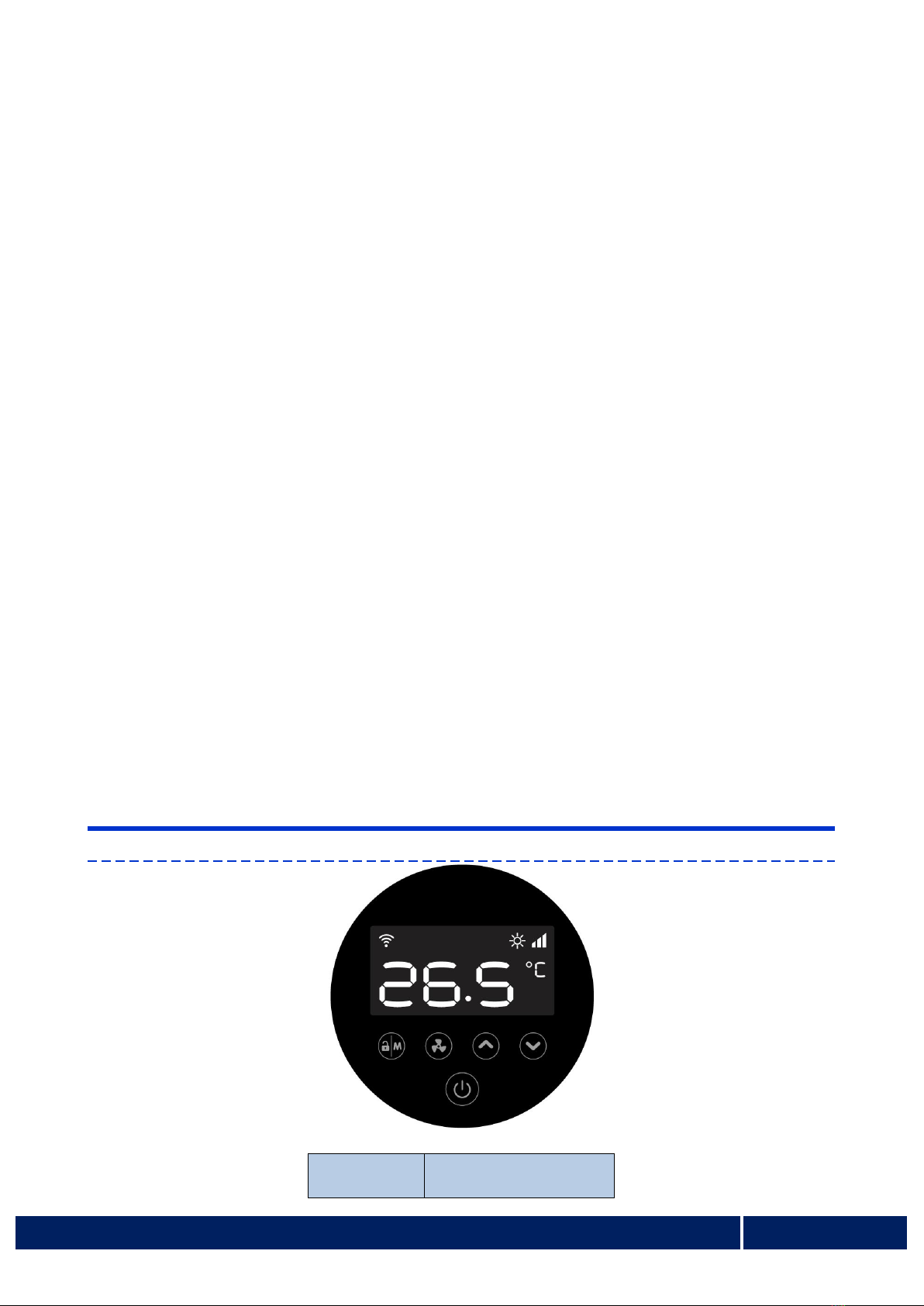

1. Key Function
Symbol
Heating only models

Inverter heat pump solution
13
1. Power On/Off
2. Wi-Fi setting
Lock/Unlock screen
1. Boost
2. Silence
Temperature Setting
From 18~40°C
Attention:
i. The controller has power-down memory function.
ii. The buttons will turn dark when it’s locked.
2. Operation Instruction
a. Screen Lock
1) Press “ ” for 3 seconds to lock or unlock the screen
2) Automatic Lock Period: 30 seconds if no operation
b. Power On
Press “ ” for 3 seconds to unlock screen. Press “ ” to power on machine.
c. Temperature Setting
Press “ ” and “ ” to display and set temperature.
d. Mode Selection
Silence/Boost mode selection
Press “ ” to switch between boost mode , silence mode
Default mode: boost

Inverter heat pump solution
14
Please choose boost mode for initial heating
e. Wi-Fi “ ”
When the screen is on, press “ ”for 3 seconds, after “ ” flashing, enter Wi-Fi connection.
Connect Wi-Fi on mobile phone and input password, and then control equipment by Wi-Fi. When
APP connects Wi-Fi successfully，“ ” lights on.
f. Defrosting
1) Automatic defrosting: When machine is auto defrosting, will flash, and return to previous
working mode when it finishes.
2) Manual Defrosting: To enter forced defrosting mode, the compressor must be working more
than 10 minutes. in heating mode, press “ ” and “ ” on touch controller simultaneously
for 5 seconds to start forced defrosting, ” ” is flashing and defrost starts, “ ” stop flashing
and defrosting stops.
(Remarks: the interval between manual defrosting should be more than 30 minutes.)
g. Round Controller Running Status Checking
1. Press “ ” for 5 seconds, it will enter running status checking.
2. During this time, the display will show the status symbol “C0” and its corresponding value.
3. Change status through “ ” and “ ”, the corresponding value also changes.
4. Press “ ” to quit “Running Status Checking” mode
5. Running status checking table:
Symbol
Content
Unit
C0
Inlet water temp
°C
C1
Outlet water temp
°C
C2
Ambient temp
°C
C3
Exhaust gas temp
°C
C4
Evaporator coil pipe temp
°C
C5
Return gas temp
°C
C6
Cooling coil pipe temp
°C
C9
Cooling plate temp
°C
C10
EEV opening angle
P

Inverter heat pump solution
15
C11
DC fan speed
r/min
h. Temperature display conversion (Celsius/Fahrenheit)
When the screen is on，Press “ ” and “ ” simultaneously for 5 seconds to switch the display
between degrees Celsius and degrees Fahrenheit.
Attention：The controller has power-down memory function.
F. Testing
1. Inspect heat pump before use
a. The ventilating device and outlets are operating adequately and are not obstructed.
b. It’s prohibited to install refrigeration pipe or components in corrosive environment.
c. Inspect the electric wiring on basis of the electric wiring diagram and earthing connection.
d. Double confirm the main machine power switch should be off.
e. Inspect the air inlet and outlet.
2. Leakage detection notice and method
a. Leakage checking is prohibited in closed area.
b. The ignition source is prohibited during the leakage inspection. A halide torch (or any other detector
using a naked flame) shall not be used.
c. Leakage detection fluids can be applied with most refrigerants but the use of detergents containing
chlorine shall be avoided as the chlorine may react with the refrigerant and corrode the copper pipe.
d. Vacuumize completely before welding. Welding can only be carried out by professional personnel in

Inverter heat pump solution
16
service center.
e. Please stop using while gas leakage occur, and contact professional personnel in service center.
3. Trial
a. The user must “Start the Pump before the Machine, and Turn off the Machine before the Pump”, or
the machine will be damaged.
b. Before start the heat pump, please check for any leakage of water.
c. In order to protect the swimming pool heat pump, the machine is equipped with a time lag starting
function, the fan will run 1 minute earlier than the compressor when starting the machine, and it will
stop running 1 minute later than the compressor when power off the machine.
d. After the swimming pool heat pump start up, please kindly checking for any abnormal noise from the
machine.
G. Maintenance
1. In winter season when you don’t swim:
a. Cut off power supply to prevent any machine damage.
b. Drain water clear of the machine.
c. Cover the machine body when not in use.
!!Important:
Unscrew the water nozzle of inlet pipe
to let the water flow out.
When the water in machine freezes in winter
season, the titanium heat exchanger may be
damaged.
“CUT OFF”power supply of the heat pump
before cleaning, examination and repairing

Inverter heat pump solution
17
2. Please clean this machine with household detergents or clean water, NEVER use gasoline, thinners
or any similar fuel.
3. Check bolts, cables and connections regularly.
4. If repair or scrap is required, please contact authorized service center nearby.
5. Do not attempt to work on the equipment by yourself. Improper operation may cause danger.
6. In case of risking, safety inspection must be carried before the maintenance or repairing for heat
pumps with R410A gas.
H. Trouble shooting for common faults
1. Repairing Guidance
-----------------------------------------------------------------------------------------------------------------------------------------
WARNING:
a. If repair or scrap is required, please contact authorized service center nearby.
b. Requirements for Service Personnel
c. Any person who is involved with working on or breaking into a refrigerant circuit should hold a
current valid certificate from an industry-accredited assessment authority, which authorizes their
competence to handle refrigerants safely in accordance with an industry recognized assessment
specification.
d. Do not attempt to work on the equipment by yourself. Improper operation may cause danger.
e. Strictly comply with the manufacturer's requirements when charging R410A gas and equipment
maintenance. This chapter focuses on special maintenance requirements for swimming pool heat
pump with R410A gas. Please refer to the technical service manual for detailed maintenance
operation.
f. Vacuumize completely before welding. Welding can only be carried out by professional personnel in
service center.
2. Failure solution and code
----------------------------------------------------------------------------------------------------------------------------------------
Failure
Reason
Solution
Heat pump doesn’t run
No power
Wait until the power recovers

Inverter heat pump solution
18
Power switch is off
Switch on the power
Fuse burned
Check and change the fuse
The breaker is off
Check and turn on the breaker
Fan running but with
insufficient heating
evaporator blocked
Remove the obstacles
Air outlet blocked
Remove the obstacles
3 minutes start delay
Wait patiently
Display normal, but no heating
Set temp. too low
Set proper heating temp.
3 minutes start delay
Wait patiently
If above solutions don’t work, please contact your installer with detailed information and your model
number. Don’t try to repair it yourself.
Note: If the following conditions happen, please stop the machine immediately, and cut off the power
supply immediately, then contact your dealer:
1. Inaccurate switch action.
2. The fuse is frequently broken or leakage circuit breaker jumped.
Protection & Failure code
NO.
Display
Protection code description
1
E3
No water protection
2
E5
Power supply excesses operation range (not failure)
3
E6
Excessive temp difference between inlet and outlet water(Insufficient
water flow protection)
4
Eb
Ambient temperature too high or too low protection (not failure)
5
Ed
Anti-freezing reminder (not failure)
NO.
Display
Failure code description
1
E1
High pressure protection
2
E2
Low pressure protection
3
E4
3 phase sequence protection (three phase only)
4
E7
Water outlet temp too high or too low protection
5
E8
High exhaust temp protection
6
EA
Heat exchanger overheat protection/Evaporator overheat protection
(only at cooling mode)
7
P0
Controller communication failure
8
P1
Water inlet temp sensor failure
9
P2
Water outlet temp sensor failure
10
P3
Gas exhaust temp sensor failure
11
P4
Evaporator coil pipe temp sensor failure
12
P5
Gas return temp sensor failure
13
P6
Cooling coil pipe temp sensor failure
14
P7
Ambient temp sensor failure
15
P8
Cooling plate temp. sensor failure
16
P9
Current sensor failure
