Aquatic HEART AI6648H User manual

54
SPECIFICATIONS:
The manufacturer accepts a 1/4” variance. There are variations on each tub and specifications are subject to change as we improve upon our product as required. The dimensions needed for site preparation
and structure building should be measured from the tub; Aquatic Industries, Inc. assumes no responsibility for preparatory work. www.aquaticwhirlpools.com 800.555.5324
March 2008

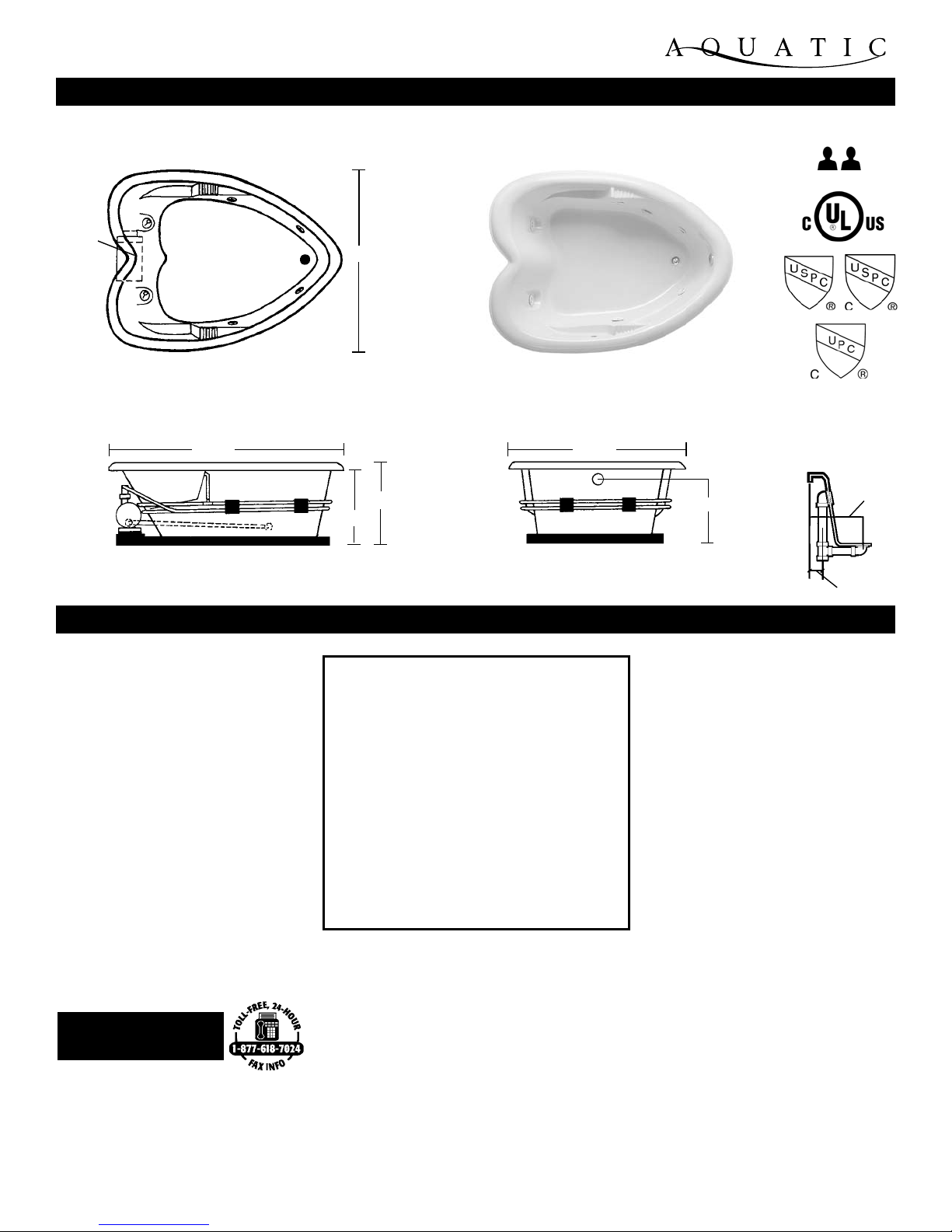

Rough-In Plumbing
Measurements
ThE hEArT
luxury SErIES Model # ai6648H
GENERAL SPECIFICATIONS:
Tub Size 70 1/8” x 51 1/2” x 22 1/4”
178 cm x 131 cm x 57 cm
Bathing Well 44” long
33” wide
20 3/4” interior depth
Shipping Weight 190 lbs. / 86 kg
Tub Weight Filled 927 lbs. / 420 kg
Gallons to Overow 95 gal. / 360 L
Gallons to Operate 1 bather: 76 gal. / 288 L
2 bathers: 57 gal. / 216 L
ELECTRICAL SPECIFICATIONS:
Pump 1.75 HP; 12 AMP; 110V
Requirement 15 AMP; 110V, separate circuit
required protected w/ Class A GFCI
Optional Heater 1.5 kW; 12.5 AMP; 110V
Requirement 15 AMP; 110V, separate circuit
required protected w/ Class A GFCI
• Chromatherapy LED Lighting
• Comfort Pillow - Oval or Rectangle
• Jet Finish
- Chrome, Polished Brass, Gold, Polished Nickel
or Satin Nickel
• 1.5 kW Inline Maintenance Heater
• Lift & Turn Waste and Overow
- Chrome, Polished Brass, Gold, Polished Nickel,
Satin Nickel or Oil Rubbed Bronze
• Cable Drive Waste and Overow
- Chrome, Polished Brass, Gold, Polished Nickel,
Satin Nickel, Oil Rubbed Bronze or
Color Matched (Bone, White and Biscuit Only)
• 2 HP, 3-Speed Run-Dry Pump Upgrade
• Remote Pump Location
• Hand Held Jet - Chrome or Polished Brass
• Premium Colors
All acrylic colors featured by Aquatic match the
industry’s leading xture manufacturers.
OPTIONAL EQUIPMENT:
Fax-On-Demand
Document # 1041
6 Hydrotherapy Jets including:
- 4 Full Size Pressure-Flo Hydrotherapy Jets
- 2 Recessed Rotary Massage Jets
Aquatic Quality Features:
- 1.75 HP Run-Dry Pump with 20-Minute Timer
- Bath-Side On/Off Electronic Button
- ”Quiet Pad” Anti-Vibration Pump Mount for Quiet Pump Operation
- 2 Integrally Molded Safety Grasps
- 2 Arm Rests
- Slip Resistant Floor
- Pre-leveled ABS Support Base
- Heat-bent Rigid PVC Piping for Optimum Sanitary Conditions
- Durable, Easy to Clean, Lucite® Cast Acrylic Surface
- Available in 8 Standard No-Charge Colors
UL & IAPMO Listed, Factory Tested
Limited Lifetime Warranty
STANDARD EQUIPMENT:
70 1/8”
18 1/4”
51 1/2”
19 1/2”
22 1/4”
Pump
51 1/2”
No alternate pump location available.
Two Person Bath
4 1/2”
14”
