SPECIFICATIONS:
The manufacturer accepts a 1/4” variance. There are variations on each tub and specifications are subject to change as we improve upon our product as required. The dimensions needed for site preparation
and structure building should be measured from the tub; Aquatic Industries, Inc. assumes no responsibility for preparatory work. www.aquaticwhirlpools.com 800.555.5324
October 2007

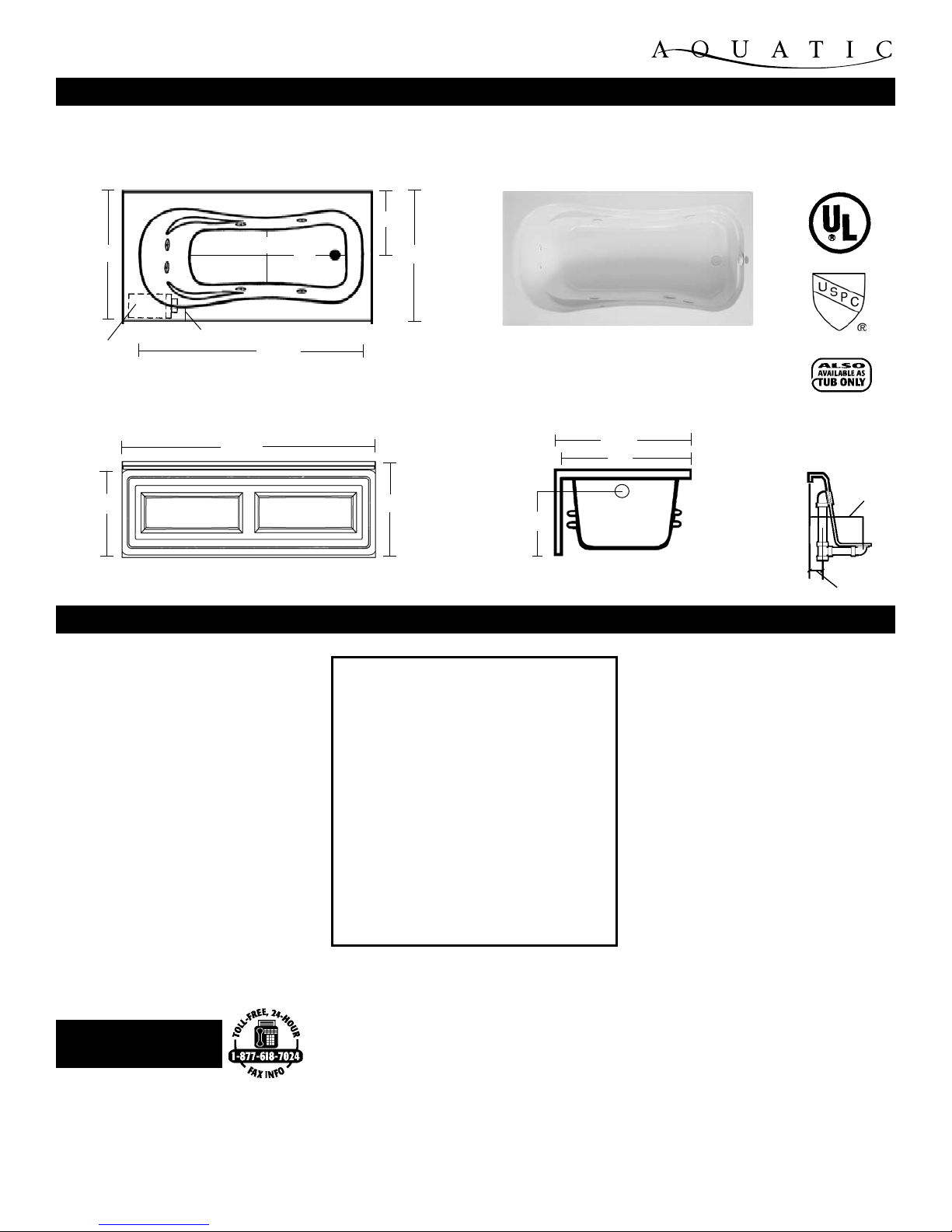

Rough-In Plumbing
Measurements
GENERAL SPECIFICATIONS:
Tub Size 72 1/8” x 36” x 20 1/4”
183 cm x 91 cm x 51 cm
Bathing Well 48” long
18” wide
17” interior depth
Maximum Water Depth 13 3/4”
Shipping Weight 125 lbs. / 57 kg
Tub Weight Filled 652 lbs. / 296 kg
Tub Only Weight 86 lbs. / 39 kg
Gallons to Overow 68 gal. / 257 L
Gallons to Operate 51 gal. / 193 L
ELECTRICAL SPECIFICATIONS:
Pump .80 HP; 5.5 AMP; 110V
Requirement 15 AMP; 110V, separate circuit
required protected w/ Class A GFCI
OPTIONAL EQUIPMENT:
6 Hydrotherapy Jets including:
- 2 Spinning Back Jets
- 4 Directional Jets
Aquatic Quality Features:
- .80 HP Run-Dry Pump
- Bath-Side On/Off Air Switch
- ”Quiet Pad”Anti-Vibration Pump Mount for Quiet Pump Operation
- Heat-bent Rigid PVC Piping for Optimum Sanitary Conditions
- 2 Arm Rests
- Integrally Molded Tile Flange
- Color Matched Integral Skirt with Removable Access Panels
- Color Matched Trim and Jets (Select Colors)
- Right or Left Hand Drain
- Durable, Easy to Clean, Lucite®Cast Acrylic Surface
- Available in 8 Standard No-Charge Colors
UL and IAPMO Listed, Factory Tested
Limited 10 Year Warranty
SymPhONy 13
• Comfort Pillow--Oval or Rectangle
• Lift & Turn Waste and Overow
- Chrome, Polished Brass, Gold, Satin Nickel,
Polished Nickel or Oil Rubbed Bronze
• Cable Drive Waste and Overow
- Chrome, Polished Brass, Gold, Satin Nickel,
Polished Nickel, Oil Rubbed Bronze or
Color Matched (Bone, White and Biscuit Only)
• Removable Access Panels (Tub Only)
All acrylic colors featured by Aquatic match the
industry’s leading xture manufacturers.
STANDARD EQUIPMENT:
SymPhONy SErIES Model # -- See BeloW
AIIS7236lSY / AIIS7236lSYTo (lefT drAIn) / AIIS7236rSY / AIIS7236rSYTo (rIghT drAIn)
Fax-On-Demand
Document # 1281
37 1/4”
18”
36”
Standard
Pump
Location
Deck Width 2 3/4”
2 1/4”
8 3/4”
16 3/4”
37 1/4”
Note: Tub only model does not include
access panels unless ordered as an option.
72 1/8”
19”
63 1/2”
20 1/4”
36”
48”
18”
Right Drain Model
