SPECIFICATIONS:
The manufacturer accepts a 1/4” variance. There are variations on each tub and specifications are subject to change as we improve upon our product as required. The dimensions needed for site preparation
and structure building should be measured from the tub; Aquatic Industries, Inc. assumes no responsibility for preparatory work. www.aquaticwhirlpools.com 800.555.5324
August 2008

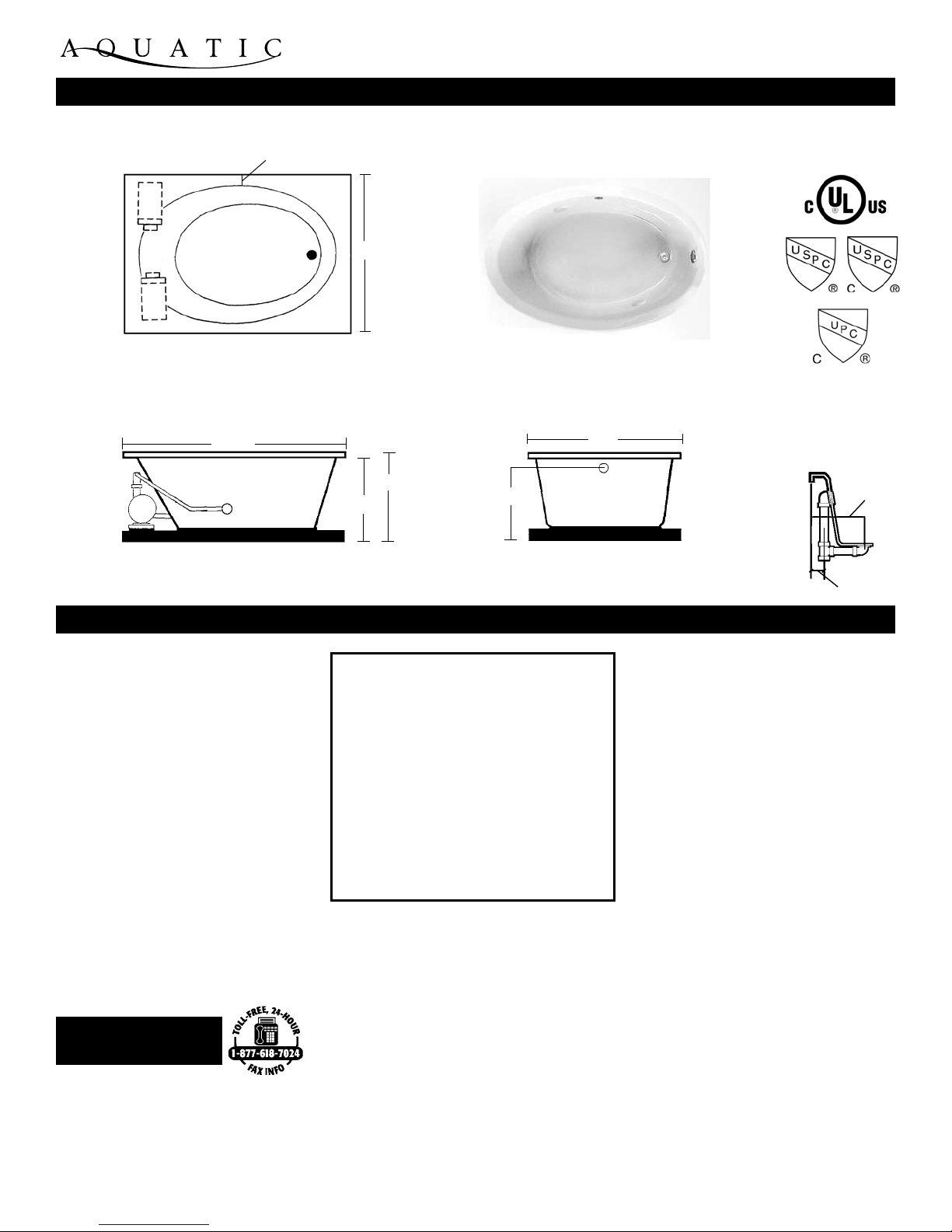

Rough-In Plumbing
Measurements
GENERAL SPECIFICATIONS:
Tub Size 59 1/2” x 42” x 19 3/4”
151 cm x 107 cm x 50 cm
Bathing Well 38 3/4” long
27” wide
18 1/2” interior depth
Shipping Weight 140 lbs. / 64 kg
Tub Weight Filled 579 lbs. / 263 kg
Tub Only Weight 88 lbs. / 40 kg
Gallons to Overow 55 gal. / 208 L
ELECTRICAL SPECIFICATIONS:
Pump 1/15 HP; 1.3 AMP; 110V
Heater 1.5 kW; 12.5 AMP; 110V
Requirements 20 AMP; 110V, separate circuit
required protected w/ Class A GFCI
• Chromatherapy LED Lighting*
• Comfort Pillow - Oval or Rectangle
• Lift & Turn Waste and Overow
- Chrome, Polished Brass, Gold, Polished Nickel,
Satin Nickel or Oil Rubbed Bronze
• Cable Drive Waste and Overow
- Chrome, Polished Brass, Gold, Polished Nickel,
Satin Nickel, Oil Rubbed Bronze or Color Matched
(Bone, White and Biscuit Only)
• Factory Installed Rigid ABS Tile Flange
• Optional Pump Location
• Color Matched Acrylic Skirt
• Premium Colors
All acrylic colors featured by Aquatic match the industry’s
leading xture manufacturers.
*This whirlpool will need to be hard wired to the breaker box.
Three outlets will be supplied on the whirlpool.
OPTIONAL EQUIPMENT:
hOTSOAk SErIES Model # ai6042SvHS
Aquatic Quality Features:
- 1.5 kW Inline Maintenance Heater
- Run-Dry Pump with 20-Minute Timer
- 2 Circulation Portal Covers
- Bath-Side On/Off Electronic Button
- “Quiet Pad” Anti-Vibration Pump Mount for Quiet Operation
- Slip Resistant Floor
- Extra Deep and Long Bathing Well
- Pre-leveled ABS Support Base
- Heat-bent Rigid PVC Piping for Optimum Sanitary Conditions
- Durable, Easy to Clean, Lucite® Cast Acrylic Surface
- Available in 8 Standard No-Charge Colors
UL & IAPMO Listed, Factory Tested
Limited Lifetime Warranty
STANDARD EQUIPMENT:
hOTSOAk 83
Fax-On-Demand
Document #1258
18”
19 3/4”
42”
59 1/2”
Deck Width
2”
15 1/2”
42”
2 3/4”
8 1/2”
2
1
