Aquatic iNfiNity serIes Troubleshooting guide
OWNER’S MANUAL &
INSTALLATION GUIDE
Note: Read all instructions before proceeding with installation.
All specifications are ± 1/4’’ and are subject to change without notice.
INFINITY SERIES
2 Aquatic Industries, Inc.
TABLE OF CONTENTS
TABLE OF CONTENTS 2
PRODUCT REGISTRATION/WARRANTY CARD 3
CONGRATULATIONS! 4
SAFETY INSTRUCTIONS 5
INSTALLATION INSTRUCTIONS
Pre-Installation Procedures 6
Structural Preparation 7-8
Leveling of the Infinity I 8
Factory Installed Tile Flange 9
Plumbing/Rough-In Measurements 9-10
Fast Fill Waterfall Spout 10
Continuous Waterfall 11
Electrical Installation 11-14
Chromatherapy LED Lighting 14
OPERATION
Bathside Control Systems 15-17
Jet Operations 18-20
User Information 21
FCC Information 21
Serial Number - How to Locate 21
MAINTENANCE AND CARE
Initial Cleaning 22
Whirlpool System Cleaning 22
Air Bath System Cleaning 22
Surface Cleaning 23
Jet Cleaning 23
Surface Scratch Removal 23
Repair Information 23
Water Quality Issues 23-25
TROUBLESHOOTING GUIDE
Symptoms/Possible Problems/Solutions 26
PARTS ORDER FORM/PARTS MAPS/PARTS LIST
Parts Order Form 27
Parts Maps 28-31
Parts List 32-33
AQUATIC LIMITED WARRANTY 34
Aquatic Industries, Inc. 3
Your product warranty is registered and confirmed with Aquatic through the Serial Number on your
unit. You do not need to contact Aquatic to confirm registration. Please fill out the information below
and reference when contacting the distributor to expedite warranty claims.
OWNER INFORMATION:
Model Name
Serial Number
(See Table of Contents for Location)
Purchase Date
Distributor
AQUATIC INDUSTRIES, INC.
Product Registration Information
CONGRATULATIONS!
NOTE:
The installation and service of your whirlpool should be
You have chosen one of the finest bath products in the world! Aquatic Industries supports your purchase
with strong commitments to quality and customer satisfaction.
whirlpool. Failure to comply with these instructions may invalidate your warranty. If you have any questions
AQUATIC INDUSTRIES CUSTOMER SERVICE CENTER: 800-928-3707
(The Troubleshooting Guide on page 26 may be helpful in answering some of your questions.)
IMPORTANT!
This product MUST BE WATER-TESTED and inspected prior to installation
or warranty will be voided. See page 6 for instructions.
PLEASE CHECK ENTIRE UNIT FOR ANY DAMAGE.
immediately.
IMPORTANT SAFETY INSTRUCTIONS
WARNING: WHEN USING THIS UNIT, THESE BASIC PRECAUTIONS SHOULD BE FOLLOWED.
This manual contains information and instructions for proper operation and maintenance of your whirlpool. Failure
to follow these instructions could result in personal injury, electrical shock or fire.
READ AND FOLLOW ALL INSTRUCTIONS
DANGER! TO REDUCE THE RISK OF INJURY:
A. Do not permit children to use this unit unless they are closely supervised by an adult at all times. Supervision is
also required when whirlpool bath is used by an elderly or handicapped individual.
B. Use this unit only for its intended use as described in this manual. Do not use attachments not recommended
by the manufacturer.
C. Do not operate this unit without guard over the suction fitting.
D. The water in a whirlpool should never exceed 40°C (104°F). Water temperatures between 38°C (100°F) and 40°C
by a shower to cool down. Longer exposures may result in hyperthermia. The symptoms of this condition are
use (exceeding 10-15 minutes) and for young children.
E. Since excessive water temperatures have a high potential for causing fetal damage during the early months of
F. The use of drugs or alcoholic beverages before or during whirlpool use may lead to unconsciousness with the
diabetes should consult a physician before using a whirlpool.
H. Persons using medication should consult a physician before using a whirlpool since medication may induce
DANGER:
WARNING: Never operate electrical devices in or near the bath. Never drop or insert any object into any opening
within the whirlpool.
This unit must be connected to a supply circuit that is protected by a Ground Fault Circuit Interrupter (GFCI). Such a
device should be installed by a licensed electrician and should be tested on a regular basis (at least monthly). To test
the GFCI push the TEST button. The GFCI should interrupt the power. Push the RESET button and the power should
be restored. If the GFCI fails to operate in this manner there is the possibility of an electric shock. DO NOT USE.
Disconnect the unit and have the problem corrected by a qualified service technician. To avoid the possibility of personal
should be drained after each use. Each bather should start their bath with fresh water.
CAUTION: DO NOT USE HARSH ABRASIVES OR SOLVENTS FOR CLEANING THIS UNIT.
INSTALLER/OWNER BEARS ALL RESPONSIBILITY TO COMPLY WITH ALL STATE AND LOCAL CODES
WHEN INSTALLING THIS PRODUCT.
SAVE THESE INSTRUCTIONS
6 Aquatic Industries, Inc.
PLEASE NOTE: THE MANUFACTURER ACCEPTS A 1/4” VARIANCE. THERE ARE VARIATIONS ON EACH TUB
AND SPECIFICATIONS ARE SUBJECT TO CHANGE AS WE IMPROVE UPON OUR PRODUCT AS REQUIRED.
THE DIMENSIONS NEEDED FOR SITE PREPARATION AND STRUCTURE BUILDINGS SHOULD BE
MEASURED FROM THE TUB; AQUATIC INDUSTRIES, INC. ASSUMES NO RESPONSIBILITY FOR
PREPARATORY WORK.
Note: A good knowledge of construction techniques, plumbing and electrical installation according to codes are
required for proper installation. We recommend that a qualified licensed contractor perform the installation of all
Aquatic products. Our warranty does not cover improper installation related problems.
WARNING: All units are shipped with loose unions. Before attempting to test, install, or use your whirlpool, all pump
and heater unions a “O” rings must be repositioned and/or tightened.
1. Immediately upon receiving your Aquatic Industries, Inc. whirlpool bath inspect it thoroughly for freight damage.
If necessary, contact your dealer/distributor immediately (your dealer/distributor must contact Aquatic
Industries, Inc. within 24 hours of receiving unit to file a claim.) Should inspection indicate any damage, do not
install the bath.
2. All baths are filled with water and operated in our manufacturing facility prior to shipment. Inspectors ensure
watertight operation, however, rough handling may cause leaks which may be detected prior to installation.
Damage or defect to the finish claimed after the bath is installed is not covered under the warranty.
TO INSPECT:
3. Place the tub in an area where it may be drained after testing.
4. Fill the tub with hot water (approximately 1000 F) to the overflow and allow to stand for a few minutes.
Carefully inspect all fittings and connections for leaks.
5. Plug in pump and blower cords and run pump for 10 minutes.
have it covered by warranty. Should inspection indicate any damage, do not install the bath.
8. Check to ensure that your installation will conform to all applicable codes and secure necessary permits.
All electrical and plumbing connections should be made by qualified electricians and plumbers.
DAMAGE OR LEAKS CLAIMED AFTER THE BATH IS INSTALLED ARE NOT COVERED UNDER THE WARRANTY.
WARNING: FAILURE TO FOLLOW THESE INSTRUCTIONS DURING INSTALLATION WILL RESULT IN TERMI-
NATION OF THE WARRANTY: Do not lift the tub by any portion of the plumbing or pump. Do not stand in the
tub during construction.
DO NOT MAKE ANY ALTERATIONS, ADDITIONS, OR DELETIONS TO THE WHIRLPOOL SYSTEM PUMP OR BATH.
WARNING: Whirlpool pump and piping are factory assembled. Relocation of pump or other modifications could
QUIETNESS OF OPERATION:
operating quietness. Please ensure the following:
lation to come within 3 feet of the pump. The area around the pump
must be clean and free of any foreign matter.
INSTALLATION
INSTRUCTION GUIDELINES
READ ALL INSTRUCTIONS CAREFULLY BEFORE INSTALLATION
PRE-INSTALLATION PROCEDURES:
Aquatic Industries, Inc. 7
INSTALLATION INSTRUCTIONS
Note: The bath should remain in its shipping carton until time of installation.
1. Literature dimensions are for reference only. Installation dimensions should be taken directly from the tub. An ac-
make final connections and for servicing the pump and power panel. An additional access of 16’’ x 16’’ minimum
must also be provided for the blower motor and control box. Access may be through the wall or platform apron at
IT IS THE INSTALLER’S RESPONSIBILITY TO PROVIDE SUFFICIENT SERVICE ACCESS. MAKE ABSOLUTELY
CERTAIN THAT ACCESS PANELS AND/OR SERVICE OPENINGS ARE PROPERLY PLACED AND THAT ALL
POSSIBLE AREAS WHERE SERVICE MAY BE REQUIRED ARE ACCESSIBLE.
2. Install the drain fitting to the bath. Clearance may be needed for the drain by cutting away the subfloor (where
possible) or by blocking below the tub as may be required.
WARNING: FACTORY SKIRTS DO NOT ALLOW FOR BLOCKING UP OF THE TUB BASE. All blocking must
be solid and provide uniform support to the tub base.
3. Tub must rest entirely on all leveling feet. DO NOT SUPPORT THE WEIGHT OF THE TUB BY THE RIM. Lift unit
the unit by fastening the bottom feet to the sub floor with any construction adhesive caulk. For quieter operation
4. Frame out under the tub rim as shown in one of the illustrations below. NOTE: Due to the variety of installations
as required (see Diagram 1A, 1B and 1C
for wall sheathing material to run full length to the floor (see Diagram 1D). Install tub firmly against sheathing as
NOTE: Watertight installation of the drain and over flow is the installer’s responsibility. Drain and/or overflow leakage
is not included in the warranty of this product.
STRUCTURAL PREPARATION:
WARNING: ALL ELECTRICAL CONNECTIONS SHOULD BE MADE BY A LOCALLY LICENSED ELECTRICIAN.
1D Wall Installation 1E Sunken Installation
1B Ledge Installation - 2 1C Apron Installation
1A Ledge Installation - 1
8 Aquatic Industries, Inc.
rim dimensions. Extreme care must be taken in this type of installation to ensure the tub will come to rest entirely on
the leveling feet.
6. IF YOU HAVE PURCHASED A WHIRLPOOL WITH AN INSTALLED TILE FLANGE, PROCEED TO INSTRUCTION “2A”.
STRUCTURAL PREPARATION (continued):
1F
1G
Add 3/8” Spacer
Underneath Level
LEVELING OF THE INFINITY 1:
INSTALLATION INSTRUCTIONS
front lip of the whirlpool.
again until left to right and front to back are both level.
Aquatic Industries, Inc. 9
SEE ILLUSTRATION 2A
A. Install the whirlpool bath unit per the instructions provided in this manual.
CAUTION: THE TILE FLANGE DOES NOT SUPPORT THE TUB! A ledger board must be provided under the
as this will void your warranty.
B. Use nails or screws to secure the flange into the studs around the bath.
C. Install water resistant drywall against the tile flange and flush to the top of the whirlpool deck. Install the tile or other
finishing materials. Apply a second bead of silicone between the first course of tile and the bath deck.
FACTORY INSTALLED TILE FLANGE:
NOTE: Before tub is used, the whirlpool system should be cleaned in accordance
with the procedures on Page 22 of this manual.
2A
INSTALLATION INSTRUCTIONS
with water to overflow and operate pump for 5 minutes. Check for leaks carefully both while pump is running and
has been turned off. Allow water to stand in tub for at least 30 minutes before draining. AQUATIC INDUSTRIES,
INC. WILL NOT BE RESPONSIBLE FOR WATER DAMAGE OF ANY KIND IN CONNECTION WITH ONE OF OUR
WHIRLPOOL BATHS.
drilling or cutting tub.
PLUMBING:
10 Aquatic Industries, Inc.
MODEL AB
(From center of overflow pipe (From center of
to outside rim) drain to tub rim)
VARIATIONS ON EACH TUB AND SPECIFICATIONS ARE SUBJECT TO CHANGE AS WE
IMPROVE UPON OUR PRODUCT AS REQUIRED.
THE DIMENSIONS NEEDED FOR SITE PREPARATION AND STRUCTURE BUILDING
PREPARATORY WORK.
ROUGH-IN MEASUREMENTS:
INSTALLATION INSTRUCTIONS
B
A
3A
3B
FAST FILL WATERFALL SPOUT:
Fast Fill Waterfall Spout is stubbed out
FROM VALVES
Your Fast Fill Waterfall Spout will be stubbed as in Diagram 3B.
See Diagram 3C for connecting the hot and cold valves.
3C
CAUTION:
Do not overtighten. Do not use Teflon Tape.
Aquatic Industries, Inc. 11
INSTALLATION INSTRUCTIONS
WARNING:
PROCEDURES.
WARNING:
THE FOLLOWING:
DANGER: RISK OF ELECTRIC SHOCK!
GFCI’s are not supplied, however we do specify their use.
All known code authorities require GFCI’s.
Infinity baths will need to be hard wired to the outlets provided. See the following directions and diagram.
Two junction boxes will be mounted to the frame of the whirlpool. One of the two boxes will have one outlet and will be
wire to the neutral side of the receptacle and the green wire to ground. Replace the cover and plug in the blower. (See
diagram on page 12).
Run Romex 14/3 with ground from a 15 amp 2-pole GFCI breaker (not supplied) located in the breaker panel. Connect
the white wire (neutral) to both neutrals of the two outlets. Connect the red wire (hot) to the hot terminal of the outlet
wire (ground) to the ground terminal of the outlet. Replace the cover of the junction box. Find the cord labeled “Heater
Both of these cords will come from the right side of the heater and will be marked. (See diagram on page 12).
CONTINUOUS WATERFALL (INFINITY 1):
The Infinity 1 is equipped with a continuous waterfall that is powered by a recirculation pump. The recirculation pump
ELECTRICAL INSTALLATION:
12 Aquatic Industries, Inc.
PLEASE SEE DIAGRAMS 4A AND 4B. (PAGE 13)
BONDING WIRE: Connect a #8 bare copper bonding wire from the pump motor to the heater and
then to the cold water plumbing or other suitable ground. Grounding is required.
For built-in and custom units, install to permit access for servicing.
BREAKER PANEL
15 AMP
2 POLE
GFCI
BREAKER
15 AMP
1 POLE
GFCI BREAKER
BLOWER
MAIN
HEATER
WHITE
RED
BLACK
GROUND
WHITE
BLACK
GROUND
INSTALLATION INSTRUCTIONS
ELECTRICAL INSTALLATION (continued):
Aquatic Industries, Inc. 13
Blower
Control Box
15 AMP, 120 VAC
Blower Motor OUTLET SUPPLIED
WITH WHIRLPOOL
(SEE WIRING DIRECTIONS)
4B
MAIN AC INPUT
INFINITY ELECTRONIC T-HEATER
HEATER AC INPUT
AUX CP
RECIRCULATING
PUMP
(Infinity I Only)
SEQUENCER
MODEL NUMBER: HS
4A
14 Aquatic Industries, Inc.
Warning - Prolonged Immersions in Hotter Water May Induce Hyperthermia.
Hyperthermia occurs when the internal temperature of the body reaches a level several degrees above the normal body
temperature of 98.6o
INSTALLATION INSTRUCTIONS
CHROMATHERAPY LED LIGHTING:
ELECTRICAL INSTALLATION (continued):
TROUBLESHOOTING GUIDE for UNDERWATER CHROMATHERAPY:
All Infinity models now come equipped with a digital color-changing underwater light for soothing chromatherapy. To
desired effects.
To Turn Your Chromatherapy Lighting System ON: Press the Light Button once to turn the Chromatherapy Light
ON in Color Wash mode. A second press of the button will turn the lighting system OFF. Subsequent presses will move
the lighting system through the seven constant color modes.
Color Wash: Random color blend
Off
White: clarity
Off
Aqua: Calm
Off
Violet: Inspiration
Off
Blue: Peace
Off
Yellow: Hope
Off
Green: Harmony
Off
Red: Courage
5A
Lens Install &
Removal Tools
To replace bulb:
1. Disconnect the power to your bathtub.
2. Drain the bathtub.
3. Open the lens of the fixture using ONLY the proper tool provided
for that purpose (see Diagram 5A). Do not attempt to remove the
lens without the provided tool.
4. Replace your LED light (replacement LED lights can be obtained
from Aquatic Industries).
groove when replacing the lens. If there is damage or lens does
NOTE: Do not twist LED light into socket. Use gentle pressure and
push LED light into place.
Lens &
Wall Fitting
Bulb
Socket
Aquatic Industries, Inc. 15
INFINITY ON/OFF WITH HEATER CONTROL (SEE DIAGRAM 6A):
1. To Turn Pump On: Pressing the On/Off button will turn the pump on. Pressing a second time will turn the pump
off. A built-in timer will turn the pump and heater off after 20 minutes.
changes the setting continuously. The temperature can vary from 90° to 104° F.
the set point +1° F.
3. For Infinity 1: To Turn Continuous Waterfall On: Pressing and holding down the chromatherapy button for 2
seconds will turn the continuous waterfall on. Depressing the chromatherapy button for 2 seconds with the continuous
waterfall will automatically turn off after 20 minutes. Note: The
continuous waterfall is only featured on the Infinity 1.
Other Features:
and then blanks itself.
temperature for a period of 15 minutes.
of the water at the High-Limit sensor reaches 119° F. Should
be allowed to work. Only the heater will be shut off. In order for
the heater to be reactivated the user must reset circuit breaker
when the temperature has fallen below 119° F.
water temperature reading and the remaining minutes on the timer. This will toggle every 5 seconds.
OPERATION of
INFINITY SERIES WHIRLPOOLS
NOTE: DO NOT START PUMP UNTIL ALL JETS ARE SUBMERGED. WATER LEVEL SHOULD
BE 2” ABOVE HIGHEST JET.
BATHSIDE CONTROL SYSTEMS:
Set Point Indicator
Heater On Indicator
6A
16 Aquatic Industries, Inc.
INFINITY AIR BATH CONTROL (SEE DIAGRAM 6C):
1. To Turn Air Bath System On: Pressing the On/Off button will turn
second time will turn the blower off. The light indicator will illuminate when
the system is on. The blower and the blower heater will automatically
shut off after a 20-minute period.
2. To Change Modes: Pressing the Mode button alternates the
blower modes of operation from constant mode to wave mode and
then to pulse mode.
intensity set by the user.
will also follow the blower intensity.
will also pulse as the blower does.
OPERATION of
INFINITY SERIES WHIRLPOOLS
INFINITY JET SEQUENCER CONTROL (SEE DIAGRAM 6B):
1. To Turn Jet Sequencer On:
Note:
2. To Choose Sequences:
sequences. Note: only the first 6 sequences have corresponding
indicator lights. The remaining sequences do not have indicator lights.
A preview of the massage is displayed for 5 seconds after selecting
a sequence.
3. To Change Speeds:
interval between each step of the selected massage sequence.
Speed 1: 15 Seconds between each step.
Speed 2: 10 Seconds between each step.
Speed 3: 5 Seconds between each step.
4. To Pause:
Other Features:
water from the pipes.
BATHSIDE CONTROL SYSTEMS (continued):
6C
6B
Aquatic Industries, Inc. 17
OPERATION of
INFINITY SERIES WHIRLPOOLS
BATHSIDE CONTROL SYSTEMS (continued):
INFINITY AIR BATH PURGE CYCLE (SEE DIAGRAM 6C, PAGE 16):
PURGE 24 HOURS
It is possible for the user to program a purge cycle that will start every day for a duration of 1 minute. Aquatic strongly
recommends activating this feature. The purge cycle will help ensure that the air channels stay dry even when you have
taken a soaking bath or shower.
different blinking rate was picked in order to make it easier for the user to differentiate it from the standby of the regular
purge cycle.
turn off.
INFINITY AIR BATH CONTROL (SEE DIAGRAM 6C, PAGE 16) (continued):
3. To Change Speeds:
and pulse mode.
18 Aquatic Industries, Inc.
All Infinity Series jets are removable and can simply be put into the dishwasher for cleaning. (Note: Use dishwasher top
rack and remove before the drying cycle starts.)
The Infinity Series features Aquatic’s exclusive S
OPERATION of
INFINITY SERIES WHIRLPOOLS
JET OPERATIONS:
7A
7C
7B
SHIATSU BACK JETTING SYSTEM
Note: Rotary Massage Elite Jets are located in the center of the Shiatsu
Back Jetting System on all Infinity models and stacked in a second lounger
on Infinity models 4-6. Pressure Plus Jets are located on both sides of the
Rotary Massage Elite Jets. See instructions below:
• Toadjustpressure(see Diagram 7B):
1. Grasp the outer ring of the jet.
shut off.
• Toadjustcircularpattern(see Diagrams 7B and 7C):
• Toremovejet(see Diagram 7D):
1. Grasp the outer ring of the jet.
• Toreplaceorchangejet(see Diagram 7D):
1. Insert the jet into jet housing.
7D
PULSATING NECK JET PILLOW
The unique Pulsating Neck Jet Pillow (see Diagram 8A) offers a comfortable
place to rest your head while enjoying the luxury of a soothing neck massage
The Pulsating Neck Jet is pressure adjustable by simply turning the jet. The
Neck Jet can be removed and placed in the dishwasher for easy cleaning.
• ToRemove/ReplacePillow(see Diagram 8A):
1. To Remove: Grasp the pillow from the top and pull out and down.
2. To Replace: Line up loop tape on pillow with loop tape on the tub and
press firmly.
Aquatic Industries, Inc. 19
PRESSURE-FLO HYDROTHERAPY JETS
counter clockwise for a gentle flow of air and water or clockwise for stronger massage action.
• Toadjustpressure(see Diagram 9A):
1. Grasp the outer ring of the jet.
• Toadjustdirection(see Diagrams 9A and 9B):
• Toremovejet(see Diagram 9C):
1. Grasp the outer ring of the jet.
• Toreplaceorchangejet(see Diagram 9C):
1. Insert the jet into jet housing.
JET OPERATIONS (continued):
8C
8B
OPERATION of
INFINITY SERIES WHIRLPOOLS
• Toadjustpressure(see Diagram 8B):
1. Grasp the outer ring of the jet.
• Toremovejet(see Diagram 8C):
1. Grasp the outer ring of the jet.
• Toreplaceorchangejet(see Diagram 8C):
1. Insert the jet into jet housing.
8A
9A
9B
9C
20 Aquatic Industries, Inc.
OPERATION of
INFINITY SERIES WHIRLPOOLS
JET OPERATIONS (continued):
AQUATIC ROTARY MASSAGE JET
rotating massage action that is directionally and pressure adjustable for custom flexibility.
The Rotary Massage Jet massages the lower back and foot areas.
• Toadjustpressure(see Diagram 10A):
1. Grasp the outer ring of the jet.
• Toadjustcircularpattern
(see Diagrams 10A, 10B, and 10C):
pattern.
• Toremovejet(see Diagram 10D):
1. Grasp the outer ring of the jet.
• Toreplacejet(see Diagram 10D):
1. Insert the jet into jet housing.
10A
10B
10C
10D
PRESSURE PLUS JET
The Pressure Plus Jet massages the back in the Shiatsu Neck and Back Jetting System.
•Toadjustpressure(see Diagram 11A):
1. Grasp the outer ring of the jet.
• Toremovejet(see Diagram 11B):
1. Grasp the outer ring of the jet.
• Toreplaceorchangejet(see Diagram 11B):
1. Insert the jet into jet housing.
11A
11B
Other manuals for iNfiNity serIes
1
This manual suits for next models
9
Table of contents
Other Aquatic Hot Tub manuals
Aquatic
Aquatic HOTSOAK 76 AI21AIR7242CHS User manual
Aquatic
Aquatic SERENITY 6 User manual
Aquatic

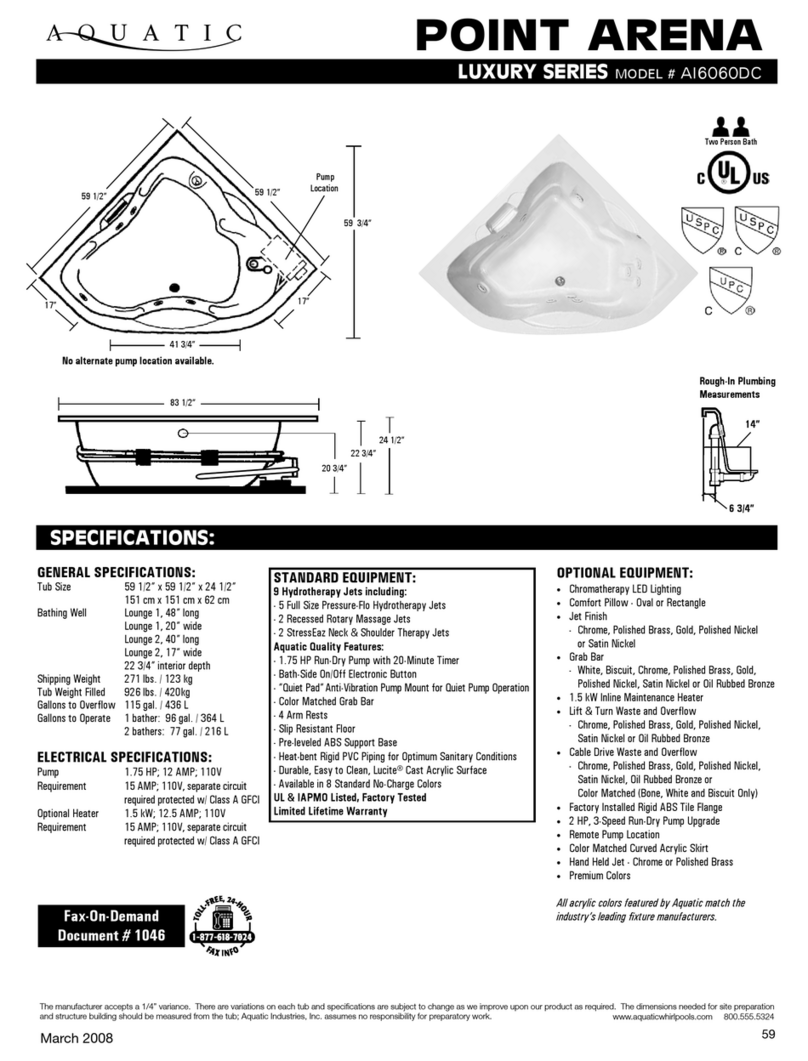

Aquatic Point Arena AI6060DC User manual
Aquatic
Aquatic Century 41 AI7248RC41 User manual
Aquatic
Aquatic SERENITY STUDIO 8 User manual
Aquatic
Aquatic SERENITY STUDIO 22 User manual
Aquatic
Aquatic MILLENNIUM 8 AI8mIl7272 User manual
Aquatic
Aquatic SYMPHONY 12 SYPHONY SERIES User manual
Aquatic
Aquatic LUXEAIR 23 ai23lux7036 User manual
Aquatic
Aquatic LUXEAIR 24 ai24lux6060 User manual
Aquatic
Aquatic HOTSOAK 58 AI7242RUOHS User manual
Aquatic
Aquatic AI29AIR7236HS User manual
Aquatic
Aquatic AIAL7236SY User manual
Aquatic
Aquatic Serenity 29 Motif User manual
Aquatic
Aquatic HOTSOAK 73 AI18AIR7242HS User manual
Aquatic
Aquatic Infinity 2 User manual
Aquatic
Aquatic AI7242RUO User manual
Aquatic
Aquatic INFINITY 8 AI8ANF6667 User manual
Aquatic
Aquatic Visit Links AI6042D User manual
Aquatic
Aquatic SERENITY 16 User manual
Popular Hot Tub manuals by other brands
InnovaSpa
InnovaSpa Urbania Standard 110 owner's manual
Invacare
Invacare TheraPure 3752G user manual
American Standard
American Standard 255.102 user manual
HotSpring
HotSpring 2009 Envoy owner's manual
Canadian Spa
Canadian Spa St Lawrence 16' Swim Spa KS-10006 user manual
Jacuzzi
Jacuzzi Bellavista DT20 Specification sheet
American Standard
American Standard CADET ELITE 2771E SERIES installation instructions
Jacuzzi
Jacuzzi Luna BF75-RH Specification sheet
Sundance Spas
Sundance Spas 880 Series owner's manual
Strong Pools and Spas
Strong Pools and Spas Rio Spa owner's manual
Gecko
Gecko Futura owner's manual
Jacuzzi
Jacuzzi J - 2 owner's manual
Jacuzzi
Jacuzzi era EU70 Specification sheet
VINGBERG
VINGBERG ThermoWood Norra Instructions for use
American Standard
American Standard Cadet Elite 2771EC Features & dimensions
Strong Pools and Spas
Strong Pools and Spas The Cyprus owner's manual
SOLTRON
SOLTRON XS-35 KISS*** operating instructions
Bestway
Bestway Lay-Z-Spa 54154 manual
