SPECIFICATIONS:
The manufacturer accepts a 1/4” variance. There are variations on each tub and specifications are subject to change as we improve upon our product as required. The dimensions needed for site preparation
and structure building should be measured from the tub; Aquatic Industries, Inc. assumes no responsibility for preparatory work. www.aquaticwhirlpools.com 800.555.5324
March 2008

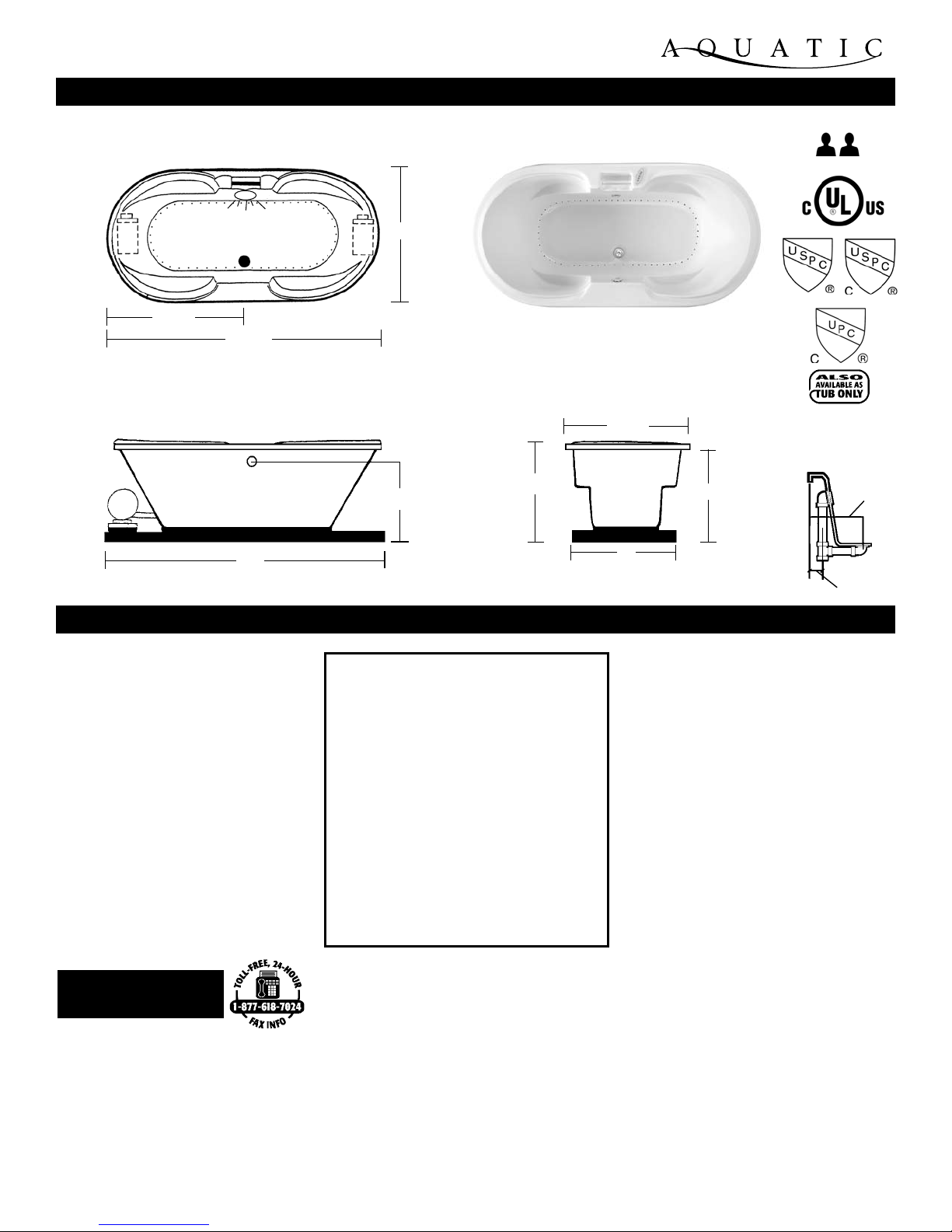

Rough-In Plumbing
Measurements
Air Bath System:
- 61 Air Jets
- 1 HP Variable Speed Air Blower with 20-Minute Timer
- 600 Watt Air Heating System
- Electronic Control Package with Wave and Pulse Features
- Automatic Purge and Dry Cycle with Water Sensors
Aquatic Quality Features:
- Chromatherapy
- Slip Resistant Floor
- Air Channels Lined with Antimicrobial Coating
- 4 Arm Rests
- Pre-leveled ABS Support Base
- Color Matched Grab Bar
- Durable, Easy to Clean, Lucite® Cast Acrylic Surface
- Available in 8 Standard No-Charge Colors
UL & IAPMO Listed, Factory Tested
Limited Lifetime Warranty
STANDARD EQUIPMENT:
• Comfort Pillow - Oval or Rectangle
• Grab Bar
- White, Biscuit, Chrome, Polished Brass, Gold,
Polished Nickel, Satin Nickel or Oil Rubbed Bronze
• Lift & Turn Waste and Overow
- Chrome, Polished Brass, Gold, Polished Nickel,
Satin Nickel or Oil Rubbed Bronze
• Cable Drive Waste and Overow
- Chrome, Polished Brass, Gold, Polished Nickel,
Satin Nickel, Oil Rubbed Bronze or
Color Matched (Bone, White and Biscuit Only)
• Waterproof Remote Control with infrared sensor
and 25’ cord
• Optional Blower Location
• Remote Blower Wiring Kit
• Premium Colors
All acrylic colors featured by Aquatic match the
industry’s leading xture manufacturers.
OPTIONAL EQUIPMENT:
Each Serenity Air Bath model is equipped with a 600 watt air heating system to raise the temperature of the air going into the bath. This air tem-
perature will be less than the bathing temperature of the water, but will help to reduce a rapid decrease in water temperature. In addition, the air
coming from the air jets will feel cool against the skin, just as a breeze on a warm day cools your body. This system does not heat the water.
GENERAL SPECIFICATIONS:
Tub Size 70 1/4” x 35 3/4” x 24 3/4”
178 cm x 91 cm x 63 cm
Bathing Well 45 3/4” long
19” wide
22 3/4” interior depth
Shipping Weight 146 lbs. / 66 kg
Tub Weight Filled 828 lbs. / 376 kg
Gallons to Overow 80 gal. / 303 L
Gallons to Operate 1 bather: 61 gal. / 231 L
2 bathers: 42 gal. / 159 L
ELECTRICAL SPECIFICATIONS:
Blower/Heater 1 HP; 10.5 AMP; 120V
Requirement 15 AMP; 120V, separate circuit
required protected w/ Class A GFCI
SErENITy 16
SErENITy Air Baths MODEL # AI16AIR7036 / AI16AIR7036TO (Tub Only)
35 1/8”
70 1/4”
35 3/4”
Two Person Bath
21 1/4”
65”
Note: Serenity tub only models feature a
Pre-leveled ABS Support Base.
35 3/4”
24 3/4” 23 1/4”
32”
Fax-On-Demand
Document # 1200
