Aquatic Digital Media Locker AQ-DM-6BT Guide

PLEASE READ THIS INSTRUCTION MANUAL BEFORE
INSTALLATION AND OPERATION
USER / INSTALLATION MANUAL
AQ-DM-6BT
DIGITAL MEDIA LOCKER™
for Bluetooth & MP3 devices

1 Getting Started....................................................................................................................
1.1 Contents........................................................................................................................
1.2 Connections...................................................................................................................
1.3 12-pin Harness Connection...........................................................................................
1.4 Mounting the Digital Media Locker................................................................................
1.5 Bluetooth Antenna Installation......................................................................................
1.6 Power On.......................................................................................................................
1.7 Handheld Remote Control Charging..............................................................................
1.8 Handheld Remote Control Synchronizing.......................................................................
2 Location of Controls............................................................................................................
2.1 Digital Media Locker Controls........................................................................................
2.2 Door Keypad Controls.....................................................................................................
2.3 Wireless Handheld Remote Control (sold separately).....................................................
3 Listening to Devices.............................................................................................................
3.1 Listening via Bluetooth..................................................................................................
3.1.1 Pair with Bluetooth Device......................................................................................
3.1.2 Listening via Bluetooth Device...............................................................................
3.1.3 Bluetooth Multi-link................................................................................................
3.2 Listening via Auxiliary Input...........................................................................................
3.3 Adjust Volume Level.......................................................................................................
4 Additional Features.............................................................................................................
4.1 Audio Menu....................................................................................................................
4.2 Virtual Bass (VBass)......................................................................................................
4.3 External 12V Triggers.....................................................................................................
4.4 Bluetooth Halo Aerial Technology...............................................................................................
5 Specifications & Dimensions..............................................................................................
5.1 Specifications................................................................................................................
5.2 Dimensions....................................................................................................................
6 Warranty Information..........................................................................................................
3
3
3
4
5
5
6
6
6
7
7
8
9
10
10
10
10
10
10
10
11
11
11
11
11
12
12
12
13
Table of Contents Digital Media Locker AQ-DM-6BT
2www.aquaticav.com

1.2 Connections (see Diagram 1.2.1)
1. 12-pin Watertight Harness
The 12-pin harness supplies power and ground connections to the Digital Media Locker
and four (4) speaker channel output connections from the Digital Media Locker (see Wiring
Diagram 1.3.1 on page 4).
Do not cut or modify the 12-pin harness on the BlueCube side or warranty will be void.
2. Auxiliary Outputs
Allows external amplifiers to be connected to power additional speakers.
3. Remote 8-pin DIN Cable (x2)
Allows connection of the optional wired and wireless Remote Controls (sold separately).
4. 12V DC External Trigger (x2)
Allows for external lighting or relays to be triggered (2A max load). This feature is only
available when using the optional Remote Control (sold separately).
5. Bluetooth Halo Aerial Connector
Connect the Bluetooth Halo Aerial Technology Antenna (AQ-BTANT-1) to the male SMA
connector. Do not apply excessive torque on the SMA connector (no more than 0.5N-m). Use
hands to tighten the connection (do not use a wrench).
Aquatic AV does not recommend the wired Remote Control (AQ-WR-6F) for use in spa applications.
• AQ-DM-6BT Digital Media Locker
• Wiring Harness (AQ-UNH-2 or manufacturers version)
• Six (6) Stainless Steel Mounting Screws
• Mounting Template*
• User/Installation Manual
• Bluetooth Antenna
1.1 Contents
*Retail packaged models only.
Getting Started Digital Media Locker AQ-DM-6BT
3www.aquaticav.com

The AQ-DM-6BT includes the universal harness AQ-UNH-2 in order to connect the stereo to
power and speakers.
All open wire connections should be soldered and protected against water and dust for best long-
term performance.
1.3 12-pin Harness Connection
1.3.1 12-pin Harness Wiring Diagram
No lower than a 2 Ohm load should be used
or damage may occur to the Media Player.
Make sure the polarity of speakers are
connected correctly.
1.2.1 Connections Diagram
12-pin Watertight Harness
RCA Auxiliary Outputs
12V DC Trigger (x2) (Brown)
Wireless Remote 8-pin DIN
Connectors (Black)
Bluetooth Halo Aerial Connector
(on rear side of Digital Media
Locker)
Getting Started Digital Media Locker AQ-DM-6BT
4www.aquaticav.com

1. A mounting template is included.
Aquatic AV recommends using the ‘measure
twice, cut once’ method.
2. Once the mounting hole is complete,
make sure the outside surface is clean and
clear of debris. The Digital Media Locker
has an external water/dust proof gasket, but
this requires a clean and flat surface for
best performance.
3. The Digital Media Locker has six (6)
front screws. Drive the screws using a screw
driver. During final mounting, apply equal
pressure to all points for the best water/
dust outer seal performance. make sure
screws are snug and do not over tighten.
4. Review all outside surfaces of the Digi-
tal Media Locker to ensure proper water/
dust seal. This is important for long term
environmental protection performance for
your digital media device.
1.4. Mounting the Digital Media Locker

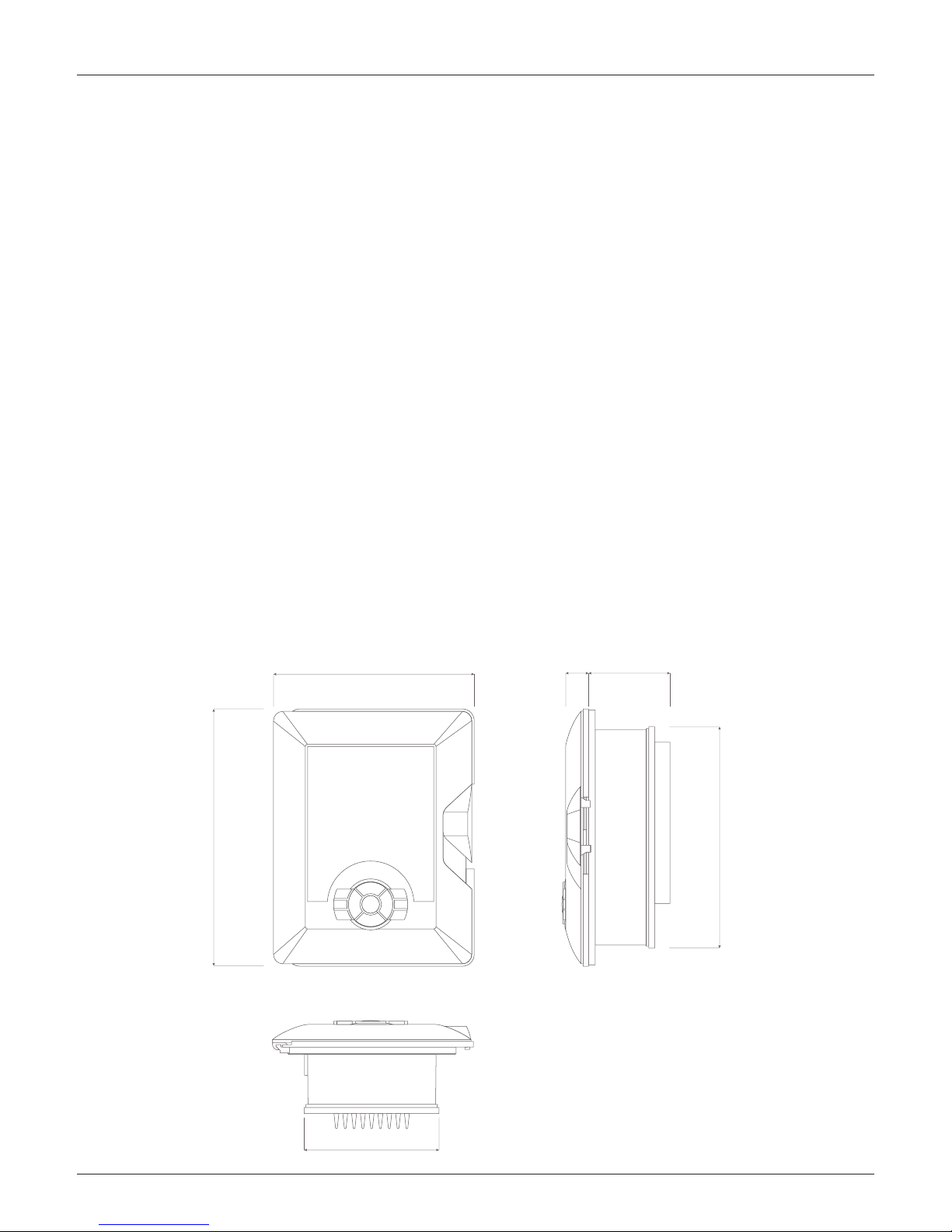

196.5mm
65mm26mm
120mm
1.5 Bluetooth Antenna Installation
1. Screw on the provided Bluetooth Antenna,
avoiding bending the cable at a 90° angle.
2. Install the Bluetooth antenna as high as
possible, above the waterline of the spa if possible,
and making sure the arrow is pointing directly
upwards towards the sky to ensure the Bluetooth
range is maximized. If there is no suitable surface
to screw it in, we recommend using a good quality
double sided tape.
Getting Started Digital Media Locker AQ-DM-6BT
5www.aquaticav.com

Press the ON/OFF button.
Red Light: Power to the docking station is ON, but the unit is in standby mode.
Blue Light: The unit is powered ON and looking for an audio source.
For applications that require low current draw and where battery drain may occur, the power but-
ton must be turned OFF inside the unit. When the power button is in the OFF position the red
LED will not be lit.
For applications where a 12V battery is not used, such as in a Spa, the power button can be left
ON and the remote control or door controls can then be used to power on/off accordingly.
For detailed instructions you can check out our online video:
‘How to wire your Aquatic AV stereo system’
http://www.aquaticav.com/support/videos
1.6 Power On
The optional remote AQ-RF-6UBT-T (sold separately) has a built-in Polymer Lithium re-
chargeable battery and comes with a charging cable. Connect one end of the charging cable
to the charging connection on remote control and connect the USB end of thje charging
cable to any USB charger (5V DC) for charging.
Make sure the remote has been charged before used.
1.7 Handheld Remote Control Charging
The AQ-RF-6UBT-T remote (sold separately) has a receiver module (AQ-RF-6UBT-R) with a
built-in male DIN connector. Connect the receiver module’s DIN connection to the female
DIN connector of the Digital Media Locker.
The remote should already be paired from the factory, but if you need to synchronize the
remote, follow the steps below.
1. Make sure Digital Media Locker is powered ON (red LED) 2. Put the remote within 0.5
meter of the Digital Media Locker.
2. Press and hold MODE on remote control until the LCD shows “Pairing in Progress”. Re-
lease the button.
3. Within 2 seconds, the LCD will show “Paired”. If it fails to pair, the LCD will show “Retry
again”. If this happens, wait 5 seconds and repeat steps above.
For any additional remote controls, you will also need to synchronize those remote controls to
the Digital Media Locker.
1.8 Handheld Remote Control Synchronizing
If the pairing process is not successful, try again to put your remote close to the remote receiver.
Depending on the frequency of usage, the remote may drain its battery. Please charge the remote before use. If the LCD
shows nothing, the battery has been drained and will need charging.
If you have lost or damaged your remote control and buy a new remote control, follow the above steps to pair the
new remote control.
Getting Started Digital Media Locker AQ-DM-6BT
6www.aquaticav.com

2.1 Digital Media Locker Controls
1. Open/Close Latch & Protective Door
2. Door Control Keypad
3. Power ON/OFF Button
4. 3.5mm Aux Input for MP3 device
5. Power ON/Standby LED
6. Water/Dust Protection Gasket
7. Security Strap for digital media devices
8. Charging Compartment for Remote Control
Location of Controls Digital Media Locker AQ-DM-6BT
7www.aquaticav.com

2.2 Door Keypad Controls
Location of Controls Digital Media Locker AQ-DM-6BT
8www.aquaticav.com

2.3 Wireless Handheld Remote Control AQ-RF-6UBT-T (sold separately)
Location of Controls Digital Media Locker AQ-DM-6BT
9www.aquaticav.com

1. Switch on your Bluetooth device.
2. Select ‘AQUATIC AV’ from the list of available devices to pair (no password is needed).
3.1.1 Pair with Bluetooth Device
3.1 Listening via Bluetooth
3.3 Adjust Volume Level
1. Press VOLUME UP once to increase the volume.
2. Press VOLUME DOWN once to reduce the volume.
3. Press and hold either VOLUME UP or VOLUME DOWN to increase or decrease audio
volume continuously.
3.1.2 Listening via Bluetooth Device
1. Bluetooth mode will be activated once a Bluetooth device is paired.
2. Play the song from device and the sound will play through the Digital Media Locker.
3. Press PLAY/PAUSE to play/pause the song.
4. Press FAST REWIND/FORWARD buttons to play previous/next song file.
4. Press and hold FAST REWIND/FORWARD buttons to fast forward / fast rewind the song
file.
5. Previous/next track and volume up/down can be controlled directly from your Bluetooth
device or directly from the Digital Media Locker remote control (sold separately).
3.1.3 Bluetooth Multi-link
A second Bluetooth device can pair to the Digital Media Locker even when it has been paired
to another Bluetooth device. The second Bluetooth device will be able to play once the first
device has stopped playing.
3.2 Listening via Auxiliary Input
1. Connect your MP3 device ot the 3.5mm inputs
2. Secure the device with the anchor straps in the locker.
3. Secure the Digital Media Locker’s protective door.
4. Press Mode on the remote control to select ‘AUX IN’ mode.
Only one Auxiliary input (RCA) can be used at any one time.
Listening to Devices Digital Media Locker AQ-DM-6BT
10www.aquaticav.com

4.1 Audio Menu with Handheld Remote Control (sold separately)
When the optional remote control AQ-RF-6UBT-T & AQ-RF-6UBT-R is used with the Digital Media
Locker several functions are unlocked. The audio DSP (Digital Signal Processor) provides preset
listening experiences for different music types.
1. To enter audio menu, press once AUDIO
button.
2. Each press of AUDIO button will advance
to the next audio setting as described on
the right.
3. In the audio menu, press and hold
AUDIO to save and exit the audio menu
back to the original mode.
4.2 Virtual Bass (VBass) with Handheld Remote Control (sold separately)
Virtual Bass (VBass) boosts the bass of the audio signal using the latest DSP technology and is
particularly useful when used with very small speakers to create perceived bass frequencies of a
much larger speaker.
Press VBASS once to toggle it ON or OFF.
If you have chosen preset equalizer (Rock, Classic,
or Pop), the previous Bass & Treble settings will be
overridden.
In any operational mode, press the 12V TRIGGER button to activate. Press again to deactivate.
If using two external trigger wires you can also activate the second external trigger by pressing
and holding the 12V TRIGGER button to activate. Press and hold again to deactivate.
Aquatic AV understands the need for more flexible remote applications. With the Digital Media
Locker Aquatic AV has provided two independent 12V ‘accessory’ triggers, activated from the
remote control. These could activate any 12V based device like 12V lights or 12V motors.
4.3 External 12V Triggers with Handheld Remote Control (sold separately)
Load on External Trigger should not exceed 2A.
Aquatic AV strongly recommend you speak to our technical service staff or your local Aquatic AV dealer if you are
considering using this feature.
4.4 Bluetooth Halo Aerial Technology
The Bluetooth Halo Aerial Technology antenna AQ-BTANT-1 (included) improves the standard
Bluetooth wireless signal and range, for a stronger signal and increased range in all directions.
Additional Features with Remote Control Digital Media Locker AQ-DM-6BT
11www.aquaticav.com

5.2 Dimensions
Media
Supported media....................................
Supported media max dimensions............
Device Control.......................................
Inputs
Auxiliary................................................
Outputs
Pre-Out..................................................
Power
Output voltage @ 2 Ohm.........................
Output voltage @ 4 Ohm.........................
Operation voltage....................................
Max current draw....................................
Standby current draw..............................
Multi-Environment Certifications
Waterproof / Dustproof............................
Conformal PCB coating...........................
UV protection.........................................
Salt/Fog protection.................................
Stainless Steel mountings.......................
Bluetooth / MP3 / AUX
107x184mm (WxH)
via Door Keypad or optional Handheld RF Remote Control
or Wired Remote Control (both sold separately)
1x 3.5mm Jack Socket
1x stereo pair RCA (4V)
4x 72W
4x 45W
9.6V - 14.4V DC
7A
6mA
Yes - IP65
Yes
500 hours stable, ASTM D4329 compliant
500 hours stable, ASTM B117 compliant
Yes
5.1 Specifications
228mm
178.5mm
196.5mm
120mm
65mm26mm
Specifications & Dimensions Digital Media Locker AQ-DM-6BT
12www.aquaticav.com

Aquatic AV offers a limited warranty of our products on the following terms:
Length of warranty
2 years on audio systems, electronics, speakers, and accessories (receipt required).
Coverage
This warranty covers only the original purchaser of an Aquatic AV product purchased from an
authorized Aquatic AV dealer. In order to receive service, the purchaser must provide Aquatic AV
with a copy of the receipt stating the customer name, dealer name, product purchased and date
of purchase.
Defective products
Products found to be defective during the warranty period will be repaired or replaced (with a
product deemed to be equivalent) at Aquatic AV’s discretion.
What is not covered
Damage caused by accident, abuse, improper operations or theft. Any cost or expense related to
the removal or reinstallation of product. Service performed by anyone other than an authorized
Aquatic AV service center. Any product with the serial number or tamper labels defaced, altered,
or removed. Subsequent damage to other components. Any product not purchased from an
authorized Aquatic AV dealer.
Limit on implied warranties
Any implied warranties including warranties of fitness for use and merchantability are limited
in duration to the period of the express warranty set forth above. Some states do not allow
limitations on the length of an implied warranty, so this limitation may not apply. No person is
authorized to assume for Aquatic AV any other liability in connection with the sale of the product.
How to obtain service
You must obtain a return material authorization number (RMA) to return any product to Aquatic
AV. You are responsible for shipping charges of returned products to Aquatic AV.
Please record the model and serial number[s] of your equipment in the space provided below as
your permanent record and will assist us with your factory warranty coverage. These numbers can
be found on the rear of the Digital Media Locker.
Model number[s]: Serial number[s]:
Warranty Information Digital Media Locker AQ-DM-6BT
13www.aquaticav.com

FCC ID:
MADE IN CHINA
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
NOTE:
The equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation.
If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Consult the dealer or an experienced radio/TV technician for help.
The manufacturer is not responsible for any radio or TV interference caused by unauthorized
modifications to this equipment. Such modifications could void the user authority to operate
the equipment.
Product design and specification subject to change without notice. E&OE.
Doc V2.1
FCC Statement Digital Media Locker AQ-DM-6BT
14www.aquaticav.com

E-mail: [e-mail]
US & Canada: 1 877 579 2782
International: [phone]
Fax: [phone]
www.aquaticav.com
Aquatic AV
282 Kinney Drive
San Jose, CA 95112, USA
