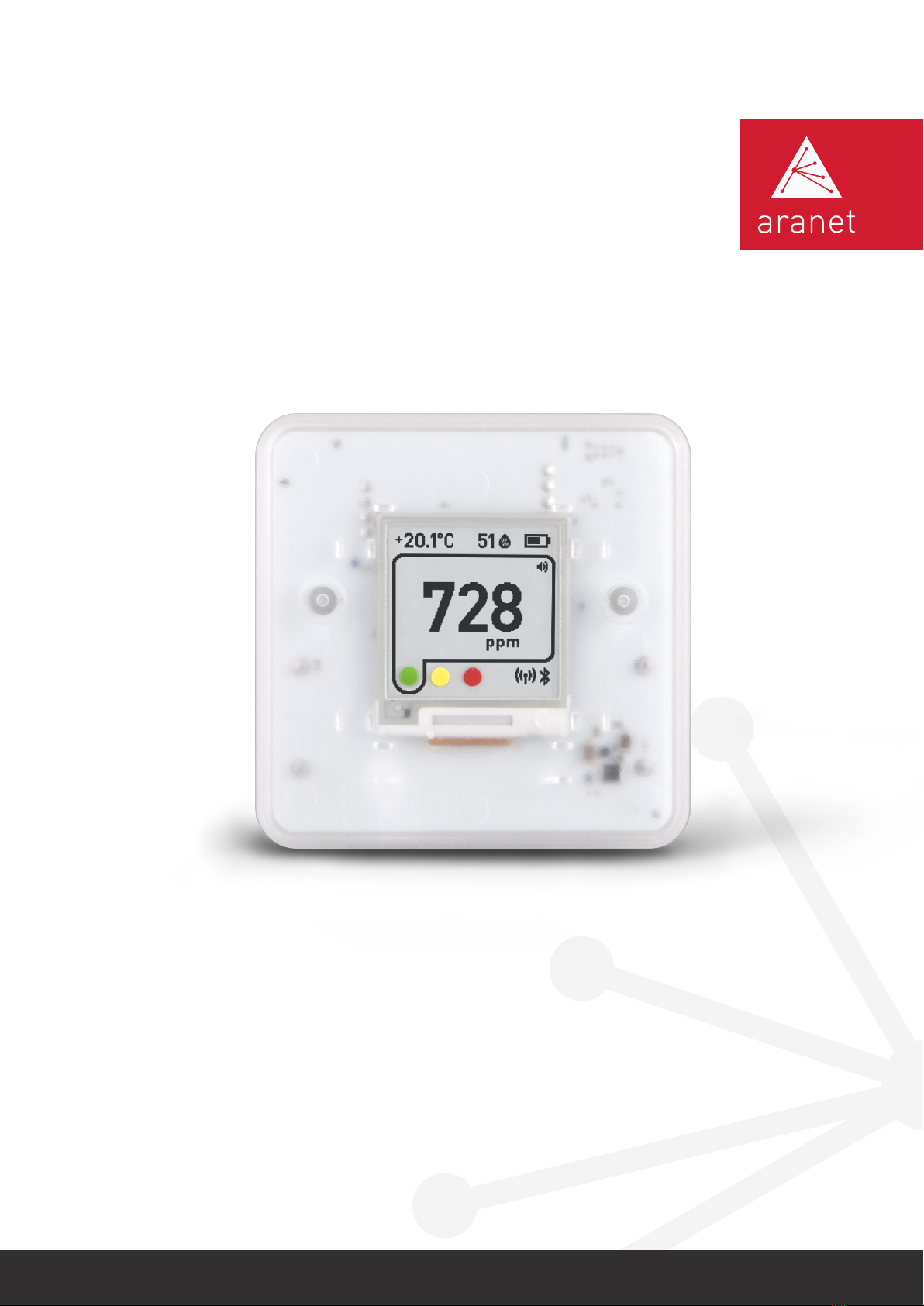

Aranet ARANET4 Series User manual

ARANET4
USER MANUAL
INNOVATIVE INDUSTRIAL IOT SOLUTIONS. MAKING ENVIRONMENTAL MONITORING EASY!
wireless indoor air
quality sensor

2 ARANET4 USER MANUAL
What is the Aranet4 device?
The Aranet4 sensor is a battery powered CO2meter with
additional measurements of temperature, relative humidity and
atmospheric pressure.*The device is suitable for monitoring
the CO2 level in indoor environments such as at home, in oce
or at school.
Measurement data are displayed on power-ecient e-ink screen
allowing for long battery life. Additionally the device can provide
a visual and sound notications in case the CO2level surpasses
the high concentration level of 1400 ppm (parts per million) –
level typically associated with complaints of drowsiness and
poor air quality.
Aranet4 uses the nondispersive infrared (NDIR) sensor to
measure the concentration of CO2. The CO2gas in the chamber
absorbs infrared light and this absorption is measured by the
sensor. The less light passes through – the higher the CO2
concentration. The CO2 gas absorbs only a specic wavelength
of the light therefore an optical lter is used.
By using the Aranet4 app on your smart device it is possible
to wirelessly access the real-time data and up to one week of
historical measurement data. The app also allows to congure
the Aranet4 device. The Aranet4 app supports connection of
several Aranet4 sensors to monitor their parameters remotely
from a single smart device.
Additionally up to 100 Aranet4 PRO devices can be connected to
the Aranet PRO base station. Refer to the chapter Using Aranet4
device with the Aranet PRO base station.
The Aranet4 sensor screen explained
1. CO2concentration level in ppm (parts per million).
2. Temperature of the air in Celsius or Fahrenheit. Refer to the
switch positions of the Aranet4 in chapter Switch positions
explained.
3. Relative humidity of the air (RH%).
4. Battery level.
5. Alarm status. The speaker symbol is visible when alarm
function is activated. The alarm settings can be adjusted
using the Aranet4 app.
6. Bluetooth status. If the Bluetooth symbol is visible the
Bluetooth pairing function is enabled. Refer to switch
positions of the Aranet4 in chapter Switch positions explained.
Make sure Bluetooth connectivity is enabled on your smart
device in order to connect to the Aranet4 device.
7. Radio status.** If the radio symbol is visible, the connectivity
with Aranet PRO base station is enabled. Refer to switch
positions of the Aranet4 in chapter Switch positions explained.
8. CO2indication mode. If the leaf symbol is visible the CO2
level indication is set to plant mode (plants require higher
CO2 level than humans). If the leaf symbol is not visible, then
CO2 level indication is set to human mode. You can select the
mode using the Aranet4 app.
9. CO2threshold level indication.
When the human mode of the CO2indication is selected:
• Green represents normal level (below 1000 ppm)
• Yellow represents average level (1000 to 1400 ppm)
• Red represents high level (above 1400 ppm)
When the plant mode is selected:
• Green represents normal level (above 500 ppm)
• Yellow represents average level (500 to 300 ppm)
• Red represents low level (below 300 ppm)
10. CO2calibration mode indication. Symbol “A” is displayed
when calibration is set to automatic. No letter is displayed
when calibration is set to manual mode.
Switch positions explained
The Aranet4 device has four small conguration switches that
allow the user to adjust the preferences of the device.
To access the conguration switches, open the cover of the
1
2
10
3 4
5
6
789
*Atmospheric pressure data measurements are available only on the Aranet4 app. More information in chapter How to pair the Aranet4 to my smart device.
** Function available only in Aranet4 PRO.
°C
AUTO
MANUAL °F 0 0

ARANET4 USER MANUAL 3
battery compartment on the back of the device. While batteries
remain inserted, adjust the switch position (up or down) using
the pin tool that is supplied with the Aranet4 device (or any other
suitable thin tool).
Switches can be adjusted while batteries are removed as well,
but note that if you remove the batteries, the measurement
history will be erased from Aranet4 memory. The changed
preference setting will be enabled once the batteries are inserted
back in.
The positions of the conguration switches have the following
meaning:
AUTO / MANUAL - switch the CO2calibration mode to either
manual (default position) or automatic mode.
Use MANUAL calibration mode in case you are not certain which
mode to use.
°C / °F - switch between either Celsius or Fahrenheit degrees.
Bluetooth / 0 - enable or disable (0) the Bluetooth connectivity.
Aranet radio / 0*- enable or disable (0) the Aranet radio
connectivity. Refer to chapter Using Aranet4 device with the Aranet
PRO base station.
CO2calibration
The Aranet4 device is calibrated at the factory. However, the
user can perform CO2calibration manually when needed. During
the manual calibration the Aranet4 device must be exposed to
fresh air (about 400 ppm of CO2) and the environment should
be stable (not changing). Maintain a distance of at least 1 meter
from the device during the calibration process.
To start the manual CO2calibration, change the position of
the switch from MANUAL to AUTO and then back to MANUAL
(maintain maximum of 1 second between each movement).
The calibration progress will be displayed on the screen of the
device. In case of a calibration failure message, make sure that
the environment requirements are met and repeat the process
from the beginning.
Manual calibration can be done using the Aranet4 app as well.
In case of automatic calibration mode, the Aranet4 device needs
to be exposed to a fresh air at around 400 ppm (for instance,
outdoors or room with good air exchange) at least once a week.
How to pair Aranet4 to my smart device
Connect your smartphone with the Aranet4 device via Bluetooth
by using iOS or Android app to:
• Access real-time measurement data overview
• View seven day measurement history
• Set alarms and frequency of sensor readings
• View atmospheric pressure monitoring
• Access all nearby Aranet4 devices
• Do the CO2calibration of the device
• Get access to the available rmware updates
The Aranet4 device can be connected to a smart device using the
Bluetooth connection and the Aranet4 app on either iPhone or
Android. Make sure Bluetooth connectivity is enabled on your
smart device and on your Aranet4 device.
To connect your Aranet4 device to your smart device do the
following steps:
• Launch the Aranet4 app and on the main page (My devices)
add a new device by clicking on the (+) symbol.
• Select your Aranet4 device from the list.
• When prompted, conrm the start of pairing.
• Type in the 6 digit passcode that is shown on the display of
your Aranet4 device.
Your mobile phone must have either Android 6.0 or newer (for Android)
or iOS 11.00 or newer (for iPhone) in order for you to be able to download
the app.
Using Aranet4 device with the Aranet PRO
base station
The Aranet PRO base station serves as a device for collecting,
storing and maintaining data from all types of Aranet sensors,
including Aranet4. Up to 100 sensors can be connected to a
single Aranet PRO base station which has a capacity to store the
measurement history up to 10 years.
To connect the Aranet4 device to the Aranet PRO base station,
initiate the sensor pairing mode on the Aranet PRO base station
and start the pairing on the Aranet4 device by changing the switch
position from disable (0) to enable (radio symbol). Alternatively,
while switch is in the enable position (radio symbol on screen is
visible), remove and reinsert the batteries. Please note, that by
removing the batteries, the measurement history will be erased
from the Aranet4 memory.
Find out more about the Aranet PRO base station at aranet.com
and follow the User Guide on how to pair Aranet sensors to the
Aranet PRO base station.
Frequently Asked Questions (FAQ)
If you can’t nd the answer that you are looking for in this manual,
please take a look at the Aranet4 FAQ section at aranet4.com/faq.
Otherwise send us a message to [email protected].
Returns and Warranty
In case of a return or a warranty claim, please contact
your sales representative. For Terms and Conditions refer
to aranet4.com/terms-conditions
*Function available only in Aranet4 PRO.

Aranet4 PRO Aranet4 HOME
Measurements CO2(carbon dioxide), temperature, relative humidity, atmospheric pressure
Measurement range
CO20-9999 ppm
temperature 0°C to 50°C (32°F to 122°F)
relative humidity 0% to 85% RH
atmospheric pressure 0.3 to 1.1 atm (4.4 to 16.0 psi)
Measurement accuracy*
CO20-2000 ppm ±50 ppm or 3% of reading; 2001-9999 ppm ±10% of reading
temperature ±0.4°C (±0.72°F)
relative humidity ±3%
atmospheric pressure ±0.001 atm
CO2measurement calibration Automatic or manual (at 400 ppm)
Operating environment Indoor use
Data transmission 1, 2, 5, 10 minutes
Data protection Data encryption
Power options 2 AA Alkaline batteries
Battery life at 20°C / 68°F Up to 2 years**
Operating temperature 0°C to 50°C (32°F to 122°F)
Operating humidity 0% to 85% non-condensing
Dimensions 70 x 70 x 24 mm / 2.716” x 2.76” x 0.94”
Weight 104 g (3.7 oz)
Construction Polycarbonate
Protection class IP20
Marking CE
Included 2 AA Alkaline batteries
Frequency Depends on the base station instructions
Line of sight range Bluetooth up to 10 m / 33 ft
Aranet radio up to 3 km / 1.9 mi
Bluetooth up to 10 m / 33 ft
Transmitter power Bluetooth: -12 dBm or 4 dBm
(selectable by user)
Aranet LoRa radio: 14 dBm
Bluetooth: -12 dBm or 4 dBm
(selectable by user)
Compatible base stations Aranet PRO (from v1.3.2) –
Part number TDSPC003 (EU)
TDSPC0U3 (NA)
TDSPC0R3 (RU)
TDSPC003.001 (Global)
*For best accuracy, recommended operating range is 10°C to 40°C (50°F to 104°F) and 20% to 60% RH (non-condensing).
Prolonged operation beyond these ranges may result in a shift of sensor reading, with slow recovery time.
** Bluetooth pairing disabled, LoRa radio disabled, data transmission at a 10 minute interval.
Aranet4 is not impact resistant!
Do not use the device in high humidity environments (greater than 85%)!
Do not leave the device in direct sunlight!
For more information about Aranet products visit www.aranet.com, contact your Aranet representative or write to [email protected].
Product specications are subject to change without prior notice. Copyright © 2019 SAF Tehnika, JSC. All rights reserved.
