Arcam DiVA CD62 User manual

CD62
DiVA CD62
Compact Disc Player (Text)
Service Manual
ARCAM
ARCAM
Issue 1.0

Contents List
! Contents list
! Circuit description
! Service guide
! Circuit diagrams
! Component overlays
! Circuit board parts list
! General assembly parts list

CD62 (text) Circuit Description
Summary
The main Motherboard/Display PCBs for the Diva CD players
may be assembled as three different versions:
! DiVA CD62 (text) - With alternate components fitted
and the 92DAC upgrade connections omitted
(L933AY).
! DiVA CD72 (text) - With the standard set of
components fitted (L899AY).
! DiVA CD92 (text) - With analogue components and
connectors omitted, for use as a host motherboard for
the plug-in 92DAC (L934AY).
All systems are based on a Sony kit, comprising CDM14BL-
5BD25 CD transport / loader / laser mechanism, micro-controller
and fluorescent display.
Power Supplies
The CD62 may be fitted with any of the following transformers
dependant on supply voltage required:-
! 230VAC only - part number L849TX
! 115VAC only - part number L850TX
! 100VAC only - part number L851TX
Later models are fitted with L867TX which is a 230/115VAC
transformer.
The mains transformer has three secondary windings:
1. 13.7V – 0V – 13.7V to provide ±12V(A) supplies
(IC201 and IC205) for the audio output circuitry via
regulators IC201 and IC205.
2. 9V-0V-32V to produce the digital, motor drive and
fluorescent display grid supplies:
+11V(U) Unregulated supply for relay drive and
+5V(D) supply
+7V (IC200) Mechanism and motor driver
supply
+5V(D) (IC202) General digital logic supply
+5V(A) (IC203) Supply to DAC
-30V (IC204) Display grid voltage.
3. 0-5V to provide an AC supply for the display
filament.
Relay Mute Control
This circuit drives a relay to un-mute the analogue output ~5
seconds after the unit is powered on, and quickly mutes the
output when the unit is switched off. The circuit works
effectively as an “AND” gate.
If AC is present on the transformer secondary winding and the 5-
second timer composed of R222 and C221 has reached the
threshold voltage (Vbe of TR200 + Vbe of TR201 - Vce of
TR202, or ~1.0V), the relay coil is connected to +11V
(referenced to 0V_3 as required by the 9DAC’s internal circuitry)
via TR204.
When AC is removed, C231 discharges quickly through R225,
the base voltage of TR204 rises and the relay coil voltage is
removed, muting the output.
TR203 resets the ‘timer’ by discharging C221 quickly at turn-off.
Remote Control/PIC Micro
Remote control data is received from the IREye on the display
PCB and buffered by TR300 and TR301. The Programmable
Interrupt Controller converts the RC-5 format data into the NEC
format required by the Sony micro.
Motor Driver
The status of the drawer is indicated to the micro by two micro
switches ‘INSW’ and ‘OUTSW’ on SK205. The micro controls
the drawer motor via driver IC303.
Clock Buffering
The clock and data signals LRCK, ADATA and BCLK from the
mechanism connector SK300 are double buffered by IC300
before being delivered to the DAC.
Power-On/Reset
The power-on reset signal XRST (or RESET) is generated by
R409, C410 and IC404. When the power is turned on, C410 is
initially uncharged and pin 11 of IC404 is at high voltage, and
thus the output is low. After a short time, C410 is charged via
R409; IC404 pin 11 is then low, and the output switches high
(RESET is de-asserted).
DAC & System Clock
The DAC is a Burr Brown PCM1716E, the DAC is configured
for hardware control.
Digital audio is input on pins 1, 2 & 3 in standard Red Book
Audio format, i.e. Word Clock, Bit Clock and Data.
The system clock is based around 16.9344 MHZ crystal X400
and transistor TR402. This produces a stable clock with low
jitter. IC404A & B buffer the clock as linear buffers. IC404C &
D buffer the individual mech & DAC clock lines.
Analogue Output
Left channel:
IC400A and IC400B are cascaded 69kHz 2nd order low-pass
Bessel filters. The output devices internal to both op-amps in
IC400 are “pulled down” to the negative supply rail to force
operation in class A (one output device is conducting at all times
and crossover distortion is eliminated).
C448 AC-couples the output, the muting relay shorts the output
to ground through 120 ohm series resistors, and 3N3
Polypropylene shunt capacitors are used to swamp cable
capacitance, ensuring stability and making up the 5th pole of the
filter.
The right channel is the same as the left channel. IC401A & B
are used as the buffer and filter.

Microcontroller & Display Board
The system microcontroller IC100 serves the following functions:
! Control of the mechanism & decoder on the CDM14
mechanism
! Control of mute, attenuation and de-emphasis for the
DAC
! Direct drive of the fluorescent display
! Remote control decoding
! Keyboard scanning
The keyboard scanning works by connecting the keys to a resistor
ladder on an ADC input to the micro. Pressing a key presents a
unique voltage to this input, which the micro is pre-programmed
to interpret accordingly.
The remote control data contains a ‘Customer Code’ that
identifies this as an Arcam product. The diode network D100 to
D106 configures the micro to accept this code.
Remote Bus Carrier Filter & Demodulator
Remote control commands can be delivered over wire to SK500
for multi-room applications. Incoming signals are attenuated and
clipped by resistors and D500. L500 and C508 form a parallel
resonant circuit at approximately 37kHz. This demodulates the
incoming signal and the output is passed to IC501A where it is
‘chopped’, low pass filtered and fed to IC501B to provide the
RC5 output signal.
Digital Output
The decoder on the mechanism assembly generates an SPDIF
format digital output signal. This is passed to buffer IC500A.
IC500B through E are used in parallel to provide a transformer
less 75-ohm source impedance to a single phono socket SK501.
Optical digital output via IC502 is also tapped off the digital
output signal via IC500F.

Jumper Settings / Technical Specifications
Jumper Description Jumper CD62T
Settings
CD72T
Settings
CD92T
Settings
Filter smoothing disable PL200 Not fitted Off On
Filter smoothing disable PL201 Not fitted Off On
IC201 Regulator bypass PL202 Not fitted Off On
IC201 Regulator output
enable PL203 On On Off
IC205 Regulator bypass PL204 Not fitted Off On
IC205 Regulator output
enable PL205 On On Off
System clock source
select PL300 Pin1 & 2 Pins 1 & 2 Pins 2 & 3
Main board clock power
enable PL400 On On Off
Main board PCM1716E
DAC enable PL401 On On Off
Main board output relay
enable PL402 On On Off
CD62T / CD72T
CD Mechanism Sony CDM14BL-5BD25
Laser pick-up 3 beam
DAC conversion system Multi-level Delta Sigma
Effective resolution 16 bits (24 bit capable DAC)
Dynamic Range 100dB
Signal to Noise ratio (CCIR) >104dB
Harmonic distortion (0dBFS 1kHz) <0.005%
Harmonic distortion (0dBFS 10kHz) <0.005%
Frequency response (-0.7dB) < 10Hz to 20kHz
Output level (0dBFS) 2.3VRMS
Output impedance 120 ohms
Minimum recommended load 5 kΩ
Coaxial digital output (75 ohm) Class 2
Power consumption (max) 32VA
Size W/D/H (mm) 430x290x84
Weight, net 4.6kg (CD92T 5.6kg)

12345678
A
B
C
D
87654321
D
C
B
A
ISSUE
DRAWING NO.
23425
DRAWING TITLE
Drawn by:
DATE
Filename ECO No. DESCRIPTION OF CHANGE
J:\Change_Control\ECO_AGENDA\01_1127 CD62T RLEASE\Motherboard\l933ct_2.1.ddb - L933_2.1.prj
A & R Cambridge Ltd.
Pembroke Avenue
Denny Industrial Centre
Waterbeach
Cambridge CB5 9PB
CD62T - TOP LEVEL SCHEMATIC
Circuit Diagram
L933CT
TGP
19-Jul-2001
INITIALS
Date Printed 6 7Sheet of
Notes:
FILA
FILB
L933C2_1
L933C2_2.1.sch
FILA
FILB BCLK ADATA
LRCKRC5 IP
17MHZ
RESET DIGOP EMPHASIS
L933C3_1
L933C3_2.1.sch DEEM
LRCK
ADATA
BCLK
RESET
17MHZ
L933C4_1
L933C4_2.1.sch
DIGOP RC5RP
L933C5_1
L933C5_2.1.sch
POWER SUPPLIES MECH INTERCONNECTS DAC AND OSCILLATOR
RC5 INPUT AND DIG OUTPUTS
0V_1
0V_2
0V_SIG
0V_MOT
0V_DIG
0V_30V_9DAC
FIX151
FIXING HOLE 3.2 FIX150 FIXING HOLE 3.5
FIX152
FIXING HOLE 3.5 FIX153 FIXING HOLE 3.5
FIX157
FIXING HOLE 3.2 FIX155 FIXING HOLE 3.5 FIX156 FIXING HOLE 3.5
FIX154
FIXING HOLE 3.5
(EARTH BY IEC SOCKET)
C150
1N0 CD C151
1N0 CD C152 1N0 CD C153 1N0 CD C154 1N0 CD C155 1N0 CD C156 1N0 CD
0V_DIG 0V_DIG 0V_DIG 0V_DIG 0V_DIG 0V_DIG 0V_DIG
SP100
STARPOINT
L933C7_1
L933C7_2.1.sch
L933C1_1
L933C1_2.1.sch
DISPLAY PCB
DISPLAY AND MICROCONTROLLER
2.1
0V_DIG 0V_9DAC
LK601
0R0 MF
LK600
0R0 MF
Please refer to the CD72T (Master) schematic if changes are to be made to this schematic!
USE EXCLUDE NF WHEN CREATING BILL OF MATERIALS
Production Release
NF
01_1127 TGP 18 July 2001

12345678
A
B
C
D
8
7654321
D
C
B
A
ISSUE
DRAWING NO.
23425
DRAWING TITLE
Drawn by:
DATE
Filename ECO No. DESCRIPTION OF CHANGE
J:\Change_Control\ECO_AGENDA\01_1127 CD62T RLEASE\Motherboard\l933ct_2.1.ddb - L933C2_2.1.sch
A & R Cambridge Ltd.
Pembroke Avenue
Denny Industrial Centre
Waterbeach
Cambridge CB5 9PB

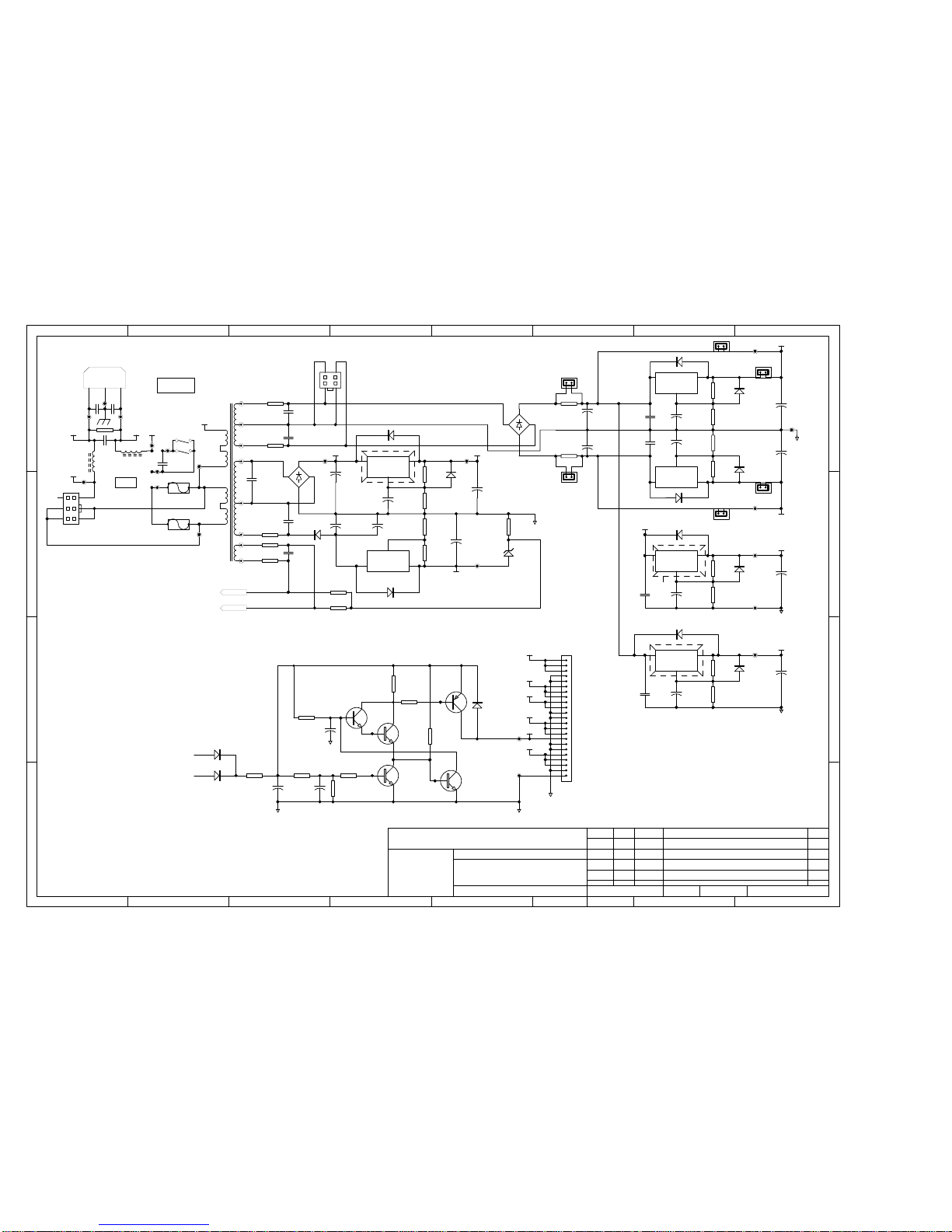

CD62T - POWER SUPPLIES
Circuit Diagram
L933CT
TGP
19-Jul-2001
INITIALS
Date Printed 2 7Sheet of
Notes:
L
N
E
NEL
SK200
IEC3
C200
3N3(X1Y2) C201 3N3(X1Y2)
C203
220N(X2)
NEUTRAL LIVE
NEUTRAL2
L200
6U8H L201 6U8H
NEUTRAL2
FS201
T160MA
FS200
T250MA115V
230V ONLY
115V ONLY
EARTH LEAD
8M101
EL200
EARTH LEAD
(IEC INLET TO CHASSIS)
1
2
3
4
5
6
SK202
MOLEXPWR6
(FOR AUX TOROID)
SW200B
A1010
SW200A
A1010
LIVE2
C202
3N3(X1Y2)
C204
100N CD
C205
100N CD
C206
100N CD
C207
100N CD
C208
100N CD
R200
1R0 FU
R201
1R0 FU
BR201
DF01M
+C211
1M0 35V
+C212
1M0 35V
1 2
PL200
2WVERTJUMPER
1 2
PL201
2WVERTJUMPER
JP200
JUMPER
JP201
JUMPER
Vin
I
ADJ
A
Vout O
IC201LM317T
Vin
I
ADJ A
Vout O
IC205LM337T
R208
1K8 MF
R209
1K8 MF
R206
220R MF
R207
220R MF
+C216
100U EL
+C217
100U EL
D203
1N4148
D204
1N4148
1 2
PL203
2WVERTJUMPER
1 2
PL205
2WVERTJUMPER
1 2
PL204
2WVERTJUMPER
1 2
PL202
2WVERTJUMPER
JP202
JUMPER
JP203
JUMPER
JP205
JUMPER
JP204
JUMPER
+12V(A)
-12V(A)
0V_1
BR200
DF01M +C210
3M3 EL
Vin
I
ADJ
A
Vout O
IC200
LM1086-ADJ
R203
330R MF
R214
1K6 MF
+C218
100U EL
D201
1N4148
D200
1N4148
D202
1N4148
D207
1N4148
+C228
1M0 10V
+7V
0V_2
HS201
TO220HS30REG
+11V(U)
1 2
3 4
SK201
MOLEXPWR4
(FOR AUX TOROID)
Vin
I
ADJ
A
Vout O
IC202
LM317T
R218
270R MF
R220
820R MF
+C219
100U EL
D208
1N4148
C209
100N CD
D206
1N4148
+C220
100U EL
+5V(D)
0V_2
+11V(U)
Vin
I
ADJ
A
Vout O
IC203
LM317T
R219
270R MF
R221
820R MF
+C222
100U EL
D212
1N4148
D211
1N4148 +5V(A)
0V_1
Motor drive supply
Analogue op-amp supplies
DAC supply
Digital +5V
C215
100N PE
+C223
1M0 25V
+C224
1M0 25V
R204
10R MF
R205
10R MF
+C229
1M0 10V
R211
10R FU
D213
1N4003
+C225
100U EL 100V
Vin
I
ADJ A
Vout O
IC204LM337T
R216
1K0 MF
R215
22K MF
+C227
100U EL 100V
D205
1N4148
-30VF
R217
33K MF
FILA
FILB
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23 SK203
FFC23V
+12V(A)
0V_9DAC
-12V(A)
+5V(A)
+5V(D)
+11V(U)
Power connector for 9DAC PCB
+C226
100U EL 100V
C213
100N PE
C214
100N PE
D209
1N4148
D210
1N4148
0V_3
R224
10K MF
+
C230
100U EL
+
C231
10U EL
AC1
AC2
AC1
Relay control for AC detect
HS202
TO220HS30REG
Filiament supply
115V
230V
AC_3
TX_19
TX_20
TX_16
TX_18
BLU
BLU
BRN BRN
R2101R0 FU
R212
1R0 FU
R228
100R MF
R227
100R MF
RLYPWR
D214
5V1 400MW
NF
NF
R202
1M5 VR25
R223
10K MF
R213
10R FU
D215
1N4148
+
C221
100U EL
TR204
BC557B
R229
1K5 MF
R226
10K MF
AC2
R230
10K MF
0V_3
0V_3
R225
2K2 MF
R222
470K MF
TR200
BC549B
TR201
BC549B
TR202
BC549B TR203
BC549B
NF
NF
NFNF
NF
NF
NF
NF
NF
NB: CABLE ASSEMBLY L920CA GOES BETWEEN
BRN BRN AND BLU BLU FROM MAINS SWITCH TO BACK OF PCB
L920CA
CA1
L920CA
HS
HS200
TO220HS08REG
2.1TGP 18 July 2001
20
11
1
6
230V
115V
9
19
15
18
16
17
13
4
5
10
2
7
TX200
L849TX
Production Release01_1127

12345678
A
B
C
D
8
7654321
D
C
B
A
ISSUE
DRAWING NO.
23425
DRAWING TITLE
Drawn by:
DATE
Filename ECO No. DESCRIPTION OF CHANGE
J:\Change_Control\ECO_AGENDA\01_1127 CD62T RLEASE\Motherboard\l933ct_2.1.ddb - L933C3_2.1.sch
A & R Cambridge Ltd.
Pembroke Avenue
Denny Industrial Centre
Waterbeach
Cambridge CB5 9PB

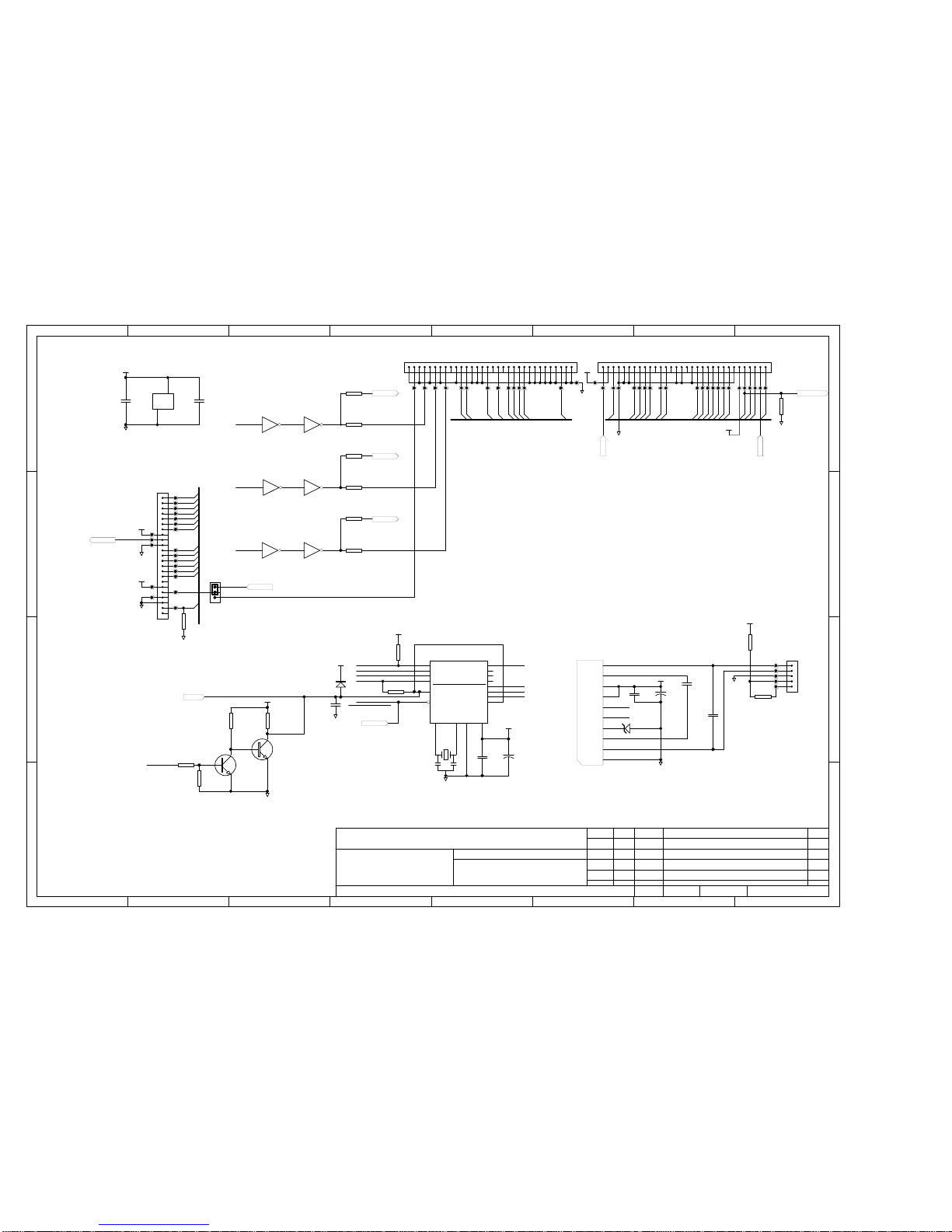

CD62T - MECH CONNECTS, MOTOR DRIVE AND IR MICRO
Circuit Diagram
L933CT
TGP
19-Jul-2001
INITIALS Date Printed 3 7Sheet of
Notes:
1
2
3
PL300
3WVERTJUMPER
FILA FILB
Flexfoil connector to Display PCB
1 2 3 4 5 6 7 8 9
10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32
SK302
FFC32V
Data connector to DAC PCB
1 2 3 4 5 6 7 8 9
10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32
SK301
FFC32V
HDCD DEEM RA0 RB6 RB5 RB4 RB0 XRST AMUTE
BCLK
DATA
CLK
SUBQ
SENS
XLT
LDON
AMUTE
SQCK
SCOR
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
SK300
FFC23V
XRST
LPH
RA2
1
RA3
2
RTCC
3
MCLR
4
VSS
5
RB0 6
RB1 7
RB2 8
RB3 9
RB4 10
RB5 11
RB6 12
RB7 13
VDD
14
OSC2
15
OSC1
16
RA0
17
RA1
18
IC302
PIC16C54XT
RA0
AMUTE RB0
RB4
RB5
RB6
RMIN
XRST
+5V(D)
R311
100K MF
+5V(D)
DEEM
IREYE
C304
100P CD
D300
1N4148
+5V(D)
BCLK
ADATA
LRCK
GND 1
O/P 'In' 2
3
Bias 4
LoadIn 5
LoadOut 6
Vcc 7
Vcc 8
9
O/P 'Out' 10
IC303
LB1641 1
2
3
4
5
SK303
8K2005
C307
10N CD
D301
4V7 400MW
LOADOUT
LOADIN
GND
INSW
OUTSW
+7V
R312
6K8 MF
C303
100N CD
+C306
100U EL
X300
CST4.00
C302
100N CD
+C305
100U EL
C300
100N CD
+5V(D)
Flex connector from CDM14BL-5BD25 mech
R300
330R MF
R304
330R MF
R306
330R MF
R309
10K MF
R308
10K MF
R310
10K MF
R307
10K MF
RC5 IP +5V(D)
0V_DIG
+7V
ADATA
LRCK
0V_DIG
+5V(D)
0V_9DAC
R301
330R MF
R302
330R MF
R305
330R MF
C301
100N CD
0V_DIG
LRCK
ADATA
BCLK
17MHZ
TR300
BC549B
TR301
BC549B
0V_DIG
0V_DIG
0V_DIG
RESET
-30VF
+5V(D)
0V_DIG
SCOR IREYE RMIN HDCD LDOUT LDIN SENS XLT AMUTE CLK LDON DATA SQCK SUBQ LOADSW XRST LPH DEEM
DIGOP
0V_MOT
0V_MOT LOADSW
LDIN
LDOUT
EMPHASIS
Motor Drive
R303
6K8 MF
+5V(D)
C308
100N CD
(From 9 DAC PCB)
JP300
JUMPER
(Master clock select jumper)
(From crystal oscillator)
R313
100K MF
R314
10K MF
0V_DIG
R315
10K MF
0V_DIG
1 2
IC300A
74HCU04
3 4
IC300B
74HCU04
5 6
IC300C
74HCU04
89
IC300D
74HCU04
1011
IC300E
74HCU04
1213
IC300F
74HCU04
14
7
IC300G
74HCU04
NF
NF
NF
NF
2.1TGP 18 July 2001 Production Release01_1127

12345678
A
B
C
D
8
7654321
D
C
B
A
ISSUE
DRAWING NO.
23425
DRAWING TITLE
Drawn by:
DATE
Filename ECO No. DESCRIPTION OF CHANGE
J:\Change_Control\ECO_AGENDA\01_1127 CD62T RLEASE\Motherboard\l933ct_2.1.ddb - L933C4_2.1.sch
A & R Cambridge Ltd.
Pembroke Avenue
Denny Industrial Centre
Waterbeach
Cambridge CB5 9PB
CD62T - DAC, OSCILLATOR AND ANALOGUE OUTPUTS
Circuit Diagram
L933CT
TGP
19-Jul-2001
INITIALS
Date Printed 4 7Sheet of
Notes:
X400
16.9344MHZ
C441
33P CD
R426
33K MF
R427
33K MF
C438
100P CD
C439
100P CD R430
1K0 MF
TR402
BC547B
C412
10N CD
C440
1N0 CD
3 4
IC404B
74HCU04
1 2
IC404A
74HCU04 5 6
IC404C
74HCU04
1011
IC404E
74HCU04
89
IC404D
74HCU04
14
7
IC404G
74HCU04
R429
4M7 MF
R428
330R MF
L403
33UH AX
C437
10N CD
0V_DIG
DEEM
+5V(DAC)
0V_SIG
0V_SIG
0V_SIG
+5V(DAC)
0V_DIG
+5V(DAC)
0V_DIG
0V_SIG
0V_SIG
+5V(DAC)
+5V(DAC)
R409
10K MF
D400
1N4148
0V_DIG
+5V(D)
R413
4K7 MF
R415
2K7 MF
R410
6K8 MF
C416
560P PP
C418
220P PP
R416
2K7 MF
R403
1K8 MF
C422
1N3 PP
C420
220P PP
R419
3K9 MF
3
21
IC400A
NJM2114
5
67
IC400B
NJM2114
0V_SIG
84
IC400C
NJM2114
3
2
1
IC402A
TL072
84
IC402C
TL072
C424
470N PE
0V_SIG
R421
1M0 MF
R414
4K7 MF
R417
2K7 MF
R411
6K8 MF
C417
560P PP
C419
220P PP
R418
2K7 MF
R404
1K8 MF
C423
1N3 PP
C421
220P PP
R420
3K9 MF
3
21
IC401A
NJM2114
5
67
IC401B
NJM2114
0V_SIG
5
6
7
IC402B
TL072
C425
470N PE
R422
1M0 MF
84
IC401C
NJM2114
C402
100N PE
C403
100N PE
C404
100N PE
C405
100N PE
C406
100N PE
C407
100N PE
+12V(A)
-12V(A)
0V_SIG R405
120R MF
R406
120R MF
0V_SIG
0V_SIG
1
EMC
SK400
PHONO2HG
0V_SIG
0V_SIG
C434
100N CD
EMC1
EMC1
0V_DIG
0V_DIG
R400
330R MF
R425
1M0 MF
1213
IC404F
74HCU04
R401
330R MF
R408
120R MF
R407
120R MF
C400
100N CD
1
2
PL400
2WVERTJUMPER
JP400
JUMPER
+5V(D)
+5V(A)
LRCK
ADATA
BCLK
+C410
100U EL
RESET
17MHZ
0V_SIG
C426
3N3 PP
C427
3N3 PP
DACLK
DACLK
1 2
PL401
2WVERTJUMPER
JP401
JUMPER
(DAC enable jumper)
R432
10K MF
R439
1M0 MF
R431
10K MF
+5V(DAC)
R402
4K7 MF R412 4K7 MF
0V_SIG
C446
10P CD
C447
10P CD
0V_DIG
0V_DIG
L400
7F003
C414
100N CD
L402
7F003
C413
100N CD
R435
680R MF
R436
680R MF
-12V(A)
-12V(A)
R433
1K0 MF
R434
1K0 MF
-12V(A)
-12V(A)
R437
100K MF
R438
100K MF
(Oscillator enable jumper)
(Master clock to DAC)
(Master clock to mech)
Output filter
Output filter
EMC Shield
SH400
EMCPHONO
LRCIN
1
DIN
2
BCKIN
3
CLKO
4
XTI
5
XTO
6
DGND
7
Vdd
8
Vcc2R
9
AGND2R
10
EXT1R
11
NC
12
VOUTR
13
AGND1
14 Vcc 15
VOUTL 16
NC 17
EXTL 18
AGND2L 19
Vcc2L 20
ZERO 21
RST 22
CS/IWO 23
MODE 24
MUTE 25
MD/DM0 26
MC/DM1 27
ML/IIS 28
IC403
PCM1716#
R423
22K MF
R424
22K MF
+
C448
10u CERA
+
C449
10u CERA
R442
2K2 MF
R443
2K2 MF
0V_SIG
0V_SIG
L401
7F003
L404
7F003
D402
1N4148
LK400
LINK10PAD
LK401
LINK10PAD
RLY400A
DPDT
RLY400B
DPDT
0V_SIG
0V_SIG
RLY400C
DPDT
0V_3
RLYPWR
D401
1N4148
C445
100N PE
C450
100N PE
1
2
PL402
2WVERTJUMPER
JP402
JUMPER
NF
NF
NF
NF
NF
NF
NF
NF
NF
NF
NF
NF
NF
NF
NF
NF
NF
+C428
10U EL +
C433
10U EL
+
C429
10U EL
+C430
10U EL
+C432
10U EL
+C431
10U EL
C411
47N CD C401
47N CD
C408
47N CD
C409
47N CD C444 47N CD
C443
47N CD
C442
47N CD
C415
47N CD
C435
47N CD
+C436
10U EL
NF
NF
2.1TGP 18 July 2001 Production Release01_1127

12345678
A
B
C
D
8
7654321
D
C
B
A
ISSUE
DRAWING NO.
23425
DRAWING TITLE
Drawn by:
DATE
Filename ECO No. DESCRIPTION OF CHANGE
J:\Change_Control\ECO_AGENDA\01_1127 CD62T RLEASE\Motherboard\l933ct_2.1.ddb - L933C5_2.1.sch
A & R Cambridge Ltd.
Pembroke Avenue
Denny Industrial Centre
Waterbeach
Cambridge CB5 9PB
CD62T - REAR PANEL RC5 & DIGITAL OUTPUT
Circuit Diagram
L933CT
TGP
19-Jul-2001
INITIALS Date Printed 5 7Sheet of
Notes:
R516
1K2 MF
EMC
SK501
PHONO1
C501
10N CD
1 2
IC500A
74HCU04
5 6
IC500C
74HCU04
3 4
IC500B
74HCU04
89
IC500D
74HCU04
1011
IC500E
74HCU04
1213
IC500F
74HCU04
14
7
IC500G
74HCU04
+5V(D)
R500
10R MF
0V_DIG
+5V(D)
0V_DIG
0V_DIG
R517
1K2 MF
R518
1K2 MF
R505
120R MF
R506
1K2 MF
DIGOP
C502
470N PE
0V_DIG
R501
10R MF
L500
27mH C508
680P PP
+5V(D)
RC5RP
CARRIER FILTER AND DEMODULATOR
R511
470R MF
R504
1K0 MF
R512
100K MF
D500
4V7 400MW
R507
10K MF
R508
10K MF
R502
1K8 MF
R514
1K5 MF
R503
1K8 MF
R510
10K MF
R509
10K MF
R513
100K MF
C503
1N0 CD
C500
100N CD
3
21
IC501A
LM393A
5
6
7
IC501B
LM393A
84
IC501C
LM393A
OPTICAL OUTPUT
COAXIAL OUTPUT
SK500
JACK3.5
VCC 2
GND
3
I/P
1
IC502
GP1FA550TZ
C507
100N CD
C510
100P CD
R519
100R MF C512
470P CD
C505
100N CD C504
10N CD
C511
100N CD
R515
10K MF
C509
100N CD
EMC1
C513
100P CD
LK500
LINK10NP
NF
NF
NF NF
NF NF
NF
NF NF
NF
NF
NF
NF
NF
NF
NF
NF
NF NF
NF
NF NF
NF
NF
NF
+C506
10U EL
2.1TGP 18 July 2001 Production Release01_1127

12345678
A
B
C
D
8
7654321
D
C
B
A
ISSUE
DRAWING NO.
23425
DRAWING TITLE
Drawn by:
DATE
Filename ECO No. DESCRIPTION OF CHANGE
J:\Change_Control\ECO_AGENDA\01_1127 CD62T RLEASE\Motherboard\l933ct_2.1.ddb - L933C7_2.1.sch
A & R Cambridge Ltd.
Pembroke Avenue
Denny Industrial Centre
Waterbeach
Cambridge CB5 9PB
CD62T - LINKS AND MECH PARTS
Circuit Diagram
L933CT
TGP
19-Jul-2001
INITIALS Date Printed 7 7Sheet of
Notes:
LK701
LINK10NP
LK702
LINK10NP
LK703
LINK10NP
LK704
LINK10NP
LK757
LINK10NP
LK758
LINK10NP
LK759
LINK10NP
LK760
LINK10NP
LK761
LINK10NP
LK762
LINK10NP
LK705
LINK10NP
LK706
LINK10NP
LK707
LINK10NP
LK708
LINK10NP
LK763
LINK10NP
LK764
LINK10NP
LK765
LINK10NP
LK766
LINK10NP
LK767
LINK10NP
LK768
LINK10NP
LK709
LINK10NP
LK710
LINK10NP
LK711
LINK10NP
LK712
LINK10NP
LK769
LINK10NP
LK770
LINK10NP
LK771
LINK10NP
LK772
LINK10NP
LK773
LINK10NP
LK774
LINK10NP
LK713
LINK10NP
LK714
LINK10NP
LK715
LINK10NP
LK716
LINK10NP
LK775
LINK10NP
LK776
LINK10NP
LK777
LINK10NP
LK778
LINK10NP
LK779
LINK10NP
LK780
LINK10NP
LK717
LINK10NP
LK718
LINK10NP
LK719
LINK10NP
LK720
LINK10NP
LK781
LINK10NP
LK782
LINK10NP
LK783
LINK10NP
LK784
LINK10NP
LK785
LINK10NP
LK786
LINK10NP
LK721
LINK10NP
LK722
LINK10NP
LK723
LINK10NP
LK724
LINK10NP
LK787
LINK10NP
LK788
LINK10NP
LK789
LINK10NP
LK790
LINK10NP
LK791
LINK10NP
LK792
LINK10NP
LK725
LINK10NP
LK726
LINK10NP
LK727
LINK10NP
LK728
LINK10NP
LK793
LINK10NP
LK794
LINK10NP
LK795
LINK10NP
LK796
LINK10NP
LK797
LINK10NP
LK798
LINK10NP
LK729
LINK10NP
LK730
LINK10NP
LK731
LINK10NP
LK732
LINK10NP
LK799
LINK10NP
LK800
LINK10NP
LK801
LINK10NP
LK802
LINK10NP
LK803
LINK10NP
LK804
LINK10NP
LK733
LINK10NP
LK734
LINK10NP
LK735
LINK10NP
LK736
LINK10NP
LK805
LINK10NP
LK806
LINK10NP
LK807
LINK10NP
LK808
LINK10NP
LK809
LINK10NP
LK810
LINK10NP
LK737
LINK10NP
LK738
LINK10NP
LK739
LINK10NP
LK740
LINK10NP
LK811
LINK10NP
LK812
LINK10NP
LK813
LINK10NP
LK814
LINK10NP
LK815
LINK10NP
LK741
LINK10NP
LK742
LINK10NP
LK743
LINK10NP
LK744
LINK10NP
LK745
LINK10NP
LK746
LINK10NP
LK747
LINK10NP
LK748
LINK10NP
LK749
LINK10NP
LK750
LINK10NP
LK751
LINK10NP
LK752
LINK10NP
LK753
LINK10NP
LK754
LINK10NP
LK755
LINK10NP
LK756
LINK10NP
LK100
LINK10NP
LK101
LINK10NP
LK102
LINK10NP
LK103
LINK10NP
LK104
LINK10NP
LK105
LINK10NP
LK106
LINK10NP
LK107
LINK10NP
LK108
LINK10NP
LK109
LINK10NP
LK110
LINK10NP
LK111
LINK10NP
LK112
LINK10NP
LK113
LINK10NP
LK114
LINK10NP
LK115
LINK10NP
LK116
LINK10NP
LK117
LINK10NP
LK118
LINK10NP
LK119
LINK10NP
LK120
LINK10NP
LK121
LINK10NP
LK122
LINK10NP
LK123
LINK10NP
LK124
LINK10NP
LK125
LINK10NP
LK126
LINK10NP
LK127
LINK10NP
LK128
LINK10NP
LK129
LINK10NP
LK130
LINK10NP
LK131
LINK10NP
LK132
LINK10NP
LK135
LINK10NP
LK134
LINK10NP
LK133
LINK10NP
LK136
LINK10NP
LK816
LINK10NP
LK817
LINK10NP
LK818
LINK10NP
LK819
LINK10NP
NF
NFNF
NF
NF
NF
NF NF
NF
NF
Update Box
EL1
UPDATE_BOX
S/W
IC302SW
L825SW
PCB
PB
L899PB
2.1TGP 18 July 2001 Production Release01_1127

12345678
A
B
C
D
8
7654321
D
C
B
A
ISSUE
DRAWING NO.
23425
DRAWING TITLE
Drawn by:
DATE
Filename ECO No. DESCRIPTION OF CHANGE
J:\Change_Control\ECO_AGENDA\01_1127 CD62T RLEASE\Motherboard\l933ct_2.1.ddb - L933C1_2.1.sch
A & R Cambridge Ltd.
Pembroke Avenue
Denny Industrial Centre
Waterbeach
Cambridge CB5 9PB
CD62T - DISPLAY AND SYSTEM MICRO
Circuit Diagram
L933CT
TGP
19-Jul-2001
INITIALS Date Printed 1 7Sheet of
Notes:
13G
1
14G
2
NC
3
CMI1
4
SCOR
5
CMI2
6
CMI3
7
RMIN
8
CMI4
9
NC
10
NC
11
LDOUT
12
LDIN
13
SENS
14
XLT
15
AMUTE
16
PGML
17
NC
18
NC
19
TIMER
20
NC
21
CLK
22
LDON
23
DATA
24
KEY2
31
KEY3
32
ADJ/AFADJ
33
LOADSW
34
NC
35
NC
36
AVSS
37
RST
38
EXTAL
39
XTAL
40
VSS
41
NC
42
NC
43
VDD
44
VDP
45
NC
46
CMO4 57
EMPHASIS 58
NC 59
NC 60
NC 61
NC 62
NC 63
NC 64
NC 65
NC 66
S21 67
S20 68
S19 69
S18 70
S17 71
S16 72
S15 73
S14 74
S13 75
S12 76
S11 77
S10 78
S9 79
S8 80
S3 85 S2 86 S1 87
1G 88
VDD 89
2G 90 3G 91 4G 92 5G 93 6G 94 7G 95 8G 96 9G 97
10G 98 11G 99 12G 100
SQCK
25
SUBQ
26
NC
27
AVREF
28
KEY0
29
KEY1
30
NC
47
LPH
48
NC
49
NC
50
CMO3 56
CMO2 55
CMO1 54
NC 53
NC 52
NC 51
S4 84 S5 83 S6 82 S7 81
IC100
CXP82832
F1
1
F1
2
14G
4
13G
5
12G
6
11G
7
10G
8
9G
9
8G
10
7G
11
6G
12
5G
13
4G
14
3G
15
2G
16
1G
17
NC
18
P1
19
P2
20
P3
21
P4
22
P5
23
P6
24
P7
25
P8
26
P9
27
P10
28
P11
29
P12
30
P13
31
P14
32
P15
33
P16
34
P17
35
P18
36
P19
37
P20
38
P21
39
F2
41
F2
42
DISP100
DISPLAY 14-ST-20GK
R102
10K MF
NEXT PREV FF FR PAUSE STOP PLAY OPEN
C129
10N CD
CMO4
CMO3
CMO2
CMO1
D102
1N4148
D103
1N4148
D104
1N4148
D105
1N4148
D100
1N4148
D101
1N4148
D106
1N4148
CMO1 CMO2 CMO3 CMO4
REMOTE CUSTOM CODE DIODE MATRIX
+C110
10U EL
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
SK100
FFC32H
R100
220R MF
LED100
LED GREEN3.1MM
C109
100N CD R104
6K8 MF R105
6K8 MF
R106
6K8 MF
R107
6K8 MF
F2F1
-30V
+5V
+5V
C108
100N CD
+5V
+5V
HDCD LED
+5V
-30V
DECOUPLING CAPACITORS FOR IC100
POWER LED
R112
680R MF
R111
1K0 MF
R110
1K5 MF
R109
2K2 MF
R108
3K3 MF
R103
6K8 MF
R101
10K MF
0V
0V
0V
0V
0V
+5V 3
O/P
2
GND
1
Case Case
O/P
GND +5V
RX100
SBX1610-52/PIC-26043TM2
Connector to main PCB
0V
0V
-30V
+5V
+C103
100U 25V ZA EL
FIX101
FIXING HOLE 3.2
FIX100
FIXING HOLE 3.2
CHASSIS
FIX102
FIXING HOLE 3.5FIX103 FIXING HOLE 3.5
C101
1N0 CD
C100
1N0 CD C102 1N0 CD
0V 0V
(NEAR SK100)
0V
(NEAR SK100)
0V
0V
R113
10R MF
PIN 1 TO LEFT
CABLE POINTING DOWN
IR_DISP
C104
100N CD C105 100N CD C106 100N CD
C107
100N CD
E916MC
1 2 3 4
E1
CDTXT VFD SUPPORT
0V
CHASSIS2
R114 10K MF
R115 10K MF
R116 10K MF
R117 10K MF
0V
X100
CST8.00
F1
F2
IR_DISP
SCOR_DISP
RMIN_DISP
LDOUT_DISP
LDIN_DISP
SENS_DISP
XLT_DISP
AMUTE_DISP
CLK_DISP
LDON_DISP
DATA_DISP
SQCK_DISP
SUBQ_DISP
LOADSW_DISP
XRST_DISP
DEEM_DISP
HDCD_DISP
LPH_DISP
IR RX
SUPPORT PAD
SP104
IR RX SUPPORT PAD
SW100 SW101 SW102 SW103 SW104 SW105 SW106 SW107
LED
SPACER
SP102
SPACER F195
70mm x 12mm
DOUBLE SIDED
STICKY GASKET
SP103
70X12_DS STICKY TAPE
LED101
LED ULTRARED
NF
2.1TGP 18 July 2001 Production Release01_1127

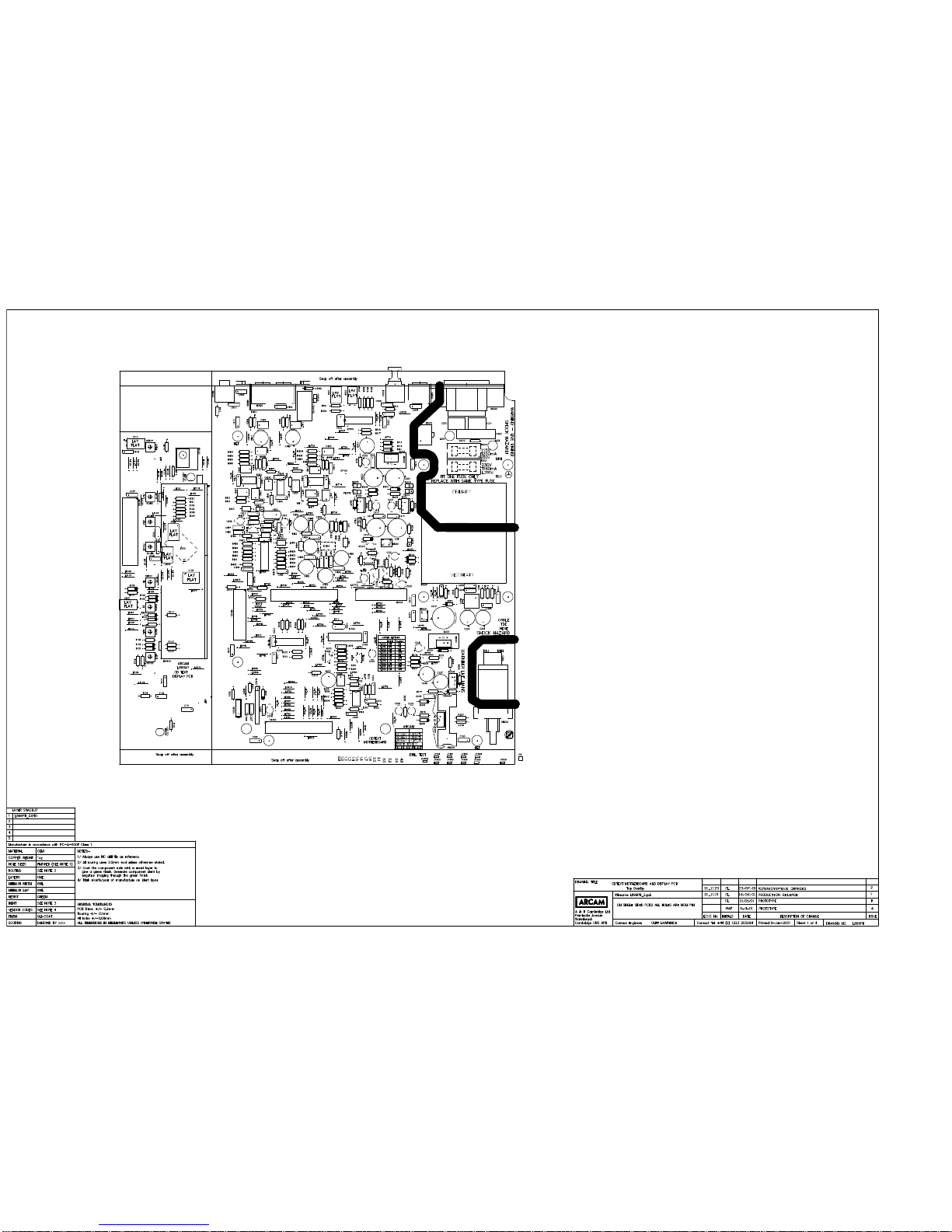

CAM Products 2000(TM): L899PB_2.GTO

CD62 Main Board L933_2.1
Reference Description Part
number
BR200 Bridge rectifier DF01M 1A
100V 3BDF0 1M
BR201 Bridge rectifier DF01M 1A
100V 3BDF0 1M
C100-102 CERD 1N0 63V 20% RA 2A210
C103-109 ELST 100U 25V ZA
RUBYCON 2P710Z A
C110 ELST 10U 50V 2N610
C129 CERD 10N 63V 20% RA 2A310
C151-156 CERD 1N0 63V 20% RA 2A210
C200-202 SUPPR CAP 3N3 250V 2K233
C203 220NF CLASS X2 CAP
275VRMS 2D422
C204-209 CERD 100N 63V 20% RA 2A410
C210 ELST 3M3 25V 2N833
C211 ELST 1M0 35V 2N810C
C212 ELST 1M0 35V 2N810C
C213-215 PEST 100N 63V 10% 2K410
C216-222 ELST 100U 25V 2N710
C223 ELST 1M0 25V 2N810
C224 ELST 1M0 25V 2N810
C225-227 ELST 100U 100V 2N710B
C228 ELST 1M0 10V 2N810
A
C229 ELST 1M0 10V 2N810
A
C230 ELST 100U 25V 2N710
C231 ELST 10U 50V 2N610
C300-303 CERD 100N 63V 20% RA 2A410
C304 CERD 100P 50V -20% +80%
RA 2A110
C305 ELST 100U 25V 2N710
C306 ELST 100U 25V 2N710
C307 CERD 10N 63V 20% RA 2A310
C308 CERD 100N 63V 20% RA 2A410
C400 CERD 100N 63V 20% RA 2A410
C401 CERD 47N 63V -20% +80% RA 2A347
C402, 403 PEST 100N 63V 10% 2K410
C406, 407 PEST 100N 63V 10% 2K410
C408 CERD 47N 63V -20% +80% RA 2A347
C409 CERD 47N 63V -20% +80% RA 2A347
C410 ELST 100U 25V 2N710
C411 CERD 47N 63V -20% +80% RA 2A347
C412 CERD 10N 63V 20% RA 2A310
C413 CERD 100N 63V 20% RA 2A410
C414 CERD 100N 63V 20% RA 2A410
C416 PPRO 560P 5% 63V RA 2D156
C417 PPRO 560P 5% 63V RA 2D156
C418-421 PPRO 220P 5% 63V RA 2D122
C419-421 PPRO 220P 5% 63V RA 2D122
C422 PPRO 1N3 63V 5% RA 2D213
N
C423 PPRO 1N3 63V 5% RA 2D213
N
C426 PPRO 3N3 5% 63V RA 2D233
C427 PPRO 3N3 5% 63V RA 2D233
C428-433 ELST 10U 50V 2N610
C434 CERD 100N 63V 20% RA 2A410
C436 ELST 10U 50V 2N610
Reference Description Part
number
C437 CERD 10N 63V 20% RA 2A310
C438 CERD 100P 50V -20% +80%
RA 2A110
C439 CERD 100P 50V -20% +80%
RA 2A110
C440 CERD 1N0 63V 20% RA 2A210
C441 CERD 33P 63V 20% RA 2A033
C444 CERD 47N 63V -20% +80% RA 2A347
C446 CERD 10P 63V 20% RA 2A010
C447 CERD 10P 63V 20% RA 2A010
C448 ELEC 10U 50V CERAFINE 2P610C
C
C449 ELEC 10U 50V CERAFINE 2P610C
C
C501 CERD 10N 63V 20% RA 2A310
C502 PEST 470N 63V 10% 2K447
C504 CERD 10N 63V 20% RA 2A310
C505 CERD 100N 63V 20% RA 2A410
C506 ELST 10U 50V 2N610
C511 CERD 100N 63V 20% RA 2A410
C512 CERD 470P 50V -20% +80%
RA 2A147
CA1 CD...T MAINS JUMPER
CABLE L920C A
D100-106 SSDIODE 1N4148 75V 3A4148
D200-212 SSDIODE 1N4148 75V 3A4148
D213 RECTIFIER 1N4003F 1A 200V 3B4003
D214 Diode 5V1 400mW 3C0510
4
D215 SSDIODE 1N4148 75V 3A4148
D300 SSDIODE 1N4148 75V 3A4148
D301 ZENER 4V7 400MW 3C0470
4
D400-402 SSDIODE 1N4148 75V 3A4148
DISP100 DISP CD SONY 14-ST-20GK B1015
E1 CDTEXT VFD SUPPORT E916M
C
EL200 EARTH LEAD 8M101
FS200 INS COVER PCB
FUSEHOLDER F022
FS200 FUSEHOLDER 20mm PCB 8S004
FS201 FUSE 20mm 160mA T
S504160mA C11166
FS201 FUSEHOLDER 20mm PCB 8S004
FS201 INS COVER PCB
FUSEHOLDER F022
HS200 HEATSINK CLIP TO220 13/8.6
DC/W F006
HS200 HEATSINK TO220 8.6
DEGC/W F008
HS201 HEATSINK TO220 CLIP 30 F007
HS202 HEATSINK TO220 CLIP 30 F007
IC100 IC CD CXP82832-031Q
MICRO 5G8283 2
IC200 IC VREG LM1086CT-ADJ 5D1086
A
IC201-203 IC VREG POS LM317T 5D317T
IC204 IC VREG POS LM337T 5D337
IC205 IC VREG POS LM337T 5D337
IC300 IC HCMOS 74HCU04 5J7404
IC302 IC CMOS MICRO
PIC16C54XT/P 5H16C5 4X
IC302 IC SOCKET 18 PIN 0.3'' 8S018

Reference Description Part
number
IC302SW SOFTWARE L825S
W
IC303 IC MOTOR DRIVER LB1641 5Q1641
IC400 IC OPAMP DUAL NJM2114D 5B2114
IC401 IC OPAMP DUAL NJM2114D 5B2114
IC403 IC CD PCM1716 24 bit 96KHZ
DAC 5G1716
IC404 IC HCMOS 74HCU04 5J7404
IC500 IC HCMOS 74HCU04 5J7404
IC502 SPDIF OPTICAL
TRANSMITTER 5TG550 T
JP203 JUMPER SOCKET 0.1'' 8K004
JP205 JUMPER SOCKET 0.1'' 8K004
JP300 JUMPER SOCKET 0.1'' 8K004
JP400 JUMPER SOCKET 0.1'' 8K004
JP401 JUMPER SOCKET 0.1'' 8K004
JP402 JUMPER SOCKET 0.1'' 8K004
L200 6U8H INDUCTOR 7D968
A
L201 6U8H INDUCTOR 7D968
A
L400-402 FERRITE BEAD SINGLE
AXIAL TAPED 2K BOX 7F003
L403 33UH IND 34-48330 7D033
L404 FERRITE BEAD SINGLE
AXIAL TAPED 2K BOX 7F003
LED100 LED GREEN 3.1MM SLR-
37MG3F 3D007
LK600 RES MF W4 1% 0R0 1H000
LK601 RES MF W4 1% 0R0 1H000
PB PCB L899PB
_2
PL203 2WAY MOLEX VERT MALE
CONNECTOR 8K6201
PL205 2WAY MOLEX VERT MALE
CONNECTOR 8K6201
PL300 3WAY MOLEX VERT MALE
CONNECTOR 8K2103
PL400-402 2WAY MOLEX VERT MALE
CONNECTOR 8K6201
R100 RES MF W4 1% 220R 1H122
R101 RES MF W4 1% 10K 1H310
R102 RES MF W4 1% 10K 1H310
R103 RES MF W4 1% 6K8 1H268
R104-107 RES MF W4 1% 6K8 1H268
R108 RES MF W4 1% 3K3 1H233
R109 RES MF W4 1% 2K2 1H222
R110 RES MF W4 1% 1K5 1H215
R111 RES MF W4 1% 1K0 1H210
R112 RES MF W4 1% 680R 1H168
R113 RES MF W4 1% 10R 1H010
R114-117 RES MF W4 1% 10K 1H310
R200 RES MF FU W3 1R0 5%
NFR25 1G810
R201 RES MF FU W3 1R0 5%
NFR25 1G810
R202 RES W25 5% VR25 1M5 1K515
R203 RES MF W4 1% 330R 1H133
R204 RES MF W4 1% 10R 1H010
R205 RES MF W4 1% 10R 1H010
R206 RES MF W4 1% 220R 1H122
R207 RES MF W4 1% 220R 1H122
R208 RES MF W4 1% 1K8 1H218
Reference Description Part
number
R209 RES MF W4 1% 1K8 1H218
R210 RES MF FU W3 1R0 5%
NFR25 1G810
R211 RES MF FU W3 10R 5%
NFR25 1G010
R212 RES MF FU W3 1R0 5%
NFR25 1G810
R213 RES MF FU W3 10R 5%
NFR25 1G010
R214 RES MF W4 1% 1K6 1H216
R215 RES MF W4 1% 22K 1H322
R216 RES MF W4 1% 1K0 1H210
R217 RES MF W4 1% 33K 1H333
R218 RES MF W4 1% 270R 1H127
R219 RES MF W4 1% 270R 1H127
R220 RES MF W4 1% 820R 1H182
R221 RES MF W4 1% 820R 1H182
R222 RES MF W4 1% 470K 1H447
R223 RES MF W4 1% 10K 1H310
R224 RES MF W4 1% 10K 1H310
R225 RES MF W4 1% 2K2 1H222
R226 RES MF W4 1% 10K 1H310
R227 RES MF W4 1% 100R 1H110
R228 RES MF W4 1% 100R 1H110
R229 RES MF W4 1% 1K5 1H215
R230 RES MF W4 1% 10K 1H310
R301 RES MF W4 1% 330R 1H133
R302 RES MF W4 1% 330R 1H133
R303 RES MF W4 1% 6K8 1H268
R305 RES MF W4 1% 330R 1H133
R307-310 RES MF W4 1% 10K 1H310
R311 RES MF W4 1% 100K 1H410
R312 RES MF W4 1% 6K8 1H268
R313 RES MF W4 1% 100K 1H410
R314 RES MF W4 1% 10K 1H310
R315 RES MF W4 1% 10K 1H310
R400 RES MF W4 1% 330R 1H133
R401 RES MF W4 1% 330R 1H133
R402 RES MF W4 1% 4K7 1H247
R403 RES MF W4 1% 1K8 1H218
R404 RES MF W4 1% 1K8 1H218
R405-408 RES MF W4 1% 120R 1H112
R409 RES MF W4 1% 10K 1H310
R410 RES MF W4 1% 6K8 1H268
R411 RES MF W4 1% 6K8 1H268
R412-414 RES MF W4 1% 4K7 1H247
R415-418 RES MF W4 1% 2K7 1H227
R419 RES MF W4 1% 3K9 1H239
R420 RES MF W4 1% 3K9 1H239
R423 RES MF W4 1% 22K 1H322
R424 RES MF W4 1% 22K 1H322
R425 RES MF W4 1% 1M0 1H510
R426 RES MF W4 1% 33K 1H333
R427 RES MF W4 1% 33K 1H333
R428 RES MF W4 1% 330R 1H133
R429 RES MF W4 1% 4M7 1H547
R430 RES MF W4 1% 1K0 1H210
R431 RES MF W4 1% 10K 1H310
R432 RES MF W4 1% 10K 1H310
R433 RES MF W4 1% 1K0 1H210
R434 RES MF W4 1% 1K0 1H210
R435 RES MF W4 1% 680R 1H168

Reference Description Part
number
R436 RES MF W4 1% 680R 1H168
R439 RES MF W4 1% 1M0 1H510
R442 RES MF W4 1% 2K2 1H222
R443 RES MF W4 1% 2K2 1H222
R500 RES MF W4 1% 10R 1H010
R501 RES MF W4 1% 10R 1H010
R505 RES MF W4 1% 120R 1H112
R506 RES MF W4 1% 1K2 1H212
R515 RES MF W4 1% 10K 1H310
R516-518 RES MF W4 1% 1K2 1H212
R519 RES MF W4 1% 100R 1H110
RLY400 RELAY 960 OHM 51SB12T A205
RX100 REMOTE RX PIC-26043TM2
38KHZ B2107
SH400 PHONO EMC SHIELD E821M
C
SK100 32-WAY FFC CONN HORIZ 8K8132
SK200 IEC MAINS CONN PCB INS
PX 8A001
SK200 COPPER RIVET TCP/D48 BS HP007
SK200 COPPER RIVET TCP/D48 BS HP007
SK300 23-WAY FFC CONN VERT 8K8023
SK302 32-WAY FFC CONN VERT 8K8032
SK303 5-WAY AMP CT CONN 8K2005
SK400 PHONO SKT 2-WAY HOR
EMC GOLD 8D230
SK501 PHONO SKT SINGLE EMC 8D220
SP102 LED SPACER F195
SP103 DS STICKY PAD 70 X 12mm F205
SP104 IR RX SUPPORT PAD E822AP
SW100-
SW107 TACT SWITCH 2-PIN LOW PROF 9.5mm ACTUATOR
SKHVBH
A1511
SW200 SWITCH PUSH MAINS DPST
TV-8 A1010
TR200-
TR203 TRANS LF SS N BC549B 4A549
TR204 TRANS LF SS P BC557B 4A557
TR300 TRANS LF SS N BC549B 4A549
TR301 TRANS LF SS N BC549B 4A549
TR402 TRANS LF SS N BC547B 4A547
TX200 ALPHA 7CD MAINS
TRANSFORMER L849T X
X100 CER RESON 8.00MHz 7W008
X300 CER RESON 4.00MHz 7W005
X400 CRYSTAL 16.9344MHz
PARALLEL 7X012

CD62 General Assembly Parts List
ITEM 230V 115V 100V SILVER BLACK DESCRIPTION WHERE USED QTY
A L817RC REMOTE CONTROL 1
B L849TX L850TX L851TX TX ( L867TX = 230/115VAC multivoltage ) 1
E050AY E050AYB CD72 FRONT PANEL 1
E071AY E071AYB CD DRAWER FRONT 1
E828CP E827CP COVER PLATE 1
HA4V06S HAV406B M/C TORX M4X6 LID TO CHASSIS 4
B2012 SONY MECH 1
C11166
160mA T C11256 250mA T C11316 315mA T FUSE 20MM L899AY FS201 1
E049AY REAR PANEL ASSEMBLY 1
E061AY CHASSIS & DVD / CD SUB PANEL ASSY 1
E072AY DIVA EXTENDED POWER BUTTON 1
E808MI MAINS INSULATOR 1
E879PM FOOT 4
E879SL PRODUCT CONFIGURATION CONTROL
LABEL INSIDE CHASSIS NEXT TO SL115 1
E897PM DT81 CONFIRM BUTTON IN FRONT PANEL 8
F022 FUSE HOLDER COVER E899AY FS200 FS201 2
F164 TAPE 3509 BK 3M TESA. 5MM WIDE FRONT PANEL 400MM
F205 D/SIDED TAPE 12MM WIDE CD DRAWER FRONT 250MM
F214 WHITE 12MM DOUBLE SIDED STICKY TAPE STICK ADAPTOR TO MECH
FRONT 120MM
HA3V10A M3 x 6mm MACHINE SCREW PCB TO CHASSIS 8
HA3V06A MC TORX P/H M3X6 STZP SCREW DISP PCB TO SUB PANEL 4
HA4A12B M/C PAN SUPA M4X12 STBK (500) EARTH LEAD TO CHASSIS 1
HA4V06S M/C TORX M4X6 ST STAINLESS STEEL MECH TO BUSHES ON NEW CHS 3
HE6V06B SFTP TORX SCREW NO.6x6mm BK FRONT PANEL TO CHASSIS, PCB
TO CHASSIS EARTH 4
HF4V09B SCREW AND STAR WASHER NO.4 X 3/8" REAR PANEL, LID TO REAR
PANEL 13
HJ4A00A NUT M4 FULL STZP (1000) EARTH LEAD TO CHASSIS 1
HL4SA WASHER M4 IN LOCK STZP EARTH LEAD TO CHASSIS 1
K5408 LIGHT PIPE SLEEVING (6mm) 1
L806CA CABLE ASS MOTORDRVE L806CA ISS2 CD MECH. LEAD 1
L811CA3 23-WAY FLEX-FOIL CD MECH. LEAD 1

CD62 General Assembly Parts List
ITEM 230V 115V 100V SILVER BLACK DESCRIPTION WHERE USED QTY
L860CA CD 72/92 DISPLAY TO MAIN FCC CABLE DISPLAY LEAD 1
L933AY MOTHER/DISP. PCB BUILD STD 1
SL017 BLANKING LABEL REAR PANEL 1
SL025 LASER WARNING (CLASS 1 LASER
PRODUCT) REAR PANEL 1
SL115 LASER LABEL (DANGER RADIATION) INSIDE CHASSIS 1
