Arcam DiVA CD72 User manual
CD72/92
DiVA CD72, CD92
Compact Disc Player
Service Manual
ARCAM
Issue 1.0
Contents List
!
Contents list
!
Circuit description
!
Upgrade procedure
!
Service guide
!
Circuit diagrams
!
Component overlays
!
Circuit board parts list
!
General assembly parts list
CD72/CD92 Circuit Description
SUMMARY
The Main PCB for the DiVA CD72/92 player may be built as
two different versions:
! With all components fitted for the Alpha CD72
(L887RS)
! With audio components and connectors omitted, for
use as a motherboard for plug-in DAC module L816
(L888RS) for CD92
The CD72 version may be converted for use with a upgrade
plug-in DAC board by removing a configuration connector.
The system is based on a Sony kit, comprising CDM14-5BD10
laser mechanism & loader, micro-controller and fluorescent
display.
The PCM 1716, as per the 1710, can be operated in either
Software or Hardware mode. The default for the CD72 is
hardware mode.
Power Supplies & Reset/Mute
Selection for 230V or 115V mains operation is made by
inserting a fuse into the appropriate position. The mains
transformer has three secondary windings:
1. Provides +12V and -12V supplies for the audio
output circuitry via regulators Z204 and Z205.
2. This produces the digital, motor drive and
fluorescent display grid supplies:
+7.3V (Z206) Mechanism and motor driver supply
+5V (Z208) General digital logic supply
+5V (Z207) Supply to DAC
+5V (Z203) Supply to system clock generator
-30V (Z209) Display grid voltage.
3. Provides an AC supply for the display filament.
The power-on reset signal XRST is generated by R17 and C29.
When the power switch is turned off one of its poles discharges
C29 quickly. This, along with the AMUTE signal from the
micro, controls the output mute transistors via level shifter Q3.
Remote Control/PIC Micro
The PIC micro controller converts the RC-5 format data into the
NEC format required by the Sony micro. The PIC also controls
the configuration of the digital filter/DAC on the DAC board.
Micro controller & Display Board
The system micro controller Z212 has the following functions:
! Control of the mechanism & decoder on the CDM14
! Control of mute, attenuation and deemphasis for the
DAC
! Direct drive of the fluorescent display
! Remote control decoding
! Keyboard scanning
The keyboard scanning works by connecting the keys to a
resistor ladder on an ADC input to the micro. Pressing a key
presents a unique voltage to this input.
The remote control data contains a ‘Customer Code’ that
identifies this as an Arcam product. The diode network D291 to
D297 configures the micro to accept this code.
Motor Driver
The status of the drawer is indicated to the micro by two micro
switches ‘INSW’ and ‘OUTSW’ on SK205. The micro controls
the drawer motor via driver Z210.
DAC & System Clock
The DAC is a Burr Brown PCM1716. Mute, attenuation and de-
emphasis functions can be controlled via a 3-wire serial link
from the system micro to pins 26, 27 & 28 via resistors R31 R32
& R33 respectively. Currently resistors R31 to R33 are not
fitted and the DAC is configured for hardware control.
Digital audio is input on pins 1, 2 & 3 in standard Sony format,
i.e. Word Clock, Bit Clock and Data.
The system clock is based around 16.9344 MHZ crystal X1 and
transistor Q2. This produces a stable clock with low jitter.
Z202E & D provide amplification and buffering to the DAC.
Analogue Filters
Z1A (& Z101A) provides the basis for a 2-pole filter. Z1B (&
Z101B) buffer the audio and set the output level.
Digital Output
An SPDIF format digital output signal is generated by the
decoder on the mechanism assembly. This is passed through
isolating transformer T202 to a single phono socket SK5.
Optical digital output via Z2 is also tapped off the digital output
signal. Power is supplied to Z2 via Z3 a 78L05 regulator.
Upgrade to CD92
The CD72 includes a configuration PCB connected to PL1. This
provides power to the DAC and clock generator, connects the
digital audio and system clock signals to the DAC and provides
additional clock buffering with Z4 A&B .
Removing this board removes these connections and allows the
system clock generated on the DAC board to pass through to the
CDM14.
Upgrading a CD72 to CD92
1. Disconnect the mains supply from the DiVA CD player.
2. Remove the top cover by taking out the 2 screws from the top edge of the rear
panel (marked 1) and on each side (marked 2).
3. Pull off the sticky plastic gasket between the digital output socket and the
audio output sockets to reveal the 4 audio output socket holes through which
the DAC board sockets will pass.
4. Any remnants of adhesive can be removed by rubbing it gently with your
finger and rolling it off. We do not recommend the use of solvents.
5. Fit the 2 supplied PCB (printed circuit board) pillars to the holes in the main
board on either side of the flexfoil coming from the display board. These are
marked 3 on the drawing overleaf. The big end of the PCB pillars goes into
the main PCB. These push in and clip home. Take great care not to damage
the main circuit board.
6. Remove the Configuration Module (the small vertically mounted PCB in the
centre of the main board). It will not be needed once the new DAC board is
fitted.
7. Note: The original nickel plated audio output sockets are no longer connected
after the upgrade and cannot be used. However the digital output still
functions.
8. Remove the following jumpers :- PL2, PL3, PL4, PL6. Fit the following
jumpers :- PL5, PL7.
9. Fit the magnetic shielding plate, by peeling off one side of (E923MC the
adhesive pad) and stick to (E922MC the shielding plate). Then peel the
backing off the other side of pad & Align the top edge with the top of the
transformer and fit centrally. It MUST align with the top edge of the
transformer, if it is fitted to low to the board it may cause shorting.
10. Take static precautions first. With the aluminium extrusion of the DAC
module uppermost fit the flexfoils from the module in to the appropriate
sockets in the main board, ensuring they are pushed fully home. If they are
not pushed fully home, the unit may not read discs. You may find it helps to
slide the module into the unit so that the audio output sockets fit through the
holes in the rear panel and angle the module slightly upwards to achieve this.
11. Push the module down firmly on to the support pillars.
12. Fit the supplied screws with integral washers to the 3 points marked 4 on the
drawing overleaf to secure the module in place. The 2 slightly shorter screws
and the shake proof washers should be fitted to the 2 points marked 6.
13. Refit the top cover, connect the unit to live mains and switch on. Press load to
allow the tray to come fully out and then remove the mains lead from the unit.
Remove the draw front and fit the new draw front with the CD92 / HDCD
logo on.
14. Check the unit functions correctly and if you have an HDCD disc check that a
red glow is seen behind the display window when it is playing.
Upgrading a CD72 ( TEXT ) to CD92 ( TEXT )
1. Disconnect the mains supply from the DiVA CD player.
2. Remove the top cover by taking out the 2 screws from the top edge of the rear
panel (marked 1) and on each side (marked 2).
3. Pull off the sticky plastic gasket between the digital output socket and the
audio output sockets to reveal the 4 audio output socket holes through which
the DAC board sockets will pass.
4. Any remnants of adhesive can be removed by rubbing it gently with your
finger and rolling it off. We do not recommend the use of solvents.
5. Fit the 2 supplied PCB (printed circuit board) pillars to the holes in the main
board on either side of the flexfoil coming from the display board. These are
marked 3 on the drawing overleaf. The big end of the PCB pillars goes into
the main PCB. These push in and clip home. Take great care not to damage
the main circuit board.
6. Note: The original nickel plated audio output sockets are no longer connected
after the upgrade and cannot be used. However the digital output still
functions.
7. Set the main board jumper settings as listed below :-
PL200 ON
PL201 ON
PL202 ON
PL203 OFF
PL204 ON
PL205 OFF
PL300 2 and 3
PL400 OFF
PL401 OFF
PL402 OFF
8. Fit the magnetic shielding plate ( part no E922MC ) to the adhesive pad ( part
no E923MC).
Peel the backing off the other side of the mains transformer. Align the top
edge with the top of the transformer and fit centrally.
9. Take static precautions first. With the aluminium extrusion of the DAC
module uppermost fit the flexfoils from the module in to the appropriate
sockets in the main board, ensuring they are pushed fully home. If they are
not pushed fully home, the unit may not read discs. You may find it helps to
slide the module into the unit so that the audio output sockets fit through the
holes in the rear panel and angle the module slightly upwards to achieve this.
10. Push the module down firmly on to the support pillars.
11. Fit the supplied screws with integral washers to the 3 points marked 4 on the
drawing overleaf to secure the module in place. The 2 slightly shorter screws
and the shake proof washers should be fitted to the 2 points marked 6.
12. Refit the top cover, connect the unit to live mains and switch on. Press load to
allow the tray to come fully out and then remove the mains lead from the unit.
Remove the draw front and fit the new draw front with the CD92 / HDCD
logo on.
13. Check the unit functions correctly and if you have an HDCD disc check that a
red glow is seen behind the display window when it is playing
3
4
22
1
6
CD72 / CD92 Service Guide
Fault diagnostics
Fault Action
No power Check mains fuse
Check power supply rails
No Audio output Check for digital output, if ok then
check power supply voltages
Check DAC chip
Intermittent noise on output Check Dac chip
Fails to respond to commands Check supply to remote circuit
Check remote flex foil cable
Check for +4.9volts on RX201 o/p
Fails to read disc Check mech supply
Check clock signal
Laser optic moves to end stop
position Caused by failure of clock signal to
the mech
Check mech supply
Check clock signal
No Display Check filament voltage 3.1vac
Check flex foil cable
Check for dry joints on micro and
display
Spurious display readout Check for dry joints on display board
Power supply test points
Position Voltage
DGND 0 volts
PL6 +12 volts
PL3 -12 volts
R65 +11 volts
Z206 o/p +7.3 volts - mech supply
Z207 o/p +5 volts - DAC supply
Z208 o/p +5 volts
Z209 o/p -30 volts
SK291 across pins 1 and 32 3.1 volts AC – display filament
Hints & tips
!
When upgrading from CD72 to CD92 remember to fit the steel plate to the transformer, this
reduces noise.
!
The CDM14 mech ( part no. B2009 ) is interchangeable between the Alpha7 series and the
DiVA CD72/92 non text version.
!
Please note that the CD72/92 TEXT units use a different mech ( part no. B2012 ), the display
and main boards are also different and therefore are not interchangeable parts.
!
Voltage conversion 230/115VAC by changing the internal fuse position and fitting the correct
rated fuse. 100VAC requires a different transformer.
1 2 3 4 5 6 7 8
A
B
C
D
87654321
D
C
B
A
ISSUE
DRAWING NO.
DRAWING TITLE
Drawn by:
DATE
Filename ECO No. DESCRIPTION OF CHANGE
G:\DATA\ECO\ECO AGENDA\00 1093 L887PB 2\L887 2\L887 2.ddb - L887c1 2.prj
A & R Cambridge Ltd.
Pembroke Avenue
Denny Industrial Centre
Waterbeach
Cambridge CB5 9PB

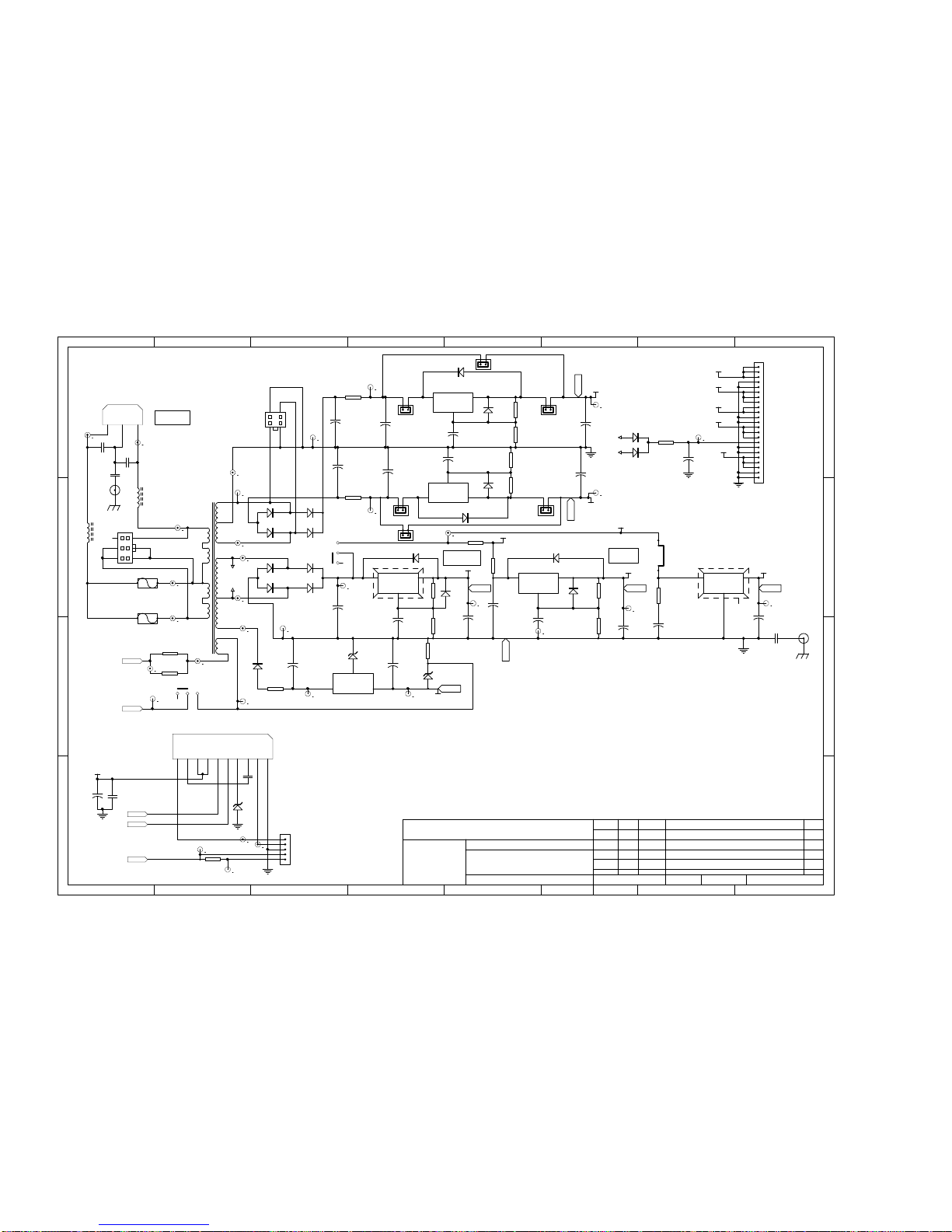

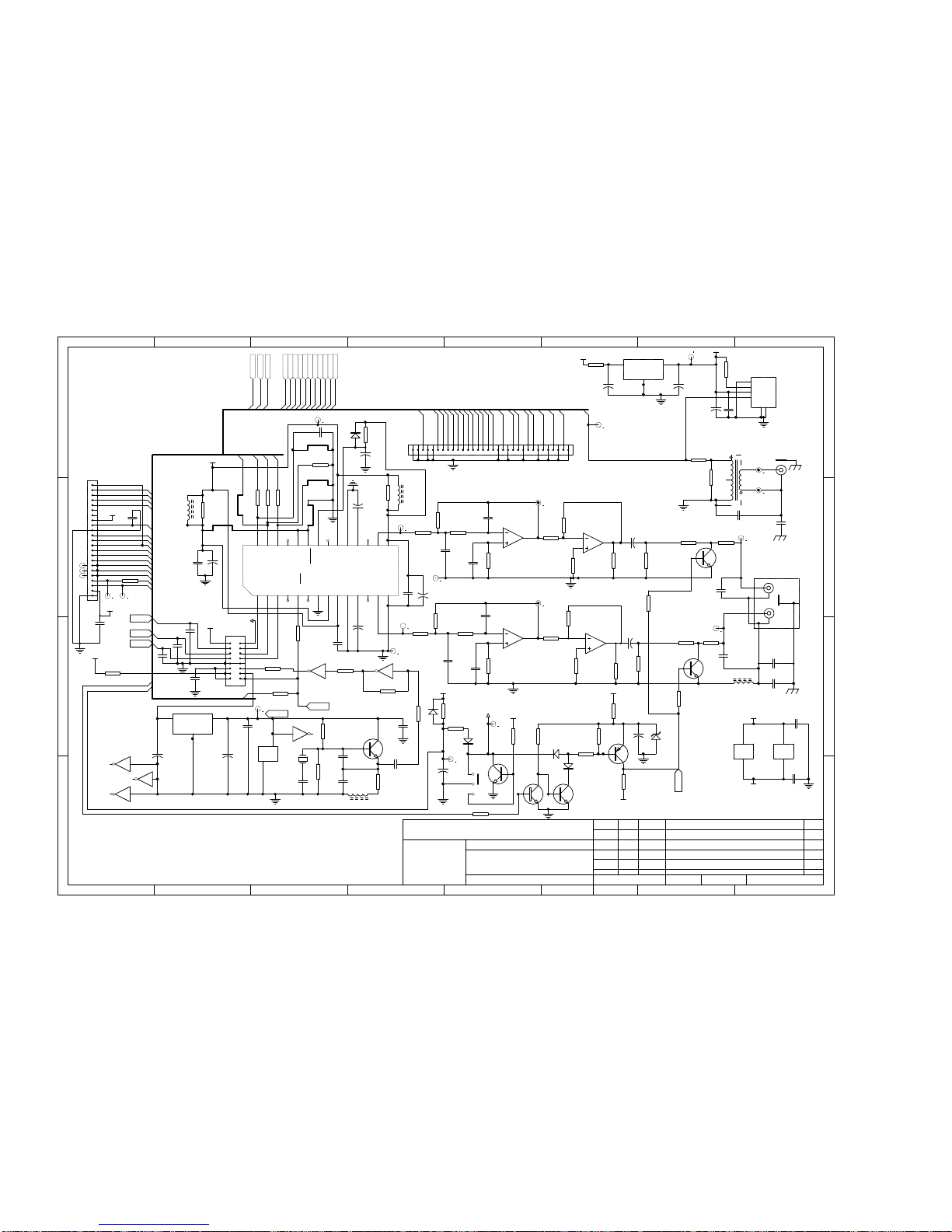

CD72, CD92 Project Sheet
Circuit Diagram
L887C1_2
CW12-Oct-2000
INITIALS
Date Printed 1 4Sheet of
Notes
LK1
LINK10NP
LK2
L NK10NP
LK3
LINK10NP
LK4
L NK10NP
LK5
LINK10NP
LK6
L NK10NP
LK7
LINK10NP
LK8
L NK10NP
LK9
L NK10NP
LK10
LINK10NP
LK11
LINK10NP
LK13
LINK10NP
LK15
LINK10NP
LK16
L NK10NP
LK17
LINK10NP
LK18
L NK10NP
LK19
L NK10NP
LK130
LINK10NP
LK21
LINK10NP
LK22
L NK10NP
LK23
LINK10NP
LK25
LINK10NP
LK28
L NK10NP
LK29
L NK10NP
LK30
LINK10NP
LK31
LINK10NP
LK33
LINK10NP
LK35
LINK10NP
LK37
LINK10NP
LK38
L NK10NP
LK39
L NK10NP
LK40
LINK10NP
LK41
LINK10NP
LK42
L NK10NP
LK43
LINK10NP
LK44
L NK10NP
LK46
L NK10NP
LK47
LINK10NP
LK49
L NK10NP
LK50
LINK10NP
LK51
LINK10NP
LK52
L NK10NP
LK53
LINK10NP
LK54
L NK10NP
LK55
LINK10NP
LK56
L NK10NP
LK57
LINK10NP
LK58
L NK10NP
LK59
L NK10NP
LK60
LINK10NP
LK61
LINK10NP
LK62
L NK10NP
LK63
LINK10NP
LK64
L NK10NP
LK65
LINK10NP
LK67
LINK10NP
LK68
L NK10NP
LK69
L NK10NP
LK70
LINK10NP
LK71
LINK10NP
Photo Strip
PS
PHOTO_STR P
Update Box
A2
UPDATE_BOX
LK72
L NK10NP
LK73
LINK10NP
LK74
L NK10NP
LK75
LINK10NP
LK76
L NK10NP
LK77
LINK10NP
LK78
L NK10NP
LK79
L NK10NP
LK80
LINK10NP
LK81
LINK10NP
LK82
L NK10NP
LK83
LINK10NP
LK85
LINK10NP
LK86
L NK10NP
LK87
LINK10NP
LK88
L NK10NP
LK89
L NK10NP
LK90
LINK10NP
LK91
LINK10NP
LK92
L NK10NP
LK93
LINK10NP
F4
T160MASP
TL1
TOOL NG3 0 FD_2
F DUCIAL
LK94
L NK10NP
LK95
LINK10NP
LK97
LINK10NP
TL3
TOOLING3.0 TL4
TOOLING3.0 TL5
TOOLING3.0
Links
Documentation
Tooling Holes & Alignment Marks
Spare Fuse
Paper Marker
A2 Horizontal
DD3
DD_A2H
Paper Marker
A2 Vertical
DD2
DD_A2V
CEM1, 2 OZ Cu
PCB MATERIAL
DD5
CEM1_20Z
FOR ROS PROGRAMME INCLUDE A7 FOR ALPHA 7 CD
LK98
L NK10NP
LK99
L NK10NP
FD_3
FIDUCIAL
FD_4
F DUCIAL
PCB
PCB
L887PB_2
TL6
TOOL NG_OPT
WF 07-04-00 A
NEW PROTOTYPE
-
LK96
L NK10NP
LK107
LINK10NP
1 2
Z4A
74HC14
3 4
Z4B
74HC14
5 6
Z4C
74HC14
89 Z4D
74HC14
1011 Z4E
74HC14
1213 Z4F
74HC14
14
7
Z4G
74HC14
C58
100N CD
R67
47R MF
R68
330R MF
1 2
3 4
5 6
7 8
9 10
11 12
13 14
15 16
SK2
DIL16 HSKT
Alpha 7 CD Configuration Plug
LD N
LDOUT
INOUT
F LA
F LB 4MHZ
L887C2_2
L887C2_2 SCH
DEEM
SMUTE
AMUTE
RM N
PGML
CLK
DATA
SCOR
SQCK
XRST
LDON
XLT
SENSE
SUBQ
L887C3_2
L887C3_2 SCH
F LA
F LB
K0
K1
K0
K1
NOUT
LD N
LDOUT
4MHZ
DEEM
AMUTE
SMUTE
RMIN
PGML
CLK
DATA
SCOR
SQCK
XRST
LDON
XLT
SENSE
SUBQ
L887C4_2
L887C4_2 SCH
EL1
LCD CHA R
EL2
LCD CHA R
LK108
LINK10NP
LK109
L NK10NP
LK110
LINK10NP
LK111
L NK10NP
+C1000
10U EL
LK120
L NK10NP
LK119
L NK10NP
LK118
L NK10NP
LK117
LINK10NP
LK125
L NK10NP
LK124
L NK10NP
LK123
L NK10NP
LK122
L NK10NP
LK121
L NK10NP
LK127
L NK10NP
LK126
L NK10NP
Ground decoupling
LK135
LINK10NP
LK133
LINK10NP
LK132
LINK10NP
LK136
LINK10NP
FD_1
FIDUCIAL
CL 13-07-00 REVISIONS B
CL 03-08-00 PRODUCTION RELEASE 1
CW 11-10-00 TRACKS MOVED TO CLEAR P LLARS & C64 ADDED FOR EMC
CL 15-09-00 EARTH L NK 8M101 ADDED 1.1
00_1083
00_1093 2
1 2 3 4 5 6 7 8
A
B
C
D
87654321
D
C
B
A
ISSUE
DRAWING NO.
DRAWING TITLE
Drawn by:
DATE
Filename ECO No. DESCRIPTION OF CHANGE
G:\DATA\ECO\ECO AGENDA\00 1093 L887PB 2\L887 2\L887 2.ddb - L887c2 2.sch
A & R Cambridge Ltd.
Pembroke Avenue
Denny Industrial Centre
Waterbeach
Cambridge CB5 9PB
CD72, CD92 CD Players
Circuit Diagram
L887C2_2
CW12-Oct-2000
INITIALS
Date Printed 2 4Sheet of
Notes
F1
T160MA
D12
1N4003F +C34
100U EL 100V
+C36
3M3 EL
+C37
10U EL
R38
330R MF
R41
1K6 MF
+C43
1M0 25V
D13
1N4003F
CDM14 Supply
+7.3V
Vin
I
ADJ
A
Vout O
Z207
LM317T
R43
330R MF
R42
1K0 MF
D14
1N4003F
DAC Supply
+5V
R44 1R0 FU
R45 1R0 FU
Vin
I
ADJ
A
Vout O
Z204
LM317T
Vin
I
ADJ A
Vout O
Z205
LM337T
R39
220R MF
D15 1N4003F
D16
1N4003F
R55
1K2 MF
1
2
3
4
5
SK205
8K2005
C55
10N CD
+
C41
100U EL
LOADOUT
LOAD N
GND
INSW
OUTSW
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23 SK204
FFC23V
LDIN
LDOUT
INOUT
P7V
FILA
FILB
Vin
I
GND
G
Vout O
Z208 7805
+C42
100U EL
Vin
I
GND G
Vout O
Z209
7915
R51 22R FU
R52 22R FU
D17
15V 400MW +
C35
100U EL 100V
D18
7V5 400MW
R53
33K MF
Power connector to DAC PCB
P12V
N12V
P7V P5VP5V DAC
N30V
P11V
AC1
AC2
AC
AC
AC2
AC1
D22
1N4003F
D23
1N4003F
R58 10R FU
LIVE
NEUT
P22VUN
N22VUN
N12V
P12V
P11V
P11VSW
P7V P5VDAC P5V
AGND
DGND
F LA F LASW
LOADOUT
LOAD NINSW
OUTSW
RLYV
N30V
ACAUD1
ACAUD2
ACAUDG
ACDIG1
ACDIG2
ACDIG3
F LAC
FILB
GND5VDAC
P5V
P5V DAC
N12V
P12V
P11V
NEUT2
115V
230V
GND
1
O/P 'In'
2
3
Bias
4
LoadIn
5
LoadOut
6
Vcc
7
Vcc
8
9
O/P 'Out'
10
Z210
LB1641
Motor Ground
C32
10N CD
D19
4V7 400MW
HS
HS2A
TO220HS08REG
N35V
R3710R FU
R48
10R FU
+C33
1M0 25V
TP1
TP2TP3 TP4
TP5
TP6
TP7
C54
10N CD
PD1
PAD300/4.1
L6
6U8H RADIAL
L7
6U8H RADIAL
115V units only
230V units only
F2
T250MA115V
+C51
1M0 25V
R64
10R FU
R65 10R FU P11V CLK
D4
UF4003
D5
UF4003
D6
UF4003
D7
UF4003
D8
UF4003
D9
UF4003
D10
UF4003
D11
UF4003
POWER SUPPLIES
+C39
100U EL
+C40
100U EL
+C44
1M0 35V
+C45
1M0 35V
+
C47
1M0 35V
+C48
1M0 35V
+C38
100U 25V ZA EL
+C56
47U EL 35V
1
2
3
4
5
6
SK6
MOLEXPWR6
1
2
3
4
SK3
MOLEXPWR4
-
CGND2
WF 07-04-00 A
NEW PROTOTYPE
L
N
E
NEL
SK1
EC3
C69
10N CD
C67
3N3 MAINS C68
3N3 MA NS
TL10
TOOLING4.
Vin
I
ADJ
A
Vout O
Z206
LM1086-ADJ
R47
1K8 MF
R46
1K8 MF
R40
220R MF
D2000
1N4003F
D2003
1N4003F
HS1
TO220HS30REG
D2002
1N4003F
+C49
470U EL 25V
+C50
470U EL 25V
+C46
22U SILMIC
(25V)
D2001
1N4003F
1
2
PL4
2WVERTJUMPER
1
2
PL6
2WVERTJUMPER
1
2
PL5
2WVERTJUMPER
1
2
PL3
2WVERTJUMPER
1
2
PL7
2WVERTJUMPER
1
2
PL2
2WVERTJUMPER
JP2000
JUMPER
JP2001JUMPER
JP2002
JUMPER
JP2005
JUMPER
JP2003
JUMPER
JP2004
JUMPER
12
LK2000
10MM L NK
20
11
1
6
230V
115V
9
19
15
18
16
17
13
4
5
10
2
7
T201
L866TX
CL 13-07-00 REVISIONS B
CL 03-08-00 PRODUCTION RELEASE 1
EARTH LEAD
8M101
ET1
EARTH LEAD
CL 15-09-00 EARTH L NK 8M101 ADDED 1.1
00_1083
4
5
6
SW201B
A1014
7
8
9
SW201C
A1014
10
11
12
SW201D
A1014
TRACKS MOVED TO CLEAR P LLARS & C64 ADDED FOR EMC00_1093 2CW 11-10-00
1 2 3 4 5 6 7 8
A
B
C
D
87654321
D
C
B
A
ISSUE
DRAWING NO.
DRAWING TITLE
Drawn by:
DATE
Filename ECO No. DESCRIPTION OF CHANGE
G:\DATA\ECO\ECO AGENDA\00 1093 L887PB 2\L887 2\L887 2.ddb - L887c3 2.sch
A & R Cambridge Ltd.
Pembroke Avenue
Denny Industrial Centre
Waterbeach
Cambridge CB5 9PB
CD72, CD92 CD Players
Circuit Diagram
L887C3_2
CW12-Oct-2000
INITIALS
Date Printed 3 4Sheet of
Notes
R2
3K3 MF
R3
1K6 MF
R5
3K3 MF
R6
3K3 MF
R7
2K2 MF
R9
6K8 MF
R10
22K MF
R11
120R MF
R12
22R MF
R13
1K2 MF
R102
3K3 MF
R103
1K6 MF
R104
3K3 MF
R105
3K3 MF
R106
3K3 MF
R110
22K MF
R111
120R MF
R112
22R MF
R113
1K2 MF
Vin
I
GND
G
Vout O
Z203
78L05
X1
16.9344MHZ
C13
33P CD
R18
33K MF
R19
33K MF
C15
100P CD
C16
100P CD R21
1K0 MF
Q2
BC547B
C17
10N CD
C10
1N0 CD
C12
10N CD
R23
120R MF
R24
10R FU
Analogue ground
34
Z202B
74HCU04 12 Z202A
74HCU04
56 Z202C
74HCU04
8 9
Z202D
74HCU04
10 11
Z202E 74HCU04
1213
Z202F
74HCU04
14
7
Z202G
74HCU04
R25
120R MF
N12V
P12V C6
680P PP
C7
680P PP
L1
7F003
Analogue Ground
Analogue Ground
Q3
BC557B
R14
10K MF
R15
10K MF
N12V
SH1 EMCPHONO2
GFS
FOK
WDCK
LRCK
BCLK
ADATA
R35
4M7 MF
ADATA
BCLK
LRCK
17MHZ
17MHZ
DATA
CLK
PGML
CLK
DATA
SUBQ
SENSE
XLT
LDON
DIGOUT
AMUTE
SQCK
SCOR
R22
390R MF
R36
1K5 MF
C14
33P CD
C18 10N CD C19
10N CD
DIGOUT
P5V
P7V
Flex connector from CDM14 mech
SMUTE
P5V DAC
Data connector to DAC PCB
R31 330R MF
R32 330R MF
R33 330R MF
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
SK203
FFC32V
HDCD
RB3
17MHZ
WD
LRCK
ADATA
BCLK
DIGOUT
DEEM
SMUTE
RA0
RB7
RB6
RB5
RB4
RB0
RB1
RB2
EMC
SK5
PHONO1
D1
1N4148
D2
1N4148
R20
22R MF
D3 1N4148
R17
10K MF
P5V
SCLK
12 34 56 78 910 1112 1314 1516
PL1
D L16 VPLG
P5V DAC(A7)
P5V DAC(A7)
P11V CLK
D21
1N4148
PMUTE
PMUTE
L4
33UH AX
L5
33UH AX
R56
330R MF
R57
330R MF
XRST
PMUTE
VOUTL
LEFT1
LOUT
ROUT
RIGHT1
VOUTR
ADATA
LRCK
BCLK
WDCK 17MHZ
DIGOUT
P5VCLK
AUDGND
DACGND
DIGOUTP
DIGOUTN
A7DAC5V
R16 330R MF
WD
L
R
+C29
100U EL
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
SK201
FFC23V
+
C27
10U EL
Q4
BC547B
D20
4V7 400MW
P12V
R30
10K MF
Q5
BC547B
R28
10K MF
Q6
BC547B
R34
10K MF
P5V
TP13
Mute
TP11
17MHz
TP8
TP9
TP10
LRCK
ADATA
BCLK
Q_14 Q_15
TP14
C21
10U NP
R49
68R MF
R62 220R MF
C20
680P PP
C28
1N0 PP
C11
680P PP
3
21
Z1A
NJM2114 5
67
Z1B
NJM2114
3
21
Z101A
NJM2114
84
Z1C
NJM2114
84
Z101C
NJM2114
1
EMC
SK4
PHONO2HG
DAC & Audio outputs
LRCIN
1
DIN
2
BCKIN
3
CLKO
4
XTI
5
XTO
6
DGND
7
Vdd
8
Vcc2R
9
AGND2R
10
EXT1R
11
NC
12
VOUTR
13
AGND1
14 Vcc 15
VOUTL 16
NC 17
EXTL 18
AGND2L 19
Vcc2L 20
ZERO 21
RST 22
CS/IWO 23
MODE 24
MUTE 25
MD/DM0 26
MC/DM1 27
ML/IIS 28
Z201
PCM1716#
1 2
LK14
10MM L NK
1 2
LK66
10MM L NK
DEEM
Q_13 Q_16 Q_17
Q_18
5
4
1
2
3
SCRN
T202
DIGOUT_TX
P5V TOS
+
C8
22U EL OS
C1
10N CD
R69
8k2 MF
Gnd
1
Radj
2
Vcc
3
Vin
4
RFB011T
GND
Z2
TOTX173
+
C23
100U EL
+
C24
100U EL
+C22
100U EL
+C26
100U EL +
C25
22U EL OS
+
C4
10U CERAFINE
Vin
I
GND
G
Vout O
Z3
78L05
+C9
100U EL +
C30
22U EL
P12V P5VTOS
R70
470R FU
R60
10K MF
+C31
10U EL
D24
1N4148
Q1
FST239
Q101
FST239
1 2
LK12
10MM LINK
1 2
LK105
10MM LINK
1 2LK106
10MM L NK
R66
220R MF
-
C59
22P CD
C60
22P CD
C61
22P CD
C66
10P CD
R1
120R MF
CGND1
CGND1
CGND3
WF 07-04-00 A
NEW PROTOTYPE
R4
3K3 MF
C3
1N3 PP
C103
1N3 PP
C2
470P PP
C102
470P PP
C65
1N0 CD
L2
33UH AX
XRST
XRST
XRST
AMUTE
DEEM
SMUTE
AMUTE
RMIN
PGML
CLK
DATA
SCOR
SQCK
XRST
LDON
XLT
SENSE
SUBQ
DEEM
SMUTE
AMUTE
RMIN
PGML
CLK
DATA
SCOR
SQCK
XRST
LDON
XLT
SENSE
SUBQ
R107
2K2 MF
R109
6K8 MF
5
67
Z101B
NJM2114
+
C104
10U CERAFINE
C304
1N0 CD
C17 to be as close as possible
to Q2 collector
C301
10N CD
R309
680R MF
R310
680R MF
C105
1N0 PP
C5
1N0 PP
C302
470P PP
C303
470P PP
CL 13-07-00 REVISIONS B
CL 15-09-00 EARTH LINK 8M101 ADDED 1.1
00_1083
C64
100N CD
R29
560R MF
R26
68K MF
1
2
3
SW201A
A1014
TRACKS MOVED TO CLEAR P LLARS & C64 ADDED FOR EMC00_1093 2CW 11-10-00
CL 03-08-00 PRODUCTION RELEASE 1
1 2 3 4 5 6 7 8
A
B
C
D
87654321
D
C
B
A
ISSUE
DRAWING NO.
DRAWING TITLE
Drawn by:
DATE
Filename ECO No. DESCRIPTION OF CHANGE
G:\DATA\ECO\ECO AGENDA\00 1093 L887PB 2\L887 2\L887 2.ddb - L887c4 2.sch
A & R Cambridge Ltd.
Pembroke Avenue
Denny Industrial Centre
Waterbeach
Cambridge CB5 9PB
CD72, CD92 CD Players
Circuit Diagram
L887C4_2
CW12-Oct-2000
INITIALS
Date Printed 4 4Sheet of
Notes
TIMER
1
RMIN
2
+5V
3
NC
4
NC
5
M/C
6
POML
7
CLK
8
SENSE
9
DATA
10
SQCK
11
SUBQ
12
NC
13
AMUTE
14
LDON
15
XLT
16
NC
17
R11
18
R12
19
R13
20
R14
21
KEY0
22
KEY1
23
KEY2
24
KEY3 25
+5V 26
+5V 27
AF ADJ 28
IN/OUTSW 29
RST 30
EXTAL 31
XTAL 32
VSS 33
RO1 34
RO2 35
RO3 36
RO4 37
DEEM 38
NC 39
SMUTE 40
NC 41
NC 42
P1 43
P2 44
P3 45
P4 46
P5 47
P6 48
P7 49
P8 50
P9 51
P10 52
P11 53
P12 54
P13 55
P14 56
P15 57
NC 58
NC 59
NC 60
NC 61
NC 62
10 63
20 64
30
65
40
66
50
67
60
68
70
69
80
70
-30v
71
+5V
72
+5V
73
+5V
74
+5V
75
LOADIN
76
LOADOUT
77
SCOR
78
SEL2
79
SEL1
80
Z212
Comment
VF
1
VF
2
3
80
4
P15
5
P14
6
P13
7
8
P12
9
70
10
P11
11
60
12
P10
13
P9
14
50
15
P8
16
40
17
P7
18
P6
19
20
P5
21
30
22
P4
23
20
24
P3
25
P2
26
10
27
P1
28
29
-88 8888 88
VF
30
VF
31
DISC
SHUFFLE
> ||
DISP301
B1008
30
40
50
60
70
80
+
C292
100U EL
C291
47N CD C293
47N CD
X201
CST4.00
C294
47N CD
R295
10K MF
R296
10K MF R297
10K MF
R298
10K MF
R292
8K2 MF
R293 8K2 MF
R294 1K0 MF
D291
1N4148
D292
1N4148
D293
1N4148
D294
1N4148
D295
1N4148
D296
1N4148
D297
1N4148
R1
R2
R3
R4
R1
R2
R3
R4
C0' C1' C3'
C4'
C0
C2
C7
R308
8K2 MF
R313
8K2 MF
R307
1K2 MF
R306
1K5 MF
R305
2K2 MF
R304
3K3 MF
R303
5K6 MF
R302
12K MF
R301
33K MF
NEXT PREV FF FR PAUSE STOP PLAY OPEN
R11
R12
R13
R14
NOUT
DEEM
SMUTE
XRST
4MHZ
R291 3R3 FU
SW301 SW302 SW303 SW304 SW305 SW306 SW307 SW308
FILA
FILB
Flexfoil connector to Display PCB
P5V
K0
K1
K0
K1
R314
220R MF
P5V
N30V
INOUT
LDIN
LDOUT
4MHZ
P1
P3
P4
P6
P8
P9
P10
P12
P14
P15
20
40
50
60
70
P2
P5
P7
P11
P13
10
30
80
20
10
P15
P1
P2
P3
P4
P5
P6
P7
P8
P9
P10
P11
P12
P13
P14
R11
R12
R13
R14
XLT
LDON
AMUTE
SUBQ
SQCK
DATA
SENSE
CLK
PGML
LDIN
LDOUT
SCOR
RM N
INOUT
LDIN
LDOUT
DEEM
SMUTE
AMUTE
4MHZ
RM N
PGML
CLK
DATA
SMUTE
PGML CLK DATA
DEEM
RMIN
4MHZ
D80
D70
D60
D50
D40
D30
D20
D10
DP1
DP2
DP3
DP4
DP5
DP6
DP7
DP8
DP9
DP10
DP11
DP12
DP13
DP14
DP15
D80
D70
D60
D50
D40
D30
D20
D10
DP1
DP2
DP3
DP4
DP5
DP6
DP7
DP8
DP9
DP10
DP11
DP12
DP13
DP14
DP15
R71
8K2 MF
R61
8K2 MF
Q_
Q_2
Q_3
Q_4
Q_5
Q_6
Q_7
Q_8
Q_9 Q_10 Q_11
Q_12
AMUTE
K0M
K1M
DEEM
TP12
R63
33K MF
Microcontroller & Display
C57
10N CD
-WF 07-04-00 A
NEW PROTOTYPE
DEEM
AMUTE
SMUTE
RMIN
PGML
CLK
DATA
SCOR
SQCK
XRST
LDON
XLT
SENSE
SUBQ
SCOR
SQCK
XRST
LDON
XLT
SENSE
SUBQ
3
2
1
+5V
O/P
GND Case
RX201
SBX1610-52
C52
10N CDLED201
LED ULTRARED
Alpha 8 only
R50 100K MF
RA2
1
RA3
2
RTCC
3
MCLR
4
VSS
5
RB0 6
RB1 7
RB2 8
RB3 9
RB4 10
RB5 11
RB6 12
RB7 13
VDD
14
OSC2
15
OSC1
16
RA0
17
RA1
18
Z211
PIC16C54XT
RA0
AMUTE RB0
RB1
RB2
RB3
RB4
RB5
RB6
RB7
RMIN
R54 330R MF
XRST
HDCD
4MHZ R59
330R MF
HDCD
REMIN
RB0
RB1
RB2
RB3
RB4
RB5
RB6
RB7
P5V
R27 100K MF
P5V
RA0
+C53
22U EL OS
DEEM
REM
REM1
DISGND
KEYGND
HDCD1
DIS5V
DISGND
+C71
10U EL
KEYGND
C70
100N CD
+C72
10U EL
R300
10R MF
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
SK291
FFC32V
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
SK301
FFC32H
CL 13-07-00 REVISIONS B
LED301
LED GREEN3.1MM
CL 03-08-00 PRODUCTION RELEASE 1
C62
100P CD
D25
1N4148
P5V
00_1083 CL 15-09-00 EARTH L NK 8M101 ADDED 1.1
TRACKS MOVED TO CLEAR P LLARS & C64 ADDED FOR EMC00_1093 211-10-00CW
12345678
A
B
C
D
87654321
D
C
B
A
ISSUE
DRAWING NO.
DRAWING TITLE
Drawn by:
DATE
Filename ECO No. DESCRIPTION OF CHANGE
J:\FILES\L-ELECT\PCB complete packages\L888 CD92\L888 1.ddb - L888c1 2.0.prj
A & R Cambridge Ltd.
Pembroke Avenue
Denny Industrial Centre
Waterbeach
Cambridge CB5 9PB
CD92 Main Board
Circuit Diagram
L888C1
CW
26-Oct-2000
INITIALS
Date Printed 1 4Sheet of
Notes
LK1
L NK10NP
LK2
LINK10NP
LK3
L NK10NP
LK4
LINK10NP
LK5
LINK10NP
LK6
L NK10NP
LK7
LINK10NP
LK8
L NK10NP
LK9
L NK10NP
LK10
LINK10NP
LK11
LINK10NP
LK13
L NK10NP
LK15
LINK10NP
LK16
L NK10NP
LK17
LINK10NP
LK18
L NK10NP
LK19
L NK10NP
LK130
LINK10NP
LK21
LINK10NP
LK22
LINK10NP
LK23
L NK10NP
LK25
LINK10NP
LK28
L NK10NP
LK29
L NK10NP
LK30
LINK10NP
LK31
LINK10NP
LK33
L NK10NP
LK35
LINK10NP
LK37
LINK10NP
LK38
L NK10NP
LK39
L NK10NP
LK40
LINK10NP
LK41
LINK10NP
LK42
LINK10NP
LK43
L NK10NP
LK44
LINK10NP
LK46
L NK10NP
LK47
LINK10NP
LK49
L NK10NP
LK50
LINK10NP
LK51
LINK10NP
LK52
LINK10NP
LK53
L NK10NP
LK54
LINK10NP
LK55
LINK10NP
LK56
L NK10NP
LK57
LINK10NP
LK58
L NK10NP
LK59
L NK10NP
LK60
LINK10NP
LK61
LINK10NP
LK62
LINK10NP
LK63
L NK10NP
LK64
LINK10NP
LK65
LINK10NP
LK67
LINK10NP
LK68
L NK10NP
LK69
L NK10NP
LK70
LINK10NP
LK71
LINK10NP
Photo Strip
PS
PHOTO_STR P
Update Box
A2
UPDATE_BOX
LK72
LINK10NP
LK73
L NK10NP
LK74
LINK10NP
LK75
LINK10NP
LK76
L NK10NP
LK77
LINK10NP
LK78
L NK10NP
LK79
L NK10NP
LK80
LINK10NP
LK81
LINK10NP
LK82
LINK10NP
LK83
L NK10NP
LK85
LINK10NP
LK86
L NK10NP
LK87
LINK10NP
LK88
L NK10NP
LK89
L NK10NP
LK90
LINK10NP
LK91
LINK10NP
LK92
LINK10NP
LK93
L NK10NP
F4
T160MASP
TL1
TOOLING3.0
FD_2
FIDUCIAL
LK94
LINK10NP
LK95
LINK10NP
LK97
LINK10NP
TL3
TOOL NG3 0 TL4
TOOLING3.0 TL5
TOOLING3.0
Links
Documentation
Tooling Holes & Alignment Marks
Spare Fuse
Paper Marker
A2 Horizontal
DD3
DD_A2H
Paper Marker
A2 Vertical
DD2
DD_A2V
CEM1, 2 OZ Cu
PCB MATERIAL
DD5
CEM1_20Z
FOR ROS PROGRAMME INCLUDE A7 FOR ALPHA 7 CD
LK98
L NK10NP
LK99
L NK10NP
FD_3
FIDUCIAL
FD_4
FIDUCIAL
PCB
PCB
L887PB_2
TL6
TOOLING_OPT
00_1107
LK96
L NK10NP
LK107
LINK10NP
1 2
Z4A
74HC14
3 4
Z4B
74HC14
5 6
Z4C
74HC14
89
Z4D
74HC14
1011
Z4E
74HC14
1213
Z4F
74HC14
14
7
Z4G
74HC14
C58
100N CD
R67
47R MF
R68
330R MF
1 2
3 4
5 6
7 8
9 10
11 12
13 14
15 16
SK2
D L16 HSKT
Alpha 7 CD Configuration Plug
LD N
LDOUT
NOUT
FILA
FILB 4MHZ
L888C2_1
L888C2_2 0 SCH
DEEM
SMUTE
AMUTE
RMIN
PGML
CLK
DATA
SCOR
SQCK
XRST
LDON
XLT
SENSE
SUBQ
L888C3_1
L888C3_2 0 SCH
F LA
F LB
K0
K1
K0
K1
INOUT
LD N
LDOUT
4MHZ
DEEM
AMUTE
SMUTE
RMIN
PGML
CLK
DATA
SCOR
SQCK
XRST
LDON
XLT
SENSE
SUBQ
L888C4_1
L888C4_2 0 SCH
EL1
LCD CHAIR
EL2
LCD CHAIR
LK108
LINK10NP
LK109
LINK10NP
LK110
L NK10NP
LK111
LINK10NP
+C1000
10U EL
LK120
LINK10NP
LK119
LINK10NP
LK118
L NK10NP
LK117
LINK10NP
LK125
L NK10NP
LK124
L NK10NP
LK123
L NK10NP
LK122
L NK10NP
LK121
L NK10NP
LK127
L NK10NP
LK126
L NK10NP
Ground decoupling
LK135
LINK10NP
LK133
LINK10NP
LK132
LINK10NP
LK136
LINK10NP
FD_1
FIDUCIAL
CW 06-10-00 PRODUCTION RELEASE 2 0
CD92 MA N BOARD
Project sheet
12345678
A
B
C
D
87654321
D
C
B
A
ISSUE
DRAWING NO.
DRAWING TITLE
Drawn by:
DATE
Filename ECO No. DESCRIPTION OF CHANGE
J:\FILES\L-ELECT\PCB complete packages\L888 CD92\L888 1.ddb - L888c2 2.0.sch
A & R Cambridge Ltd.
Pembroke Avenue
Denny Industrial Centre
Waterbeach
Cambridge CB5 9PB
CD92 Main Board
Circuit Diagram
L888C2
CW
26-Oct-2000
INITIALS
Date Printed 2 4Sheet of
Notes
F1
T160MA
D12
1N4003F +C34
100U EL 100V
+C36
3M3 EL
+C37
10U EL
R38
330R MF
R41
1K6 MF
+C43
1M0 25V
D13
1N4003F
CDM14 Supply
+7 3V
Vin
I
ADJ
A
Vout O
Z207
LM317T
R43
330R MF
R42
1K0 MF
D14
1N4003F
DAC Supply
+5V
R44 1R0 FU
R45 1R0 FU
Vin
I
ADJ
A
Vout O
Z204
LM317T
Vin
I
ADJ A
Vout O
Z205
LM337T
R39
220R MF
D15 1N4003F
D16
1N4003F
R55
1K2 MF
1
2
3
4
5
SK205
8K2005
C55
10N CD
+
C41
100U EL
LOADOUT
LOAD N
GND
NSW
OUTSW
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23 SK204
FFC23V
LDIN
LDOUT
INOUT
P7V
FILA
FILB
Vin
I
GND
G
Vout O
Z208 7805
+C42
100U EL
Vin
I
GND G
Vout O
Z209
7915
R51 22R FU
R52 22R FU
D17
15V 400MW +
C35
100U EL 100V
D18
7V5 400MW
R53
33K MF
Power connector to DAC PCB
P12V
N12V
P7V P5VP5V DAC
N30V
P11V
AC1
AC2
AC
AC
AC2
AC1
D22
1N4003F
D23
1N4003F
R58 10R FU
LIVE
NEUT
P22VUN
N22VUN
N12V
P12V
P11V
P11VSW
P7V P5VDAC P5V
AGND
DGND
FILA
F LASW
LOADOUT
LOADINNSW
OUTSW
RLYV
N30V
ACAUD1
ACAUD2
ACAUDG
ACDIG1
ACDIG2
ACDIG3
F LAC
F LB
GND5VDAC
P5V
P5V DAC
N12V
P12V
P11V
NEUT2
115V
230V
GND
1
O/P 'In'
2
3
Bias
4
LoadIn
5
LoadOut
6
Vcc
7
Vcc
8
9
O/P 'Out'
10
Z210
LB1641
Motor Ground
C32
10N CD
D19
4V7 400MW
HS
HS2A
TO220HS08REG
N35V
R3710R FU
R48
10R FU
+C33
1M0 25V
TP1
TP2TP3 TP4
TP5
TP6
TP7
C54
10N CD
PD1
PAD300/4.1
L6
6U8H RADIAL
L7
6U8H RADIAL
115V units only
230V units only
F2
T250MA115V
+C51
1M0 25V
R64
10R FU
R65 10R FU P11V CLK
D4
UF4003
D5
UF4003
D6
UF4003
D7
UF4003
D8
UF4003
D9
UF4003
D10
UF4003
D11
UF4003
POWER SUPPL ES
+C39
100U EL
+C40
100U EL
+C44
1M0 35V
+C45
1M0 35V
+
C47
1M0 35V
+C48
1M0 35V
+C38
100U 25V ZA EL
+C56
47U EL 35V
1
2
3
4
5
6
SK6
MOLEXPWR6
1
2
3
4
SK3
MOLEXPWR4
CGND2
L
N
E
NEL
SK1
IEC3
C69
10N CD
C67
3N3 MA NS C68
3N3 MA NS
TL10
TOOL NG4.1
Vin
I
ADJ
A
Vout O
Z206
LM1086-ADJ
R47
1K8 MF
R46
1K8 MF
R40
220R MF
D2000
1N4003F
D2003
1N4003F
HS1
TO220HS30REG
D2002
1N4003F
+C49
470U EL 25V
+C50
470U EL 25V
(25V)
D2001
1N4003F
1
2
PL4
2WVERTJUMPER
1
2
PL6
2WVERTJUMPER
1
2
PL5
2WVERTJUMPER
1
2
PL3
2WVERTJUMPER
1
2
PL7
2WVERTJUMPER
1
2
PL2
2WVERTJUMPER
JP2000
JUMPER
JP2001JUMPER
JP2002
JUMPER
JP2005
JUMPER
JP2003
JUMPER
JP2004
JUMPER
12
LK2000
10MM L NK
20
11
1
6
230V
115V
9
19
15
18
16
17
13
4
5
10
2
7
T201
L866TX
EARTH LEAD
8M101
ET1
EARTH LEAD
+C46
1M0 25V
7
8
9
SW201C
A1014
10
11
12
SW201D
A1014
00_1107 CW 06-10-00 PRODUCTION RELEASE 2 0
CD92 MA N BOARD
12345678
A
B
C
D
87654321
D
C
B
A
ISSUE
DRAWING NO.
DRAWING TITLE
Drawn by:
DATE
Filename ECO No. DESCRIPTION OF CHANGE
J:\FILES\L-ELECT\PCB complete packages\L888 CD92\L888 1.ddb - L888c3 2.0.sch
A & R Cambridge Ltd.
Pembroke Avenue
Denny Industrial Centre
Waterbeach
Cambridge CB5 9PB
CD92 Main Board
Circuit Diagram
L888C3
CW
26-Oct-2000
INITIALS
Date Printed 3 4Sheet of
Notes
R2
3K3 MF
R3
1K6 MF
R5
3K3 MF
R6
3K3 MF
R7
2K2 MF
R9
6K8 MF
R10
22K MF
R11
120R MF
R12
22R MF
R13
1K2 MF
R102
3K3 MF
R103
1K6 MF
R104
3K3 MF
R105
3K3 MF
R106
3K3 MF
R110
22K MF
R111
120R MF
R112
22R MF
R113
1K2 MF
Vin
I
GND
G
Vout O
Z203
78L05
X1
16 9344MHZ
C13
33P CD
R18
33K MF
R19
33K MF
C15
100P CD
C16
100P CD R21
1K0 MF
Q2
BC547B
C17
10N CD
C10
1N0 CD
C12
10N CD
R23
120R MF
R24
10R FU
Analogue ground
34
Z202B
74HCU04 12 Z202A
74HCU04
56 Z202C
74HCU04
8 9
Z202D
74HCU04
10 11
Z202E 74HCU04
1213
Z202F
74HCU04
14
7
Z202G
74HCU04
R25
120R MF
N12V
P12V C6
680P PP
C7
680P PP
L1
7F003
Analogue Ground
Analogue Ground
Q3
BC557B
R14
10K MF
R15
10K MF
N12V
SH1 EMCPHONO2
GFS
FOK
WDCK
LRCK
BCLK
ADATA
R35
4M7 MF
ADATA
BCLK
LRCK
17MHZ
17MHZ
DATA
CLK
PGML
CLK
DATA
SUBQ
SENSE
XLT
LDON
DIGOUT
AMUTE
SQCK
SCOR
R22
390R MF
R36
1K5 MF
C14
33P CD
C18 10N CD C19
10N CD
DIGOUT
P5V
P7V
Flex connector from CDM14 mech
SMUTE
P5V DAC
Data connector to DAC PCB
R31 330R MF
R32 330R MF
R33 330R MF
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
SK203
FFC32V
HDCD
RB3
17MHZ
WD
LRCK
ADATA
BCLK
DIGOUT
DEEM
SMUTE
RA0
RB7
RB6
RB5
RB4
RB0
RB1
RB2
EMC
SK5
PHONO1
D1
1N4148
D2
1N4148
R20
22R MF
D3 1N4148
R17
10K MF
P5V
SCLK
12 34 56 78 910 1112 1314 1516
PL1
D L16 VPLG
P5V DAC(A7)
P5V DAC(A7)
P11V CLK
D21
1N4148
PMUTE
PMUTE
L4
33UH AX
L5
33UH AX
R56
330R MF
R57
330R MF
XRST
PMUTE
VOUTL
LEFT1
LOUT
ROUT
RIGHT1
VOUTR
ADATA
LRCK
BCLK
WDCK 17MHZ
DIGOUT
P5VCLK
AUDGND
DACGND
DIGOUTP
DIGOUTN
A7DAC5V
R16 330R MF
WD
L
R
+C29
100U EL
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
SK201
FFC23V
+
C27
10U EL
Q4
BC547B
D20
4V7 400MW
P12V
R30
10K MF
Q5
BC547B
R28
10K MF
Q6
BC547B
R34
10K MF
P5V
TP13
Mute
TP11
17MHz
TP8
TP9
TP10
LRCK
ADATA
BCLK
Q_14 Q_15
TP14
C21
10U NP
R49
68R MF
R62 220R MF
C20
680P PP
C28
1N0 PP
C11
680P PP
3
21
Z1A
NJM2114 5
67
Z1B
NJM2114
3
21
Z101A
NJM2114
84
Z1C
NJM2114
84
Z101C
NJM2114
1
EMC
SK4
PHONO2HG
DAC & Audio outputs
LRCIN
1
DIN
2
BCKIN
3
CLKO
4
XTI
5
XTO
6
DGND
7
Vdd
8
Vcc2R
9
AGND2R
10
EXT1R
11
NC
12
VOUTR
13
AGND1
14 Vcc 15
VOUTL 16
NC 17
EXTL 18
AGND2L 19
Vcc2L 20
ZERO 21
RST 22
CS/IWO 23
MODE 24
MUTE 25
MD/DM0 26
MC/DM1 27
ML/IIS 28
Z201
PCM1716#
1 2
LK14
10MM LINK
1 2
LK66
10MM LINK
DEEM
Q_13 Q_16 Q_17
Q_18
5
4
1
2
3
SCRN
T202
DIGOUT_TX
P5V TOS
+
C8
22U EL OS
C1
10N CD
R69
8k2 MF
Gnd
1
Radj
2
Vcc
3
Vin
4
RFB011T
GND
Z2
TOTX173
+
C23
100U EL
+
C24
100U EL
+C22
100U EL
+C26
100U EL +
C25
22U EL OS
+
C4
10U CERAFINE
Vin
I
GND
G
Vout O
Z3
78L05
+C9
100U EL +
C30
22U EL
P12V P5VTOS
R70
470R FU
R60
10K MF
+C31
10U EL
D24
1N4148
Q1
FST239
Q101
FST239
1 2
LK12
10MM LINK
1 2
LK105
10MM LINK
1 2LK106
10MM L NK
R66
220R MF
C59
22P CD
C60
22P CD
C61
22P CD
C66
10P CD
R1
120R MF
CGND1
CGND1
CGND3
R4
3K3 MF
C3
1N3 PP
C103
1N3 PP
C2
470P PP
C102
470P PP
C65
1N0 CD
L2
33UH AX
XRST
XRST
XRST
AMUTE
DEEM
SMUTE
AMUTE
RMIN
PGML
CLK
DATA
SCOR
SQCK
XRST
LDON
XLT
SENSE
SUBQ
DEEM
SMUTE
AMUTE
RMIN
PGML
CLK
DATA
SCOR
SQCK
XRST
LDON
XLT
SENSE
SUBQ
R107
2K2 MF
R109
6K8 MF
5
67
Z101B
NJM2114
+
C104
10U CERAF NE
C304
1N0 CD
C17 to be as close as possible
to Q2 collector
C301
10N CD
R309
680R MF
R3 0
680R MF
C105
1N0 PP
C5
1N0 PP
C302
470P PP
C303
470P PP
C64
100N CD
R29
560R MF
R26
68K MF
1
2
3
SW201A
A1014
00_1107 CW 06-10-00 PRODUCTION RELEASE 2 0
CD92 MA N BOARD
12345678
A
B
C
D
87654321
D
C
B
A
ISSUE
DRAWING NO.
DRAWING TITLE
Drawn by:
DATE
Filename ECO No. DESCRIPTION OF CHANGE
J:\FILES\L-ELECT\PCB complete packages\L888 CD92\L888 1.ddb - L888c4 2.0.sch
A & R Cambridge Ltd.
Pembroke Avenue
Denny Industrial Centre
Waterbeach
Cambridge CB5 9PB
CD92 Main Board
Circuit Diagram
L888C4
CW
26-Oct-2000
INITIALS
Date Printed 4 4Sheet of
Notes
TIMER
1
RMIN
2
+5V
3
NC
4
NC
5
M/C
6
POML
7
CLK
8
SENSE
9
DATA
10
SQCK
11
SUBQ
12
NC
13
AMUTE
14
LDON
15
XLT
16
NC
17
R11
18
R12
19
R13
20
R14
21
KEY0
22
KEY1
23
KEY2
24
KEY3 25
+5V 26
+5V 27
AF ADJ 28
IN/OUTSW 29
RST 30
EXTAL 31
XTAL 32
VSS 33
RO1 34
RO2 35
RO3 36
RO4 37
DEEM 38
NC 39
SMUTE 40
NC 41
NC 42
P1 43
P2 44
P3 45
P4 46
P5 47
P6 48
P7 49
P8 50
P9 51
P10 52
P11 53
P12 54
P13 55
P14 56
P15 57
NC 58
NC 59
NC 60
NC 61
NC 62
10 63
20 64
30
65
40
66
50
67
60
68
70
69
80
70
-30v
71
+5V
72
+5V
73
+5V
74
+5V
75
LOADIN
76
LOADOUT
77
SCOR
78
SEL2
79
SEL1
80
Z212
Comment
VF
1
VF
2
3
80
4
P15
5
P14
6
P13
7
8
P12
9
70
10
P11
11
60
12
P10
13
P9
14
50
15
P8
16
40
17
P7
18
P6
19
20
P5
21
30
22
P4
23
20
24
P3
25
P2
26
10
27
P1
28
29
-88.8888 88
VF
30
VF
31
DISC
SHUFFLE
> ||
DISP301
B1008
30
40
50
60
70
80
+
C292
100U EL
C291
47N CD C293
47N CD
X201
CST4 00
C294
47N CD
R295
10K MF
R296
10K MF R297
10K MF
R298
10K MF
R292
8K2 MF
R293 8K2 MF
R294 1K0 MF
D291
1N4148
D292
1N4148
D293
1N4148
D294
1N4148
D295
1N4148
D296
1N4148
D297
1N4148
R1
R2
R3
R4
R1
R2
R3
R4
C0' C1' C3'
C4'
C0
C2
C7
R308
8K2 MF
R313
8K2 MF
R307
1K2 MF
R306
1K5 MF
R305
2K2 MF
R304
3K3 MF
R303
5K6 MF
R302
12K MF
R301
33K MF
NEXT PREV FF FR PAUSE STOP PLAY OPEN
R11
R12
R13
R14
NOUT
DEEM
SMUTE
XRST
4MHZ
R2913R3 FU
SW301 SW302 SW303 SW304 SW305 SW306 SW307 SW308
FILA
FILB
Flexfoil connector to Display PCB
P5V
K0
K1
K0
K1
R314
220R MF
P5V
N30V
INOUT
LDIN
LDOUT
4MHZ
P1
P3
P4
P6
P8
P9
P10
P12
P14
P15
20
40
50
60
70
P2
P5
P7
P11
P13
10
30
80
20
10
P15
P1
P2
P3
P4
P5
P6
P7
P8
P9
P10
P11
P12
P13
P14
R11
R12
R13
R14
XLT
LDON
AMUTE
SUBQ
SQCK
DATA
SENSE
CLK
PGML
LD N
LDOUT
SCOR
RMIN
NOUT
LD N
LDOUT
DEEM
SMUTE
AMUTE
4MHZ
RMIN
PGML
CLK
DATA
SMUTE
PGML CLK DATA
DEEM
RM N
4MHZ
D80
D70
D60
D50
D40
D30
D20
D10
DP1
DP2
DP3
DP4
DP5
DP6
DP7
DP8
DP9
DP10
DP11
DP12
DP13
DP14
DP15
D80
D70
D60
D50
D40
D30
D20
D10
DP1
DP2
DP3
DP4
DP5
DP6
DP7
DP8
DP9
DP10
DP11
DP12
DP13
DP14
DP15
R71
8K2 MF
R61
8K2 MF
Q_
Q_2
Q_3
Q_4
Q_5
Q_6
Q_7
Q_8
Q_9 Q_10 Q_11
Q_12
AMUTE
K0M
K1M
DEEM
TP12
R63
33K MF
Microcontroller & Display
C57
10N CD
DEEM
AMUTE
SMUTE
RMIN
PGML
CLK
DATA
SCOR
SQCK
XRST
LDON
XLT
SENSE
SUBQ
SCOR
SQCK
XRST
LDON
XLT
SENSE
SUBQ
3
2
1
+5V
O/P
GND Case
RX201
SBX1610-52
C52
10N CDLED201
LED ULTRARED
Alpha 8 only
R50 100K MF
RA2
1
RA3
2
RTCC
3
MCLR
4
VSS
5
RB0 6
RB1 7
RB2 8
RB3 9
RB4 10
RB5 11
RB6 12
RB7 13
VDD
14
OSC2
15
OSC1
16
RA0
17
RA1
18
Z211
PIC16C54XT
RA0
AMUTE RB0
RB1
RB2
RB3
RB4
RB5
RB6
RB7
RMIN
R54 330R MF
XRST
HDCD
4MHZ R59
330R MF
HDCD
REM N
RB0
RB1
RB2
RB3
RB4
RB5
RB6
RB7
P5V
R27 100K MF
P5V
RA0
+C53
22U EL OS
DEEM
REM
REM1
DISGND
KEYGND
HDCD1
DIS5V
DISGND
+C71
10U EL
KEYGND
C70
100N CD
+C72
10U EL
R300
10R MF
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
SK291
FFC32V
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
SK301
FFC32H
LED301
LED GREEN3.1MM
C62
100P CD
D25
1N4148
P5V
00_1107 CW 06-10-00 PRODUCTION RELEASE 2 0
CD92 MA N BOARD
12345678
A
B
C
D
87654321
D
C
B
A
ISSUE
DRAWING NO.
DRAWING TITLE
Drawn by:
DATE
Filename ECO No. DESCRIPTION OF CHANGE
J:\PROJECTS\A9 CD\L816PB DAC PCB\Circuits & PCB\Issue 5\L816c1 5.DDB - Documents\L816c1 .p j
A & R Cambridge Ltd.
Pembroke Avenue
Denny Industrial Centre
Waterbeach
Cambridge CB5 9PB
Alpha 9 CD DAC PCB Top
Circuit Diagram
L816CT
SJB
15-Oct-1999
INITIALS
Date Printed 1 9Sheet of
Notes:
VCCD
DGND
CCLK
DOR
DOL
WCKO
BCKO
WR
DSP
SER_CLK
SER_DIN
SER_CH
D[0. 23]
SEL[0. 2]
RDYO
SRD
SCK
INTR
A[0..15]
L[0..15]
R[0..15]
CLK
PRGM
M0
M2
DONE
MODE0
MODE1
LDC
SER_CH2
AA[0..15]
A/D
NMODE
PMODE
MUTE
HDCD
FPGA
L816C2_5 SCH
VCCD
DGND
A[0..15]
ROM_ENABLE
CLK17M
PCAP
XRST
INTR
LDC
D[0..23]
WR
SRD
SCK
SER_CH
PRGM
CCLK
SCO
SER_CH2
DEEMPH
MUTE
DSP
L816C3_5 SCH
VCC
28 GND
14
OE/VPP
22 CE
20
A0
10 A1
9A2
8
A3
7
A4
6A5
5A6
4
A7
3
A8
25 A9
24 A10
21
A11
23 A12
2A13
26 A14
27
A15
1
D0 11
D1 12
D2 13
D3 15
D4 16
D5 17
D6 18
D7 19
U31
27C512
A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
D0
D1
D2
D3
D4
D5
D6
D7
D[0..7]
A[0..15]
A[0..15]
D[0. 23]
L[0..15]
R[0..15]
SEL[0..2]
CLK17M
L[0..15]
SEL[0..2]
R[0..15]
RDY
VPROT
AA[0..15]
PMODE
NMODE
A/D
MUTERLY
ASIC DAC
L816C4_5 SCH
1
23
U1A
74HC00 SM
4
56
U1B
74HC00 SM
8
9
10
U1C
74HC00 SM
11
12
13 U1D
74HC00 SM
DIN
1
BCKI
2
XTIM
3DITH
4GAIN
5
XTI
6VDD1
7VSS1
8PROG
9
OSIZ0/MS1
10 OSIZ1/MS2
11 -COB/MS3
12
JUST/MS4
13
BCPL/-MEN
14 SMUTE 15
DEEMPH 16
HMUTE 17
FSEL 18
SCAL 19
DG 20
VSS2 21
VDD2 22
DOR 23
DOL 24
WCKO 25
BCKO 26
HDCD 27
LRCI 28
U16
PMD-100 HDCD
GO
GAIN
POWER SUPPLY
L816C7_5 SCH
R145
15K SM
R162
15K SM
DONE
INTR
SCK
SRD
R91
220R MF
VCCD
VCCD
CLKDAC
CLK17M
R9
100K SM
VCCD
R3
0R0 SM
*
*
R143
0R0 SM
R144
0R0 SM
DONE *
**
C146
10N SM
VCCD
INTR
LDC
SRD
SCK
R163
100K SM C128
330P PPS
VCCD
CLK17M
SER_CH
VDD 14
GND
7
U1E
74HC00 SM
C110
10N SM
+5VCLK
Q25
BC849B
R114
100K SM
R23
2K2 SM
R8
4K7 SM
Q1
BC849B
D3
BAS16W SM
RLY_GND
RLYPWR
RA0
XRST
Power ON/OFF MUTE relay
* Fit to HDCD version only
** Fit to DSP version only
R13
100K SM
VCCD
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
SK3
FFC32V
CLKMECH
SER_CLK
SER_DIN
SER_CH
HDCDLED
XRST
DEEMPH
RA0
RB0
RB1
RB2
RB3
RB4
RB5
RB6
RB7
MUTE
MUTE
DEEMPH
RB7
HDCDLED
RB0
RB6
CLK17M
+
C96
100U EL
C88
10N SM
VCCD
L7
33UH SM
*
R82
1K0 SM
R105
1K0 SM
RB[0..7]
R106
10K SM
R117
1K0 SM
R87
1K0 SM
R85
10K SM
VCCD VCCD
RB4
RB5
***
DSP HDCD
PCB ID
**
**
**
* *
*
From FPGA
To DSP
PCAP
GO
ROM_ENABLE
M2
M0
R28
0R0 SM DSP
RDYO
RDY
BCKO
WCKO
DOL
DOR
MUTERLY
CLK17M
CLKDAC
CLKMECH
XRST
GO
CLOCK
L816C8_5 SCH
CLKDAC
CLKMECH
CLK17M
CLKDAC
CLKMECH
SER_CLK
SER_DIN
SER_CH
MUTE
XRST
DEEMPH
RA0
RB7
RB6
RB5
RB4
RB0
RB1
RB2
RB3
HDCDLED
DGND
C159
10N SM
THL1
FIXING HOLE
THL2
FIXING HOLE
THL3
FIXING HOLE
THL9
FIXING HOLE
THL8
FIXING HOLE
THL7
FIXING HOLE
Photo Strip
PS
PHOTO_STRIP SJB
SJB
SJB
LDC
R12
100K SM
VCCD
XRST
GO
GO
D11
BAS16W SM
**
**
FD_1
FIDUCIAL
FD_2
FIDUCIAL
RLY1C
RLY 51SB12T
CLK17M
BKin LRin
D in
DIout LRoutBKout
RE-LATCH
L816C9_5 SCH
CLK17M
VCCD
1
24
3 5
U21
74AHC1G00 SM
VPROT
PCB
L816PB
SER_CH2
AA[0..15]
SER_CH2
DEEMPH
MUTE
MUTE
HDCD
HDCD
R14
470R SM
CLK17M
C8
10N SM
Clock Terminator
C119
10N SM
R122
470R SM
L11
10UH SM
R111
10R SM
THL6
TOOLING THL4
TOOLING
VHDCD
R110
0R0 SM
R4
0R0 SM
GO
*
**
Q18
BC849B
R74
100K SM
GAIN
GAIN
R81
0R0 SM
1
+C147
1U0 EL
Runout Sheet Program
Kit mask for DSP
version : DSP
Kit mask for HDCD
version : HDCD
THL5
FIXING HOLE
Paper Marker
A3 Vertical
DD1
DD_A3V Detail
Drilling
DD2
DRILL_DWG
FD_3
FIDUCIAL
FD_4
FIDUCIAL
FD_5
FIDUCIAL
FD_6
FIDUCIAL
FD_7
FIDUCIAL
BARCODE LABEL
BARCD
BARCODE
* **
R166
4K7 SM
+C163
220U EL
R167
15K SM
1st Issue
21-APR-98
SJB
98_1020
2
Update Box
UDB
UPDATE_BOX
FR4, 1 OZ Cu
PCB MATERIAL
MULTI LAYER
DD3
FR4_MULTI
U16 Configured in stand-alone mode
13-May-98
SJB
98_1022
5NO CHANGE ON THIS SHEET
14-10-99
WAF
99_1072
3
C170, C171 added for spike suppression
21-Sept-98
SJB
98_1058
4No Change on this sheet
02-Nov-98
LJW
98_1067
C170
10N SM
C171
10N SM
12345678
A
B
C
D
87654321
D
C
B
A
ISSUE
DRAWING NO.
DRAWING TITLE
Drawn by:
DATE
Filename ECO No. DESCRIPTION OF CHANGE
J:\PROJECTS\A9 CD\L816PB DAC PCB\Circuits & PCB\Issue 5\L816c1 5.DDB - Documents\L816C2 .SCH
A & R Cambridge Ltd.
Pembroke Avenue
Denny Industrial Centre
Waterbeach
Cambridge CB5 9PB
Alpha 9 CD DAC DRIVER
Circuit Diagram
L816CT
SJB
15-Oct-1999
INITIALS
Date Printed 2 9Sheet of
Notes:
VSS1 1
VSS2 2
IO1 3
IO2/A0 4
IO3 5
IO4 6
IO5/A1 7
IO6/A2 8
IO7 9
IO8 10
IO9/A3 11
VDD1 12
IO10 13
IO11 14
IO12 15
IO13/A4 16
IO14/A5 17
IO15 18
IO16 19
IO17/A6 20
VSS3 21
IO18 22
IO19 23
IO20 24
IO21/A7 25
VDD2 26
IO22 27
IO23 28
IO24 29
IO25/A8 30
VSS4 31
IO26/A9 32
IO27 33
IO28 34
IO29/A10 35
IO30 36
IO31 37
IO32 38
IO33/A11 39
VDD3 40
IO34/A12 41
IO35 42
IO36 43
IO37/A13 44
IO38 45
IO39/A14 46
IO40 47
IO41 48
IO42 49
IO43/A15 50
VSS5 51
CCLK 52
VSS6
53 VSS7
54 IO44/A16
55
IO45
56
IO46
57 IO47
58 IO48/A17
59
IO49
60 IO50
61 IO51
62 IO52
63
IO53
64 VDD4
65 IO54
66
IO55
67
IO56
68 IO57
69 IO58
70
IO59
71
IO60
72 IO61
73 VSS8
74
IO62
75 IO63
76 IO64
77
IO65
78
VSS9
79 IO66
80 IO67
81
IO68
82
IO69
83 VSS10
84 IO70
85
IO71
86 IO72
87 IO73
88 IO74/HDC
89
IO75
90 IO76
91 IO77
92
VDD5
93
IO78/LDC
94 IO79
95 IO80
96
IO81
97 IO82/INIT
98 IO83
99 IO84
100
IO85
101 IO86
102 VSS11
103
DONE
104
VSS12
105 RESET
106
PGRM
107
IO87/M0
108 IO88
109 IO89
110 IO90
111 IO91/M1
112
IO92
113
IO93
114 IO94
115 VDD6
116 IO95/M2
117 IO96
118
IO97
119 IO98
120 IO99/M3
121 IO100
122 IO101
123
IO102
124
VSS13
125 IO103
126 IO104
127 IO105
128 IO106
129
VDD7
130
IO107
131 IO108
132 IO109
133 IO110
134 VSS14
135
IO111
136 IO112
137 IO113
138 IO114
139 IO115/CS1
140 IO116
141
IO117
142 IO118
143 VDD8
144 IO119/CS0
145 IO120
146
IO121
147
IO122
148 IO123/RD
149 IO124
150 IO125
151 IO126/WR
152
IO127
153 IO128
154 VSS15
155 RD/CF
156
VSS16 157
VSS17 158
IO130/RCLK 160
IO131 161
IO132 162
IO133/D7 163
IO134 164
IO135 165
IO136 166
IO137/D6 167
VDD9 168
IO138 169
IO139 170
IO140 171
IO141/D5 172
IO142 173
IO129 159
IO143 174
IO144 175
IO145/D4 176
VSS18 177
IO146 178
IO147 179
IO148 180
IO149/D3 181
VSS19 182
IO150 183
IO151 184
IO152 185
IO153/D2 186
VSS20 187
IO154/D1 188
IO155 189
IO156 190
IO157/D0 191
IO158 192
IO159 193
IO160 194
IO161/DOUT 195
VDD10 196
IO162 197
IO163 198
IO164 199
IO165/TDI 200
IO166 201
IO167/TMS 202
IO168 203
IO169 204
IO170 205
IO171/TCK 206
VSS21 207
RD_DT 208
U11
ATT2C002
C49
10N SM
C91
10N SM
A15
A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
D23
D22
D11
D12
D13
D14
D15
D16
D17
D18
D19
D0
D1
D2
D3
D4
D5
D6
D7
D9
D10
MODE0
MODE1
VCCD
DGND
CCLK
DOR
DOL
WCKO
BCKO
WR
MRESET must be tied LOW
DSP
SER CLK
SER_DIN
SER_CH
MODE0
D[0..23]
SEL[0..2]
RDYO
SRD
SCK
INTR
A[0..15]
L[0..15]
R[0..15]
CLK
PRGM
M0 M2
DONE
MODE1
MODE0
MODE1
VCCD
BCKO
WCKO
DOL
DOR
CCLK
WR
DSP
SER_CLK
SER_DIN
SER_CH
DONE
PRGM
M0
M2
CLK17M
RDYO
INTR
SCK
SRD
VFPGA
VFPGA
LDC LDC
L[0..15]
R[0..15]
SEL[0..2]
A[0..15]
D[0. 23]
D21
D20
D8
SEL0
SEL1
SEL2
R0
R1
R2
R3
R4
R5
R6
R7
R8
R9
R10
R11
R12
R13
R14
R15
L0
L1
L2
L3
L4
L5
L6
L7
L8
L9
L10
L11
L12
L13
L14
L15
R53
15K SM
R48
15K SM
R47
15K SM
A/D
NMODE
PMODE
A/D
NMODE
PMODE
MUTE
HDCD
SER_CH2
SER_CH2
C92
10N SM
C45
10N SM
R41
10R SM
Q_11
Q_10
Q_1
Q_5
Q_8
Q_14
Q_15
Q_16
Q_13
Q_12
Q_4
Q_3
Q_2
Q_9
Q_7
Q_6
1
1st Issue
21-APR-98
SJB
98_1020
2No Change on this sheet
13-May-98
SJB
98_1022
3No Change on this sheet
21-Sept-98
SJB
98_1058
4No Change on this sheet
02-Nov-98
LJW
98_1067
+
C89
100U 25V ZA EL
L6
33UH 2A RA
5C89VALUE CHANGE
14-10-99
WAF
99_1072
A8
A9
A10
AA8
AA9
AA10
AA11
AA12
AA13
AA14
AA15
AA0
AA1
AA2
AA4
AA5
AA6
AA7
AA3
1 2 3 4
A
B
C
D
4321
D
C
B
A
ISSUE
DRAWING NO.
DRAWING TITLE
Drawn by:
DATE
Filename ECO No. DESCRIPTION OF CHANGE
J:\PROJECTS\A9_CD\L816PB_DAC_PCB\Circuits_&_PCB\Issue_5\L816c1_5.DDB - Documents\L816C3_5.SCH
A & R Cambridge Ltd.
Pembroke Avenue
Denny Industrial Centre
Waterbeach
Cambridge CB5 9PB
Alpha 9 CD DAC DSP
Circuit Diagram
L816CT
SJB
15-Oct-1999
INITIALS
Date Printed 3 9Sheet of
Notes:
VCCD
DGND
A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A[0..15]
ROM_ENABLE
R127
15K SM
R139
15K SM
CLK17M
PCAP XRST
INTR LDC
D0
D1
D2
D3
D4
D5
D6
D7
D8
D9
D10
D11
D12
D13
D14
D15
D16
D17
D20
D21
D19
D18
D22
D23
D[0..23]
WR
R130
15K SM
R131
15K SM
SRD
SCK
SER_CH
PRGM
CCLK
Only fit components
on this sheet for DSP
version.
QVCC1 2
QGND1 3
HA2 4
HGND1 5
EXTAL 1
HA1 6
HA0 7
HACK 8
HVCC1 9
HEN 10
HGND2 11
HW/R 12
HREQ 13
H7 14
H6 15
HGND3 16
H5 17
H4
18 H3
19 HVCC2
20 H2
21 HGND4
22 H1
23 H0
24 RXD
25 TXD
26 SGND1
27 SCLK
28 SC0
29 SVCC1
30 SCK
31 SC2
32 STD
33 SGND2
34 SC1
35 QGND2
36 QVCC2
37 SRD
38 NC1
39 NC2
40 BN
41 WT
42 BG
43 BR
44 CVCC1
45 WR
46 RD
47 CGND1
48 NC3
49 DSCK/OS1
50
DR
51 DSO
52 DSI
53 BS
54 Y/X
55 NGND1
56 DS
57 NVCC1
58 PS
59 A0
60 A1
61 NGND2
62 A2
63 A3
64 A4
65 QVCC3
66 QGND3
67 A5
68 NVCC2
69 NGND3
70 A6
71 A7
72 A8
73 A9
74 HGND4
75 A10
76 A11
77 A12
78 NVCC3
79 A13
80 NGND5
81 A14
82 A15
83
D0 84
D1 85
DGND1 86
D2 87
D3 88
DVCC1 89
D4 90
D5 91
DGND2 92
D6 93
D7 94
D8 95
D9 96
QVCC4 97
QGND4 98
DGND3 99
D10 100
D11 101
DVCC2 102
D12 103
D13 104
DGND4 105
D14 106
D15 107
D16 108
D17 109
DGND5 110
D18 111
D19 112
DVCC3 113
D20 114
D21 115
DGND6 116
D22 117
D23 118
NMI/MODC 119
IRQB/MODB 120
IRQA/MODA 121
CLGND1 122
CKOUT 123
CLVCC1 124
RESET 125
CKP 126
PVCC1 127
PCAP 128
PGND1 129
PLOCK 130
PINT 131
XTAL 132
U30
DSP56002
PCAP
LDC
INTR
CLK17M
ROM_ENABLE
PRGM
SER_CH
CCLK
SCK
SRD
WR
VCCD
WR
RD
VDSP
RD
VDSP
D22
D23
A15
SCO SCO
A[0..15]
D[0..23]
SER_CH2
MUTE
DEEMPH
R165
10R SM
C129
10N SM
C151
10N SM
C130
10N SM
C131
10N SM
C153
10N SM
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16 SK4
HEADER 2X8WAY
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
SK5
HEADER 2X8WAY
A0
A1
Q_18
Q_17
Q_24
Q_27
Q_21
Q_23
Q_20
Q_22
Q_32
Q_31
Q 28
Q 30
Q 29
Q_25Q 26
Q_19
1
1st Issue
21-APR-98
SJB98_1020
2No Change on this sheet
13-May-98
SJB98_1022
3No Change on this sheet
21-Sept-98
SJB98_1058
4No Change on this sheet
02-Nov-98
LJW98_1067 5NO CHANGE ON THIS SHEET
14-10-99
WAF99_1072
+
C155
100U EL
L20
33UH 2A RA
12345678
A
B
C
D
87654321
D
C
B
A
ISSUE
DRAWING NO.
DRAWING TITLE
Drawn by:
DATE
Filename ECO No. DESCRIPTION OF CHANGE
J:\PROJECTS\A9 CD\L816PB DAC PCB\Circuits & PCB\Issue 5\L816c1 5.DDB - Documents\L816C .SCH
A & R Cambridge Ltd.
Pembroke Avenue
Denny Industrial Centre
Waterbeach
Cambridge CB5 9PB
Alpha 9 CD DAC ASIC
Circuit Diagram
L816CT
SJB
15-Oct-1999
INITIALS
Date Printed 4 9Sheet of
Notes:
L[0..15]
SEL[0..2]
R[0..15]
RDY
DCSET_L 127
DCSET_L 128
FBCKL 129
FBCKL 130
NC 131
FBCKLSNS 132
FBCKLSNS(2) 134
FBCKLSNS(2) 135
MID_L 136
OUT2L 138
NC 21
NC 17
NC 18
NC 14
SPRL2 1
NC 16
NC 15
5VREFL 3
0VREFL 4
VCCA1L 5
VCCA1L(2) 6
GND1L(2) 7
BIAS_L 144
OUTC_L 140
NC 12
NC 11
VCCA2 9
OUT2L 141
OUT1L 142
OUT1L 139
NC 19
IN1L 143
SEL1 27
VCCD 24
SEL0 26
NC 22
SEL2 28
L11
50
A5 31
R15
55
L13
52 L14
53
L1
40
VCCD
38 GNDD
37
L15
54
L10
49
L3
42 L4
43
L6
45 L5
44
L7
46
A1 35
A2 34
L9
48
A0 36
A4 32
A3 33
A7 29
R14
56
R8
62 R9
61 R11
59 R10
60
R6
64 R5
65
R4
66
FBCKLSNS 133
IN1L 137
R7
63
R12
58 R13
57
SPRL1 2
GNDA1L 8
GNDA2 10
NC 13
NC 20
GNDD 23
RDY 25
A6 30
L0
39
L2
41
L8
47
L12
51
R3
67 R2
68 R1
69
R0
70 VCCD
71 GNDD
72
A8
73
A9
74 A10
75 A11
76 A12
77 A13
78
A14
79 A15
80 A/D
81 NC
82 NMODE
83 PMODE
84
VCCD
85 GNDD
86
GNDA2
99 VCCA2
100 GNDA1R
101
GNDA1R(2)
102 VCCA1R(2)
103 VCCA1R
104 0VREFR
105 5VREFR
106
NC
87 NC
88 NC
89
NC
90
NC
91 NC
92 NC
93 NC
94 NC
95
NC
96
NC
97 NC
98
SPRR1
107
SPRR2
108
BIAS_R 109
IN1R 110
OUT1R 111
OUT2R 112
OUTC_R 113
OUT1R 114
OUT2R 115
IN1R 116
MID_R 117
FBCKRSNS(2) 118
FBCKRSNS(2) 119
FBCKRSNS 121
FBCKRSNS 120
NC 122
FBCKR 123
FBCKR 124
DCSET_R 125
DCSET_R 126
U13
ASIC DAC
L[0..15]
R[0..15]
L0
L1
L2
L3
L4
L5
L6
L7
L8
L9
L10
L11
L12
L13
L14
L15
R0
R1
R2
R3
R4
R5
R6
R7
R8
R9
R10
R11
R12
R13
R14
R15
SEL[0..2]
SEL0
SEL1
SEL2
FBCKR
FBCKR
FBCKRSNS
FBCKRSNS
MID_R Audio_R
VCCA1R(2)
VCCA1R
GNDA1R(2)
GNDA1R
DCSET_R
DCSET_R SERVQK
Right Audio Stage
L816C5_5 SCH
VPROT
R116
1K5 SM
R100
1K5 SM
R112
100K SM
R99
100K SM
+13V
-13V
R98
39K SM
Voltage Offset
Protection
R64
22K SM
R80
22K SM
+/- 200mV
C109
100U NP
3
21
U20A
LM393A SM
5
67
U20B
LM393A SM
R113
100K SM
R86
100K SM
EMC
1
N
F
SK2A
PHONO4G
N
F
SK2B
PHONO4G
EMC Shield
SH1
EMCPHONO
CHASS
FBCKL
FBCKL
FBCKLSNS
FBCKLSNS
MID_L Audio_L
VCCA1L(2)
VCCA1L
GNDA1L(2)
GNDA1L
DCSET_L
DCSET_L SERVQK
Left Audio Stage
L816C6_5 SCH
R70
10R SM
R57
47R SM
R73
47R SM
C78
10N SM
C54
10N SM
R15
10R SM
VDDAC
VCCA
C85
4N7 PPS SM
84
U20C
LM393A SM
+13V
R76
0R0 SM
R77
15K SM
R49
15K SM
A/D
NMODE
PMODE
C66
1N0 SM
C50
4N7 PPS SM
OUTL
OUTR
GNDAN
FL
FLN
FR
FRN
VASICDIG
R132
100K SM
Q29
BC859B
MUTERLY
R120
10K SM
1
-13V
1st Issue
21-APR-98
SJB
98_1020
2
C164
1N0 SM
C164 added for EMC, C3 changed from 100U to 22U13-May-98
SJB
98_1022
3No Change on this sheet
21-Sept-98
SJB
98_1058
+
C3
100U CERAFINE
4
C3 was 2P22C 22uf 50v oscon
02-Nov-98
LJW
98_1067
+C124
10U EL
C104
10U NP
L1
33UH 2A RA
5NO CHANGE ON THIS SHEET
14-10-99
WAF
99_1072
AA0
AA1
AA2
AA3
AA4
AA5
AA6
AA7
AA8
AA9
AA10
AA11
AA12
AA13
AA14
AA15
AA[0..15] AA[0..15]
RLY1A
RLY 51SB12T
RLY1B
RLY 51SB12T
12345678
A
B
C
D
87654321
D
C
B
A
ISSUE
DRAWING NO.
DRAWING TITLE
Drawn by:
DATE
Filename ECO No. DESCRIPTION OF CHANGE
J:\PROJECTS\A9 CD\L816PB DAC PCB\Circuits & PCB\Issue 5\L816c1 5.DDB - Documents\L816C5 .SCH
A & R Cambridge Ltd.
Pembroke Avenue
Denny Industrial Centre
Waterbeach
Cambridge CB5 9PB
Alpha 9 CD DAC Right Audio Stage
Circuit Diagram
L816CT
SJB
15-Oct-1999
INITIALS
Date Printed 5 9Sheet of
Notes:
3
26
1
8 5
U14A
AD797A SM
74
U17B
AD797A SM
5
67
U18B
EL2244 SM
3
21
U18A
EL2244 SM
84
U18C
EL2244 SM
R72
1K0 SM
L9
10UH SM
R78
15R SM
R83
62R SM
C90
82P SM
R79
10R SM
3
26
1
8 5
U17A
AD797A SM
R93
1K0 SM
L10
10UH SM
R88
15R SM
R94
62R SM
C105
82P SM
R89
10R SM
74
U14B
AD797A SM
Cold_R
Hot_R
3
21
U15A
OP275 SM
5
6
7U15B
OP275 SM
84
U15C
OP275 SM
3
2
1U19A
EL2244 SM
5
67
U19B
EL2244 SM
84
U19C
EL2244 SM
R96
3K3 SM
R71
3K3 SM
C106
100P PPS SM
C83
100P PPS SM
-13V
+13V
R62
10K 0805 0.1%
R90
10K 0805 0.1%
C82
56P SM
Out_R
Outn_R
R84
2K7 0805 0.1%
R95
2K7 0805 0.1%
R68
2K7 0805 0.1%
R103
2K7 0805 0.1%
C71
2N2 PPS SM
C72
2N2 PPS SM
C76
270P PPS SM
C102
270P PPS SM
C101
1N0 PPS SM
C94
1N0 PPS SM
C80
4N7 PPS SM
C86
4N7 PPS SM
C74
2N2 PPS SM
C79
2N2 PPS SM
FBCKR
FBCKR
FBCKRSNS
FBCKRSNS
C112
47N PPS SM
C68
47N PPS SM
C113
10N PPS SM
C73
10N PPS SM
MID_R
C95
1N0 PPS SMC100
1N0 PPS SM
C84
4N7 PPS SMC81
4N7 PPS SM
Audio_R
3
2
6
1
85
U24A
AD797A SM
74
U24B
AD797A SM
Q24
BC847B
Q21
BC847B
Q20
BC857B
R107
150R SM
C121
47P SM
R101
470R SM
L13
0R0 SM
VCCA1R(2)
VCCA1R
+8V9 +8V9
C108
10N PPS SM
C118
100N SM
REF
R123
470R SM
74
U25B
AD797A SM
GNDA1R
5
6
7
U23B
OP275 SM
3
2
1U23A
OP275 SM
3
2
1
U22A
TL072 SM
84
U23C
OP275 SM
R124
10K 0805 0.1%
R125
10K 0805 0.1%
R129
10K 0805 0.1%
R128
22K1 0805 0.1%
R108
10K 0805 0.1%
DCSET_R
DCSET_R
C114
100N PPS SM
C115
100N PPS SM
R115
220K SM
R97
2M2 SM
Out_R
C126
4N7 PPS SMC111
4N7 PPS SM
C117
100N PPS SM
DC Bias
DC Servo
DAC 5V Reference
Ballun & Lowpass Filter
DCR
DCNR
SERVOR
COLDR
HOTR
REFR
C99
100N PPS SM
MIDR
* Fit to HDCD version only
** Fit to DSP version only
REFx2
-REF/2
REF/4
REF/4
REF
-5V
+8V9
3
2
6
1
8 5
U25A
AD797A SM
Q23
BC857B
Q22
BC857B
Q26
BC847B
R119
150R SM
C120
47P SM
R92
470R SM
L12
0R0 SM
C93
10N PPS SM
-5V
DAC 0V Reference
GNDAR
0V
D7 BAS16W SM
R118
470R SM
R60
4K12 0805 0.1%
C103
390P PPS SM
C77
390P PPS SM
R63
4K12 0805 0.1%
Q27
MMBFJ113
R102 10K SM
D10
BAS16W SM
SERVQK
On DSP Version only:
R1=2K0, C70=560P
On DSP Version only:
R13=2K0, C103=560P
1
FBKRSNS
FBKRSNSN
RFRSNS
GRSNS
C87
220P PPS SM#
C70
220P PPS SM#
**
**
GNDA1R(2)
1st Issue
21-APR-98
SJB
98_1020
2No Change on this sheet
13-May-98
SJB
98_1022
R172
2M2 SM
Hot_R
Distortion Cancela ion
C166
390P PPS SM
C168
390P PPS SM
R173
100R SM
R174
100R SM
R175
100R SM
R176
100R SM
C172
390P PPS SM
C173
390P PPS SM
3
C166,168,172,173 & R172, 173,174,175,176 added
21-Sept-98
SJB
98_1058
4
C82 was 2C010A 10pf cer sm
02-Nov-98
LJW
98_1067
C97
10U NP
C98
10U NP
5NO CHANGE ON THIS SHEET
14-10-99
WAF
99_1072
Other manuals for DiVA CD72
5
This manual suits for next models
1
Table of contents
Other Arcam CD Player manuals
Arcam
Arcam DiVA CD73 User manual
Arcam
Arcam FMJ CD17 User manual
Arcam
Arcam DiVA CD72 User manual
Arcam
Arcam DiVA CD72 User manual
Arcam
Arcam Delta 250 User manual
Arcam
Arcam Alpha MCD User manual
Arcam
Arcam CD5 User manual
Arcam
Arcam CD37 User manual
Arcam
Arcam CD36 User manual
Arcam
Arcam FMJ CD17 User manual
Arcam
Arcam Alpha 7 User manual
Arcam
Arcam DiVA CD73 User manual
Arcam
Arcam DiVA CD62 User manual
Arcam
Arcam Delta 170 User manual
Arcam
Arcam DiVA CD82 User manual
Arcam
Arcam ALPHA ONE User manual
Arcam
Arcam CD93 User manual
Arcam
Arcam FMJ CD37 User manual
Arcam
Arcam Alpha 7 User manual
Arcam
Arcam DiVA CD73 User manual
