arcelik 9300 SS WF User manual

Document Number :
Bulaşık Makinesi
Kullanma Kılavuzu
9300 SS WF
Dishwasher
User’s Manual
EN
1728766500_AC_ARCELIK_9300 SS WF_EN/ 11-10-16.(16:18)

Explanation of symbols
Throughout this User Manual the following symbols are used:
CImportant information or
useful hints about usage.
AWarning for hazardous
situations with regard to life
and property.
BWarning for electric shock.
Packaging materials of the
product are manufactured
from recyclable materials
in accordance with our
National Environment
Regulations.
Do not dispose of the packaging materials together with the domestic or other
wastes. Take them to the packaging material collection points designated by
the local authorities.
Please read this user manual first!
Dear Customer,
We hope that you get the best results from your product which has been
manufactured with high quality and state-of-the-art technology. Therefore,
please read this entire user manual and all other accompanying documents
carefully before using the product and keep it as a reference for future use.
If you handover the product to someone else, give the user manual as well.
Follow all warnings and information in the user manual.
Remember that this user manual is also applicable for several other models.
Differences between models will be identified in the manual.

Document Number :
1728766500_AC_ARCELIK_9300 SS WF_EN/ 11-10-16.(16:18)
Document Number :
9300 SS WF
Dishwasher
User’s Manual
EN

Explanation of symbols
Throughout this User Manual the following symbols are used:
CImportant information or
useful hints about usage.
AWarning for hazardous
situations with regard to life
and property.
BWarning for electric shock.
Packaging materials of the
product are manufactured
from recyclable materials
in accordance with our
National Environment
Regulations.
Do not dispose of the packaging materials together with the domestic or other
wastes. Take them to the packaging material collection points designated by
the local authorities.
Please read this user manual first!
Dear Customer,
We hope that you get the best results from your product which has been
manufactured with high quality and state-of-the-art technology. Therefore,
please read this entire user manual and all other accompanying documents
carefully before using the product and keep it as a reference for future use.
If you handover the product to someone else, give the user manual as well.
Follow all warnings and information in the user manual.
Remember that this user manual is also applicable for several other models.
Differences between models will be identified in the manual.

CONTENTS
1 
 
General safety ....................................4
Intended use.......................................5
Children’s safety .................................5
Disposing of packaging material.........5
Transportation of the product .............6
Compliance with WEEE Directive and
Disposing of the Waste Product .........6
Compliance with RoHS Directive........6
Package information...........................6
2  
Overview.............................................7
Fan drying system ..............................8
Technical specifications ......................8
3  
Appropriate installation location..........9
Connecting water supply ..................10
Adjusting the feet.............................. 11
Electrical connection......................... 11
Initial use .......................................... 11
Aquasafe+ .......................................12
 
Tips for energy saving ......................13
Water softening system ....................13
Adjusting the water softening system13
Adding salt........................................13
Adjusting the water softening system15
Detergent..........................................17
Adding detergent ..............................17
Combined tablet detergents .............18
Rinse aid...........................................19
Items not suitable for washing in the
dishwasher .......................................20
Placing the dishes into the
dishwasher .......................................20
Silverware basket piece....................22
Silverware basket .............................22
Cutlery basket ..................................23
Cutlery basket ..................................23
Collapsible lower basket wires (6
pieces)..............................................24
Collapsible lower basket wires (4
pieces)..............................................25
Collapsible lower basket wires (2
pieces)..............................................25
Collapsible lower basket tines ..........26
Collapsible lower basket tines ..........27
Lower basket bottle wire...................27
SoftTouch Accessory ........................28
Lower Basket Glass Holder..............28
Tray Wash Supports.........................28
Lower basket multipurpose / height
adjustable service rack.....................29
Upper basket height adjustable rack 30
Upper basket drawer ........................30
Upper basket glass support piece ....30
Upper basket glass support piece ....31
Collapsable upper basket wires........31
Collapsible upper basket tines..........32
Collapsible upper basket tines..........32
Adjusting the height of the upper
basket...............................................33
Adjusting the height of loaded upper
basket...............................................34
Height setting with empty basket......35
Upper cutlery basket.........................36

CONTENTS
5 
Keys..................................................38
Preparing the machine .....................38
Programme selection........................38
Auxiliary functions.............................40
WLAN Setup.....................................40
Programming the washing time........43
Starting the programme....................44
Programme follow-up .......................45
Child Lock.........................................45
Cancelling the programme ...............46
Changing the auxiliary function ........46
Machine settings...............................46
Warning messages...........................49
End of programme............................50
6 
 
Cleaning the outer surface of the
product..............................................51
Cleaning the interior of the machine.51
Cleaning the filters............................51
Cleaning the hose filter.....................52
Cleaning the impellers......................53
Lower impeller ..................................53
Upper impeller ..................................53
Ceiling Impeller.................................54
 

4 Dishwasher / User’s Manual/59 EN

1
This section contains safety
instructions that will help to
get protected from risk of
personal injury or property
damage. Failure to follow
these instructions shall void
all warranties.

Never place the product
on a carpet-covered floor;
otherwise, lack of airflow
beneath the product will
cause electrical parts
to overheat. This will
cause problems with your
product.
Do not operate the product
if the power cable / plug
is damaged! Call the
Authorised Service Agent.
Connect the product to a
grounded outlet protected
by a fuse complying
with the values in the
“Technical specifications”
table. Do not neglect
to have the grounding
installation made by a
qualified electrician. Our
company shall not be
liable for any damages
that will arise when the
product is used without
grounding in accordance
with the local regulations.
The water supply and
draining hoses must be
securely fastened and
remain undamaged.
Unplug the product when
not in use.
Never wash the product by
spreading or pouring water
onto it! There is the risk of
electric shock!
Never touch the plug
with wet hands! Never
unplug by pulling on the
cable, always pull out by
grabbing the plug.
The product must
be unplugged during
installation, maintenance,
cleaning and repairing
procedures.
Always have the
installation and repairing
procedures carried out by
the Authorised Service
Agent. Manufacturer
shall not be held liable for
damages that may arise
from procedures carried
out by unauthorised
persons.
Never use chemical
solvents in the product.
They bring forth the risk of
explosion.
When you pull the upper
and lower baskets out
completely, the door of
the product will bear all
the weight of the baskets.
Do not put other loads on
the door; otherwise, the
product may tilt.
Never leave the door
of the product open
apart from loading and
unloading procedures.
Do not to open the door
of the product when it is
running unless necessary.
Be careful for the rush of

Dishwasher / User’s Manual 5/ 59 EN
instructions for safety and environment
hot vapour when you need
to open the door.

This product has been
designed for domestic
use.
It must be used to do the
domestic type dishes only.
This appliance is intended
to be used in household
and similar applications
such as:
- Staff kitchen areas in shops,
offices and other working
environments;
- Farm houses;
- By clients in hotels, motels
and other residential type
environments;
- Bed and breakfast type
environments
Only dishwasher safe
detergents, rinse aids and
additives must be used.
The manufacturer waives
any responsibility arisen
from incorrect usage or
transportation.
The service life of your
product is 10 years.
During this period,
original spare parts will be
available to operate the
product properly.
This product should not
be used by persons
with physical, sensory
or mental disorders
or unlearned or
inexperienced people
(including children)
unless they are attended
by a person who will be
responsible for their safety
or who will instruct them
accordingly for use of the
product.

Electrical products are
dangerous for the children.
Keep children away from
the product when it is in
use. Do not let them to
tamper with the product.
Do not forget to close the
door of the product when
leaving the room where it
is located.
Store all detergents and
additives in a safe place
away from the reach of the
children.


Packaging materials are
dangerous to children. Keep
packaging materials in a safe
place away from reach of the
children.
Packaging materials of the
product are manufactured
from recyclable materials.
Dispose of them properly
and sort in accordance with
recycled waste instructions.
Do not dispose of them with
normal domestic waste.

6 Dishwasher / User’s Manual/59 EN
instructions for safety and environment


AIf you need to move
the product, do it
in upright position
and hold from the
rear side. Slanting
the product onto its
front side may cause
the electronic parts
in it get wet and
damaged.
1. Unplug the product before
transporting it.
2. Remove water drainage
and water supply
connections.
3. Drain the remaining water
in the product completely.



This product complies
with EU WEEE Directive
(2012/19/EU). This
product bears a
classification symbol for
waste electrical and electronic
equipment (WEEE).This
product has been
manufactured with high
quality parts and materials
which can be reused and are
suitable for recycling. Do not
dispose of the waste product
with normal domestic and
other wastes at the end of its
service life. Take it to the
collection center for the
recycling of electrical and
electronic equipment. Please
consult your local authorities
to learn about these collection
centers.


The product you have
purchased complies with EU
RoHS Directive (2011/65/EU).
It does not contain harmful
and prohibited materials
specified in the Directive.

Packaging materials of the
product are manufactured
from recyclable materials in
accordance with our National
Environment Regulations. Do
not dispose of the packaging
materials together with the
domestic or other wastes.
Take them to the packaging
material collection points
designated by the local
authorities.

Dishwasher / User’s Manual 7/ 59 EN

2

1. Upper basket
2. Upper impeller
3. Lower impeller
4. Silverware basket
5. Door
6. Rating Label
7. Control panel
8. Detergent dispenser
9. Lower basket
10. Filters
11. Salt reservoir lid
12. Upper basket rail
13. Upper cutlery basket
14. Ceiling impeller
15. Fan drying system (depends on
model)
15

8 Dishwasher / User’s Manual/59 EN
Dishwasher

Compliance to standards and test data / EC declaration of conformity
This product complies with the following EU directives;
Development, production and sales stages of this product comply with the
safety rules included in all pertaining European Community regulations.
2014/35/EU, 2014/30/EU, 93/68/EC, IEC 60436/DIN 44990, EN 50242
Power input 220-240 V, 50 Hz (see rating label)
Total power consumption 1800-2100 W (see rating label)
Heater power consumption 1800 W (see rating label)
Total current (depends on the model) 10 A (see rating label)
Drain pump power consumption 30 W (see rating label)
Water pressure 0.3 –10 bar (= 3 – 100 N/cm² = 0.01-
1.0 Mpa)
CTechnical specifications may be changed without prior notice to
improve the quality of the product.
CFigures in this manual are schematic and may not match the product
exactly.
CValues stated on the markings of the product or in the printed
documents accompanying the product are obtained in the laboratory
on basis of the relevant standards. Depending on operational and
environmental conditions of the product, these values may vary.

Data required for performance tests shall be provided upon request. Requests
can be e-mailed to the following address:

Do not forget to provide the code, stock and serial numbers of the product to be
tested in your request e-mail along with your contact information. Code, stock and
serial numbers of the product may be found on the type label attached to the side
wall of the door.

(depends on model)
Fan drying system ensures efficient drying of your dishes.
It is normal to hear a different sound than that of washing cycle during fan
operation.

Dishwasher / User’s Manual 9/ 59 EN
3
Refer to the nearest Authorised
Service Agent for installation of your
product. To make the product ready
for use, make sure that the electricity,
tap water supply and water drainage
systems are appropriate before calling
the Authorised Service Agent. If they
are not, call a qualified technician
and plumber to have any necessary
arrangements carried out.
CPreparation of the location
and electrical, tap water and
waste water installations
at the place of installation
is under customer's
responsibility.
BInstallation and electrical
connections must be carried
out by the Authorised
Service Agent. Manufacturer
shall not be held responsible
for damages arising from
processes carried out by
unauthorised persons.
APrior to installation, visually
check if the product has any
defects on it. If so, do not
have it installed. Damaged
products cause risks for
your safety.
CMake sure that the water
inlet and discharge hoses
are not folded, pinched or
crushed while pushing the
product into its place after
installation or cleaning
procedures.
When placing the product, pay
attention not to damage the floor, walls,
piping, etc. Do not hold the product
from its door or panel to move it.


Place the product on a solid and
flat floor that has sufficient load
carrying capacity! The product
must be installed on a flat surface
in order for the door to be closed
comfortably and securely.
Do not install the product at places
where temperature may fall below
0ºC.
Place the product at least 1 cm
away from the edges of other
furniture.
Place the product on a rigid floor.
Do not place it on a long pile rug
or similar surfaces.
BDo not place the product on
the power cable.
Make sure that you select a
location that will allow you to load
and unload the dishes in a fast
and comfortable manner.
Install the product in a place close
to the tap and the drain hole.
Select the installation location
by considering that it will not be
changed after the connections are
made.

10 Dishwasher / User’s Manual/59 EN
Installation

CWe recommend attaching
a filter on the house/
apartment supply water
inlet to protect the machine
from damages that may
arise from impurities (sand,
dirt, rust, etc.) coming from
the urban water supply
system or from your own
water system as well as to
prevent complaints such
as yellowing or sludge
accumulation at the end of
washing.


The dishwasher may not be connected
to open warm water devices or flow-
through water heaters.
Do not use old or used water inlet
hose on the new product. Use the
new water inlet hose supplied with
the product.
Connect the water inlet hose
directly to the water tap. Pressure
coming from the tap should be
minimum 0.3 and maximum
10 bars. If the water pressure
exceeds 10 bars, a pressure
relief valve should be installed in
between.
Open the taps completely after
making the connections to check
for water leaks.
Tightly fix the water discharge hose to
the drainpipe in order to prevent any
dislocation of the water discharge hose
during operation of the product.
min 300
min 120
max 1000
min 500

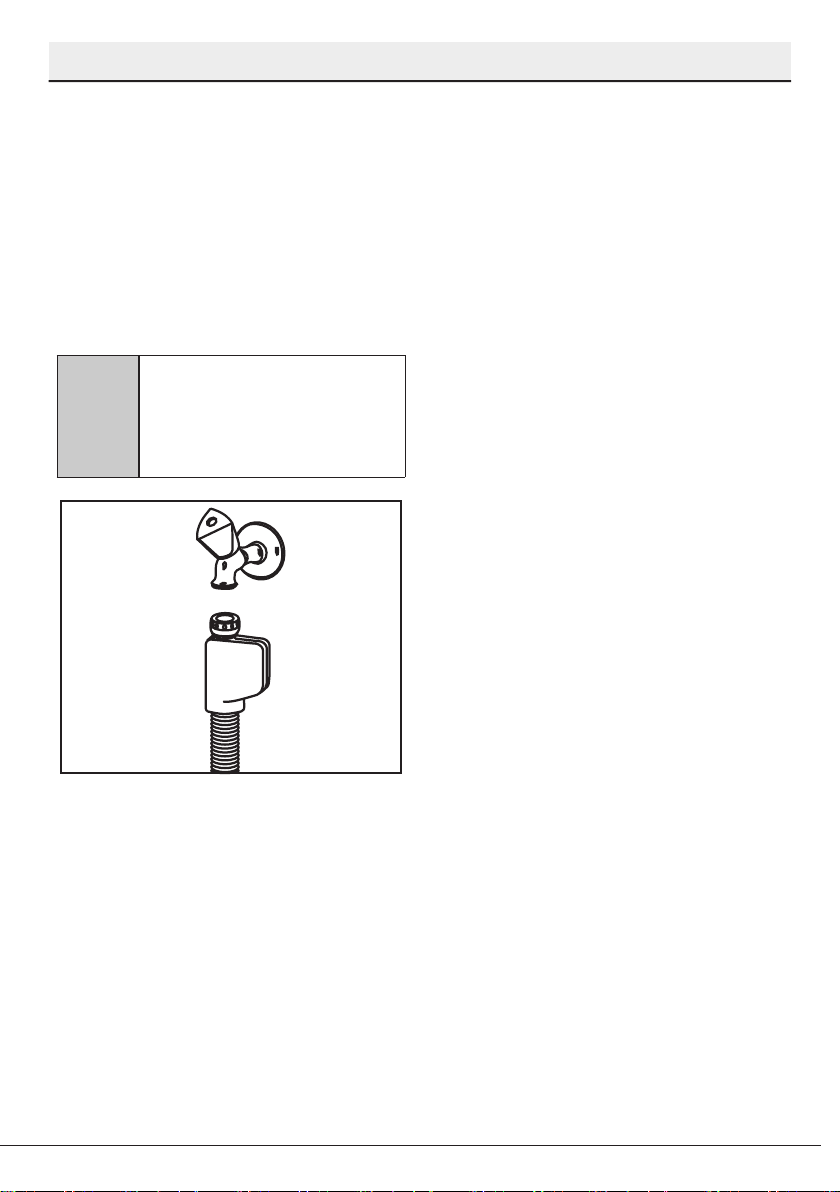

CUse a screw-on hose
connector to connect the
water inlet hose to a water
tap with a ¾ inch external
thread. If required, use a
filter insert to filter deposits
from the pipes.

Dishwasher / User’s Manual 11/59 EN
Installation
CDrainpipe must be
connected to the sewage
system and it should not be
connected to any surface
water.

If the door of the product cannot be
closed properly or if the product swings
when you push it slightly, then you
need to adjust the feet of the product.
Adjust the feet of the product as
illustrated in the installation manual
supplied with the product.

Connect the product to a grounded
outlet protected by a fuse complying
with the values in the “Technical
specifications” table. Our company
shall not be liable for any damages
that will arise when the product is used
without grounding in accordance with
the local regulations.
Connection must comply with
national regulations.
Power cable plug must be within
easy reach after installation.
BUnplug the product after the
washing programme is over.
The voltage and allowed fuse or
breaker protection are specified
in the “Technical specifications”
section. If the current value of
the fuse or breaker in the house
is less than 16 Amps, have a
qualified electrician install a 16
Amp fuse.
The specified voltage must be
equal to your mains voltage.
Do not make connections via
extension cables or multi-plugs.
BDamaged power cables
must be replaced by the
Authorised Service Agent.
BIf your dishwasher is
equipped with internal
illumination, lamp should
only be replaced by the
Authorised Service Agent
in case of failures that may
occur on the lamp.
BIf the product has a failure,
it should not be operated
unless it is repaired by the
Authorised Service Agent!
There is the risk of electric
shock!

Before starting to use the product,
make sure that all preparations
are made in accordance with the
instructions in sections “Important
safety instructions” and “Installation”.
To prepare the product to do the
dishes, perform first operation
in the shortest programme with
detergent while the machine is

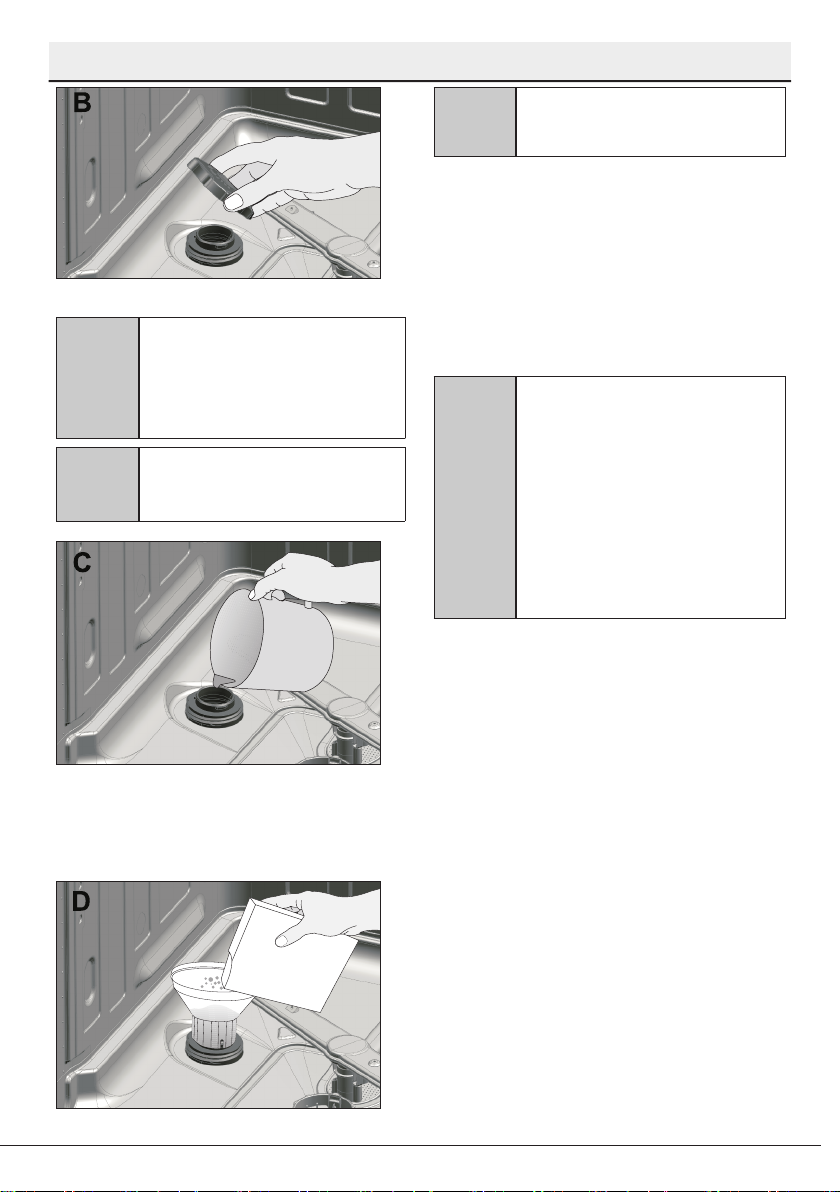

empty. During the initial use, fill the
salt reservoir with 1 litre of water
prior to filling it with salt.
AThere might be a small
amount of water left in the
product after factory quality
control tests. This has no
harm on the product.

12 Dishwasher / User’s Manual/59 EN
Installation

(depends on model)
The Aquasafe+ system protects
against water leaks that may occur
at the hose inlet.Water contact with
the valve box of the system must be
avoided to prevent damage to the
electrical system. If the Aquasafe+
system is damaged, unplug the product
and call the Authorised Service Agent.
AAs the hose set contains
electrical connections and
assemblies, never shorten
or lengthen the hose with
extension hoses.

Dishwasher / User’s Manual 13/59 EN

4

Following information will help you use
the product in an ecological and energy-
efficient manner.
Wipe away any coarse food remnants
on the dishes before putting them in the
product.
Operate the product after filling it
completely.
When selecting a programme, consider
the table of "Programme data and
average consumption values".
Do not put more detergent than
suggested on the detergent package.

CYour dishwasher requires
soft water. If the hardness
of the water is above 6°dH,
the water must be softened
and descaled. Otherwise,
ions that create the hardness
will accumulate on the
surfaces of the dishes and
may adversely affect the
washing, shining and drying
performances of the product.
The product is equipped with a water
softening system which reduces the
hardness of incoming water. This system
softens the supply water that enters
into the product to a level that will allow
washing the dishes with the required
quality.


Washing performance will increase
when water softening system is adjusted
properly.
Adjust the new water hardness level
according to the Water hardness level
instruction supplied with your machine.

Water softening system needs to be
regenerated in order for the product
operates with the same performance
continuously. Dishwasher salt is used
for this purpose.
CUse only special softening
salts produced particularly
for the dishwashers in your
machine.
CWe recommend using
granular or powder softening
salts. Do not use salts that
are insoluble in water such
as table salt or common
salt. Performance of water
softening system may get
worse in time.
CSalt reservoir will fill with
water when you start the
product. Therefore, add the
softening salt before starting
the machine.
1. First take the lower basket out to
add softening salt.
2. Turn the salt reservoir lid in counter
clockwise to open it (A, B).

14 Dishwasher / User’s Manual/59 EN
Preparation
CYou can put about 2 kg of
softening salt into the salt
reservoir.
4. Replace the lid and tighten it
securely when the reservoir is full.
5. If you will not start a washing
programme immediately after
adding the salt, run the machine
empty in the shortest programme
to dissolve and wash away the
scattered salt in the machine.
CSince different salt brands
in the market have different
particle sizes and since the
water hardness may vary,
dissolution of the salt in
water may take a couple
of hours. Therefore, Salt
Indicator remains on for a
while after adding salt into
the machine.
CSalt reservoir will fill with
water when you start the
product. Therefore, add the
softening salt before starting
the machine.
CBefore initial use, fill the
water softening system with
1 litre of water (C).
3. Fill the salt reservoir with salt by
using salt funnel (D). To speed up
dissolution rate of salt in water, stir
it with a spoon.

Dishwasher / User’s Manual 15/59 EN
Preparation

Cleaning, rinsing and drying performance of your dishwasher will increase when
water softening system is adjusted properly.
Adjust the new water hardness level according to the Water hardness level
instruction in this booklet.
Use the test strip supplied with the product according to the steps given below to
determine hardness level of your supply water.
ab cde f
Remove the test
strip from the
packet.
Turn on the tap and
let the water run for
about a minute.
Hold the test strip in
the water for about
a second.
Remove the test
strip from the water
and shake it.
Wait for 1 minute. The test strip shows
you the hardness
level.
1 Second
1 Minute
1 min.
After determining hardness level of the supply water:
1. Press On/Off key to turn on the machine.
2. Enter the Settings Menu by pressing the Function button d for 3 seconds.
3. By using function button b, adjust water hardness level according to the
hardness of the supply water.
See “Water hardness level adjustment table” for correct setting.
4. Exit the Settings Menu by pressing the function button d for 3 seconds.

16 Dishwasher / User’s Manual/59 EN
Preparation

Hardness
Level
English Water
Hardness °dE
German Water
Hardness °dH
French Water
Hardness °dF Water Hardness Level Indicator
0th Level 0-5 0-4 0-8 Press the function button b to set the
water hardness level to position 1.
1st Level 6-9 5-7 9-13
2nd Level 10-15 8-12 14-22 Press the function button b to set the
water hardness level to position 2.
3rd Level 16-19 13-15 23-27 Press the function button b to set the
water hardness level to position 3.
4th Level 20-24 16-19 28-34 Press the function button b to set the
water hardness level to position 4.
5th Level 25-62 20-50 35-90 Press the function button b to set the
water hardness level to position 5.
Water Hardness: 1
Water Hardness: 2
Water Hardness: 3
Water Hardness: 4
Water Hardness: 5
If the hardness level of the supply water is above 90°dF or if you are using well
water, then it is recommended to use water purification devices and special filters.
Since your machine is equipped with an Automatic Water Hardness Detection
System, appropriate salt should be put in the dishwasher when “Salt indicator”
illuminates.
If salt is not put in the machine, the Automatic Water Hardness Detection System
will not work properly.
CIf your machine is equipped
with “Automatic Water
Hardness Detection
System”, water hardness
adjustment will be made by
the service/user as standard
during first installation. If
you move your house, your
machine will automatically
perform water hardness level
adjustment according to the
water hardness in the new
place you have moved in.

Dishwasher / User’s Manual 17/59 EN
Preparation
2. Put suggested amount of powder,
liquid/gel or tablet detergent in the
dispenser.
CInside the detergent
dispenser there are level
markings that help you
use appropriate amount of
powder detergent. When
brimful, detergent dispenser
will contain 40 cm³ of
detergent. Fill detergent up
to 15 cm3or 25 cm3level
marks in the detergent
dispenser according to
fullness of the machine and/
or soiling degree of the
dishes.
3. Close the detergent dispenser lid
by pressing on it lightly. A "click"
will be heard when the lid is closed.

You can use powder, liquid/gel and
tablet detergents in the machine.
AOnly use in the detergents
produced particularly for use
with dishwashers. Never
use washing up liquids.
We recommend you not to
use detergents that contain
chlorine and phosphate
as they are harmful for the
environment.

CYou can find the correct
amount of detergent for the
selected programme in the
table of "Programme data
and average consumption
values".
CIn order to have good
washing and drying
results, always follow
the instructions on the
detergent packaging. If
you have further questions,
we recommend to contact
with the producer of the
detergent.
ADo not put solvents into the
detergent dispenser. There
is the risk of explosion!
Put the detergent into the detergent
dispenser just before operating the
machine as illustrated below.
1. Press the latch in the direction
of arrow to open the detergent
dispenser lid (A).
