Please read this manual first!
We want your product produced with high quality and technology to offer you the best yield. For this,
before using the product, read
all of this manual and other documents carefully and keep as a reference.
If you give the product to someone else, give the user guide as well. Follow the instructions taking into
account all information and warnings specified in the instruction manual.
This guide will help you to use the product quickly and safely.
• Carefully read the manual before using installing and operating the product.
• Be sure to observe the instructions regarding security.
• Keep the manual within easy reach since you may need in the future.
• Read other documents supplied with the product as well.
Symbols and their descriptions
The following symbols are included in the User Manual:
CImportant information or use-
ful hints.
ADanger to life and property.
BRisk of electric shock.
Packaging of the product is ma-
nufactured from recyclable ma-
terials according to our National
Environmental Legislation.

2 /20 EN Refrigerator / User Manual
1 Safety and environment instructions3
1.1. General safety. . . . . . . . . . . . . . . . . . . . . . . 3
1.1.1 HC warning. . . . . . . . . . . . . . . . . . . . . . . . 5
1.1.2 For models with water fountain . . . . . . . . . 5
1.2. Intended use. . . . . . . . . . . . . . . . . . . . . . . . 5
1.3. Child safety. . . . . . . . . . . . . . . . . . . . . . . . . 6
1.4. Compliance with WEEE Directive and Disposing
of the Waste Product . . . . . . . . . . . . . . . . . 6
1.5. Compliance with RoHS Directive . . . . . . . . . 6
1.6. Package information . . . . . . . . . . . . . . . . . . 6
2 Your Refrigerator 7
3 Installation 8
3.1. Right place for installation . . . . . . . . . . . . . . 8
3.2. Adjusting the feet . . . . . . . . . . . . . . . . . . . . 9
3.3. Electrical connection . . . . . . . . . . . . . . . . . . 9
3.4. Changing door opening direction . . . . . . . . . 9
3.5. Reversing the doors . . . . . . . . . . . . . . . . . 10
3.6. Reversing the doors . . . . . . . . . . . . . . . . . 11
4 Preparation 12
4.1. Actions to be taken to save energy. . . . . . . 12
4.2. First use . . . . . . . . . . . . . . . . . . . . . . . . . . 12
5 Use of the Product 13
5.1. Temperature adjustment knob . . . . . . . . . . 13
5.2. Fast freezing. . . . . . . . . . . . . . . . . . . . . . . 13
5.3. Holiday function . . . . . . . . . . . . . . . . . . . . 14
5.4. Snow defrosting . . . . . . . . . . . . . . . . . . . . 14
5.5. Door Open Warning. . . . . . . . . . . . . . . . . . 15
5.7. Egg tray . . . . . . . . . . . . . . . . . . . . . . . . . . 16
5.6. Ice tray . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
5.8. Fan. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
5.9. Crisper. . . . . . . . . . . . . . . . . . . . . . . . . . . 16
6 Maintenance and cleaning 17
6.1. Prevention of unpleasant odours . . . . . . . . 17
6.2. Protection of plastic surfaces. . . . . . . . . . . 17
7 Troubleshooting 18
Table of contents

3/20 EN
Refrigerator / User Manual
This section provides the safety
instructions necessary to prevent
the risk of injury and material
damage. Failure to observe these
instructions will invalidate all
types of product warranty.
1.1.General safety
• This product should not be
used by persons with physical,
sensory and mental disabilities,
without sufficient knowledge
and experience or by children.
The device can only be used by
such persons under supervision
and instruction of a person
responsible for their safety.
Children should not be allowed
to play with this device.
• In case of malfunction, unplug
the device.
• After unplugging, wait at least
5 minutes before plugging in
again.
• Unplug the product when not in
use.
• Do not touch the plug with wet
hands! Do not pull the cable to
plug off, always hold the plug.
• Wipe the power plug’s tip with
a dry cloth before plugging in.
• Do not plug in the refrigerator if
the socket is loose.
• Unplug the product during
installation, maintenance,
cleaning and repair.
• If the product will not be used
for a while, unplug the product
and remove any food inside.
• Do not use the product when
the compartment with circuit
cards located on the upper
back part of the product
(electrical card box cover) (1) is
open.
1
1
• Do not use steam or steamed
cleaning materials for cleaning
the refrigerator and melting the
ice inside. Steam may contact
the electrified areas and cause
short circuit or electric shock!
• Do not wash the product by
spraying or pouring water on it!
Danger of electric shock!
1Safety and environment instructions

Safety and environmental instructions
4 /20 EN Refrigerator / User Manual
• In case of malfunction, do
not use the product, as it
may cause electric shock.
Contact the authorized
service before doing
anything.
• Plug the product into an
earthed socket. Earthing
must be done by a qualified
electrician.
• If the product has LED
type lighting, contact the
authorized service for
replacing or in case of any
problem.
• Do not touch frozen food
with wet hands! It may
adhere to your hands!
• Do not place liquids in
bottles and cans into the
freezer compartment. They
may burst out!
• Place liquids in upright
position after tightly closing
the lid.
• Do not spray flammable
substances near the product,
as it may burn or explode.
• Do not keep flammable
materials and products with
flammable gas (sprays, etc.)
in the refrigerator.
• Do not place containers
holding liquids on top of the
product. Splashing water on
an electrified part may cause
electric shock and risk of
fire.
• Exposing the product to rain,
snow, sunlight and wind
will cause electrical danger.
When relocating the product,
do not pull by holding the
door handle. The handle may
come off.
• Take care to avoid trapping
any part of your hands or
body in any of the moving
parts inside the product.
• Do not step or lean on the
door, drawers and similar
parts of the refrigerator. This
will cause the product to fall
down and cause damage to
the parts.
• Take care not to trap the
power cable.

Safety and environmental instructions
5/20EN
Refrigerator / User Manual
1.1.1 HC warning
If the product comprises a
cooling system using R600a
gas, take care to avoid
damaging the cooling system
and its pipe while using and
moving the product. This gas
is flammable. If the cooling
system is damaged, keep the
product away from sources
of fire and ventilate the room
immediately.
CThe label on the inner
left side indicates the
type of gas used in the
product.
1.1.2 For models with
water fountain
• In order for the water system
inside the refrigerator to
operate properly, pressure
in the water mains must
be between 1-8 bars. A
pressure regulator must be
used if the pressure in the
water mains is higher than
5 bars. If the pressure in
the mains is higher than 8
bars, the refrigerator must
not be connected to the
mains. If you are not sure
about how to measure the
water pressure, ask for
professional help.
• Use drinking water only.
1.2.Intended use
• This product is designed for
home use. It is not intended
for commercial use.
• The product should be used
to store food and beverages
only.
• Do not keep sensitive
products requiring controlled
temperatures (vaccines,
heat sensitive medication,
medical supplies, etc.) in the
refrigerator.
• The manufacturer assumes
no responsibility for any
damage due to misuse or
mishandling.
• The product’s bench life is
10 years. The spare parts
necessary for the product to
function will be available for
this period.

Safety and environmental instructions
6 /20 EN Refrigerator / User Manual
1.3.Child safety
• Keep packaging materials
out of children’s reach.
• Do not allow the children to
play with the product.
• If the product’s door
comprises a lock, keep the
key out of children’s reach.
1.4. Compliance with WEEE
Directive and Disposing
of the Waste Product
This product complies with EU WEEE
Directive (2012/19/EU). This product bears a
classification symbol for waste electrical and
electronic equipment (WEEE).
This product has been
manufactured with high quality
parts and materials which can be
reused and are suitable for
recycling. Do not dispose of the
waste product with normal
domestic and other wastes at the
end of its service life. Take it to the collection
center for the recycling of electrical and
electronic equipment. Please consult your
local authorities to learn about these
collection centers.
1.5. Compliance with
RoHS Directive
• This product complies with EU WEEE
Directive (2011/65/EU). It does not contain
harmful and prohibited materials specified
in the Directive.
1.6. Package information
• Packaging materials of the product are
manufactured from recyclable materials in
accordance with our National Environment
Regulations. Do not dispose of the
packaging materials together with the
domestic or other wastes. Take them to
the packaging material collection points
designated by the local authorities.

7/20 EN
Refrigerator / User Manual
1. Door shelf
2. Adjustable feet
3. Crisper
4. Crisper cover
5. Lock and key *
6. Refrigerator compartment glass shelf
7. Temperature adjustment knob
8. Fan
9. Freezer compartment shelf
10. Ice tray
11. Freezer compartment
12. Fridge compartment
2Your Refrigerator
C*optional: Figures that take place in this user manual are samples and may not correspond exactly
with your product. If the subject parts are not included in the product you have purchased, then the
figure is valid for other models.
*1
22
3
4
*5
*5
9
*10
11
12
*6
7
8

8 /20 EN Refrigerator / User Manual
3Installation
3.1. Right place for installation
Call the Authorized Service Provider for installation
of the product. To make the product ready for use,
be careful that the electrical wiring and plumbing
are appropriate by referring to the information
in the user manual. If not, call a qualified
electrician and plumber and have the necessary
arrangements made.
BWARNING: The manufacturer is not liable
for damages caused by operations by
unauthorized persons.
BWARNING: During the installation, the
power plug of the product should not be
plugged in. Otherwise, there is a danger of
death or serious injury!
A
WARNING: : If the doorway of the room
to where the product will be placed is
so narrow that the product cannot pass
through, pass the product by turning it to
side; otherwise, call an authorized service.
•Toavoidshaking,placetheproductonaflat
surface.
•Installtheproductatleast30cmawayfrom
heat sources such as cooker, radiators, stove
and at least 5 cm away from electrical oven.
•Donotexposetheproducttodirectsunlightand
do not store it in humid place.
•Asuitableaircirculationshouldbearound
the product so that it can work efficiently. If
the product will be placed in a recessed wall,
take care that there is at least 5 cm of space
between the ceiling and the side walls.
•Donotinstalltheproductwherethetemperature
drops below 10 °C.
• Attach 2 plastic wedges as illustrated below.
Plastic wedges are intended to keep the
distance which will ensure the air circulation
between your refrigerator and the wall. (The
picture is drawn up as a representation and it
is not identical with your product.)
• Condenser of your refrigerator is on the rear
side. In order to increase the energy efficiency
by minimizing the power consumption, the
upper part of the condenser on the rear side
of the product must be pulled backwards
and locked as shown in the figure. When the
condenser is pulled back, the right and left
upper holders are locked and the position of
the condenser is fixed.

Installation
9/20 EN
Refrigerator / User Manual
3.2. Adjusting the feet
If the product is unstable on the place where
it is placed, adjust it by turning the front
adjustment feet to the right or left.
3.3. Electrical connection
AWARNING: Do not make connections to
the extension cords or multiple sockets.
BWARNING: Damaged power cable must
be replaced by an Authorized Service.
CIf two refrigerators are placed side by
side, there should be at least 4 cm space
between them.
• Our company will not be liable for any
damages that occur when the product
is used without grounding and electrical
connections that are according to national
regulations.
• The power cord plug must be easily
accessible after installation.
• Connect your refrigerator to an outlet
with a ground line with 220-240V/50 Hz
voltage. Plugs should have a 10-16 A fuse.
• Do not use multi-group socket with or
without extension cable in between your
refrigerator and the wall outlet.
3.4. Changing door
opening direction
Based on where you use, your refrigerator’s
door opening direction can be changed. When
you need this, please contact your nearest
Authorized Service Point.

Installation
10 /20 EN Refrigerator / User Manual
3.5. Reversing the doors
Proceed in numerical order .
10
10
5
4
1
6
4
12 13
3
7
89
14
19
19
22
17
180°
23
21
16
15
24
24
11
45°
2
20
18

Installation
11/20 EN
Refrigerator / User Manual
3.6. Reversing the doors
Proceed in numerical order .
10
10
5
4
1
6
4
12 13
3
7
89
14
19
19
22
17
180°
23
21
16
15
2
20
11
45°
18

12 /20 EN Refrigerator / User Manual
4.1. Actions to be taken
to save energy
AConnecting the product to electronic
energy-saving system is inconvenient as
this may damage the product.
• Do not leave the doors of the product open for
a long time.
• Do not put hot food or drinks in the product.
• Do not overfill the product. When the inlet air
circulation is reduced, its cooling capacity is
prevented.
• Put your food in the product in closed
containers.
• You can store maximum amount of food items
in the freezer compartment of the product
when you remove the shelf of the freezer.
Energy consumption value stated for the
product has been determined by removing
freezer shelf and under maximum food load.
There is no harm to use a shelf according to
the shapes and size of food to be frozen.
• Defrosting the frozen food in fridge
compartment will both provide energy saving
and preserve the food quality.
• This device is designed to operate at ambient
temperatures up to 43°C (90 °F). It is equipped
with Advanced Electronic Temperature Control
System allowing to keep the frozen food in the
freezer defrost even the ambient temperature
reduces to -15 °C. When first installed the
product MUST NOT be placed in low ambient
temperatures.
• The baskets/drawers that are provided with the
chill compartment must always be in use for
low energy consumption and for better storage
conditions.

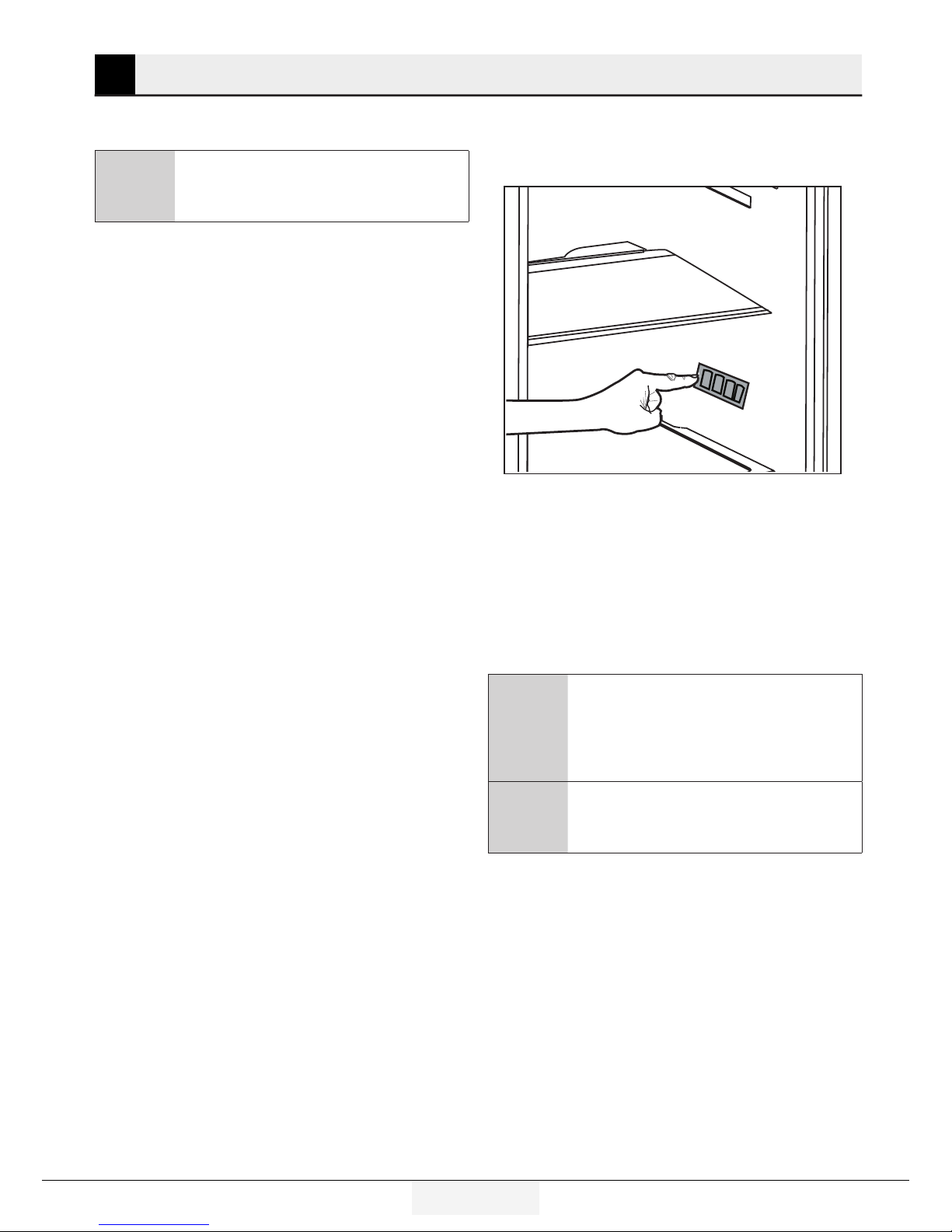

• Food contact with the temperature sensor in
the freezer compartment may increase energy
consumption of the appliance. Thus any
contact with the sensor(s) must be avoided.
• Do not contact the foods to the fridge
compartment temperature sensor indicated in
the figure below.
4Preparation
4.2. First use
Before you start using your refrigerator, make
sure that preparations are made according to
the instructions in the “Safety and environmental
instructions” and “Installation” sections.
• Run the product empty without putting food
for 6 hours and do not open the door unless
necessary.
CYou will hear a sound when the
compressor starts. The liquids and gases
compressed within the cooling system may
produce sound even if the compressor is
not running and that sound is normal.
CThe front edges of the product may be hot.
This is normal. These areas are designed
to be heated to prevent condensation.

13/20 EN
Refrigerator / User Manual
5Use of the Product

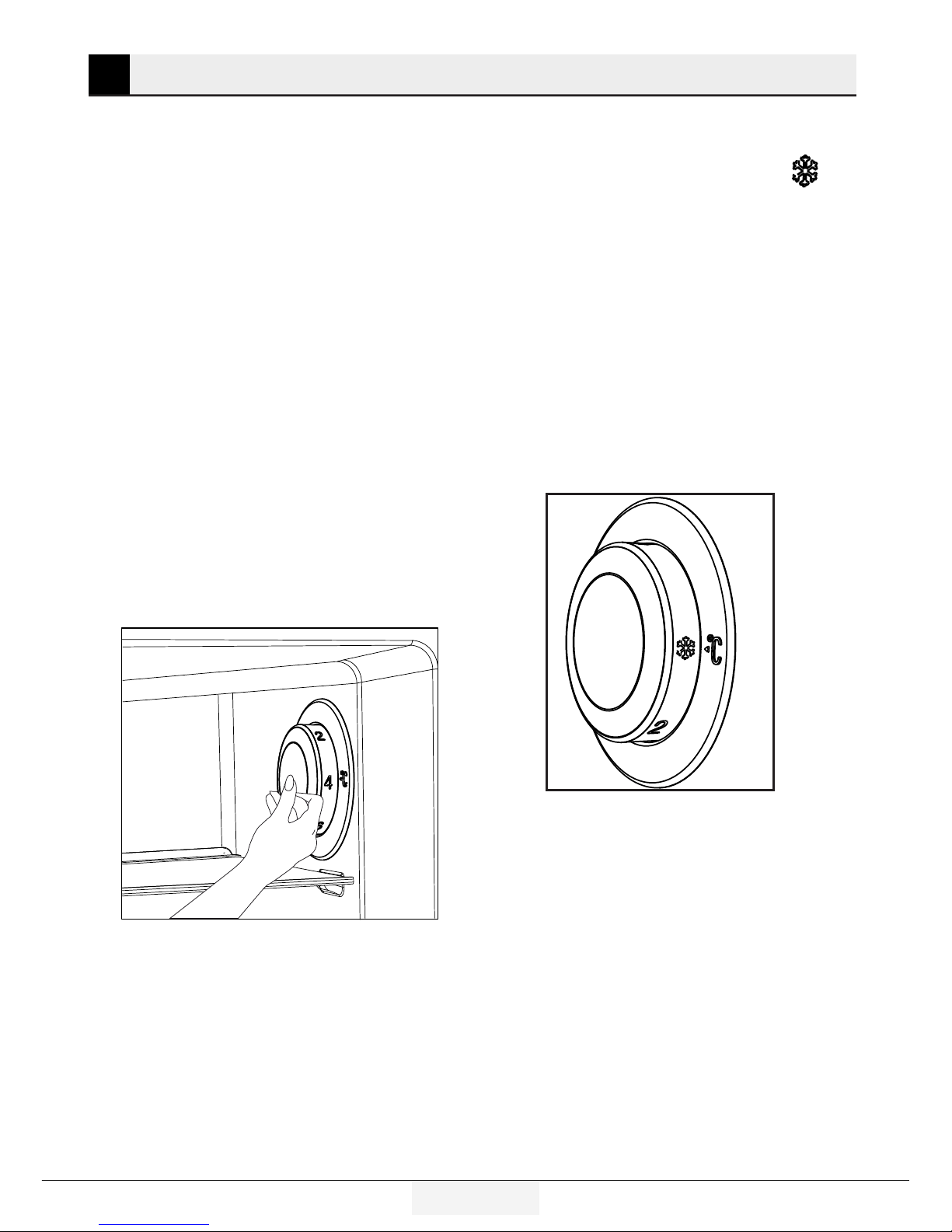

5.1. Temperature adjustment knob
The internal temperature of your refrigerator will vary
due to the following reasons:
• Seasonal temperatures,
• Frequently opening the door and the door
remaining open for a long time,
• Dishes put hot in your refrigerator before
cooling down to room temperature,
• The location of the refrigerator in the room
(such as exposure to the sun’s heat).
• You can adjust the internal temperature which
varies due to these reasons by the adjustment
knob.
The numbers around the adjustment knob shows the
degree of temperature as “°C”.
If the ambient temperature is 25 °C, it is
recommended to use the temperature adjustment
knob of the refrigerator at 4 °C.
In other ambient temperatures, this value can be
increased or decreased according to need.
5.2. Fast freezing
If you want to freeze large quantities of fresh food,
put the temperature adjustment knob to ( )
position 24 hours before putting the food in the fast
freezing compartment.
In order to freeze maximum amount of fresh
food specified as the freezing capacity, it is
recommended to keep the knob in this position for
at least 24 hours.
Pay particular attention to not mixing food sold as
frozen and the fresh food.
Once the food is frozen, remember to bring the
temperature adjustment knob to its previous
position.

Use of the Product
14 /20 EN Refrigerator / User Manual
5.3. Holiday function
If the doors of the product is not opened for at
least 12 hours after the temperature adjustment
knob is put to the warmest ( ) position,
Holiday function will be activated automatically.
To cancel the function, the adjustment of the knob
must be changed.
When the holiday function is active, storing food in
the fridge compartment is not recommended.
5.4. Snow defrosting
During the cooling of your refrigerator, water
droplets and snow up to 7-8 mm thickness are
formed on the inside back wall of the fridge
compartment. This formation is normal due to
the cooling system.
The snow formed in the fridge compartment
is defrosted at regular intervals by means of
the automatic defrost system contained in the
interior rear wall. Therefore, there is no need of
scraping snow and cleaning water droplets by
the user.
The water formed by defrosting flows to the
evaporating dish on the rear of your refrigerator
and spontaneously evaporates here.
The water flows to the evaporating dish via a
drain pipe contained in the inner back wall.
Check whether the drain pipe is blocked at
specific time intervals and if blocked, open.
CTo avoid deterioration of the frozen
food in the freezer compartment, no
defrosting is performed automatically.
The snow formed in the freezer
compartment should be defrosted
every 6 months.
For snow defrosting process, it is primarily
necessary to stop the operation of your
refrigerator. To do this, unplug the power plug.
Empty the freezer compartment. Keep your
frozen food in a cool place during the snow
defrosting process.
The door of the freezer compartment should be
kept closed during the defrosting process.
• After adjustment process is complete, you can
hide the temperature adjustment knob by pushing
it in.

Use of the Product
15/20 EN
Refrigerator / User Manual
When the snow formed is completely
defrosted, take the water collected in the
freezer compartment with an absorbent cloth
or sponge and dry.
To run your product re-connect the power plug.
AWARNING: To speed up the
defrosting in your refrigerator, never
use materials such as candles, gas
lamps and heaters.
CBefore putting your food back in the
freezer compartment run for 2 hours
with the doors closed and empty.
5.5. Door Open Warning
(This feature is optional)
An audio warning signal will be given when the
door of your product is left open for at least 1
minute. This warning will be muted when the
door is closed or any of the display buttons (if
any) are pressed.
Door open warning is given to user both
visually and acoustically. If the warning
continues for 10 minutes, interior lights will be
turned off.

Use of the Product
16 /20 EN Refrigerator / User Manual
5.6. Ice tray
• Remove the ice tray from the freezer
compartment.
• Fill the ice tray with water.
• Place the ice tray in the freezer
compartment. The ice is ready after about
two hours.
• Remove the ice tray from the freezer
compartment and slightly bend it over the
ice cap in which you will serve the ice. The ice
will be easily poured into the service cap.
5.7. Egg tray
You can put the egg tray on any door or body shelf
you want. If to be placed in the body shelf, it is
recommended to prefer the bottom cold shelves.
ANever put the egg tray in the freezer
compartment.
5.8. Fan
Fan is designed to ensure that the cold air in
your refrigerator is dissolved and distributed
homogeneously. Fan operation time may vary
depending on the properties of your product.
While in some products fan only works with
the compressor, in some products, the control
system determines the time when it will work
according to the cooling requirements.
5.9. Crisper
Crisper of the product is specially designed to
protect the vegetable as fresh without losing its
moisture. For this purpose, cold air circulation
throughout the crisper is concentrated.

17/20 EN
Refrigerator / User Manual
6Maintenance and cleaning
If the product is cleaned regularly its product
lifetime is prolonged.
BWARNING: Unplug your refrigerator
before cleaning.
• Never use any sharp and abrasive instrument,
soap, household cleaner, detergent, gas,
gasoline and wax polish etc. for cleaning.
• Dissolve a teaspoon of soda in a half liter
of water. Soak a cloth with this solution and
squeeze. Wipe inside your device with this
cloth to and then dry thoroughly.
• Avoid water entry to the lamp housing and
other electrical parts.
• Clean the door with a damp cloth. Take all of
the contents out to remove the door and body
shelves. Lift up and remove the door shelves.
After cleaning and drying, replace by sliding
upside down.
• Never use water or cleaning agents containing
chlorine while cleaning the product exterior and
chrome-plated parts. Chlorine causes corrosion
on metal surfaces of this type.
6.1. Prevention of unpleasant odours
No substance that will cause odour has been
used in the production of your product. However,
odour can occur due to improper food storage and
not cleaning the inner surface of the product as
needed.
To avoid this problem, clean with carbonate-water
every 15 days.
• Store the food in closed containers.
Microorganisms emanating from food stored in
open containers cause bad odours.
• Never store foods that of the storage
duration is expired and that is spoiled in your
refrigerator.
6.2. Protection of plastic surfaces
In case of spilling oil on the plastic surfaces, it
should be cleaned immediately with warm water
since it may harm the surface.

18 /20 EN Refrigerator / User Manual
7Troubleshooting
Please review this list before calling for service. Doing this will save you time and money.
This list includes complaints not bound to faulty workmanship or material use, which can be frequently
experienced. Some of the features in question may not be in your product.
The product does not operate.
• The plug is not properly plugged in. >>> Insert the plug into the socket properly.
• The fuse of the socket to which the product is connected or the main fuse has blown out. >>>
Check the fuse.
Condensation on the side wall of the fridge compartment (MULTIZONE, COOL CONTROL and FLEXI ZONE).
• The door has been opened and closed frequently. >>> Be careful not to open and close the door of
the product very often.
• Environment is very humid. >>> Do not install the product in very humid environments.
• Food containing liquids may be stored in open containers. >>> Store food containing liquids in
closed containers.
• The door of the product has remained open. >>> Do not leave the door of the product open for a
long time.
• The thermostat is set to a very cold value. >>> Set the thermostat to the appropriate value.
Compressor is not running.
• Protective thermic of the compressor will blow out during sudden power failures or plug-out plug-
ins as the refrigerant pressure in the cooling system of the product has not been balanced yet. The
product will start running approximately after 6 minutes. Please call a service if the product does
not startup at the end of this period.
• It is in defrost cycle. >>> This is normal for a full-automatically defrosting product. Defrosting cycle
occurs periodically.
• Product is not plugged into the socket. >>> Make sure that the plug is fit into the socket.
• Temperature adjustments have not been made correctly. >>> Select the appropriate temperature
adjustment.
• Power is cut off. >>> The product will continue to operate normally when the power is restored.
The operation noise increases when the product is running.
• The operating performance of the product may change depending on the changes in the ambient
temperature. This is normal and is not a malfunction.
The product is running frequently or for a long time.

19/20 EN
Refrigerator / User Manual
Troubleshooting
• The new product may be larger than the former product. Larger products operate longer.
• Room temperature may be high. >>> Operating for longer hours in hot environments is normal.
• The product might have been plugged in recently or might have been just loaded with food. >>>
When the plug has been just inserted or when a new food has been put, it takes longer time for
product to reach the set temperature. This is normal.
• Large amounts of hot food might have been put in the product recently. >>> Do not put hot food in
the product.
• Doors might have been opened frequently or left ajar for a long time. >>> The incoming hot air
causes longer running of the product. Do not open the doors very frequently.
• Freezer or fridge door might have been left ajar. >>> Check whether the doors are completely
closed.
• The product is adjusted to a very low temperature. >>> Adjust the temperature of the product to a
higher degree and wait until this temperature is achieved.
• Door seal of the fridge or freezer may be soiled, worn out, broken or not properly seated. >>>
Clean or replace the seal. Damaged/broken seal causes the product to run for a longer period of
time in order to maintain the current temperature.
Freezer temperature is very low but the fridge temperature is sufficient.
• The freezer compartment’s temperature is adjusted to a very low temperature. >>> Adjust the
freezer compartment’s temperature to a warmer degree and check.
Fridge temperature is very low but the freezer temperature is sufficient.
• The fridge compartment’s temperature is adjusted to a very low temperature. >>> Adjust the
fridge compartment’s temperature to a higher degree and check.
Food stored in the fridge compartment drawers are freezing.
• The fridge compartment’s temperature is adjusted to a very high value. >>> Adjust the fridge
compartment’s temperature to a lower value and check.
Temperature in the fridge or freezer is very high.
• The fridge compartment’s temperature might have been adjusted to a very high temperature. >>>
Fridge adjustment has an effect on the temperature of the freezer. Change the temperature of the
fridge or freezer and wait until the temperature of the relevant compartments reach to a sufficient
level.
• Doors might have been opened frequently or left ajar for a long time. >>> Do not open the doors
very frequently.
• Door might have been left ajar. >>> Close the door completely.
• The product might have been plugged in recently or might have been just loaded with food. >>>
This is normal. When the plug has been just inserted or when a new food has been put, it takes
longer time than normal for product to reach the set temperature.
• Large amounts of hot food might have been put in the product recently. >>> Do not put hot food in
the product.
Vibrations or noise.
• The floor is not flat or strong. >>> If the product rocks when moved slowly balance the product by
adjusting its feet. Also make sure that the floor is strong enough to carry the product.
• The items placed on the product might be making noise. >>> Remove the items on the product.
There are noises coming from the product like liquid spilling or spraying.
• Liquid and gas flows happen in accordance with the operating principles of your product. >>>This
is normal and is not a malfunction.
