Archon MOVE AM-01 User manual

Fitness Tracker User Manual
Model: AM-01
Welcome
Archon MOVE (MOVE) is an all-in-one multifunctional fitness tracker that helps to manage and
monitor your everyday workout, sleep and social media communication. The stylish and
advanced MOVE not only knows and calculates your every heartbeat, but also your best all time
activity partner who automatically and continuously records your whole day activity and workout,
all on your wrist.
All Archon fitness tracker can synchronize wirelessly (Bluetooth 4.0) with your mobile phone
that runs Android (4.3 or above) IOS 6.X, 7.x system iPhone 4S or above.
For the latest user manual and user guide, please download from our official website:
http://www.archon.com.hk

Package includes:
MOVE Fitness Tracker x 1 pc
Charge Clip x 1 pc
USB Cable x 1 pc
User Manual x 1 pc
Knowing your MOVE
3 Sensors
Sweep (left or right) across 3 sensors Sweep from right to left
Click Double Click
Press and Hold for 3 seconds
How to wear your MOVE

Wear the MOVE above your wrist bone. It should be snug but comfortable, and it should not
move while running or exercise. Do not fasten too tightly. If you have tattoos, avoid placing the
sensor right on it.
1. Charging
Before using your MOVE for the first time, the battery may be completely empty and it needs to
be charged before use. Attach the charge clip to the back of your MOVE. Plug the charging cable
into the USB port on your computer or a certified USB charger and connect the other end to the
micro-USB port of the charge clip. The screen will then display a charging icon and it takes
around 2 hours to fully charge your MOVE.
Charge Clip
2. Low Power
When the battery level is low, your MOVE will vibrate and will show an icon of low power.
3. Setup with your Mobile
Mobile device Compatibility
Apple IOS Device: Support all iPhone 4S or above, iPad 3 or above. Support iOS 6.x, 7.x system
Android Device: Support Android 4.3 or above with Bluetooth Smart 4.0. Archon runs with
mobile phone using standard Bluetooth Smart 4.0 protocol, those mobile with non-standard
Bluetooth protocol will affect pairing and consistency.

4. Setup Procedure
4.1 Download Archon App
Download Archon App directly from Archon website, Apple Store or Google Play.
www.archon.com.hk
Apple store Google Play
4.2 Bluetooth pairing
Charge up your MOVE.
Your MOVE should show an icon “Ready to Pair” with device number
Turn on Bluetooth on your mobile and start the Archon app.
Sign up if you are a new member or log-in with your existing account.
Go to “Setting”, select “Devices” and “Fitness Tracker”.
Select MOVE and go through the pairing steps.
If pairing is successful, your MOVE will show a “CONNECTED” icon .
If you want to use notification function of the MOVE, you need to go to the phone system
setting and grant permission of the Archon App to access system notification of your mobile
device.
If you want to pair your mobile phone with another MOVE, you are required to unpair the
current one and go through the pairing steps again to pair a new device.
Please make sure your mobile phone and MOVE is within operating distance.
5. Synchronize MOVE data with Archon app
MOVE will generally keep 5-7 days record on device (based on normal usage), you are
recommended to synchronize at least once a day and keep yourself update to news from Archon.
Open Archon app.
On the “Activity” page, press the sync icon.

Your MOVE will display and start to sync.
6. Display
6.1 Time, Date and Battery Status
Double click to turn on the screen of your MOVE, and it will show the time, date and battery
status.
6.2 Pedometer in steps
It shows number of steps walked or run during the day.
6.3 Distance in KM
It shows distance walked or run during the day.
6.4 Calories in KCAL
It shows your calories burnt during the day based on general metabolic rate.
6.5 Walking/Running Time in MIN
It shows your walking or running time during the day.
6.6 Heart Rate
Click and wait for a short vibration to start measuring your heart rate, click again to stop.

6.7 Stop Watch
It shows the stop watch, click to start, pause, resume or reset.
6.8 Sleep Mode
To enter sleep mode manually, click the icon . Your MOVE will then display
with a short vibration. To go back to the sport mode, click
again.
To set up “Auto Sleep”, open the Archon App and go to the devices settings to set your regular
sleep and wake up time. You can review your sleep status at Archon app after synchronize data to
your mobile.
6.9 Setting
a) Flip
b) Restart
c) Reset
d) Back
Click tick to confirm or the cross to cancel and return to the setting page.
6.10 Notification
You can enable or disable different notification options in the Archon app to best fit your needs:

In-call notification
Email Notification
Daily Schedule Notification
Social Media Notification
SMS Notification
Missed Call Notification
Open Archon app, go to devices settings and then go to the Notification setting to turn on or
off the notification you want to receive. Click “Save” to Sync your notification settings with
the MOVE.
Make sure Bluetooth is enabled on your mobile device, and MOVE is within operating
distance.
When your mobile device and MOVE are within operating range, you will be able to receive
notification that you selected.
After switched to sleep mode, all notification will be turned off.
Below are some examples of notifications:





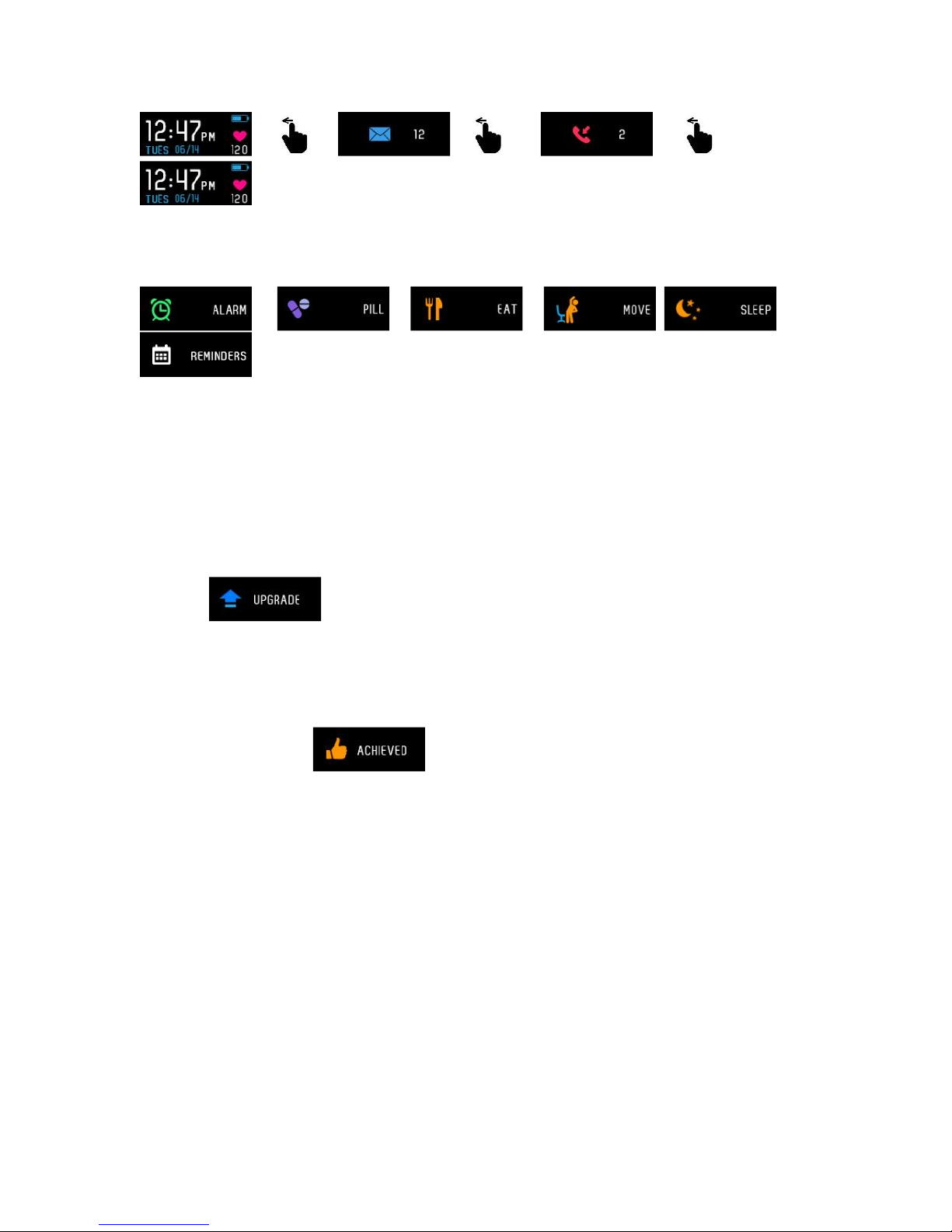

7. Reminder
You can set up Caring Reminder in the Archon App to remind yourself time for Sport, Sleep,
Event or Dinning. Go to devices settings and press “+” to add new reminder, after selecting
reminding time, turn it on and press save to enable sync to the MOVE. Once Synchronized,
reminding time will be saved to the MOVE. MOVE will vibrate gently and display your input
reminder icon to alert you.
8. OTA
MOVE supports OTA upgrade through Archon App and an upgrade icon will appear on your
MOVE during the process.
9. Goals Achievement
If you reach 10,000 steps daily, MOVE will vibrate and display achievement icon. You can set
your own target in the App.
10. Safety and Care
MOVE is not a medical device, and is not intended to diagnose, monitor, treat, cure or
prevent any disease or condition. The heart rate readings are for reference only, and no
responsibility is accepted for the consequences of any erroneous readings.
Do not look at the heart rate sensor’s lights directly, doing so may impair your vision.
Do not expose the strap to very wet conditions. Wet straps can cause skin irritations. Please
clean the strap by water periodically to keep it clean and dry, do not use abrasive cleaning
that may damage the strap.
If you feel discomfort while using the MOVE, stop using it and remove it from your wrist.

Do not use device in the environment of too high or too low temperature, please don’t expose
the device under strong sunshine or too wet environment. The suitable temperature for the
device and accessories is 0°C - 45°C.
Keep the MOVE away from fire or any objects that may cause damage or scratch.
Please do not attempt to repair, modify or disassemble the MOVE.
Please use the charge clip included in the package to charge the MOVE.
MOVE is IP67 water-proof, do not shower, bath, swim or go to sauna or steam room with the
device.
This device complies with R&TTE Directive 1999/5/EC.
11. Reset
If you have problem with your MOVE or it does not function properly, you can try to reset. When
your MOVE is in charging condition, insert a small pin into the hole of the charge clip and push
to reset.
Hole for reset
12. Specifications
Feature
Model
AM-01
Color
Black/Blue/Green/Red
Display
Color TFT
Battery Type
Lithium-ion polymer
Battery Capacity
100 mAH
Battery life for stand-by
Around 8 days
Battery life for working
5-7 days (normal usage)
Water resistant
IP67
Connectivity
Bluetooth smart 4.0 LE
Storage temperature
-20℃to 60℃
Operation temperature
0℃to 45℃

Heart Rate Sensor
Optical
Charger
Clip-on-charger 5V (micro-USB)
13. Frequent Question and Answer
Q: Why BT connection to the MOVE failed?
A: Please check if your mobile phone and operating system fall within the range of compatibility
range, see point 3. Sometimes, the Bluetooth connection may fail due to mobile phone BT
operation, please turn off the Bluetooth and turn on again, or switch off the phone and on again.
Retry bluetooth connection.
14. Warranty
Original purchaser of any Archon MOVE Fitness Tracker can obtain 1 year warranty service
from Archon or Distributor starting from the date of purchase. Original purchaser must deliver
the faulty product in its original package or packaging with equal degree of protection together
valid invoice to address specified by Archon. Details please refer to Archon website.
www.archon.com.hk
What is not included in Limited Warranty?
Built-in batteries.
Aesthetic damage where it does not affect the operation or safety of the product.
Repair costs that have not been approved.
Damage or breakdown due to flood, wind or other severe weather conditions.
Damage or breakdown due to fire or any natural disaster.
The cost of repairing or replacing a product which fails because anyone neglects, abuses or
misuses the product.
The cost of repairing or replacing a product which has been exposed to insect infestation (or
similar phenomenon) or human or animal fluid/matter.
Software or data.
Cost of Data Recovery.

The symbol on the product or its packaging indicates that this product must not be disposed of
with your other household waste. Instead, it is your responsibility to dispose of your waste
equipment by handing it over to a designated collection point for the recycling of waste electrical
and electronic equipment. The separate collection and recycling of your waste equipment at the
time of disposal will help conserve natural resources and ensure that it is recycled in a manner
that protects human health and the environment.
For more information about where you can drop off your waste for recycling, please contact your
local authority, or where you purchased your product.
Terms of use and Disclaimer
Unless otherwise specifically and expressly stated elsewhere, Archon hereby disclaims all
warranties, including without limitation all warranties of merchantability, fitness for a particular
purpose, title and non-infringement, and any warranties arising out of course of dealing or usage
of trade, whether such warranties are express, implied or statutory. The Archon product, content
and Archon service are provided “as is,” without warranty of any kind.
Archon shall not be liable for (1) any inaccuracy, failure of or error in the product and software;
(2) any loss or damage (including without limitation any direct, indirect, incidental, consequential,
special or exemplary damages) arising from any download or use made of the software, or
occasioned by any such inaccuracy, error or failure of the software.
We make no warranty that the Archon product, content or Archon service will meet your
requirements or be available on an uninterrupted, secure, or error-free basis. We make no
warranty regarding the accuracy, quality, timeliness, completeness, truthfulness or reliability of
the Archon product, service or any Archon content. You acknowledge and agree that if you rely
on any Archon product, content or the Archon service, you do so solely at your own risk.
If you are dissatisfied with any of the product, content, service or other contents of the Archon
sites or with these terms and conditions, your sole remedy is to discontinue use of the Archon
product, sites, content and service. In no event will Archon or any third parties mentioned at the
Archon sites be liable for any damages whatsoever (including, but not limited to, incidental,
exemplary, and consequential damages, lost profits, or damages resulting from business
interruption or lost data) resulting from the use or inability to use the Archon sites and the content,
whether based on contract, warranty, tort, or any other legal theory, and whether or not Archon is
advised of the possibility of such damages.
Archon makes no representations or warranties about the accuracy, reliability, completeness, or
timeliness of the content or about the results to be obtained from using the Archon product,
service and content. Any use of the Archon product, service and content is at your own risk.
Changes may be made to Archon sites at any time. Some content on the Archon product, service

and sites may be provided by third parties and Archon will not be held responsible for any such
content provided by third parties.
Archon does not warrant that the Archon sites will operate error-free or that the Archon sites or
their servers are free of computer viruses or other harmful goods. If your use of the Archon sites
or the content results in the need for servicing or replacing equipment or loss of profits or data,
Archon will not be responsible for those costs.
You agree to comply with all applicable laws when using Archon product, content and service,
and you will only use them for lawful purposes.
If any provision of these terms and conditions is held to be invalid or unenforceable, such
provision shall be removed and the remaining provisions shall be enforced to the fullest extent
under law. Archon's failure to enforce any right or provision in these terms and conditions shall
not constitute a waiver of such right or provision unless acknowledged and agreed to by Archon
in writing.
Account
Full use of the Archon product, content and service requires that you register an account and
agree to provide us with a valid email address and strong password. You are responsible for all
activity that occurs in association with your account. Archon is not liable for any loss or damages
caused by your failure to maintain the confidentiality of your account credentials.
You agree not to impersonate any person or entity or misrepresent your identity or affiliation with
any person or entity, including using another person's username, password or other account
information, or another person's name, likeness, voice, image or photograph.
You might authorize us to send status updates to your facebook or twitter account. Once you
direct us to share your data with a third party, that data is governed by the third-party’s privacy
policy.
Designed by:
Millennium Pacific Concept Limited
www.archon.com.hk
[email protected]

Version: AM-01 V1.0
