Arctic Spa Arctic Ocean User manual

engineered for the world’s harshest climates®...
(wherever you happen to live)
Owners
Manual
N o r t h A m e r i c a

Your choice of an Arctic Spa indicates
that you are devoted to excellence. At
Arctic Spas®we believe a good foundation is
required to build a superior product, both in
design and philosophy. Canadian built with the
finest materials and advanced technology to withstand
even the harshest of weather conditions, Arctic Spas®are
made to perform...wherever you happen to live. To safely and effectively
use your spa, we recommend that you take the time to read this manual
before you hook-up and operate the spa. This guide will acquaint you
with the operating features, hook-up procedures, and the maintenance
and safety procedures, ensuring an enjoyable experience right from the
start.
If you require additional information, please call your local Arctic Spas®
dealer or check our website at www.arcticspas.com.
IMPORTANT!
In most cities and counties, permits will be required for the installation
of electrical circuits or the construction of exterior surfaces (decks and
gazebos). In addition, some communities have adopted residential bar-
rier codes which may require fencing and/or self-closing gates on the
property to prevent unsupervised access to a pool or (spa) by children
under 5 years of age. Your Arctic Spa is equipped with a locking cover
that meets the ASTM F1346-91 Standard for Safety Covers and as a
result, is usually exempt from most barrier requirements. As a general
practice, your local Building Department will inform you of any ap-
plicable barrier requirements at the time a permit is obtained for the
installation of an electrical circuit. Your Arctic Spa Dealer can provide
information on which permits may be required.
Congratulations!
2
2

Important Safety Instructions ............................................................ 4
Hyperthermia ...................................................................................... 6
Installation Instructions ...................................................................... 8
Electrical Specifications ....................................................................... 9
Electrical Installation Instructions .................................................... 10
Startup Procedures ............................................................................ 12
Fusion™Jetting System ................................................................... 13
Venturi Controls ............................................................................... 13
Jets .................................................................................................... 14
Topside Control Panel ..................................................................... 15
Spa Care and Maintenance ................................................................ 20
Water Maintenance ........................................................................... 24
Common Spa Water Problems ~ Cause & Remedy ........................... 29
Troubleshooting Spa Problems ......................................................... 30
Contents
Read and Follow
All Instructions
It is important to
inform occasional
users of the spa
about the DANGERS,
WARNINGS, and
CAUTIONS listed in
this manual before
they use the spa.
3
3
CAUTION!
Indicates a situation
in which damage to
equipment or material
may occur.
DANGER!
Indicates risk of injury.
WARNING!
Indicates information
of critical importance.

Important Safety Instructions:
4
4
READ AND FOLLOW ALL INSTRUCTIONS CAREFULLY
When installing and using this electrical equipment, basic safety precautions
should always be followed, including:
1) WARNING: To reduce the risk of injury, do not permit children to use this product unless
they are closely supervised at all times.
2) WARNING: A grounding wire connector is provided on this unit to connect a minimum
No. 8 AWG solid copper conductor (USA) No. 6 AWG stranded (Canada) between this unit and
any metal equipment, metal enclosures of electrical equipment, metal water pipe, or conduit within
5 feet (1.5m) of the unit.
3) DANGER: Risk of Accidental Drowning. Extreme caution must be exercised to prevent
unauthorized access by children. To avoid accidents, ensure that children cannot use this
hot tub unless they are supervised at all times.
4) DANGER: Risk of Injury. The suction fittings in this hot tub are sized to match the specific water
flow created by the pump. Should the need arise to replace the suction fittings or the pump, be sure
that the flow rates are compatible. Never operate the hot tub if the suction fittings are broken or
missing. Consult your local dealer for assistance in choosing an appropriate replacement suction fit-
ting.
5) DANGER: Risk of Electric Shock. Install at least 5 feet (1.5m), from all metal surfaces. As an
alternative, a hot tub may be installed within 5 feet (1.5m) of metal surfaces if each
metal surface is permanently connected (bonded) by a minimum No. 8 AWG
solid copper conductor (US) No. 6 AWG stranded (Canada) attached to the wire con-
nector on the grounding lug, inside the equipment compartment on the equipment
box.
6) DANGER: Risk of Electric Shock. Do not permit any electrical appliance, such
as a light, telephone, radio, television, etc. within 5 feet (1.5m) of a hot tub.
7) ELECTRICAL SUPPLY:The electrical supply for this product must include a
suitable circuit breaker to open all ungrounded supply conductors. The
disconnect must be readily accessible and visible to the hot tub occupant but installed
at least 5 feet (1.5m), from the hot tub water.
8) WARNING: To Reduce the Risk of Injury:
a) The water in a hot tub should never exceed 104ºF (40ºC). Water temperatures
between 100ºF (38ºC) and 104ºF (40ºC) are considered safe for a healthy adult.
Lower water temperatures are recommended for young children and when hot tub
use exceeds 10 minutes.
b) Since excessive water temperatures have a high potential for causing fetal damage
during the early months of pregnancy, pregnant or possibly pregnant women should
limit hot tub water temperatures to 100ºF (38ºC). If pregnant, please consult your
physician before using a hot tub.
c) The use of alcohol, drugs, or medication before or during hot tub use may lead to
unconsciousness with the possibility of drowning.
IMPORTANT!
This manual was
written to ensure
the proper use and
installation of any
Arctic Spa. Any
modifications to the
procedures outlined
may result in
your warranty
being voided.
Please read this
manual to avoid any
unnecessary damage
to your spa and
equipment.

5
5
d) Persons suffering from obesity or a medical history of heart disease, low or high blood pressure,
circulatory system problems, or diabetes should consult a physician before using a hot tub.
e) Persons using medication should consult a physician before using a hot tub since some medication
may induce drowsiness, while other medication may affect heart rate, blood pressure, and circulation.
9) A bonding lug bar is provided on the side of your spa pack to accommodate grounding of entire
spa. To reduce the risk of electric shock, connect the local common bonding grid in the area of the
hot tub to these terminals with an insulated or bare copper conductor not smaller than No. 8
AWG solid (US) No. 6 AWG stranded (Canada).
10) All field-installed metal components such as rails, ladders, drains or other similar hardware
within 10 feet (3m) of the hot tub shall be bonded to the equipment grounding bus with
copper conductors not smaller than No. 8 AWG solid (US) No. 6 AWG stranded (Canada).
11) Use the hot tub straps and clip tie downs to secure the cover when not in use. This will
help to discourage unsupervised children from entering the hot tub. There is no representation
that the cover, clip tie downs, or actual locks will prevent access to the hot tub.
SAVE THESES INSTRUCTIONS
WARNINGS!
WARNING: Children should not use hot tubs without adult supervision.
AVERTISSEMENT: Ne pas laisser les enfants utiliser une cuve de relaxation sans surveillance.
WARNING: Do not use hot tubs unless all suction guards are installed to prevent body and hair entrap-
ment.
AVERTISSEMENT: Pour eviter que les cheveux ou une partie du corps Puissent étre aspires, ne pas utiliser
une cuve de relaxation si esgrilles de prise d’aspiration ne sont pas toutes en place.
WARNING: People with infectious diseases should not use a hot tub.
AVERTISSEMENT: Les personnes atteintes de maladies infectieuses ne devraient pas utiliser une cuve de
relaxation.
WARNING: To avoid injury, exercise care when entering or exiting the hot tub.
AVERTISSEMENT: Pour éviter des blessures, user de prudent en entrant dans une de cuve de relaxation et
en sortant.
WARNING: Do not use drugs or alcohol before or during the use of a hot tub to avoid unconsciousness and
possible drowning.
AVERTISSEMENT: Pour éviter l’évanouissement et la noyade éventuelle, ne prendre ni drogue ni alcool
avant d’utiliser une cuve de relaxation ni quand on s’y trouve.
WARNING: Pregnant or possibly pregnant women should consult a physician before using a hot tub.
AVERTISSEMENT: Les femmes enceintes, que leur grossesse soit confirmée ou non, devraient consulter un
médecin avant d’utiliser la cuve de relaxation.
WARNING: Water temperature in excess of 100ºF (38ºC) may be injurious to your health.
AVERTISSEMENT: Il peut être dangereux pour la santé de se plonger dans de l’eau a plus de 100ºF (38°C).
WARNING: Before entering the hot tub, measure the water temperature with an accurate
thermometer.

6
6
AVERTISSEMENT: Avant d’utiliser une cuve de relaxation mesurer la température de l’eau à l’aide d’un
thermomètre précis.
WARNING: Do not use a hot tub immediately following strenuous exercise.
AVERTISSEMENT: Ne pas utiliser une cuve de relaxation immédiatement après un exercice fatigant.
WARNING: Prolonged immersion in a hot tub may be injurious to your health.
AVERTISSEMENT: L’utilisation prolongée d’une cuve de relaxation peut être dangereuse pour la santé.
WARNING: Do not permit electric appliances (such as light, telephone, radio, television, etc.) within 5
feet (1.5m) of this hot tub.
AVERTISSEMENT: Ne pas placer d’appareil éléctrique (luminaire, téléphone, radio, téléviseur, etc.) à
moins de 5 feet (1.5m) de cett cuve de relaxation.
CAUTION: Maintain water chemistry in accordance with manufacturer’s instructions.
ATTENTION: La teneur de l’eau en matières dissoutes doit être conformé aux directives du fabricant.
WARNING: The use of alcohol or drugs can greatly increase the risk of fatal hyperthermia in
hot tubs.
AVERTISSEMENT: La consommation d’alcool ou de drogue augmente considérablement les risques
d’hyperthermie mortelle dans une cuve de relaxation.
WARNING: People using medications and / or having an adverse medical history should consult
a physicain before using a spa or hot tub.
AVERTISSEMENT: Les personnes qui prennent des médicaments ou ont des problémes de santé
devraient consulter un médecin avant d’utiliser une cuve de relaxation.
Hyperthermia
Prolonged immersion in hot water may induce hyperthermia.
Hyperthermia occurs when the internal temperature of the body reaches a level several degrees
above the normal body temperature of 99ºF (37°C). The symptoms of hyperthermia include
drowsiness, lethargy, and an increase in the internal temperature of the body. The effects of
hyperthermia include:
Unawareness of impending hazard;
Failure to perceive heat;
Failure to recognize the need to exit hot tub;
Physical inability to exit hot tub;
Fetal damage in pregnant women; and
Unconsciousness and danger of drowning.
WARNING!
The use of alcohol
or drugs can greatly
increase the risk of
fatal hyperthermia in
hot tubs or spas.

7
7
Outside
Dimensions
Heights Heater
(Watts)
Water
Capacity
Dry
Weight
Filled
Weight*
Weight per
square foot
Electrical
Requirements
92 3/4” x 92 3/4”
235 cm x 235 cm
38 3/4”
98 cm 5500 602 Gallons 2280 Litres
1009 Lbs
458 Kg
7267 Lbs
3289 Kg
122 Lbs
per square foot
240 Volt, 50 Amp Single
Phase GFCI Protected
Circuts
Tundra
92 3/4”x 92 3/4”
235 cm x 235 cm
38 3/4”
98 cm 5500 554 Gallons
2098 Litres
961 Lbs
436 Kg
6819 Lbs
3093 Kg
114 Lbs
per square foot
240 Volt, 50 Amp Single
Phase GFCI Protected
Circuits
Avalanche
92 3/4” x 92 3/4”
235 cm x 235 cm
38 3/4”
98 cm 5500 497 Gallons
1880 Litres
968 Lbs
439 Kg
6173 Lbs
2800 Kg
103 Lbs
per square foot
240 Volt, 50 Amp Single
Phase GFCI Protected
Circuits
Summit
240 Volt, 50 Amp Single
Phase GFCI Protected
Circuits
85 3/4” x 85 3/4”
217 cm x 217 cm
41”
104 cm 5500 396 Gallons
1500 Litres
721 Lbs
327 Kg
5350 Lbs
2427 Kg
105 Lbs
per square foot
Cub
38 3/4”
98 cm 5500 526 Gallons
1990 Litres
961 Lbs
436 Kg
6409 Lbs
2907 Kg
107 Lbs
per square foot
240 Volt, 50 Amp Single
Phase GFCI Protected
Circuits
92 3/4” x 92 3/4”
235 cm x 235 cm
Kodiak
240 Volt, 50 Amp Single
Phase GFCI Protected
Circuits
38 3/4”
98 cm 5500 478 Gallons 1810 Litres
959 Lbs
435 Kg
6006 Lbs
2724 Kg
100 Lbs
per square foot
92 3/4” x 92 3/4”
235 cm x 235 cm
Klondiker
5500 423 Gallons
1600 Litres
750 Lbs
340 Kg
6065 Lbs
2751 Kg
119 Lbs
per square foot
240 Volt, 50 Amp Single
Phase GFCI Protected
Circuits
85 3/4” x 85 3/4”
217 cm x 217 cm
41”
104 cm
Yukon
38 3/4”
98 cm 5500 343 Gallons
1300 Litres
679 Lbs
308 Kg
4247 Lbs
1926 Kg
104 Lbs
per square foot
240 Volt, 50 Amp Single
Phase GFCI Protected
Circuits
85 3/4” x 68 3/4”
217 cm x 174 cm
Fox
38 3/4”
98 cm 5500 518 Gallons
1960 Litres
935 Lbs
424 Kg
6316 Lbs
2865 Kg
121 Lbs
per square foot
240 Volt, 50 Amp Single
Phase GFCI Protected
Circuits
85 3/4” x 92 3/4”
217 cm x 235 cm
Frontier
SPA SPECIFICATIONS
*Filled weight includes weight of water and maximum recommended number of people in the spa.
Average weight per person = 80 kg (176 lbs)
240 Volt, 50 Amp Single
Phase GFCI Protected
Circuits
5500 431 Gallons
1630 Litres
743 Lbs
337 Kg
5222 Lbs
2369 Kg
102 Lbs
per square foot
Glacier 85 3/4” x 85 3/4”
217 cm x 217cm
41”
104 cm
166.25”x 88.25”
422 cm x 224 cm
45”
114 cm 5500 1559 Gallons
5900 Litres
1650 Lbs
748Kg
15,724 Lbs
7132 Kg
154 Lbs
per square foot
240 Volt, 50 Amp Single
Phase GFCI Protected
Circuits
Arctic
Ocean

Installation Instructions
8
8
Site Preparation
Please ensure the following:
• Always put your spa on a structurally sound, level surface. A filled spa can weigh a great deal.
Make certain that the location you choose can support the weight of your filled spa.
• Locate your equipment compartment, which houses all of the electrical components, in a place
where you will have easy access for periodic spa care and maintenance.
• Allow adequate access to all other doors for service.
Outdoor Ground Level Installation
No matter where you install your new spa, it’s important that you have a solid foundation for sup-
port. If you are installing a spa with a wooden pedestal floor outdoors, we recommend you place
patio stones underneath spaced out evenly. The stones should be at least two inches thick and
twelve inches square (30cm x 30cm). Even with stones in place, the spa will possibly settle and
become unlevel, and may require re-leveling over time. If you are installing a spa with a Forever
Floor®outdoors, you may set it on virtually any surface, as long as it is level.
Deck Installation
To be certain your deck can support your spa, you must know the deck’s maximum load capacity.
Consult a qualified building contractor or structural engineer. To find the weight of your spa, its
contents and occupants, refer to the Spa Specification chart. This weight per square foot must not
exceed the structure’s rated capacity, or serious structural damage could result.
Your Arctic Spas®Dealer can help you with local information such as zoning regulations and build-
ing codes.
WARNING! WARNING!
We recommend that the Arctic Spa be installed
above ground. Consult a licensed building
contractor to design or evaluate your custom
decking requirements.

Electrical Specifications
9
9
WARNING!
All electrical hookups must be performed by
a licensed electrician!
Power Input
All Arctic Spas®are tested for the following:
240 VAC, 60 Hz, 50 A (North America)
Connect the power input wires to the terminal block labeled
“AC-Input”. Make sure to respect the alignment and that the
screws are properly tightened.
DANGER!
Shock Hazard.
DO NOT PROCEED if
you are not a licensed
electrician. This
diagram is for
reference only!
IMPORTANT
CONNECTIONS:
Neutral of the GFCI must
be connected to the neutral
bus.
Neutral from the spa must
be connected to
the breaker.
To Spa
From
Electrical Box
Sub Panel
Wiring Diagram
Example
L1
NEUTRAL
GROUND
L2

Electrical Installation Instructions
10
10
ARCTIC SPAS®MUST BE WIRED IN ACCORDANCE WITH ALL
APPLICABLE LOCAL ELECTRICAL CODES. ALL ELECTRICAL WORK
SHOULD BE DONE BY AN EXPERIENCED, LICENSED ELECTRICIAN
AND APPROVED BY A LOCAL BUILDING/ELECTRICAL INSPECTION
AUTHORITY. WE RECOMMEND THE USE OF APPROPRIATE
ELECTRICAL CONDUIT, FITTINGS AND WIRE FOR ALL CIRCUITS.
We recommend an electrical subpanel containing a 50 amp GFCI breaker is used to supply power and
protect the spa. This subpanel requires a 50 amp, two pole, single phase, 230 volt, four wire service
(two line, one neuteral, one ground). The grounding conductor must be at least the same gauge as the
line conductors, but not less than #6 AWG stranded (Canada), and #8 AWG solid (USA). A mini-
mum #6 AWG (Canada), and #8 AWG (USA) solid copper bond wire is also required. For bonding
the pad, bonding grid and any metal or electrically live objects accessible to spa accupants. Mount
the subpanel in the vicinity of the spa, but not closer than five feet away, in accordance with all local
codes. A qualified electrician must install the electrical circuit.
1. This hot tub must be permanently connected (hard-wired) to the power supply. No plug-in
connections or extension cords are to be used in conjunction with the operation of this hot tub.
Supplying power to the hot tub, which is not in accordance with these instructions, will void both
the independent testing agency listing and the manufacturer’s warranty.
2. The power supplied to this hot tub must be a dedicated circuit with no other appliances or lights
sharing the power provided by the circuit.
3. Do not use aluminum wire.
4. For the United States, the electrical supply for this product must include a suitably rated switch
or circut breaker to open all ungrounded supply conductors to comply with Section 422-20 of the
National Electrical Code, ANSI/NFPA 70. The disconnecting means must be readily accessible to
the hot tub’s occupant but installed at least 5 feet (1.5m) from the hot tub water.
5. The electrical circuit supplied for the hot tub must include a suitable ground fault circuit
interrupter (GFCI) as required by electrical code.
6. To gain access to the hot tub’s power terminal block, remove the four screws securing the two
cabinet panels on the side of the spa containing the ETL label. Then open the door to the control
box. (See diagram on previous page).
7. Install the cable with appropriate connector through the large opening provided in the side of the
control box.
8. Connect wires, color to color, on terminal blocks TB1. TIGHTEN SECURELY! All wires must be
hooked up or damage could result.

11
11
WARNING: Fill the spa with water before turning on the power.
Once your spa has been filled with water, turn it on and test all of the circuit breakers.
NOTE: If the GFCI breaker trips immediately, verify that the WHITE neutral wire is connected
into the load neutral in the breaker. Each breaker should be tested prior to each use. Here’s how:
1. Push the “TEST” button on each GFCI breaker, and observe it click OFF.
2. Push the breaker switch to the OFF position (to ensure that it has completely disengaged),
then push the breaker switch to the ON position.
If any of the GFCI breakers fails to operate in this manner, your spa may have an electrical
malfunction, and you may be at risk of electrical shock. Turn off all circuits and do not use the
spa until the problem has been corrected by an authorized service agent.
WARNING: Removing or bypassing any GFCI breaker will result in an unsafe spa and will void
the spa’s warranty.
IMPORTANT: Should you ever find the need to move or relocate your Arctic Spa®, it is
essential that you understand and apply these installation requirements. Your Arctic Spa®has
been carefully engineered to provide maximum safety against electric shock. Remember,
connecting the spa to an improperly wired circuit will negate many of its safety features.

12
12
Startup Procedures
IMPORTANT:
Your Arctic Spa®has been thoroughly tested during the manufacturing process to
ensure reliability and long-term customer satisfaction. Before filling the spa, wipe
the spa shell clean with a soft rag.
The following instructions must be read and followed exactly to ensure a successful
start-up or refill.
1) Ensure the electrical connections have been made in accordance with this manual.
2) Ensure all O-Rings have been installed into unions and unions have been tightened sufficiently.
3) Ensure all ball valves are open, and the drain has been closed.
4) Using a garden hose with a pre-filter, fill the spa with pre-filtered water to the bottom of the pillows
(or approximately 6”, 15cm above the base of the floating weir).
5) Once the spa is filled to the proper level, turn the power to the spa on, by turning on the GFCI
breaker in your panel.
6) The jet pump, heating system and all internal plumbing will achieve a partial prime as the spa is
filled. To check the operation of the jet system and to remove any remaining air from the plumbing
system, follow these steps:
a) All Models: Push the Pump 1 button a second time to turn the pump to high
speed. Allow to run for 1 minute.
b) Signature, Ultra, and Legend series: Push Pump 2 button also. This pump runs at high speed
only. Run for one minute.
c) Legend series only: Push Pump 3 also. This pump runs at high speed only. Run
for one minute. Once the jet system is fully operational (as indicated by strong,
non-surging jets), priming of the spa is complete. Push each Pump button once
to turn the pumps off.
IMPORTANT: Weak or surging jets are an indication of a low water level, a
clogged filter cartridge, or an improperly adjusted filter weir.
7) Adjust the chemicals and balance the water according to your dealer’s instruc-
tions. A guideline is also included in this manual, under the Water Maintenance
Section.
8) Set the temperature control to the desired temperature (between 100ºF and
104ºF or 38ºC and 40ºC), then place the insulated cover on the spa and allow
the water temperature to stabilize (approximately 16 hours). Make sure you
secure the cover in place using the cover locks. Periodically check the spa water
temperature.
CAUTION!
Do Not turn on power
to the spa until the spa
is filled to the required
level. Running the spa
pump without water
could cause immediate
damage and invalidate
your warranty!

Venturi Controls
13
13
Fusion Jetting System
TM
When the water temperature climbs above 85ºF (29ºC), proceed to the next step.
9) Test and Adjust Sanitizer level (Chlorine ideal 1 - 3 ppm or Bromine ideal 3 - 5 ppm).
10) Rotate diverters to centre position and press “Pump 2” button on topside control
panel for 5 seconds to activate the “Boost filtration system”. When this system is enabled,
“BOO” is displayed on the screen. This will give 45 min of circulation and filtration to
disperse the chemicals.
11) You can set the temperature (between 38°C and 40°C or 100°F to 104°F) by pressing the
TEMP ( ) and TEMP ( ) buttons on the control panel. The spa will normally come
up to temperature within 16 to 24 hours. Replace the spa cover while the temperature is
reaching the set point.
IMPORTANT: For safety, you can lock your desired temperature setting. Refer to the Topside
Control Panel section for details.
With your FusionTM Jetting System, you can control the massaging action of your spa. Using
the FusionTM diverter, the jets are activated in groups, known as jet systems. The jetting systems
are selected by turning the diverter from one side to the other, or select both by leaving the di-
verter in the middle. The number of diverters you will have will depend on the model and series
of Arctic Spa you have. Feel free to consult your local dealer with any questions regarding the
function of this system, or just jump in and experiment for yourself.
The Venturi Controls allow you to control the intensity of the massage at each jet by
adjusting the mixture of air and water. Simply turn the venturi control lever counter
clockwise for a stronger flow and clockwise for a softer flow. Most jets are adjustable by turn-
ing the face of the jet counter-clockwise for a stronger flow and clockwise for a softer flow and
eventually off.
Arctic Chiller
The arctic chiller has no Freon, compressors, pumps or refrigeration mechanics.
1. Remove one access panel and attach the chiller in it’s place.
2. Lower the temperature on your spa to the desired setting.
Note: Do not leave the cover off of the spa in direct sunlight, this can lead to heat distress and
void your warranty.

14
14
Jets
Five Inch (5”) Jets
The five-inch Hydro-massage jets give a wide circular massage. These jets are adjustable by turn-
ing the face of the jet clockwise for a stronger flow and counter-clockwise for a softer flow and
eventually off.
Three Inch (3”) Jets
The three-inch hydro-massage jets have three nozzle options: The Turbo Single Pulse and the
directional jets and the neck jets. The Directional nozzle allows you to aim the water in the direc-
tion that feels best. The Turbo Single jets give a wide circular massage. The 3-inch jets are de-
signed for a thorough massage of the muscles in your upper back, shoulders and neck. These jets
are adjustable by turning the face of the jet clockwise for a stronger flow and counter-clockwise
for a softer flow and eventually off.
Chrome Jet Option Package
The Chrome jets are made from rust resistant stainless steel; however improper water chemistry
may cause rusting. Same great massage quality in a nicer looking package.
(neck jets are not available in chrome)
Monsoon Jet
The Monsoon Jet is a large orifice hydro-massage jet designed to maximize massaging action on
a specific area of the body. It is located in the lower part of the spa to allow easy access for mas-
saging feet, legs, hips and lower back. The intensity of the Monsoon Jet can be altered using one
of the FusionTM Diverter (the location varies depending on spa model). Consult your local dealer
regarding which diverter lever or just jump in and experiment for yourself.
Therapy Air Jets (Available on Designer, Ultra, Legend Extreme and Legend SE series only)
When the Therapy Air System is turned on (see spa control functions), soft air bubbles all around
you for an exhilarating massage.
Waterfall
The waterfall is turned on and off by means of a small on/off control.
The location may vary depending on the model. (on select models)
Single
Pulse
Single
Pulse Directional Neck Jet

Topside Control Panel
15
15

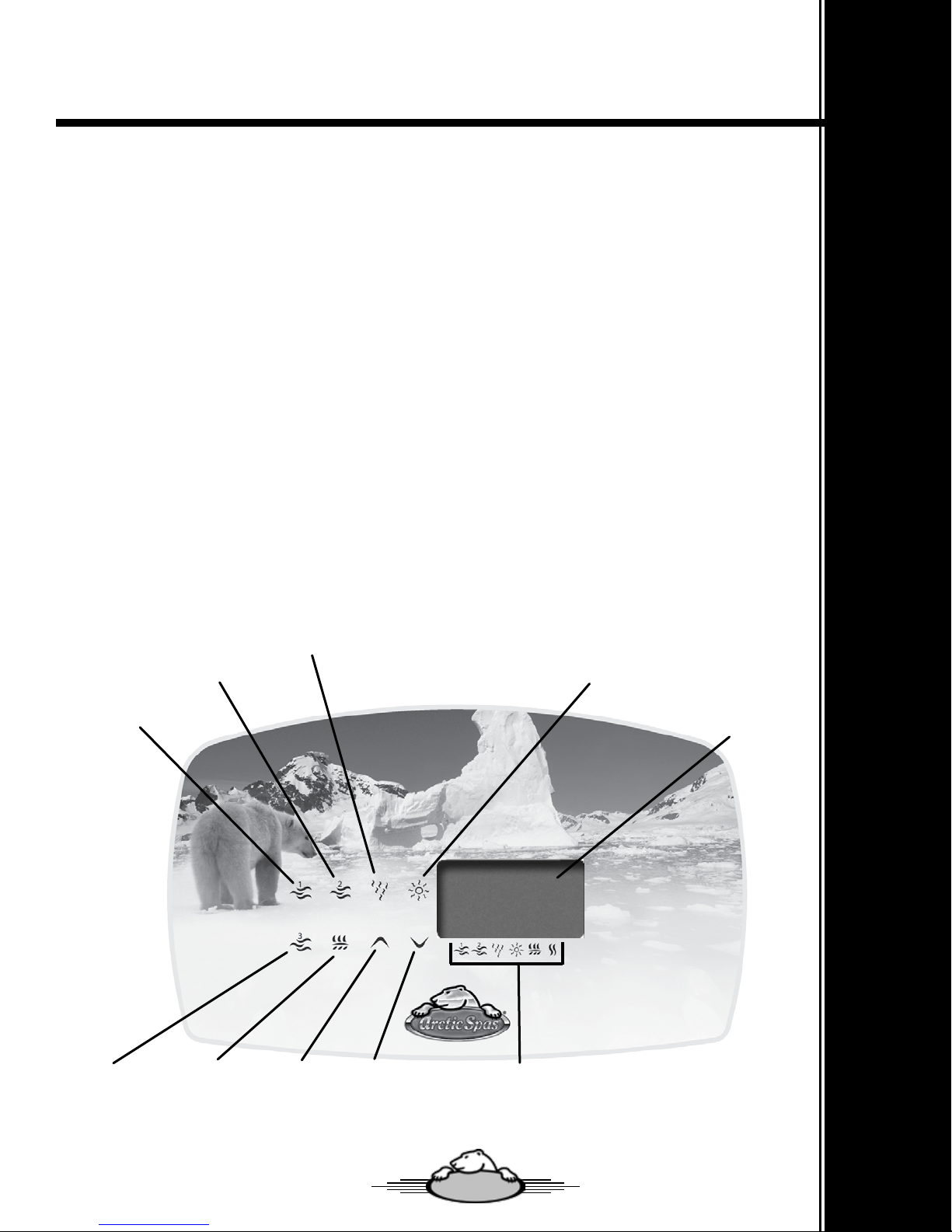

Your spa control has been specifically designed so that by simply connecting the spa to a
properly grounded source, and following the start-up procedures in this manual, the spa
will automatically heat to the set temperature. Many other functions, such as filtration,
safety checks and maintenance reminders have been automated so that your spa experience
will be as carefree as possible.
But you’re in charge! The topside control (TSC) panel allows you to set the temperature,
initiate the filtration cycle, control the lights, and activate or deactivate the pump(s) and
blower. The TSC display responds to let you know you have pressed a button, and that
the selected function has been performed.
Power-Up Detection
After a power-up, on the first 10 seconds the display will alternate between the software
number and revision, the display will then blink until somebody presses a key. This feature
lets you know that a power failure has occurred and all settings have returned to default.
Pump 1
Pump 2
Therapy Air
Light Control
Display Panel
Function Indicator Section
A small inverted triangle over the
symbol indicates that the
corresponding function is active.
Down
Arrow
Up
Arrow
Filter Cycle
Pump 3

Clean filter reminder
This message is displayed every three months to remind you to replace the filter cartridge on the
spa. The display will start blinking with the message ‘CLE’. Press any key on the keypad to clear
the message. Replace your disposable filter every three (3) months. (See Spa Maintenance for more
information)
Temperature Control (Up & Down Arrows)
These buttons are used to set the temperature of the water. The normal display shows the actual
temperature of the water. When either arrow button is pressed, the display will show the current
temperature set point and will keep showing it for 5 seconds after releasing the key. The arrow but-
tons will increase or decrease the set point in 1 degree increments between 15°C to 40°C (59°F to
104°F). The Set Point symbol indicates if the display shows the set point or the actual temperature
of the water. While the heater is on, the Heater indicator will show a steady triangle on the display
After a power down, the default set point is 39°C.
Pump 1 Button
Press the Pump 1 key to turn Pump 1 on at low speed. A second press will change
Pump 1 to high speed. A third press will turn Pump 1 off. Note: You may not be able
to shut Pump 1 off if in a filter or heating cycle. A built-in timer will shut Pump 1 off
20 minutes after it has been started, unless it has been manually shut off.
The Pump 1 ON triangular icon will appear solid on the display when Pump 1 is running at high
speed. It will flash when Pump 1 is running at low speed.
Note: Pushing and holding the Pump 1 button will lock the panel. See the section “Panel Lock” for
details.
Pump 2 Button (Optional)
Press the Pump 2 key to turn Pump 2 on High speed. A second press will turn Pump
2 off. If Pump 2 is left on, it will automatically shut off 20 minutes after it has been
started, unless it has been manually shut off..
The Pump 2 ON triangular icon will appear on the display when Pump 2 is running at high speed.
Pump 3 (On/Off Button) (Optional)
Press the Pump 3 key to turn Pump 3 on High speed. A second press will turn Pump
3 off. If Pump 3 is left on, it will automatically shut off 20 minutes after it has been
started, unless it has been manually shut off.
Note: If Pump 3 is not present, then this switch is used only for the Standby mode. (Use this when
you’re checking inside the equipment bay, or while you’re changing a filter.)
A long press (5 seconds) on Pump 3 key puts the system on standby. In Standby mode, the display
shows “OFF” for at least 10 seconds and all outputs are turned off for 30 minutes. If the heater is
16
16

on when the system is put on standby The filter cycle, the Smart Winter mode (see pg 19) and
the heater can’t start during this time. All keys are disabled except the On/Off key. A second
long press (5 seconds) will restart the system before the 30 minutes ends.
When power is first applied to the spa, it is “On” by default.
Therapy Air Button (Optional)
Press the Therapy Air key to turn Therapy Air on. A second press will turn Therapy
Air off. If Therapy Air is left on, it will automatically shut off 20 minutes after it has
been started.
The Therapy air ON triangle icon will appear solid on the display when Therapy air is on.
Light Button
Press the light button to toggle the light(s) on and off. If the lights are left on, they
will automatically shut off 2 hours after it has been started. If the spa is equipped
with Northern Lights™, or Northern Lights™ Deluxe, the different lighting
sequences can be cycled by pressing the light key on and off repeatedly.
The light ON triangle icon will appear solid on the display when the light is on.
To Program the Duration of the Filtration Cycles:
The system will automatically perform four filtration cycles per day, 6 hours apart.
During a cycle, the following sequence is executed:
* Pump 2, Pump 3 (on 3 pump systems) and Blower start at high speed for 1 minute
* Pump 1 then starts and runs at low speed for the preset number of hours
* Ozone output is turned on (optional)
To set the duration of the filtration cycles (the amount of time Pump 1 will be on), follow this
procedure:
17
17

18
18
F 01
p
FF04

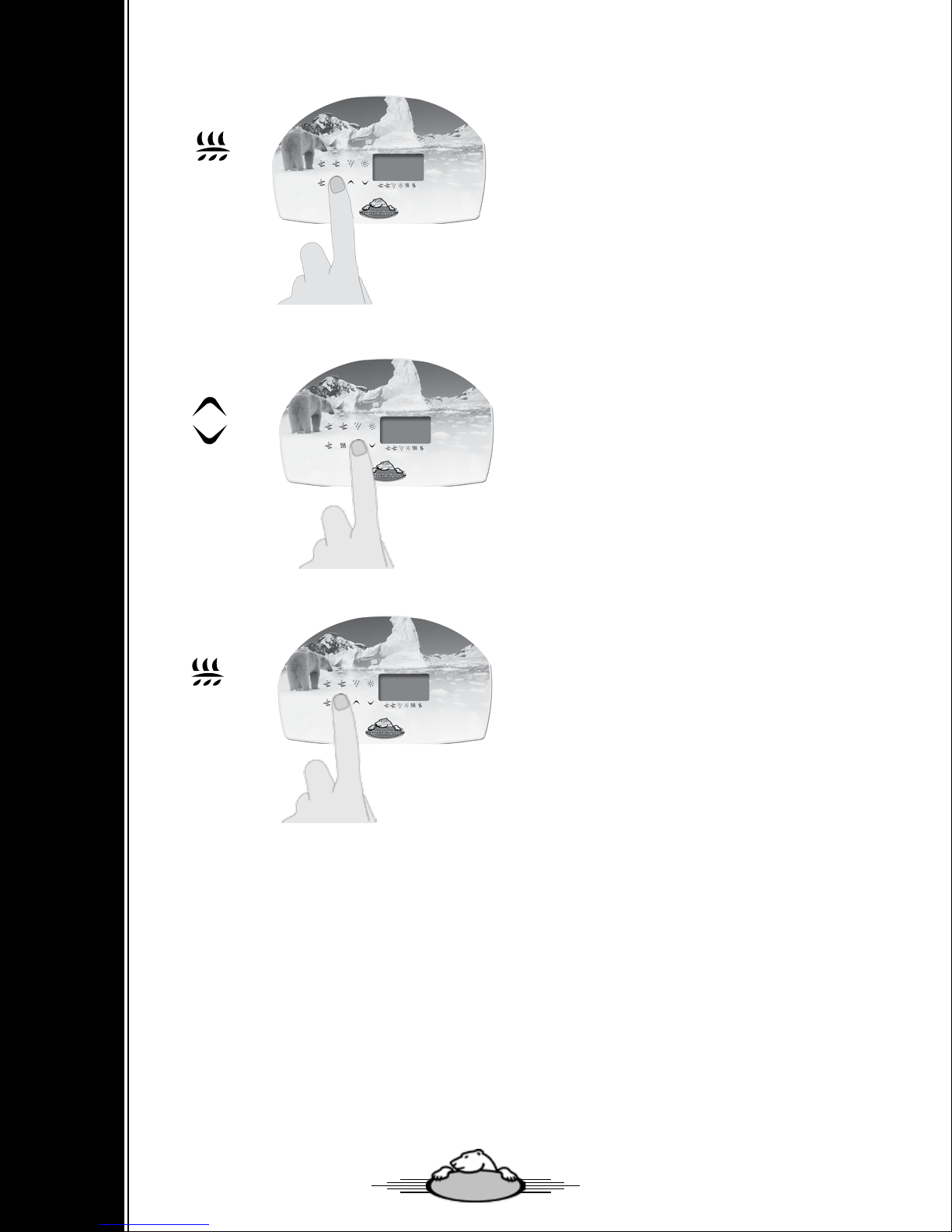

Press on the Filter Cycle key. The display will
show Fd XX where XX represents the
number of hours Pump 1 will be operating
at low speed.
Use the Up & Down arrow keys to change
the number of hours.
00 = no filtration
01 = 1 hour/cycle
02 = 2 hour/cycle
Press the Filter Cycle Key again, enter the
duration. The display now shows the num-
ber of cycles (FFxx) where “xx” is the num-
ber of cycles in a 24 hour period. You can
select from 1 cycle to 4 cycles per day using
the arrow keys. When the desired setting is
displayed, press the Filter key to accept it. A
filter cycle will start immediately.
The Filter Cycle triangular icon will appear
on the display when a filter cycle is on.
Overtemp During Filter Cycle
In order to prevent excessive water temperatures due to long Filter cycles during warm weather, the
system has a special safeguard.
If the water temperature exceeds the set point by more then 2o F (1oC), the system will cancel the
Filter cycle and the Filter cycle icon will blink for the remainder of the filter cycle. The Filter cycle
icon blink pattern will be: ON for 1/2 second, OFF for 1/2 second, ON for 1/2 second, then fi-
nally OFF for 1 1/2 seconds. This sequence will then repeat. The filtration cycle will automatically
reset itself once the water temperature falls below the set point.
F 01
p

19
19
Filter Cycle Suspension
During a Filter cycle, if an accessory (a pump, the blower, or the light) is used manually, the Filter cycle is
suspended the time the accessories are used. Once all accessories are turned off (whether manually or by
built-in timer), the Filtration cycle remains suspended for an extra 40 minutes. When a Filtration cycle is
suspended the Filtration cycle icon will blink.
Panel Lock
It is possible to lock out all the keys. This feature is helpful when young children could have
access to the keypad. To lock/unlock the keypad, simply press on the Pump #1 key for at
least 5 seconds.
There are 2 keypad lock modes: the full lock, or the partial lock. The full lock, as the name
implies, locks ALL keypad functions. The partial lock locks only the programming functions;
the Pump, Blower, and Light keys remain useable.
To lock, press on the Pump 1 key for 5 seconds. At that point, “LocP” will be displayed. If
the key is released at this time, keypad will be in partial lock. However, if lock key is kept
pressed for another 5 seconds, “LocF” will appear and the keypad will be fully locked.
When the keypad is locked, all automatic functions of the system run as usual. However, when
a locked key is pressed, a “LocP” or “LocF” message is displayed for 1 second. Also note that
a power-up unlocks the keypad.
Invert Display
It is possible to set the display so that it is readable from either inside or outside the spa. To do
this, just press and hold the Filter Cycle button for 5 sec to toggle between the inverted and
normal modes.
Temperature displayed in Fahrenheit or Celsius
The temperature can be displayed in Fahrenheit or Celsius. To toggle between those choices,
press on light key for five seconds. Note that after a power-up the system always return to
default Fahrenheit display.
Boost Filtration mode
This mode is used to speed-up filtration after intensive use of the spas or to help mix chemical
just added in the spa. Press the Pump 2 key for 5 seconds to enable the Boost Filtration mode.
Filtration mode. In this mode, the Pump1 high speed and the ozonator will operate for 45
minutes. When Boost is enabled, a ‘boo’ message is displayed.

20
20
Spa Care and Maintenance
Your Arctic Spa®is manufactured from the highest quality, most durable materials available. Even so,
the spa care and maintenance program you develop will ultimately determine how long your spa and its
individual components will last. Regular maintenance following the advice in this section will help you
to protect your investment.
IMPORTANT: Before performing any maintenance on your spa, make a visual inspection of the spa to
get an understanding of what condition it may be in and if anything looks out of the ordinary. If any
part appears to be damaged, loose or missing, do not proceed. Contact your Factory Authorized Dealer
immediately.
Draining the Water
Detergent residues and dissolved solids from bathing suits and chemicals will gradu-
ally accumulate in your spa’s water. Normally, in about three to four months the
water will become difficult to balance and should be replaced. Showering without
using soap prior to entering the spa or using only the rinse cycle when laundering
your bathing suit will help to reduce detergent residue in the spa water. However,
foam problems are more likely to be caused by a build up of organic pollutants in the
spa--mostly from body oils. If you’re using your spa frequently with a high bather
load the water will need to be replaced more often. Spa water gradually loses quality
because of build-ups of unfilterable pollutants.
IMPORTANT: Remember to change your water every three to four months.
To Drain Your Spa:
1. Shut off the GFCI breaker located in the subpanel or the quick disconnect.
2. Locate the main drain valve for the spa, on the outside of the cabinet to the right of the
equipment compartment. Attach the male threaded end of a garden hose to the drain valve, and
route the other end of the hose to an appropriate draining area.
3. Open the valve by turning the large outside ring counterclockwise. The spa will drain by
gravitational flow.
Note: All Arctic Spas®models will drain through the floor drain. Equipment such as the
pump(s) and heater will drain. All models will leave a small amount of water in the footwell. Any
water remaining in the plumbing or equipment after draining will only need to be removed if the
spa is being winterized.
4. When empty, inspect the spa shell and clean as required.
5. Close the drain valve.
6. Refill the spa BEFORE restoring power.
IMPORTANT: With reusable filters, it is necessary to rinse the filter cartridges weekly. Every month,
and each time the spa is drained for cleaning, clean the cartridges in filter cleaner. (With Arctic
Spas disposable filters, simply replace the cartridge whenever the spa is drained, or about every three
months).
Filtration System
The use of Clarifiers and Foam inhibitors is not recommended with Micro Pure®disposable
filters!
