arcutronix EDX100 User manual

User’s Guide
EDX100 V1.3 1
Short Description
The Ethernet converter EDX100 is an unmanaged Fast Ethernet media converter, which
offers an economical copper to fiber optic signal conversion.
As Ethernet has evolved into the most widely implemented physical and link layer protocol
today, more and more services are delivered on Ethernet infra-structure. As bandwidth
demand is growing, Fast Ethernet to the customer satisfies today needs for broadband
access. Fiber optic connections allow long-haul Ethernet-links to spread Metro Ethernet
services into a wide area.
EDX100 is an easy to install and easy to operate device, which saves costs and energy.
In case of signal loss of fiber optic port, an alarm-output is triggered for external use, so
failures can easily be detected and problem-location is quickly done.
As part of arcutronix Multi Service Platform (axMSP) the EDX100 can be housed in small
footprint single-slot housing or 19’’ rack to achieve high density on small footprint.
Fast Ethernet Converter
EDX100

User’s Guide
EDX100 V1.3 2
Covered Products
The EDX100 product family offers 2 interfaces to the customer. One copper Fast Ethernet
interface (10/100BaseT) and a fiber-optic Ethernet interface (100BaseFX). While the copper
interface is always the same (RJ45), the fiber-optic port can vary to fit the unit in different
application scenarios.
A SFP-based EDX100 is available to give maximum choice of wavelength and distances. This
device (EDX100-SFP) can be host and operate all available 155Mbit-SFPs, which are according
the SFP Multi-supplier-Agreement (MSA).
In addition to the EDX100-SFP some preconfigured converter are available, offering different
wavelength, distances and connector options.
Please see table below for details.
Ethernet Demarcation
EDX100
0715-2001
GS1
EDX100-S
Ethernet Converter. 1x 100BaseFX (1310nm SM standard FO, ST conn.); 1x
10/100BaseT (RJ45 conn.); Alarm Relay Control; LPT; 3RU rack mount card.
0715-2002
GS1
EDX100-M
Ethernet Converter. 1x 100BaseFX (1310nm MM standard FO, ST conn.); 1x
10/100BaseT (RJ45 conn.); Alarm Relay Control; LPT; 3RU rack mount card.
0715-2003
GS1
EDX100-A
Ethernet Converter. 1x 100BaseFX (WDM option: 1310Tx, 1550 Rx SM standard
FO, 40km, ST conn.); 1x 10/100BaseT (RJ45 conn.); Alarm Relay Control; LPT;
3RU rack mount card.
0715-2004
GS1
EDX100-B
Ethernet Converter. 1x 100BaseFX (WDM option: 1550Tx, 1310 Rx SM standard
FO, 40km, ST conn.); 1x 10/100BaseT (RJ45 conn.); Alarm Relay Control; LPT;
3RU rack mount card.
0715-2101
GS1
EDX100-L
Ethernet Converter. 1x 100BaseFX (1550nm SM long haul FO, SC conn.); 1x
10/100BaseT (RJ45 conn.); Alarm Relay Control; LPT; 3RU rack mount card.
0715-2200
GS1
EDX100-SFP
Ethernet Converter. 1x 100BaseFX, pluggable SFP module (no module included);
1x 10/100BaseT (RJ45 conn.); Alarm Relay Control; LPT; 3RU rack mount card.
Table 1: Overview
This User’s Guide does cover all above mentioned members of the EDX100 product family.

User’s Guide
EDX100 V1.3 3

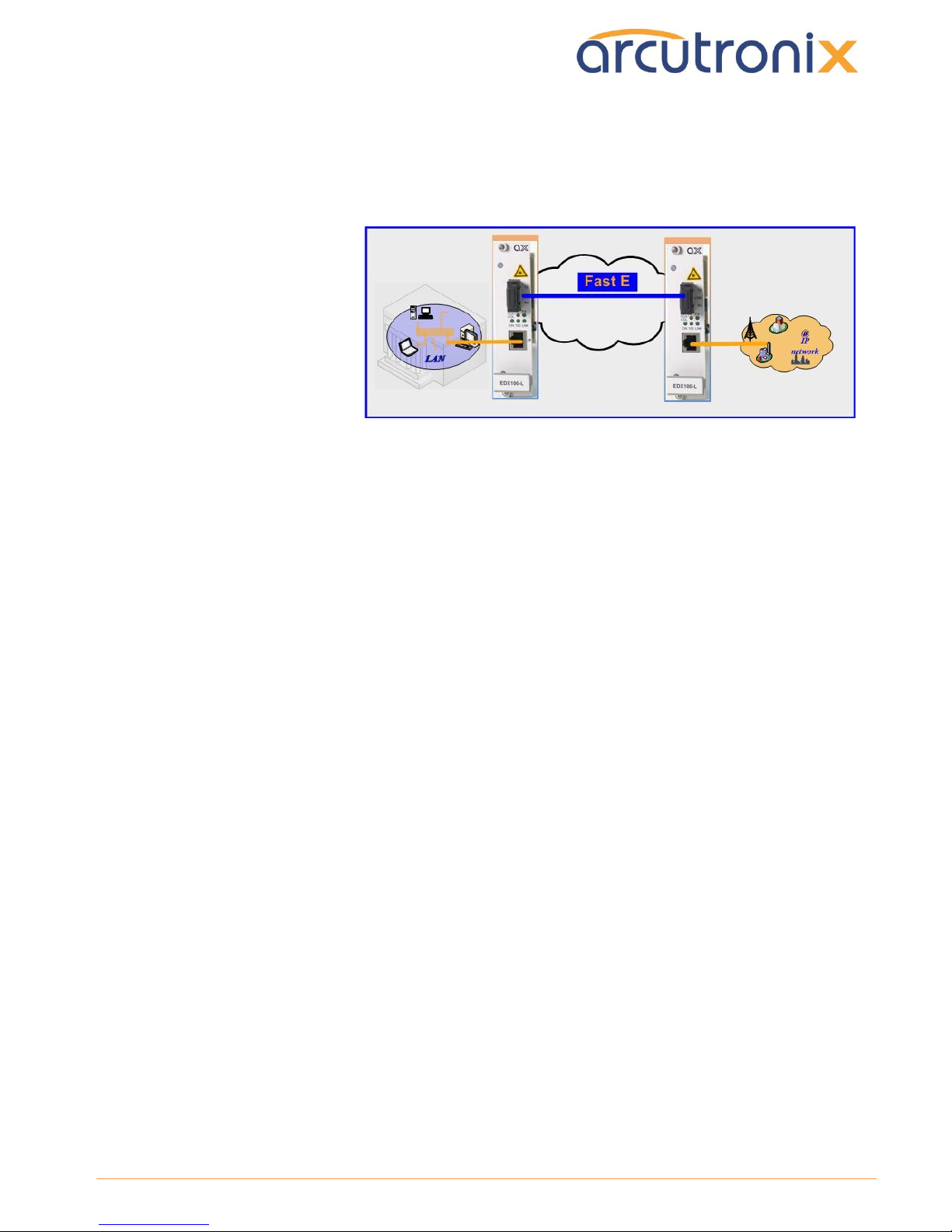

Application Example
The EDX100 can be used to
bridge long distances, thus
enhancing copper Ethernet
networks by using a fiber optic
line between branch offices or
to achieve FE-rollout for
customers.
Each EDX model is a 3U card
that can be either plugged into
a 19” rack system chassis for
POP application, or a
stand-alone chassis as
customer premises
equipment.

User’s Guide
EDX100 V1.3 4
Connectors, Indicators and Controls
Front Panel
The front panel of the EDX100 does give access to the copper Fast Ethernet port as well as the
fiber-optic interface. Three slightly different variants are available, but the ports and LED
indicators are always the same. As an example, the EDX100-SFP is shown.
1) Line port: Fiber Optic Transmitter (SFP), RX
2) Line port: Fiber Optic Receiver (SFP), TX
3) FDX/COL: On = Full duplex mode; Blink = Collision
4) FX: On = 100BaseFX ok; Blink = Data on FO port
5) ON: On = Power On
6) 100: On = I/F link with 100BaseTX
7) LNK: On = 10/100BaseT ok; Blink = Data on I/F
8) I/F port: 10/100BaseT
CAUTION
LASER Class 1

User’s Guide
EDX100 V1.3 5
Unit Setup
The Ethernet converter EDX100 is a “plug’n’play” unit, which needs no special setup or
knowledge. Installation in single-slot housing (SHX) or system rack (SRX) must be done
according the specification of these devices. After installation of the EDX100 in the housing,
attach fiber optic cable and CAT5 (better 5e) cable to interfaces.
A DIP-switch is placed on the PCB to configure basic behavior, as
- Auto-Negotiation of Copper port
- Speed on Fiber port
- Link Pass Through (LPT)

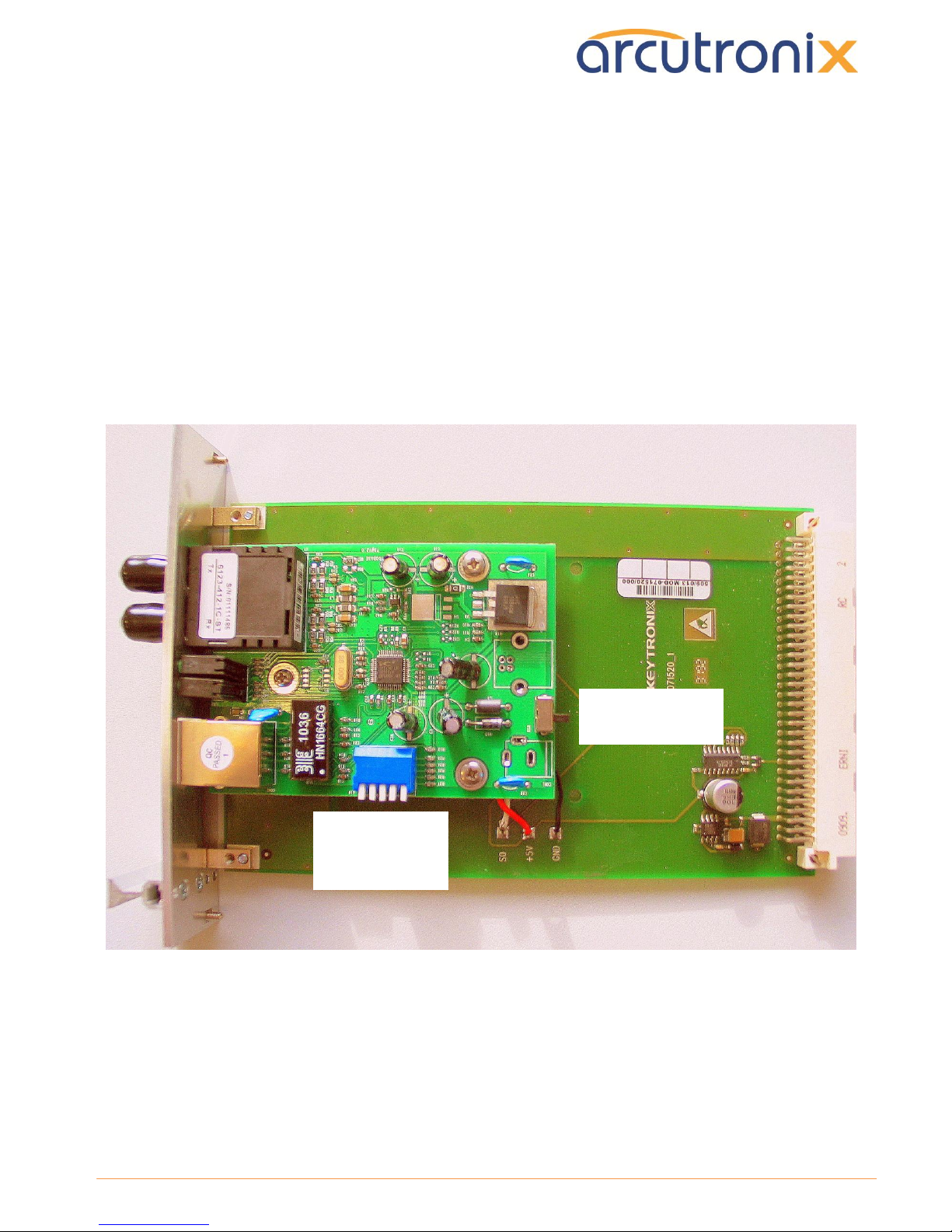

Figure 1: EDX100 PCBA
Do not change
switch setting!
1 . . . 5
DIP-switches
ON = down!

User’s Guide
EDX100 V1.3 6
Configuration with DIP-Switch:
No.
Name
Setting
1
Local TP Port Forced
OFF (up): TP port supports auto-negotiation with 10M/100M,
full/half capability.
ON (down): TP port supports auto-negotiation with limited
capability defined in SPEED_MODE and DUPLEX_MODE.
2
Local TP Port Low-Speed
OFF (up): TP port has the 100Mb speed ability
It is valid only if Local TP Port Forced
is enabled.
ON (down): TP port has the 10Mb speed ability only
3
Local TP Port Half-Duplex
OFF (up): TP port has the Full duplex ability
It is valid only if Local TP Port Forced
is enabled.
ON (down): TP port has the Half duplex ability only
4
Disable Link fault pass through
(LFP)
OFF (up): LPT is enabled
Link status of one port is forwarded to the other port.
ON (down): LPT is disabled
5
Force Fiber Port to Half-Duplex
OFF (up): Fiber port has the Full duplex ability (100FDX)
ON (down): Fiber port has the Half duplex ability only
(100HDX)
Rem.: The DIP-switches 2 and 3 are to be used in Forced Mode (DIP 1 = ON), only.
The Default-Configuration for the different variants is given below:
No
Name
EDX100-S
…-L
…-M
…-A/B
…-SFP
1
Local TP Port Forced
ON (down)
Forced Mode
OFF
Autoneg-Mode
OFF
Autoneg-Mode
OFF
Autoneg-Mode
OFF
Autoneg-Mode
2
Local TP Port Low-Speed
ON (down)
10Mbps, only
OFF
10/100Mbps
OFF
10/100Mbps
OFF
10/100Mbps
OFF
10/100Mbps
3
Local TP Port Half-Duplex
OFF (up)
Full Duplex
OFF (up)
Full Duplex
OFF (up)
Full Duplex
OFF (up)
Full Duplex
OFF (up)
Full Duplex
4
Disable Link fault pass through
(LFP)
OFF (up)
LFP enabled
OFF (up)
LFP enabled
OFF (up)
LFP enabled
OFF (up)
LFP enabled
OFF (up)
LFP enabled
5
Force Fiber Port to Half-Duplex
OFF (up)
FO FD
OFF (up)
FO FD
OFF (up)
FO FD
OFF (up)
FO FD
OFF (up)
FO FD

User’s Guide
EDX100 V1.3 7
TP Port Force Mode
The TP port of EX100 can work at auto mode or force mode. The following table shows all of the
combination of its TP port.
Link partner’s capability
AN on
AN off
{ Local TP Port Forced,
Local TP Port Low-Speed,
Local TP Port Half-Duplex}
EDX100’s link result
100F
100H
10F
10H
100F
100H
10F
10H
EDX100’s capability
OFF, OFF, OFF
100/10M, Full/Half, AN on
100F
100H
10F
10H
100H
100H
10H
10H
OFF, OFF, ON
100/10M, Half, AN on
X
100H
X
10H
100H
100H
10H
10H
OFF, ON, OFF
10M, Full/Half, AN on
X
X
10F
10H
100H
100H
10H
10H
OFF, ON, ON
10M, Half, AN on
X
X
X
10H
100H
100H
10H
10H
ON, OFF, OFF
100M, Full, AN on
100F
X
X
X
100F
100F
X
X
ON, OFF, ON
100M, Half, AN on
X
100H
X
X
100H
100H
X
X
ON, ON, OFF
10M, Full, AN on
X
X
10F
X
X
X
10F
10F
ON, ON, ON
10M, Half, AN on
X
X
10H
X
X
X
10H
10H
Notes:
AN on: with auto-negotiation capability
AN off: without auto-negotiation capability
100F: 100M full duplex
100H: 100M half duplex
10F: 10M full duplex
10H: 10M half duplex

User’s Guide
EDX100 V1.3 8

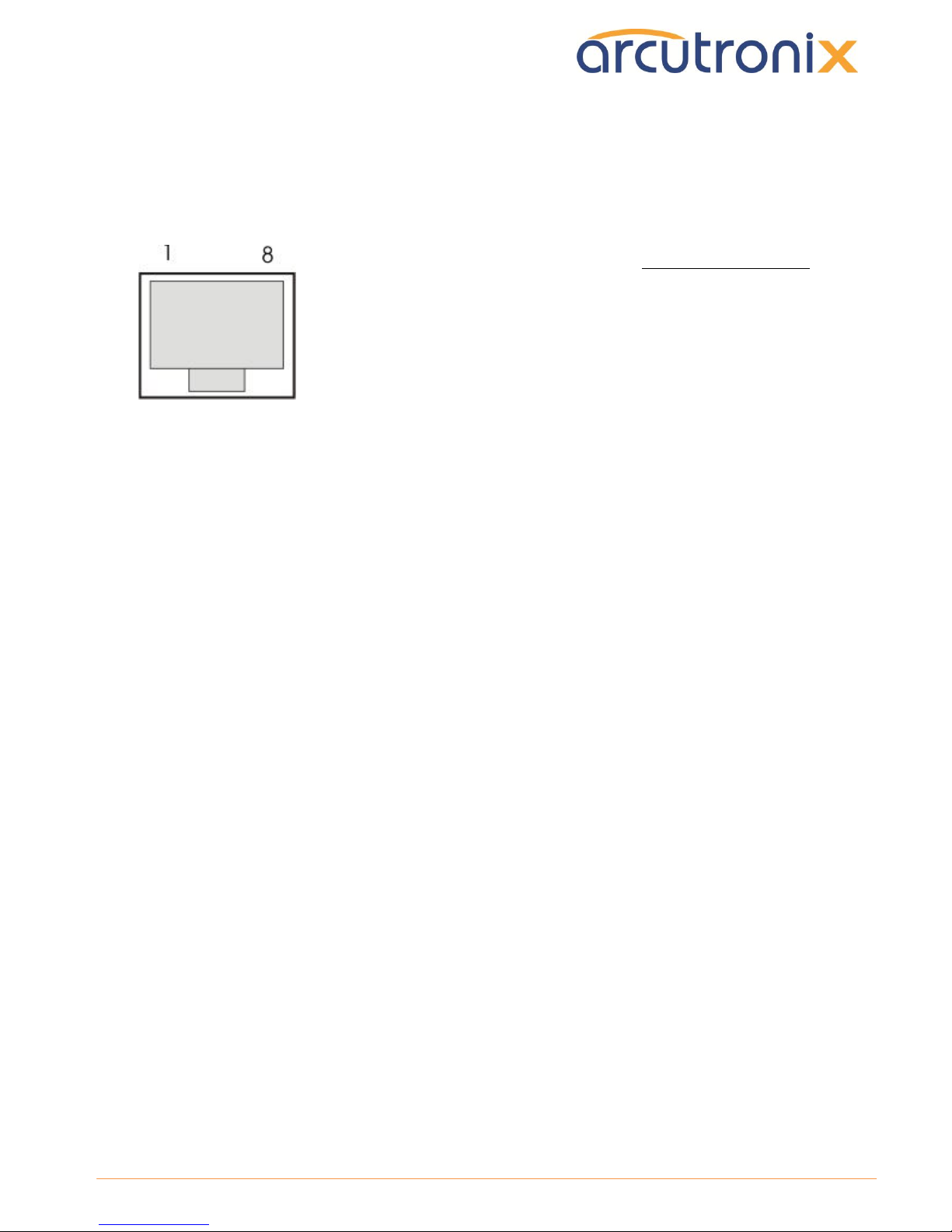

RJ45 Pinout (Female)
10/1000BaseTX port
acc.
EIA/TIAT568B
Supporting Auto-MDIX
Pin
Signal
1
RD+
2
RD-
3
TD+
4
-
5
-
6
TD-
7
-
8
-

User’s Guide
EDX100 V1.3 9
Technical Data
Network I/F (WAN)
1x 100BaseFX, for all variants
IEEE 802.3
VLAN support
Different optical characters available:
EDX100-L:
o1550nm SM, long haul, 29dB Budget, 80km
oConnector: SC
EDX100-S:
o1310nm SM, standard, 16dB Budget, 20km
oConnector: ST
EDX100-M:
o1310nm MM, standard, 2km
oConnector: ST
EDX100-A:
oTX: 1310nm SM, RX: 1550nm
ostandard, 40km
oConnector: ST
EDX100-B:
oTX: 1550nm SM, RX: 1310nm
ostandard, 40km
oConnector: ST
EDX100-SFP:
oPluggable SFP modules
oConnector: SFP
Service I/F (LAN)
1x 10/100BaseT
oIEEE 802.3
oAuto-Negotiation
oAuto MDIX
oConnector: RJ-45
Features
Link Pass Through Capability
Easy Configuration via DIP-switches
Plug-n-Play installation
Low power consumption
Support of Jumbo Frames
Support of VLAN-tagged traffic
LEDs on front to indicate status
MTU: 1600 Bytes
Environmental
Operating: +5 to +40°C (ETS300019-1-3;
class3.1)
Transport: -25 to +70°C (ETS300019-1-2;
class2.2)
Storage: -25 to +55°C (ETS300019-1-1; class1.2)
Humidity: 10 to 90%, non-condensing
Safety-Norm: acc. to EN60950
EMC
Emission: EN55022 class B
Immunity: EN61000-4-3 10V/m
Power
Supply Voltage: +5VDC (4,8 to 5,2 V) from BP
Power Consumption: < 4VA, over current
protected
Voltage/Lightning Protection: ITU-T K20/K21
Power supply via system rack SRX or housing
SHX
Physical
Weight: < 200g
Dimensions:
130mm H x 30mm W x 190mm D
45mm H x 145mm W x 260mm D (in SHX3)
19’’ rack: 10 slots available in 3U rack

User’s Guide
EDX100 V1.3 10
General Safety Precautions
Transport, Installation and Operation
Avoid excessive vibration and shocks.
Avoid contact with water, dust, and dirt.
Avoid excessive direct sunlight.
Ensure sufficient cooling.
Prevent loose items from falling into the device.
Fiber Optics
Looking into the fiber optic output can cause
injury to the eye. When observation is necessary,
precaution must be taken to avoid exceeding the
limits recommended in ANSI Z136.1-1981.
Use of controls or adjustments or performance of
procedures other than those specified herein may
result in hazardous laser light exposure.
Impressum
arcutronix GmbH
Garbsener Landstr. 10
Phone: [phone]
Sales-Contact: [e-mail]
30419 Hannover
Fax: [phone]
Technical-Support: [e-mail]
Germany
Web: www.arcutronix.com
