AREBOS AR-HE-SD20LS User manual

User’s Manual – AREBOS Solar Shower with mist spray
1
Solar shower with mist spray (20L)
AR-HE-SD2 LS
Please follow all security measures in this user´s manual to ensure a secure use.
Thank you for trusting in AREBOS

User’s Manual – AREBOS Solar Shower with mist spray
2
List of content
1 Safety instructions 3
1.1 Explanation of the symbols ........................................................................................................... 3
1.2 General instructions ...................................................................................................................... 3
2 Parts list 4
3 Installation 5
4 Use 6
4.1 First Use ......................................................................................................................................... 6
4.2 Winterization ................................................................................................................................. 6
5 Technical specifications 7
6 Disposal Instruction 7
6.1 Disposal of the packaging .............................................................................................................. 7
6.2 Disposal of waste equipment ........................................................................................................ 7
EU Declaration of Conformity 8

User’s Manual – AREBOS Solar Shower with mist spray
3
Please read and save these instructions Read through this user’s manual carefully before using
product Protect yourself and others by observing all safety information, warnings and cautions
Failure to comply with instructions could result in personal injury and/or damage to product or
property Please retain instructions for future reference
1 Safety instructions
1 1 Explanation of the symbols
1 2 General instructions
 Chose a position for the shower where solar irradiation is a high as possible.
 Attach the shower to a concrete slab or a wooden foundation using the four threaded
sleeves, four screws and four washers.
 Do not use road salt or other antifreeze, which might damage the shower. If you do use
antifreeze, your warranty will be void.
 Recommended water pressure: 3.5 bar
 In order to avoid scald, always set the shower handle on cold water (blue) before taking a
shower.
 Children should always be supervised by adults so that they do not scald themselves.
 Water temperature can reach up to 6 °C with high solar irradiation. In order to avoid scald,
make sure that shower handle is always set on cold water (blue) before taking a shower. That
is why children should always be supervised by adults when using the shower so that they do
not scald themselves
By means of a
CE mar
king, it can be recognized that a product compl
ies
with the
legal requirements of European legal standards and therefore may be traded
within the European Community.
Cau
tio
n!
Read the safety instructions carefully. Failure to follow t
he safety
precautions could result in serious injury or damage. Keep the manual well!
Caution!
Hot surface!
Caution!
Hot w
ater!

User’s Manual – AREBOS Solar Shower with mist spray
4
2 Parts list

User’s Manual – AREBOS Solar Shower with mist spray
5
3 Installation

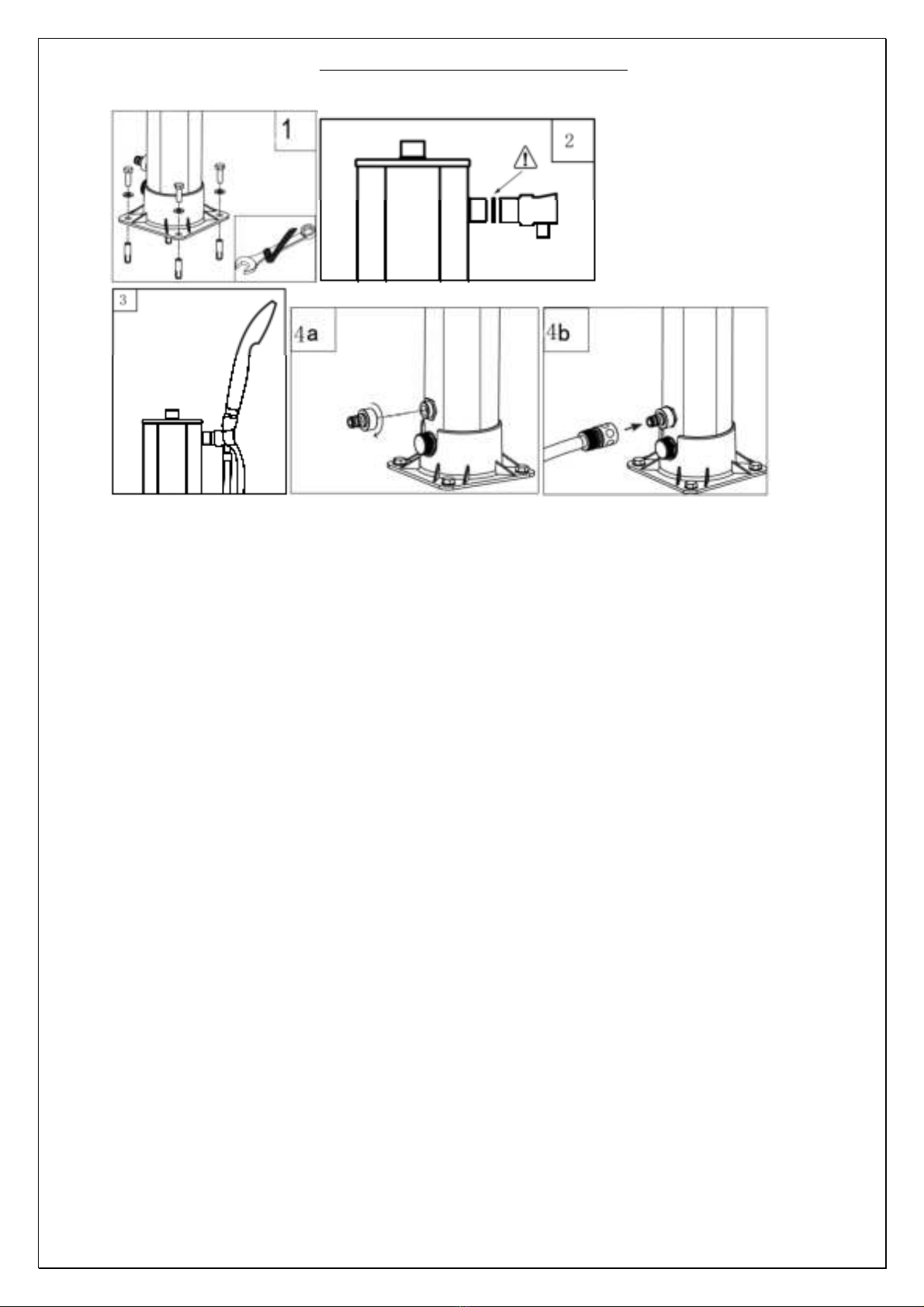

 Set up your solar shower in a place that is exposed to direct sunlight for as long as possible.
1. Mount the shower base to a concrete slab or a wood base with four bolts, nuts and gaskets.
It is recommended to use a wrench here.
2. Connect the holder to the shower by hand. Don’t forget the gasket.
3. Connect the shower head and the flexible hose to both ends of the holder.
4. Connect the hose adaptor to the inlet of the shower, then connect the garden hose to the
hose adaptor and the water supply.

User’s Manual – AREBOS Solar Shower with mist spray
6
4 Use
4 1 First Use
1. Turn the shower handle to FULL ON HOT position.
Note: Filling the tube with the valve in hot position ensures no air pockets are trapped in the
shower. This procedure is used for first usage only.
2. Turn on the water supply to the garden hose to fill the shower. It will take about 5 minutes to
fill up the shower.
3. When the water flows from the shower head, turn the shower handle off. Turning the
shower handle off, makes the water begin to heat in the tube.
4. Depending on sunlight and outside temperature, the shower will take about three hours to
fully heat the water.
5. Warning: To avoid scald, pay attention to turning the shower handle to cold water (blue)
direction before using the shower. Then set it to the desired temperature.
4 2 Winterization
1. Turn off and disconnect the garden hose.
2. Open the handle to FULL ON HOT position and allow water to drain from the draining hole
(about 8 minutes).
Note: Do not turn the shower handle while draining water, otherwise water will stop
draining.
3. Clean and dry the shower parts. Move the shower from outdoor to indoor. Store it in a dry
and warm place during winter season, and prevent it from frostbite.

User’s Manual – AREBOS Solar Shower with mist spray
7
5 Technical specifications
Model
AR
-
HE
-
20
LS
Volume of wate
r tank
2
l
Water temperature
Max.
14 ° F (6 ° C)
Materia
l
Pl
a
sti
c, c
hr
ome plated
Size of the shower
48
.
43
in
(
123
cm
)
Size mounting plate of the s
ho
wer
7
.
1
x
5
.
7
i
n
(18
x 1
4.5
cm)
Height of the water tap
39.
3
7
in
(
1
cm)
Height of the
showerhead
54
.
7
3
in
(
1
39
cm)
Diameter shower
head
3
,9
in
(1
cm)
Water
p
res
sure
3.5 bar
Colour
B
lack
/
silver
N
et
weight
1
3
.
1
l
bs
(
5
.
9
kg)
6 Disposal Instruction
6 1 Disposal of the packaging
 Please make reference to the guidelines and standards for appropriate disposal of the packaging
valid in your region. In part, the package may consist of plastic bags - watch this respect, with
special care to ensure that this is not out of the reach of children. There is a risk of suffocation!
6 2 Disposal of waste equipment
 Equipment must be disposed of in accordance with the rules and regulations of the local waste
disposal.
 At the end of the long life of your article, please dispose of the valuable raw materials for proper
disposal so that proper recycling can take place. If you are not sure how to proceed, the local
waste disposal companies or recycling centers are happy to help.
Our customer service number: [phone]
Canbolat Vertriebs GmbH • Gneisenaustraße 1 -11 • 97 74 Würzburg

User’s Manual – AREBOS Solar Shower with mist spray
8
EU Declaration of Conformity
We,
Canbolat Vertriebs GmbH, Gneisenaustraße 1 -11, 97 74 Würzburg, Germany,
Hereby declare that the product named below, seen its design and construction as well as according
to our sales, has been complied with the relevant and basic health and safety EU-requirements.
Name of the product: Solar Shower with mist spray
Model Nr.: AR-HE-SD2 LS
Art. Nr.: 426 627421558
If the product has any modification not allowed by us, this declaration loses its validity.
Tested after:
2 1/95/EC (General Product Safety)
Date/Manufacturer Signature/Location: Würzburg,
11/12/2 21
Identification of the signatory:
Korhan Canbolat, head of the company
Authorised representative for the technical documentation:
Korhan Canbolat
Office address:
Canbolat Vertriebs GmbH
Gneisenaustraße 1 – 11
D-97 74 Würzburg
TEL: [phone]
FAX: [phone]
Email: [email protected]
Return address can be found in the imprint: https://www.arebos.de/impressum/
