ARH M402 User manual

Page 1/14
M402 Install Guide

Page 2/14
M402 Install Guide
Document version: 2016.09.28
Table of Contents
HARDWARE OVERVIEW.......................................................................................................................................................................... 3
INSTALL THE HARDWARE ..................................................................................................................................................................... 4
1. MOUNTING ...................................................................................................................................................................................... 4
CONNECT THE CABLES........................................................................................................................................................................... 5
1. CABLE LAYOUTS............................................................................................................................................................................. 5
SOFTWARE REQUIREMENTS ................................................................................................................................................................ 6
ACCESSING THE CAMERA..................................................................................................................................................................... 7
RECOMMENDED CAMERA POSITION.............................................................................................................................................. 9
MAINTENANCE / STORAGE................................................................................................................................................................11
APPENDIX....................................................................................................................................................................................................12
CONTACT INFORMATION...................................................................................................................................................................14

Page 3/14
M402 Install Guide
1
2
HARDWARE OVERVIEW
Camera with bracket
Camera side
Camera front
Camera back
1
Sunshield
2
Bracket
Adjustable. Can be rotated horizontally right or left (+/-5o) using
the adjustment screws, to keep the camera horizontally.
3
Tilt adjustment screws
Used when tilting the camera to set the field of view (+5/-15o).
4
Lens
With fixed zoom and focus.
5
Infrared LEDs
8 SMD IR LEDs behind the protecting plates.
6
Red status LED
Software configurable.
Green Status LED
Software configurable.
Light / Color Sensor
Senses the level of ambient light to determine when to switch
day/night mode.
Do not cover the light sensor otherwise the automatic brightness
control will not operate properly.
7
Combined connector
POE Network connection (more details at the Cable Layouts
section).
3
7
4
5
6

Page 4/14
M402 Install Guide
INSTALL THE HARDWARE
ADJUST THE BRACKET:
1. Place the camera on the roof of the vehicle and slightly tighten the bracket plate at the
curve slots of the plate designed for this purpose.
2. Adjust the bracket into the desired position. Beware, fingers may be trapped and an injury
may occur.
3. Tighten the screw back.
1. MOUNTING
The bracket can be mounted onto different surfaces. Use appropriate screws for installation
according to the mountable surface.
Remove protective film from the protecting plate (on the camera front) before using
the camera.
It is recommended to secure the camera by a cable (carabiner) to the roof of the vehicle
or to the vehicle roof rack.
Do not overtighten the screws.
Failures due to inappropriate installation void the warranty.

Page 5/14
M402 Install Guide
CONNECT THE CABLES
If the cable is plugged correctly to the connector of the camera, the fastening ring of the plug
should be turned clockwise to keep it tight and waterproof.
1. CABLE LAYOUTS
POWER SPECIFICATIONS:
Please use the proper input according to the specification and consider voltage drop if you use
cables.
Power requirement
POE+
Power consumption
14 –25 W
Route the cable according to the image
to avoid collecting rainwater at the socket.
Technical specifications are subject to change without prior notice.

Page 6/14
M402 Install Guide
SOFTWARE REQUIREMENTS
The standalone M402 is developed to operate without any kind of special software. That means
that it does not require any special ARH software to be installed by the customer.
SOFTWARE REQUIREMENTS:
For network setup, administrator (root) privileges are necessary on the OS.
Web browser: Mozilla Firefox 47, Internet Explorer 10-11, Google Chrome 51 or later
editions. It is recommended to update your browser (Firefox or Chrome) to the newest
available version to reach highest performance.
ANPR is delivered separately. It has to be installed by the customer after purchase.
To enable all camera functions, enable JavaScript and ActiveX control in your browser.

Page 7/14
M402 Install Guide
ACCESSING THE CAMERA
STEPS OF ACCESSING THE WEB INTERFACE OF THE CAMERA FROM A BROWSER:
1. Connect the camera to a computer or network switch, then power on the camera.
After it is turned on, both status LEDs (red and green on the camera front) are turned on
while the camera is booting. After finished, the green status LED flashes two times while
the red one turns off signaling that the camera is ready for operation.
2. Enter an alternate IP address (or set your computer’s
IP) in the 192.0.2.x subnet –where x is an integer
number between 1 and 254 except 3 –with the
subnet mask of 255.255.255.0. For more
information, see Appendix.
3. Use the ping command to test the communication with the camera:
Windows: C:\>ping -t 192.0.2.3
Linux: username@mylinux:~$ ping 192.0.2.3
4. Soon, the ping package returns: Reply from 192.0.2.3. If not:
ofirst check the Ethernet LEDs at the PC or the switch side
ocheck whether the IP address is set correctly; the own IP address of the PC can
be pinged.
oproxy is set in the browser or the browser is not set to offline.
If these obstacles are checked and there is still no reply, power off then on and enter the
previous ping command again.
5. Start a browser then enter the default IP address of the camera into the address bar
(http://192.0.2.3). After this, the camera starts with administrator privileges, ready to be set
up and configured.
Make sure that the connection is capable to provide POE.

Page 8/14
M402 Install Guide
After the first start the following window will appear:
The firmware version of the camera can be seen on the right lower side of the screen.
New firmware versions are regularly released. If update is necessary, do not hesitate to contact
the support team of ARH.

Page 9/14
M402 Install Guide
RECOMMENDED CAMERA POSITION
A good ANPR engine can read the plates from images taken in various conditions. However, if
you want to achieve over 95% recognition rate with short recognition times, you have to calculate
the position of the camera accurately.
Please observe the following hints to achieve the best position:
1. Recommended to monitor the oncoming traffic
2. The camera has to be mounted on the vehicle corresponding to the direction of the
travel, panned to the left (~25° relative to the longitudinal direction of the oncoming
vehicles) and slightly tilted down (inclined ~3° down relative to horizontal):
Height of the vehicle rooftop may change the tilt angle (~2° difference).
Try to keep the license plate in a horizontal position in the live view (see above image).

Page 10/14
M402 Install Guide

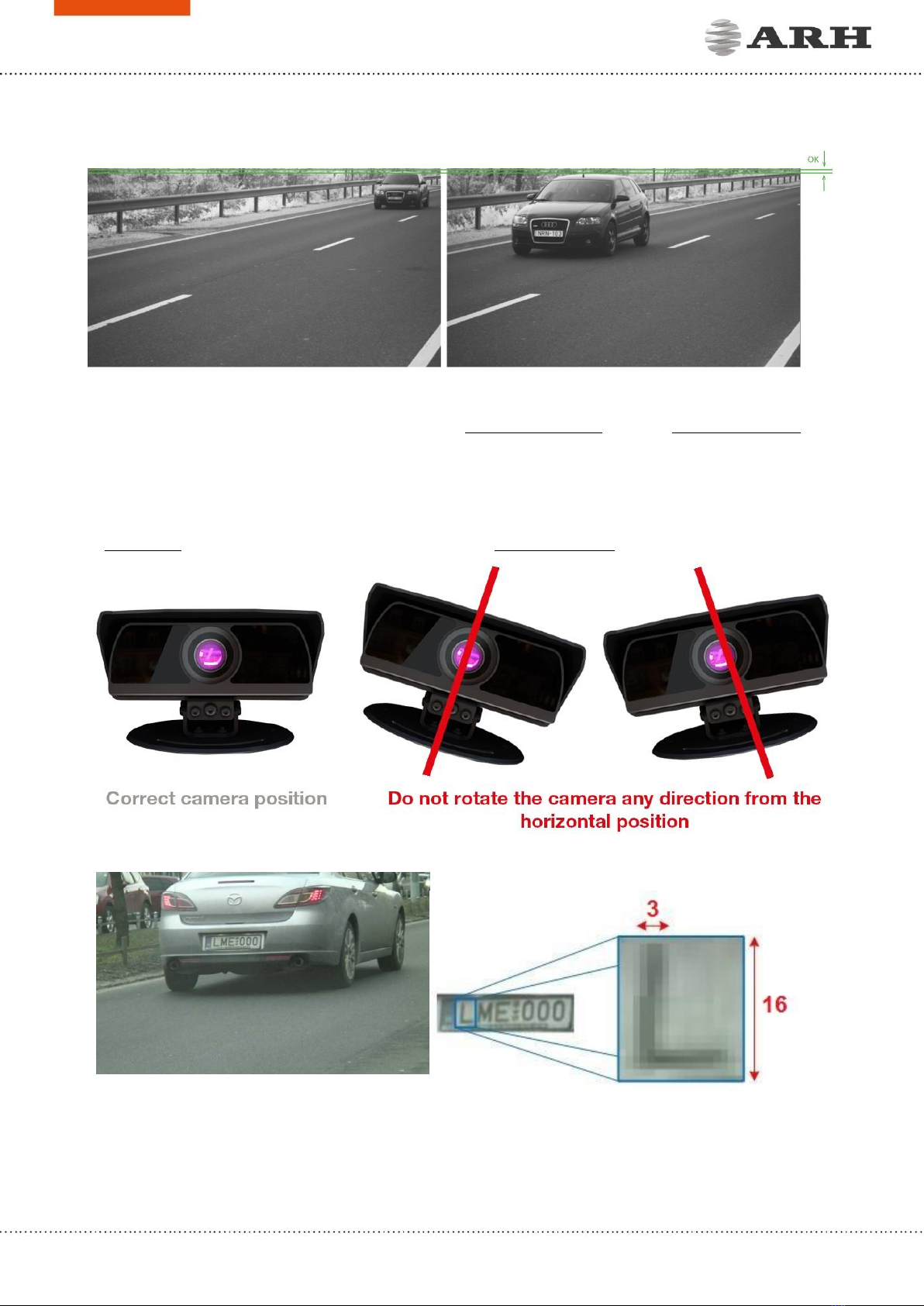

3. Two lanes has to be covered on the live image and the entire vehicle has to be seen on
the image on the farther lane:
From the point of ANPR/LPR the most important is the size of the characters on the image. For
English characters it is recommended to have at least 16 pixel average character height, for
Arabic or other special characters it is recommended to have 20 pixel height (due to they are
more calligraphic than the English characters). The too large characters are also not suitable for
ANPR, therefore try to avoid settings where the character size is greater than 50 pixels in height.
A line width of a character on the image should be at least 2 pixels.
A properly set camera should provide a similar image:
A proper sample image for ANPR
Proper character sizes (in pixels) on the sample

Page 11/14
M402 Install Guide
MAINTENANCE / STORAGE
The cameras are designed for 24/7/365 work for every weather condition and they do not need
special maintenance. Please keep clean the camera front. During the cleaning process, avoid
scratching the front cover.
Do not use the camera without its sun-shield in hot environment, because it was specially
designed to provide proper air-cooling.
The cameras should be stored in low humidity environment in temperature range of -35 °C to
+ 55 °C. Always use the sealing caps on the connectors to keep the camera unit waterproof! If
you miss to use it, the warranty will be void!
The maintenance of the devices is recommended on a quarterly basis. In case of extreme weather
conditions more often.
During the maintenance, make sure that:
the camera operates properly,
it is facing to the previously set direction,
the fastening is not slack,
the front of the camera and the camera itself is clean (no spider webs or any other
contaminants inhibit the visibility),
there are no strange circumstances (vapor, damage).

Page 12/14
M402 Install Guide
APPENDIX
ADDING ALTERNATE IP ADDRESS
WINDOWS VISTA/WINDOWS 7
1. Click Start and select Control Panel.
2. Make sure you are in Classic View by
clicking Classic View on the left of the
Control Panel.
3. Open Network and Sharing Center.
4. Click Manage Network Connections on
the left side of Network and Sharing
Center.
5. Right click on the network connection you
want to add an IP address for (to which the
camera has been connected) and select
Properties.
6. Select Obtain an IP address automatically
and click on the Alternate Configuration
tab.
7. Select User configured and enter e.g. the 192.0.2.54 IP address and 255.255.255.0 as
Subnet mask as shown on the figure .
8. Click OK in the opened windows.
LINUX
1. Open a terminal.
2. Enter the ifconfig command to see the reserved Ethernets (e.g. eth0).
3. Enter the following command: ifconfig ethY192.0.2.25
where Yis a free eth (e.g. eth1) and 192.0.2.25 is a sample IP address.

Page 13/14
M402 Install Guide
POSITION OF THE STICKER
The sticker, indicating the Name, IP address, MAC address and the Serial Number of the
camera, can be found on the bottom of the device, under the sunshield.
The M402 is equipped with an 850nm InfraRed illumination unit. The human eye will
not or slightly see this light coming from the LED’s. Do not look into the illumination
unit directly from close range or for more than 100 seconds. Eyes can be damaged by
not taking these precautions.

Page 14/14
