Ariafina FD-900V User manual

FD-900V (Discharge Type)
FD-900R (Circulation Type)
(Illustration: FD-900V)
TABLE OF CONTENTS
1F02 0882
Thank you very much for your purchase of our cooker hood.
Before operating the cooker hood, please read this Manual thoroughly.
Keep this manual in a convenient place for future reference.
To the sales shop/installer:
After installing, please give
this manual to the user
without fail.
Cooker Hood
Operation Manual
Safety Precautions .............................2, 3
Cautions on Use.....................................4
Preparation .............................................5
Name of Parts ................................................ 5
Switches ......................................................... 5
Care and Maintenance .....................6~10
Caution for Maintenance ................................ 6
Detaching Cleaning Parts............................... 7
Cleaning ......................................................... 8
Attaching Cleaned Parts................................. 9
Replacing the Light Bulb .............................. 10
Other Information............................11, 12
Specifications ............................................... 11
Circuit Diagram............................................. 11
Repair and Warranty..................................... 12
*1F020882*

2

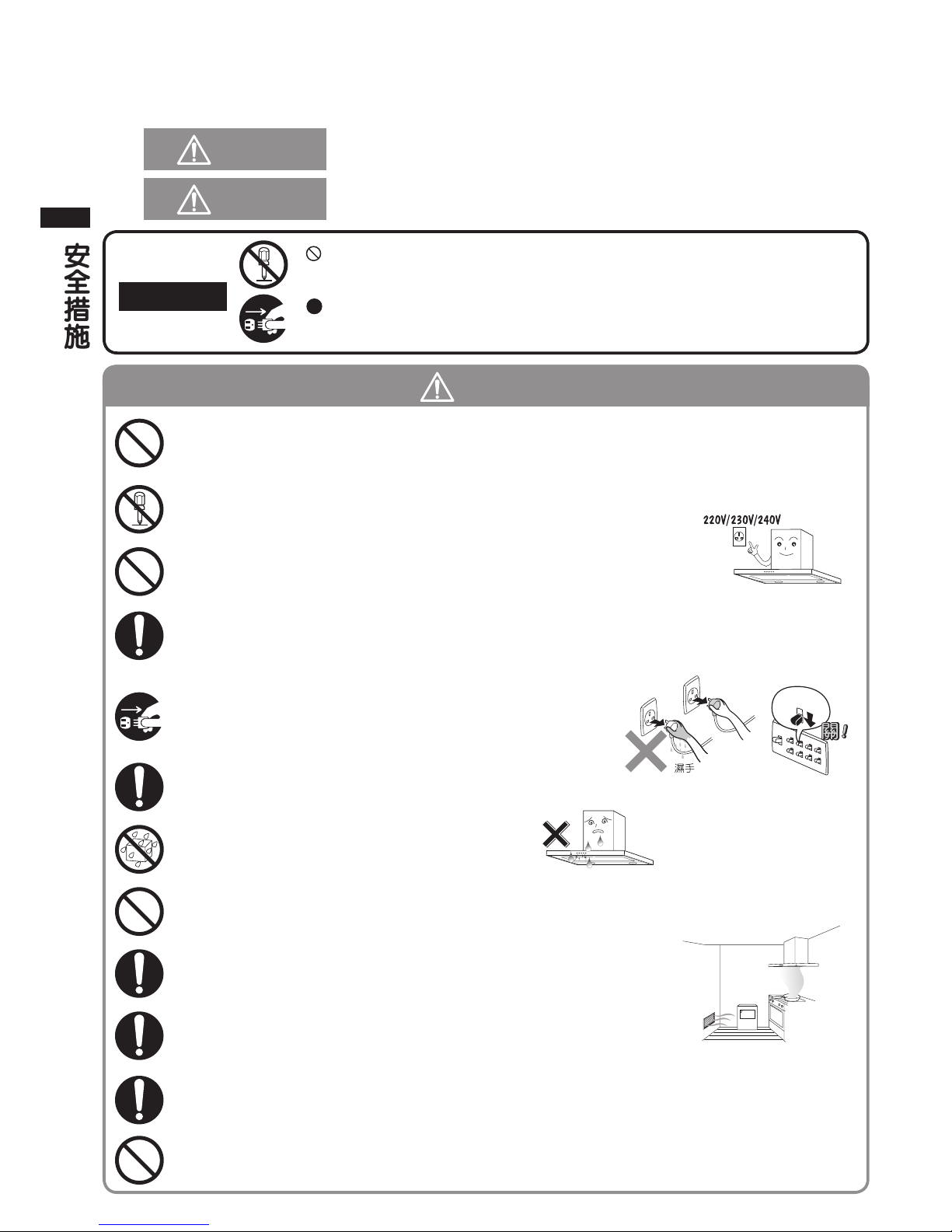

Safety Precautions
Be sure to disconnect the power plug from the
wall outlet, or switch off the breaker when care and
maintenance. Also, don’t handle the power plug or
breaker with wet hand.
Electric shock or injury may result in.
Disconnect
the plug
Breaker
Never attempt to disassemble, repair, or modify.
Entrust them to the qualified technician, otherwise fire,
electric shock, or abnormal performance may occur.
Disassembly,
repair, or
modification
prohibited
Read the following safety instructions before operating, and use the cooker hood properly and securely.
These instructions are for correct operation of the product to prevent any risk of hazards or damages inflicting on
you or others. The instructions are classified into 2 categories as "WARNING" and "CAUTION" depending on their
emergency and severity. Pay attention and strictly observe the instructions as they are critical for safety.
WARNING Alerts possible risk of death or serious injury, if not observed.
CAUTION Alerts possible risk of injury or physical damage, if not observed.
WARNING
means prohibition. It indicates actions, if any, that mustn't be done.
(Left symbol: Disassembly prohibited)
means forcible execution. It indicates actions, if any, that must be done.
(Left symbol: Disconnect the plug from the wall outlet)
Example
When dust accumulated on the blades of the
power plug or on their roots, wipe off well.
Fire may result in.
Wipe off
dust
Choose a mounting location where sufficient air flow
is maintained.
CO poisoning may result if not ventilated adequately while
using a natural vent type stove, etc.
Air supply
cautioned
When there may be a gas leak in your gas hob,
don’t switch on or off the cooker hood.
Gas explosion may result in.
Operation
prohibited
Don’t pour water on the electric parts.
Fire or electric shock may result in.
Pouring
water
prohibited
wet hand
There shall be adequate ventilation of the room when the range hood is used at
the same time as appliances burning gas or other fuels.
(Not applicable to appliances that only discharge the air back into the room.)
Air supply
cautioned
There is a fire risk if cleaning is not carried out in accordance with the instructions.
Clean
frequently
Do not flambé under the range hood.
Flambé
prohibited
This appliance is not intended for use by person (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by
a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
Supervision
requested
Using
prohibited
Don’t connect to the power voltage other than 220V/230V/240V AC.
Fire or electric shock may result in.
The range hood is intended to be installed over a hob with up to four hob
elements or burners, no more than total 7.0kW.
Less than
4 burners
(7.0kW)

3

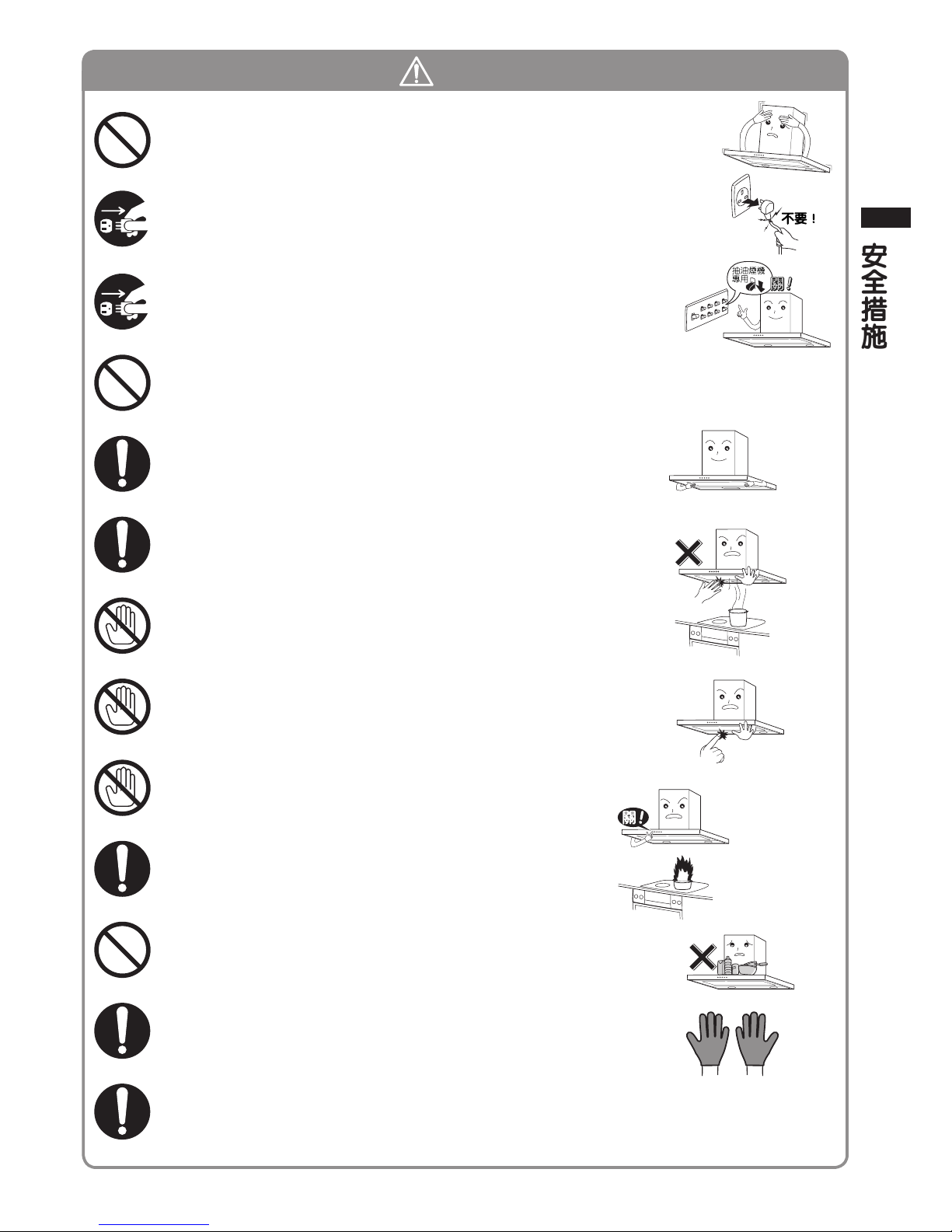

Safety Precautions
Be sure to disconnect the power plug from the wall outlet,
or switch off the breaker when not using for a long time.
Insulation may be deteriorated, and fire or electric shock may
result in.
Disconnect
the plug
Mounting
cautioned
Mount the product securely after selecting a solid place.
Dropping may result injury.
CAUTION
Switch off the cooker hood at once when oil caught
fire while cooking.
It’s dangerous if not stop as fire is built up.
Operation
prohibited
Disconnect
by holding
the plug
When disconnecting the power plug, hold the plug itself.
Don’t pull the cord anyway.
The cord may be damaged, and fire or electric shock may result in.
If the power cord is damaged, it must be replaced by the manufacturer, its service
agent or similarly qualified persons in order to avoid a hazard.
Replace the
cord if it’s
damaged
Assemble the fan or component parts securely.
Injury by dropping may result in.
Assembly
cautioned
Accessible parts may become hot when used with cooking
appliances.
Don’t touch the filter or parts around it while cooking.
The filter or parts may drop, and burn or injury may result in.
Contact
prohibited
Wear gloves
Be sure to wear gloves when care and maintenance.
Injury by the sharp edges or corners may result in.
Assembly
cautioned
Ensure that electric wiring is made safely according
to the standard or regulations related.
Incorrect wiring may result in fire or electrical shock.
Contact
prohibited
Don’t touch the lamp cover or around it.
As it becomes high temperature, burning may result in.
Contact
prohibited
During operation, never insert fingers or other objects.
Failure or injury may result in.
Prohibited
Do not put anything on the cooker hood.
It may be cause of fire, failure, or injury by dropping.
Using
prohibited
Never use the product in a wet place such as bath room, etc.
(Use a ventilation fan for bath room.)
It may be cause of fire or failure if used.

4
Cautions on Use
Cautions on Use
Operate the cooker hood without fail when
using cooking wares.
Otherwise, it may be cause of the cooker hood
damage or failure by increased temperature.
During operation, pay attention to sufficient air
supply.
Provide adequate air intake slots on the wall
opposite from the cooker hood, or open the door of
the room a little. Otherwise, ventilation performance
may be deteriorated, or abnormal noise/vibration
may result in.
Don't use a gas range with nothing put on it.
The body of the cooker hood is heated, and it may
cause trouble.
When using with the IH cooking heater, smoke-
catch performance may be deteriorated by
influence of cross wind. Also, the surface of the
cooker hood may be dew condensation if it is
used in low temperature.
In this case, use the cooker hood after wiping off.
Prevent influence of direct wind from air
conditioner.
Suction performance may be deteriorated if
influenced. Especially, as the IH cooking heater
provides nearly no ascending air current, it is easily
influenced in open place.
Separate gas heater more than 50cm from the
cooker hood.
As the around of gas heater becomes high
temperature, separate more than 50cm. Never
install the cooker hood above gas heater. If not, it
may be cause of the cooker hood damage or failure
by increased temperature.
Do not use the cooker hood with its rectifier
panel removed.
Suction performance may be deteriorated.

5

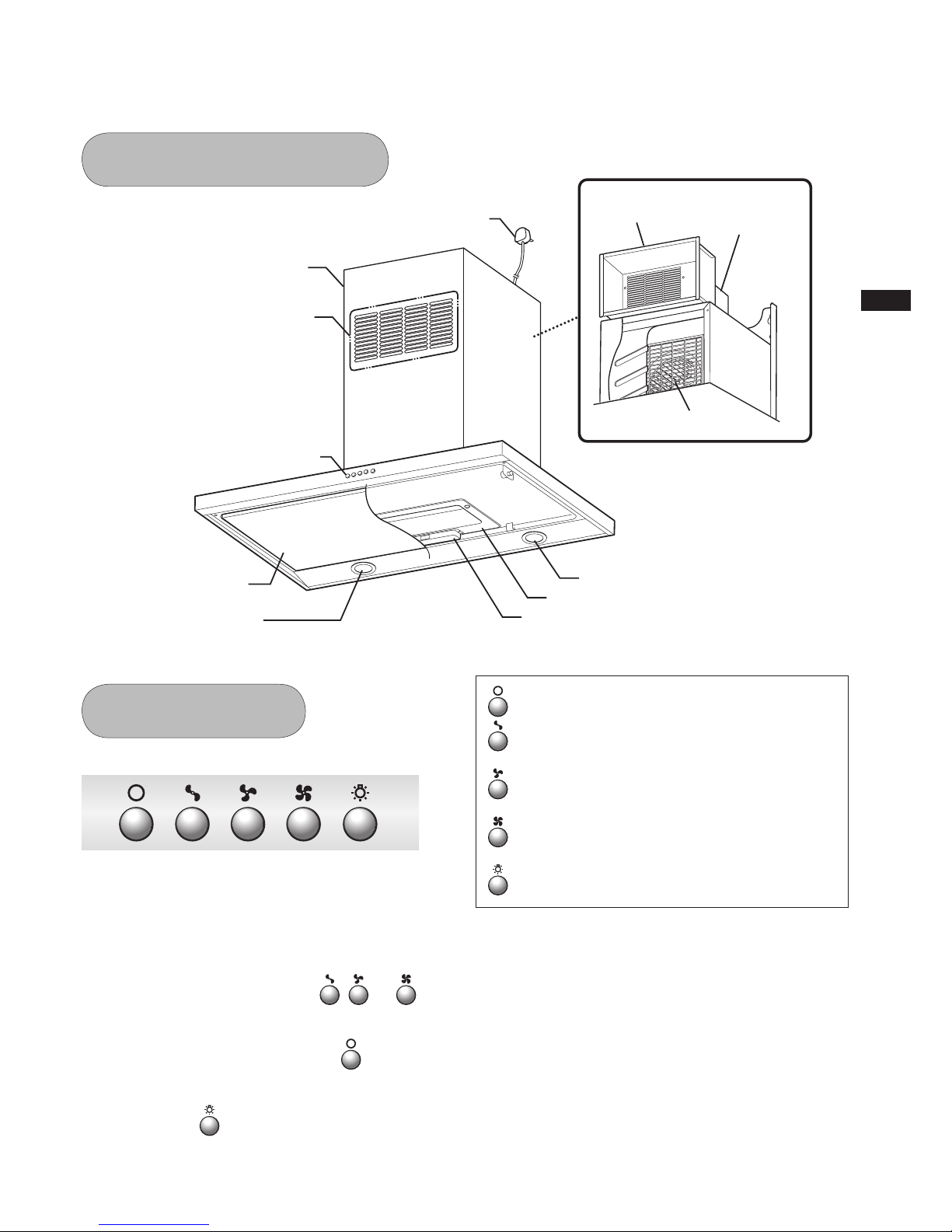

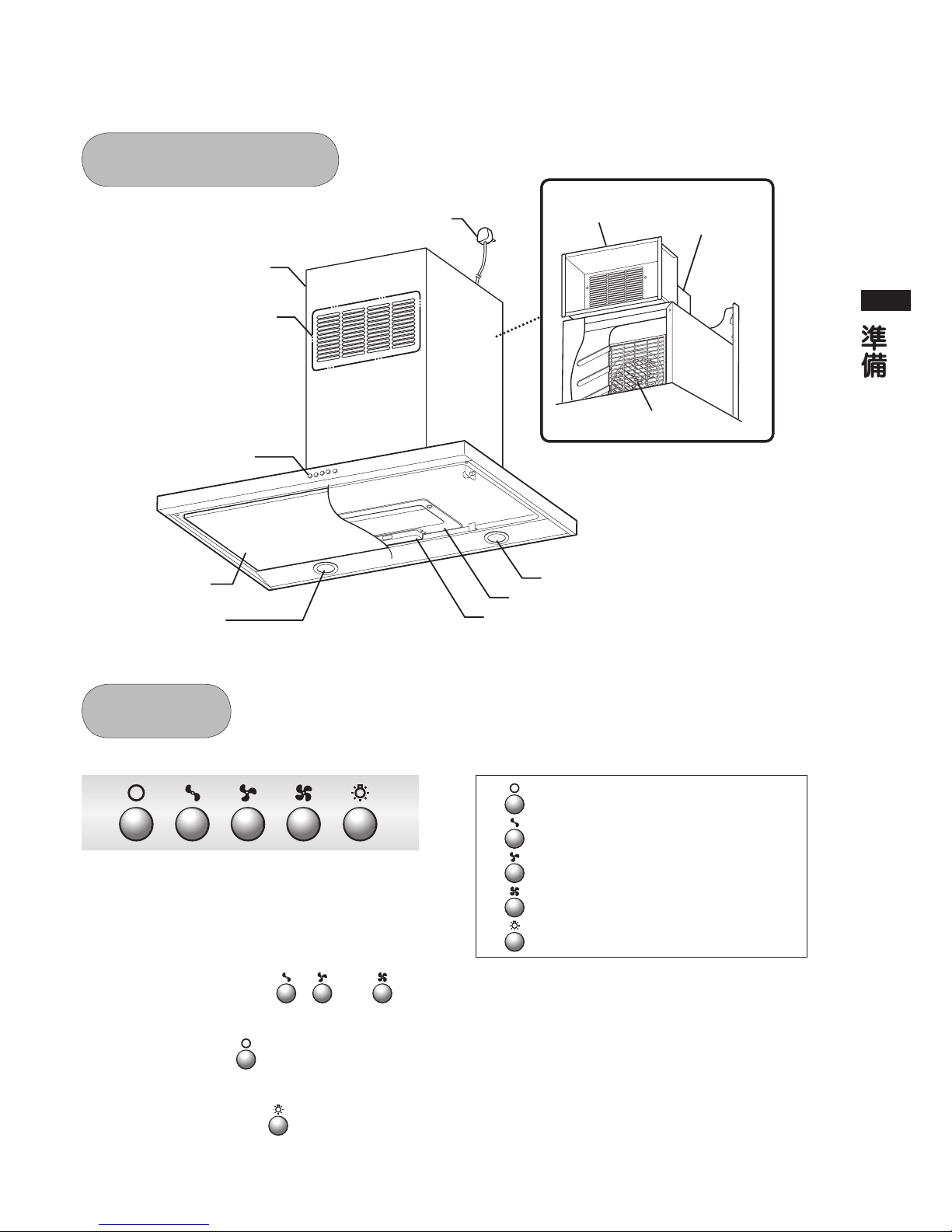

Preparation
Rectifier panel
Push-button switch
(FD-900R only)
Power plug
Duct cover
Lamp cover
Guiding cartridge
Oil pack
Lamp cover
Fan
Discharge box
(FD-900R only) Circulation unit
(FD-900R only)
Name of Parts
Preparation
Switches Button .....Push to stop FAN
Button .....For light cooking
(steaming, and etc.)
Button .....For medium cooking
(light stir-fry of vegetable, and etc.)
Button .....For heavy cooking
(deep fried fish, etc.)
Button .....LAMP turns ON and OFF
1
Push one of the switches ( , , or ) according to your cooking need.
The fan will start rotating.
2
To stop the fan, just push the button.
3
Push the button if you want to turn the light on. To turn it off, push the button again.
Operating the Cooker Hood
Before operating, make sure that the power plug is connected to the wall outlet.
The cooker hood has five push-button switches on its front panel.

6

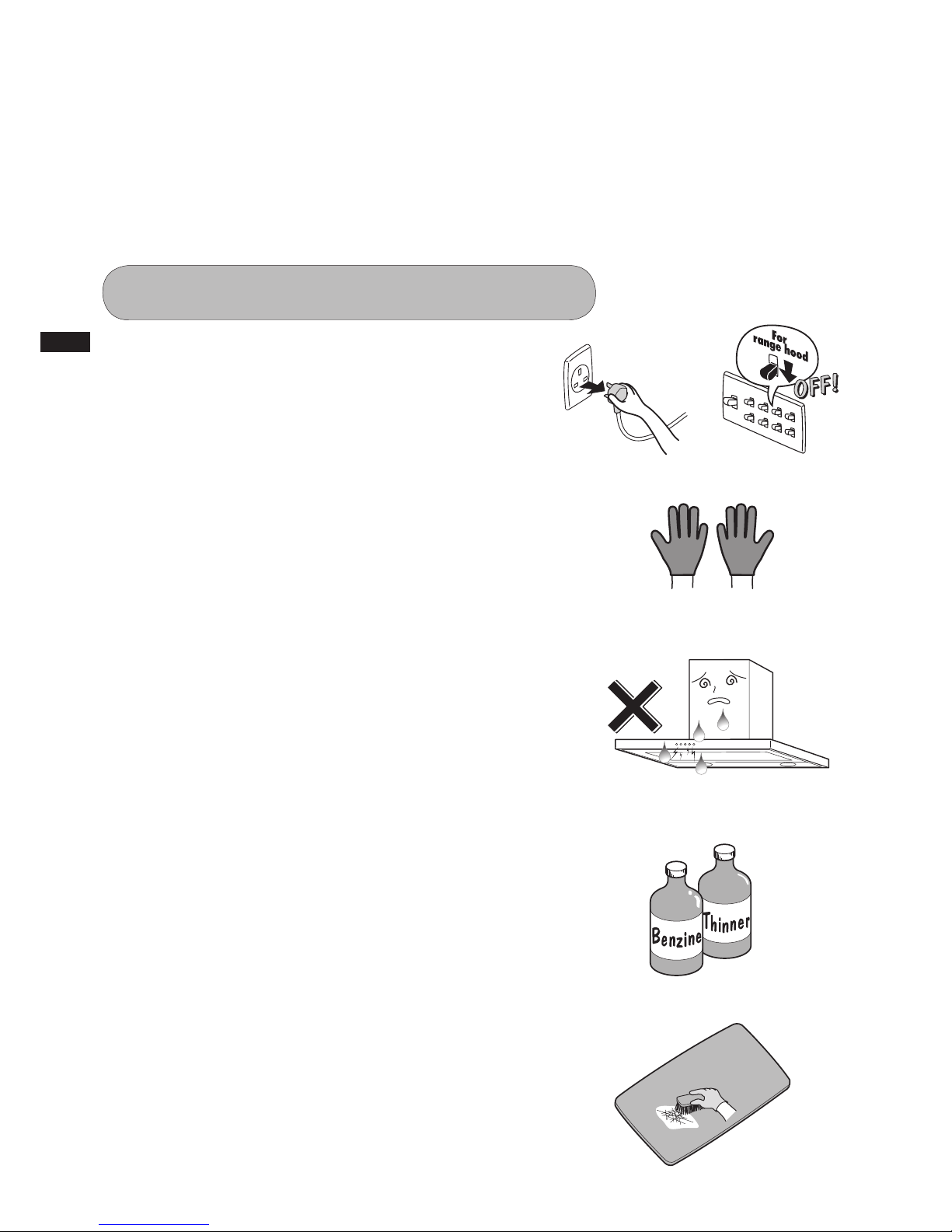

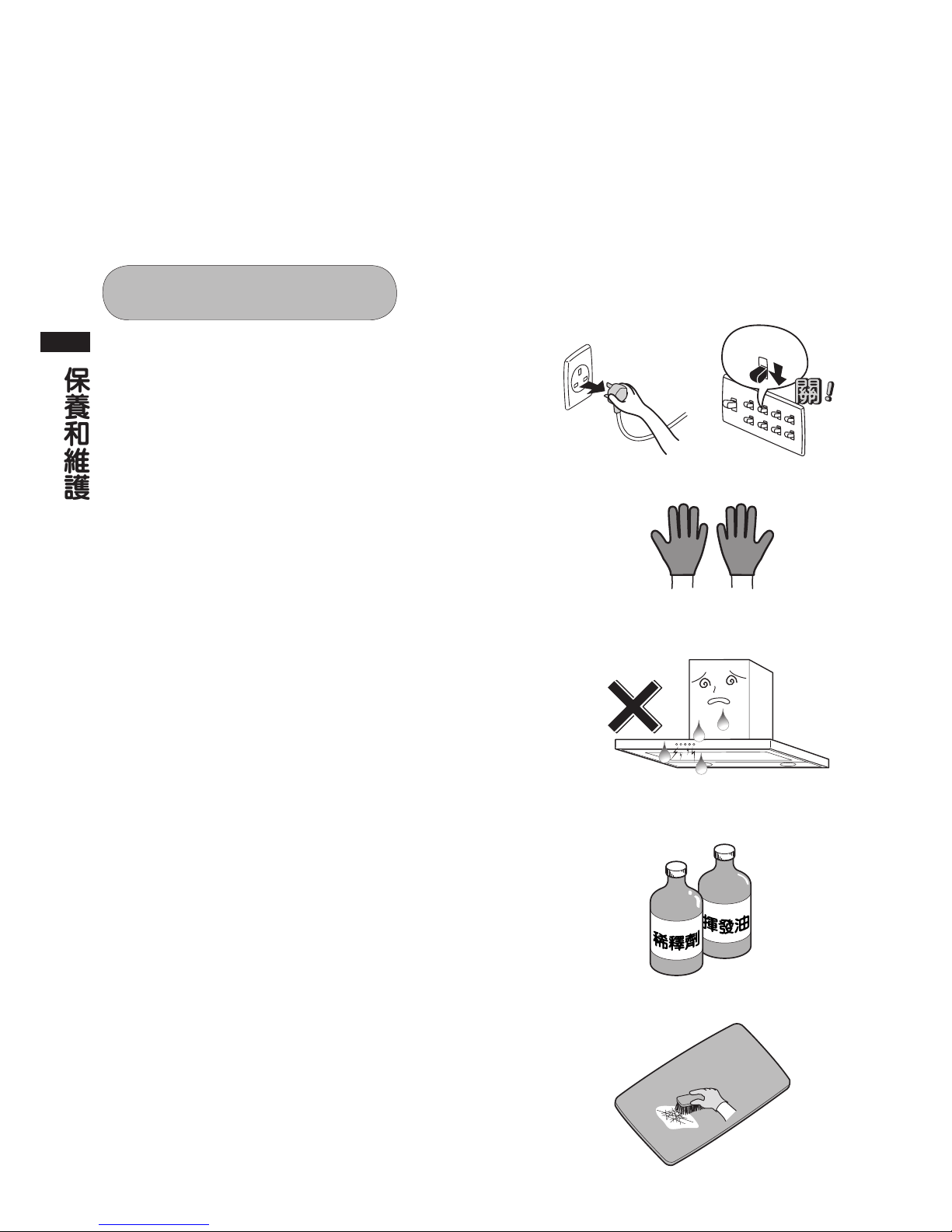

Care and Maintenance
Care and Maintenance
• Beforecleaningthecookerhood,besureto
disconnect the power plug from the receptacle,
or switch off the breaker.
• For safety, always wear a pair of rubber gloves
while cleaning the filter, etc.
• Especially, be careful to prevent electric parts
such as the motor, switch, connectors or the like
from being splashed with water.
Do not spray liquid of any type detergent to the
electric parts. It’s cause trouble.
• Do not use solvents such as thinner, benzine,
polishing powder or the like for cleaning the
painted surfaces, facing plates, etc. as these
parts may become lusterless or scored.
• Donotwashpartswithahardbrushorthelike
for cleaning as it can be damaging.
Clean the cooker hood as many times as possible (especially, clean the guiding cartridge once
every month) as it will become very dirty. For a family size of 4 to 5 people and cooking twice a
day, clean the guiding cartridge once every two weeks. If the cooker hood is left unattended for
a long time, much oil is accumulated and it will become difficult to remove the hardened grease.
Breaker
Caution for Maintenance

7
Care and Maintenance

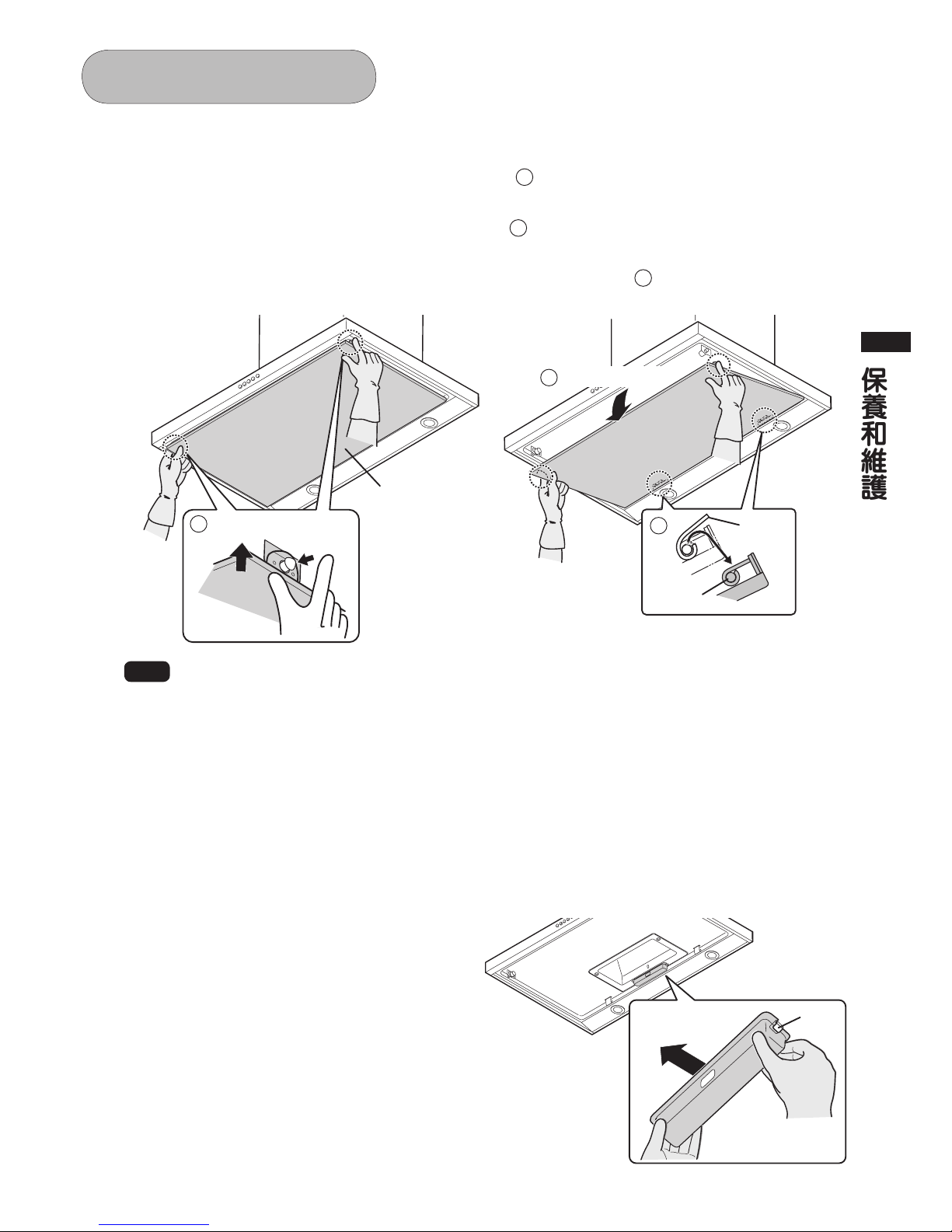

Detaching Cleaning Parts
Note
When performing care and maintenance, be careful not to deform the hooking
brackets and fixing brackets of the rectifier panel. Otherwise, it may be
impossible to attach the rectifier panel properly.
In order not to drop the rectifier panel, hold it by both hands securely. If
dropped, it may be a cause of injury, flaw or warp of parts, etc.
When cleaning the rectifier panel, be sure to detach it from the main unit. If
not, it may drop and result in injury, damage of parts, etc.
As the rectifier panel may be filled with oil, be careful enough about oil-drip
when detaching it.
Pull out
horizontally
Tab
Be careful not to
spill out the oil inside
Open about 10cm
Hanging
bracket
Hooking
bracket
3
2
Push the
stopper
Raise a little
1
Rectifier panel
3) Push and lift up the rear of the rectifier panel to disengage both hooking brackets
from the hanging brackets of the cooker hood ( 3).
2
Oil pack
While keeping the oil pack horizontally
for not to spill out the oil inside, pull it
out to the front to remove.
1
Rectifier Panel
1) Hold the rectifier panel by both hands, then raise it a little and push the left and right
stoppers to unlock ( 1).
2) While holding the rectifier panel by both hands, lower it slowly to open about 10cm ( 2).

8
Care and Maintenance
Enclosure and Rectifier Panel
After wiping the cooker hood enclosure and rectifier panel
with a cloth immersed in a neutral detergent and wring
tightly, wipe off moisture thoroughly with a dry cloth.
Cleaning
Note
When cleaning the rectifier panel, perform it on a flat
surface in order not to deform it.
Fan, Exhaust Port, Discharge Box, Circulation unit
As for cleaning of the fan, exhaust port, discharge box and circulation unit,
please consult Fujioh/Agent.
Duct Cover (FD-900R)
After wiping the duct cover, especially its blowing slits,
with a cloth immersed in a neutral detergent and wring
tightly, wipe off moisture thoroughly with a dry cloth.
Guiding Cartridge
After wiping out the guiding cartridge with a cloth
immersed in a neutral detergent and wring tightly,
wipe off moisture thoroughly with a dry cloth.
Oil Pack
After wiping out with a soft cloth etc., wash the oil pack using
a soft sponge or cloth immersed in a neutral detergent diluted
with tepid water. Then, attach it after wiping off moisture
thoroughly with a dry cloth.
Note
As the amount of oil in the oil pack can be checked through
its front window, pull out and empty it when it’s filled about 1/2
level. Although oil may not collect much depending on cooking
conditions, it’s not abnormal.
Oil stuck to the casing, fan, and guiding cartridge is collected in
the oil pack, but it may hardly be collected when oil cooking is rare.

9
Care and Maintenance
Tab
Window
Tab
* When cleaning is finished, be sure to return the power supply as before;
connect the power plug to the wall receptacle, or switch on the breaker.
2) While holding the rectifier panel by
both hands, lift up its front and push
upward until it is locked by the left
and right stoppers. After attaching,
make sure not to unlock easily by
shaking it up and down.
Note
Make sure that the rectifier panel is
locked securely. It may be a cause of
dropping if not locked firmly.
Attaching Cleaned Parts
1
1
2
Hanging bracket
Hooking
bracket
Make sure
it is locked
3
1
Oil Pack
With directing the window of the oil pack
to the front, set it on the tabs and push
it in completely to the end.
2
Rectifier Panel
1) Engage the rear left and right hooking
brackets of the rectifier panel securely
with the hanging brackets.

10
Care and Maintenance
Replacing the Light Bulb
3
Close the lamp cover
Set the lamp cover as shown, and turn it
clockwise about 45°along with the lamp
socket until it is fixed firmly.
Two mini halogen light bulbs have been mounted to this cooker hood.
Prior to replacing the light bulb, purchase a mini halogen light bulb (in the base diameter G4,
rated 12V 10 Watt).
2
Replace the lamp
Take off the old lamp, and insert a new lamp
to the socket securely.
Note
Do not touch the lamp with bare hands.
If fat and oil components of hands adhere, the
lamp temperature increases and it may result
in breaking of the lamp.
* When replacing the lamp is finished, be sure to return the power supply as before;
connect the power plug to the wall receptacle, or switch on the breaker.
Note Before replacing the lamp, be sure to disconnect the power plug from the wall receptacle,
or switch off the breaker.
Note When replacing, be sure to use a same rated mini halogen light bulb.
Turn the cutting part about 45°
Turn the cutting part about 45°
along with the lamp socket
1
2
3
Replace the lamp
Halogen lamp
Lamp
socket
1
Open the lamp cover
Turn the peripheral ring, and remove the
lamp cover.

11
Other Information
Specifications
Power consumption, air-flow, and noise level are measured according to JIS C 9603.
FD-900V
FD-900R
Black
Black
White Red
Blue
Orange Brown Brown Blue
White
Orange Blue
Brown Brown
Blue Blue
Brown
Blue
Brown
Blue
Brown
Blue
Red
Brown
Orange Black
Black
Blue Red
Red
Brown
Green/Yellow
Blue
Tr ansformer
12V 220V
230V
240V
Black
Black
Black
Black
Black
M
50Hz 220V/230V/240V AC
5A 3pin Plug (Type-BF)
Motor 50Hz 220V/230V/240V
LIGHT Hi Me Lo OFF
Connector
Connector
Push Button Switch
Connector
Connector
Connector
Connector
Halogen Lamp
12V 10W
Halogen Lamp
12V 10W
Capacitor
3.0µF 450V
Circuit Diagram
Rated
Voltage (V) Revolution Frequency
(Hz)
Power Consumption
(W)
Power Consumption
with Lamp (W)
Air Flow
(m3/h)
Noise
(dB)
220V
Hi 50 95 115 555 48.0
Me 50 70 90 450 43.5
Lo 50 50 70 370 38.0
230V
Hi 50 100 120 575 48.5
Me 50 70 90 480 44.5
Lo 50 55 75 390 39.0
240V
Hi 50 105 125 585 49.0
Me 50 75 95 495 45.0
Lo 50 60 80 405 40.5
Rated
Voltage (V) Revolution Frequency
(Hz)
Power Consumption
(W)
Power Consumption
with Lamp (W)
Air Flow
(m3/h)
Noise
(dB)
220V
Hi 50 95 115 520 52.0
Me 50 65 85 430 47.5
Lo 50 50 70 350 42.5
230V
Hi 50 100 120 530 52.0
Me 50 70 90 450 47.5
Lo 50 55 75 370 43.0
240V
Hi 50 105 125 540 52.0
Me 50 75 95 470 48.5
Lo 50 60 80 395 44.0

12
Other Information
Repair and Warranty
When requesting repair:
•Ifanyabnormalityoccurswhilethecookerhoodisinoperation,switchoffthecookerhoodto
run, check the following points, disconnect the power plug from the receptacle and consult the
shop from which you have purchased your cooker hood.
(1) Whether the fuse in the circuit breaker has been burnt out?
(2) Whether the power plug is not in proper contact with the receptacle?
When consulting the shop, inform the shop the type/model of cooker hood requiring repair and the
date when it was purchased.
•Theminimumretentionperiodofperformancepartsforrepairingthecookerhoodis
5 years after termination of manufacturing of the cooker hood.
The performance parts refer to those parts for required to maintain the functions of a cooker
hood. However the same kinds of repair parts or interchangeable parts will be supplied for 4 years
thereafter.
If the functions can be maintained when repaired, we are willing to repair when ordered by you.
•Thepartsusedonthecookerhoodaresubjecttopartialchangewithoutpriornoticeowingto
improvementofperformance.
5
years
FUJI INDUSTRIAL CO., LTD.
2-1-9 Fuchinobe Sagamihara-shi,
Kanagawa-ken JAPAN 229-0006
Manufacturer:

（圖示：FD-900V）
FD-900V (排煙式)
FD-900R (循環式)
內容目錄
非常感謝購買我們的抽油煙機。
在安裝抽油煙機之前，請先通讀本手冊。
請將本手冊保存在方便的地方以備隨時參考。
代銷店 / 安裝人員請注意：
安裝後，請務必把本手冊
交給用戶。
抽油煙機
操作手冊
安全措施 .............................................2, 3
使用注意事項..........................................4
準備 ........................................................5
零件的名稱 ..................................................... 5
開關 ................................................................ 5
保養和維護........................................6~10
維修注意事項.................................................. 6
拆卸清潔配件.................................................. 7
清潔 ................................................................ 8
安裝清潔後的配件........................................... 9
更換燈泡 ....................................................... 10
其他信息 .........................................11, 12
規格 .............................................................. 11
線路圖........................................................... 11
維修和保修 ................................................... 12
*1F020882*
1F02 0882

2
安全措施
 維修保養時必須把插頭從牆上的插座中拔出，或切斷
電源開關。同時，請不要用濕手摸插頭或電源開關。
 會有導致觸電或受傷的危險。
拔出插頭
抽油煙機
專用
電源開關
 不要嘗試拆卸、修理、或改裝。
 必須請技術人員操作，否則會有起火、觸電、或異常事故發生。
 不要連接到高於 220V/230V/240V 電壓的電源上。
 會有導致起火、觸電的危險。
禁 止 拆 卸、
修 理、 或 改 裝
禁止使用

請在安裝前仔細閱讀下述安全事項，正確安全地安裝抽油煙機。
下述安全事項是為了正確地安裝本產品，以免使您和其他人遭受危險或負傷。
 安全事項根據緊急性和重要性的程度分為“警告”和“注意”2 類。
 請予以重視並嚴格按照說明指示操作。
警 告 知會如果不遵守將有機會發生死亡或受重傷的危險。
警 告
 表示禁止。所述的行為（如果有）是絕對不能做的。
 （左圖：禁止拆卸）
 表示強制執行。所述的行為（如果有）是必須做的。
 （左圖：把插頭從牆上的插座中拔出）
例
 插頭的插件或插頭坐上有灰塵時，請清潔乾淨。
 會有導致起火的危險。
 不要注水到通電部分。
 會有導致起火、觸電的危險。
 在爐具有漏氣的可能性時，不要打開或關上抽油煙機。
 會有引起氣體爆炸的危險。
 務必安裝在空氣流通順暢的地方。
 在使用自然通風型爐灶等時，如果通風不暢會引起煤氣中毒。
清潔灰塵
禁止注水
禁止運行
注意
空氣流通
 抽油煙機與燃氣或其他燃具同時使用時，必須保持通風順暢。
 （不適合排放的空氣僅回入房間的設備。）
注意
空氣流通
 請按照說明指示時常清潔本產品，否則會有發生火災的危險。
時常清潔
 不得在抽油煙機下做馥蘭（加酒燃燒）。
禁止馥蘭
 本設備不是為殘疾人、有生理或精神障礙者、以及缺乏相關知識經驗者（包括兒童）
 設計的產品。
 因此上述對象者在使用本產品時必須有監護人給與指導和說明，保證安全使用。
 請不要讓兒童玩耍本產品。
監護要求
注 意 知會如果不遵守將有機會發生受傷或人體損害的危險。
 本抽油煙機用於安裝在 1個不超過有 4 個電熱元件或
燃燒器的爐盤上方，總電力在 7.0kW 以下。
少於４個
燃燒器
（7.0kW）

3
安全措施
 長期不使用時務必把插頭從牆上的插座中拔出，
 或 切 斷 電 源 開 關。
 可能因絕緣體的劣化而導致起火或觸電的危險。
拔出插頭
拿住插頭
拔出
 在與烹飪器具一起使用時，靠近的部分可能變得很熱。
做飯時不要觸動過濾器或其周圍的部分。
 過濾器或其周圍的部分可能會滴油，從而造成燒傷或傷害。
安裝時注意
禁止使用
 安全地安裝排風扇或其他配件。
 會有導致起火或觸電的危險。
裝配時注意
禁止觸摸
 如果電源線有破損，必須由製造商、製造商的代理或具備相同資格的人來更換，
以 免 出 現 危 險。
 在做飯時發生油著火的情況，請立即關掉抽油煙機。
 如果不立即關掉會有助長火勢的危險。
 選擇牢固的地方安全地安裝本產品。
 落下會造成傷害。
禁止運行
戴手套
禁止
更換破損
電線
 在拔出插頭時，請拿著插頭拔，不要拉電線部分。
 電線容易破損，會有導致起火或觸電的危險。
裝配時注意
禁止觸摸
禁止觸摸
 在 維 修 保 養 時 務 必 戴 上 手 套。
 銳利的邊緣或拐角可能引起受傷。
 必須保證電線是按照相關的標準或規定佈線的。
 不正確的佈線會導致起火或觸電的危險。
 不要觸摸燈罩或其周圍的部分。
 可能因高溫導致燙傷。
 運行時，絕對不要把手指或其他物體插進去。
 會有導致破損或受傷的危險。
 請不要把東西放置在抽油煙機上。
 東西落下會有引起起火、破損、或受傷的危險。
 絕對不要在浴室等潮濕的地方使用本產品。（浴室請使用排氣扇。）
 會有導致起火或觸電的危險。
注 意

4
使用注意事項
使用注意事項
距離保持50厘米以上
 使用炊具時務必打開抽油煙機。
 否則會因昇溫過高導致抽油煙機損壞或不能使用。
 在運行時，注意空氣流通。
 在抽油煙機對面的牆上提供讓足夠空氣流通的進
氣口，或是把房間門敞開一些。否則會出現通風
不夠，或異常噪音 / 振動的現象。
 不要在沒有使用炊具的情況下打開燃氣爐灶。
 抽油煙機的機體會被烤熱，引起故障。
 與電磁烹調爐一起使用時，可能會因側風的影響
而導致抽油煙性能減弱。同時，如果在低溫環境
中使用，抽油煙機的表面可能結露。
 如果出現上述現象，請擦掉後再使用抽油煙機。
 不 要 受 讓 空 調 的 直 風 吹 到。
 否則會導致抽油煙的性能減弱。特別是電磁烹調
爐幾乎沒有上昇氣流，在開放的地方很容易受到
影響。
 保持燃氣熱水器距離抽油煙機 50 厘米以上。
 燃氣熱水器周圍溫度會變得很高，保持 50 厘米以
上的距離。絕對不要把抽油煙機安裝在燃氣熱水
器上方。否則會因高溫而造成破損或不能使用。
 不要在整流板拆下的狀態下使用抽油煙機。
 否則會導致抽油煙的性能低下。

5
準備
按鍵開關
排風扇
排氣箱
（僅限FD-900R） 循環裝置
（僅限FD-900R）
燈罩
導箱
儲油盤
（僅限FD-900R）
電源插頭
導管罩
整流板
燈罩
零件的名稱
準備
開關
按鍵.........停止排氣扇
按鍵.........弱檔（蒸汽等）
按鍵.........中檔（輕炒蔬菜等）
按鍵.........高檔（烤魚等）
按鍵.........照明開關
1
根據烹飪的需要按（ ， ，或 ）其中的一個鍵。排氣扇開始旋轉。
2
停止排氣扇按 鍵。
3
如果想打開照明按 鍵。關閉時再按此鍵一次。
運行抽油煙機
運行之前請檢查電源插頭是否插在牆上的插座。
在抽油煙機的前面有 5 個按鍵開關。

6
保養和維護
保養和維護
• 在清潔抽油煙機之前，請把電源插頭從插座中拔出，
 或切斷電源開關。
• 為了安全，在清潔過濾網等時始終戴上橡膠手套。
• 特別注意不要讓電機、開關、插頭等電器部分沾水。
 不要使用任何種類的液體清潔電器部分，以免引起故障。
• 不要使用溶劑，如稀釋劑，揮發油，拋光粉等清潔噴塗
表面、面板等部分，以免使這些部分失去光澤或留下擦痕。
• 不要用硬刷子等清潔用具，以免受到損傷。
抽油煙機容易髒，請盡量經常清潔抽油煙機（特別是導箱每月一次）。
如果是 4 到 5 個人的家庭，每天做飯 2 次，則導箱需要兩個星期清潔一次。
如果抽油煙機長期不清潔，附著的油垢會硬化很難擦掉。
抽油煙機
專用
電源開關
維修注意事項

7
保養和維護
拆卸清潔配件
注
在保養和維修作業中，注意不要讓掛鉤架和整流板的固定架受力變形。
 否則整流板不能正確地安裝還原。
為了不讓整流板滑落，請用雙手抓牢。如果滑落可能會造成受傷、
 碰損或彎曲變形等危險和事故。
在清潔整流板時，請從主機上拆下來，以免落下造成受傷、
 配件受損等危險和事故。
整流板可能沾滿油，在拆卸時小心滴油。
小心裡面的油漏出來
水平拉出 卡子
3
2
吊鉤架
打開10厘米左右
掛鉤架
1
整流板
按制動卡
抬�一些
2
儲油盤
把儲油盤從前方拉出來，注意保持儲油
盤處於水平狀態以免裡面的油漏出來。
1
整流板
1）雙手抓住整流板，抬起一些並把左右的制動卡解鎖1。
2）一邊雙手抓住整流板，一邊慢慢拉下 10 厘米左右2。
3）朝後推整流板，稍稍抬起後部，從抽油煙機的吊鉤架上取下掛鉤架3。

8
保養和維護
外殼和整流器
用在中性洗滌劑中浸泡過並擰乾的布擦拭抽油煙機的外殼和
整流板，之後再用乾布徹底擦乾水分。
清潔
中性洗滌劑
注
在清潔時，請把整流板放在平坦的地方，以免變形。
排風扇，排氣口，排氣箱，循環裝置
排風扇、排氣口、排氣箱、循環裝置的清潔作業請諮詢 Fujioh 或者代理商。
導管罩（僅限 FD-900R）
把浸泡過中性洗滌劑的布擰乾擦拭導管罩，特別注意清潔吹
風口，之後再用乾布把水分都擦掉。
導箱
把浸泡過中性洗滌劑的布擰乾擦拭導箱，之後再用乾布把
水分都擦掉。
儲油盤
用軟布等清潔完儲油之後，用在加有中性洗滌劑的溫水中浸泡過的
海綿或布清潔儲油盤。再用乾布把水分都擦掉。然後重新裝回去。
注
儲油盤中的油量可以通過前面窗口觀察到，油量達到儲油盤容量的
1/2 左右請拿出來清除。
根據做飯的情況不同，儲油盤裡的油可能在短時間內不會儲積很多。
這不屬異常現象。
附著在導管、風扇、導箱上的油都會流到儲油盤裡，但是如果不常
做飯儲油也不會太多。
中性洗滌劑
1/2左右
