CDA ECNK91 Service manual

www.cda.eu
ECNK91
Island Extractor
Installation, use and maintenance
Cod:0103091304-00.02

2
Contents:
3 Important information
5 Important safety warnings
6 Using your extractor
7 Care and maintenance
8 Changing the charcoal filter
9 Changing a light bulb (contact CDA Customer Care)
10 Mains electricity connection
11 Electrical information
11 Troubleshooting
12 Installation - preparation
13 Ducting
14 Installation
17 Installation height diagrams
19 Energy eciency information

3
Important
The CDA Group Ltd. cannot be held responsible for injuries
or losses caused by incorrect use or installation of this
product. Please note that The CDA Group Ltd. reserves the
right to invalidate the guarantee supplied with this product
following incorrect installation or misuse of the appliance or
use in a commercial environment.
This appliance is not designed to be used by people
(including children) with reduced physical, sensorial or
mental capacity, or who lack experience or knowledge
about it, unless they have had supervision or instructions on
how to use the appliance by someone who is responsible
for their safety.
Under no circumstances should any external covers be
removed for servicing or maintenance except by suitably
qualified personnel.
Appliance information:
Please enter the details on the appliance rating plate below for
reference, to assist CDA Customer Care in the event of a fault
with your appliance and to register your appliance for guarantee
purposes.
Appliance Model
Serial Number

4
IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE
PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2012/19/EU.
At the end of its working life, the product must be taken to a special
local authority waste collection centre or to a dealer providing appliance
recycling services. Disposing of a household appliance separately
avoids possible negative consequences for the environment and
health. It also enables the constituent materials to be recovered, saving
both energy and resources. As a reminder of the need to dispose of
household appliances separately, the product is marked with a crossed-
out wheeled dustbin.
Declarations of Conformity:
This appliance has been manufactured to comply with all EU & UK
statutory requirements and complies with all applicable legislation and
the following European Directives:
• The Low Voltage Directive 2014/35/EU
• Electromagnetic Compatibility Directive 2014/30/EU
The product has been marked with the UKCA and CE symbols.
This appliance is marked according to the European directive
2004/104/EC on Waste Electrical and Electronic equipment (WEEE).

5
Please note:
•Under no circumstances should the extractor be
connected to any gas ventilation system, flue system or
hot air ducting system.
•Do not vent the extractor into an attic or loft space.
•Only house the extractor in rooms with adequate
ventilation. Remember that the extractor is powerful and
whatever air is extracted needs to be replaced.
•Do not tile the extractor in. It should be removable for
service or maintenance.
•Do not use silicone sealant to secure the hood to the
wall.
•You must be able to isolate the extractor from the mains
electrical supply after installation.
•Steam cleaners must not be used when cleaning this
appliance.
•The performance of your extractor will vary depending
on a number of factors. These include: type of extraction,
length of ducting, room volume, ventilation available and
cleanliness of the filters.

6
Using your extractor
For best performance, you should switch on the extractor
15 minutes before starting to cook and leave it to run for
approximately 15 minutes after the end of cooking.
Control Panel
A -
B - Down speed button
Power button
C - Display window
D - Speed up key
E - Lamp button
Power button: Press once, the motor will enter the low-speed state, the
down speed button: Touch this key to decelerate the wind speed, the
gear sequence is: 3 2 1. When the display window shows 1 (that is the
Speed-up key: Touch this key to accelerate the wind speed, the gear
sequence is: 1 2 3. When 3 is displayed in the display window (that is,
the motor is in a high-speed state, pressing this key does not work).
Illumination key: This key is independent and not controlled by the
Display window: Motor speed gear display, words 1,2,3,etc. can appear.
Delay function: long press the power button (2 seconds): enter the delay
function, delay 15 minutes, the wind speed will stop after 15 minutes.
During the delay, the wind speed can be easily adjusted, and the delay is
not hindered.
Fig. 1

7
Care and maintenance
IMPORTANT: DO NOT PERFORM
MAINTENANCE OR CLEANING OF
THE EXTRACTOR WITHOUT FIRST
SWITCHING OFF THE ELECTRICITY
SUPPLY.
Cleaning
You should use a nonabrasive cleaner.
Any abrasive cleaner (including Cif) will
scratch the surface and could erase the control panel markings.
You can clean your extractor eectively by simply using a dilute
solution of water and mild detergent and drying to a shine with a clean
cloth.
Cleaning the grease filter
The grease filter should be kept clean to minimise the risk of fire.
At least once a month, you should remove and clean the grease
filter with hot soapy water. You can also wash the grease filter in
a dishwasher (see note on page 8), ensuring that you place it in
an upright position to prevent damage from other items in the
dishwasher. After rinsing and drying, replace the filter.

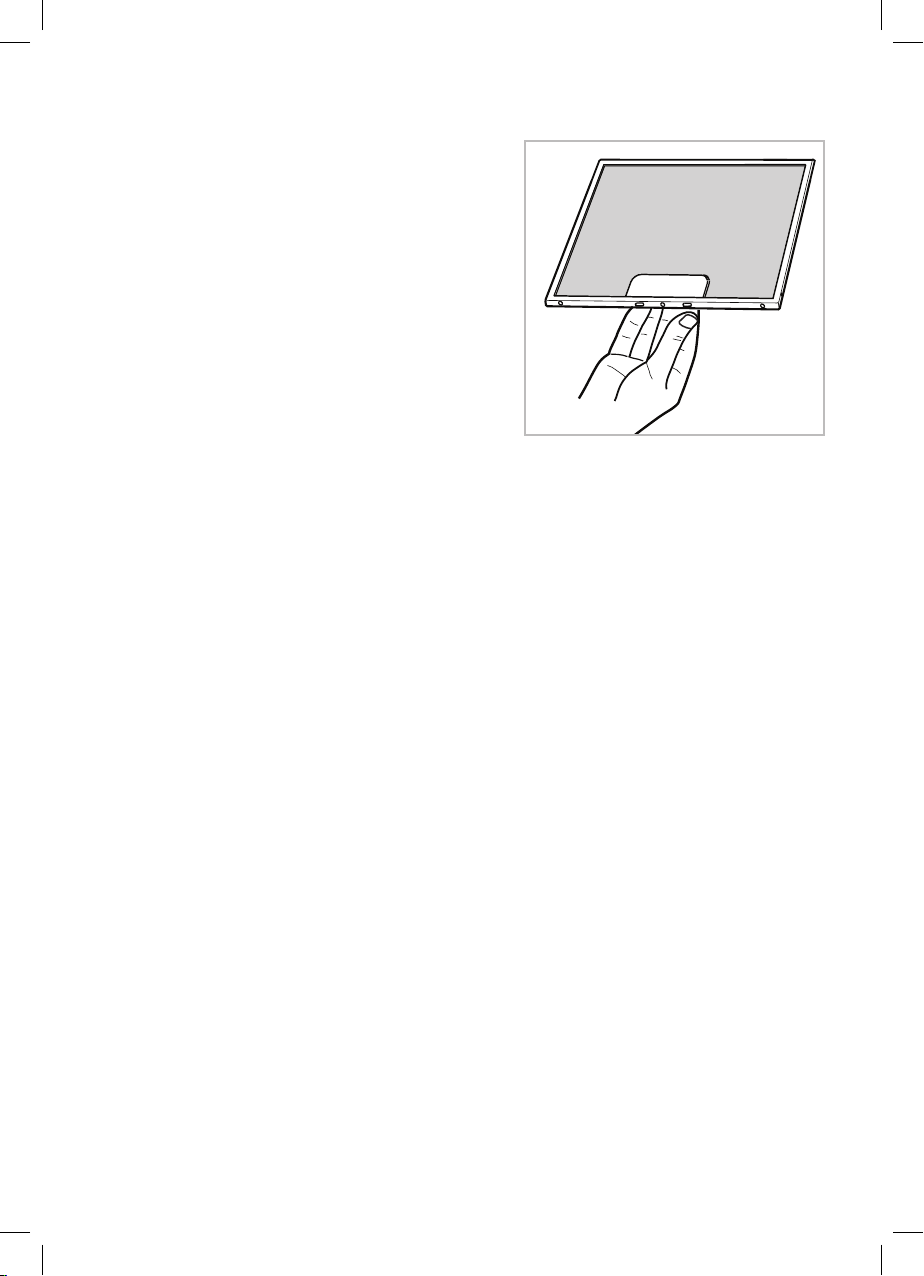

To remove the grease filter
1. Pull open the handle on the grease filter as shown in fig. 2. It will
release at the handle side.
2. Lower the grease filter to remove it completely.
Fig. 2

8
To replace the grease filter
Repeat the steps on page 7 in reverse order.
Please note: Cleaning the grease filter in a dishwasher may lead to
discolouration. This is normal and does not constitute a fault with the
appliance.
Changing the charcoal filter (re-circulating only)
We recommend protecting any areas below and near the hob before
and during this process to make sure nothing falls and causes
damage.
To attach a new charcoal filter, first remove the grease filter as
described on page 7. Remove any old charcoal filter and then oer
up the magnetic side of the new charcoal filter to the metal extractor
housing/opening (the same that holds the grease filter) so that it
secures into place. Leave the tab on the filter accessible for when you
need to remove it. Then, replace the grease filter.
Charcoal filters are available as an optional accessory from CDA
Customer Care under code CHA12.

9
Changing the light
The light is designed for use during cooking and not for general room
illumination. Extended use of the light can reduce the life span of the
bulb.
Replaceable (LED only) light
source by a professional
LED LED
In case of malfunction of the illumination system contact the
technical service.

10
DOUBLE POLE SWITCHED
FUSED SPUR OUTLET
USE A 3 AMP FUSE
Mains electricity
connection
THIS APPLIANCE MUST BE
CONNECTED TO THE MAINS SUPPLY
BY A COMPETENT PERSON, USING
FIXED WIRING VIA A DOUBLE POLE
SWITCHED FUSED SPUR OUTLET
AND PROTECTED BY A 3A FUSE.
The appliance must be connected by a
qualified electrician, who is a member
of the N.I.C.E.I.C. and who will comply with the I.E.T.
and local regulations.
The wires in the mains lead of this appliance are coloured in
accordance with the following code:
BLUE = NEUTRAL, BROWN = LIVE, GREEN+YELLOW = EARTH
As the colours of the wires in the mains lead for the appliance may
not correspond with the coloured markings identifying the terminals
connecting to the fused spur, proceed as follows:
•The wire which is coloured blue must be connected to the terminal
marked N (Neutral), or coloured black.
•The wire which is coloured brown must be connected to the
terminal marked L (Live), or coloured red.
•The wire which is coloured green and yellow must be connected
to the terminal marked E (Earth) or coloured green or green and
yellow.

11
NOTE: USE A 3A FUSE
Assembly and electrical connection should be carried out by
competent personnel. When installing this product we recommend
you seek the help of another individual.
Do not mount the isolation switch behind the chimney section. It is a
requirement that you must be able to isolate the extractor from the
mains electrical supply after installation.
This appliance is intended to be connected to the mains electrical
supply by means of an isolation switch and fused spur and is intended
to be protected by a 3A fuse. The use of a 13A fuse can cause
damage to the internal wiring in the event of a fault, and may also
invalidate the warranty.
Electrical information
Mains electrical voltage: 230 – 240Vac, 50Hz
Total rated power consumption: 87W
Troubleshooting
If your extractor is not working:
1.
2. Check that the fuse in the spur has not blown.
3. If the motor is not working, check that the lights are. The power

12

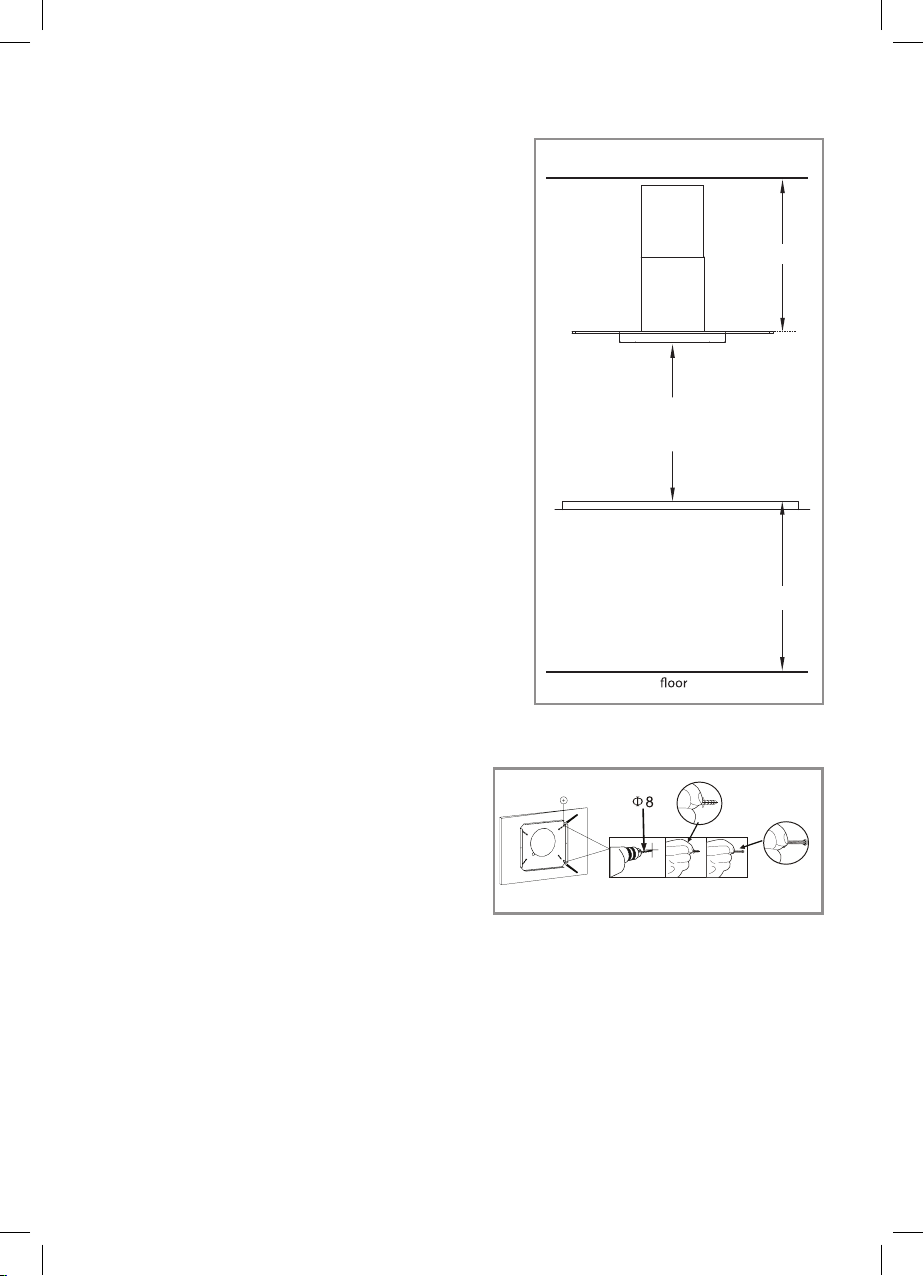

Installation - preparation
The extractor is intended to be mounted
directly to a solid ceiling using fixings
appropriate for the ceiling.
If the instructions provided with your gas hob state that the required
distance between the hob and extractor must be greater than 650mm,
then that is the distance that should be observed; this is a legal
requirement and may lead to your hob being disconnected from the
gas supply and the installation being reported under RIDDOR (The
height should be measured from the top of the burners).
IN THE ABSENCE OF ANY INSTRUCTIONS SUPPLIED WITH THE
GAS HOB, THE MINIMUM DISTANCE BETWEEN THE HOB AND
EXTRACTOR MUST BE AT LEAST 650mm.
The width of any hob must not be greater than the width of the
extractor installed above it.
Gas: 750mm recommended.
Electric: 650mm recommended.
Gas: 650mm recommended.
Electric: 600/550mm recommended.
Fig. 3
When the extractor is to be installed
above an electric hob, the minimum
distance between the hob and extractor
must exceed 600mm for ceramic and
solid plate hobs and 550mm for
induction Hobs.
When the extractor is to be installed
above a gas hob, the minimum distance
between the hob and extractor must
exceed 650mm.

13
Ducting
The ducting used should be 150mm, rigid circular pipe and must be
manufactured from fire retardant material, produced to BS 476 or DIN
4102-B1.
Wherever possible utilise rigid circular pipe which has a smooth
interior, rather than the expanding concertina type ducting. The
lengths of ducting with minimal eect on performance are as follows:
• 4 metres with 1 x 90° bend.
• 3 metres with 2 x 90° bends.
• 2 metres with 3 x 90° bends.
Longer ducting can be used but the performance of the extractor will
likely be reduced.
Please note: Ducting components and ducting kits are optional
accessories and have to be ordered, they are not automatically
supplied with the hood. Use of ducting less than 150mm in diameter
will aect performance and increase the noise produced by the
extractor.
Note that the ducting should be secured and sealed to the vent outlet
pipe / valve using appropriate jubilee clips or securing means.

14

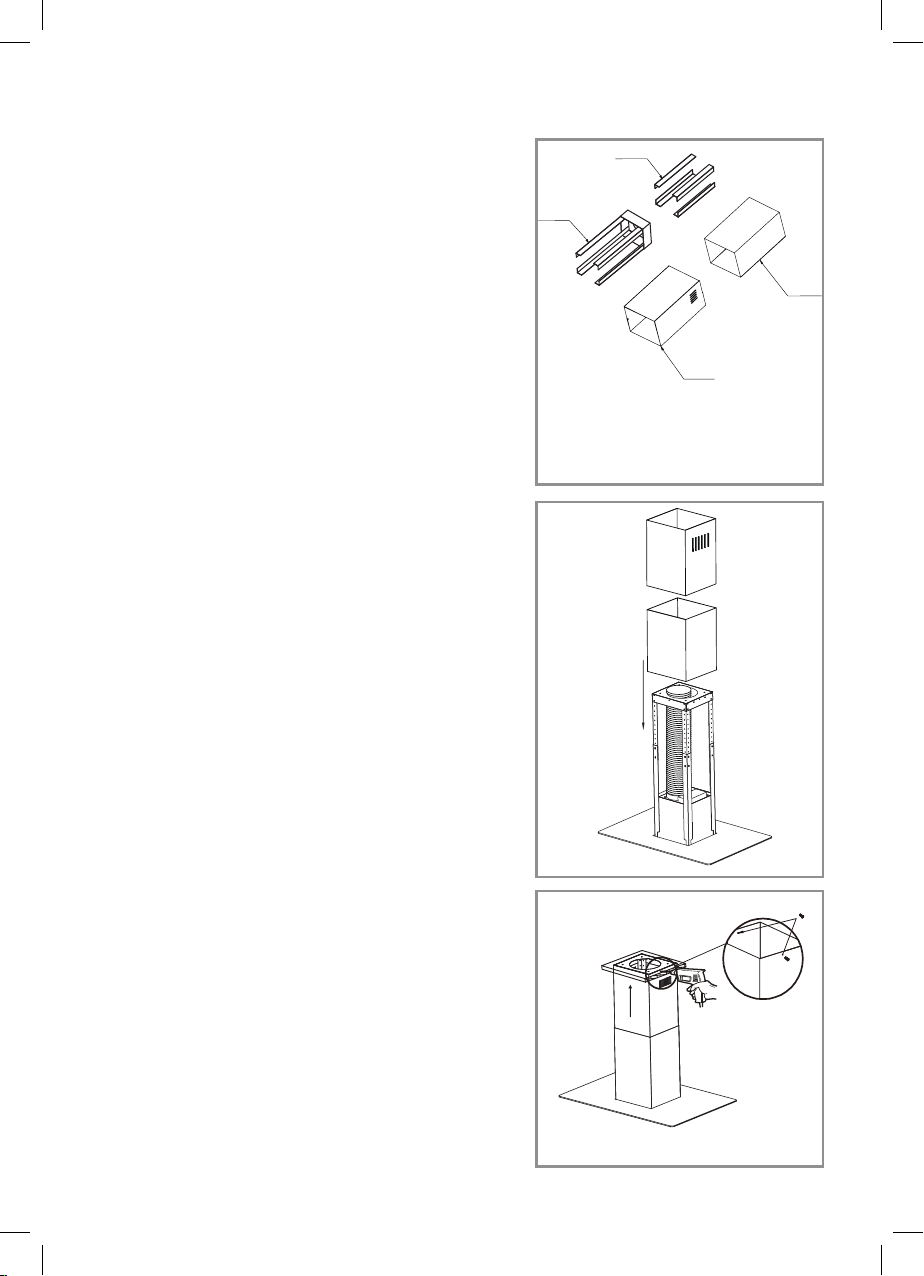

Installation
Note
•We recommend that you seek the
help of another individual when
installing this product. Always wear
adequate PPE (Personal Protective
Equipment).
•The fixings supplied are suitable
for most installations. It is the
responsibility of the installer to
ensure that the fixings are suitable
for the ceiling type in the property.
Installation steps
1. Using the supplied template, mark
the positions of the ceiling mounting
screws and the cut-out for the
ducting pipe, if required.
Fix four suitable wall plugs into the
holes and proceed to assemble the
extractor, as per fig 5.
2.T
of the chimney section, use the
calculation shown on this page for
your extractor (also refer to fig 4):
o determine the overall height
B - clearance required
Gas: 750mm recommended.
Electric: 650mm recommended.
A - burner height
Extractor height
ceiling
Fig. 5
Fig. 4

15
A = Height of gas hob burner or electric
hotplate height from the kitchen
floor
B = Clearance required:
Gas hobs 750mm recommended
Electric hobs: 650mm recommended
A + B is the required height of the body
of the extractor above the floor.
Next you need to calculate the required
height of the extractor.
Whole extractor height = ceiling height -
height above floor (A+B).
3. Assemble the support sections 1, 2 3
and 4 on the diagram in fig 6, using
the supplied fixing screws and fix
to the chimney body. Measure the
height of the chimney and ensure
that it is equal to or less than the
height calculated in step 3. (When
the extractor is mounted the height
between the hob and extractor must
be at least the minimum height
specified). Connect the mounting
frame at the required height as per
Figs. 9 and 10.
Fig. 7
3
2
1
4
1 – lower struts
2 – lower chimney piece
3 – Upper chimney piece
4 – top mounting frame
Fig. 8
Fig. 6

16
4. Place the chimney sections over the body assembly, as shown in fig
7.
5. With the help of another individual, raise the whole assembly to the
ceiling and fix securely in place using four screws appropriate for
the wall plugs inserted in step 2. Ensure that the supporting ceiling
is strong enough to take the weight before releasing the extractor.
6. Connect the ducting to the extractor vent outlet, securing it in place
with a worm-drive hose clamp (jubilee clip).
7. Finally, raise the inner section of the chimney to the ceiling and
secure in place using the two small screws supplied
8. Note that the electrical connection to the extractor must not be
located inside the boundaries of the chimney. There must be an
isolation switch so that the extractor can be disconnected from the
mains electrical supply after installation.

17
815~1020mm
735~1020mm
Fig. 9
Fig. 10

18
NOTES:

19
Attribute Symbol Value Units
noitacifitnedIledoM
Annual Energy Consumption AECHood 12.9
Time increase factor f 0.9
y FDEHood 30.6 (A)
x EEIHood 36.2 (A++)
Point
QBEP 227.8 m3/h
Point
PBEP Pa
Maximum airflow QMAX 614.7 m3/h
Measured electric power at Best WBEP
34.9
Nominal lighting power WL 2
Average illumination of the lighting
system on the cooking surface
EMiddle 168
Measured power consumption in
standby
PS
mode
POW
Sound power level LWA 65 dBA
y GFEHood 68 (D)
ELycneiciffepmaL Hood 84 (A)
Energy Efficiency Information
%
kWh
Lux
W
ECNK91
169
W
W
0.49
0.48
%
E & O E. All instructions, dimensions and illustrations are provided for guidance only. CDA reserve the
right to change specifications without prior notice.

www.cda.eu
Customer Care Department. The CDA Group Ltd, Harby Road, Langar, Nottinghamshire, NG13 9HY
T: 01949 862 012 F: 01949 862 003 E: customer[email protected]
For service or queries relating to your product please contact:
The Customer Care Department on 01949 862 012 or email customer[email protected]
For more information please contact:
The Sales Department on 01949 862 010 or email [email protected]
