Ariens 927046 - RM1028 User manual

Parts Manual
Models
927046 - RM1028
927053 - RM9028
927054 - RM9030
927055 - RM1332
927056 - RM1330
927306 - RM9028
927307 - RM1328
927308 - RM1332
927310 - RM1028
02758600B 11/01
Supercedes 02758600,A
Printed in USA
Rear-Engine Riders

T
HE
M
ANUAL
Before you operate your unit, carefully and completely
read manuals supplied with the unit. The contents will
provide you with an understanding of safety instructions
and controls during normal operation and maintenance.
For your safety and the safety of others always read,
understand, and follow all DANGER, WARNING, and
CAUTION messages found in manuals and on safety
decals.
Hardware descriptions are given in decimals.
S
ERVICE AND
R
EPLACEMENT
P
ARTS
When ordering replacement parts or making service
inquiries, know the Model and Serial numbers of your unit
and engine.
Numbers are located on the product registration card in
the unit literature package. They are printed on a serial
number label, located on the frame of your unit.
• Record Unit Model and Serial numbers here:
• Record Engine Model and Serial numbers here:
UNAUTHORIZED REPLACEMENT PARTS
Use only Ariens replacement parts. The replacement of
any part on this vehicle with anything other than an
Ariens authorized replacement part may adversely affect
the performance, durability, or safety of this unit and may
void the warranty. Ariens disclaims liability for any claims
or damages, whether warranty, property damage,
personal injury or death arising out of the use of
unauthorized replacement parts.
Decimals to Fractions
.063 1/16 .563 9/16
.125 1/8 .625 5/8
.188 3/16 .688 11/16
.250 1/4 .750 3/4
.313 5/16 .813 13/16
.375 3/8 .875 7/8
.438 7/16 .938 15/16
.500 1/2 1.00 1
P
RODUCT
R
EGISTRATION
A warranty registration card must be filled out, signed,
and returned at time of purchase. This card activates the
warranty. Claims meeting requirements during limited
warranty period will be honored.
Y
OUR
S
ATISFACTION
I
S
I
MPORTANT
Questions? Please follow these helpful steps:
1. Refer to the manuals supplied with your unit.
They will guide you through safe and proper
operation and maintenance.
They contain specifications on your unit.
If your questions are not answered in these manuals,
go to step number two.
2. Contact Your Dealer.
Our dealers will be happy to supply any service or
advice required to keep your unit operating at peak
efficiency.
A factory trained staff is available to support your
equipment needs. They stock genuine Ariens parts
and lubricants manufactured with the same precision
and skill as the original.
If your questions are not resolved by the support
staff, ask for the manager or owner.
When contacting your Dealer supply your model and
serial numbers.
TO SPEED PARTS ORDERING:
1. Know the model and serial numbers of your unit.
2. Know the part number required.
3. Know the quantity required.
4. Know the part description.

1
Contents
Reference Table
Models
Decals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Frame and Seat . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Steering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

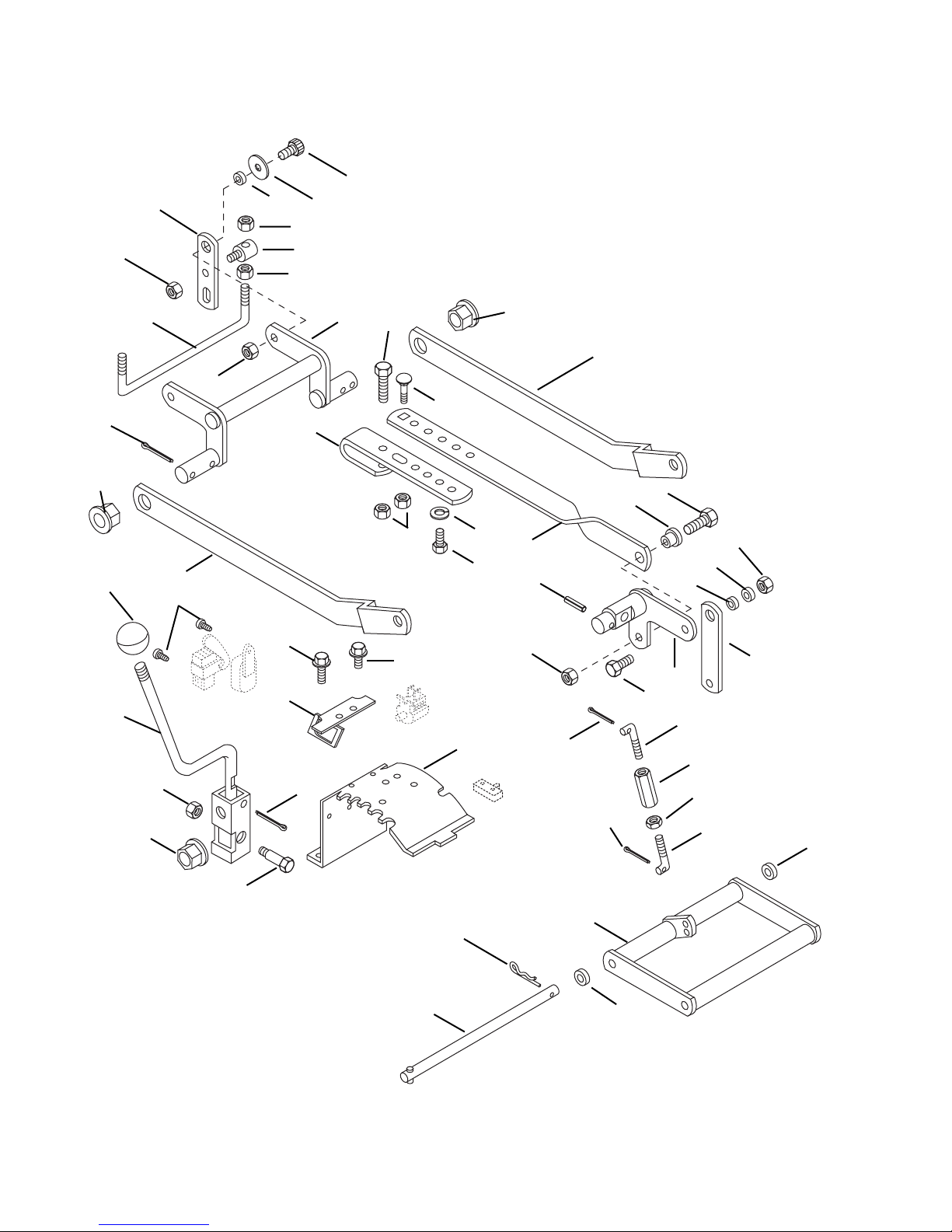

Speed Selector . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Brake and Clutch . . . . . . . . . . . . . . . . . . . . . . . . .10

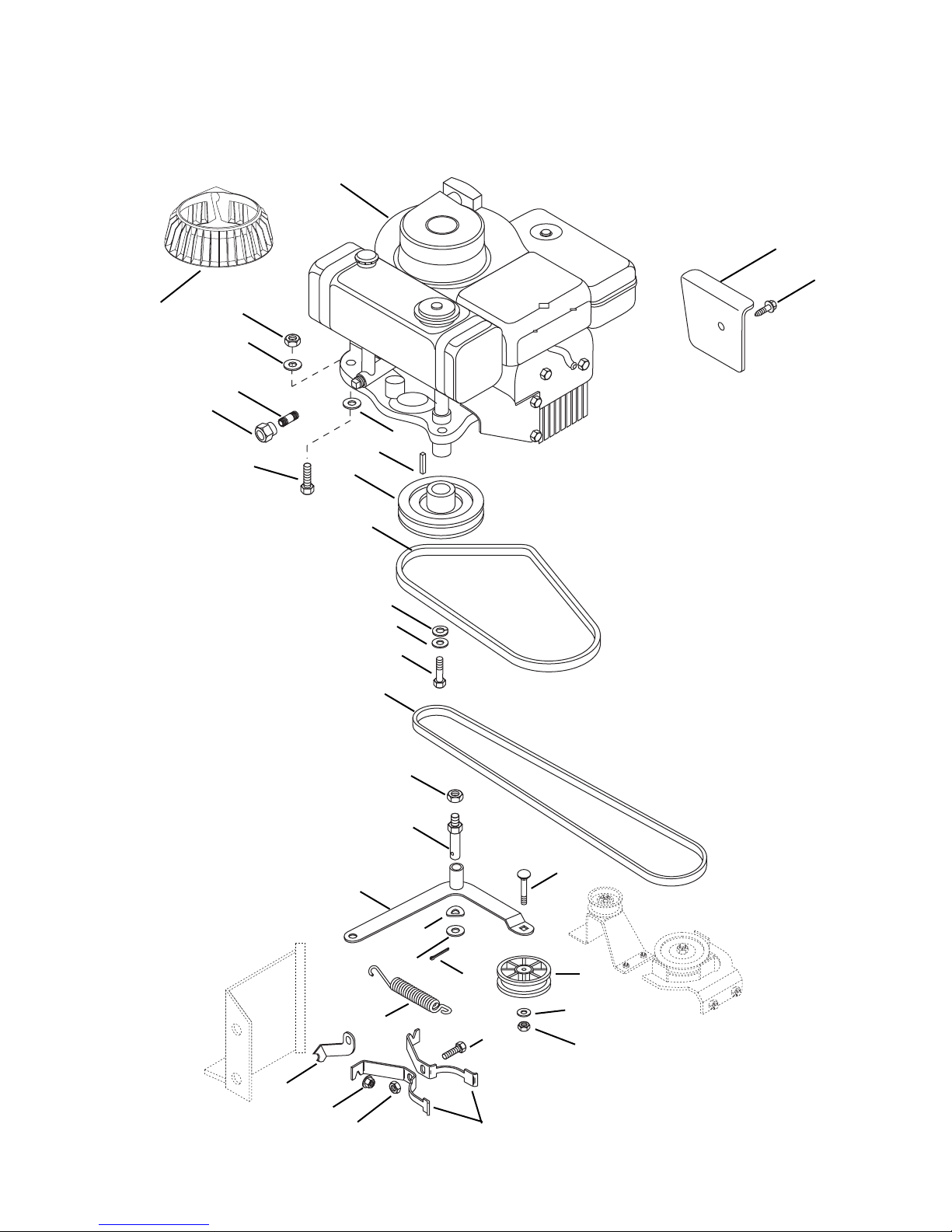

Engine and Belts . . . . . . . . . . . . . . . . . . . . . . . . .12
Rear Axle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Solenoid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

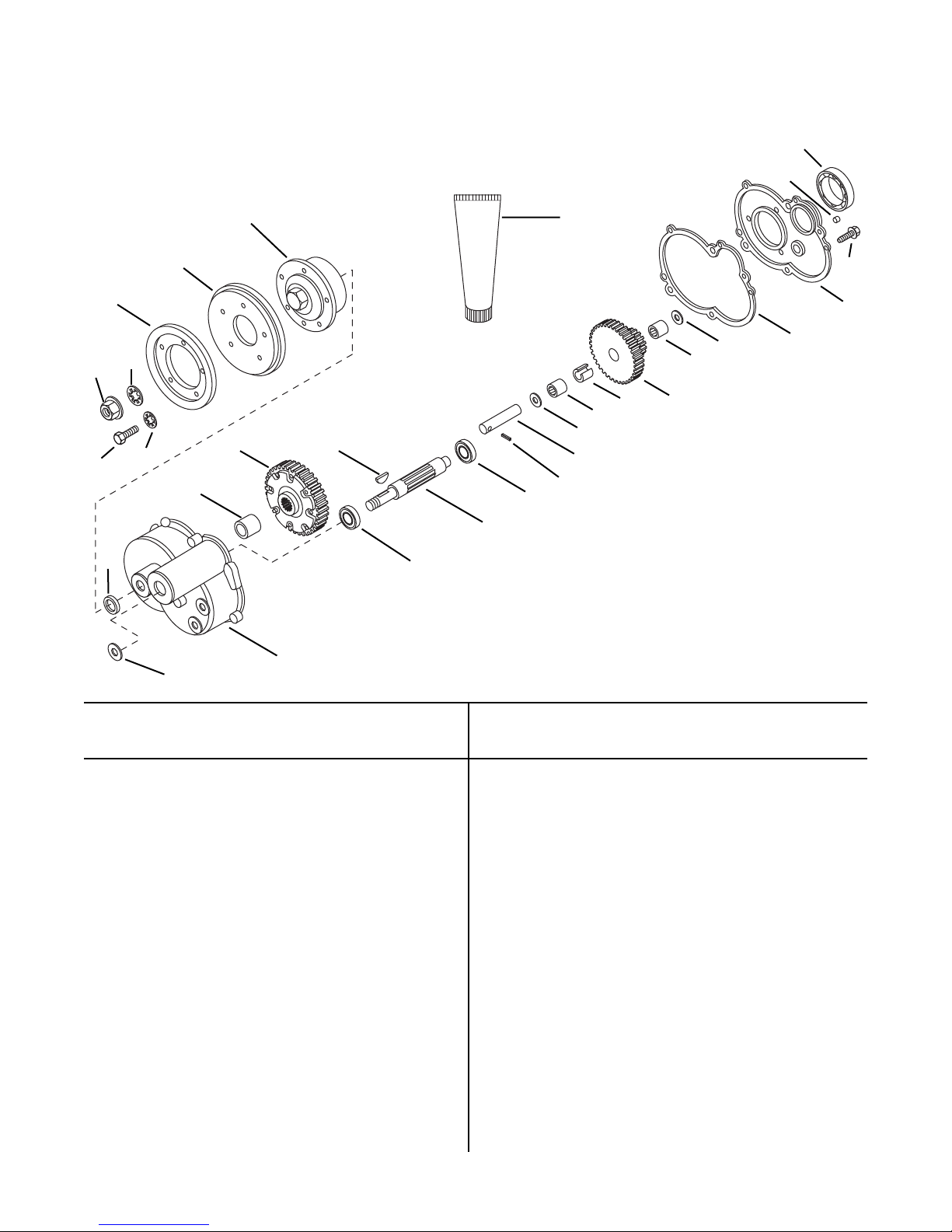

Gear Case . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

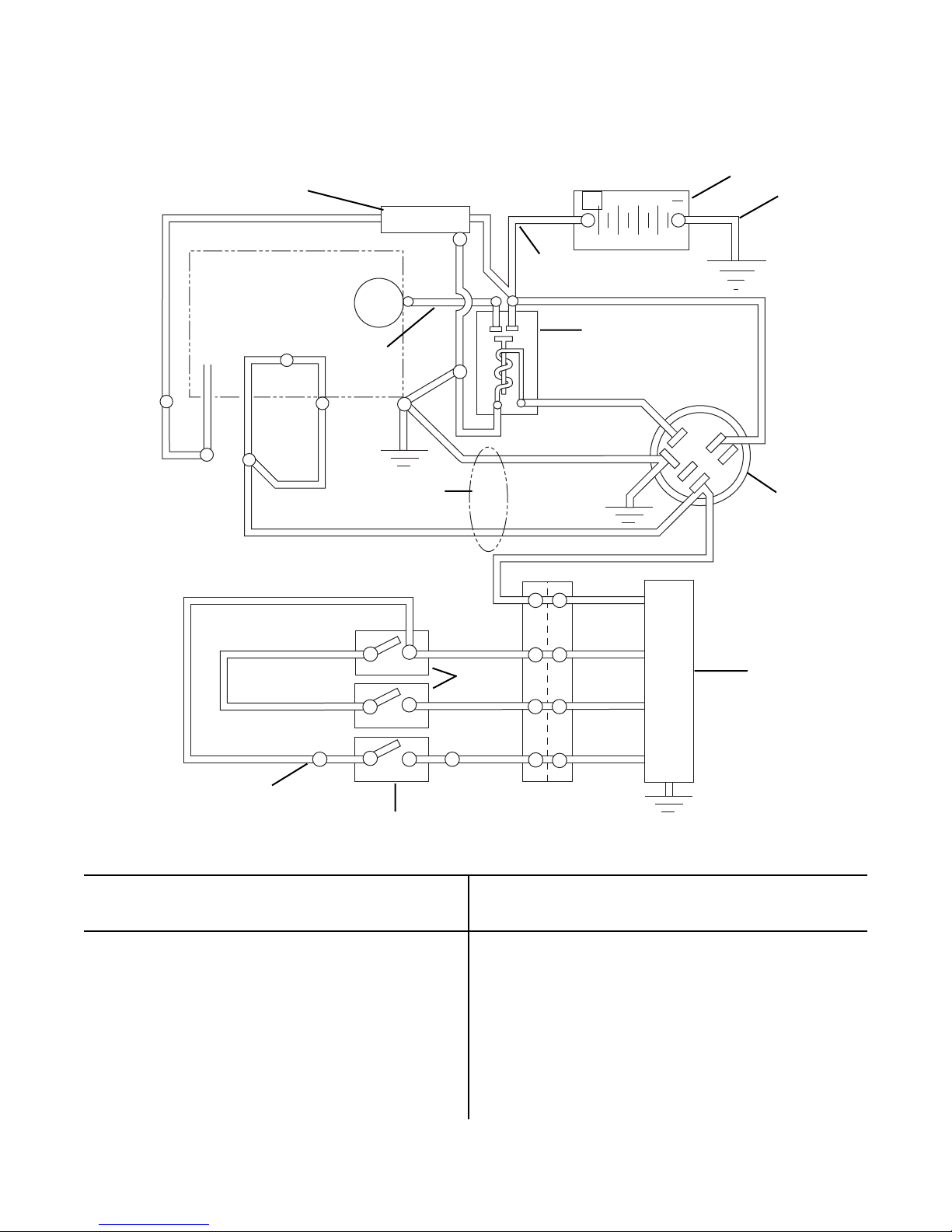

Electrical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Mower Height Linkage . . . . . . . . . . . . . . . . . . . . .18
Mower Engagement Linkage . . . . . . . . . . . . . . . .20
Mower Pan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Mower Spindle . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Hardware descriptions are given in decimals.
© 1999, 2001 Ariens Company - All Rights Reserved
Model 927046 (RM1028e) - 10.0 HP
Briggs & Stratton w/28” Mower
Serial No. 000101 and up
Model 927053 (RM9028) - 9.0 HP
Briggs & Stratton w/28” Mower
Serial No. 000101 and up
Model 927054 (RM9030) -9.0 HP
Briggs & Stratton w/30” Mower
Serial No. 000101 and up
Model 927055 (RM1332) - 13.0 HP
Briggs & Stratton w/32” Mower
Serial No. 000101 and up
Model 927056 (RM1330) - 13.0 HP
Briggs & Stratton w/30” Mower
Serial No. 000101 and up
Model 927306 (RM9028) - 9.0 HP
Briggs & Stratton w/28” Mower
Serial No. 000101 and up
Model 927307 (RM1328) - 13.0 HP
Briggs & Stratton w/28” Mower
Serial No. 000101 and up
Model 927308 (RM1332) - 13.0 HP
Briggs & Stratton w/32” Mower
Serial No. 000101 and up
Model 927310 (RM1028) - 10.0 HP
Briggs & Stratton w/28” Mower
Serial No. 000101 and up
.063 1/16 .563 9/16
.125 1/8 .625 5/8
.188 3/16 .688 11/16
.250 1/4 .750 3/4
.313 5/16 .813 13/16
.375 3/8 .875 7/8
.438 7/16 .938 15/16
.500 1/2 1.00 1
Decimals to Fractions

2

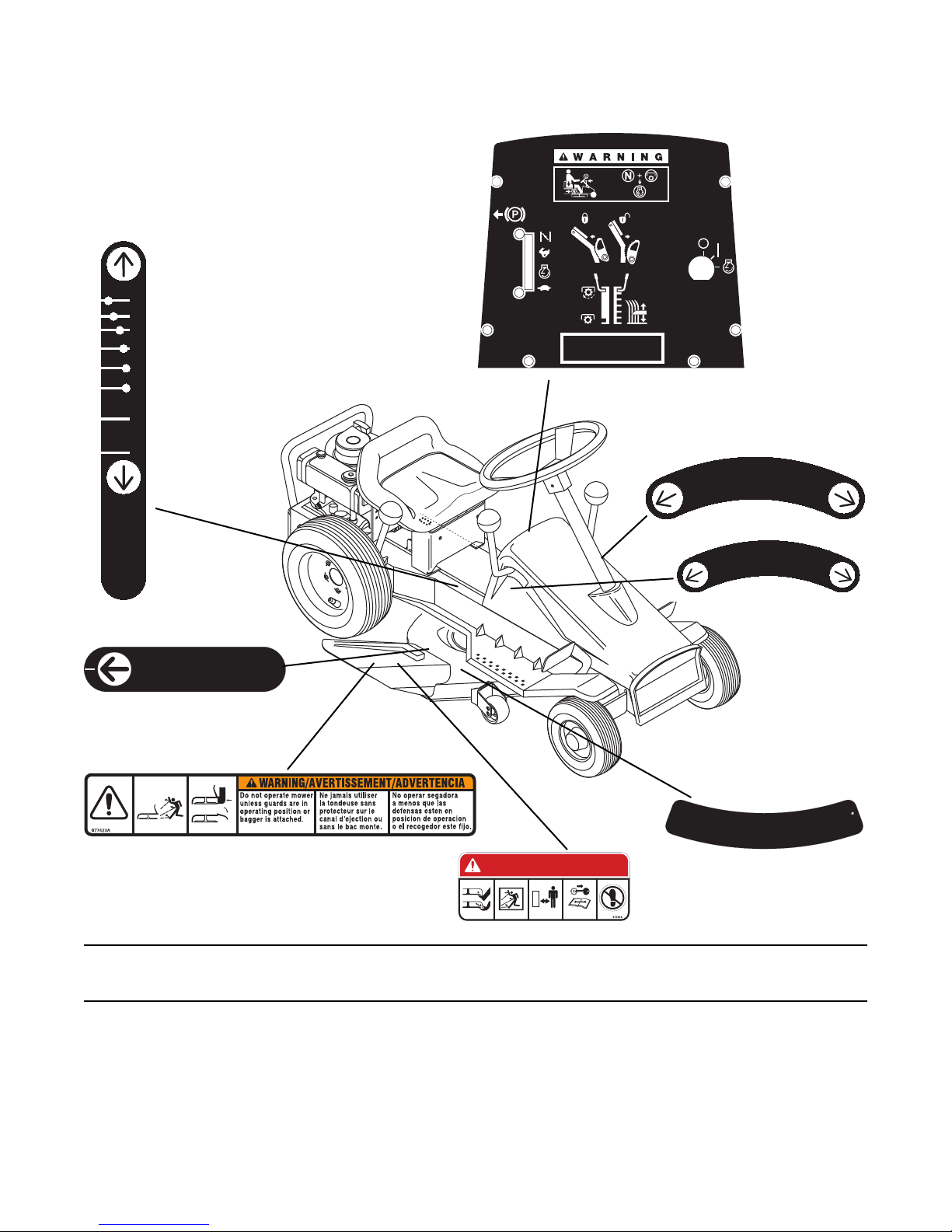

Decals
Models 927046,053,054,055,056,306,307,308,310
R
N
1
2
3
4
5
6
Speed
Selector
Located on
right hand
side of
driver's seat
M
o
w
er
Cl
u
tch
In
O
ut
M
o
w
er
H
ei
ght
H
ig
h
L
o
w
PA0220
DANGER/DANGER/PELIGRO
ITEM PART DESCRIPTION QTY.
NO. NO.
1 07732700 Decal Set - RM Dash (053, 054, 306, 307) 1
05225000 Decal Set - RM Dash (046, 055, 056, 308, 310) 1
2 07855500 Mower Clutch Decal 1
3 07855200 Decal - Speed Selector 1
4 07855400 Mower Height Decal 1
5 63611400 Decal Set - Mower Deck 1
1
2
4
5
5
3
WIDTH OF CUT
WIDTH OF CUT
5
F
L
E
X
-
N
-
F
L
O
A
T
0787
71
A
5

PA0220
3
Decals
Models 927046,053,054,055,056,306,307,308,310
9
9
(927053,306)
(927054)
(927307)
(927055, 308)
(927056)
CAUTION
Before starting engine be sure
machine is in neutral and
mower clutch is disengaged.
078558
Cast Iron Bore
077976
077017
MULCH MOW BAG VAC
1
2
3
4
6
7
ITEM PART DESCRIPTION QTY.
NO. NO.
ITEM PART DESCRIPTION QTY.
NO. NO.
1 07797600 Decal - Cast Iron Bore 1
(054,055,056,307,308)
2 07855800 Caution Decal - Eng. Starting 1
3 07733200 Decal - 9028 (053, 306) 1
4 07732700 Decal Set - RM Dash 1
(054, 307)
5 05225000 Decal Set - RM Dash 1
(046,055,056,308,310)
6 07701700 Decal - Mulch-Mow-Bag-Vac 1
(054,055,306,307,308)
7 07859800 Operating Instructions Decal 1
(053,054,055,056)
(927046,310)
5

4

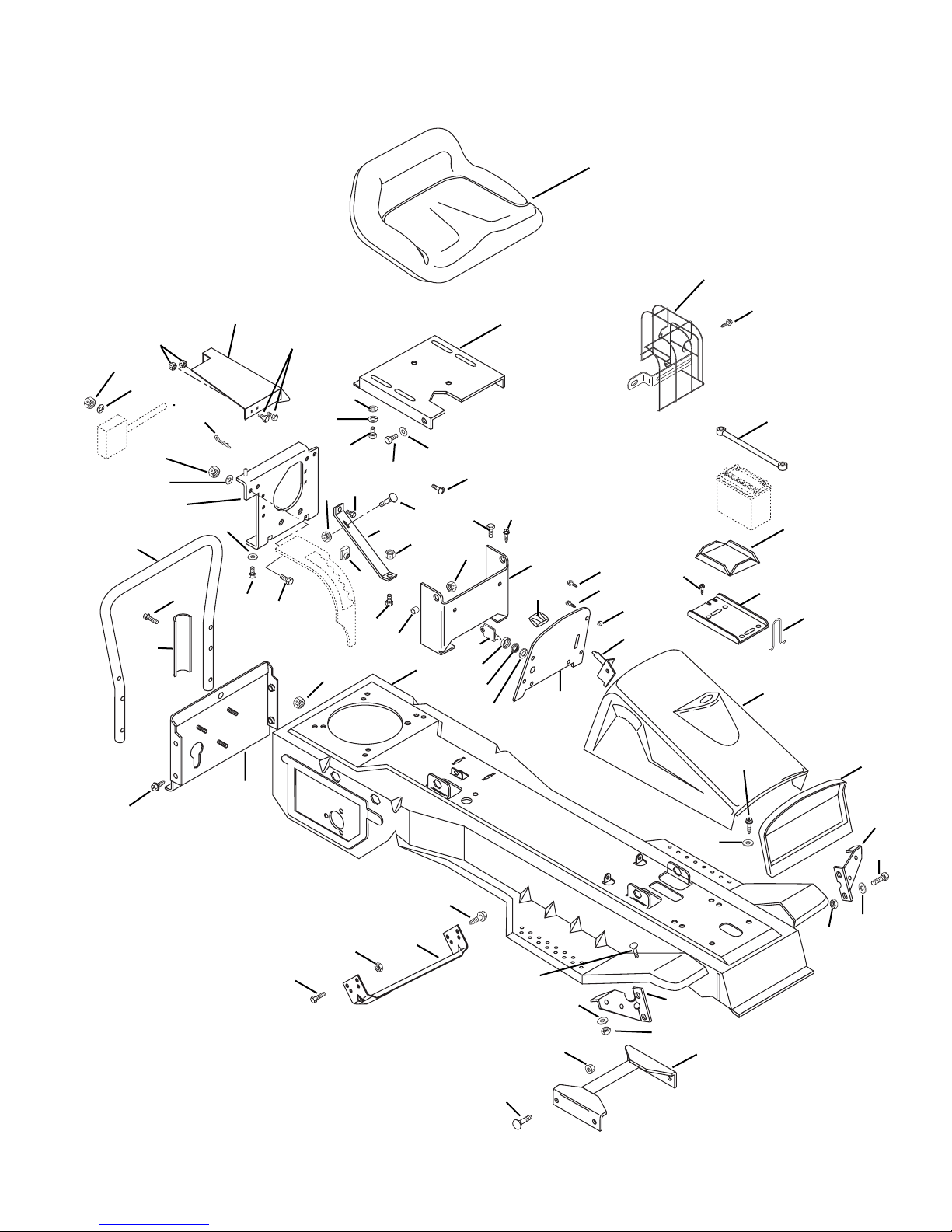

Frame and Seat
Models 927046,053,054,055,056,306,307,308,310
4
25 22
56
2
26
14
15
37
38
39
30
40
41
16
42
43
44
45
46
51
28
48
47
12
48
3
5
17
54
55
12
7
6
11
10
11
7
9
12 22
12
29
20
21
31
32
33
34
22
7
25
24
18
7
35
22
13
23
20
48
52
53
49
50
7
12
1
28
7
36
27
19
7
PA0102
8

5
Frame and Seat
Models 927046,053,054,055,056,306,307,308,310
ITEM PART DESCRIPTION QTY.
NO. NO.
ITEM PART DESCRIPTION QTY.
NO. NO.
1 02756800 Seat V-1400
(055,056,307,308) 1
02755200 Seat V-1300
(046,053,054,306,310) 1
2 02743500 Seat Bracket 1
3 02735100 Baffle (306,310) 1
4 06536600 Nut-Hex 10-24 2
5 06713700 Pin-Hair Internal .09 x .188
x 2.00 2
6 06310400 Washer-Locking-External
.200x.402x.022 1
7 06529800 Nut-Locking-Center .31-18 18
8 06301800 Washer-Lock Internal .313
x .030 2
9 02739100 Seat Leg Assembly 1
10 06435700 Washer-Flat-Steel .38 x .875
x .083 4
11 06307400 Washer-Lock .312 x .097 4
12 05947000 Bolt-Hex .31-18 x .75 11
Grade 5
13 06439400 Washer-Flat-Steel .328 x
.875 x .062 2
14 02755500 Muffler Guard (307,308) 1
15 02755600 Screw (307,308) 3
16 07507500 Battery Strap 1
17 02701200 Standup Tube 1
18 05952400 Bolt-Hex .31-18 x 1.50 Gr. 5 4
19 02722700 Service Bar Brace 2
20 07411500 Screw-Tapping .31-18 x .50 2
21 02701100 Back Cover 1
22 05947900 Bolt-Hex .25-20 x .50 Gr. 5 3
05947900 Bolt-Hex .25-20x.50 Gr.5 5
(306,310)
23 06212200 Bolt-Round Head Square
Neck .312-18 x .62 1
24 02700400 Brace 1
25 06529700 Nut-Locking-Center .25-20 2
06529700 Nut-Locking-Center .25-20 4
(306,310)
26 06116900 Screw-Machine 10-24 x .62 2
27 05947200 Bolt-Hex .31-18 x .50 4
28 07412000 Screw-Tapping .25-20 x .50 4
29 01035800 Spacer Bushing 2
30 52700200 Frame with Decals 1
31 02460900 Key Set 1
32 07517700 Cap-Ignition Switch 1
33 06517300 Nut-Panel .625-32 1
34 06306900 Washer-Lock Internal .625
x .045 2
35 02736400 Seat Pivot Bracket 1
36 07501900 Knob 1
37 07406400 Screw-Tapping 10-12 x .50 6
38 07414900 Screw-Tapping 10-24 x .375 2
39 07507600 Plastic Grommet 6
40 06912700 Throttle Control 1
41 02734500 Dash Panel - RM 1
42 02530700 Rubber Pad 1
43 02742300 Battery Tray 1
44 03640900 Hook 2
45 02708000 Cowl 1
46 02739500 Grille Insert & Shell Assembly 1
47 02718600 Left Hand Fender Brace 1
48 06436700 Washer-Flat-Steel .323 x
.625 x .062 4
49 06215700 Bolt-Round Head Square
Neck .31-18 x .75 2
50 02718700 Right Hand Fender Brace 1
51 02705200 Frame Brace 1
52 06530400 Nut-Locking-Flange .312-18 4
53 06212200 Bolt-Round Head Square
Neck .31-18 x .62 4
54 07415300 Screw-Tapping .312-18 x
1.50 1
55 02717700 Frame Brace 1
56 07009300 Nut-Retainer .25-20 3

6

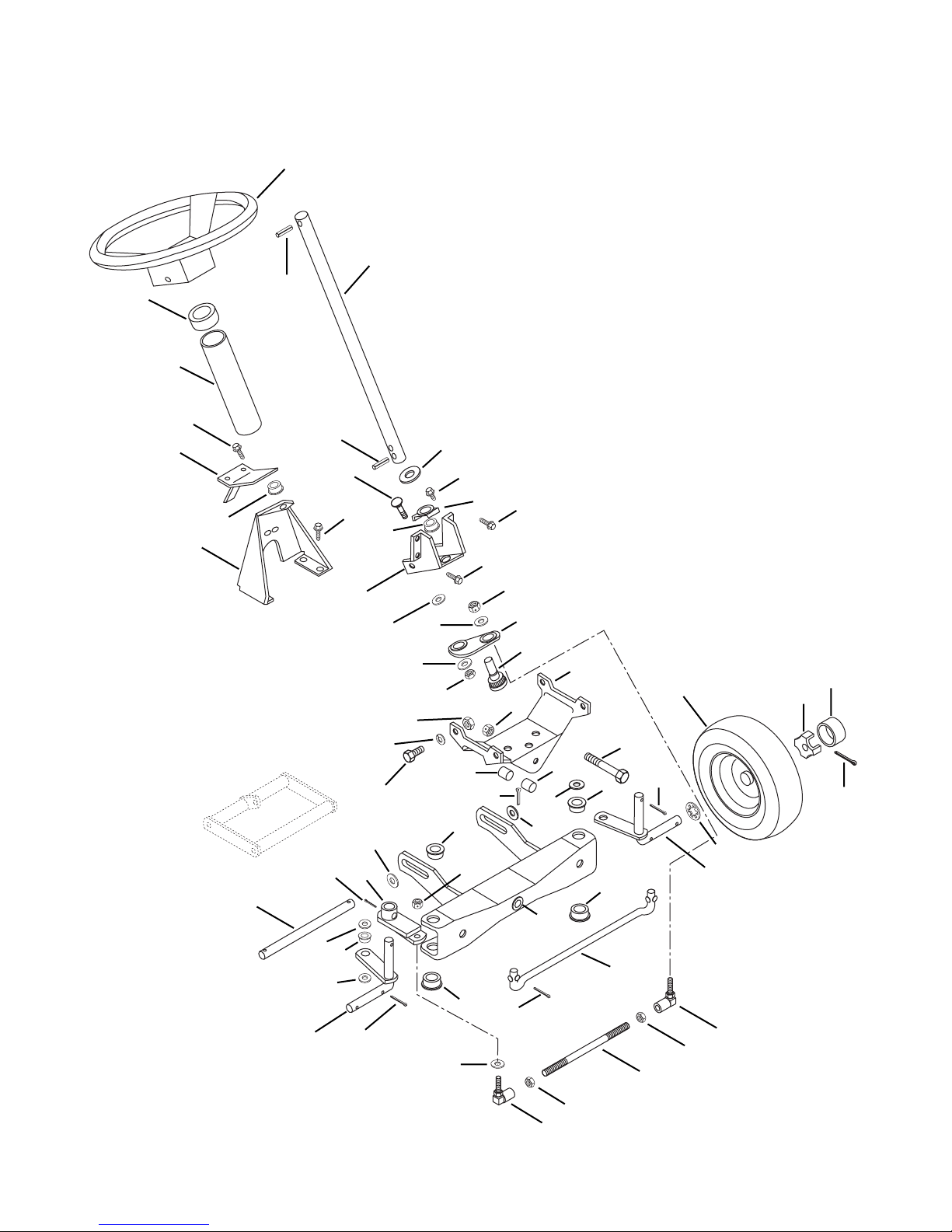

Steering
Models 927046,053,054,055,056,306,307,308,310
4
5
6
7
9
30
36
39
43
42
31
33
8
10
11
2
1
13
14 15
44
41 46
52
33
45
44
17
3
18
19
6
21
22
23
24
29
34
8
22
8
38
8
37
34 39
41
48
49
50
51
50
49
47
8
40
28
20
6
12
16
25
27
26
35
36
32
PA0141

7
Steering
Models 927046,053,054,055,056,306,307,308,310
ITEM PART DESCRIPTION QTY.
NO. NO.
ITEM PART DESCRIPTION QTY.
NO. NO.
1 02753700 Steering Wheel 13 Inch 1
2 05803700 Pin-Roll .250 x 1.75 1
3 02749100 Steering Shaft 1
4 07503700 Plug 1
5 02753800 Tube 1
6 07411500 Screw-Tapping .31-18 x .50 11
7 02707600 Brace 1
8 01212800 Flange Bushing 5
9 02707400 Steering Support 1
10 05801600 Pin-Roll .188 x 1.00 2
11 06215500 Bolt-Round Head Square
Neck .38-16 x 1.0 1
12 05505300 Bushing-Flange .625 x 1.156
x .375 1
13 02705300 Steering Bracket 1
14 02506200 Spacer .380 x .750 x .236 1
15 06445100 Washer-Flat-Steel .630 x
1.250 x .062 1
16 06443400 Washer-Flat-Steel .380 x
1.500 x .125 1
17 06537200 Nut-Locking-Jam .38-16 1
18 06418100 Washer-Hardened-Steel-Thr
.515 x .97 x .062 1
19 07415500 Screw-Tapping 10-24 x .25 4
20 01310000 Retaining Plate 1
21 07411500 Screw-Tapping 10-24x.25 1
22 06538800 Nut-Locking-Nylon .375-24 2
23 02506100 Steering Gear 1
24 02705400 Pinion 1
25 07005300 Bolt-Serrated Round Head
Slotted .31-18 x .75 4
26 06308800 Washer-Lock .38 x .094 4
27 06530400 Nut-Locking-Flange .312-18 4
28 06536300 Nut-Locking-Center .50-13 1
29 02706600 Axle Bracket 1
30 07126400 Tire/Wheel Assembly 2
07108000 Tire 4.10/3.50 - 4 2
05505800 Bushing-Flange .750 x 1.380
x .750 x 1.557 4
07123100 Wheel-Compression 2
31 01238200 Spindle Cup 2
32 00337700 Hub Cap 2
33 06707100 Pin-Cotter .12 x 1.0 4
34 05516400 Bushing-Sleeve .500 x .750
x 1.560 2
35 06706900 Pin-Cotter .09 x .75 1
36 06436600 Washer-Flat-Steel .505 x .880
x .072 2
37 06441500 Washer-Flat-Steel .755 x
1.375 x .062 1
38 05961900 Bolt-Hex .50-13 x 4.00 Gr. 5 1
39 05804000 Pin-Groove .250 x 1.25 1
40 02512000 Spindle Washer 2
41 02735300 R.H. Wheel Spindle 1
02735400 L.H. Wheel Spindle 1
42 02706300 Arm 1
43 02508600 Hanger Pin 1
44 06436000 Washer-Flat-Steel .505 x
.875 x .024 4
45 05503700 Bushing-Flange .500 x .625
x .312 x .750 2
46 06712600 Pin-Cotter .12 x 1.25 3
47 02729200 Axle 1
48 02706400 Tie Rod 1
49 02917100 Ball Joint 2
50 06534700 Nut-Jam .375-24 2
51 02705800 Steering Link 1
52 06436200 Washer-Flat-Steel .406 x
.812 x .065 1

8
Speed Selector
Models 927046,053,054,055,056,306,307,308,310
21
16
17 18
3
4
46
2
45
28
20
19
60
44
20
19
11
53
40
27
55
1
612
22
11
5
13
14
7
36
8
9
10
11
43
54
51
50
5
23
24
25
26
29
30
31
13
15
27
40
15
32
33
34
35
37
38
39
41
42
47
49
48
15
52
PA0111

9
Speed Selector
Models 927046,053,054,055,056,306,307,308,310
ITEM PART DESCRIPTION QTY.
NO. NO.
ITEM PART DESCRIPTION QTY.
NO. NO.
1 05921500 Bolt-Hex .31-18 x 1.50 1
2 07534300 Knob, 1.4 Dia. .50-13 1
3 02756700 Shift Lever 1
4 02712900 Shoulder Bolt 1
5 06529200 Nut-Hex .31-18 3
6 05503600 Bushing-Flange .372 x .500
x .312 x .625 1
7 02700700 Bell Crank 1
8 06441900 Washer-Flat-Steel .531 x
1.06 x .095 1
9 06407800 Washer-Flat-Steel .38 x .626
x .033 1
10 08309900 Spring-Tension .92 x 69 x
1.75 1
11 06706900 Pin-Cotter .09 x .75 3
12 05947000 Bolt-Hex .31-18 x .75 Grade 5 1
13 06439700 Washer-Flat-Steel .344 x
1.375 x .075 2
14 00607100 Spacer Bushing .5 x .32 x .21 1
15 06529800 Nut-Locking-Center .31-18 3
16 02700800 Shift Rod 1
17 06537400 Nut-Jam .375-24 1
18 03645500 Ball Joint-Snap In 1
19 01212900 Flange Bushing 2
20 05504700 Bushing-Sleeve .625 x .750
x .500 2
21 05403900 Bearing Ball .625 x 1.375
x .44 1
22 02701700 Shift Link 1
23 06530000 Nut-Locking-Center .50-20 1
24 06418100 Washer-Hardened-Steel-Thr
.515 x .97 x .062 1
25 02716100 Bearing Housing 1
26 52709000 Carrier Assembly 1
27 06707100 Pin-Cotter .12 x 1.0 2
28 02701900 Transfer Shaft 1
29 02750900 Carrier Yoke 1
30 07411500 Screw Tapping .31-18 x .50 5
31 02735200 Neutral Stop 1
32 07414400 Screw-Tapping .31-18 x .75 4
33 05512800 Bushing-Sleeve .634 x 1.000
x .465 1
34 05412000 Bearing-Ball .750 x 1.781
x .61 1
35 07412000 Screw-Tapping .250-20 x .50 4
36 06413400 Washer-Hardened-Thrust
.758 x 1.23 x .031 1
37 02716000 Disc Adapter 1
38 02715900 Spindle Bolt 1
39 02528400 Disc 1
52709100 Drive Carrier Assembly 1
40 01212800 Flange Bushing 2
41 02703800 Shift Arm 1
42 06537000 Nut-Locking-Center .31-24 1
43 02703900 Indicator Rod 1
44 057019 Ring-Retaining-Extention
.625 x .035 2
45 07412000 Screw-Tapping .25-20 x .50 2
46 06700300 Pin-Cotter .06 x .50 1
47 06529700 Nut-Locking-Center .25-20 4
48 06908300 Clip 1
49 02754200 Bracket-Neutral 1
50 06436700 Washer-Flat-Steel .323 1
x .625 x .062
51 01035800 Spacer Bushing 1
52 02707000 Quadrant 1
53 06221800 Bolt-Round Head Square
Neck .31-18 x 1.0 1
54 02704000 Indicator 1
55 05947900 Bolt-Hex .25-20 x .50 Gr. 5 6

10
Brake and Clutch
Models 927046,053,054,055,056,306,307,308,310
30
1
15 17
18
10
8
12
13
11
367
9
5
2
31
37
38
39
36 2
34
2
29
30
31
32
33
28
4
9
27 10
26
25
24
4
21 22
23
4
10
3
12
32
8
20
19
814
16
35
PA0121

11
Brake and Clutch
Models 927046,053,054,055,056,306,307,308,310
ITEM PART DESCRIPTION QTY.
NO. NO.
ITEM PART DESCRIPTION QTY.
NO. NO.
1 02701300 Clutch, Shaft 1
2 02505500 Flange Bushing 4
3 06707100 Pin-Cotter .12 x 1.0 3
4 06529800 Nut-Locking-Center .31-18 3
5 02503300 Brake Band 1
6 06439600 Washer-Flat-Steel .520 x
.810 x .033 1
7 02703500 Clutch Bracket 1
8 06529200 Nut-Hex .31-18 5
9 06706900 Pin-Cotter .09 x .75 6
10 06436700 Washer-Flat-Steel .323 x
.625 x .062 4
11 02702700 Brake Lever 1
12 06707300 Pin-Cotter .12 x .75 2
13 02702800 Clevis Pin .368/.373 x 3-1/4 1
14 06301800 Washer-Lock Internal .313
x .030 2
15 08309000 Spring-Compression .105 x
.585 x .75 1
16 02702200 Brake Bracket 1
17 02703700 Brake Rod 1
18 08325200 Spring-Tension .051 x .60 x
2.25 1
19 02703600 Clutch Rod 1
20 07005300 Bolt-Serrated Round Head
Slotted .31-18 x .75 2
21 06439400 Washer-Flat-Steel .328 x
.875 x .062 1
22 01035800 Spacer Bushing 1
23 08317900 Spring-Torsion .125 x 1.0 x
1.75 1
24 05947000 Bolt-Hex .31-18 x .75 Gr. 5 1
25 02519400 Brake Latch 1
26 06435700 Washer-Flat-Steel .38 x .875
x .083 1
27 05946900 Bolt-Hex .31-18 x 1.00 Gr. 5 1
28 02703200 Clutch Pedal Arm 1
29 02713800 Clutch Arm 1
30 02740000 Clevis Pin .184/.186 x 1 2
31 06700300 Pin-Cotter .06 x .50 2
32 02703300 Brake Arm 1
33 06529900 Nut-Hex 8-32 2
34 06117800 Screw-Machine 8-32 x 1.00 1
35 02519500 Spacer Shoulder .344 x 1
.500 x .469 x .750
36 06537200 Nut-Locking-Jam .38-16 2
37 02703400 Brake Pedal Arm 1
38 02706900 Pedal 2
39 06211800 Bolt-Round Head Square
Neck .38-16 x .75 2

12
Engine and Belts
Models 927046,053,054,055,056,306,307,308,310
21
22
27
28 329
26
2
23 24
7
1
3
4
7
6
5
8
9
10
13
14
15
16
17
18
19
20
25
11
12
7
3
PA0150

13
Engine and Belts
Models 927046,053,054,055,056,306,307,308,310
ITEM PART DESCRIPTION QTY.
NO. NO.
ITEM PART DESCRIPTION QTY.
NO. NO.
1 08251600 Engine - 9.0 HP B & S I/C
(053,054,306) 1
08251700 Engine - 13 HP B & S I/C
(055,056,307,308)
08260300 Engine - 10 HP B & S non I/C
(046,310)
2 02755400 Pre-Guard-Rewind (306,307,
308,310) 1
3 06529800 Nut-Locking-Center .31-18 5
4 02749600 Nipple 1
5 03563600 Pipe Cap 1
6 05952400 Bolt-Hex .31-18 x 1.50 Gr. 5 4
7 06439400 Washer-Flat-Steel .328 x
.875 x .062 9
8 06602100 Key-Straight .25 x 2.0 x .25 1
9 02701000 Engine Sheave 1
10 07211200 V-Belt 3L-Section 35-1/2 x
27/64 1
11 02755700 Guard (306,310) 1
12 07412100 Screw-Tapping 10-24 x .375
(306,310) 1
13 06408300 Washer-Flat-Steel .505 x
1.140 x .250 1
14 06310700 Washer-Lock .438 x .133 1
15 05964800 Bolt-Hex .44-20 x 1.25 Gr 5 1
16 07216900 V-Belt HA 64.56 x .516
(046,053,054,056,306,307,310) 1
07215500 V-Belt 4L-Section 64-3/4 x
17/32 (055,308) 1
17 06529600 Nut-Locking-Center .375-16 1
18 02714000 Shoulder Stud 1
19 02700600 Idler Arm 1
20 06212100 Bolt-Round Head Square
Neck .31-18 x 1.50 1
21 00325400 Wave Washer 1
22 06436000 Washer-Flat-Steel .505 x
.875 x .024 1
23 06706900 Pin-Cotter .09 x .75 1
24 07321600 Idler-Flat 2.75 x .31 1
25 05947000 Bolt-Hex .31-18 x .75 Gr. 5 1
26 08319200 Spring-Tension .062 x .72
x 6.65 1
27 02509200 Belt Finger Brace 1
28 06530400 Nut-Flange .312-18 3
29 02504400 Belt Finger 1

14
Rear Axle
Models 927046,053,054,055,056,306,307,308,310
6
16
18
19
21
17
35
12
11
13
14
15
20
10
1
2
3
4
97
8
22
1
ITEM PART DESCRIPTION QTY.
NO. NO.
ITEM PART DESCRIPTION QTY.
NO. NO.
1 00337700 Hub Cap 2
2 03516900 Spindle Cap 1
3 05511900 Bushing-Sleave .690 x .814
x 1.000 2
4 52709200 L.H. Axle Assembly 1
5 07012600 Fitting-Lube .25-2 x .256 1
6 06307000 Washer-Lock .250 x .047 1
7 07412000 Screw-Tapping .25-20 x .50 3
8 05607100 Seal 1.125 x 2.496 x .38 1
9 07415300 Screw-Tapping .312-18 x
1.50 2
10 01014200 Bearing Flange 1
11 06530100 Nut-Locking-Flange .250-20 3
12 06403600 Washer-Flat-Steel .880 x
1.380 x .062 1
13 06707100 Pin-Cotter .12 x 1.0 1
14 02718100 Right Hand Axle 1
15 05800300 Pin-Roll .188 x 1.25 1
16 05409300 Bearing Ball .75 x .880 x .50 1
17 00301700 Bearing Flange 1
18 52708600 Gear Case Assembly
(See Next page for detail) 1
19 07115200 Tire/Wheel Assembly #35-16
x 6.50-8 2
07102100 Tire 8 x 6.50 2
07107700 Wheel Indus: #213435493 2
20 07412200 Screw-Tapping .500-20 x .62 8
21 01238200 Spindle Cup 1
22 01036600 Pushnut 1
PA0160

15
Solenoid
1
2
3
45
5
6
ITEM PART DESCRIPTION QTY.
NO. NO.
ITEM PART DESCRIPTION QTY.
NO. NO.
1 06536700 Nut-Jam .31-24 2
2 06306800 Washer-Lock-External .262 x
.502 x .026 4
3 06536800 Nut 10-32 1
4 06310400 Washer-Lock-External .200 x
.402 x .022 1
5 06531000 Nut-Locking-Nylon .250-20 2
6 06220600 Bolt-Round Head Square
Neck .25-20 x .50 2
7 03057700 Solenoid 1
1 06531000 Nut-Locking-Nylon .250-20 2
2 06306800 Washer-Lock External .262 x
.502 x .026 4
3 03057700 Solenoid 1
4 06220600 Bolt-Round Head Square
Neck .25-20 x .50 2
5 06310400 Washer-Lock External .200 x
.402 x .022 1
6 06536800 Nut 10-32 1
7 06536700 Nut-Jam .31-24 2
7
Models 927046,055,056,308,310 Models 927053,054,306,307
1
2
3
4
5
7
62
2
4

16
Gear Case
Models 927046,053,054,055,056,306,307,308,310
67
11
12 13
14
15
14
16
27
17
18
19 20 21
19 18 22
23
24
25
26
1
2
3
4
8
10
9
5
ITEM PART DESCRIPTION QTY.
NO. NO.
ITEM PART DESCRIPTION QTY.
NO. NO.
1 02503400 Friction Disc Hub 1
2 00300300 Friction Disc 1
3 02520600 Guard 1
4 06306900 Washer-Lock Internal
.625 x .045 1
5 06530300 Nut-Locking Nylon .625-18 1
6 05947200 Bolt-Hex .31-18 x .50 Gr. 5 5
7 06301800 Washer-Lock Internal
.313 x .030 5
8 05511800 Bushing Sleeve .875 x
1.125 x 1.046 1
9 52704200 Differential Assembly 2
10 06600100 Key-Woodruff .188 x .875
x .38 1
11 05605100 Seal .875 x 1.125 x .125 1
12 06408900 Washer-Flat-Steel .627 x
.990 x .032 1
13 52708500 Service Gear Case 1
14 05403900 Bearing-Ball .625 x 1.375
x .44 2
15 02523400 Pinion Shaft 1
16 05803400 Pin-Roll .125 x .75 1
17 02702300 Idler Shaft 1
18 06436000 Washer-Flat-Steel .505 x
.875 x .024 2
19 05409000 Bearing-Needle .50 x .688
x .625 2
20 02737000 Spacer-Cut .640 x .688 x
.625 1
21 52502700 Pinion & Gear w/ Bearing
Assembly 1
22 02737100 Gasket 1
23 52700500 Gear Case Cover Assembly 1
24 07415200 Screw-Tapping 10-24 x 1.0 4
25 00200900 Breather 1
26 05409100 Bearing-Ball 1.125 x 2.50
x .63 1
27 00929100 Grease Sten Mix 1
PA0170

17
Electrical
Models 927046,053,054,055,056,306,307,308,310
ITEM PART DESCRIPTION QTY.
NO. NO.
ITEM PART DESCRIPTION QTY.
NO. NO.
1 01238500 Regulator 1
2 02759300 Starter Cable 18” (046,055,
056,308,310) 1
02727900 Starter Cable 16” (053,054,
306,307) 1
3 02749400 Battery 1
4 02518900 Ground Cable 1
5 02727200 Starter Cable 13” 2
6 03057700 Solenoid 1
7 02753600 Wire Harness RM
B & S Engines 1
8 52709300 Switch Assembly 1
9 02754100 Switch-Snap Mounting N.O. 2
10 08885700 Module,Interlock, Recoil 1
11 02739700 Adapter - Seat Switch 1
12 03171600 Switch Seat 1
13 02755800 Harness Adapter 1
+
Yellow Regulator Red
Black
Red Green
Brown
Pink
Pink
Red
Yellow
Yellow
Yellow
Green
Brown
Red
Black
White
Red
Seat
Blue
Clutch
Neutral
Yellow
Red Alternator
Engine
Electronic
Ignition
Plug
SB
M
G
Black
Start
1
2
4
6
8
10,13
12
11
9
7
5
3
PA0130

32
18
Mower Height Linkage
Models 927046,053,054,055,056,306,307,308,310
19
28
31
30
16
29
7
14
43 32
44
1
2
3
13
17
18
27
25
26
16
4
33
36
38
7
10
34
42
21
20
7
24
7
28
23
22
6
7
8
9
10
15
35
39
41
37
40
14
5
4
12
11 10
PA0181
