Owner/Operator Manual
Model
934027 - YT 2248
Yard Tractor
03364400A 12/00
Supersedes 03364400
Printed in USA
ENGLISH
FRANÇAIS
ESPAÑOL

3
The engine exhaust from this product
contains chemicals known to the State
of California to cause cancer, birth
defects or other reproductive harm.
WARNING
ENGLISH
1. Fuel Tank Fill
2. Brake Pedal
3. Attachment Lift Lever
4. Throttle
5. Head Light Switch
6. Ignition/Key Switch
7. PTO Switch
8. Headlights
9. Parking Brake Latch
10. Fuel Level Indicator
11. Seat Position Adjustment Lever
12. Transmission Disconnect (Dump Valve)
13. Mower Height Indicator
14. Choke Control
15. Cruise Control Switch
16. Indicator Lights
17. Forward Pedal
18. Reverse Pedal
19. Anti-Scalp Roller
20. Deflector
21. Hood Latch
FRANÇAIS
1. Réservoir d’essence
2. Pédale de frein
3. Levier de relevage de l’outil
4. Manette des gaz
5. Commande des phares
6. Démarrage/Cléde contact
7. Commande de la PdF
8. Phares
9. Verrouillage du frein de stationnement
10. Indicateur de niveau de carburant
11. Poignée de réglage du siège
12. Désenclenchement de la transmission
(soupape de décharge)
13. Indicateur de hauteur de coupe
de la tondeuse
14. Commande du starter
15. Régulateur de vitesse
16. Lampes témoin
17. Pédale de marche avant
18. Pédale de marche arrière
19. Rouleau anti-scalp
20. Déflecteur
21. Fermeture du capot
ESPAÑOL
1. Llenado del depósito de combustible
2. Pedal del freno
3. Palanca de elevación del accesorio
4. Acelerador
5. Interruptor de los faros delanteros
6. Interruptor de arranque
7. Interruptor de la TDF
8. Faros
9. Traba del freno de estacionamiento
10. Indicador del nivel de combustible
11. Palanca de ajuste de la posición
del asiento
12. Desconexión de la transmisión (válvula
de descarga)
13. Indicador de altura del cortacésped
14. Control del estrangulador
15. Interruptor del piloto automático
16. Luces indicadoras
17. Pedal de desplazamiento hacia
adelante
18. Pedal de marcha atrás
19. Rodillo anti-desbroce
20. Deflector
21. Presilla del capó
CONTROLS AND FEATURES
12
8
19
10
11
1
3
20
21
13 9
18
17
6
7
15
5
16
4
14
2
OT0121
OT0181
OT1370
Figure 1
OL4030

GB - 4
Controls & Features. . . . . . . . . . . . . . . . . . . . . . . 3
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Safety. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Service & Adjustments . . . . . . . . . . . . . . . . . . . 15
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . 19
Attachments . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
THE MANUAL
Before operation of unit, carefully and completely read
your manuals. The contents will provide you with an
understanding of safety instructions and controls
during normal operation and maintenance.
All reference to left, right, front, or rear are given from
operator sitting in operation position and facing the
direction of forward travel.
MODEL AND SERIAL NUMBERS
When ordering replacement parts
or making service inquiries, know
the Model and Serial numbers of
your unit and engine.
Numbers are located on the product
registration form in the unit literature
package. They are printed on a
serial number label, located on the
frame of your unit.
•Record Unit Model and Serial numbers here.
•Record Engine Model and Serial numbers here.
PRODUCT REGISTRATION
A warranty registration card must be filled out, signed,
and returned at time of purchase. This card activates
the warranty. Claims meeting requirements during
limited warranty period will be honored.
UNAUTHORIZED REPLACEMENT PARTS
Use only Ariens replacement parts.The replacement of
any part on this vehicle with anything other than an
Ariens authorized replacement part may adversely
affect the performance, durability, or safety of this unit
and may void the warranty. Ariens disclaims liability for
any claims or damages, whether warranty, property
damage, personal injury or death arising out of the use
of unauthorized replacement parts.
For a brief list of replacement parts see Service Parts
in this manual. To obtain a complete parts manual, find
your model and serial number. Then go to
www.ariens.com or call 1-800-678-5443.
DISCLAIMER
Ariens reserves the right to discontinue, make changes
to, and add improvements upon its products at any time
without public notice or obligation. The descriptions
and specifications contained in this manual were in
effect at printing. Equipment described within this
manual may be optional. Some illustrations may not be
applicable to your unit.
DELIVERY
Customer Note: If you have purchased this product
without complete assembly and instruction by your
retailer, it is your responsibility to:
1. Read and understand all assembly instructions in
this manual. If you do not understand or have
difficulty following the instructions, contact your
nearest Ariens Dealer for assistance. Make sure
all assembly has been properly completed.
NOTE: To locate your nearest Ariens Dealer, call
1-800-678-5443 or go to www.ariens.com on the
internet.
TABLE OF CONTENTS
INTRODUCTION
Transfer
model & serial
number label
from product
registration
here.
Serial
Number
Label
OT0552
Figure 2
© 2000 Ariens Company

GB - 5
2. Understand all Safety Precautions provided in the
manuals.
3. Review control functions and operation of the
unit. Do not operate unit unless all controls
function as described in this manual.
4. Review recommended lubrication, maintenance
and adjustments.
5. Review Limited Warranty Policy.
6. Fill out Original Purchaser Registration Card and
return the card to Ariens Company.
SAFETY ALERTS
Look for these symbols to point out
important safety precautions. They mean:
Attention!
Personal Safety Is Involved!
Become Alert!
Obey The Message!
The safety alert symbols above and signal words below
are used on decals and in this manual.
Read and understand all safety messages.
NOTATIONS
NOTE: General reference information for proper
operation and maintenance practices.
IMPORTANT: Specific procedures or information
required to prevent damage to unit or attachment.
PRACTICES AND LAWS
Practice usual and customary safe working
precautions, for the benefit of yourself and others.
Understand and follow all safety messages. Be alert to
unsafe conditions and the possibility of minor,
moderate, or serious injury or death. Learn applicable
rules and laws in your area. Always follow the practices
set forth in this manual.
REQUIRED OPERATOR TRAINING
Original purchaser of this unit was instructed by the
seller on safe and proper operation by the seller. If unit
is to be used by someone other than original
purchaser; loaned, rented or sold, ALWAYS provide
this manual and any needed safety training before
operation.

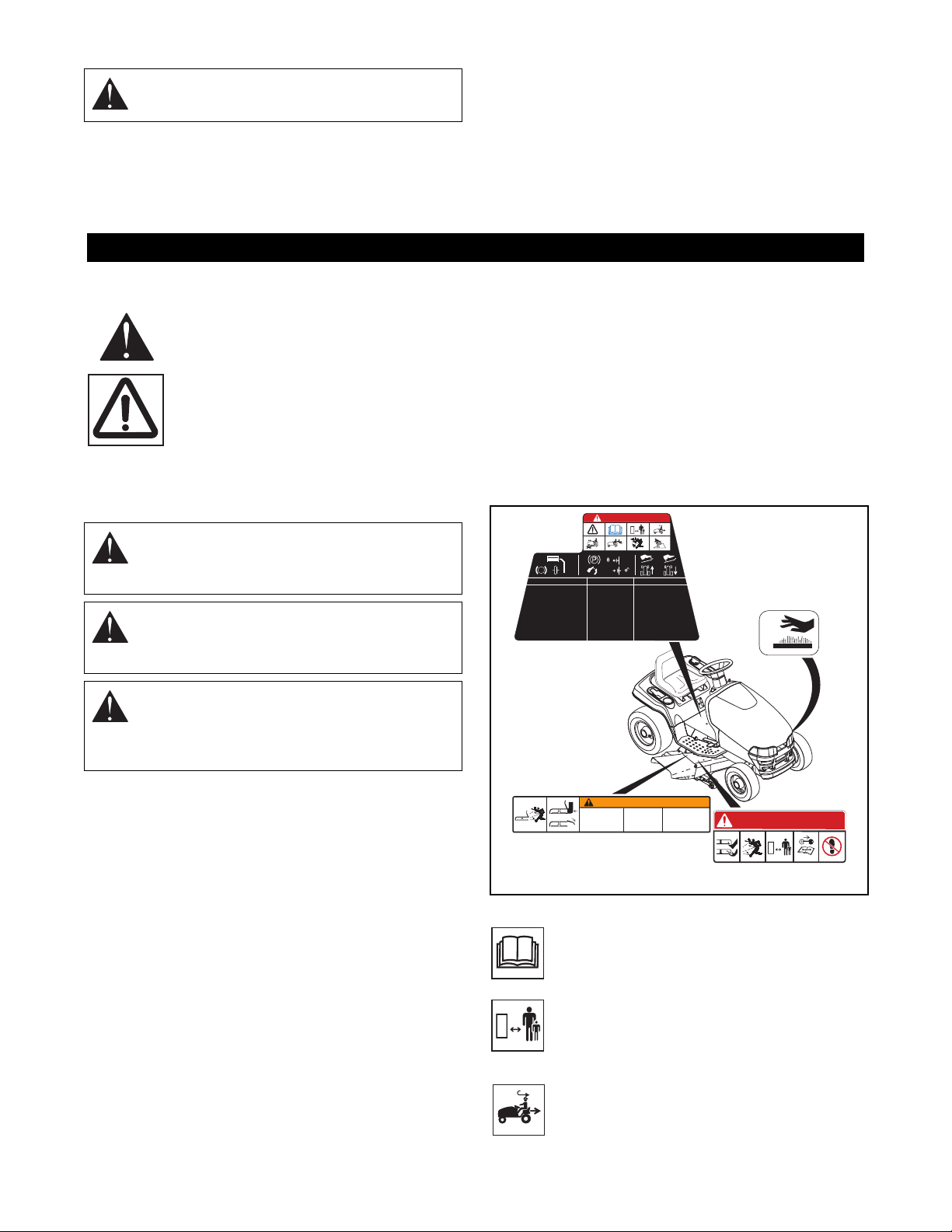

SAFETY DECALS AND LOCATIONS
ALWAYS replace missing or damaged Safety Decals.
Refer to figure below for Safety Decal locations.
1. DANGER!
Read the operator’s manual.
Allow operation only by properly trained adult,
never children.
DO NOT mow when children or others are
around.
Keep children out of work area and under
watchful care of a responsible adult.
Look down and behind before and while
backing.
DO NOT operate in reverse unless absolutely
necessary. Always back up slowly.
WARNING: Improper assembly or
adjustments can cause serious injury.
SAFETY
DANGER: IMMINENTLY HAZARDOUS
SITUATION! If not avoided, WILL RESULT in
death or serious injury.
WARNING: POTENTIALLY HAZARDOUS
SITUATION! If not avoided, COULD RESULT
in death or serious injury.
CAUTION: POTENTIALLY HAZARDOUS
SITUATION! If not avoided, MAY RESULT in
minor or moderate injury. It may also be used
to alert against unsafe practices.
DANGER / PELIGRO
PARA EVITAR DAÑOS SERIOS
O LA MUERTE
TO AVOID SERIOUS INJURY
OR DEATH
• Read the operator's manual.
• Keep children and others away from unit
while operating.
• Look down and behind before and while
backing.
• Never carry children.
• Never direct discharge toward other
people. Thrown objects can cause injury.
• Go up and down slopes, not across.
• If machine stops going uphill, stop blade
and back down slowly.
• Avoid sudden turns.
• Keep safety devices (guards, shields,
switches, etc.) in place and working.
• Check interlock system per manual
before use.
• Understand location and function of all
controls.
POUR EVITER LES BLESSURES
GRAVES OU LA MORT
10°
08086600
• Lire le manuel d'utilisation.
• Éloigner les enfants et toute autre personne pendant le
fonctionnement de la machine.
• Regardez derriere et sur les cotes lorsque vous reculez.
• Ne transportez jamais dénfant.
• Ne jamais décharger directement en direction de
quelqu’un. Des particules projetées peuvent provoquer
des blessures.
• Tondez toujours de haut en bas et inversement jamais le
long des pentes.
• Si la machine sárrete en montee. Debrayez la lame et
redescendez doucement.
• Evitez les virages brusques.
• Maintenez
toujours en place tous les elements de securite
(protecteurs, interupteurs, etc.).
• Controlez le bon fonctionnement des interrupteurs de securité
avant utilisation tel q'uindiqué dans le manuel d'utilisation.
• Comprenez bien la fonction et la situation de chacun des leviers
et boutons de commande.
• Leer el manual del operador.
• Mantenga la unidad alejada de los niños u otras
personas cuando esté en funcionamiento.
• Antes y durante retroceso mirar hacia abajo y
detras.
• Nunca monten niños.
• Nunca dirija la descarga hacia otras personas, ya
que los objetos lanzados pueden provocar lesiones.
• Suba y baje pendientes, no transversalmente.
• Si la maquina se detiene subiendo cuesta, desactive la
cuchilla y baje lentamente.
• Evite viradas subitas.
• Mantenga artefactos de seguridad (defensas,
protectores, interruptores, etc.) en su lugar y trabajando.
• Verifique en el manual el sistema de engranar antes de
usar.
• Tenga conocimiento de funciones y localizaciones de todos
los controles.
DANGER/PELIGRO
07731400D
WARNING/AVERTISSEMENT/ADVERTENCIA
Do not operate mower
unless guards are in
operating position or
bagger is attached.
Ne jamais utiliser
la tondeuse sans
protecteur sur le
canal d'ejection ou
sans le bac monte.
No operar segadora a
menos que las defensas
esten en posicion de
operacion o el
recogedor este fijo.
07742300B
Figure 3
1
2
3
4
OT1560
OL1801
OL4140
OL4740

GB - 6
Turn machine off when children are in the
area. Use extra care when approaching blind
corners, shrubs, trees or other objects that
may obscure vision.
Never carry children.
Never carry riders.
Remove objects that could be thrown by the
blade.
Go up and down slopes, not across.
If machine stops going uphill, stop blade and
back down slowly.
DO NOT operate on slopes over 10°maximum.
Avoid sudden turns.
Keep safety devices (guards, shields, switches, etc.) in
place and working.
Check interlock system per manual before use.
Understand location and function of all controls.
2. HOT SURFACES!
DO NOT touch parts which are hot from
operation. ALWAYS allow parts to cool.
3. DANGER!
Always keep feet and hands away from
rotating parts.
Keep children and others away from unit while
operating.
Stop engine and remove ignition key before
servicing or leaving operator’s position for any
reason.
NO STEP! Always keep feet away from
rotating parts.
4. WARNING!
Always stand clear of the discharge area
when operating this unit.
Do not operate mower unless guards are in
operating position or bagger is attached.
ASSEMBLY SAFETY RULES
Read, understand, and follow all safety practices in
Owner/Operator Manual before beginning assembly.
Failure to follow instructions could result in personal
injury and/or damage to unit.
ALWAYS remove key from ignition and wire from spark
plug before assembly. Unintentional engine start up
can cause death or serious injury.
OPERATIONAL SAFETY RULES
Walk Around Inspection
Complete a walk around inspection of unit and work
area to understand:
•Work area •Your unit •All safety decals
Work Area
ALWAYS check overhead and side clearances carefully
before operation. ALWAYS be aware of traffic when
operating along streets or curbs.
Keep children and people away. Keep children out of
work area and under watchful care of a responsible
adult.
NEVER allow children to operate or play on or near
unit. Be alert and shut off unit if children enter area.
Keep area of operation clear of all toys, pets, and
debris. Thrown objects can cause injury.
Check for weak spots on dock, ramps or floors. Avoid
uneven work areas and rough terrain. Stay alert for
hidden hazards.
Avoid uneven and rough terrain. DO NOT operate near
drop offs, ditches, or embankments. Unit can suddenly
turn over if a wheel is over the edge of a cliff or ditch, or
if an edge caves in.
Falling snow, fog, etc. can reduce vision and cause an
accident. Operate unit only when there is good visibility
and light.
Personal Safety
Data indicates that operators, age 60 and above, are
involved in a larger percentage of riding mower related
injuries.These operators should evaluate their ability to
operate the riding mower safely enough to protect
themselves and others from serious injury.
Only trained adults may operate unit.
Training includes actual operation.
NEVER operate unit after or during the use of
medication, drugs or alcohol. Safe operation requires
your complete and unimpaired attention at all times.
NEVER allow anyone to operate this unit when their
alertness or coordination is impaired.
Wear adequate safety gear and protective gloves.
Wear proper footwear to improve footing on slippery
surfaces.
DO NOT wear loose clothing or jewelry and tie back
hair that may get caught in rotating parts.
Protect eyes, face and head from objects that may be
thrown from unit. Wear appropriate hearing protection.
Avoid sharp edges. Sharp edges can cut. Moving parts
can cut off fingers or a hand.
OL4750
OL4760
OL0910
10°MAX
OL4770
OD0061
OL3030
OL4140
OL4010
OL4420
OL4430
OL3320

GB - 7
ALWAYS keep hands and feet away from all rotating
parts during operation. Rotating parts can cut off body
parts.
ALWAYS keep hands away from all pinch points.
DO NOT touch unit parts which might be hot from
operation. Allow parts to cool before attempting to
maintain, adjust or service.
NEVER place your hands or any part of your body or
clothing inside or near any moving part while unit is
running.
Never direct discharge towards persons or property
that may be injured or damaged by thrown objects. Use
extreme caution on gravel surfaces. Stay alert for
hidden hazards or traffic.
Always stand clear of the discharge area.
Fumes from engine exhaust can cause injury or death.
DO NOT run engine in an enclosed area. Always
provide good ventilation.
ALWAYS disengage attachment, stop unit and engine,
remove key and allow moving parts to stop before
leaving operator’s position.
Operation
Understand:
•How to operate all controls
•The functions of all controls
•How to STOP in an Emergency
•Braking and steering characteristics
•Turning radius and clearances
Disengage PTO when attachment is not in use.
ALWAYS disengage PTO, stop unit and engine,
remove key, engage parking brake and allow moving
parts to stop before leaving operator’s position.
ALWAYS remove key to prevent unauthorized use.
Only allow responsible adults who are trained and
familiar with the instructions to operate the machine.
Training includes actual operation.
DO NOT operate at too fast a rate. DO NOT change
engine governor settings or over-speed engine. Slow
down before turning.
DO NOT mow near dropoffs, ditches or embankments.
The mower could suddenly turn over if a wheel is over
the edge of a cliff or ditch, or if an edge caves in.
DO NOT mow on wet grass. Reduced traction could
cause sliding.
DO NOT try to stabilize the machine by putting your
foot on the ground.
Know the weight of loads. Limit loads to those you can
safely control and the unit can safely handle.
ALWAYS keep protective structures, guards and panels
in good repair, in place and securely fastened.
DO NOT operate in reverse unless absolutely
necessary. ALWAYS look down and behind before and
while backing.
Watch for holes, ruts, or bumps. Uneven terrain could
overturn the machine.
Be aware of the mower discharge direction and DO
NOT point it at anyone.
Follow the manufacturer’s recommendations for wheel
weights or counterweights to improve stability when
using attachments.
NEVER carry passengers.
Hazardous Slopes
If you cannot back up a slope or you feel uneasy on it,
do not mow it.
Mow up and down slopes, not across them.
Use slow speed on any slope. Choose a low gear so
that you will not have to stop or shift while on the slope.
Keep all movements on the slope slow and gradual.
DO NOT make sudden changes in speed or direction.
Avoid starting or stopping on a slope. If tires lose
traction, disengage the blades and proceed slowly
straight down the slope.
DO NOT operate on slopes over 10˚.
DO NOT park on slopes unless necessary. When
parking on slope always chock or block wheels. Always
set parking brake.
Transport
Use extra care when loading or unloading unit onto
trailer or truck.
Secure unit chassis to transport vehicle. NEVER
secure from rods or linkages that could be damaged.
DO NOT transport machine while engine is running.
Cleaning
Keep unit free of debris. Clean up oil or fuel spills.
Spark Arrester
This product is equipped with an internal combustion
type engine. DO NOT use unit on or near any
unimproved, forest-covered or brush covered land
unless exhaust system is equipped with a spark
arrester meeting applicable local, state or federal laws.
A spark arrester, if it is used, must be maintained in
effective working order by operator.
FUEL SAFETY RULES
Fuel is highly flammable and its vapors are explosive.
Handle with care. Use an approved fuel container.
NO smoking, NO sparks, NO flames. ALWAYS allow
engine to cool before servicing.
NEVER fill fuel tank when engine is running or hot from
operation.
NEVER fill or drain fuel tank indoors.
Replace fuel cap securely and clean up spilled fuel.
BATTERY SAFETY RULES
Avoid Electric Shock. Objects contacting both battery
terminals at the same time may result in injury and unit
damage. DO NOT reverse battery connections.
Explosive Gases from battery can cause death or
serious injury. Poisonous battery fluid contains sulfuric
acid and its contact with skin, eyes or clothing can
cause severe chemical burns.
NO flames, NO sparks, NO smoking near battery.

GB - 8
ALWAYS wear safety glasses and protective gear near
battery.
DO NOT TIP battery beyond a 45˚angle in any
direction.
ALWAYS keep batteries out of reach of children.
Battery posts, terminals and related accessories
contain lead and lead compounds, chemicals known to
the State of California to cause cancer and
reproductive harm. Wash hands after handling.
Reverse connections may result in sparks which can
cause serious injury. Always connect positive (+) lead
of charger to positive (+) terminal, and negative (-) lead
to negative (-) terminal.
ALWAYS connect positive (+) cable FIRST, and
negative (-) cable SECOND.
A frozen battery can explode and result in death or
serious injury. DO NOT charge or jump start a battery
containing frozen fluid. Thaw the battery before putting
on a charger or jump starting.
Battery Electrolyte First Aid
Follow First Aid directions for contact with battery fluid.
•External Contact: Flush with water.
•Eyes: Flush with water for at least 15 minutes and
get medical attention immediately!
•Internal Contact: Drink large quantities of water.
Follow with Milk of Magnesia, beaten egg or
vegetable oil. Get medical attention immediately!
In case of internal contact, DO NOT induce vomiting!
MAINTENANCE AND SERVICE SAFETY
RULES
ALWAYS keep protective structures, guards, and
panels in good repair, in place and securely fastened.
NEVER modify or remove safety devices.
DO NOT change engine governor settings or
over-speed engine.
Fumes from engine exhaust can cause injury or death.
DO NOT run engine in an enclosed area. Always
provide good ventilation.
ALWAYS maintain unit in safe operating condition.
Damaged or worn out muffler can cause fire or
explosion.
Keep all hardware properly tightened.
Stored energy in springs can cause injury.
STORAGE SAFETY RULES
NEVER store unit with fuel in fuel tank inside a building
where any ignition sources are present.
Allow engine to cool completely before storing in
closed area or covering unit.
For extended storage, clean unit thoroughly. See
Engine Manual for proper storage.
ACCESSORY AND ATTACHMENT SAFETY
RULES
Use only attachments or accessories designed for your
unit.
Check attachment components frequently. If worn or
damaged, replace with manufacturer’s recommended
parts.

GB - 9
Tools Required
•Needle nose pliers
•Open-end wrench: 3/8", 7/16", 1/2", and 9/16" or
adjustable wrench
•Phillips screwdriver
•Tire gauge
Package Contents
Install Steering Wheel
1. Place extension tube onto column shaft (lubricate
shaft) at lowest position and secure with lower roll
pin.
2. Snap steering cone into dash.
3. Slide steering wheel onto extension tube and drive
roll pin through hole in steering wheel/cone and
tube. Pin should project equally on both sides of
steering wheel base.
Check Tire Pressure
Check tire pressure using a low pressure tire gauge.
Refer to Specifications for correct pressures.
Install Deck
1. Turn front tires all the way left and position the
mower deck underneath the tractor.
2. Slide the pin at the front of the hanger arm
assembly into the slotted brackets at the front of
the tractor frame (Figure 6).
3. Place welded stud on rear end of left hanger arm
through mounting hole in left hanger bracket.
Secure with hair pin.
4. Repeat step 3 for right hanger bracket.
5. Place deck lift lever in position one (1). Attach the
left and right adjuster links to the mounting studs
on the center lift lever.
6. Place washers over the studs and secure with
hair pins.
7. Place the mower deck drive belt around the PTO
clutch and route it to the inside of the idler.
8. Roll the belt onto the jackshaft sheave on the
mower deck.
9. Install the idler spring into the hole on the left
hand side of the tractor frame. Check belt
alignment.
10. Check and adjust deck level and pitch. See
Service and Adjustments .
Check Lubrication
Check for proper lubrication. See Maintenance .
ASSEMBLY
WARNING: AVOID INJURY. Read and
understand Assembly Safety Rules in Safety
section before attempting to assemble unit.
Hardware/
Literature
Pack
Figure 4
Deck
Tractor
Steering
Wheel
Steering
Cone
1. Upper roll pin
2. Lower roll pin
3. Extension tube
4. Column shaft
OT0420
1
2
3
4
Figure 5
1. Pin
2. Left Hand Hanger Bracket
3. Hair Pins
4. Left Hand Hanger Arm
5. Left Adjuster Link
6. Mounting Stud
7. Washer
Figure 6 OT1080
1
23
4
5
67
3

GB - 10
Charge Battery
See instructions for battery removal and charging in
Service and Adjustments .
Check Oil Level
Check engine oil. Fill if necessary.
Refer to engine manual for proper type oil and
crankcase capacity.
Fill Engine Fuel Tank
Refer to engine manual for proper type.
Check Safety Interlock System
With operator on seat, engine must not start if PTO is
engaged.
Engine MUST STOP if operator leaves seat when:
•forward and reverse pedal is not in neutral or
•parking brake is disengaged or
•PTO is engaged
Engine MUST NOT start unless:
•parking brake is set/brake pedal is depressed and
•forward and reverse pedal is in neutral and
•PTO is disengaged.
Check Function of all Controls
Ensure unit runs and performs properly. Refer to
Operation .
CONTROLS AND FEATURES
See Figure 1 on page 3 for all Controls and Features
locations.
Ignition Switch
The ignition switch is operated by a
removable key.
To start:
Insert the key.Turn the switch clockwise
from the off (1) position to the start (3)
position. The key will spring back to the
run (2) position.
To stop the engine, turn key to the off (1) position.
Throttle Lever
Move lever to fast (1) position to increase
engine speed. Move lever to slow (2)
position to decrease engine speed.
IMPORTANT: Set throttle to approximately
1/2 speed when engaging PTO.
Choke Apply choke when starting a cold engine.
To apply choke:
Pull choke knob out. Press knob in to
disengage choke.
Power Take-Off (PTO) Switch
The power take-off switch is used to engage
and disengage the attachment. Lift switch to
engage attachment. Push switch down to
disengage attachment.
Headlight Switch
With key in run position, flip light switch
forward (1) to turn headlights on. Flip light
switch backward (2) to turn headlights off.
Brake Pedal
Fully depress brake pedal to stop unit.
IMPORTANT: DO NOT leave foot on
pedal during operation as belt slippage
may occur.
Attachment Lift Lever
To raise attachment, depress thumb
button on lift lever and raise lever to raise
attachment.
To lower attachment, depress thumb
button and slowly allow lever to move
downward to lower attachment.
Parking Brake
To engage:
Fully depress brake pedal and pull parking
brake knob out.
To disengage:
Depress brake pedal.
WARNING: FAILURE OF INTERLOCK,
together with improper operation could result
in death or serious injury.
WARNING: FAILURE OF CONTROLS could
result in death or serious injury.
OPERATION
WARNING: AVOID INJURY. Read and
understand Operational Safety Rules in
Safety section before operating.
OT0680
12
3
1
2
OT0710
1
2
OT0610
OT0650
OT0620
P

GB - 11
Forward and Reverse Pedal
Press the front end of pedal downward
to move tractor forward.
Press the rear end of pedal downward
to move the tractor backward.
Removing foot from pedal returns unit to neutral.
Seat Adjustment
1. Move the handle on the seat towards the center
of the tractor.
2. Slide seat into a comfortable position.
3. Release handle to lock seat in position.
Transmission Bypass Lever
Pull bypass lever rearward and lock in slot
to disengage transmission (2). Pull lever
out of slot and slowly release forward to
engage transmission (1).
IMPORTANT: Start unit with transmission
bypass lever in disengaged position when starting
engine in freezing temperatures (below 32˚F/0˚C).
Slowly engage transmission, allowing transmission to
warm up before applying load.
Cruise Control Switch
Use the cruise control switch to maintain
desired speed. Depress forward pedal to
desired speed and push the cruise control
switch forward to engage (1).
Flip cruise control switch back or depress
brake pedal to disengage (2) cruise
control.
NOTE: Turning off cruise control switch without foot on
forward or reverse pedal will stop unit abruptly.
IMPORTANT: If the forward pedal or reverse pedal is
repositioned while cruise indicator light is on, cruise will
reset at the new speed and/or direction selected.
Hood
To open, push hood latch to the right, lift hood and
place prop rod in slot under hood.
To close, remove prop rod from slot and lower it to side
of engine. Lower the hood until it rests on the latch.
Press down firmly at the center of the hood to snap it
into latch.
Indicator Lights
The symbols on the dash will light up when key is
turned to the run position if one of the following
conditions exist.
Battery voltage is lower than 12V. Refer to
Maintenance.
Oil pressure is low. Check oil and add if
necessary. See Engine Manual.
PTO is engaged. Disengage PTO before
starting tractor.
Safe condition to start.
Safety Interlock System
With operator on seat, engine must not start if PTO is
engaged.
Engine MUST STOP if operator leaves seat when:
•forward and reverse pedal is not in neutral or
•parking brake is disengaged or
•PTO is engaged
Engine MUST NOT start unless:
•parking brake is set/brake pedal is depressed and
•forward and reverse pedal is in neutral and
•PTO is disengaged.
DO NOT operate unit unless safety interlock system is
functioning properly. If it does not function properly, see
your Ariens Dealer.
FILLING FUEL TANK
To add fuel to fuel tank:
1. ALWAYS place unit in open or well ventilated
area.
2. Stop engine and allow to cool.
3. Clean fuel cap and surrounding area to prevent
dirt from entering fuel tank.
4. Remove cap.
IMPORTANT: See engine manual for correct type and
grade of fuel.
5. Fill fuel tank to within 1/2" (1,2 cm) below bottom
of filler neck.
6. Replace fuel cap and tighten.
7. ALWAYS clean up any spilled fuel.
PRESTART
Before starting:
1. Check engine oil and fill if necessary. See engine
manual.
OT1580
1
2
OT0630
1
2
OT0640
WARNING: AVOID INJURY. Read and
understand Fuel Safety Rules in Safety
section before proceeding.
BATTERY

GB - 12
2. Check fuel and fill if necessary.
3. Check safety interlock system. See Controls and
Features.
4. Adjust seat if needed.
STARTING
1. Sit in the operator’s seat.
2. Place the PTO knob in the off position.
3. Apply choke for a cold engine, place at 1/3
throttle for a warm engine.
4. Press down brake pedal.
5. Turn the ignition key clockwise to the start
position until engine starts. Release key into run
position.
IMPORTANT: DO NOT operate starter more than 15
seconds per minute. Damage can occur.
6. After engine starts, set throttle to fast position.
7. Release brake pedal.
8. Allow engine to warm up before applying load.
IMPORTANT: Run engine at 1/2 throttle for at least five
minutes prior to applying load in freezing temperatures.
TO OPERATE MOWER
1. With unit shut off, adjust deck to desired height of
cut.
2. Start engine.
3. Move throttle lever to about half speed.
4. Engage PTO.
5. Move the throttle lever forward to full engine
speed.
6. Use forward and reverse pedals to move and use
steering wheel to change direction.
7. To stop mower, disengage PTO.
SHUT-OFF
Emergency Shut-Off
To shut-off unit in an emergency, turn ignition key to the
off position.
Normal Shut-Off
1. Turn off cruise control.
2. Stop unit.
3. Disengage PTO.
4. Lower attachment and engage parking brake.
5. Lower engine speed to slow position. Let engine
run a few minutes so engine parts cool evenly
before shutting engine off.
6. Turn ignition key to off position and remove key.
PARKING
Stop engine and engage parking brake to park.
Remove ignition key to prevent unauthorized use.
FOR BEST PERFORMANCE:
Cut grass when it is dry.
Keep mower blades sharp.
Keep mower deck properly leveled.
Adjust anti-scalp rollers to prevent scalping.
Do not set height of cut too low. For very tall grass,
mow twice.
Do not travel too fast.
Mow with the engine set at full throttle.
When mulching, only remove 1/3 of grass length per
cutting.
Discharge clippings into areas already cut.
Vary cutting pattern with each mowing.
Do not allow grass or debris to collect inside of mower
deck. Clean after each use.
MOVING THE UNIT MANUALLY
IMPORTANT: DO NOT push or pull (tow) tractor with
another vehicle. Transmission damage will occur. Use
truck or trailer when transporting.
1. Stop engine.
2. Pull bypass lever rearward and lock in slot to
disengage transmission.
3. Release parking brake.
4. Push unit to desired location.
5. Apply parking brake.
6. Pull lever out of slot and slowly release forward to
engage transmission.

GB - 13
Ariens Dealers will provide any service or adjustments
which may be required to keep your unit operating at
peak efficiency. Should engine service be required,
contact an Ariens dealer or an authorized engine
manufacturer's service center.
SERVICE POSITION
Place unit on a flat level surface. Stop engine and
disengage clutches. Assure unit is secure and will not
tip over. Strap and clamp onto lift if used. Open hood to
access battery or engine.
MAINTENANCE SCHEDULE
The chart below shows recommended maintenance.
More frequent service may be required due to working
conditions (heavy loads, high ambient temperatures,
dusty conditions, or airborne debris).
* Change after first 5 to 8 hours of use.
** For all engine maintenance information, refer to engine
manual.
CHECK SAFETY INTERLOCK SYSTEM
With operator on seat, engine must not start if PTO is
engaged.
Engine MUST STOP if operator leaves seat when:
•forward and reverse pedal is not in neutral or
•parking brake is disengaged or
•PTO is engaged
Engine MUST NOT start unless:
•parking brake is set/brake pedal is depressed and
•forward and reverse pedal is in neutral and
•PTO is disengaged.
CHECK PARKING BRAKE
The parking brake is designed to prevent unexpected
movement of the unit. If the parking brake allows unit
movement while engaged, see Service and
Adjustments for proper parking brake spring setting.
CHECK FASTENERS
Be certain all hardware is tightened to the proper
torque. Pay special attention to blades, guards and
safety shields.
TIRE PRESSURE
Check air pressure in all tires every 25 operating hours.
See Specifications.
BATTERY
Clean Battery
Keep battery and its terminals clean. Inspect every 25
operating hours or monthly for best performance.
1. Disconnect cables from battery (negative, then
positive).
2. Clean terminals and battery cable ends with wire
brush.
3. Coat terminals with grease or petroleum jelly.
4. Reconnect cables to battery (positive, then
negative).
Electrolyte Level
Every 25 hours of operation or each week check
electrolyte level of each cell by removing caps one at a
time. The electrolyte level should be at level indicator.
Use distilled water to fill each cell if needed.
IMPORTANT: When distilled water is added to battery
during freezing weather, it must be charged to mix
water with electrolyte or water will remain at top and
freeze.
MAINTENANCE
WARNING: AVOID INJURY. Read and
understand Maintenance and Service and
Battery Safety Rules in Safety section before
attempting any maintenance.
MAINTENANCE SCHEDULE
Service Performed Before Each
Use
Every
25 hrs. Every 50 hrs.
Check Safety Interlock
System •
Check Parking Brake •
Check Fasteners •
Check Engine Oil** •
Change Engine Oil** •*
Tire Pressure •
Battery •
Mower Blades •
General Lubrication •
WARNING: FAILURE OF INTERLOCK,
together with improper operation could result
in death or serious injury.
WARNING: AVOID INJURY. Read and
understand Battery Safety Rules in Safety
section before proceeding.

GB - 14
MOWER BLADES
Check mower blades for wear every 25 hours of
operation. Ensure blade hardware is tightened to 50-60
ft. lbs. (68 - 81 Nm) of torque.
Sharpening Blades
IMPORTANT: Ariens recommends having your blades
professionally sharpened and balanced. If you sharpen
your blades, ensure they are balanced.
Unbalanced blades will cause excessive vibration and
damage.
To remove and install blade:
1. Block blades to prevent rotation.
2. Remove nut, flat washer and blade.
3. Replace with sharp blade.
4. Tighten hardware to 50-60 ft. lbs. (68 - 81 Nm).
To sharpen blade:
1. Remove blade as above.
2. Sharpen blade with a file or grinding wheel,
removing equal amounts of material of each end
to maintain balance.
IMPORTANT: DO NOT grind around corners at tips of
blade. If cutting edge of blade cannot be sharpened in
a straight line to within 1/8" (3 mm) of the end, replace
with Ariens recommended blade only.
3. Place bolt or pin through blade to check balance.
Blade will remain in horizontal position if
balanced.
4. Replace blade as above.
GENERAL LUBRICATION
Lubricate unit every 50 hours of operation or every
three months, whichever occurs first.
Grease front and rear axle and wheels, brake shaft and
all fittings (Figure 7). Oil pivot points on brake and
mower deck linkage.
NOTE: Hydrostatic transaxles do not have grease
fittings.
Figure 7 OT0751

GB - 15
REMOVING/INSTALLING DECK
To remove deck:
1. Place two (2) supports approximately 1 1/2" (3.8
cm) high under the right and left hand side of
deck.
2. Lower the mower deck onto the supports.
3. Remove the hair pins from the tractor mounting
lugs supporting the rear hangers.
4. Slide the mower deck forward enough to remove
the front pin and front lift arms from the tractor
front hooks.
5. Remove the mower height adjusters from the
tractor lift lever hooks.
6. Remove the mower belt from the electric clutch.
7. Turn front tires all the way to the left (opposite the
mower discharge side).
8. Remove the supports from underneath the
mower deck.
9. Remove the mower deck by sliding it out under
the tractor’s right side.
To install the 48" deck, refer to Assembly.
LEVELING MOWER AND ADJUSTING
PITCH
NOTE: To make measuring blade height easier, wrap a
wood block (approximately 1" x 5" or 2.5 cm x 12.7 cm)
with masking tape. With the end of the block on the
ground, mark the block with the mower blade. Measure
the distance from the end of the block to the mark.
1. Place mower in highest position.
2. Place anti-scalp rollers in highest position so they
do not touch the ground during adjustment.
3. Loosen upper nuts on hanger hooks.
4. Adjust height so blade is 4" (10.2cm) from ground
level. Turn lower nuts on hanger hooks clockwise
to lower rear of mower. Turn lower nuts
counterclockwise to raise rear of mower.
5. Adjust blade pitch so rear blade height is 1/8" to
1/4" (3 to 6mm) higher than front blade height.
Loosen flanged nuts and slide adjusting tabs up
or down to achieve proper pitch (Figure 8).
6. Tighten flanged nuts.
7. Tighten upper nuts on hanger hooks.
8. Reset anti-scalp rollers to match desired
attachment position.
REPLACING DECK BELT
1. Remove mower drive belt. See Figure 10.
2. Disconnect idler spring from spring mount welded
to the mower deck.
3. Remove left sheave cover.
4. Remove old belt from mower deck and install new
belt. Ensure belt is seated in all pulley grooves.
5. Replace left sheave cover, reconnect idler spring
and replace mower drive belt.
REPLACING MOWER DRIVE BELT
The mower belt idler system is designed to provide
constant tension on the belt. If the deck idler spring is
extended less than 4 1/2" (11.4 cm), replace the mower
drive belt.
SERVICE AND ADJUSTMENTS
WARNING: AVOID INJURY. Read and
understand Maintenance and Service and
Battery Safety Rules in Safety section before
attempting any maintenance.
1. Front Pin
2. Hair Pin
3. Front Lift Arm
4. Rear Hanger
5. Height Adjuster
6. Lift Lever Hook
7. Flanged Nuts
8. Adjusting Tabs
Figure 8
12
345
6
OT0301
7
8
1
2
3
4
5
1. Cutting Tip
2. Mower Pan
3. Blade
4. Ground Level
5. Cutting Height
Figure 9

GB - 16
1. Disconnect deck idler spring from frame.
2. Remove belt from electric clutch and mower pan
sheave.
3. Place new belt on electric clutch and mower pan
sheave.
4. Reconnect deck idler spring to frame.
TRACTION DRIVE BELT
1. Loosen hardware securing belt fingers at idler
and pulleys.
2. Depress clutch/brake pedal and remove belt from
idler and pulleys.
3. Install new belt in reverse order.
4. Secure belt finger hardware with 1/16" to 1/8" (2
to 3mm) clearance between belt fingers and belt.
STEERING ADJUSTMENT
If steering system feels loose, ensure hardware is tight
and check wear points for excessive wear. Replace
parts as needed.
If tractor wanders or excessive tire wear develops,
toe-in should be checked. Front of wheels should be
1/16" to 1/8" (2 to 3mm) closer together than rear of
wheels. To correct toe-in:
1. Loosen jam nuts at tie rod ends.
2. Turn tie rod clockwise to increase distance
between front of wheels.Turn tie rod
counterclockwise to decrease distance between
front of wheels.
3. Tighten jam nuts at tie rod ends.
1. Idler
2. Mower Pulley
3. Mower Belt
4. Jackshaft Pulley
5. Deck Idler Spring
6. Mower Idler Pulley
OT0930
Figure 10
1
2
3
4
22
5
6
1
2
3
4
5
6
7
1. Engine Sheave
2. V-Idler
3. Clutch Idler Arm
4. Transaxle Pulley
5. Traction Drive Belt
6. Belt Finger
7. Belt Guide
OT0061
Figure 11
6
7
7

GB - 17
PARKING BRAKE SPRING
Compress the spring to the length indicated with the
brake on (Park Brake Set). Turn the locknut to adjust.
DISC BRAKE ADJUSTMENT
To check and change disc brake setting (Figure 13):
1. Place feeler gauge between the two discs. With
clutch/brake pedal released there should be
0.015" to 0.025" (.4mm to .6mm) clearance.
2. Tighten castellated nut to decrease clearance,
loosen to increase clearance.
3. Adjust brake spring.Turn nylon locknut until brake
spring is compressed to 7/8" (22mm) when brake
pedal is depressed.
NEUTRAL ADJUSTMENT
Adjust neutral if tractor moves when forward or reverse
pedal is not depressed. To adjust neutral:
1. Prop right rear wheel off the ground.
2. Spin right rear wheel. Turn neutral adjustment
bolt until rear wheel no longer spins.
BATTERY
Charging Battery
ALWAYS follow information provided on battery by
battery manufacturer.
1. Place unit in service position.
2. Disconnect negative (-) cable from battery first,
then positive (+) cable.
3. Loosen strap and remove battery.
4. Place battery on bench in well ventilated area
where electrolyte spill will not cause damage.
5. Initial Battery Setup - Remove caps and fill each
cell to level indicated with electrolyte at 1.230±
specific gravity and 80˚F (27˚C). Let battery stand
for thirty minutes. Check electrolyte level and add
more if necessary.
6. Let battery stand for one half hour.
7. Check electrolyte level and add more if
necessary.
8. Connect positive (+) lead of charger to positive
(+) terminal, and negative (-) lead to negative (-)
terminal.
1.81
1. Brake Rod
2. Compression Spring - .65 OD x 2”Long
3. Lock Nut
1
2
3
OT0351
Figure 12
1. Disc Brake
2. Castellated Nut
w/Cotter Pin
3. Compression Spring
4. Feeler Gauge
5. Washer
6. Nylon Locknut
1
2
3
4
5
6
OT0840
Figure 13
7/8"
22mm
WARNING: AVOID INJURY. Read and
understand Battery Safety Rules in Safety
section before proceeding.
WARNING: Battery posts, terminals and
related accessories contain lead and lead
compounds, chemicals known to the State of
California to cause cancer and reproductive
harm. Wash hands after handling.
Figure 14
Neutral
Adjustment
Bolt
OT0041

GB - 18
9. Charge the battery at two and a half amps for ten
hours or until all cells are gassing freely and the
specific gravity is constant over three 30 minute
intervals.
10. Immediately after charging, check electrolyte
level. If low, add distilled water to bring cell up to
required level.
11. Replace and tighten caps, wash off and dry
battery.
12. Reinstall battery into unit and connect positive (+)
cable to battery first, then negative (-) cable to
battery.
Jump Starting Battery
Jump starting the battery may be required if starter
motor will not crank the engine.
The unit used for jump starting should have a 12 volt,
500 cold cranking amperes, negatively grounded
system.
1. Disconnect negative (-) cable from battery.
2. Disconnect positive (+) cable from battery.
3. Connect the positive (+) jumper cable to the
positive terminal of the unit battery.
4. Connect the other end of the positive jumper
cable to the positive (+) terminal of the booster
battery.
5. Connect one end of second jumper cable to the
negative (-) terminal of the booster battery.
6. Connect the other end of the second jumper
cable to the furthest ground point from the
discharged battery.
7. Start the unit.
8. After unit starts, disconnect cables in following
order: disconnect cable from ground point,
disconnect negative (-) cable from booster battery
terminal, disconnect positive (+) cable from
booster battery terminal, and disconnect positive
(+) cable from unit battery terminal.
9. Connect positive (+) cable first from unit to
battery, then negative (-) cable from unit to
battery.
WARNING: AVOID INJURY. Read and
understand Battery Safety Rules in Safety
section before proceeding.
WARNING: Frozen battery can explode and
result in death or serious injury.
DO NOT charge a battery containing frozen
fluid. Thaw the battery before putting on a
charger or jump starting.
1
23456
1. Battery
2. Positive Terminal (+)
3. Battery Strap
4. Battery Cover
5. Negative Terminal (-)
6. Vent Hose
OT0271
Figure 15

GB - 19
Short Term Storage
IMPORTANT: NEVER spray unit with water or store
unit outdoors.
Remove all dirt, grease, leaves, etc. Store in a clean,
dry area.
Ensure all fasteners are properly tightened. Inspect
moving parts for damage and wear.
Clean seat with vinyl cleaner. Apply vinyl repair tape to
any tears on seat.
Long Term Storage
Follow all instructions under Short Term Storage.
Remove and fully charge battery. Store in a cool, dry
location.
Drain fuel from fuel tank.
See engine manual for proper engine storage
procedures.
Touch up all rusted or chipped paint surfaces.
To obtain a complete parts manual, find your model
and serial number. Then go to www.ariens.com or call
1-800-678-5443.
STORAGE
WARNING: AVOID INJURY. Read and
understand Storage Safety Rules in Safety
section before operating.
TROUBLESHOOTING
PROBLEM PROBABLE CAUSE CORRECTION
Engine will not
crank/start 1. PTO is engaged.
2. Brake not engaged.
3. Discharged battery.
4. Loose battery cables.
5. Fuel tank is empty.
1. Disengage PTO.
2. Depress clutch/brake pedal while starting.
3. Charge battery. See Maintenance.
4. Check battery connections.
5. Fill fuel tank.
Engine stops 1. Out of fuel.
2. See engine manual.
1. Fill fuel tank.
Engine problems 1. See engine manual.
Does not operate in
forward/reverse 1. Transmission is disengaged.
2. Clutch needs adjustment.
1. Engage transmission using bypass lever.
2. See Ariens Dealer.
Engine runs roughly 1. Choke engaged.
2. Air cleaner clogged.
1. Disengage choke.
2. Replace air cleaner. See engine manual.
ACCESSORIES
See your authorized Ariens dealer to add these optional
accessories to your unit.
Part No. Description
71099700 Sno-Thro Slicer Bar
73103100 Rear Wheel Weights - 150 lb.
73401100 Mulching Kit
73401400 Weight Box
73401700 Dethatcher
78701600 Tire Chains 23 x 10.5-12
73600800 Hourmeter Kit
ATTACHMENTS
Part No. Description
83403400 42" Front Blade
83403500 40" Sno Thro
SERVICE PARTS
Part No. Description
03621100 Battery
07229600 PTO (Engine to Deck Belt)
07235200 Mower Drive Belt
07229700 Transmission Belt
03123751 Blade

GB - 20
SPECIFICATIONS
Model Number 934027
Description YT 2248H
Length - in (cm) 70 (177.8)
Height - in (cm) 45 (114.3)
Width - in (cm) 61 (154.9)
Wheel Base - in (cm) 48 (121.9)
Actual Weight - lbs (kg) 505 (229.3)
Battery 12 Volt 220 CCA.
Hour Meter Optional
Seat High
Brakes Disc
Steering Gear
Turning Radius - in (cm) 26 (66.0)
Tire Size
Front
Rear 15x6.00-6 23x10.5-12
Diagnostic Lights Yes
Engine 22.0 HP V-Twin
Manufacture Briggs (B & S)
Width of Cut - in (cm) 48 (121.9)
Max. Rotation Speed
of Cutting Edge (min-1)LH CTR RH
3780 3855 3780
Fuel and Capacity Unleaded 3 Gal.
Idle R.P.M. 1800 Max.
Governed R.P.M. (No Load) 3200 ±150
Crank Case Capacity
(Oil Filter) 64 Oz. (Yes)
Air Cleaner Dual Element
Charging Capacity 16 AMP Regulated
Fuel Filter 60 Micron 2 1/2 GPA Capacity
60 Micron 2 1/2 GPA Capacity
Engine Oil 5W30 Below 40°F –30W
Above 40°F
Spark Plug Gap .030 Champion RC12YC
Speed - Forward Max.
Reverse Max. 0 - 5.9 MPH (0-9.5 km/h) 0 - 2.9 MPH (0-4.7 km/h)
Transmission Lube 20W50 Oil
Drive Clutch Belt Clutched
Axle Capacity 260 Ft. Lb.
Allowable Added Weight - lbs (kg) 500 (227)
Rear Axle Maximum Load - lbs (kg) 700 (317.8)
Tire Pressure With Loads
Front/Rear - Light & Medium
Heavy (Sno-Thro) 10 PSI/10 PSI 14 PSI/10 PSI
Lift System Manual
Power Take Off Electric
