REPAIR PARTS MANUAL
MODELNO.A20K46YT/93603900(96046000300)
Lawn Tractor

2
HOW TO USE THIS MANUAL
This manual is designed to provide the customer with a means to identify the parts on his/her tractor
when ordering repair parts. The illustrations may or may not represent the actual assemblies; therefore,
it is not recommended to use this manual as a guide to assemble or disassemble the tractor. Some
hardware and parts are drawn larger in order to more readily identify them.
Each tractor has its own model number.
The model number for your tractor can be found on the fender under the seat.
When ordering parts, always give the following information:
• Product - “Tractor”
• MODEL NUMBER - “A20K46YT/93603900 (96046000300)”
• Part Number
• Part Description
TABLE OF CONTENTS
SCHEMATIC ................................................................................................................3
ELECTRICAL............................................................................................................4-5
CHASSIS ..................................................................................................................6-7
DRIVE........................................................................................................................8-9
ENGINE.................................................................................................................10-11
STEERING ............................................................................................................12-13
MOWER DECK .....................................................................................................14-15
MOWER LIFT.............................................................................................................16
SEAT ..........................................................................................................................17
DECALS.....................................................................................................................18
WARRANTY...............................................................................................................20

3
M
FUSE
STARTER
SOLENOID
BATTERY
CLUTCH/BRAKE
(PEDAL UP)
REVERSE SWITCH
(NOT IN REVERSE)
SEAT SWITCH
(NOT OCCUPIED)
SHORTING
CONNECTOR
CHASSIS
HARNESS
IGNITION
UNIT
HOUR
METER
CHASSIS HARNESS
CONNECTOR
(MATING SIDE)
DASH HARNESS
CONNECTOR
(MATING SIDE)
LIGHT
SWITCH
HEADLIGHTS
FUEL
LINE
FUEL SHUT-OFF
SOLENOID
(IF SO EQUIPPED)
JUNCTION
CONNECTOR
SM
B
G
L
2
3
1
6
A2
A1
M
63
52
41
6
5
4
3
2
1
SPARK
PLUGS GAP
(2 PLUGS ON
TWIN CYL. ENGINES)
(OPTIONAL)
NON-REMOVABLE
CONNECTIONS
REMOVABLE
CONNECTIONS
WIRING INSULATED CLIPS
NOTE: IF WIRING INSULATED
CLIPS WERE REMOVED FOR
SERVICING OF UNIT, THEY
SHOULD BE RE-INSTALLED TO
PROPERLY SECURE YOUR
WIRING.
SCH10
IGNITION SWITCH
CIRCUIT
POSITION
OFF
B+A1
RUN/OVERRIDE
B+S+A1START
M+G+A1
B+A1RUN
“MAKE”
L+A2
03107
ATTACHMENT CLUTCH
(CLUTCH OFF)
REGULATOR STATOR
28 VOLTS AC @ 3600 RPM (REGULATOR DISCONNECTED)
CHARGING SYSTEM OUTPUT
9-16 AMP DC @ 3600 RPM
RED
BLACK
BLACK /WHITE
ORANGE
BROWN
BLUE
BLUE
BLACK
BLACK
BLACKBLACK
BLACK
BLACK
BLACK
BLACK
BLACK
DER
RED
WHITE
WHITE
GRAY
GRAY
BLACK
BLACK
POWER OUTLET
(OPTIONAL)
12V
BLACK
A
AMMETER
(OPTIONAL)
TRACTOR - MODEL NO. A20K46YT/93603900 (96046000300), PRODUCT NO. 960 46 00-03
SCHEMATIC

4
TRACTOR - MODEL NO. A20K46YT/93603900 (96046000300), PRODUCT NO. 960 46 00-03
ELECTRICAL
30
33
34
90
22
79 21
41
42
26
8
1
99
100
91
227
43
27
24
40
71
28
55
16
87
With 12V Outlet Option
59
103
With Service Minder Option
4646
25
T03S
29
141

5
TRACTOR - MODEL NO. A20K46YT/93603900 (96046000300), PRODUCT NO. 960 46 00-03
ELECTRICAL
KEY PART
NO. NO. DESCRIPTION
1 163465 Battery
2 74760412 Bolt Hex Head 1/4-20 x 3/4
8 186491 Box Battery
16 176138 Switch Interlock Push-In
21 183759 Harness Socket Light w/4152J
22 4152J Bulb Light
24 400253 Cable Battery 8"
25 412894 Cable Starter
26 175158 Fuse
27 73510400 Nut Keps Hex 1/4-20 unc
28 145491 Cable, Ground
29 401545 Switch, Seat
30 193350 Switch, Ignition
33 411935 Key/Chain
34 110712X Switch Light/Reset
40 401098 Harness Ignition Dash
41 17720408 Screw Thd Cut 1/4-20 x 1/2
42 131563 Cover, Terminal
43 192507 Solenoid
55 17060512 Screw Thdrol 5/16-18 x 3/4 TYTT
71 194276 Harness Ignition
79 175242 Socket Asm Bulb Twistlock
87 197802 Switch Interlock Clutch Cable
90 400724 Cover Terminal Battery
91 190270 Strap Battery Mount Front
99 17670412 Screw Hexwsh Thdrol 1/4-20 x 3/4
100 19091416 Washer 9/32 x 7/8 x 16 Ga.
141 416977 Kit T2 ROS
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm

6
TRACTOR - MODEL NO. A20K46YT/93603900 (96046000300), PRODUCT NO. 960 46 00-03

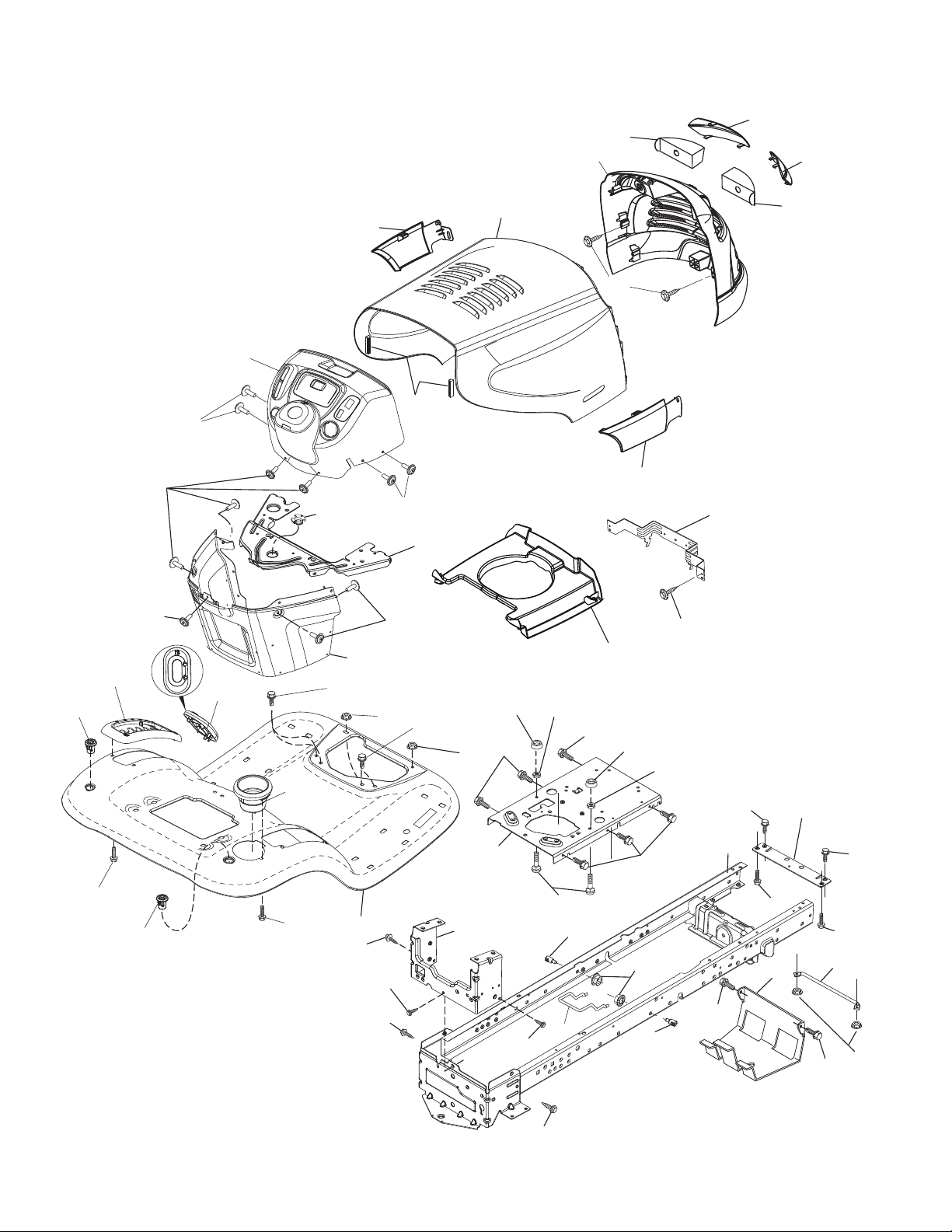

CHASSIS
68 68
68
183
236
236
34
chassis-tex_elite-husq_1_r1
228
228
180
68
68
213
213
52
218
189
189
152 217
235
235
58
189
189
189
194
150
151
130
182
176
176
176
175
177
37
181
181
194
194
36
36
162
196
287
138
161
165
14
137
130
18
191
297
15
25
205
206
5
176
176
159
159

7
TRACTOR - MODEL NO. A20K46YT/93603900 (96046000300), PRODUCT NO. 960 46 00-03
CHASSIS
KEY PART
NO. NO. DESCRIPTION
5 401715X428 Dash
14 425404X422 Hood
15 188264X599 Lens Grille LH
18 423180 Grille
25 188263X599 Lens Grille RH
34 196125 Plate Engine
36 17060512 Screw 5/16-18 x 3/4
37 414878X422 Fender
52 73680500 Nut Crown Lock 5/16-18
58 412280 Drawbar Upper
68 17490508 Screw THDROL 5/16-18 x 1/2
130 416358 Screw #10 x 0.750 BOS Thread
137 184921 Bumper Hood
138 193224X428 Cupholder
150 189350 Duct Heat Hood
151 407807 Bracket Pivot
152 199535 Shield Browning/Debris
159 17000612 Screw Hexwsh Thrd 3/8-16 x 3/4
161 193229X428 Window Fuel
162 142432 Screw Hex Wsh Hi-Lo 1/4 x 1/2 unc
165 196826 Support Tank Rear
175 193243 Crossmember
176 400776 Screw 10-24 x 5/8 Wshd Qdrx
177 195227 Bushing Steering
180 415063 Chassis
181 193102X428 Bushing Mtg. Fender Crgo.
182 193057 Dash Lower
183 74780520 Bolt Fin Hex 5/16-18 x 1-1/4
189 17000512 Screw 5/16-18 x 3/4
191 188267 Insert Lens Reflective LH
194 73900500 Nut Lock Hex Flange 5/16-18
196 414579 Console Asm. Deck Lift
205 188265X428 Skirt Side RH
206 188266X428 Skirt Side LH
213 74760512 Bolt Hex HD 5/16-18 unc x 3/4
218 196395 X-Piece Hood
217 409167 Rod Pivot
228 195161 Stud Fastener
235 406129 Spacer Fender
236 73930500 Nut Center Lock 5/16-18 unc
287 17600406 Screw Hex Washead 1/4-20 x 3/8
297 416500 Insert Lens Reflective RH
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm

8
TRACTOR - MODEL NO. A20K46YT/93603900 (96046000300), PRODUCT NO. 960 46 00-03

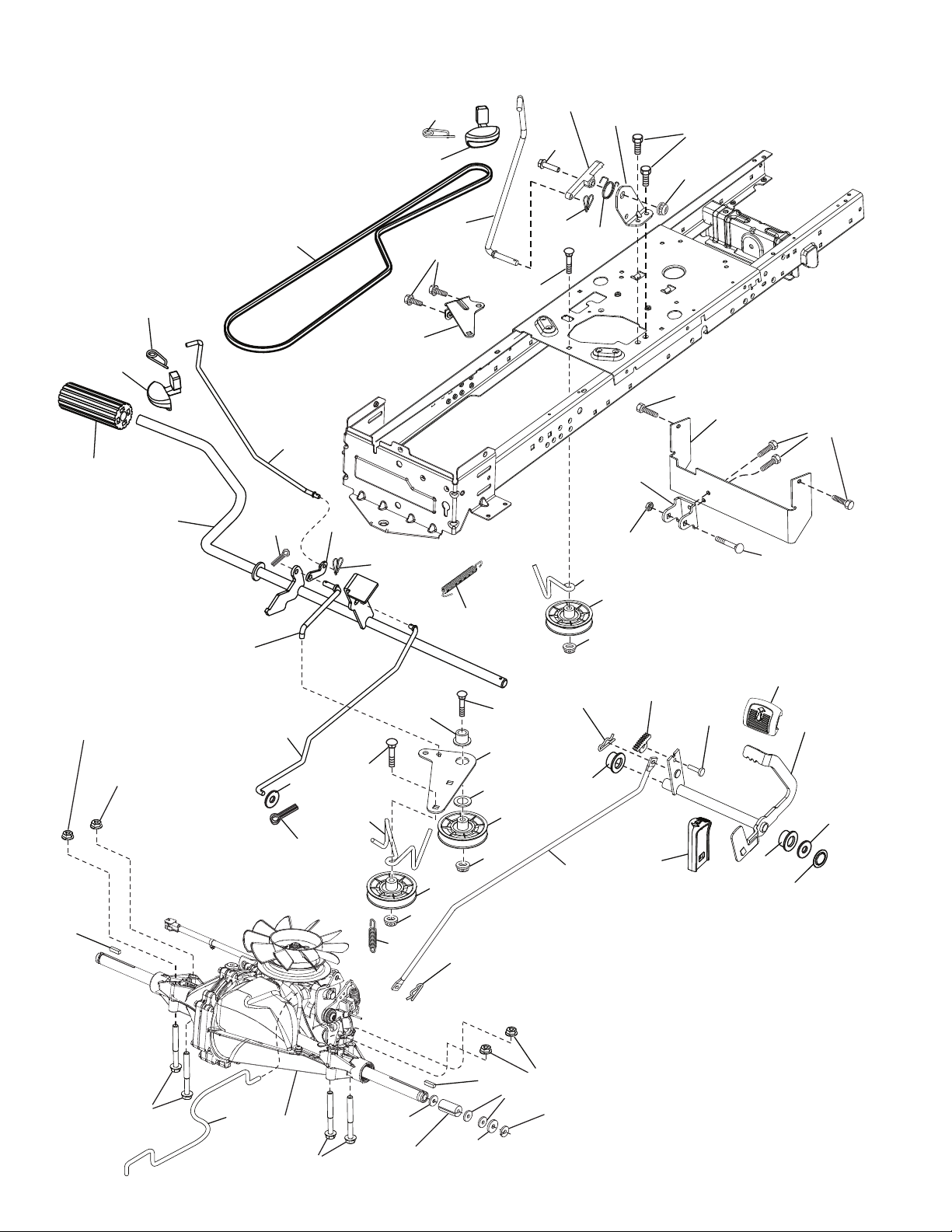

DRIVE
185
161
185
51
231
170
183
205
205
drive-tex_T2_pedal_14
2
1
2
37
33
73
73 99
116
116
186
189
49
187
50
51
190
52
51
64
188
35
184
167
160
42
221
210
211
166
211
17
214
215
153
153
222
29
15
159
159
116
163
56
114
122
121
80
125
125
216
143
213
221
160
206
26
207
209
92 125
116
208
125

9
TRACTOR - MODEL NO. A20K46YT/93603900 (96046000300), PRODUCT NO. 960 46 00-03
DRIVE
KEY PART
NO. NO. DESCRIPTION KEY PART NO. NO. DESCRIPTION
1 - - - - - - Transaxle, Hydro T2-AABC-1X2B-
1GX1(Order Parts from Transaxle
Manufacturer)
2 123583X Key
15 19131316 Washer 13/32 x 13/16 x 16 Ga.
17 197296 Spring, Brake
26 199679 Spring Return Cruise
29 408391 Rod, Brake
33 12000001 Ring E
35 197722 Rod, Brake, Park
37 121749X Washer 25/32 x 1-1/4 x 16 Ga.
42 8883R Cover, Foot Pedal
49 72110614 Bolt
50 194327 Pulley Idler Flat
51 73900600 Lock Nut 3/8-16
52 194326 Idler V-Groove 910" Offset
56 125907 V-Belt, Drive
64 197865 Shaft Asm. Pedal Brake Control
73 74490544 Bolt 5/16-18 Gr. 5
80 408393 Strap Torque
92 74760520 Bolt Fin Hex 5/16-18 unc x 1.25
99 408418 Rod Asm Bypass Spring
114 73800500 Nut Lock 5/16-18 unc
116 73900500 Nut Lock Hex Flange 5/16-18
121 175611 Bracket Strap Torque
122 72010520 Bolt 5/16-18 x 2.50
125 17000512 Screw 5/16-18 x 3/4
143 17490508 Screw Thdrol 5/16-18 x 1/2
153 4497H Retainer Spring
159 76020412 Pin Cotter 1/8 x 3/4
160 169484 Retainer Clip
161 105709 Spring, Return, Clutch
162 408784 Adapter Transaxle
163 413322 Rod Pedal Control
166 197290 Nut Push .625
167 405257 Latch Brake Parking
170 413430 Keeper Belt Centerspan
183 156972 Spacer Axle
184 198403X505 Handle Parking Brake
185 72110622 Bolt
186 194321 Spacer Retainer
187 19133210 Washer
188 194323 Link Clutch Ground Drive
189 194317 Bellcrank Ground Drive
190 194318 Keeper Bellcrank Ground Drive
205 121748X Washer 25/32 x 1-5/8 x 16 Ga.
206 197867 Bracket Mount Latch Cruise
207 197868 Latch Control Cruise
208 197869 Gear Sector Control Cruise
209 400769 Rod Control Cruise
210 400980 Rockr Asm. Pdeal Control
211 120183X Bearing Nylon
213 400799x428 Knob control Cruise
214 197302x428 Pad Pedal Forward
215 197301x428 Pad Pedal Reverse
216 196131 Bracket Pulley Idler
221 403187 Retainer Spring Clip Handle
222 79212010 Washer 21/32 x 1-1/4 10 Ga.
231 407287 Idler V-Groove 1.688
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm

10
TRACTOR - MODEL NO. A20K46YT/93603900 (96046000300), PRODUCT NO. 960 46 00-03

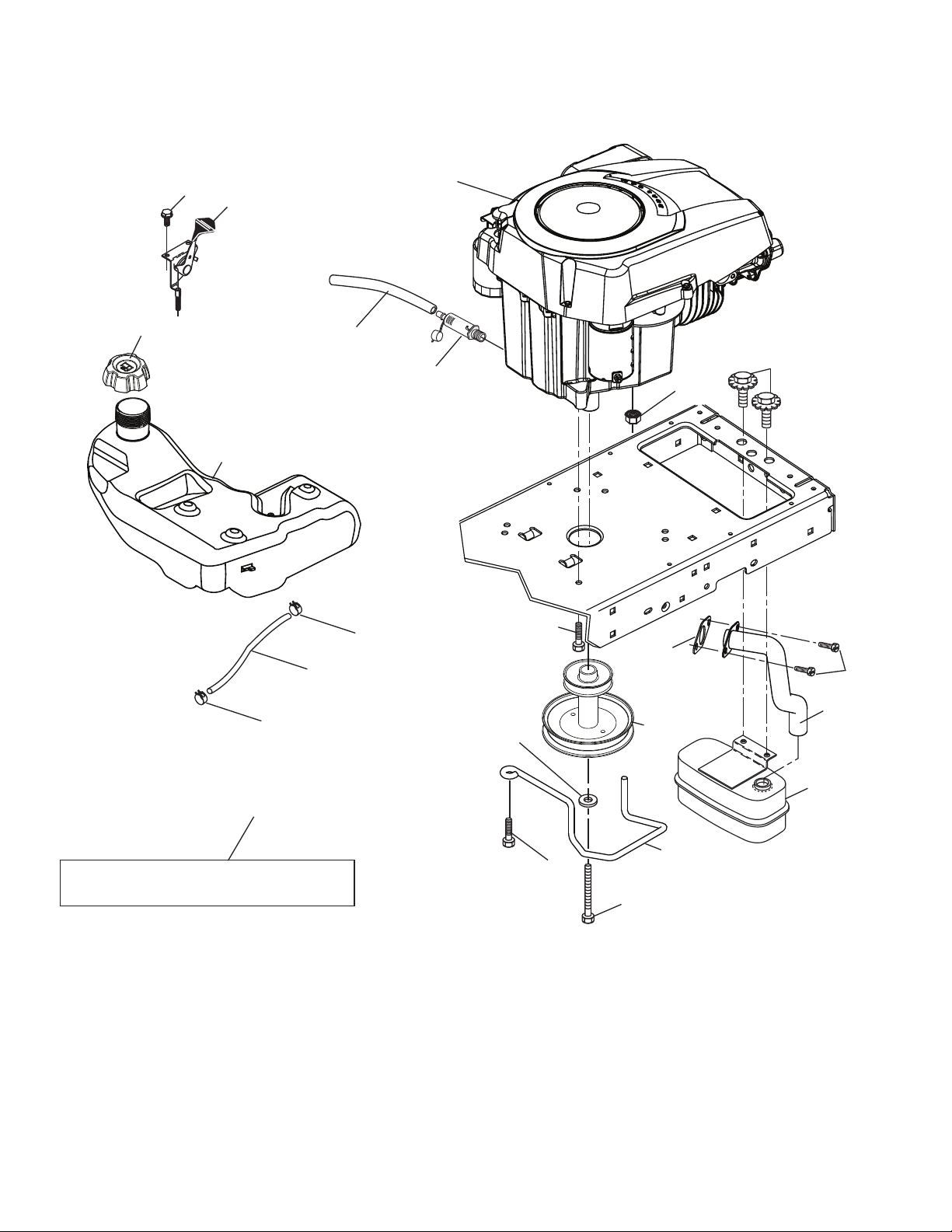

ENGINE
1
12
42
9
SPARK ARRESTER KIT
92
45
85
90
21 20
94
69
engine-tex_Kohl_11
2
81
18
18
29
82 87
37
28
37
79

11
KEY PART
NO. NO. DESCRIPTION
1 - - - - - - Engine Kohl Model No. SV600
2 188655 Muffler
9 194319 Keeper Belt Engine
12 405140 Pulley Engine
15 400021 Tank Fuel
18 195951 Cap Asm
20 176636X428 Control Throttle
21 416358 Screw #10 x 0.750 BOS Thread
28 401135 Fuel Line
29 137180 Spark Arrester Kit
37 123487X Clamp Hose
42 10040700 Washer Lock 7/16
45 73510400 Nut Keps Hex 1/4-20 unc
69 185909 Gasket
79 192334 Screw Socket HD 5/16-18 x .75
81 148456 Tube Drain Oil Easy
82 181654 Plug Drain Oil
85 173937 Bolt 7/16-20 x 4 x Gr. 5-1.5
87 171877 Bolt 5/16-18 unc x 3/4
90 17000616 Screw 3/8-16 x 1
92 17120616 Screw 3/8-16 x 1
94 188654 Tube Exhaust
TRACTOR - MODEL NO. A20K46YT/93603900 (96046000300), PRODUCT NO. 960 46 00-03
ENGINE
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
For engine service and replacement parts, call the toll free
number for your engine manufacturer listed below:
Kohler Co. 1-800-544-2444

12
TRACTOR - MODEL NO. A20K46YT/93603900 (96046000300), PRODUCT NO. 960 46 00-03
STEERING ASSEMBLY



 















STEERINGTEX?34$(23?





 











9
9
8
8
7
7
2
6
6
74
74
74
74

13
KEY PART
NO. NO. DESCRIPTION
1 414803X428 Wheel, Steering
2 418168 Axle Asm., Front
4 403087 Spindle Asm., LH
5 403088 Spindle Asm., RH
6 6266H Bearing, Race Thrust Harden
7 121748X Washer 25/32 x 1-5/8 x 16 Ga.
8 12000029 Ring, Clip #T5304-75
9 121232X Cap, Spindle
13 121749X Washer 25/32 x 1-1/4 x 16 Ga.
14 10040600 Washer, Lock Hvy Hlcl Spr 3/8
15 73540600 Nut, Crown Lock 3/8-24 unf
16 408219 Shaft Steering
19 194729 Plate Steering
20 199743X428 Boot, Steering
21 186737 Adapter, Wheel Steering
22 194845 Bushing, Strg. Blk
26 414854X428 Insert, Wheel Steering
28 17000612 Screw 3/8-16 x 3/4
35 194732 Gear, Sector Plate
45 19183812 Washer 9/16 ID x 2-3/8 x 12 Ga.
51 73940800 Nut Hex Jam Toplock 1/2-20 unf
53 188967 Washer Hardened .793 x 1.637 x .060
57 407465 Bracket Upstop
58 194747 Bolt Shoulder Sector Pivot CFM
59 194748 Washer Thrust Sector Steering
60 73971000 Nut Flange Lock 5/8-11
61 194740 Draglink, LH
62 194741 Draglink, RH
63 17000512 Screw 5/16-18 x 3/4
64 199849 Retainer Clip Spring Steering
66 71020748 Bolt Hex Fghd 7/16-14 x 3 Serr
67 194737 Bushing PM Front Axle
68 73900700 Nut Lock Flange 7/16-14 Gr. 5
69 199162 Washer 1.5 x .505 x .118
70 196197 Bracket Deck Susp. Front
74 3366R Bearing Col. STRG.
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
TRACTOR - MODEL NO. A20K46YT/93603900 (96046000300), PRODUCT NO. 960 46 00-03
STEERING ASSEMBLY

14
TRACTOR - MODEL NO. A20K46YT/93603900 (96046000300), PRODUCT NO. 960 46 00-03
MOWER DECK
















 










?MAN4EX?LT?
























 


 











 
47





 




70
7
7
37
67
152

15
TRACTOR - MODEL NO. A20K46YT/93603900 (96046000300), PRODUCT NO. 960 46 00-03
MOWER DECK

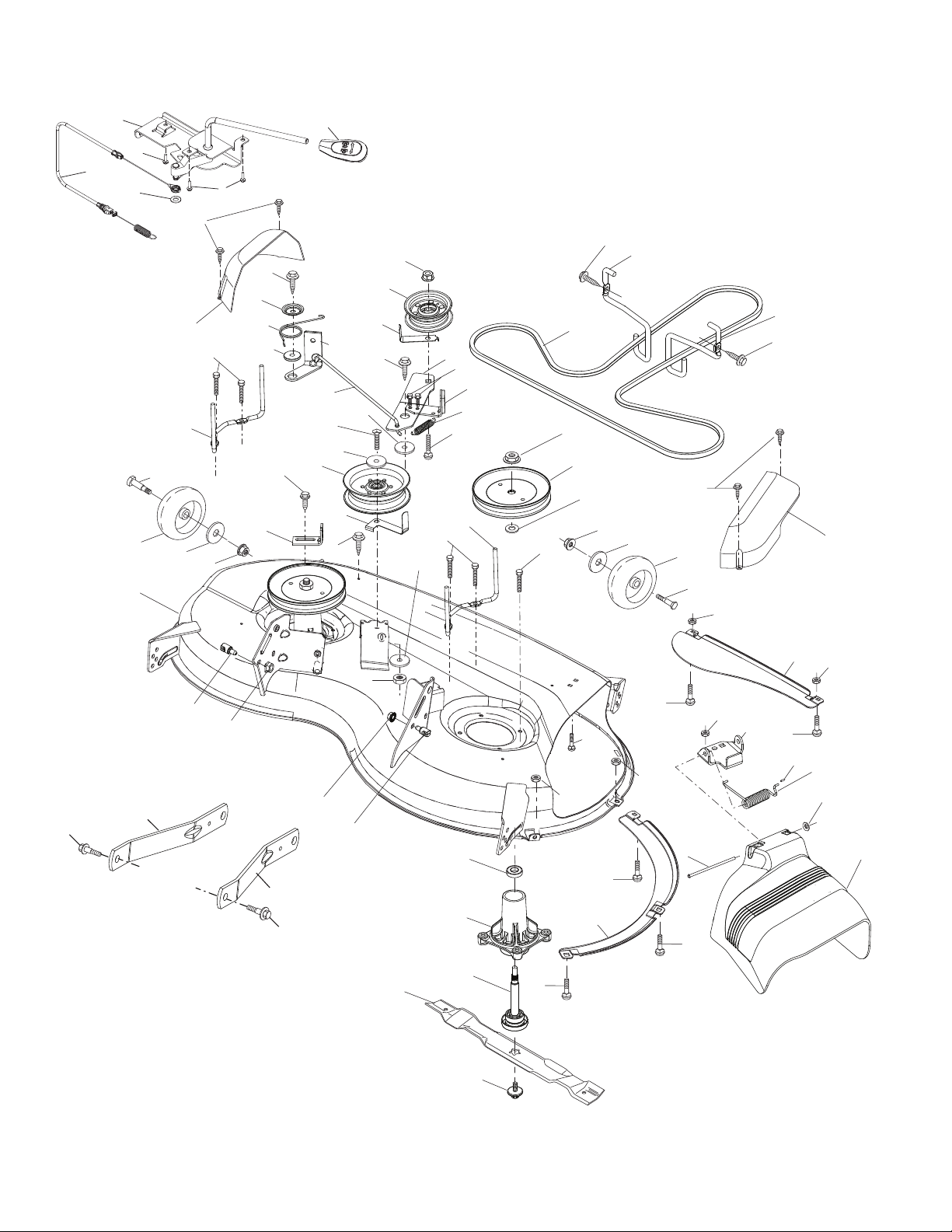

1 405049X422 Mower Housing
2 405506 Cover Mandrel LH
3 405507 Cover Mandrel RH
6 195186 Arm Suspension
7 416358 Screw #10 x 0.750 BOS Thread
8 193003 Bolt/Washer Asm 7/16-20 unf
11 405380 Blade Mower
13 192872 Shaft Assembly, Mandrel
14 187281 Housing, Mandrel
15 110485X Bearing, Ball, Mandrel
19 196539 Bolt, Shoulder
21 73680500 Nut
23 192557 Bracket, Deflector
24 105304X Cap, Sleeve
25 197026 Spring, Torsion, Deflector
26 110452X Nut, Push
27 405357 Shield, Deflector
29 131491 Rod, Hinge
30 173984 Screw Thdrol Rolling Wsh Hd
31 187690 Washer, Spacer
32 197473 Pulley, Mandrel
33 400234 Nut, Toplock, Flanged
34 72110612 Bolt Carr Sh. 3/8-16 x 1-1/2 Gr. 5
36 197379 Pulley, Idler
37 19131316 Washer 13/32 x 13/16 x 16 Ga.
38 199189 Keeper Belt LH Mandrel
40 73900600 Nut, Lock Flg. 3/8-16 unc
42 197256 Spring Torsion Retainer
43 198410 Spring Torsion Brake
46 137729 Screw
47 197250 Bracket Clutch Cable
55 197249 Arm, Idler
56 199092 Spacer, Retainer
57 17000616 Screw Hexwsh Thd 3/8-16 x 1
59 141043 Guard, Tuv Idler (94)
60 199471 Arm Brake Mower
63 199478 Arm Brake Mower
64 405139 Linkage Brake
67 198398X428 Handle, Clutch Cable
68 405143 V-Belt
69 72140505 Bolt
70 199779 Clutch Asm. Manual
113 17000510 Screw 5/16-18
116 193406 Bolt, Shoulder
117 174873 Wheel, Gauge
119 19132012 Washer 13/32 x 1-1/4 x 12 Ga.
122 197258 Keeper Belt Eng. LH
123 197259 Keeper Belt Eng. RH
144 199204 Keeper Belt
145 177968 Pulley Idler
147 401872 Spring Return
152 408714 Cable Clutch Manual w/Spr.
188 195161 Stud Fastener
189 73900500 Nut Lock Hex Flange
195 17000612 Screw 3/8-16 x 3/4
197 19131312 Washer 13/32 x 13/16 x 12 Ga.
198 403149 Baffle Center Front
199 403150 Baffle Front RH
208 17670608 Screw Thdrol 3/8-16 x 1/2
240 74520636 Bolt Fin Hex 3/8-16 x 2-1/4 Gr. 5
200 413524 Washer 13/32 x 1 x 1/2 11 Ga.
- - 192870 Mandrel Assembly (Includes
housing, shaft assembly, and bea-
ring only - pulley/nut/washer and
blade bolt/washers not included)
- - 423803 Replacement Mower, Complete
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
KEY PART
NO. NO. DESCRIPTION KEY PART NO. NO. DESCRIPTION

16
TRACTOR - MODEL NO. A20K46YT/93603900 (96046000300), PRODUCT NO. 960 46 00-03
MOWER LIFT














LIFTTEX??R




2 195223 Shaft Asm., Lift
3 195231 Lever Asm., Lift RH
7 196492X421 Grip, Lever
10 196314 Spring Torsion
87 194209 Pin Cotter 7/16 Bow Tie Lock
88 410710 Spring Lift Assist
89 19171912 Washer 17/32 x 1-3/16 x 12 Ga.
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
KEY PART
NO. NO. DESCRIPTION
90 194208 Pin Cotter 5/16 Bow Tie Lock
91 195181 Link Asm. Lift Rear
97 17000612 Screw 3/8-16 x .75 Smgml Tap/R.Z
98 195270 Link Lift Susp. Front Mower
100 73930600 Nut Centerlock 3/8-16 unc
16

17
TRACTOR - MODEL NO. A20K46YT/93603900 (96046000300), PRODUCT NO. 960 46 00-03
SEAT ASSEMBLY
1 423010 Seat
2 180166 Bracket Pivot Fender
3 140675 Strap, Asm Fender
6 73800600 Nut, Lock w/Ins. 3/8-16 unc
7 124181X Spring, Seat Cprsn
8 171877 Bolt 5/16-18 unc x 3/4 w/Sems
10 196977 Pan, Seat
21 171852 Bolt, Shoulder 5/16-18
37 73800500 Nut, Lock 5/16-18 unc
40 197661 Handle Slide Seat
41 198200 Spring Latch Seat
43 74760612 Bolt Fin Hex 3/8-16 unc x 3/4
44 19133812 Washer 13/32 x 2-3/8 x 12 Ga.
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
2
6
1
40
10
37
37
21
21
3
41
7
8
7
8
8
8
seat-tex_6.5SL_2
44
43

18
TRACTOR - MODEL NO. A20K46YT/93603900 (96046000300), PRODUCT NO. 960 46 00-03
DECALS
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
KEY PART
NO. NO. DESCRIPTION
6
2
1
3
11
4
10
5
9
8
7
wheel_art_1-vgt
WHEELS AND TIRES
KEY PART
NO. NO. DESCRIPTION KEY PART
NO. NO. DESCRIPTION
1 59192 Cap, Valve, Tire
2 65139 Stem, Valve
3 106732X428 Rim Assembly, Front
4 59904 Tube, Front
5 106222X Tire, Front
6 278H Fitting, Grease
7 9040H Bearing, Flange
8 104757X428 Cap, Axle (Front Wheel Only)
9 420531 Tire, Rear 18 x 9.5-8 Turf Saver LT
10 7152J Tube, Rear
11 106108X428 Rim Assembly, Rear
- - 144334 Sealant, Tire (10 oz. Tube)
1 422808 Decal, Hood RH
2 422809 Decal, Hood LH
3 422812 Decal, Side Panel
4 422855 Decal, Fender
5 422816 Decal, Fender Flag USA
6 411658 Decal, Fender Operator's
7 422811 Decal, Lower Dash
8 170563 Decal, Warning
9 145005 Decal, Battery Dnge/Poi
10 422813 Decal, Fender SD RH/LH
11 424088 Decal, Replacement
12 423830 Decal, Hood E85 Warning
13 422810 Decal, Steering Wheel
14 160396 Decal, Mower Schematic
- - 400981X428 Pad, Footrest Control
- - 166960 Decal, Bypass
- - 193226X428 Pad, Footrest, LH
- - 423811 Manual,Operator's(English/French)
- - 424624 Manual, Operator's (Spanish)
- - 423812 Manual, Parts (English/French)
10
7
1
5
12
2
6
3
13
9
14
11
4
7
10

SERVICE NOTES

LIMITED WARRANTY
The Manufacturer warrants to the original consumer purchaser that this product as manufactured is free from defects in materi-
als and workmanship. For a period of two (2) years from date of purchase by the original consumer purchaser, we will repair or
replace, at our option, without charge for parts or labor incurred in replacing parts, any part which we find to be defective due
to materials or workmanship. This Warranty is subject to the following limitations and exclusions.
1. This warranty does not apply to the engine, transaxle/transmission components, battery (except as noted below) or com-
ponents parts thereof. Please refer to the applicable manufacturer's warranty on these items.
2. Transportation charges for the movement of any power equipment unit or attachment are the responsibility of the purchas-
er. Transportation charges for any parts submitted for replacement under this warranty must be paid by the purchaser un-
less such return is requested by the manufacturer.
3. Battery Warranty: On products equipped with a Battery, we will replace, without charge to you, any battery which we find
to be defective in manufacture, during the first ninety (90) days of ownership. After ninety (90) days, we will exchange the
Battery, charging you 1/12 of the price of a new Battery for each full month from the date of the original sale. Battery must
be maintained in accordance with the instructions furnished.
4. The Warranty period for any products used for rental or commercial purposes is limited to 90 days from the date of original
purchase.
5. This Warranty applies only to products which have been properly assembled, adjusted, operated, and maintained in ac-
cordance with the instructions furnished. This Warranty does not apply to any product which has been subjected to altera-
tion, misuse, abuse, improper assembly or installation, delivery damage, or to normal wear of the product.
6. Exclusions: Excluded from this Warranty are belts, blades, blade adapters, normal wear, normal adjustments, standard
hardware and normal maintenance.
7. In the event you have a claim under this Warranty, you must return the product to an authorized service dealer.
Should you have any unanswered questions concerning this Warranty, please contact:
giving the model number, serial number and date of purchase of your product and the name and address of the authorized
dealer from whom it was purchased.
THIS WARRANTY DOES NOT APPLY TO INCIDENTAL OR CONSEQUENTIAL DAMAGES AND ANY IMPLIED WARRAN-
TIES ARE LIMITED TO THE SAME TIME PERIODS STATED HEREIN FOR OUR EXPRESSED WARRANTIES. Some areas
do not allow the limitation of consequential damages or limitations of how long an implied Warranty may last, so the above limi-
tations or exclusions may not apply to you. This Warranty gives you specific legal rights, and you may have other rights which
vary from locale to locale.
This is a limited Warranty within the meaning of that term as defined in the Magnuson-Moss Act of 1975.
In Canada contact:
HOP
5855 Terry Fox Way
Mississauga, Ontario
L5V 3E4
HOP
Outdoor Products Customer Service Dept.
1030 Stevens Creek Road
Augusta, GA 30907 USA
