Aristel CL100 User manual

Aristel

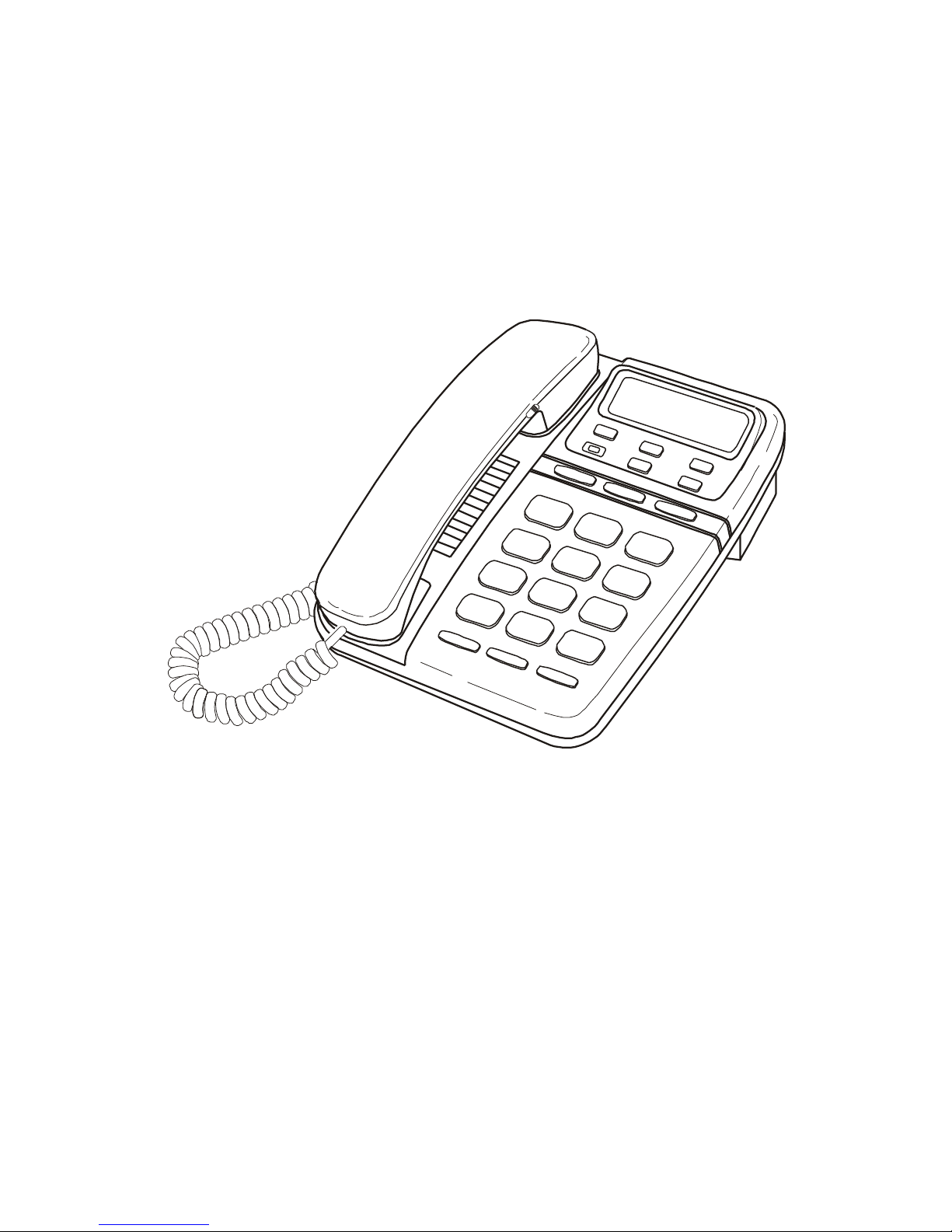

CL100 Big Button Caller ID
Telephone
Keep this user guide for future reference

2
CONTENTS
Warnings …………………………………………………………..
3
Location of Controls…………………………………………..…
4
Key Features…………………………………………...………....
5
PARTS LIST ………………………………………..………….….
5
INSTALLATION …………………………………….………….…
6
Installation of batteries…………………………………………
6
Connecting Your Telephone ………………………………….
6
TELEPHONE OPERATION ……………………………………..
7-8
Answering a Call………………………………………………...
7
Using the Ringer HI/LOW/OFF Switch ………………………
7
Making Calls …………………….………………………………
7
Using the Handset Volume Control ………………………….
7
Last Number Redial ……………………………………….….
7
Recall / Flash……….……………………………………..……
7
Call Timer ………………………………………………….……
8
Saving Numbers to One-Touch Memory …………..…………
8
Saving Numbers to Two-Touch Memory …………………….
8
Making Calls from the One-Touch Memory ………………….
8
Making Calls from the Two-Touch Memory …………………
8
Listing your memory Numbers ………………………………
9
Checking a Number Stored into Memory …………………….
9
MENU PROGRAMMING INSTRUCTIONS …………….……...
9
Setting the Language, Time and Date, LCD Contrast………
9-10
Setting the Area Code, Long Distance Access code……….
10
Using the Name and Number Phone Book………………….
10
CALLER ID OPERATION …………………..…………….……..
12-13
Checking incoming calls…………………….. ………………..
12
Dialing Numbers from the Caller ID Memory ………………..
12
Deleting an Individual Caller ID Record from Memory………
12
Deleting all Caller ID Records from Memory ………………..
13
Using Message Waiting/Mail Box …………………………….
13
DESK AND WALL MOUNTING…………………………………
13-15
Wall mounting with a modular wall phone plate…………….
14
Wall mounting without a modular wall phone plate…………
15
TROUBLE SHOOTING ………………………………………..…
16-17
WARRANTY……………………………………………………….
18

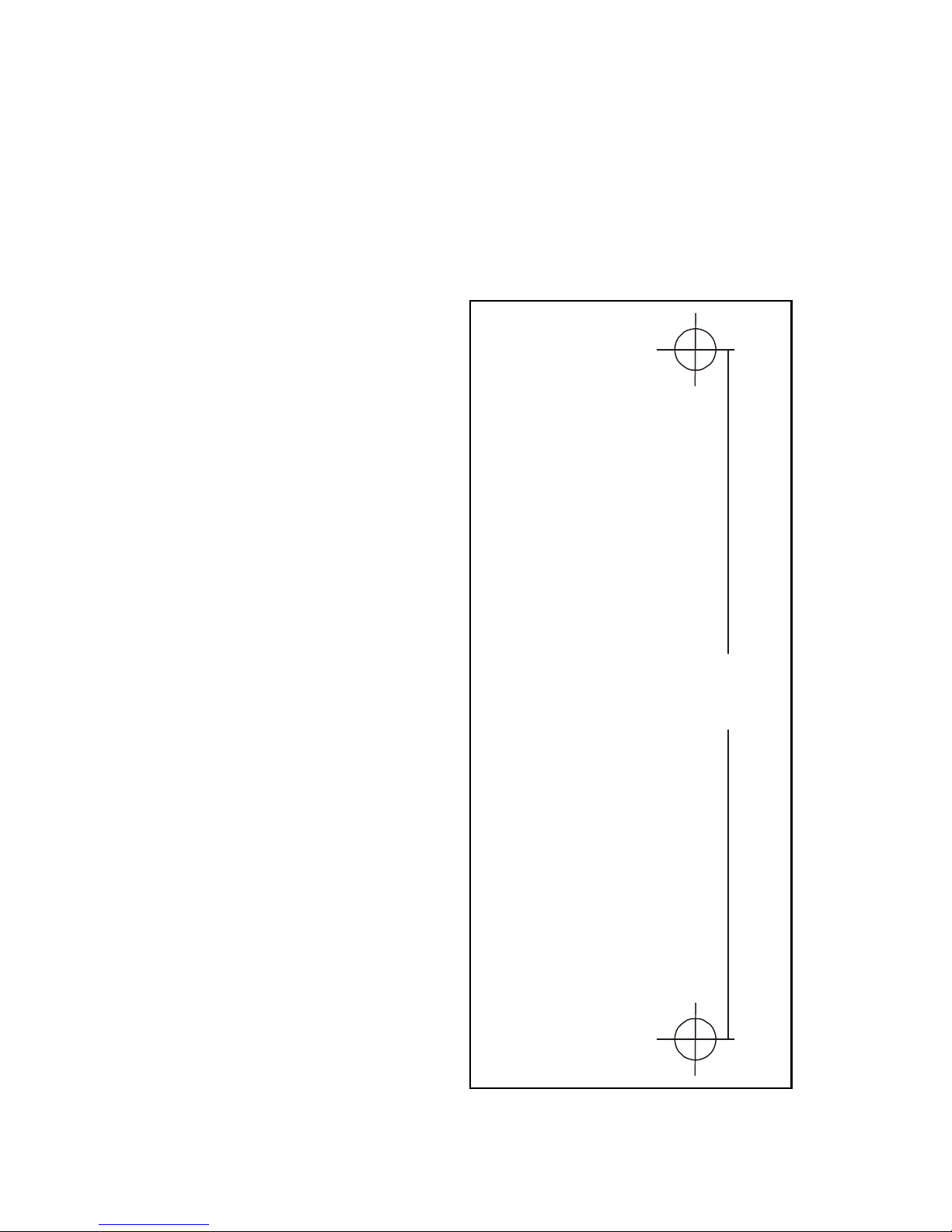

Wall Mounting Template……………………………………..…
18

3
Warnings
Do not use your telephone during an electrical storm or
thunderstorm, as it is possible to receive an electric shock.
The earpiece of the handset may attract small metal objects such
as staples and pins. Care should be taken when placing the
handset near these items.
Before installing or changing the batteries make sure that the
telephone is not connected to the telephone network or the mains
power supply.
All batteries should be replaced at the same time. Mixing fresh
and discharged batteries could increase internal cell pressure
and rupture the discharged batteries.
When inserting batteries into this telephone, observe the proper
polarity and direction. Failure may result in leakage or explosion.
Remove the batteries from this telephone if the telephone will not
be used for a long time (several months or more). During this
time the batteries could leak and cause damage to the telephone.
Temperature and ambient conditions: The telephone is designed
for indoor use (temperature range of -10°C to 50°C). Do not
install the telephone in areas where there is the risk of an
explosion, excessive exposure to smoke, dust, vibrations,
chemicals, moisture, and heat. The unit must not be installed in
damp locations such as a bathroom or laundry, do not expose the
unit to direct sunlight.
The surface of the case can be cleaned with a dry, soft, lint-free
cloth. Never use cleaning agents, particularly aggressive solvents.
Apart from occasional cleaning of the case, no other care is
necessary. The rubber feet of the base station are not resistant to
all cleaning agents. The telephone feet do not normally leave any
marks on the surface. However, on account of the multitude of
varnishes and surface finishes used, surface marks caused by
the feet of the unit cannot be ruled out.

4
Location of Controls
1
2
3
4
5678910 11 12
13
14
15
16
17
18
1. Coiled Handset Cord
2. Memory Index Card –Use to memorize your speed dial memory.
3. Store Button - Use to store numbers into the speed dials.
4. Volume Switch - Use to adjust the handset receiver volume
(NORM or LOUD).
5. Message LED - Flashes red when new Message information has
been received (only available when message switch set to ON).
6. Delete Button - Press twice to erase a record.
7. Handset Hanger –Use to put handset on hold if wall mounted
8. LCD display - Shows caller ID information and set up options.
9. Ringer Hi/Lo/Off Switch - Adjust switch to desired ringer volume
setting.
10. Dial/Set button - Press to dial the number shown in the display.
11. Message Switch –to control Message LED flash or not.
12. Phone Book –Use to access the 50 Name and number memory
13. Up and Down button - Press to step through caller ID records.
14. Memory [M1], [M2] buttons - Press to dial speed dial numbers.
15. Telephone Keypad Button –for dialing out, storing phone
numbers.
16. Redial/Pause Button - Press for last number redial.
17. Recall/ Flash Button –Use to access telephone dialing features
like call waiting.
18. Auto Button - Use to recall numbers from 2 touch memory.

5
Key Features
Caller ID:
If available from your Service Provider, the telephone displays the
caller‟s name and telephone number, plus the date and time of the
call, for the last 100 incoming calls that you have received.
Extra large three-line high resolution LCD display.
Displays in standby screen total and new calls received.
Up/Down buttons allow easy scrolling forward or backward through
stored call records.
Delete button allows call records to be Deleted individually or
collectively.
Real Time Clock - Time and date will be automatically set up by
the local telephone company when caller ID information is
received.
Allows you to return a call to a number from the caller ID memory.
Quick store of caller ID information into speed dial
Adjustable display contrast and viewing angle
Voice Mail Message waiting LED indicator
Multi-Language Selectable - Allows you to select English or 1 of 7
other languages.
Phone features:
Two one-touch Speed Dial Buttons (M1 to M2) - For quick dialing
of frequently dialed numbers
Twelve two-touch Speed Dial Buttons (MEM 0 to MEM #) - Dials
twelve stored numbers with the press of two buttons
Last Number Redial
50 Name and Number Phone Book
Handset Volume Control - Adjusts the volume of the handset
receiver between two levels: Normal and Loud
Desk or Wall Mountable (fits standard Australian wall mounting
plate)
PARTS LIST
Unpack the unit and check to be sure you have all the items below.
Telephone Base and handset
1 Curly Handset Cord, 1 Long and 1 short line Cord
Desk/Wall Mount Bracket, Memory Index Label

6
Step 2
Step 1
Installation
Installation of Batteries
Note: Before installing or changing the batteries make sure that the
telephone is not connected to the telephone network.
To open the battery door and install the batteries, follow the procedure
below:
1. Open the battery door on the bottom of the base by using the tip of
a screwdriver or other pointed object to lift the latch.
2. Install 4 AA batteries into the battery compartment observing the
correct polarity.
3. Close the battery compartment.
Low Battery Alert
This unit will alert you when the batteries need replacement. When the
battery power becomes low the display will become dim. Always use
high quality AA batteries. The batteries also backup the memory.
WARNING:
Replace the batteries when the LCD Screen becomes dim.
When the batteries are flat, the LCD Screen will be blank. You can
still make or receive calls, but you cannot use the Caller ID feature,
memory dialing and your data and settings may be lost.
Connecting Your Telephone
1. Connect the Coiled Handset Cord to the
bottom of the handset and the left of the
base (step 1).
2. Connect the straight telephone line cord
to the Line Cord jack and telephone outlet
on the wall (step 2). (For Wall Mounting
refer instructions of this booklet)
3. The Message Wait Switch MUST be OFF
if connecting the handset to the PSTN.

7
TELEPHONE OPERATION
Answering A Call
1. Pick up the Handset when the phone rings.
2. When you finish talking, replace the Handset onto the base.
Using the Ringer Hi/ Low/ Off Switch
The ringer switch is located on the back of the phone, select the
desired level for your ringer.
HI –Allows your telephone to ring loudly on incoming calls.
LOW –Allows your telephone to ring softly on incoming calls.
OFF –Turns off the ringer for undisturbed privacy.
Warning: If your RINGER switch is in the OFF position, this phone will
not ring. Other telephones connected to the same line may still ring.
Making Calls
1. Pick up the Handset.
2. Dial the phone number. The dialed number appears in the display.
3. When you finish talking, replace the Handset onto the base.
Using the Handset Volume Control
You can adjust the volume level of the handset receiver by adjusting
the volume control on the side of the handset during a conversation.
There are two levels to adjust between: Normal and Loud (NORM -
LOUD).
Last Number Redial
The CL100 will store the last 16 numbers you called. Follow the
instructions below to access any of these numbers:
1. To redial the last number leave the handset on the base, press
REDIAL repeatedly until you find the number you wish to dial.
2. When you find the number you wish to dial pick up the handset.
The number will now dial automatically.
Recall / Flash
Many special network services, such as call waiting, require a recall
signal. The RECALL button provides this signal. For example, if you
subscribe to Call Waiting, you can put your current call on hold when
you hear the beeps and answer another call on the same line by
pressing RECALL button, listen for dial tone then press 2. Press
RECALL and 2 again to alternate between the two calls.

8
Call Timer
About 5 seconds after the number you have called is dialed, an
automatic call timer will start to count up on the display. This is useful
since it allows you to know how long you have been talking on the
phone (it is especially useful when making a long distance call).
Saving Numbers to One-Touch Memory (M1 to M2)
Note: When storing memory numbers, your phone must have
batteries installed. ONLY NUMBERS CAN BE STORED IN THE
MEMORY.
1. With the phone on-hook, dial the number you require (up to 16
digits) using the dial pad.
2. Press the STORE button once.
3. Press the one-touch memory button that you wish to store the
number in ([M1] or [M2]. The number is now stored.
4. Repeat steps 1 to 3 to store additional numbers.
Saving Numbers to Two-Touch Memory (MEM 0 to MEM #)
1. With the phone on-hook, dial the number you require (up to 16
digits) using the dial pad.
2. Press the STORE button once.
3. Press any number on the dial pad that you wish to store the
number in ([0] to [#]). The number is now stored.
4. Repeat steps 1 to 3 to store additional numbers.
Note: There is a time-out for storing numbers. If the CL100 times out
before the number is stored, try again.
Making Calls from the One-Touch Memory
Follow the instructions below to dial a number from the one-touch
memory:
1. Pick up the handset and hear a dial tone.
2. Press the memory number ([M1] or [M2]) button where the
number is stored.
3. The number will be displayed and your call will be automatically
dialed exactly as you programmed.
Making Calls from the Two-Touch Memory
Follow the instructions below to dial a number from the two-touch
memory:
1. Pick up the handset to get a dial tone.
2. Press the AUTO button, and then the dial pad button where the

9
number is stored.
3. The number is dialed automatically.
Notes: You may program a “Pause” into memory (e.g. when you need
to dial a 9 to get an outside line). While storing a number, press the
[REDIAL/PAUSE] button (a “P” will show on the display).
Listing Your Memory Numbers
Write names and numbers on the Memory Index Label in pencil so
that you can change them later. This also allows you to easily
reprogram the phone in the rare cases where memory is lost.
Checking a Number Stored into Memory
1. With the phone on-hook, press AUTO and the memory button(s)
for the location you wish to view. The display will show the location
and the stored number.
2. In case you want to change a number you stored, simply store a
new number into that location. The old one will be erased
automatically.
MENU PROGRAMMING INSTRUCTIONS
The CL100 has a simple menu system used to handle and set up the
phone book operation.
Accessing the Menu
1. With the handset on the base, press DIAL/SET to enter the menu
mode, and LCD will display: VIEW MENU ↓↑.
2. Use UP or DOWN button to move through the menu. When you
choose one item, press SET again to set. After you finish with one
item, you should press SET again in order to confirm and/or move
to another item.
3. To change items, always use the UP or DOWN button. If you want
to leave the menu mode at any time, press DELETE.
SELECT LAUGUAGE
The CL100 is defaulted to select “English” language.
To change simply:
1. Press DIAL/SET use UP or DOWN to select: SELECT
LANGUAGE.
2. Press SET you will see on the display ENGLISH, which is the
default setting. Use UP/DOWN to change another language

10
(English / French / Spanish / Italian / German / Turkish / Polish /
Slovenian) as required. Press SET to confirm.
SETTING DATE/TIME
If you subscribe to caller ID the Time and date will be set up
automatically when the phone rings. If no caller ID is activated you can
set the time and date manually
1. Press DIAL/SET use UP or DOWN to select: DATE/TIME, press
SET, the year digits will flash.
2. Use UP/DOWN to select the year then press SET. Repeat the
operation to set the hour, minute, month and date.
LCD CONTRAST
Press DIAL/SET use UP or DOWN to select: CONTRAST ADJUST,
press SET and use UP/DOWN to select among 5 settings.
The default setting is 3.
SETTING AREA CODE
Press DIAL/SET use UP or DOWN to select: SET AREA CODE,
press SET and use UP/DOWN to select each number of your area
code, press SET to confirm the setting and go to next digit.
SETTING LONG DISTANCE ACCESS CODE
Press DIAL/SET use UP or DOWN to select: LONG DIST ACCESS,
press SET and use UP/DOWN to select each number of your long
distance access code, press SET to confirm the setting and go to next
digit.
USING THE NAME AND NUMBER PHONE BOOK
Adding Names and Numbers
You can store 50 Names and Numbers in the phone book.
1. Press DIAL/SET use UP or DOWN to select: PHONEBOOK ADD
2. Press SET, The LCD displays INPUT NUMBER now enter the
number you wish to store including the area code and IDD prefix,
EG 03 8542 2300
3. Press SET to confirm. The LCD shows ENTER NAME now enter
the name, for example, digit [2] button will store A, B and C.
Pressing [2] button once will give you the letter “A” and twice will
give you “B”. Note that “0” represents a „space‟.
4. Use UP/DOWN to move the cursor and DELETE to correct. When
finished, press SET again to confirm. For exit, press DELETE.

11
Legend of letters and symbols in numeric keypad:
[1] 1 [7] P Q R S 7
[2] A B C 2 [8] T U V 8
[3] D E F 3 [9] W X Y Z 9
[4] G H I 4 [0] 0 Space
[5] J K L 5 [*] *
[6] M N O 6 [#] #
EDITING PHONE BOOK ENTRIES
1. Press DIAL/SET use UP or DOWN to select: PHONEBOOK
EDIT.
2. Press SET and input the first character of name you wish to edit.
You can then view the corresponding telephone numbers by
pressing SET again. If no character input, you could use UP and
DOWN to view all the entries in sequence. When you find the
number you want to edit.
3. Use UP/DOWN to move the cursor and DELETE to correct. When
finished, press SET again to confirm, to exit press DELETE.
Dialing items from the Phone book
1. Press PHONE BOOK button and input the first character of the
name you wish to dial. Or keep pressing PHONE BOOK until you
find the number.
2. To dial press DIAL/ SET, The number will dial automatically.
CALLER ID OPERATION
If you subscribe to your telephone operators Caller ID service,
the incoming callers number will be displayed on the screen and
stored in the call log.
(Please consult your telephone service provider for details,
service charges may apply)
When receiving a phone call, the display will show the phone number
together with the information, date, and time of the call. A new number
will carry a “NEW” icon, and a repeated number will carry a “REP” icon.
A private call (when the caller prefers his/her number to be hidden) will
display “PRIVATE CALL“. A call out of service will display

12
“UNAVAILABE”. An incorrect incoming signal will display “LINE
ERROR”. If you have programmed the memory with Names the
corresponding name will be displayed also, the name shown on the
LCD will be same as that in the phone book.
Checking incoming calls
1. Use the UP/DOWN buttons view the information of the incoming
calls including phone number, date and time. To scroll rapidly,
press and hold UP/DOWN.
2. When the caller ID memory is full, the oldest calls will be
automatically deleted in order to make room for the new caller ID
numbers.
Dialing Numbers from the Caller ID Memory
The CL100 allows you to dial a phone number stored in its caller ID
memory. This is the “call back” feature of this phone. To dial a number
from caller ID memory, do the following:
1. With the handset in the base, press the DOWN or UP button to find
the caller ID entry you wish to dial.
2. Press the DIAL/ SET button to enter caller ID call back mode. The
number will appear on the display then automatically dial.
Deleting an Individual Caller ID Record from Memory
1. Press DOWN or UP until the call to be deleted is displayed.
2. Press DELETE once, the LCD shows “DEL?”, then press DELETE
again within two seconds.
3. The call is deleted and the total call count in the display is reduced.
Deleting all Caller ID Records from Memory
You can only delete all calls after all calls have been reviewed. If there
are any new call records, deleting all calls will not work.
1. Press DOWN or UP to view any caller ID call information.
2. Press and hold DELETE for five seconds until “DEL ALL?” is
displayed.
3. Press DELETE again, all calls are Deleted and the total call count
in the display returns to zero.

13
New Call Indicator
The Message LED indicator will flash slowly to alert you if there have
been any new incoming calls. The display will also indicate the number
of new calls.
The Message LED indicator will keep flashing until you have reviewed
all new calls.
The “NEW” (new call number) counter on the display will become zero.
Using Message Waiting / Mail Box
This product is designed to also receive (FSK) Message Waiting
indication from your Telephone service provider. For this feature to
work, you must subscribe to this service with your local telephone
company.
1. When a message is sent by Service Provider, it is preceded by a
ring and the Message Waiting symbol will appear on the
display.
2. After you have retrieved your message(s), the Service Provider
should send a clear signal to your phone. The Message Waiting
symbol will turn off until a new message is received.
Resetting (FSK) Message Waiting Indication
Some Service Providers do not send a message clear signal and you
may then have to clear the Message Waiting Indication manually.
Refer trouble shooting section.
PABX Message Waiting Operation
This product is also designed to receive Message Waiting Indication
from your PABX. For this feature to operate, the Message Switch
MUST be in the ON position and the PABX must be capable of lighting
a Neon lamp (typically, 80VDC signal). When a message has been
left for the extension on a PABX, the Message Lamp will flash. The
Message Wait Lamp will continue to flash until the call is either
returned or the Message Wait signal has been cancelled on the PABX.
DESK AND WALL MOUNTING
Your CL100 can be mounted to a standard wall phone plate. lf you do
not have a modular wall phone plate installed, consult with your phone
company or licensed installer to get one, or install without a wall plate.
NOTE: Screws and wall anchors are not provided.

14
Wall Mounting with a Modular Wall Phone Plate
1. HANDSET CLIP - When the phone is mounted on the wall, the
HANDSET CLIP must be adjusted so it will hold the HANDSET.
A. SLIDE OUT B. REVERSE C. SLIDE INTO PHONE
DESK BRACKET:
2. Remove the desk bracket if you installed
it.
3. Connect one end of the SHORT
TELEPHONE LINE CORD into the
TELEPHONE LINE CONNECTION JACK
on the back of the BASE UNIT.
4. Feed the SHORT TELEPHONE LINE
CORD into the channel in the bottom of
the BASE UNIT and plug the other end of
the SHORT TELEPHONE LINE CORD
into the WALL JACK.
5. Position the WALL MOUNT SLOTS on the
bottom of the BASE UNIT over the two
wall plate studs. Then slide the BASE
UNIT down to lock the phone onto the
WALL PLATE.
Wall Mounting without a Modular Wall
For DESK use, put
bracket here;
For WALL use,
remove it.

15
Phone Plate
1. Locate a wall stud. lf the selected area does not have a wall stud
directly behind it, use dry wall expanders or a similar type fastener.
2. Drill 2 6mm holes 100 mm apart, as per template at the end of this
user guide.
3. Fix a screw (not supplied) into each hole and leave 5mm of the
head exposed to mount the phone.
4. Connect the TELEPHONE LINE CORD to the BASE UNIT and the
wall jack.
5. Position the WALL MOUNT SLOTS on the bottom of the BASE
UNIT on the 2 mounting screws and gently push down to lock into
place.
IMPORTANT:
Before mounting the BASE UNIT on the wall, consider the following:
The location should be away from electrical cables, pipes, or other
items behind the mounting location. Inserting screws into areas such
as these can be dangerous. The location of the phone should be
within 2m of the telephone socket.
Installation on Masonry
1. Using a 6mm masonry drill bit drill the 2 holes using template.
2. lnsert 2 plastic anchors and install the 2 screws.
3. Leave 5 mm of the screws exposed to mount the phone.
4. Position the WALL MOUNT SLOTS on the bottom of the BASE
UNIT on the 2 mounting screws and gently push down to lock into
place.
MOUNTING AREA
MOUNTING SCREW
ANCHOR
LEAVE (5mm)
SCREW EXPOSED
DRILL HOLE WITH "MASONRY BIT
1/4
3 " (100MM)
15/16
3/16"

16
TROUBLESHOOTING
No dial tone / phone will not dial out.
Check all telephone cord connections or try another wall socket.
Can’t hear the phone ring.
Verify the ringer switch is not set to “Off.”
Other party cannot hear you.
Ensure handset cord is connected properly.
Display showing erroneous figures OR Display does not work as
intended.
Enter the telephone setup by pressing the SET button. After that,
reset the settings, especially language, area code.
If the problem persists, your phone may need to be reset by
removing the batteries. Wait for 5 minutes before reinstalling the
batteries. This will also clear all memory. The caller‟s name and/or
phone number does not appear on the display.
Caller ID is not working properly.
Make sure you subscribed to caller ID service from the local
telephone company and that the service has been activated.
You answered the call before caller ID data was displayed, which
usually occurs after the first ring.
Caller ID may not work when the phone is connected to an office
phone system (PBX).
The display is faded (Numbers are hard to see)
Check the contrast setting.
Verify that the batteries are correctly installed.
Change all four batteries, making sure to replace all four batteries
with fresh batteries at the same time.
Cannot store numbers into memory
Make sure batteries are installed correctly ie - match the correct
polarity positions and are not weak.
Resetting Message Waiting Indication
The telephone company sometimes will not send a message clear
signal to you, and then you will have to clear the message waiting
indication manually. To reset this you must: Remove the batteries
in the product and reinstall the batteries after 5 minutes.

17
Note: Caller ID memory loss as well as one and two-touch memory
loss may occur when resetting. Therefore, please make sure that you
record all important information before you proceed with the reset.
Handset falls out of phone base when wall mounted
Handset clip was not installed properly for wall use.
LINE ERROR appears on the LCD panel
Your phone received no information or unclear call information.
Static can cause this message. If this condition persists, contact
your local telephone company to ensure that there is no problem
with your phone line.
You may have answered the phone before 2 rings.
Cannot erase all records in memory
The DELETE button must be pressed twice to erase a single call
record. You must view all new calls before you can delete all calls.
To erase ALL call records, press and hold the DELETE button for
at least 5 seconds after you view all new calls.
The Caller ID display is blank
Press either UP or DOWN button to see if “- LIST EMPTY -”
appears.
Check if batteries are properly installed.
Check if you have received the first caller ID record.
Memory Dialing does not work
Check that you have programmed the numbers into the phone
correctly by pressing the applicable memory number button. Also
programming can only be done if fresh batteries are installed
correctly.
Caller’s information is not registered
The caller may have an unlisted or blocked number to prevent
caller ID identification, it may be an overseas call, or you may
have had noise on the line during that call.
You answered the call before caller ID data was displayed, which
usually occurs after the first ring.
Pressing a memory button does not display number
Your memory button has no stored number. Please store the
number again.

18
Make sure space
between holes is 100 mm
Drill one hole
Drill other hole
Warranty
Always retain your proof of purchase (receipt) from the retailer as
this will be needed for any warranty claim.
This product is covered by a 12 months warranty against defective
workmanship or parts, effective from the date of purchase.
The warranty does not extend
to damage caused by misuse,
negligence, excessive voltage,
faults on the telephone line or
lightning. The warranty is only
valid in the country of purchase.
This warranty in no way affects
your statutory rights.
Wall Mount Template
This page serves as a template
for attachment of screws to the
wall when mounting this
telephone on the wall.
1. Cut out this page
2. Use this template to
determine the distance
between screws when
mounting this phone on the
wall. The two cross hairs
identify where to attach the
screws.

19

20
Memory Dial Telephone Index
MEM
Name
Telephone Number
1
2
3
4
5
6
7
8
9
0
*
#
Aristel Networks Pty Ltd
Unit 1, 25 Howleys Road
Notting Hill VIC 3168
Australia
Tel: [phone]
Fax: [phone]
www.aristel.com.au
