24"
Min. base depth
34 1/4" - 35 1/4"
underside of
countertop to floor

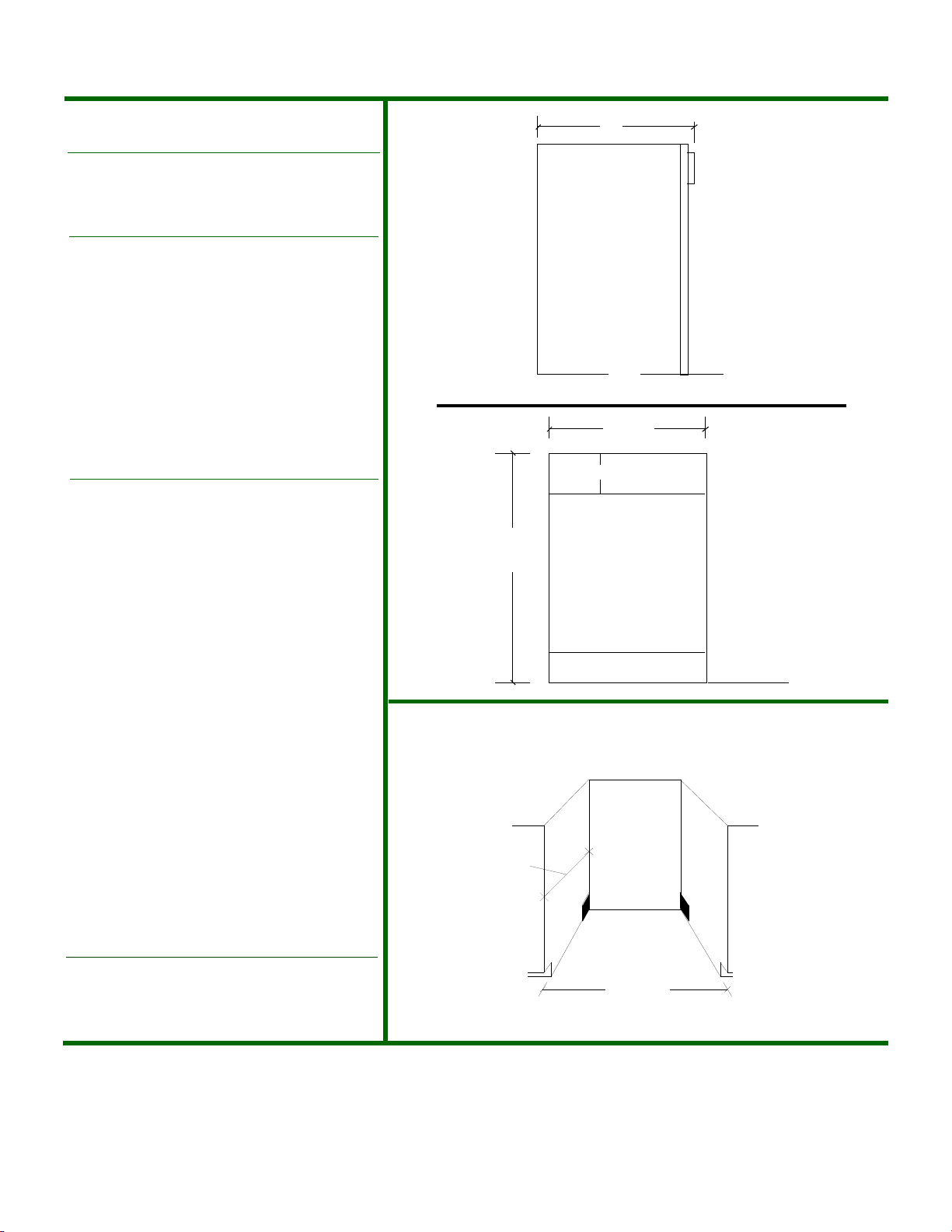

Rough-in Information
(Not to Scale)
25" Width
Hole for Water and
Electrical installation
on either side
3"W x 5 7/8"H
(see solid areas
left or right)
Body housing
Floor
23 7/16"
33 7/16"
to underside of
countertop
Side View
(not to scale)
Front View
(not to scale)
Control Panel
Does NOT accept
custom panel
23"
Floor
Width:
Depth:
Height, min. adjustment:
Depth with door open :
23 7/16"
23"
33 7/16"
46 7/16"
• Power supply: 208/240VAC, 60Hz, 13amps, 30amp
grounded circuit. The unit is equipped with a 5 foot
4-wire power supply cord and molded-on plug. The cord
connects to the lower right rear.
• The condenser dryer requires a water drain. It can
share the washing machine drain. The drain must be
less than 36" above the bottom of the dryer.
• Stacked installation height is 67".
• Minimum installation clearances.
Closet: Sides 3/4", Top 1/2", Rear 3/4" and Front 3/4".
You must also have two ventilation openings each
having an area 72 sq in located 6" from top and bottom
of door. Never use solid door.
Undercounter: Sides 3/4", Top 1/2", Rear 3/4" .
See page 2 for additional information
www.dexpress.com DIMENSION EXPRESS Fax on Demand (925) 284-3558
• Dimensions (Actual Size) •
• NEVER reuse Data Sheets. Data Sheets are subject to change without • Call Dimension Express if you have any questions at (800) 940-2059 •
notice. Dimension Express is a FREE service bureau and is updated daily, • Always refer to a current Code at a Glance or manufacturer directory •
it makes far more sense to spend the time necessary to request new Data • Data Sheet codes change on the first of each quarter at 12:01am •
Sheets for each project, as opposed to the problems, time, costs, and risks
associated with reusing old Data Sheets.
Free Standing Condenser Dryer:
ASL75CXSNA
• Product Model Number (s): •
Subject to change without notice. This system is designed to
be updated daily if necessary. Dimension Express is not
responsible for use of superseded, voided, or outdated data
sheets. Because of the difficulty or impracticability of deter-
mining actual damages, liability of Dimension Express shall
not exceed $50.00.
Copyright © Dimension Express, 2006.
This Data Sheet Includes Information On
BN • A275 • • 060410 • 145333 • 42761
• Additional Information •
275
