Ariston BDR 190 NA Guide

EN
FRIDGE
Contents
Installation, 2
Positioning and connection
Description of the appliance, 5
Overall view
Accessories, 6
Start-up and use, 6
Starting the appliance
Chiller system
Using the refrigerator to its full potential
Maintenance and care, 7
Switching the appliance off
Cleaning the appliance
Avoiding mold and unpleasant odors
Defrosting the appliance
Replacing the light bulb
Precautions and tips, 8
General safety
Disposal
Respecting and conserving the environment
Troubleshootin , 9
Assistance, 10
C
are,
U
se an
d
Installation Booklet
BDR 190 NA
English
EN
www.aristona
pp
liances.us
Français, 11
F
Espanol, 21
ES

2
EN
www.aristona
pp
liances.us
I
nsta
ll
at
i
on
! Before placing your new appliance into operation
please read these operating instructions carefully.
They contain important information for safe use, for
installation and for care of the appliance.
! Please keep these operating instructions for future
reference. Pass them on to new owners of the
appliance.
Positionin and connection
Positioning
1. Place the appliance in a well-ventilated humidity-free
room.
2. Do not obstruct the rear fan grills. The compressor
and condenser give off heat and require good
ventilation to operate correctly and save energy.
3. Ensure the appliance is away from any sources of
heat (direct sunlight, electric stove, etc.).
4. The product was designed exclusively for “built in”
installation and must not be directly exposed to
atmospheric agents.
Levelling
1. Install the appliance on a level and rigid floor.
2. If the floor is not perfectly horizontal, adjust the
refrigerator by tightening or loosening the front or rear
feet.
Electrical connections
After the appliance has been transported, carefully
place it vertically and wait at least 3 hours before
connecting it to the electricity mains. Before inserting
the plug into the electrical socket ensure the following:
• The electrical outlet is grounded and compliant with
all electrical codes.
• The outlet can withstand the maximum power of the
appliance, which is indicated on the data plate
located on the right side of the horizontal surface in
the top compartment, under the thermostat (e.g. 150
W).
• The voltage is within the range of values indicated on
the data plate located on the right side of the
horizontal surface in the top compartment, under the
thermostat (e.g. 110V).
• The outlet is compatible with the plug of the
appliance.
If the outlet is incompatible with the plug, ask an
authorised technician to replace it (
see Assistance ).
Do not use extension cords or multiple sockets.
! Once the appliance has been installed, the power
supply cable and the electrical outlet must be easily
accessible.
! The cable must not be bent or compressed.
! The cable must be checked regularly and replaced by
authorised technicians only (see Assistance).
!The manufacturer declines any liability should
these safety measures not be observed.

EN
3
www.aristona
pp
liances.us
35,43 min
21,65 min
32,99÷34,96
35,35± 0,08
21,57
± 0,08
32,87÷34,84
28,27 ± 0,12
4,72÷6,69
2 min
6 square
inch min
6 square
inch min
1
35", 1/4
16",5/14 14"
∅
= 0",5/64
12",19/64
0",37/64
1",3/8 1",3/8
28",5/16
0",3/16
1",31/32
∅
= 0",5/64
12",19/64
0",37/64
1",3/8 1",3/8
28",5/16
1",31/32
2
A
B
When installing the product, pre-assemble the
wooden doors first.
Fix the six brackets supplied onto the back part of
the doors, using the measurements given in figure 1.
Fit 2 pins “A” onto each of the two refrigerator
compartments, as illustrated in figure 2.
Fit the doors by inserting the lower brackets
installed previously into the brackets locations on
both the compartments.
Tighten the two screws “B” on each of the two upper
brackets on the compartments to complete the door-
fixing procedure.

4
EN
www.aristona
pp
liances.us
3
N˚5
4
5
Position the refrigerator in the cabinet and connect
the power plug.
Adjust the feet until the unit comes into contact with
the top of the cabinet.
!To keep from damaging the four support legs
during installation removing both the top & bottom
drawers prior to installation.
Fix the unit on each, using the flat head screws
provided as shown in figure 4.
To align the refrigerator doors with the other panels
in the unit, adjust the pins and the screws (figure 2).
If the unit is recessed after it has been assembled,
fix the refrigerator at the sides towards the back as
well, using an extra bracket and the screws
provided as shown in figure 5.

EN
5
www.aristona
pp
liances.us
D
escr
i
pt
i
on o
f
t
h
e
appliance
Overall view
The instructions contained in this manual are applicable to different model refrigerators. The diagrams may not
directly represent the appliance purchased. For more complex features, consult the following pages.
MULTI USE box with
EGG TRAY and
BUTTER DISH
BOTTLE AREA
TEMPERATURE
CONTROL
FRUIT and
VEGETABLE bin
PROFESSIONAL
containers
BOTTLE SHELF
compartment
LIGHT

6
EN
www.aristona
pp
liances.us
Startin the appliance
! Before starting the appliance, follow the
installation instructions (
see Installation ).
! Before connecting the appliance, clean the
compartments and accessories well with lukewarm
water and baking soda.
1. Insert the plug into the outlet and ensure that the
internal light illuminates.
2. Turn the TEMPERATURE ADJUSTMENT knob to an
average value. After a few hours you will be able to
put food in the refrigerator.
Settin the temperature
The temperature inside the refrigerator compartment
automatically adjusts itself according to the position of
the thermostat knob.
1 = warmest MAX = coldest
We recommend, however, a medium position (3).
The “cooling section” of the refrigerator is located
inside the back wall of the compartment, providing
increased space and improved aesthetics. The back
wall will be covered in frost or water droplets depending
on whether the compressor is operating or paused. This
is not a cause for concern; the refrigerator is
functioning normally.
If the TEMPERATURE ADJUSTMENT knob has been set
to a high value, with large quantities of food inside and
a high ambient temperature outside the refrigerator, the
appliance could operate continuously, resulting in high
frost formation and high energy consumption: this may
be counteracted by turning the knob towards lower
temperature values (defrosting will occur automatically).
Usin the refri erator to its full potential
• Use the TEMPERATURE ADJUSTMENT knob to
adjust the temperature (
see Description ).
• Place only cold or lukewarm foods in the
compartment, not hot foods (
see Precautions and
tips
).
• Remember that cooked foods do not last longer than
raw foods.
• Do not store liquids in open containers. They will
increase humidity in the refrigerator and cause
condensation to form.

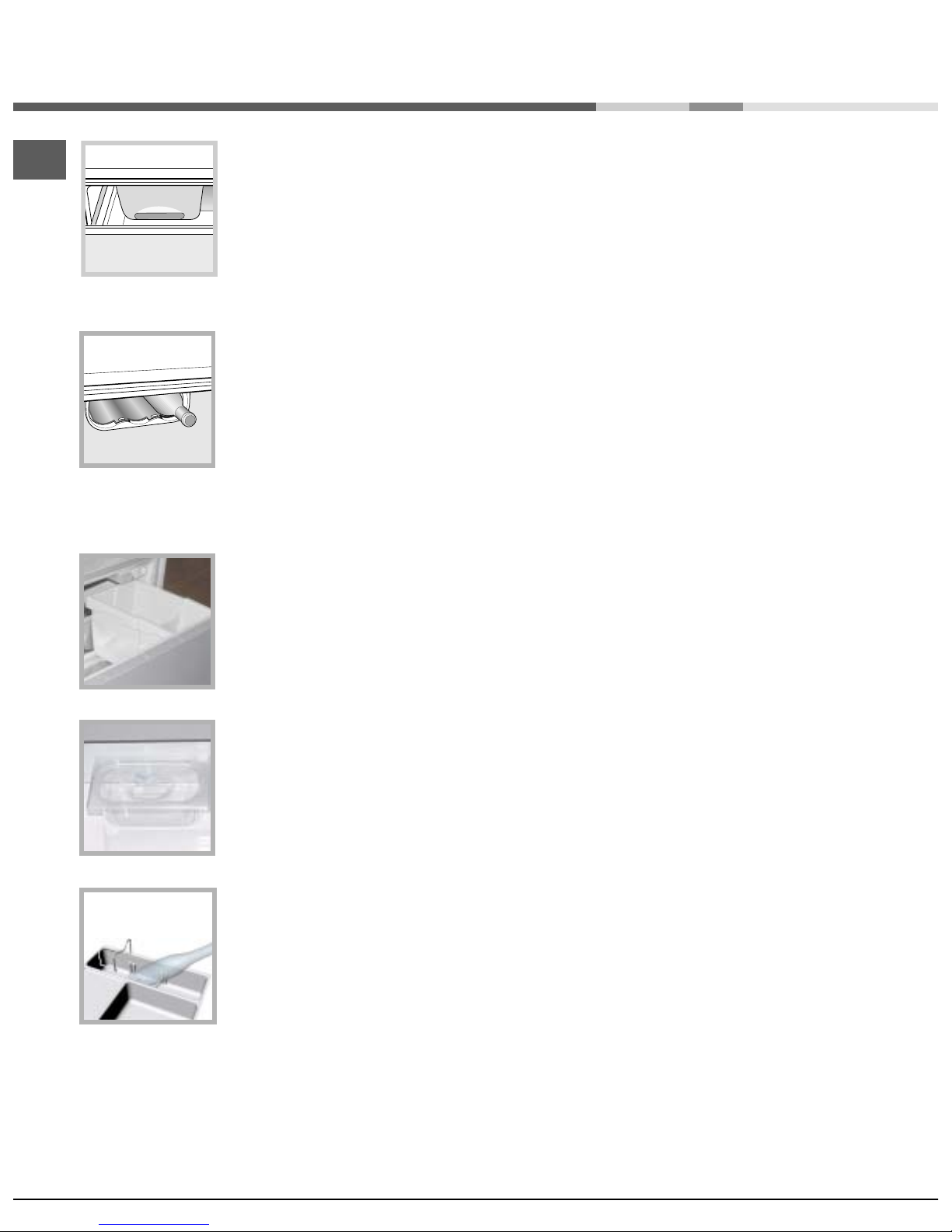

Accessories
Start-up and use
MULTI USE box: fixed at the
top of the compartment, was
designed to keep various foods
fresher for longer periods of
time (for example eggs, butter
or food in small containers); it
prevents food odors from
permeating into the refrigerator.
BOTTLE AREA: this special
accessory is fixed at the top of
the compartment and was
designed to hold up to 3 bottles
of wine or water, without taking
up extra space. Bottles may be
placed in the BOTTLE AREA
when it is open, yet when the
compartment is closed it takes
up just 1,25 inches of space inside the refrigerator.
VEGETABLE BINS: two
practical vegetable bins are
located in the top compartment.
These are easy to remove and
may be taken out to be placed
on the worktop or to be washed.
PROFESSIONAL stainless steel
containers: two professional
containers (with covers) are
located in the lower
compartment. They were
designed to store meat,
cheeses or fish.
BOTTLE SHELF compartment:
to keep two bottles in a stable
position, use the special
stainless steel grilles in the
lower compartment.

EN
7
www.aristona
pp
liances.us
M
a
i
ntenance an
d
care
Switchin the appliance off
During cleaning and maintenance it is necessary to
disconnect the appliance from the electricity supply:
It is not sufficient to set the temperature adjustment
knobs on (appliance off) since it will not eliminate all
electrical contact.
Cleanin the appliance
• The external and internal parts, as well as the rubber
seals may be cleaned using a sponge that has been
soaked in lukewarm water and baking soda or
neutral soap. Do not use solvents, abrasive
products, bleach or ammonia.
• The removable accessories may be soaked in warm
water and soap or dishwashing liquid. Rinse and dry
them carefully.
Avoidin mould and unpleasant odors
• The appliance is manufactured with hygienic
materials which are odor free. In order to maintain an
odor free refrigerator and to prevent the formation of
stains, food must always be covered or sealed
properly.
• If you want to switch the appliance off for an
extended period of time, clean the inside and leave
the doors open.
Defrostin the appliance
The refrigerator has an automatic defrosting function:
water is ducted to the back of the appliance by a
special discharge outlet (see diagram) where the heat
produced by the
compressor causes it to
evaporate. It is not,
therefore, necessary to
defrost the refrigerator
manually. It is, however,
necessary to clean the
discharge hole regularly
so that the water can flow
out easily.
Replacin the li ht bulb*
To replace the light bulb in the refrigerator
compartment, pull out the plug from the electrical
outlet. Follow the instructions below.
Access the light bulb by
removing the cover as
indicated in the diagram.
Replace it with a similar
light bulb within the
power range indicated on
the cover (10 W).
1
2
*Available only on certain models.

8
EN
www.aristona
pp
liances.us
P
recaut
i
ons an
d
t
i
ps
! The appliance was designed and manufactured in
compliance with international safety standards. The
following warnings are provided for safety reasons and
must be read carefully.
CAUTION: Risk of child entrapment. Before you throw
away your old refrigertor or freezer:
- Take off the doors.
- Leave the shelves in place so that children may not
easily climb inside.
General safety
• The appliance was designed for domestic use inside the
home and is not intended for commercial or industrial
use.
• The appliance must be used to store food products by
adults only and according to the instructions in this
manual.
• Do not touch the appliance with bare feet or with wet or
moist hands and feet.
• Do not touch the internal cooling elements: this could
cause skin abrasions or burns.
• When unplugging the appliance always pull the plug
from the mains outlet, do not pull on the cable.
• Before cleaning and maintenance, always switch off the
appliance and disconnect it from the electrical supply. It
is not sufficient to set the temperature adjustment knobs
on (appliance off) since it will not eliminate all
electrical contact.
• In the case of a malfunction, under no circumstances
should you attempt to repair the appliance yourself.
Repairs carried out by inexperienced persons may
cause injury or further malfunctioning of the appliance.
• Do not use devices or tools other than the special
scraper provided inside the compartments.
• Do not allow children to tamper with the controls or play
with the appliance. Under no circumstance should they
be allowed to sit on the bins or to hang from the door.
• Keep packaging material out of the reach of children! It
can become a choking or suffocation hazard.
Disposal
• Observe local environmental standards when
disposing packaging material for recycling
purposes.
• Observe existing legislation when disposing of the
old appliance.
Refrigerants such as isobutane and cyclopentane
are located in the cooling zones and the isolation
system of the refrigerator and freezer. Ensure that the
pipes are not damaged. Leakage of these
refrigerants is harmful to the environment.
• Make the appliance unusable by cutting off the cable
and remove any door catches before disposal.
Respectin and conservin the
environment
• Install the appliance in a fresh and well-ventilated
room. Ensure that it is protected from direct sunlight
and do not place it near heat sources.
• Try to avoid keeping the door open for long periods
or opening the door too frequently in order to
conserve energy.
• Do not fill the appliance with too much food:
cold air must circulate freely for food to be preserved
properly. If circulation is impeded, the compressor
will work continuously.
• Do not place hot food directly into the refrigerator.
The internal temperature will increase and force the
compressor to work harder and will consume more
energy.
• Defrost the appliance if ice forms (
see Maintenance ).
A thick layer of ice makes cold transference to food
products more difficult and results in increased
energy consumption.
• Regularly check the door seals and wipe clean to
ensure they are free of debris and to prevent cold air
from escaping (
see Maintenance ).

EN
9
www.aristona
pp
liances.us
T
rou
bl
es
h
oot
i
ng
If the appliance does not work, before calling for Assistance ( see Assistance ), check for a solution from the following list.
Malfunctions:
The internal light does not
illuminate.
The refrigerator does not cool well.
The food inside the refrigerator is
beginning to freeze.
The motor runs continuously.
The appliance makes a lot of noise.
There is water at the bottom of the
refrigerator.
Possible causes / Solutions:
• The plug has not been inserted into the electrical outlet, or not far
enough to make contact, or there is no power in the house.
• The doors do not close properly or the seals are damaged.
• The doors are opened too frequently.
• The TEMPERATURE ADJUSTMENT knob is not in the correct position
• The refrigerator has been over-filled.
• The TEMPERATURE ADJUSTMENT knob is not in the correct position.
• The door is not closed properly or is continuously opened.
• The outside ambient temperature is very high.
• The thickness of the frost exceeds 1/8 of an inch (
see Maintenance ).
• The appliance has not been installed on a level surface (
see
Installation
) .
• The appliance has been installed between cabinets that vibrate and
make noise.
• The internal refrigerant makes a slight noise even when the compressor
is off. This is not a defect, it is normal.
• The water discharge hole is blocked (
see Maintenance ).

10
EN
www.aristona
pp
liances.us
A
ss
i
stance
195055171.02
04/2006
STATEMENT OF WARRANTIES
ARISTON Refrigeration Drawer
The warranties provided by (Ariston) in this statement of warranties apply only to Refrigeration Drawer units sold to the first
using purchaser by Ariston or its authorized distributors, dealers, retailers or service centers in the United States or Canada.
The Warranties provided herein are not transferable.
Length of Warranty
2 Years Full Limited Warranty from the date of installation
Ariston will repair or replace, free of charge, any component part that proves defective in conditions of normal home use.
Shipping and labor costs included. Warranty repair service must be performed by an authorized Ariston Service Center.
3rd-5th Year Limited Warranty on the Sealed System from the date of installation
Ariston will repair or replace free of charge, any sealed system components that prove to be defective in materials or
workmanship under conditions of normal home use from the 3rd through 5th years from the date of original installation, labor
charges excluded. The sealed system consists of the compressor, condenser, evaporator, drier and all connecting tubing.
* Date of installation shall refer to the earlier of the date the Refrigeration Drawer is installed or ten business days after
delivery date.
Exclusions:
This warranty does not cover repair or service calls to correct the installation, to provide instructions on the use of your
product, to replace house fuses or correct plumbing or the electric wiring in your home. In addition, any repair to the
product that is being used in a manner other than what is considered normal home use is void of any warranty claim.
The warranties exclude any defects or damage arising form accident, alteration, misuse, abuse, improper installation,
unauthorized service work, or external forces beyond Ariston control, such as fire, flood, and other acts of God, or
installation not in accordance with local electric or plumbing codes. Labor, shipping, and installation charges incurred in the
repair or replacement of any product after a period of one year from the date of installation shall not be covered by this
warranty. Any and all replaced or repaired parts shall assume the identity of the original for the purposes of the applicable
warranty period. To the extent permitted by law, this warranty is in lieu of all other express and implied warranties, including
the implied warranties of merchantability and fitness for a particular purpose. Ariston does not assume any responsibility for
incidental or consequential damages.
To obtain warranty services call 1-888-426-0825, or write to:
Ultra 8 International, 2505 Anthem Village Drive, Suite E – Box 562, Henderson Nevada 89052
Be sure to provide; model number, serial number, purchase date, and the Dealers name and address.
Before calling for Assistance:
• Check if the malfunction can be solved on your own ( see Troubleshooting ).
• If after all the checks, the appliance still does not operate or the problem persists, call the Ariston Customer Care Line at
1 888 426 0825
Communicating:
• type of malfunction
• appliance model (Mod.)
• serial number (S/N)
This information can be found on the data plate
located on the right side of the horizontal surface in
the top compartment (under the thermostat).
Never call on unauthorized technicians and alwa s refuse spare parts which are not originals.
Mod.
RG 2330 TI
Cod.
93139180000 S/N 704211801
220 - 240 V- 50 Hz 150 W W
Fuse AMax 15 w
Total
Gross
Bruto
Brut
Compr.
Kompr.
Syst. R 134 a
kg 0,090
Gross
Bruto
Brut
340
Net
Util
Utile
Gross
Bruto
Brut
Freez. Capac
Poder de Cong
75
Made in Italy 13918
Test
P.S-I.
Pressure
HIGH-235
LOW 140
kg/24 h
4,0
Class
Clase N
Classe
model serial number
