ARK Penguin Series User manual

An ISO 9001 : 2008 Certified Company
E-MAIL : [email protected] WEBSITE : www.crystalfaucets.com, www.crystalbathfittings.com, www.crystalsanitaryfittings.in
Like us on www.facebook.com/crystalsanitaryfittings
8
71005
71005B
71005E
71006
71006B
71006E
71001
71007
71007B
71007E
61004
61004B
61004E
ABOUT CAT NO.
No Suffix Both
AC & DC
BOnly DC
(Batteries)
EOnly AC
(Electricity)
FLAMINGO
PELICAN
PENGUIN HERON
PLOVER USER GUIDE
SENSOR TAP
Pillar Sensor Taps & Bib Sensor Tap
FLAMINGO
PELICANPENGUIN HERON PLOVER

3
SPECIFICATIONS
Pillar Tap Sensor Bib Tap Sensor
Control Box with Solenoid Valve
Installation & Troubleshooting
Guide
Screw with PVC Sleeve (4 Pcs)
4 * AA' Size Duracell Alkaline
batteries (In models AC&DC
and Only DC)
Check Nut
Connector
Pillar Tap Body with 6 Pin Wire &
PVC Pipe Bib Tap Body with 6 Pin Wire
Control Box with Solenoid Valve
Installation & Troubleshooting
Guide
Screw with PVC Sleeve (4 Pcs)
4 * AA' Size Duracell Alkaline
batteries (In models AC&DC
and Only DC)
SPECIFICATIONS PILLAR TAP SENSORS BIB TAP SENSORS
Power Consumption 2-5 Watts 2-5 Watts
Input Voltage 220 V AC/ 6V DC 220 V AC/ 6V DC
No. Of Batteries 4 x AA size Alkaline 4 x AA size Alkaline
Size of control box
unit 110x60x130 mm 110x60x130 mm
Life of Batteries Approx.25000 Cycles Approx.25000 Cycles
Models AC & DC/Only AC/
Only DC AC & DC/Only AC/ Only DC
Sensor Type Infra-Red Sensor Infra-Red Sensor
COMPOSITION
ABOUT SENSOR TAPS
2
BENEFITS
Ark Sensor Taps are automatic faucets through which water flows only
when hands activate the fixture. These taps have built in infrared sensors
which sense the presense of an object i.e. user's hands in front of the tap
and sends signal to a solenoid valve to open. The flow automatically gets
terminated afterafewsecondswhen the object is no longer present.
- Other than private residences, are also
suitable for public places i.e. public washrooms, particularly at
airportsandhotels where they help reduce waterconsumption.
- As there are no points of contact transmission of
diseasesisreduced.
- As excess water use is no longer an issue solely
for conservationists but also for the budget-conscious, sensors
can be seen as an investment as they pay for themselves with
reducedwaterconsumptionandmaintenancecosts.
Water Saving
Hygienic
Cost Saving
Our Sensor Taps models have the possibility to be powered by regular
AAbatteries(Alkaline)or bymains220VAC via a 6V transformerorBoth.
Automatic faucets were first developed in the 1950s but produced
commercially in the late 1980s. These have now become common in
developedcountries.Thesesaveupto70%waterconsumption.
HISTORY

4 5
5
INSTALLATION PROCEDURE
Pleaserefer tothe diagram:
Pillar Tap Sensors: (Fig. 1)
Install the Pillar Tap on the Wash Basin and tighten the Check
Nut.
Fixthe connectoron PVCpipe loose end.
Fixthe otherend ofthisConnector tothe ControlBox.
Bib Tap Sensors:
FixBib Tap Bodyon the wallsocketof 1/2"Pipe Line.
Connect the other end of this 1/2" pipe line to the outlet of the
Control Box. Ensure that the control box is mounted vertically
asshown infig. 2.
?
?
?
?
?
(Fig. 2)
CONTROL BOX INSTALLATION PROCEDURE:
For AC & DC and DC Models only:
Loosenthe ControlBoxcover platescrews( 6Nos.)
(Onlyin AC& DCor DCmodels)
Remove the cover plate and insert AA size Alkaline Batteries
(4 Nos.) inside theBatteryBox.
Tightenthe control box screws.
Fixthe control box on the wall (Near or Below the tap).
Common for All Models :
Connect the water supply through valve V1 or Angle Valve and
thenconnect the pipe at inlet of Control Box.
Connectthe 6 Pin Wire (from Pillar/Bib tap) to the Control Box
Connect the 3 pin plug to main supply only in case of AC/DC
andAC Models.
TheSensor Tap is now ready to work.
?
?
?
?
?
?
?

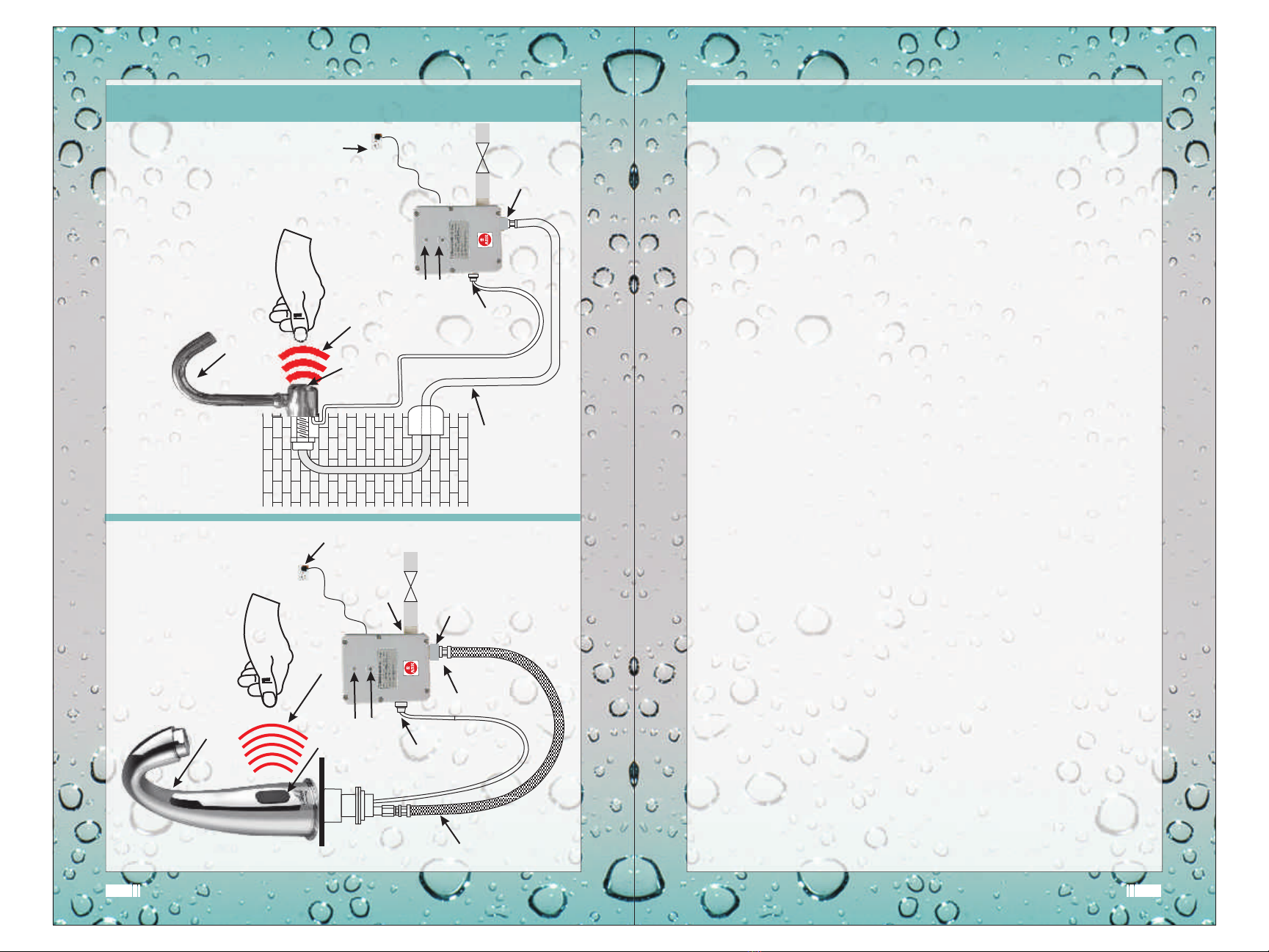

INSTALLATION DIAGRAM
INFRARED RAYS
BIB SENSOR TAP
WATER PIPELINE
½ Inch
INFRARED
SENSOR
CONTROL
BOX
LED
INDICATOR
DISTANCE
ADJUSTMENT
SCREW
6 PIN
CONNECTOR
WITH WIRE WATER
OUTLET
WATER
INLET
V1
BIB SENSORPILLAR SENSOR
WATER
OUTLET
WATER
INLET
6 PIN
CONNECTOR
WITH WIRE
LED
INDICATOR
DISTANCE
ADJUSTMENT
SCREW
INFRARED RAYS
INFRARED
SENSOR
FLEXIBLE
PIPE
V1
CONNECTOR
PILLAR SENSOR TAP
ELECTRICAL
SUPPLY
ELECTRICAL
SUPPLY
Fig. 1 Fig. 2

6
IMPORTANT INFORMATION & GUIDELINES
1. Duracell Alkaline 'AA' size batteries should be used for DC
Models.
2. The Control Box should be fixed vertically as shown in
diagram.
3. Provide a Stop Valve on the inlet line of Control Box.
4. Unplug the Power Cable/ Remove Batteriesif the sensor tap is
notin use for longer periods.
5. Ideal Sensing distance is 15 Cm which is pre fixed in the
Sensor(All Models).
6. The sensing distance can be also adjusted with the help of the
Distance Adjusting screw provided on the cover plate.( To be
touchedonly if required)
7. Make provision of a 3 Pin socket near the Control Box ( For
AC/DCand AC Models).
8. Ideal inlet Waterpressure required is 1 Bar - 5 Bars (Max.)
9. The AC/DC model can operate either on Mains or Batteries.
Incase of a power cut it automatically switches to battery.
77
TROUBLESHOOTING
Sr.
No. PROBLEM REASON ACTION
4.
1. Sensor connected but
not working Plug /Batteries not properly inserted.
Old Batteries
Check the Plug /Batteries
and insert them properly.
Replace the Batteries.
Worn out Rubber
Washers/Seal or loose
joints
Replace Sealing Washers/
Tighten Joints
Batteries have not been
inserted properly in the
Battery Box in case of
AC/DC and DC Models
Take out the batteries and
fix them properly .
Switch of the Power and
switch it on after waiting
for 10 seconds
Leakages
Improper Flow
2.
Sensor Malfunctions:
The Sensor fails to
read the hand when
placed in front
3.
Sensor cable not plugged
properly
(In all Models).
Unplug the sensor cable
and fix it again
Washbasin is big or small
in size due to which the
pre fixed sensing distance
of 15cm is not being
maintained.
Reset sensing distance with
the help of the adjustment
screw on the cover plate as
shown in figure by carefully
rotating the adjustment
screw with help of a Screw
Driver.
The Pillar/Bib Tap Aerator
is clogged.
Pressure is less than 1Bar. Check the inlet pressure
which should not be less
than 1 Bar ideally.
Remove Aerator and clean it.
Problem in the Solenoid
Valve which is damaged
or dust particles
deposited on the valve
seat
5. Continuous Water
Flow
Shut the power Off and On
a couple of times in intervals
of 10 Seconds
Check the Solenoid Valve
repair/replace it.
