ARKEMA DESIGN Quick Q125 User manual

QUICK
DOCCIA TRADIZIONALE /TRADITIONAL SHOWER
DOUCHE TRADITIONNELLE /DUCHA TRADICIONAL
MISURE / DIMENSIONS / DIMENSIONES
125 545
2100
99
125
90
67
Sistema di fissaggio / Fastening system / Système de fixation / Sistema de fijación
Per le maschere guida ed i passaggi di montaggio dettagliati consultare le istruzioni generali o il manuale d’uso e manutenzione
For the guide templates and detailed assembly steps, please consult the general instructions or the use and maintenance manual.
Pour les masques de guides et les étapes de montage détaillées, consulter les instructions générales ou le manuel d’utilisation et d’entretien.
Para las plantillas guía y los pasos de montaje detallados, consulte las instrucciones generales o el manual de uso y mantenimiento.
IT
EN
FR
ES
1 2 34
90
Attacco blu: acqua fredda
Attacco rosso: acqua calda
Blue inlet: cold water
Red inlet: hot water
Raccord bleu: eau froide
Raccord rouge: eau chaude
Entrada azul: agua fría
Entrada roja: agua caliente
Allaccio acqua a pavimento
Floor water connection
Raccordement eau au sol
Conexión de agua de piso
Allaccio acqua laterale
Side water connection
Raccordement d’eau latéral
Conexión de agua lateral
RETRO DOCCIA
SHOWER’S BACK
DOUCHE ARRIERE
DUCHA DETRÁS
RETRO DOCCIA
SHOWER’S BACK
DOUCHE ARRIERE
DUCHA DETRÁS
RETRO DOCCIA
SHOWER’S BACK
DOUCHE ARRIERE
DUCHA DETRÁS
MONTAGGIO / ASSEMBLY / MONTAGE / MONTAJE
x2
1.
2.
RETRO DOCCIA
SHOWER’S BACK
DOUCHE ARRIERE
DUCHA DETRÁS
RETRO DOCCIA
SHOWER’S BACK
DOUCHE ARRIERE
DUCHA DETRÁS
1- Inserire il profilo superiore in quello inferiore tramite l’inserto cromato fino in
fondo. Assicurarsi che sia visibile solo la banda esterna dell’inserto come in figura.
2- Fissare il corpo doccia inserendo e stringendo le viti filettate nei fori.
1- Insert the upper profile into the lower one through the chromed insert as far as
it will go. Make sure that only the outer band of the insert is visible.
2- Fix the shower body by inserting and tightening the threaded screws in the
holes.
1- Insérez le profil supérieur dans le profil inférieur à travers l’insert chromé ju-
squ’en butée. Assurez-vous que seule la bande extérieure de l’insert est visible.
2- Fixez le corps de douche en insérant et en serrant les vis filetées dans les
trous.
1- Introducir el perfil superior en el inferior a través del inserto cromado hasta el
tope. Asegúrese de que solo la banda exterior del inserto esté visible.
2- Fijar el cuerpo de la ducha introduciendo y apretando los tornillos roscados en
los agujeros.
IT
EN
FR
ES

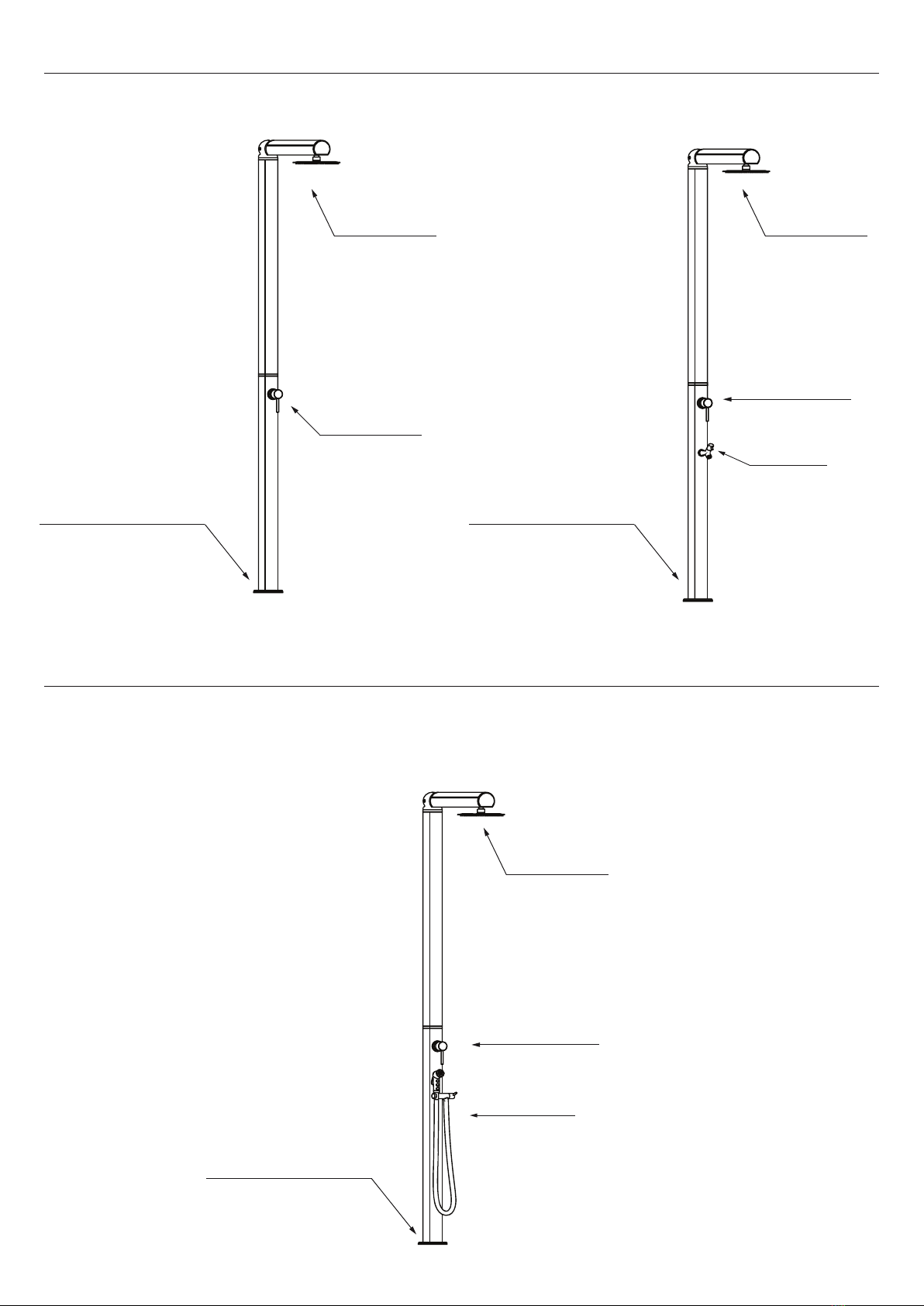

COD. Q105
COD. Q145
CARICO ACQUA 1/2’
Water supply 1/2’
Arrivée d'eau 1/2'
Abastecimiento de agua 1/2’
(Retro / Back / Arrière / Espalda)
CARICO ACQUA 1/2’
Water supply 1/2’
Arrivée d'eau 1/2'
Abastecimiento de agua 1/2’
(Retro / Back / Arrière / Espalda)
CARICO ACQUA 1/2’
Water supply 1/2’
Arrivée d'eau 1/2'
Abastecimiento de agua 1/2’
(Retro / Back / Arrière / Espalda)
SOFFIONE
Shower head
Pomme de douche
Cabeza de ducha
SOFFIONE
Shower head
Pomme de douche
Cabeza de ducha
SOFFIONE
Shower head
Pomme de douche
Cabeza de ducha
MISCELATORE
Mixer
Mitigueur
Mezclador
MISCELATORE
Mixer
Mitigueur
Mezclador
LAVAPIEDI
Foot washer
Rince-pieds
Lavapies
COD. Q125
MISCELATORE
Mixer
Mitigueur
Mezclador
DOCCETTA
Hand shower
Douche à main
Ducha movil
COD. Q305 COD. Q325
COD. Q345
SOFFIONE
Shower head
Pomme de douche
Cabeza de ducha
SOFFIONE
Shower head
Pomme de douche
Cabeza de ducha
SOFFIONE
Shower head
Pomme de douche
Cabeza de ducha
MISCELATORE
Mixer
Mitigueur
Mezclador
MISCELATORE
Mixer
Mitigueur
Mezclador
MISCELATORE
Mixer
Mitigueur
Mezclador
LAVAPIEDI
Foot washer
Rince-pieds
Lavapies
CARICO ACQUA 1/2’
Water supply 1/2’
Arrivée d'eau 1/2'
Abastecimiento de agua 1/2’
(Retro / Back / Arrière / Espalda)
CARICO ACQUA 1/2’
Water supply 1/2’
Arrivée d'eau 1/2'
Abastecimiento de agua 1/2’
(Retro / Back / Arrière / Espalda)
CARICO ACQUA 1/2’
Water supply 1/2’
Arrivée d'eau 1/2'
Abastecimiento de agua 1/2’
(Retro / Back / Arrière / Espalda)
DOCCETTA
Hand shower
Douche à main
Ducha movil
DESCRIZIONE
Struttura realizzata in alluminio e disponibile nei colori a catalogo.
Garanzia di 2 anni su difetti di produzione.
Resi franco fabbrica.
DESCRIPTION
Structure made of aluminum available in the colours in the catalogue.
Two-year-warranty for manufacturing defects.
Ex-works returns.
DESCRIPTION
Structure en aluminium disponible dans les couleurs du catalogue.
Garantie de 2 ans sur les défauts de fabrication.
Retours départ usine.
DESCRIPCIÓN
Estructura fabricada en aluminio disponible en los colores del catálogo.
2 años de garantía por defectos de fabricación.
Devoluciones franco fábrica.
www.arkema.it
Le informazioni sono puramente indicative e non vincolanti.
L’azienda si riserva la facoltà di modificare in qualunque momento e senza preavviso alcuno, le caratteristiche tecniche e
dimensionali nel presente documento, al fine di migliorare il prodotto senza pregiudicarne le caratteristiche essenziali.
Alcuni accessori presenti nelle immagini non sono prodotti dalla ditta e possono subire variazioni.
This information is purely indicative and not binding.
Our company reserves the right to change the technical specifications and dimensions contained in this document, at any
time without notice, in order to improve the product without affecting the basic features.
Some accessories shown in the pictures are not produced by our company and are subject to variation.
Ces informations sont purement indicatives et non contractuelles.
Notre société se réserve le droit de modifier les spécifications techniques et les dimensions contenues dans ce document,
à tout moment sans préavis, afin d’améliorer le produit sans affecter les fonctionnalités de base.
Certains accessoires présentés dans les images ne sont pas produits par notre société et sont sujets à variation.
Esta información es puramente indicativa y no vinculante.
Nuestra empresa se reserva el derecho de modificar las especificaciones técnicas y dimensiones contenidas en este
documento, en cualquier momento sin previo aviso, para mejorar el producto sin afectar las características básicas.
Algunos accesorios que se muestran en las imágenes no son producidos por nuestra empresa y están sujetos a variacio-
nes.
