Armstrong RADA MX1 User manual

Rada Intelligent Care
MX1 Wall Mounted Tap
Installation Operation &
Maintenance Manual
494-EN V1.6
Please read and save these instructions

North America • Latin America • India • Europe / Middle East / Africa • China • Pacific Rim
armstronginternational.com
2
Table of Contents
General. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Important Safety Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Specification. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Factory Default Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Pack Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Installation Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Commissioning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Fault Diagnosis. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Spare Parts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Limited Warranty and Remedy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

North America • Latin America • India • Europe / Middle East / Africa • China • Pacific Rim
armstronginternational.com
3
Shut off the main water and electrical supply.
Observe all local plumbing and building codes.
The Rada MX1 is a type 1, electronic, electrically operated, independently
mounted valve. It is intended for surface mounting and is for connection to the
mains water supply.
Isolator / Check valve / Filter housing supplied is an integral component of the tap,
failing to install will invalidate the product’s warranty.
The Rada MX1 must only be supplied from the power adaptor provided.
The power adaptor must be connected to the fixed wiring of the electrical supply
via a switched 3A fused spur.
If the power adaptor supply cord is damaged the power adapter must be replaced
by a competent person.
Where chlorine disinfection is practised, DO NOT exceed a chlorine concentration
of 50 mg/l (ppm) in water, per one hour dwell time. Such procedures must
be conducted strictly in accordance with the information supplied with the
disinfectant and with all relevant Guidelines/Approved Codes of Practice.
The use of the word ‘failsafe’ to describe the function of any thermostatic mixing
valve is both incorrect and misleading. In keeping with every other mechanism it
cannot be considered as being functionally infallible.
Malfunction of thermostatic mixing valves can be detected by the use of proper
temperature checking and maintenance routines.
Certain types of system can result in the thermostatic mixing valve having
excessive ‘dead-legs’ of pipework. Such systems can disguise the onset of
thermostatic mixing valve malfunction.
Ultimately, the user must exercise due diligence to ensure that the delivery of
warm water is at a stable, safe temperature.
Make sure that the water delivery does not cause splashing or overflow.
Make sure that the Rada MX1 is installed by a competent installer.
The product commissioning, clock (date/time) and tap set up can only be done in
conjunction with the “RADA AP1” available from the Apple APP store. Time and
date setting is critical to ensure data reporting is correct.
Note: Clock settings are lost after a period of 24hrs without mains power.
When power is restored clock settings return to factory default (1st
February 2000) and will need to be reset via the APP.
Important Safety Information
General

North America • Latin America • India • Europe / Middle East / Africa • China • Pacific Rim
armstronginternational.com
4
Specification
For Type 3 installations, the supply conditions specified in the TMV3
Requirements Manual take precedence over the operating parameters which
follow.
General PSU Valve
Maximum Ambient Temperature 122°F (50°C) 104°F (40°C)
Minimum Ambient Temperature 33.8°F (1°C) 33.8°F (1°C)
Maximum Humidity 95% rH 95% rH
Electrical PSU Valve
Supply Voltage 100 - 240 V 50/60 Hz 12 V DC
Rated Input Current 1 A 2.0 A
Water Ingress Protection IP X4 IP X4
Protection Against Electric Shock Class II (double insulated) Class III (SELV)
Pollution Degree 2 2
Rated Impulse Voltage 2.5 kV 18 V
Performance
Factory pre-set temperature 102.2°F (39°C)
Factory pre-set temperature range 98.6°F - 105.8°F (37°C - 41°C)
Programmable temperature range 91.4°F - 113°F (33°C - 45°C) (Full cold can be selected
during programming)
Water Supply
Minimum dynamic pressure 14.5 Psig - 100 kPa (1.0 bar)
Maximum dynamic pressure 72.5 Psig - 500 kPa (5.0 bar)
Maximum static pressure 145.0 Psig - 1000 kPa (10.0 bar)
Supply pressure differential Equal pressure recommended - inlet pressures must
be stable for optimum performance.
Minimum recommended differential
between hot supply and outlet temp
(consistent with HSE Guidelines)
44.6°F (7°C)
Hot supply temp 131°F - 149°F (140F - 149°F Recommended)
55°C - 65°C (60°C - 65°C Recommended)
Cold supply temp 33.8°F - 77°F (1°C - 25°C)
Maximum disinfection temperature 176°F (80°C)

North America • Latin America • India • Europe / Middle East / Africa • China • Pacific Rim
armstronginternational.com
5
Factory Default Settings
RADA App Tile / Section
Adjustable
Temperature
Varient
Fixed
Temperature
Varient
Range
Units
Min Value Max Value
1. Valve Setup / 4. Installation Setup
1. Setup Advice Info Field
2. Valve Identity Editable Text Field
3. Outlet Type and Sub Type Info Field
4. Unit Address 17 17 1 31
5. Valve Date and Time 24 Hr Clock DD/MM/YYYY
6. Last Service and Time Info Field
7. Flow Calibration
8. Minimum Flow Limit 5 5 1 100
9. Maximum Flow Limit 13 13 1 100
10. Valve DOB Info Field
11. Calibration N/A Set to max 300, 300
12. IR Calibration Factory Programmed - Typical Range 180 - 220
13. Pin 0001 - 9999 Permisable. Re-entry of 5945 Not Permitted
14. Tap Interface Info Field
15. Operational State Enable Enable Enable, Disable
16. Tasks Apply Changes to Valve/Undo Changes
1. Valve Setup / 5. Outlet Setup
1. Type Info Field
2. Sub Type On/Off On/Off (On/Off), Timed
Blocking N/A
3. Outlet Selection Info Field
4. Full Cold Mode Disabled Disabled Start Cold
Enabled
Disabled
Start Cold
Enabled
Disabled
5. Minimum Temperature 98.6°F (37°C) N/A 91.4°F
(33°C)
113 °F
(45°C)
32.9°F
(0.5 °C)
6. Default Temperature 102.2°F (39°C) 100.4°F
(38°C)
91.4°F
(33°C)
113 °F
(45°C)
7. Maximum Temperature 105.5°F (41°C) N/A 91.4°F
(33°C)
113 °F
(45°C)
32.9°F
(0.5 °C)
8. Flow Rate Setup N/A
9. Default Flow Rate 50 50 10 100 %
10. Outlet Timeout 5 Min 5 Min 0s 30 Min Seconds/min
11. Run on Time 5 S 5 S 1 60 Seconds
12. Temperature Memory 40 S N/A 0 5 Min Seconds/min

North America • Latin America • India • Europe / Middle East / Africa • China • Pacific Rim
armstronginternational.com
6
2. Type Standard Standard
Disabled,
Standard,
Standard
oscillation
Disabled,
Standard,
Standard
oscillation
2. Type Standard Standard
Disabled,
Standard,
Standard
Oscillation,
Smart,
Smart
Oscillation
Disabled,
Standard,
Standard
Oscillation,
Smart,
Smart
Oscillation
3. Activation Time 02:00 Hrs 02:00 Hrs Time 24 Hr
Clock
4. Duration 1 Min 1 Min 1 S 25 min Seconds/Min
5. Frequency 1 Per 3 Days 1 Per 3 Days 1 Hr 1 Week Hrs/day/
1 Week
6. Schedule Auto Populated Field
7. Temperature 102.2°F (39°C) 102.2°F (39°C) 98.6°F
(37°C)
105.8°F
(41°C) deg F(C)
8. Flow Rate 100 100 10 100 %
9. Warm Up Time 1 Min 1 Min 1 S 25 Min Seconds/Min
10. Post Cold Flush 0 0 0 10 Seconds/min
11. Tasks Apply Changes to Valve/Undo Changes
1.Valve Setup / 7. Cold Flush Setup
1. Activation Manual Manual Manual, Automatic
2. Type Disabled Disabled Disabled, Standard
3. Activation Time 04:00 Hrs 04:00 Hrs Time 24 Hr
Clock
4. Duration 2 Mins 2 Mins 5 S 10 Mins Seconds/Min
5. Frequency 1 Per 3 Days 1 Per 3 Days 1 Hr 1 Week Hrs/Day/1
Week
6. Schedule Auto Populated Fiel d
7. Cool Down Temperature 66.2°F (19°C) 66.2°F (19°C) 59°F (15°C) <= Maintain
Temperature deg F(C)
8. Maintain Temperature 68°F (20°C) 68°F (20°C) 59°F (15°C) 86°F (30°C) deg F(C)
Factory Default Settings - continued
RADA App Tile/Section
Adjustable
Temperature
Varient
Fixed
Temperature
Varient
Range
Units
Min Value Max Value
13. Blocking Time 1 1 1 25 Min Seconds/min
14. Temperature Scale 9 Increments N/A 9, 5 Increments
15. Tasks Apply Changes to Valve/Undo Changes
1. Valve Setup / 6. Duty Flush Setup
1. Activation Manual Manual Manual, Automatic

North America • Latin America • India • Europe / Middle East / Africa • China • Pacific Rim
armstronginternational.com
7
Factory Default Settings - continued
RADA App Tile / Section
Adjustable
Temperature
Varient
Fixed
Temperature
Varient
Range
Units
Min Value Max Value
9. Cool Down Timeout 2 Mins 2 Mins 5 S 10 Mins Seconds/Min
10. Flow Test Start/Stop
11. Flow Rate 100 100 10 100 %
12. Taks Apply Changes to Valve/Undo Changes
1. Valve Set Up / 8. Thermal Disinfection Setup
1. Activation Manual Manual
2. Type
Disabled Disabled
Disabled, Standard,
Exponential,
Standard Cold,
Exponential Cold
3. Duration 20 20 1 30 Mins
4. Minimum Temperature 140°F (60°C) 140°F (60°C) 140°F
(60°C) <=Upper deg F(C)
5. Upper Temperature 140°F (60°C) 140°F (60°C) >=Lower 176°F
(80°C) deg F(C)
6. Flow Rate 10 10 10 100 %
7. Warm Up Time 5 5 1 20 Mins
8. Timeout 30 30 1 59 Mins

North America • Latin America • India • Europe / Middle East / Africa • China • Pacific Rim
armstronginternational.com

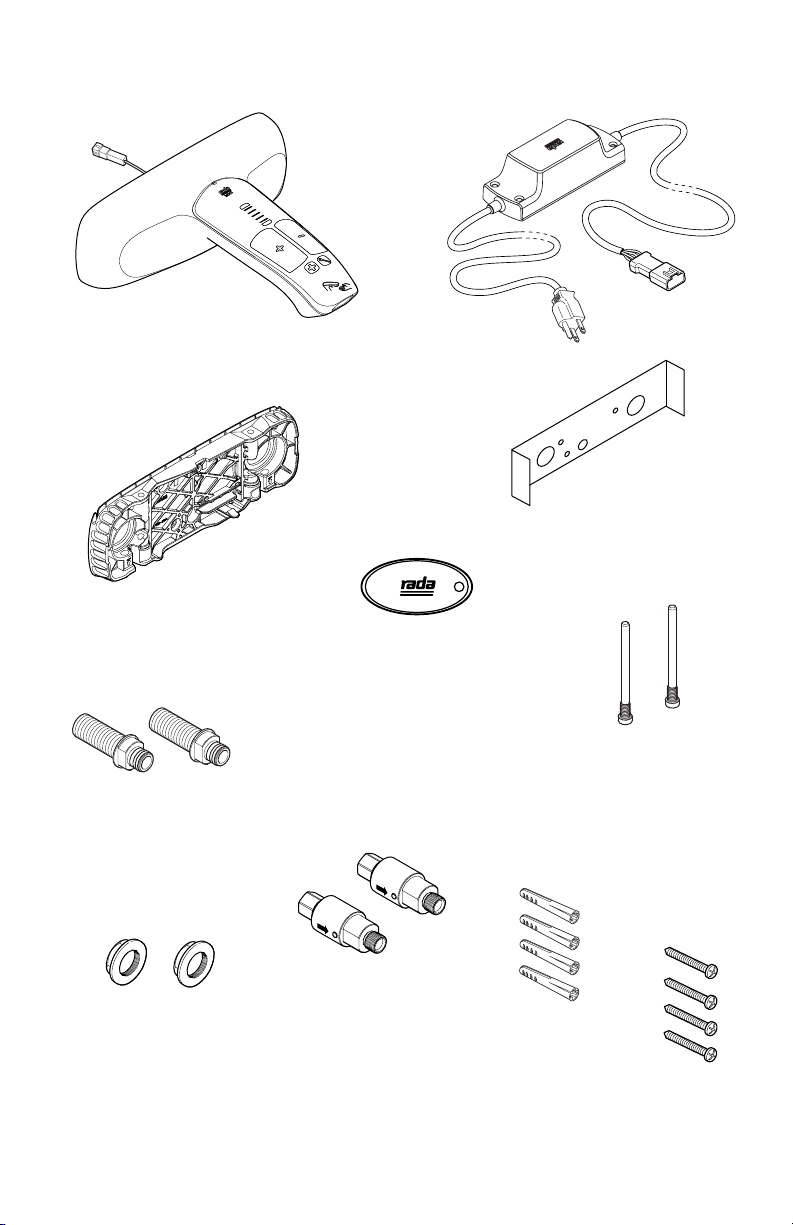

8
1 Tap q
1 Backplate q
1 Rada Disable Key q
2 Connectors q
2 Nuts q
2 Screws q
1 Template q
4 Fixing Screws q
4 Wall Plugs q
1 Power Supply q
2 Flow Regulator/Filter
Assemblies q
Pack Contents

North America • Latin America • India • Europe / Middle East / Africa • China • Pacific Rim
armstronginternational.com
9
Dimensions
MX1 60
10.31” (262 mm)
7.78” (200 mm)
41.85”
(7 mm)
7.83”
(199 mm)
10.31” (262 mm)
3.15”
(80 mm) 1.57”
(40 mm)
1.02”
(26 mm)
6.69” (170 mm)
30º
1.14”
(29 mm)
3.07”
(78 mm)
PSU Mains Cable
6’6” (2 m)
PSU TAP
PSU 12V Cable Extension Cable
Total Cable Run: 3’87” (1.18 m)
Total Cable Run with Extension Cable: 12’07” (3.68 m)
Product Tail
3’3” (1.0 m) 8’2” (2.5 m) 0.59” (0.18 m)
Connection to Power Supply Unit

North America • Latin America • India • Europe / Middle East / Africa • China • Pacific Rim
armstronginternational.com
10
Hot Inlet - Red
Cold Inlet - Blue
The Rada MX1 60 wall mounted tap is designed for panel mounting / scrub trough.
Specifically where rear access is available.
NOT suitable for solid wall installation.
The filter flow regulator unit must be fitted.
Hot - Red Dot, Cold - Blue Dot.
The arrow indicates flow direction.
The unit must be accessible for service.
Installation Requirements

North America • Latin America • India • Europe / Middle East / Africa • China • Pacific Rim
armstronginternational.com
11
0.59”
Ø15 mm
0.98”
Ø25 mm
0.078”
Ø2 mm

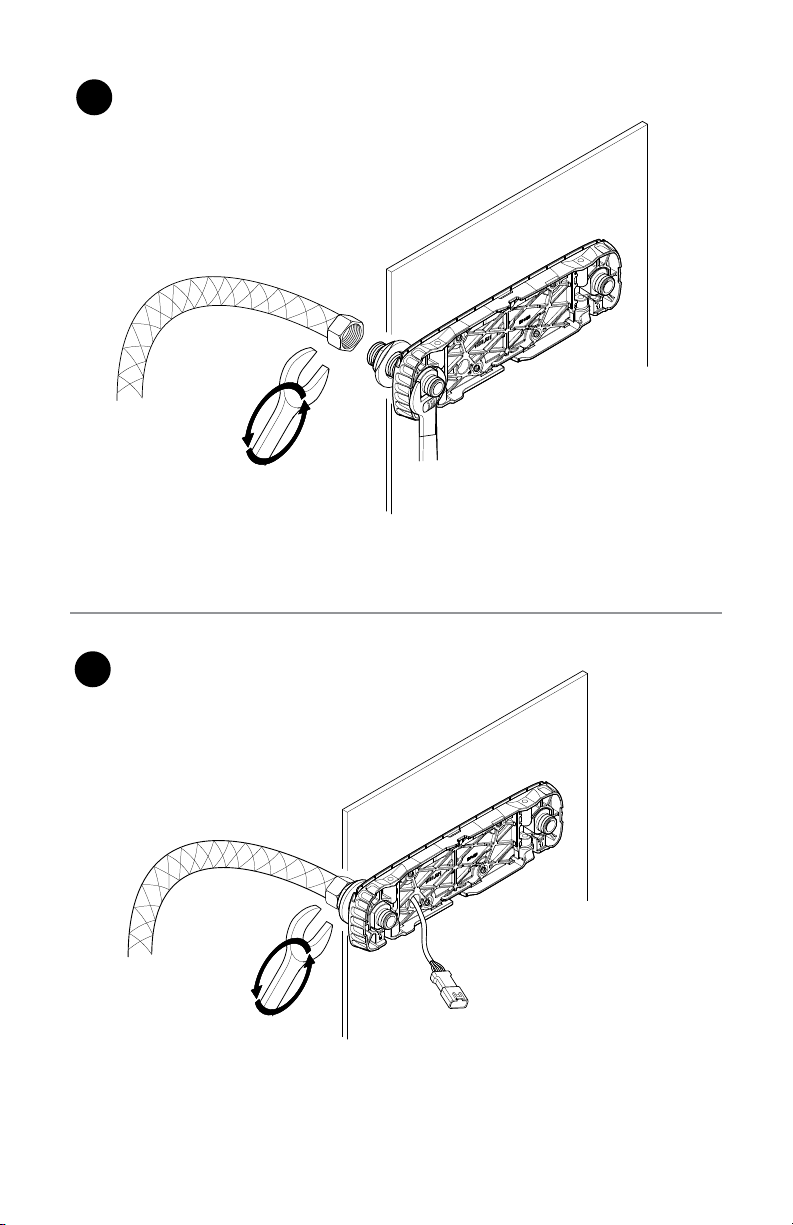

Installation of the Tap on the Stud wall and IPS panel
Use the installation template provided, level and mark the positions of the holes.
For Correct
Height Refer
to HBN00-10
Part C
Drill the holes to the dimensions shown.
Installation
1
2

North America • Latin America • India • Europe / Middle East / Africa • China • Pacific Rim
armstronginternational.com
12
3
4
Secure the backplate using the supplied fixing screws. DO NOT overtighten.
Fit the inlet connectors with isolation hex facing downwards, aligning with the
holes in the backplate. Attach the backnuts (supplied) leaving approx. 10-15 mm
float allowing access to the spanner flats.

North America • Latin America • India • Europe / Middle East / Africa • China • Pacific Rim
armstronginternational.com
13
Make the plumbing connections. DO NOT use jointing paste when making
plumbing connections.
Make the plumbing connections. DO NOT use jointing paste when making
plumbing connections.
5
6

North America • Latin America • India • Europe / Middle East / Africa • China • Pacific Rim
armstronginternational.com
14
7
8
1 min

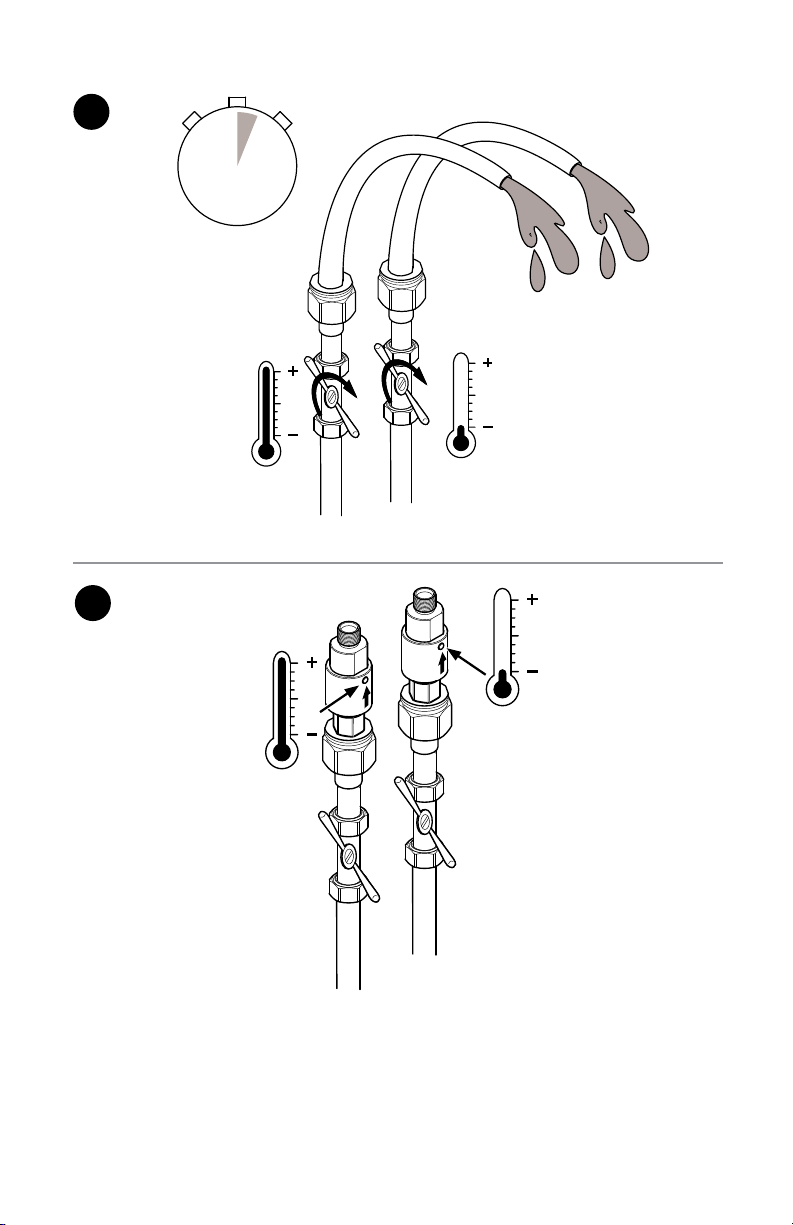

Flush the pipework.
Install the filter flow regulator unit.
DO NOT use jointing paste when making joints.
Red Dot - Hot, Blue Dot - Cold.
The arrow indicates flow direction.

North America • Latin America • India • Europe / Middle East / Africa • China • Pacific Rim
armstronginternational.com
15
9

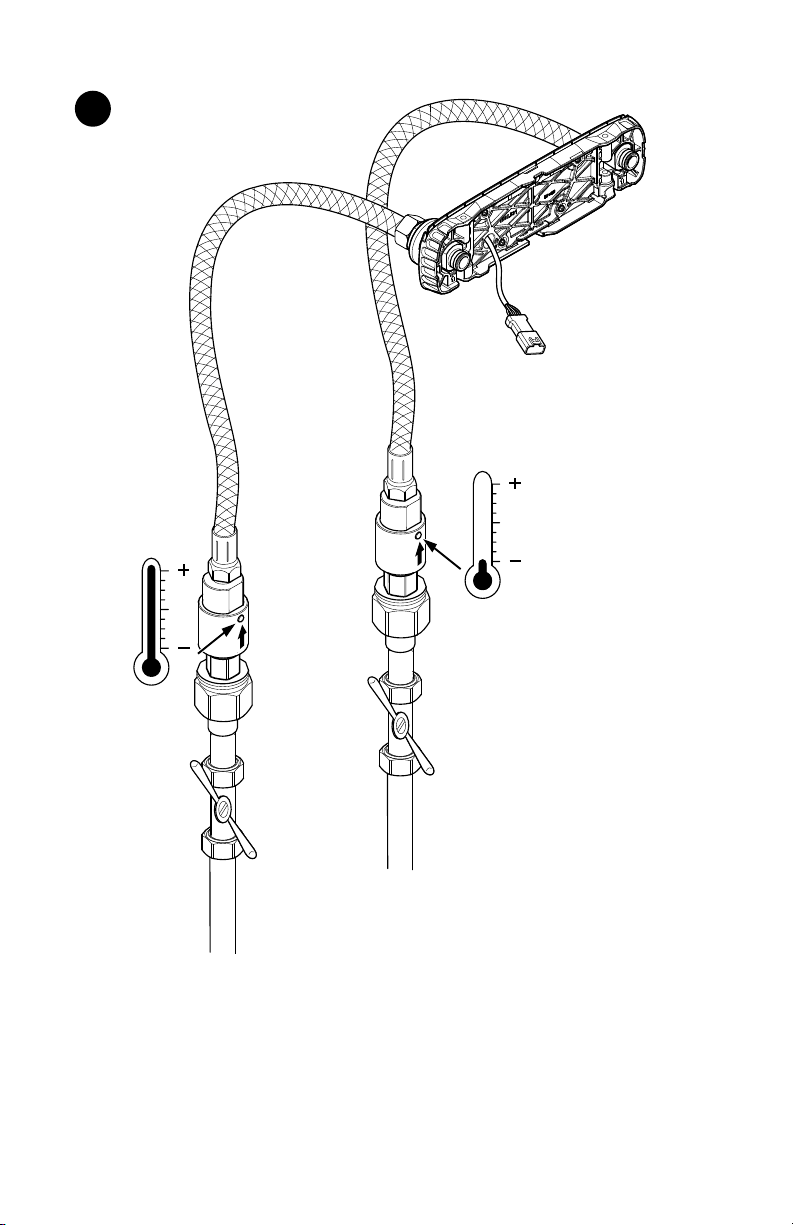

Connect flexible tails to filter flow regulator units.

North America • Latin America • India • Europe / Middle East / Africa • China • Pacific Rim
armstronginternational.com
16

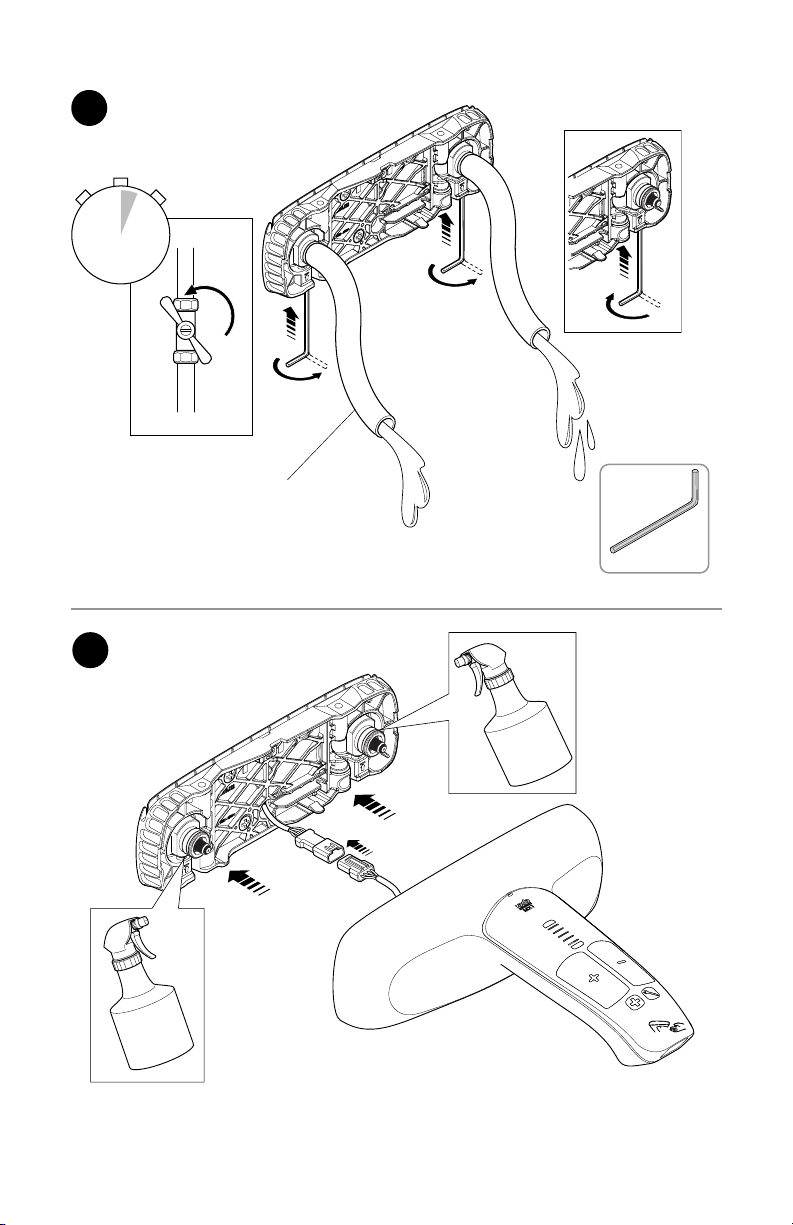

Open supply isolators. Flush pipework.
1 min
2.5 mm
18 mm
H2O
H2O
10
11

North America • Latin America • India • Europe / Middle East / Africa • China • Pacific Rim
armstronginternational.com
17
12

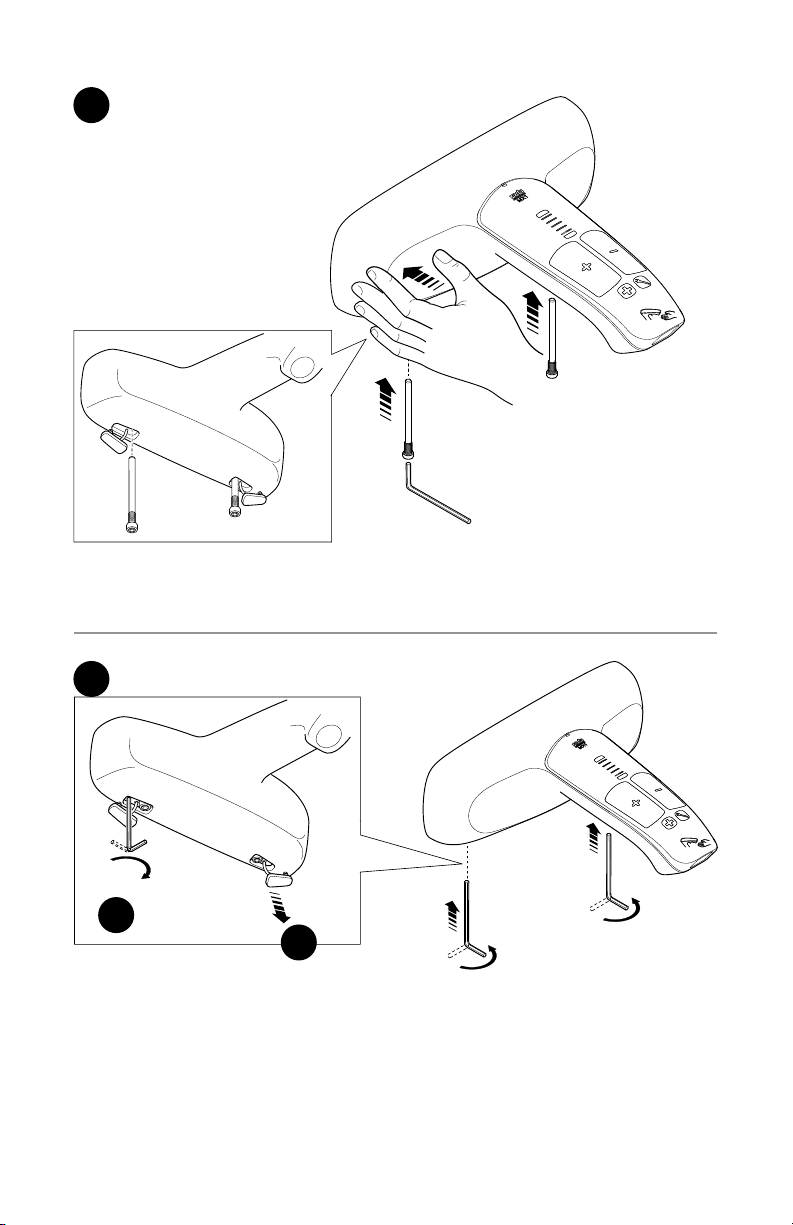

Secure the tap using the supplied screws. DO NOT overtighten. Open the
isolator on the check valve / filter housing.
ON
ON
a
13
b

North America • Latin America • India • Europe / Middle East / Africa • China • Pacific Rim
armstronginternational.com
18
Pull off the cover from tap.
The Rada MX1 wall mounted tap will operate to factory settings when first
installed. Download the “RADA AP1” from the Apple App Store and follow the on
screen instructions.
Note: Run the tap for 30 seconds in order for self calibration to take place.
14
Commissioning

North America • Latin America • India • Europe / Middle East / Africa • China • Pacific Rim
armstronginternational.com
19
The Rada MX1 wall mounted tap will operate to factory settings when first
installed. Download the “RADA AP1” from the Apple App Store and follow the
on screen instructions.

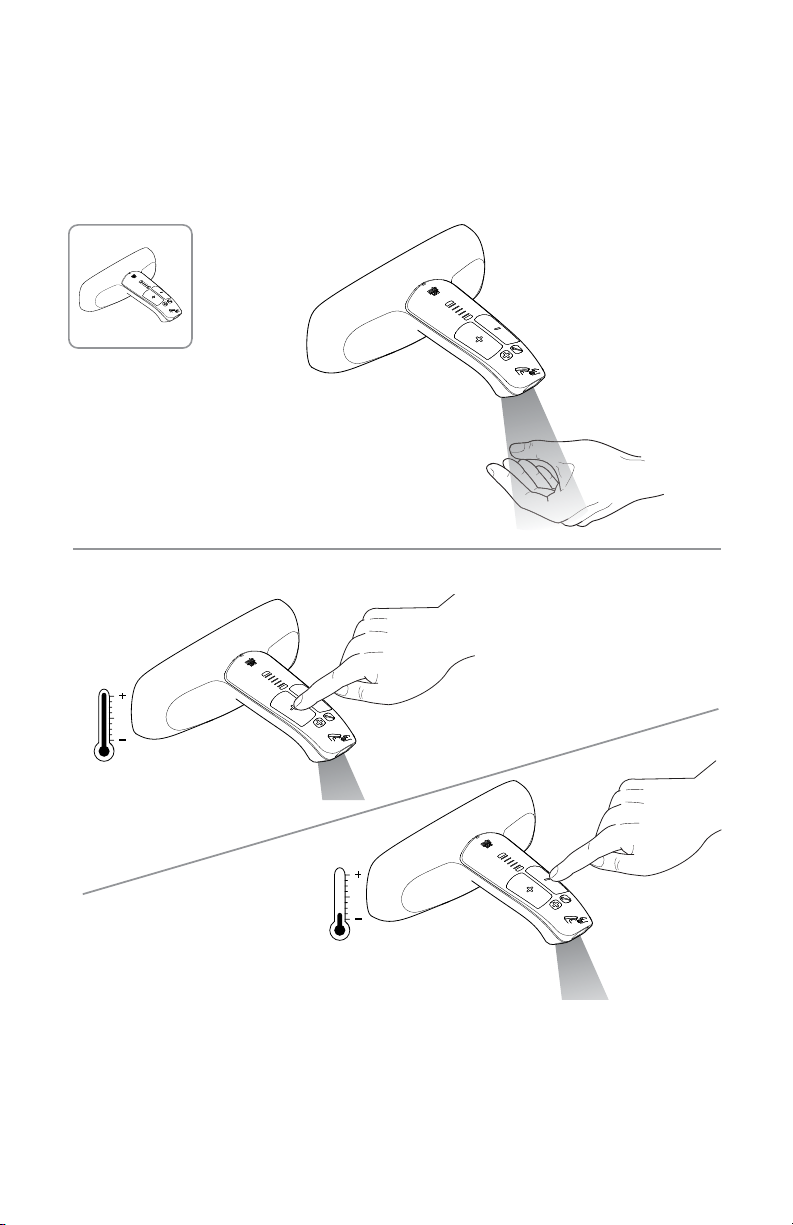

Operation

North America • Latin America • India • Europe / Middle East / Africa • China • Pacific Rim
armstronginternational.com
20
Fault Diagnosis
As with most electronic equipment re-setting the mixing valve by powering it down at
the mains, waiting a few seconds and powering it up again can often cure any issues.
Symptoms Probable Cause Possible Remedy
No water flow / will
not turn on
Product has entered an error
mode indicated by a flashing
“spanner” symbol
Refer to Error Log
Product in cleaning / disabled
mode
Use magnetic key to put back in normal
mode.
No power to the Digital Mixing
Valve
Check electrical connection and power
supply - Power cycle the digital mixer
(turn off and on again).
Inlet water supply isolators not
fully turned on Check and remedy.
Inlet water supply failure Check and remedy.
Inlet filters or check valves blocked Check and remedy.
Inlet check valves / flow regulators
installed the wrong way around Check and remedy.
Outlet spout, hose or handset
blocked Check and remedy.
Reversed inlet supplies Check and remedy.
Inlet water pressure too low Check specification.
“Blocking” time set Commission “Blocking” time using the
communication app.
Digital Mixing Valve air locking
Check for correct installation practices,
repeat commissioning procedure and
rearrange pipework to avoid airlock
forming.
Digital Mixing Valve failure Contact Rada
Flow rate too low
Inlet water supply isolators not
fully turned on Check and remedy.
Inlet filters or check valves blocked Check and remedy.
Outlet spout, hose or handset
blocked Check and remedy.
Reversed inlet supplies Check and remedy.
Inlet Water pressures too low Check specification.
Digital Mixer Valve air locking
Check for correct installation practices,
repeat commissioning procedure and
rearrange pipework to avoid airlock
forming.
Digital Mixing Valve failure Contact Rada.
