INTRODUCTION
This User Manual is intended for introducing LS-25Ex (Т) RMLT.467284.002
manufactured by Armtel LLC, Russia to the User.
LS-25Ex (Т) Weatherproof Ex speaker is used to translate messages in explosive
environment in accordance with the assigned marking of explosion protection, indoors or
outdoor with severe operating conditions: in case of exposure to temperature and
precipitation, presence of aggressive chemical compounds and dust content in
the environment.
LS-25Ex (Т) can be used in metal, chemical, mining, wood-processing, gas and oil
industries, including rescue services, transport facilities etc.
Short name of the product – LS-25Ex (Т).
Maintenance personnel for LS-25Ex (Т) shall be appointed by the management at
the installation site.
The maintenance personnel shall be required to know the operating procedure of
LS-25Ex (Т) to the extent provided for by the User Manual.
Duties of the maintenance personnel shall include maintenance of LS-25Ex (Т) in
accordance with this User Manual.

LS-25EX (Т) WEATHERPROOF EX SPEAKER
User Manual
page 2/32 armtel.com
© Armtel [email protected]
ENG
SAFETY PROVISIONS
During installation and operation of LS-25Ex (Т), observe safety precautions laid out in
local regulations on electrical safety.
To avoid electric shock, do not:
−turn on the product with a damaged cables;
ATTENTION! NEVER DISMANTLE THE PRODUCT CONNECTED TO MAINS.
In order to ensure fire safety, follow the following rules:
−before connecting the product to the power supply, make sure the power and
communication cables are properly insulated;
−protect power and communication cables from damage.
The safety provisions for specific operations described in this manual are marked with:

LS-25EX (Т) WEATHERPROOF EX SPEAKER
User Manual
armtel.com page 3/32
[e-mail] © Armtel
ENG
CONTENTS
INTRODUCTION................................................................................................................................................................. 1
SAFETY PROVISIONS........................................................................................................................................................ 2
CONTENTS ........................................................................................................................................................................... 3
1 DESCRIPTION AND OPERATION.............................................................................................................................. 4
1.1 Features....................................................................................................................................................................... 4
1.2 Main specifications ................................................................................................................................................. 6
1.3 Operations conditions ........................................................................................................................................... 7
1.4 Scope of supply........................................................................................................................................................ 8
1.5 Design.......................................................................................................................................................................... 9
1.6 Marking .....................................................................................................................................................................16
1.7 Package.....................................................................................................................................................................18
2 INTENDED USE..............................................................................................................................................................19
2.1 Operating limits .....................................................................................................................................................19
2.2 Preparation for use ...............................................................................................................................................20
2.3 Safety precautions.................................................................................................................................................22
2.4 Action in extreme situations..............................................................................................................................23
2.5 Operation .................................................................................................................................................................24
2.5.1 Activity description......................................................................................................................................24
2.5.2 General requirements.................................................................................................................................24
2.5.3 End of operation...........................................................................................................................................25
2.6 Troubleshooting ....................................................................................................................................................26
3 MAINTENANCE.............................................................................................................................................................27
3.1 General guidelines ................................................................................................................................................27
3.2 Safety precautions.................................................................................................................................................27
3.3 Maintenance procedure......................................................................................................................................27
3.4 Performance check of the product.................................................................................................................28
4 REPAIR..............................................................................................................................................................................29
5 STORAGE.........................................................................................................................................................................29
6 TRANSPORTATION......................................................................................................................................................30
7 DISPOSAL........................................................................................................................................................................30
APPENDIX А (REFERENCE) SPL VS ANGLE AND SPL VS FREQ .......................................................................31

LS-25EX (Т) WEATHERPROOF EX SPEAKER
User Manual
page 4/32 armtel.com
© Armtel [email protected]
ENG
1 DESCRIPTION AND OPERATION
1.1 Features
1.1.1 LS-25Ex (Т) Weatherproof Ex speaker is a subscribers equipment for wired Public
Address / General Alarm (PA/GA) communication systems and is intended for converting
electrical signals into acoustic ones and emitting them into the surrounding space (air).
Product is used to translate messages in explosive environment in accordance with
the assigned marking of explosion protection, indoors or outdoor with severe operating
conditions: in case of exposure to temperature and precipitation, presence of aggressive
chemical compounds and dust content in the environment.
1.1.2 LS-25Ex (Т) has four variants, the variants are provided in Table 1.
Table 1 – Variants of LS-25Ex (Т)
Identification
Overall dimensions
(without bracket),mm,
no more
Weight,
kg,
no more
Marking of explosion
protection
under GOST 31610.0-2014
(IEC 60079-0:2011)
RMLT.467284.002 (348±3)×275×200 2,8 1Ex d e mb IIB+H2T4 Gb X
RMLT.467284.002-01 (348±3)×275×200 2,8 1Ex d e mb IIC T4 Gb X
RMLT.467284.002-02 207×186×144 2,2 1Ex d e mb IIB+H2T4 Gb X
RMLT.467284.002-03 207×186×144 2,2 1Ex d e mb IIC T4 Gb X
1.1.2 External appearance of LS-25Ex (Т) with bracket is shown at Figure 1.
Note – The manufacturer reserves the right to change the appearance of the product,
which does not affect the installation dimensions and its operation.

LS-25EX (Т) WEATHERPROOF EX SPEAKER
User Manual
armtel.com page 5/32
[e-mail] © Armtel
ENG
a) versions RMLT.467284.002, RMLT.467284.002-01
with standard bracket (Antistatic PA)
b) versions RMLT.467284.002-02, RMLT.467284.002-03
with optional bracket (Stainless steel)
Figure 1 – External appearance of LS-25Ex (Т)

LS-25EX (Т) WEATHERPROOF EX SPEAKER
User Manual
page 6/32 armtel.com
© Armtel [email protected]
ENG
1.2 Main specifications
Main specifications for LS-25Ex (Т) are given in Table 2. SPL vs Angle and SPL vs
Frequency are given in Appendix A.
Table 2 – Main specifications of LS-25Ex (T)
Parameters
Value
RMLT.467284.002 RMLT.468284.002-01 RMLT.467284.002-02 RMLT.468284.002-03
Rated power, W 25*
Rated input voltage, V 100
Protection degree
provided by shells
(under GOST 14254-
2015 (IEC 60529:2013))
(IP-code)
IP66/67
Effective frequency
range, Hz
from 380 to
7000
from 400 to 7000 from 380 to 7000 from 450 to 6000
SPL 1W/1m, dB 109 106 105 102
SPL rated power, dB 122 119 118 115
Dispersion (– 6 dB)
1 kHz / 4 kHz
100 о / 30 о73 о / 33 о200 о / 50 о105 о / 35 о
* The primary tapping of the built-in transformer allows the following values of LS-25Ex (T) rated
power: 25 W, 15 W, 6.5 W, 5 W, 2.5 W, 1.5 W.
ATTENTION! WHEN CONNECTED TO POWER AND COMMUNICATIONS
THE NECESSARY STRICTLY FOLLOW THE INSTRUCTIONS OF THE OPERATION
DOCUMENTATIONS FOR THE DEVICE! NON-COMPLIANCE WITH THESE
REQUIREMENTS MAY RESULT IN DAMAGE TO THE UNIT!

LS-25EX (Т) WEATHERPROOF EX SPEAKER
User Manual
armtel.com page 7/32
[e-mail] © Armtel
ENG
1.3 Operations conditions
1.3.1 Operation conditions of LS-25Ex (Т)
Operating temperature range: from minus 55 °C to plus 60 °C,
Ambient atmospheric pressure, kPa (mmHg): from 84,0 to 106,7 (from 630 to 800).
1.3.2 Protection degree against access to hazardous parts, ingress of external solid
objects, water according to GOST 14254-2015 (IEC 60529-2013) – IP66/67.
1.3.3 The LS-25Ex (Т) withstands without mechanical damage in operating conditions
(refer to 1.3.1) when exposed to sinusoidal vibration 25 Hz frequency with peak acceleration
amplitude up 19,6 m/s2.
1.3.4 LS-25Ex (Т) is meet the requirements of Technical regulations of the Customs
Union TR CU 012/2011 «On safety of equipment in explosion-proof environments» in
accordance with marking of explosion protection.
1.3.5 Special conditions of use (if the marking of explosion protection contains
the symbol «Х»):
−installation and operation of LS-25Ex (Т) must be carried out in accordance with
the requirements and special conditions for safe use specified in this User
Manual;
−it is prohibited to switch on and operate LS-25Ex (T) with damaged explosion
protection elements (risks, scratches, nicks on surfaces forming explosion-proof
target connections, damaged or incomplete threads are not allowed). Parts with
defects in explosion protection elements must be rejected and replaced with
new ones supplied by the manufacturer;
−connection of LS-25Ex (T) with a permanently fixed cable in hazardous areas is
allowed using explosion-proof terminal blocks having a certificate of conformity
with TR CU 012/2011;
−LS-25Ex (Т) housing has low mechanical strength, therefore it is necessary to
protect them from impacts and falls.
1.3.6 LS-25Ex (Т) is designed without amplifier function and according the Appendix 1
for Technical regulations of the Customs Union «Electromagnetic compatibility of technical
equipment» (TR CU 020/2011) not subject to its requirements.

LS-25EX (Т) WEATHERPROOF EX SPEAKER
User Manual
page 8/32 armtel.com
© Armtel [email protected]
ENG
1.4 Scope of supply
The scope of supply for LS-25Ex (Т) is provided in Table 3.
Table 3 – Scope of supply
Identification Name
Quanty-
ty, pcs.
Note
RMLT.467284.002-XX LS-25Ex (Т) Weatherproof Ex speaker 1
XX – see
Table 1
Installation kit
Standard Bracket (Antistatic PA)
1
Optional kit
Optional Bracket (Stainless steel) 1
Upon request
from customers
Swivel Optional Bracket (Stainless steel) 1
Upon request
from customers
Swivel Optional Bracket (Antistatic PA)1
Upon request
from customers
only for versions
-02, -03
Packaging
Package 1
Operational documentation
RMLT.467284.002PP
Product Passport
1
RMLT.467284.002UM
User Manual
1

LS-25EX (Т) WEATHERPROOF EX SPEAKER
User Manual
armtel.com page 9/32
[e-mail] © Armtel
ENG
1.5 Design
1.5.1 LS-25Ex (Т) housing is made from antistatic PA and included two part. First part
of the housing including the speaker and the matching transformer, second – a terminal
block and mounting holes for two cable glands М20х1,5.
1.5.2 The housing is as sealed design with a removable back cover. Porous flame
retardant is used to output sound signal.
1.5.3 LS-25Ex (Т) connect to the signal source by the connection cable. The enclosure
has two holes for cable glands М20х1,5 mounting. Maximum cross-sectional area is 2,5 mm2,
cable diameter (for standard cable gland) − from 10 to 14 mm. For example,
HMCD068029/00 manufactured by SIB or analogue.
The back cover and organize of the cable glands (one cable gland, one plug) in
standard version of LS-25Ex (Т) are shown on Figure 2.
Figure 2 – The back cover, the cable glands in the standard version of LS-25Ex (Т)
Note – According to Customer requirements and capabilities of the manufacturer,
the standard cable glands can be change to other ones. Quantity (up to 2 pcs.) and types of
installed cable glands according to the supply contract.

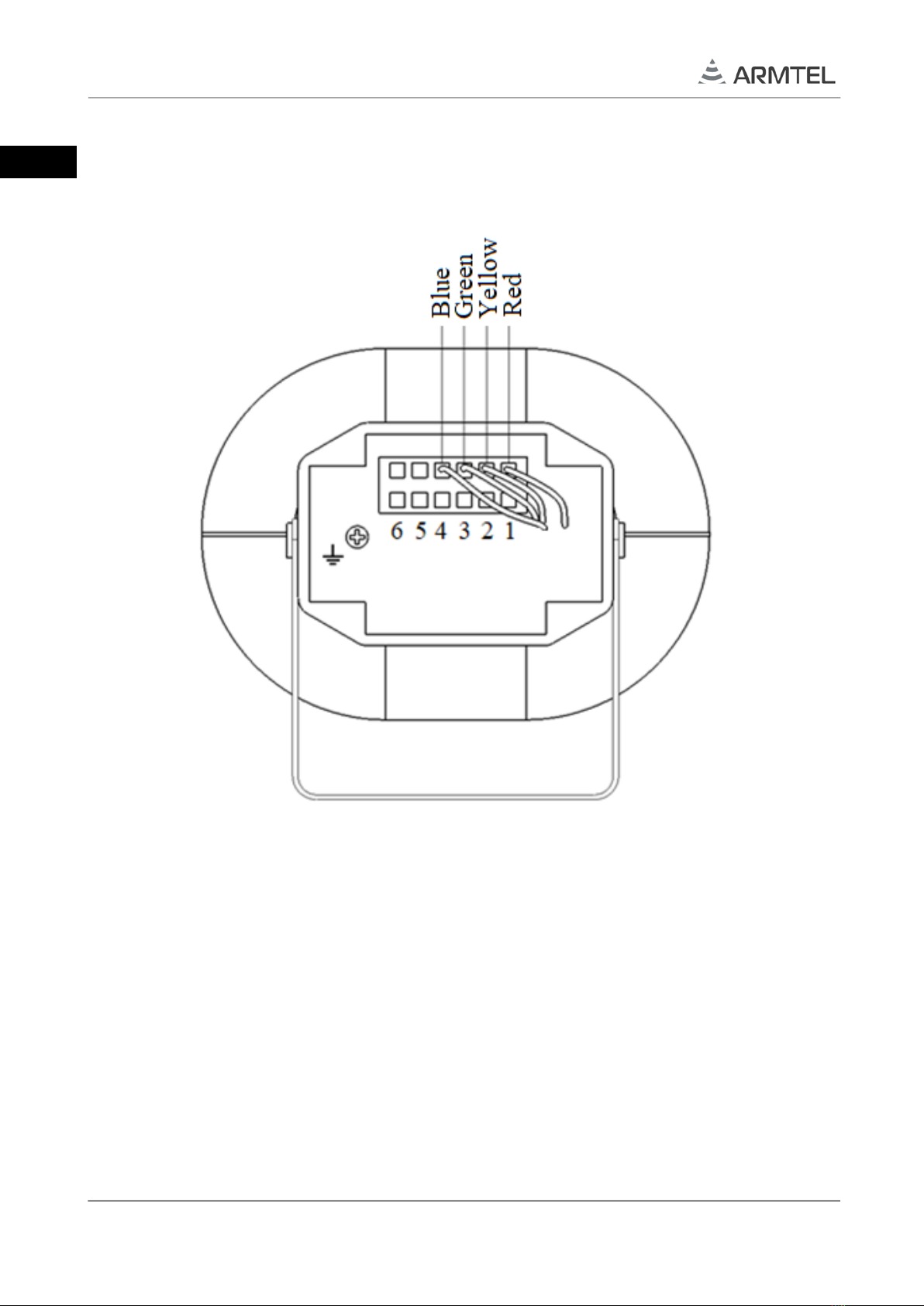

1.5.4 External appearance of the LS-25Ex (Т) with the back cover removed is shown in
Figure 3. The terminal block and ground screw are installed under the back cover.
1.5.5 The terminal block is designed to connect the signal source to the speaker.

LS-25EX (Т) WEATHERPROOF EX SPEAKER
User Manual
page 10/32 armtel.com
© Armtel [email protected]
ENG
1.5.6 The ground screw, when connected to the ground loop at the installation site,
ensures that static charge flows from the product. To connect the ground screw to
the ground loop, you have to insert the grounding cable (wire) through the cable gland (the
grounding cable (wire) is not supplied with the product).
Figure 3 – External appearance of the LS-25Ex (Т) with the back cover removed
1.5.7 The housing with the cover and two Ex-сable glands is a flameproof enclosure
complying with the following standards:
−GOST 31610.0-2014 (IEC 60079-0:2011). Explosive atmospheres. Part 0.
Equipment. General requirements;
−GOST IEC 60079-1-2011. Explosive atmospheres. Part 1. Equipment with
the type of protection "flameproof enclosures «d»;
−GOST R MEK 60079-7-2012. Explosive atmospheres. Part 7. Equipment.
Increased protection type «е»;
−GOST R MEK 60079-18-2012. Explosive atmospheres. Part 18. Equipment with
the type of explosion protection «encapsulation «mb» according to Ex-marking.

LS-25EX (Т) WEATHERPROOF EX SPEAKER
User Manual
armtel.com page 11/32
[e-mail] © Armtel
ENG
1.5.8 Installation of LS-25Ex (Т) in the operating site is carried out using the bracket (for
LS-25Ex (Т) are available four bracket systems: Standard Bracket (Antistatic PA) from
the standard scope of supply, Optional Bracket (Stainless Steel), Swivel Optional Bracket
(Stainless Steel) or Swivel Optional Bracket (Antistatic PA)). External appearance and overall
dimensions of the brackets are shown at Figure 4.
ATTENTION! FOR CONSIDERATIONS OF MECHANICAL STRENGTH AND
STRUCTURE STABILITY THE SWIVEL OPTIONAL BRACKET (ANTISTATIC PA) IS
AVAILABLE ONLY FOR VERSIONS WITH SHORT SPEAKER (RMLT.467284.002-02
AND RMLT.467284.002-03).

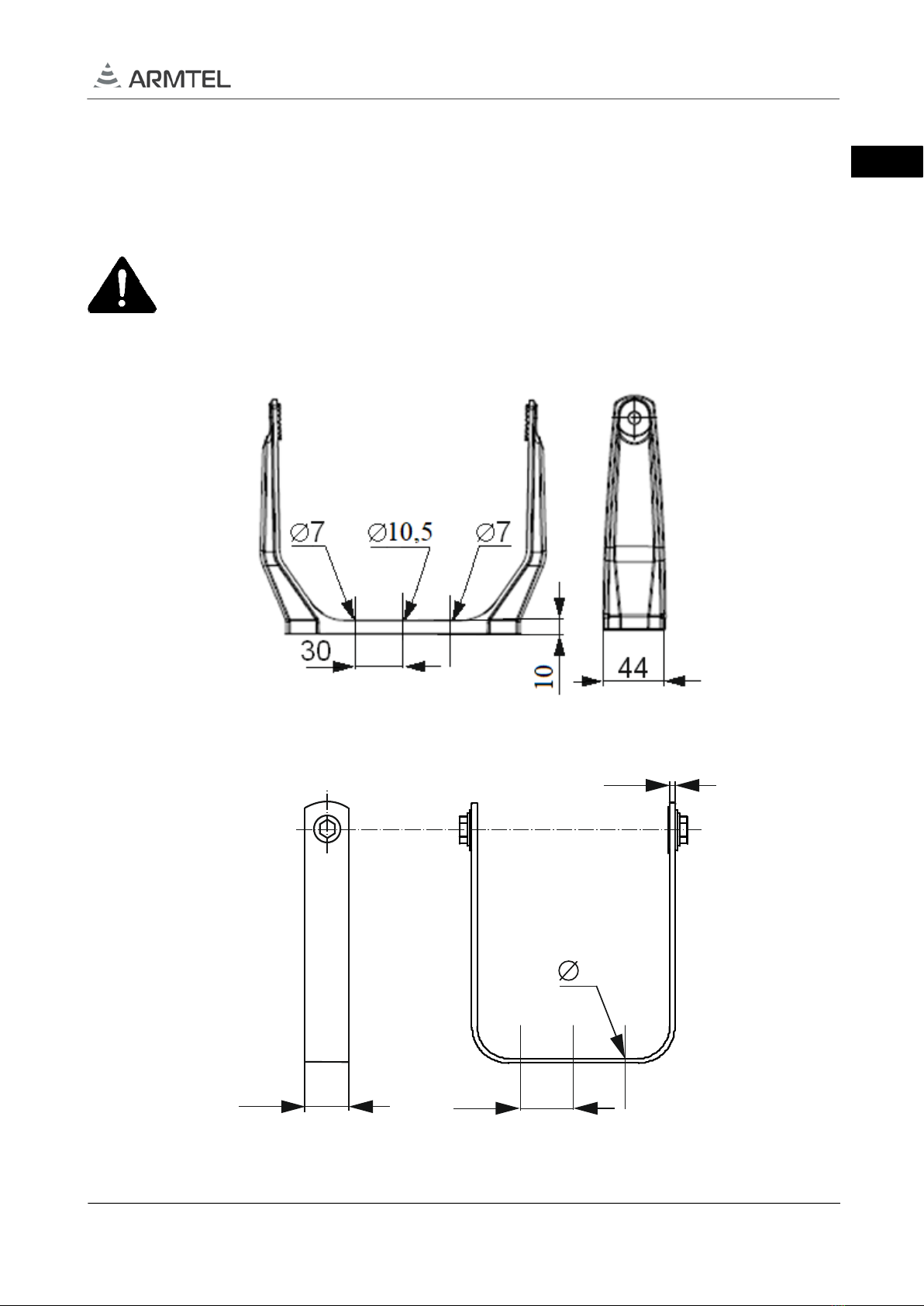

a) Standard Bracket (Antistatic PA)
b) Optional Bracket (Stainless steel)
Figure 4 – External appearance and overall dimensions of the bracket (beginning)
25 30
7
3

LS-25EX (Т) WEATHERPROOF EX SPEAKER
User Manual
page 12/32 armtel.com
© Armtel [email protected]
ENG

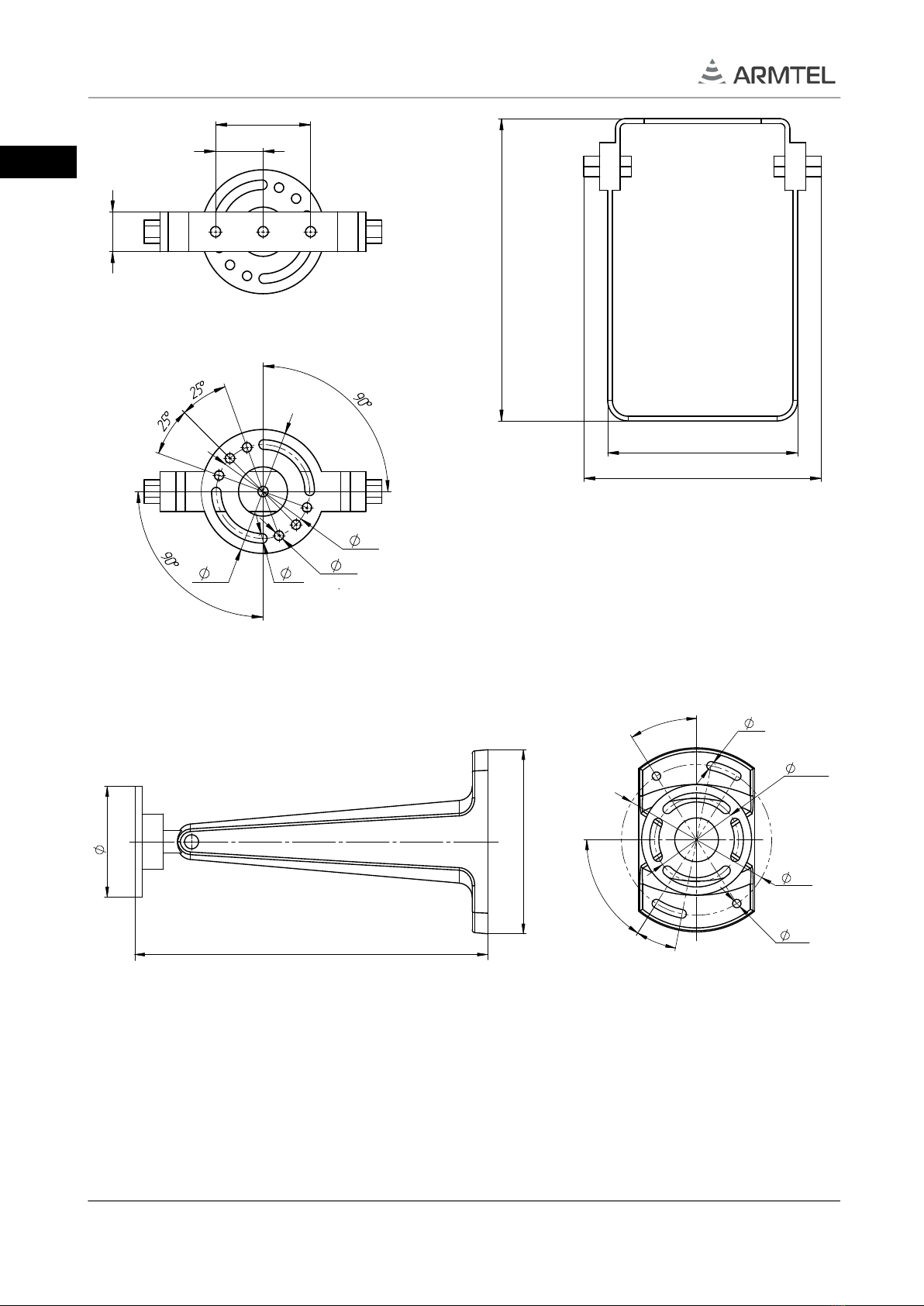

с) External appearance of the LS-25(Т) Swivel Optional Bracket (Stainless steel)
в) External appearance of the LS-25(Т) Swivel Optional Bracket (Antistatic PA)
Figure 4 – External appearance and overall dimensions of the bracket (end)
a) bottom view
b) side view
c) top view
60
30
25
190
120
150
59
6
66 holes
78
2holes
6
107
59,5
6
30
о
60
о
20
о
78
250
130

LS-25EX (Т) WEATHERPROOF EX SPEAKER
User Manual
armtel.com page 13/32
[e-mail] © Armtel
ENG
1.5.9 LS-25Ex (Т) can be mounted on a wall surfaces, a ceiling or a freestanding
columns.
1.5.10 To direct the sound in the desired direction, the LS-25Ex (Т) can be turned. Angle
of rotation of the bracket is shown at Figure 5.
a) Angles of rotation of the Standard Bracket (Antistatic PA) and
the Optional Bracket (Stainless steel)
b) Angles of rotation of the Swivel Optional Bracket (Stainless steel)
Figure 5 – Angle of rotation of the brackets (beginning)
90
о
30
о
90о
180
о

LS-25EX (Т) WEATHERPROOF EX SPEAKER
User Manual
page 14/32 armtel.com
© Armtel [email protected]
ENG

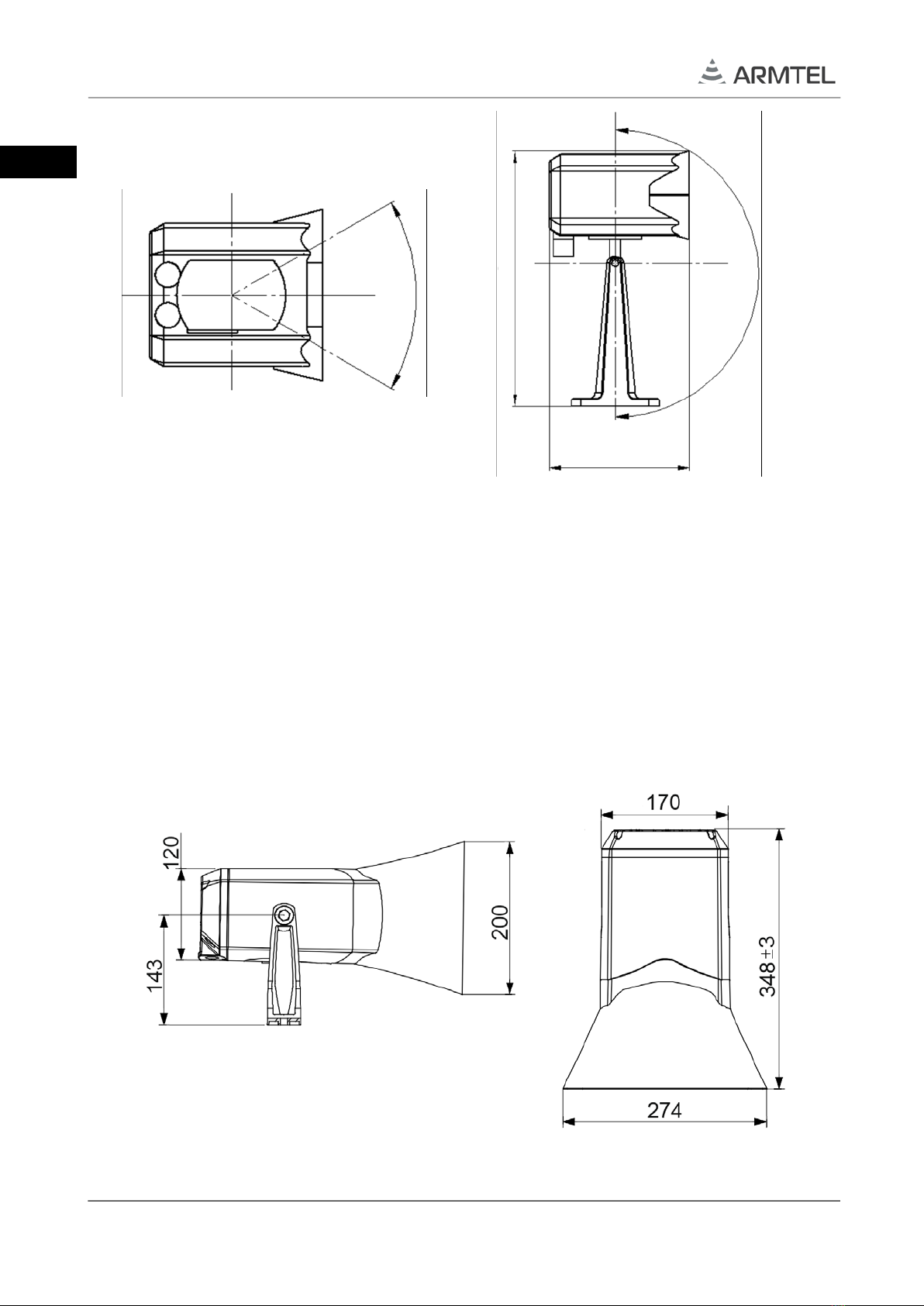

c) Angles of rotation of the Swivel Optional Bracket (Antistatic PA)
Figure 5 – Angle of rotation of the brackets (end)
1.5.11 External appearance and weight and overall dimensions characteristics of
LS-25Ex (Т)
1.5.11.1 External appearance иweight and overall dimensions characteristics of
LS-25Ex (Т) RMLT.467284.002, -01 versions
Weight and overall dimensions characteristics of LS-25Ex (Т) RMLT.467284.002, -01 are
provided in Table 1.
External appearance and overall dimensions of LS-25Ex (Т) RMLT.467284.002, -01 are
shown at Figure 6.
a) side view
b) top view without bracket
Figure 6 – External appearance and overall dimensions LS-25Ex (Т) RMLT.467284.002, -01
/
60о90о
180о
207
375

LS-25EX (Т) WEATHERPROOF EX SPEAKER
User Manual
armtel.com page 15/32
[e-mail] © Armtel
ENG
1.5.11.1 External appearance иweight and overall dimensions characteristics of
LS-25Ex (Т) RMLT.467284.002-02, -03 versions
Weight and overall dimensions characteristics of LS-25Ex (Т) RMLT.467284.002-02, -03
are provided in Table 1.
External appearance and overall dimensions LS-25Ex (Т) RMLT.467284.002-02, -03 are
shown at Figure 7.
a) side view
b) top view without bracket
Figure 7 – External appearance and overall dimensions LS-25Ex (Т) RMLT.467284.002-02, -03

LS-25EX (Т) WEATHERPROOF EX SPEAKER
User Manual
page 16/32 armtel.com
© Armtel [email protected]
ENG
1.6 Marking
1.6.1 On the enclosure is plased the bilingual nameplate.
The nameplate contains the following information:
−name, trademark and reference information of the manufacturer;
−product name;
−commercialization mark for products on the market of Customs Union member states;
−marking of explosion protection;
−name of the certification body (s);
−number (s) of the certificate (s) of conformity;
−special sign of explosion safety;
−degree of protection provided by enclosures (IP code);
−special waste disposal mark;
−product serial number;
−date of manufacture;
−other information.
WARNING: DO NOT OPEN WHEN NON-INTRINSICALLY SAFE CIRCUITS ARE ENERGISED!
The serial number is unique for each product.

LS-25EX (Т) WEATHERPROOF EX SPEAKER
User Manual
armtel.com page 17/32
[e-mail] © Armtel
ENG
а) on the enclosure
b) on the cover
Figure 8 – Nameplate

LS-25EX (Т) WEATHERPROOF EX SPEAKER
User Manual
page 18/32 armtel.com
© Armtel [email protected]
ENG
1.7 Package
The LS-25Ex (Т) with the mounting kit and documents, which come with the supply
package, is packed in consumer package (cardboard box).
A label in Russian language and English language is glued onto the consumer package,
said label containing the following inscriptions and symbols:
–product name and description;
–name, trademark and reference information of the manufacturer;
–handling symbols according to GOST 14192-96 and TR CU 005/2011;
–commercialization mark for products on the market of Customs Union member
states;
–serial number and date of manufacture.
The package is made according to the drawings of the product manufacturer and
enables storage of the LS-25Ex (Т), provided requirements set in Section 5 are met.
For shipment of the LS-25Ex (Т) from the manufacturer, consumer package contents
are placed in the package place, which ensures protection from mechanical damage, direct
ingress of atmospheric precipitation, dust and solar radiation during transportation
