Logitech Z407 User manual

Z407 BLUETOOTH®
COMPUTER SPEAKERS
WITH SUBWOOFER
HAUT-PARLEURS POUR
ORDINATEUR Z407 BLUETOOTH®
AVEC CAISSON DE BASSES
Setup Guide
Guide d’installation

CONTENTS
English . . . . . . . . . . . . . . . . .3
Français . . . . . . . . . . . . . . . 11
Español . . . . . . . . . . . . . . . . 19
Português . . . . . . . . . . . . . . 27

AAA
AAA
Left satellite
Power cord
RCA cable
tosubwoofer
3.5mm auxiliary
cable (3-pole)
AAA batteries
Wireless
control dial
Right satellite
Satellite stands
Wired input button
(USB/3.5mm)
Bluetooth®button
RCA cable
tosubwoofer
Subwoofer

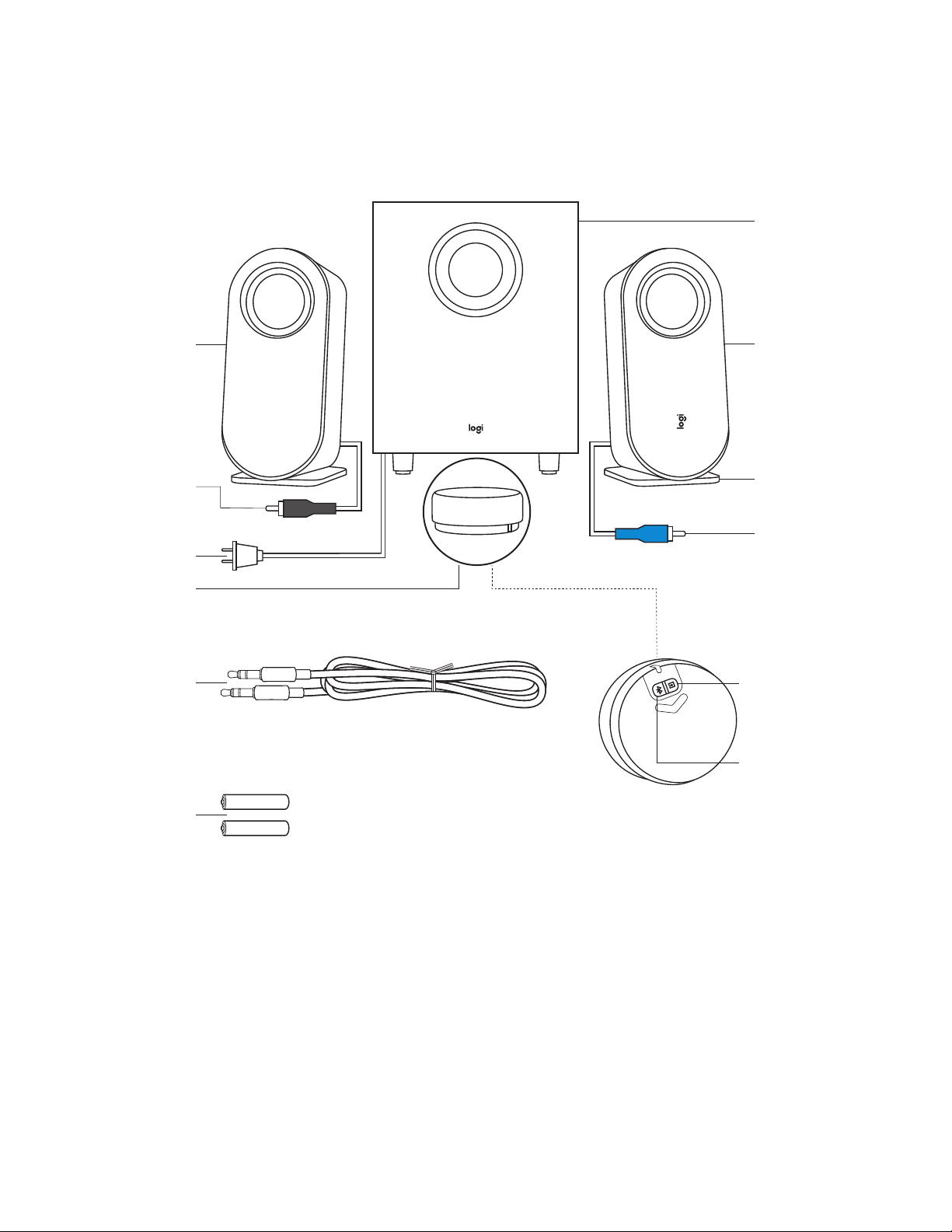

KNOW YOUR PRODUCT
3English

RAUXUSB L
1
4

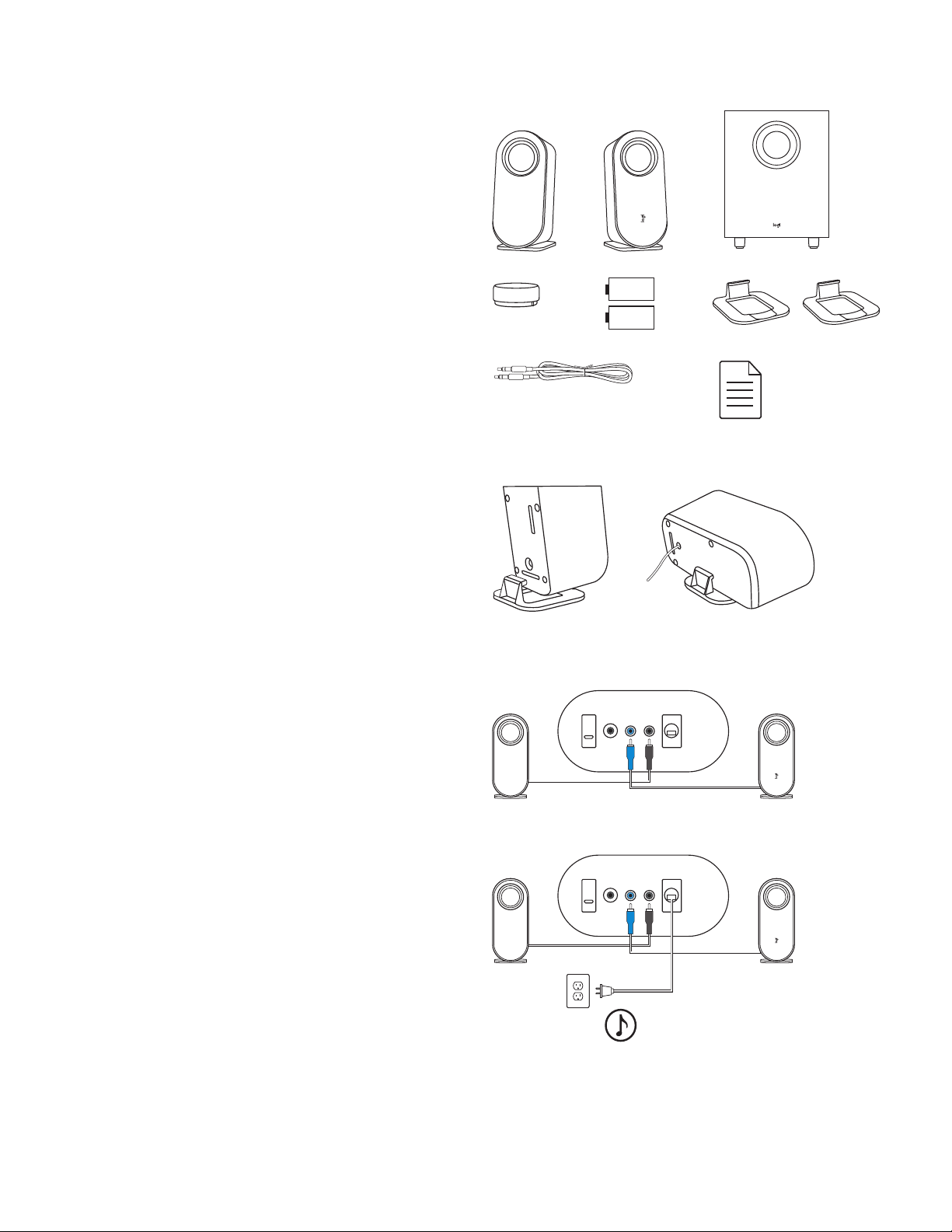

BOX CONTENT
1. Left satellite
2. Right satellite
3. Subwoofer
4. Wireless control dial
5. 2 AAA batteries
6. Satellite stands
7. 3.5 mm cable
8. User documentation
CONNECT THE SPEAKERS
Place the stands to each satellite separately.
Lay the speakers vertically or horizontally
as per your preference. Make sure that
thestands t tightly in the speakers.
• Plug the right satellite cable into the blue
subwoofer jack.
• Plug the left satellite cable into the gray
subwoofer jack.
Plug the power cord into an electrical outlet.
You will hear a welcome notication sound. RAUXUSB L
Welcome tone
2 3
5 6
7 8
AAA
AAA
Vertical placement Horizontal placement
4English

AAA
AAA
AAA AAA
2 sec.
CONNECT THE SPEAKERS (CONT’D)
Long press and push downwards to open the back lid,
place two AAA batteries to the corresponding space.
Do not mix using akaline battery with rechargeable battery.
Do not mix using new and old batteries.
Do not leave the batteries unused in the product for extended periods.
CONNECT TO AUDIO SOURCE
The LED on the control dial will change correspondingly
when connected to dierent connectivity.
• The LED will turn blue when connected via Bluetooth.
• The LED will turn purple when connected via 3.5 mm.
• The LED will turn white when connected via USB.
The LED indicator will then start blinking in blue.
Oncethe wireless control dial is successfully
connected to the speaker, the LED will turn into
asteady blue light.
Select and connect to “Logi Z407” on your
Bluetooth®device list. You will hear a connected tone.
The LED will turn into a steady blue light.
CONNECT VIA BLUETOOTH®
Make sure Bluetooth®is activated on the source device.
BT pairing tone
BT connected tone
• Press and hold (2sec.) the Bluetooth®button on
thebottom of the dial to activate pairing mode.
• The LED indicator will blink quickly. You will start
tohear a pairing sound notication.
Logi
Z407
5English

RAUXUSB L
RAUXUSB L

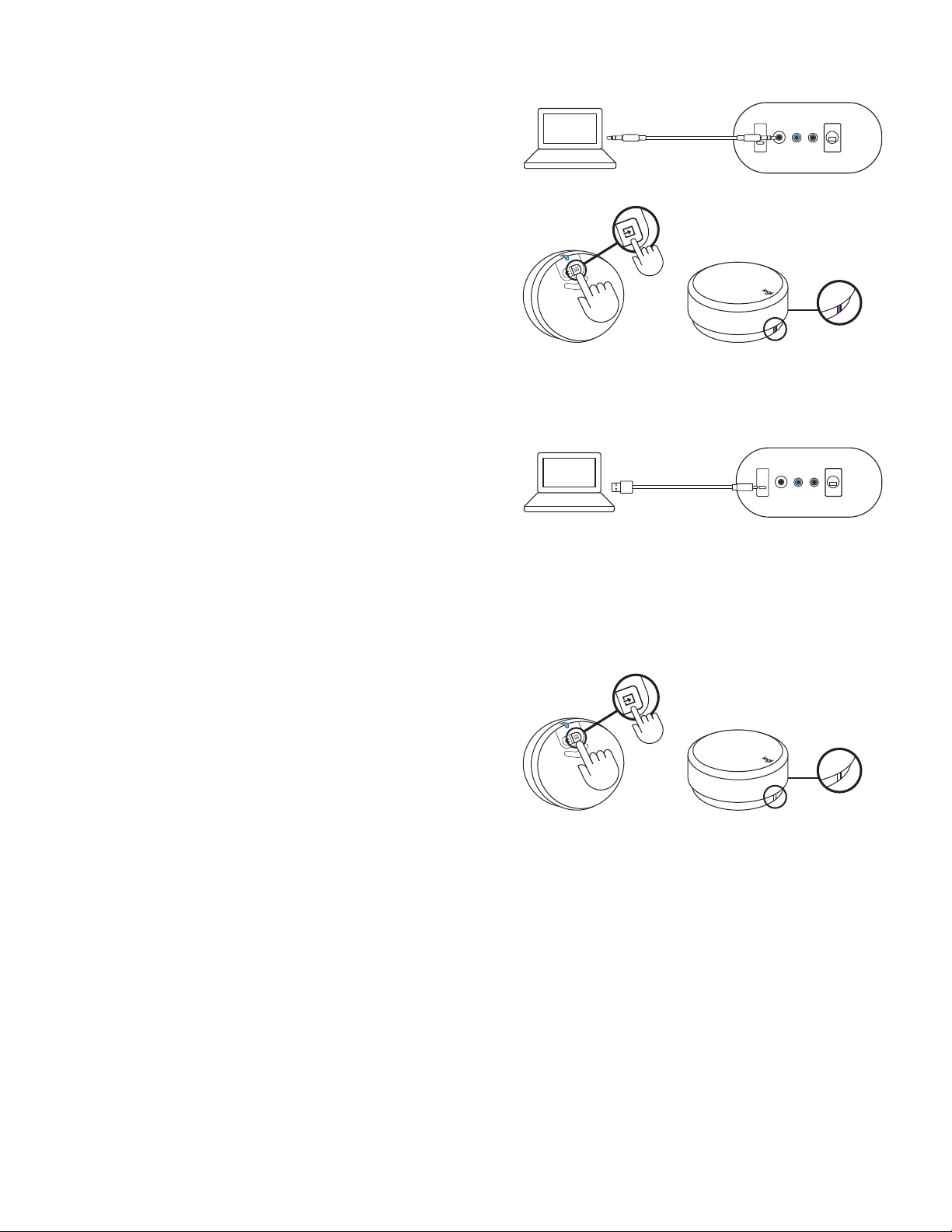

CONNECT VIA 3.5MM CABLE
Connect one end of the provided 3.5 mm cable to
theauxiliary input on the back of the subwoofer.
Then connect the other end of the cable to the 3.5 mm
audio jack on your device.
CONNECT VIA USB CABLE
Connect one end of the USB cable to the micro
USBinput on the back of the subwoofer.
Then connect the other end of the cable to USB-A input
on your device.
The default connectivity is Bluetooth®. To play
through3.5 mm connectivity, press the wired input
button on the back of the dial.
The LED light will turn purple.
The default connectivity is Bluetooth®.
ToplaythroughUSB connectivity, press the wired
inputbutton on the back of the dial.
The LED light will turn white.
NOTE: USB cable is not included in the box and must be
purchased separately.
6English

RAUXUSB L
CONNECT TO THREE DEVICES SIMULTANEOUSLY
Connect up to three devices at the same time
throughthe micro USB input, 3.5 mm input
onthebackof the subwoofer, and Bluetooth®.
SWITCH BETWEEN DIFFERENT
AUDIOSOURCES
SWITCH BETWEEN TWO WIRED CONNECTIVITY
To switch between wired connection
(3.5mmandUSB),press wired input button
onthebottom of the dial.
The LED color will change correspondingly.
SWITCH BETWEEN WIRED AND WIRELESS
CONNECTIVITY
To switch from wired connection to wireless connection
(Bluetooth®), press Bluetooth®button on the bottom
ofthe dial.
You can pair up to eight Bluetooth®source devices
withyour speakers.
To switch between wired and wireless audio sources,
press the Bluetooth®button and the wired input button
on the back of the wireless control dial.
To switch from wireless connection to wired connection,
press wired input button on the bottom of the dial.
7English

2 sec.
BASS
ADJUST THE VOLUME
• To adjust the volume of the speaker,
rotatethewireless dial control clockwise
(counterclockwise) to increase
(decrease) the volume.
• When reaching to MAX volume, you will hear
anotication tone.
PLAY/PAUSE (MUTE/UNMUTE)
• Press once on the dial to play/pause (mute/unmute)
your audio content.
• Play/pause (Mute/unmute) will only be activated
when the speaker is connected via Bluetooth®
orUSBinput (3.5 mm).
SKIP
• Press twice on the dial to skip your current track.
• Skip will only be activated when the speaker
isconnected via Bluetooth®or USB input.
REWIND
• Triple press on the dial to replay the soundtrack.
• Rewind will only be activated when the speaker
isconnected via Bluetooth®or USB input.
ADJUST THE BASS
• To adjust the bass level, long press the dial
for2sec.and enter bass mode, you will
hear anotication sound. Rotate clockwise
(counterclockwise) to increase (decrease)
thebassvolume.
• Long press 2 sec. to exit bass mode, you will hear
anexit notication sound.
• If you did not exit bass mode after adjusting the bass,
the system will automatically change back to volume
mode after 15 seconds without using.
• You will hear a notication sound when you reach
Max and Min bass level.
Enter bass
Exit bass
Max bass volume
Min bass volume
Max volume
CONTROL YOUR AUDIO CONTENT
X 1
X 2
X 3
8English

8 sec.
RESET ALL SETTINGS
Long press the Bluetooth®button and the wired
input button at the same time for 8 sec. toreset
the system.
The LED will start to fast blink twice and then
youwill hear a reset tone. The LED will turn
tosolidblue after you successfully reset the speaker
system. Reset tone
9English

© 2020 Logitech, Logi and the Logitech logo are trademarks or registered trademarks of Logitech Europe S.A. and/
or its aliates in the U.S. and other countries. The Bluetooth®word mark and logos are registered trademarks owned
byBluetooth SIG, Inc. and any use of such marks by Logitech is under license. All other trademarks are the property of
their respective owners.
WEB-621-001788.002
CONTROL DIAL EXPERIENCE
Usage Description LED Status LED Color Sonication Actions
1
Connection
(Dial - Speaker)
Default connected to the speaker Solid Blue
2Waiting for connection to
thespeaker Slow blink Blue
3Dial link lost Slow blink
White (USB)/
Blue (BT) /
Purple(AUX)
4New dial connects to the speaker Solid Blue V
5
Connection
(Speaker - Device)
Connected / Normal Operation Solid
White (USB)/
Blue (BT) /
Purple(AUX)
6Bluetooth pairing to device Fast
blinking Blue VLong press Bluetooth button for 2 sec.
7Bluetooth connected Solid Blue V
8Bluetooth disconnected Solid Blue V
9
Media controls
Play / Pause
Solid
White (USB) /
Blue (BT) One press
10 Mute / Unmute Purple (AUX) One press
11 Track forward White (USB) /
Blue (BT) Double press
12 Rewind (Track backward) White (USB) /
Blue (BT) Triple press
13
Volume controls
Adjust the system volume
Solid
White (USB) /
Blue (BT) /
Purple (AUX)
Rotate the dial
14 Adjust the bass volume Long press 2 sec. to enter and
exit bass mode
15 Max volume V
16 Max bass V
17
System
Low Battery Solid Red
18 Extreme low battery Fast blink Red
19 Reset all settings Fast blink →
Solid
Status color →
Blue VPress & hold BT and wired input button for 8 sec.
www.logitech.com/support/Z407
10 English
