ARNETOLI MOTOR F 202 M User manual

F 202 BV M is a very powerful cutting head also in lengthe-
ning the trimmer line.
To release the trimmer line is very simple (see figure 1): just
turn the bottom part of the head to the left to increase the
trimmer line.
Turn the bottom part of the head to the right to shorten the
line.
Components/parts
Fig. 1
101014
PULL
UNWIND REWIND
The assembling of F 202 M cutting head is a very simple operation.
We are talking about a singular cutting head, the only one having an
UNIVERSAL FITTING ITHOUT SHAFT BOLT.
It’s easely mounted as a disk blade.
How to release the l ne
How to mount the F 202 M
F 202 M COMPONENTS
To obtain replacement parts, contact your local dealer who supplied you this brush cutter head.
REF. PCS. CODE DESCRIPTION
1 1 C-101044 Upper body ensemble (incl. 2)
2 1 C - 106020 Locking gear
31C-101052 Central body
4 2 C - 106003 Eyelets
51C-101030 Spool
61I - 202005 Spool ensemble (trimmer line ø 2,4)
7 1C-101043 Lower body
81C-107001 Spring PFM
91I - 201005 Knob ensemble F 202
*1 101014 Series of reduction rings
F 202 M
Instruction Manual
I.M. F 202 M_2013
ARNETOLI MOTOR S.R.L. - Via Ponte all’olivo - 50066 Reggello (FI) ITALY Tel. [phone] - Fax. [phone] - e-mail: ex [email protected] - www.arnetolimotor.it
2
3
7
4
56
1
8
9

- How to change the tr mmer l ne
- If the l ne doesn’t come out
YES NO
Changing the trimmer line is a simple operation. Be sure you use a quality trimmer line, otherwise your line will break
often and create unnecessary hassles. We recommend you use our MAXI-LINE - a high resistant line which not only
increases the effectiveness of the brush cutter head but also eliminates any chance of the line getting stuck together.
This can be caused by any of the following reasons.
• Has the line been wound up correctly, without crossing over (fig. 6)?
• nce the outer reel was replaced, did you pull and remove the lines from the retainer slits (fig. 9)?
• Is the trimmer line used of poor quality?
• Is it blocked because the knob is dirty?
Remember that proper maintenance and an occasional cleaning of this tool will not only prolong its' life but also prevent product
failure.

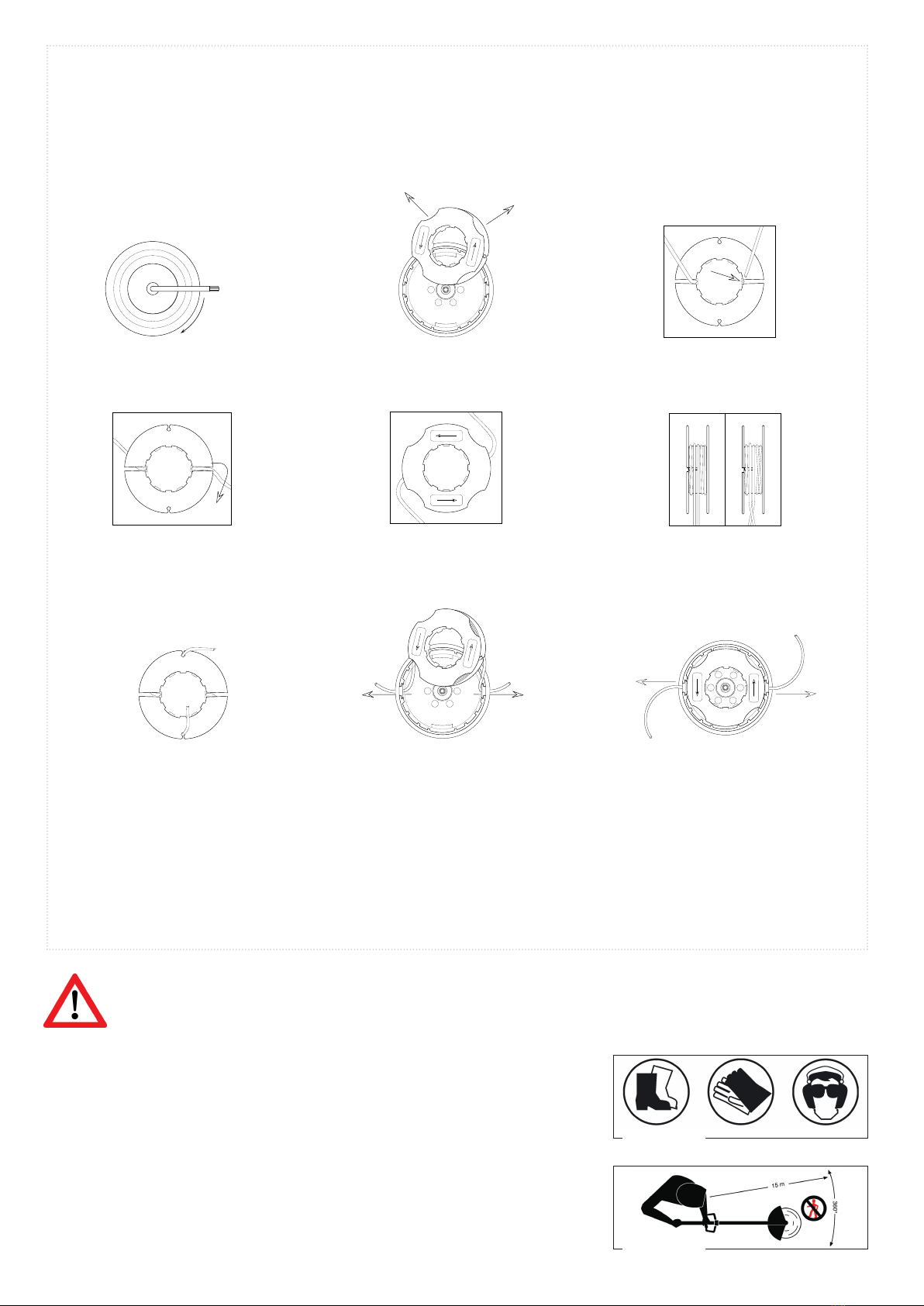

1. Unscrew the bottom part of the
head using the apposite wrench
2. Take off the outer reel 3. Insert the lines in the inner
retainer holes
4. Reel the same lines in the middle of
the spool and wind
5. verturn the spool and wind up in the direction
as indicated by the arrows on the side
6. The lines must be wound up parallel with each
other and must not cross over each other
7. When finished rolling up the line, place the
line in the retainer slits to keep it from unra-
velling (its recommended to leave at least
4 inches of line to ease step number 8)
8. Re-insert the outer reel on the
housing
9. nce the line is in place, pull the lines
outwards to release them from the slits
FOLLOW SAFETY PRECAUTIONS OPERATORS MANUAL. SOME MACHINES MAY NOT BE
SUITABLE FOR USE WITH TRIMMER HEAD.
- Never forget that even though the F 202 M is an easy trimmer heads to use it may con-
stitute a danger if used improperly.
- For your personal safety always wear goggles or a face shield, adherent clothing, glo-
ves and shafety shoes as well as using a stone guard. (Fig. 10)
- Whilst working make sure no one is within 15 m by 360° radius. (Fig. 11)
- NEVER USE METALLIC LINE, NLY NYL N LINE.
- Always use good quality line. Don’t forget that poor quality line tends to weld together
causing interruption and inconvenience and prevents the head from performing as it
should.
Fig. 10
Fig. 11
