ARROE LAER User manual
FREE YOURSELF FROM THE WALL SOCKET
LAER - User Guide
20,000 mAh Portable Battery & Charging Hub
ARROE LAER
ARLA-60
1. LAER
INTRODUCTION
LAER is a portable battery and charging hub made for travel and working on the
go. LAER replaces all chargers/adapters/power banks with one compact device for
charging all the personal devices including: laptops, tablets, mobile phones and
more.
It is the only charging solution controlled by mobile app and the only portable
battery capable of safely charging any laptop make and model using our
proprietary technology and customisable voltage.
The ARROE app controls LAER and acts as a virtual battery management assistant,
monitoring and proactively managing the battery levels in all your personal
devices.
3
CAPACITY/PORTS
●20,000 mAh (74Wh) lithium ion battery;
●1x USB-C Power Delivery (PD) 3.0 in/out port
●1x USB-C PD 3.0 out port
●USB-A Quick Charge (QC) 3.0 port
●DC port (with customisable voltage)
●Wireless charging
FEATURES
Safely charge any laptop.
The ARROE mobile app and the firmware on the LAER device can customise the
voltage and current output of the battery to match the device it is charging. This is
particularly important when charging laptops which all charge at different
voltages. Other power banks output set voltages (i.e. 12/16/19V) which do not
match the voltage inputs on most laptops. This means that the charging of a
laptop/Microsoft Surface device at these set voltages results in permanent
damage of the laptop battery and also potential damage to the laptop’s circuitry.
The LAER device is the first portable battery that can safely charge any laptop
including Microsoft Surface.
4
Charge all of your devices including laptops on the go.
Use LAER as a portable battery to charge all of your personal devices on the go,
including laptops, tablets, mobile phones, wireless charging devices and more.
LAER can charge any personal devices that charge via: USB-A, USB-C, DC output or
wireless charging.
Charge all your devices from one socket.
Use LAER as a charging hub when travelling to charge all of your devices from one
socket. International adapter plugs are provided for the USB-C PD 3.0 charger so
you can charge anywhere in the world and streamline your travel.
Bring as much power as you need with our battery cartridge system.
An interchangeable battery cartridge system lets you carry as much power as
you need even on flights. Choose between a 20,000mAh (74Wh) or 10,000mAh
(37Wh) cartridge depending on how much power you need and the weight you
would like to carry. Bring multiple cartridges with you on long flights, both sizes are
airline approved.
5
Superfast charging
Charge LAER fully in 1h20 minutes using our 60W USB-C PD 3.0 charger and USB-C
PD 3.0 cable.
Charging notifications
Receive charging notifications on your phone in the ARROE mobile app. Get
notified when your LAER device is fully charged or needs charging.
Specifically designed for luggage and bags
LAER is designed for luggage and bags. It’s form factor was designed to sit in a
tablet pocket next to the laptop in your bag, allowing you to charge your laptop
from within your luggage. Monitor and manage LAER hands free from outside the
bag using the ARROE mobile app.
ARROE SOFTWARE/FIRMWARE
Our database
Our database in the cloud stores battery and voltage information necessary to
safely charge any device (initially focused on laptops). Laptop profiles containing
voltage and current information by laptop manufacturer and model are stored in
the cloud, downloaded automatically from the virtual server and stored locally on
the ARROE app.
Power management algorithm
The power management algorithm which has been devised by ARROE permits the
continuous assessment of available power so that the LAER device can route the
correct amount of power to the correct port at the correct time and at the correct
voltage. This enables LAER to charge multiple devices at different voltages
simultaneously.
OCR technology
If a laptop profile is not present within the database, the user can also submit new
laptop profiles by using the ARROE app’s optical character recognition (OCR)
function. This software intelligently scans the DC properties (voltage, current and
power) from the AC/DC power adaptor of the user’s laptop.
6
Bluetooth 4.2.
Using the ARROE app, LAER can communicate with mobile applications on
personal electronic devices (PEDs) such as smartphones and tablets using
Bluetooth 4.2 technology. This feature also permits the user to perform Over The
Air-Device Firmware Upgrades (OTA-DFU), which are applied to the updatable
hardware, enabling improved performance over time.
Battery Management System / Protection Circuit Module
The LAER battery cartridge consists of a 14.8 V 74Wh battery pack. The cartridge’s
Battery Management System (BMS) communicates with LAERs printed circuit
board assembly (PCBA) via its battery connector pins.
7
The LAER PCBA communicates with the cartridge BMS to confirm the authenticity
of the cartridge, along with the batteries other properties such as state of charge,
battery capacity, temperature, voltage, current and impedance. The advanced
BMS allows LAER to calculate the number of charge/discharge cycles experienced
by each individual battery, battery health and the degree of aging over time. This
information is collected and stored on our database along with the user’s
charging profile and habits. This information gives ARROE a way to greatly improve
the user’s charging experience by keeping us informed of individual battery usage
and performance.

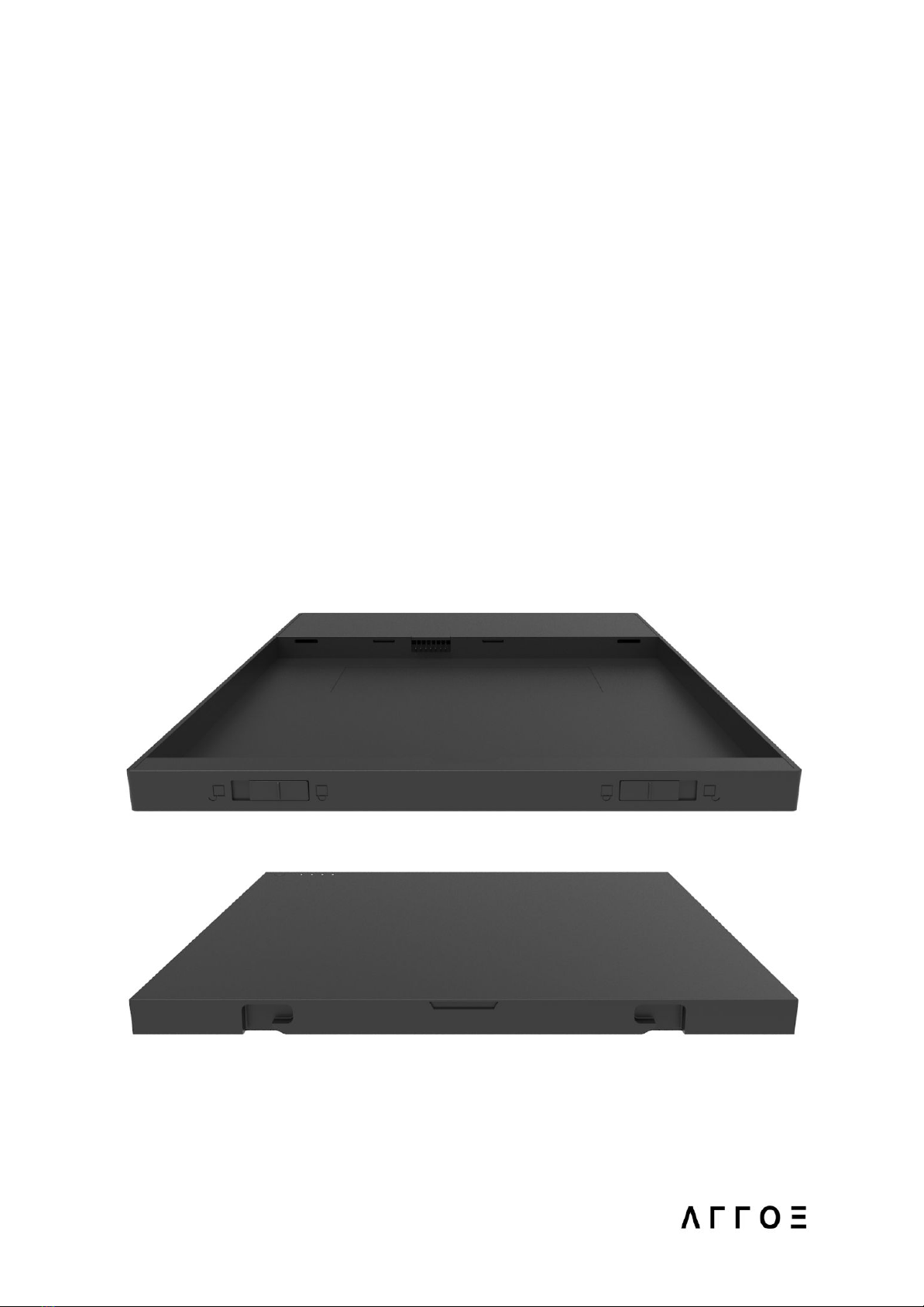

The top end of the cartridge displays a battery connector pin system while the
bottom end of the cartridge displays 2 keepers (open/close mechanism). This is
accompanied by a centre cartridge pull recess for easy removal. Every cartridge
also possesses a visual display system which can communicate the Battery State
of Charge (%) when the battery cartridge is ejected from LAER. This system utilises
4 white LEDs (1 LED on (0-25%), 2 LEDs on (26-50%), 3 LEDs on (51-75%), 4 LEDs on
(76-100%)). The LEDs are activated via a small mechanical button positioned on the
battery cartridge and can be activated when the cartridge is not inserted into
LAER.
SAFETY
The safety of the user is essential. The BMS possesses cell balancing during
charge/discharge, overvoltage protection, overcurrent protection, over discharge
protection, high temperature protection and low temperature protection, among
many others.
The cartridge also contains two stainless steel (SUS304) metal plates which are
secured to the internal casing wall of all battery cartridges. The plates cover the
battery pack inside to prevent perforation and other methods of damage,
therefore dimensions are approx. 180×158 mm (or have a slightly larger surface
8
area than the face of the battery pack). The cartridge also contains sponge mat
to allow for expansion and swelling (5-10%) of the cells during cycling.

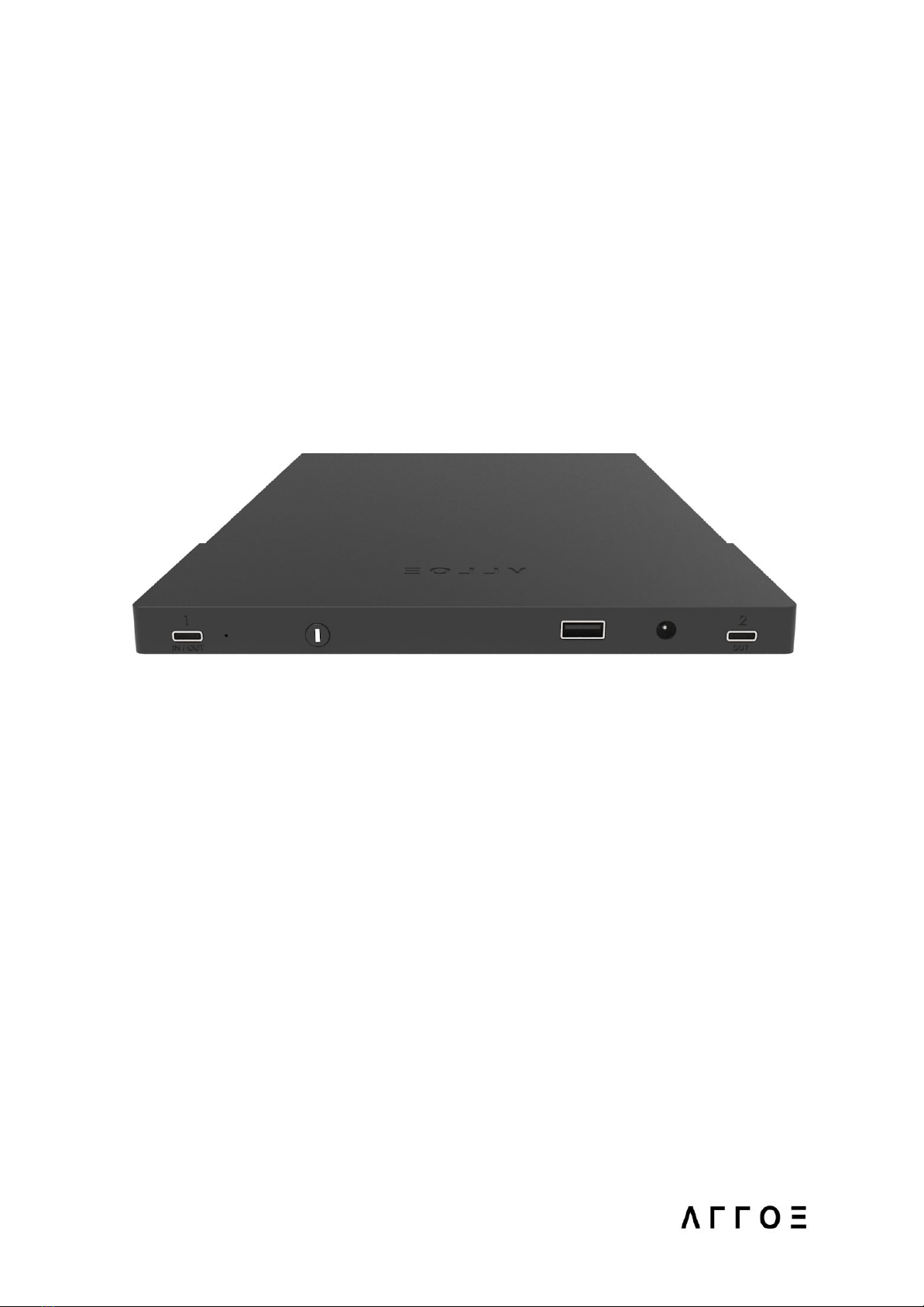

FRONT SIDE VIEW
TOP VIEW

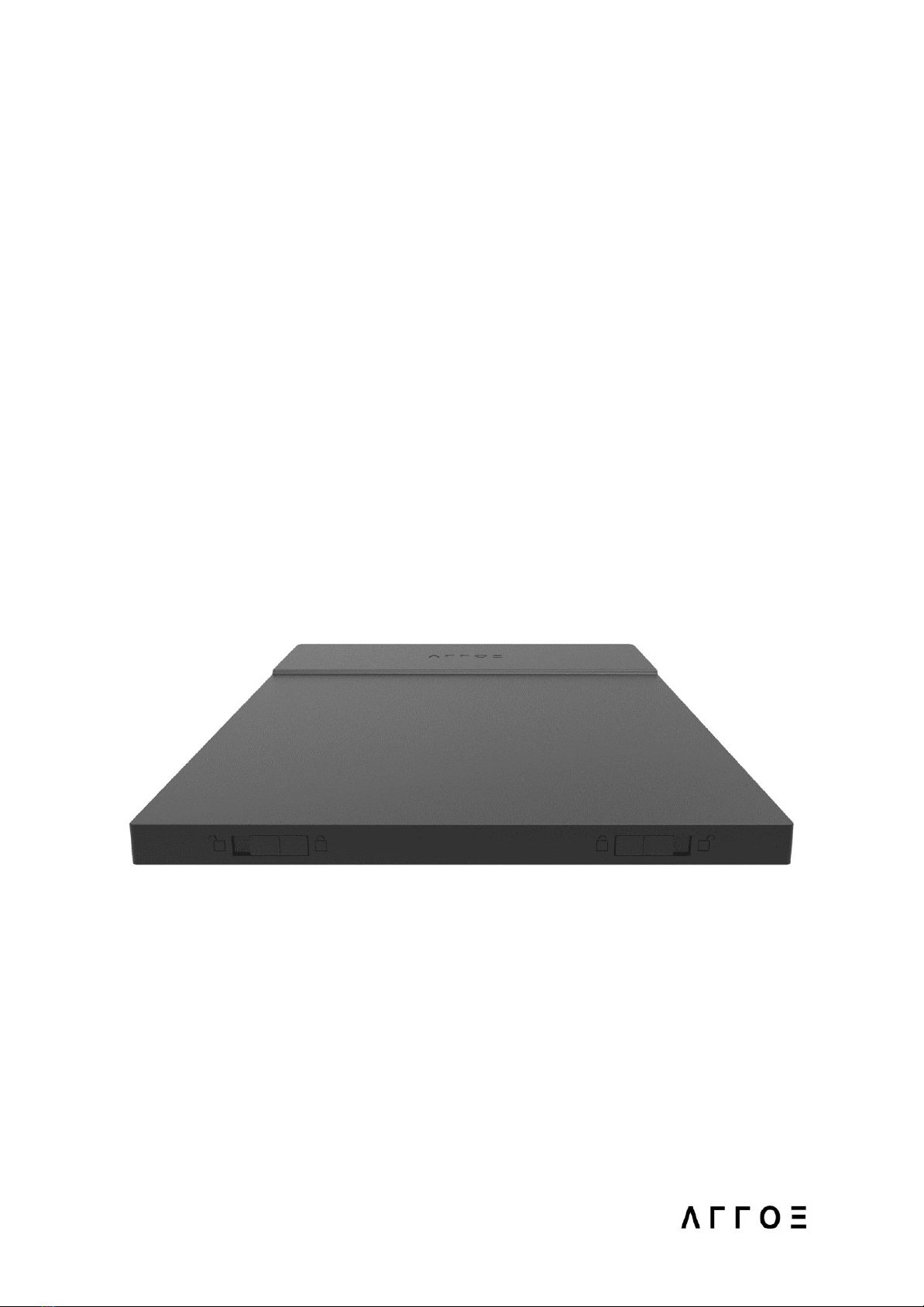

BACK SIDE VIEW
9
2. Quick Start Guide
1. nsert the LAER battery cartridge into the LAER device. Lock the battery
cartridge into position using the clips on the back side of LAER..
2. Push the power button ‘ ’ to turn on the LAER device. The power button
‘ ’ will illuminate pale blue light when LAER is on. The wireless charging
platform will be enabled immediately so you can start charging your
wireless charging device (e.g. smartphone, smartwatch, wireless
charging earbuds) straight away.
3. Connect your peripheral device (e.g. smartphone, tablet, laptop) to the
appropriate USB-C or USB-A ports. Upon connecting your device to this
port, the port will be enabled and the peripheral device will begin
charging straight away.
WARNING:
Ensure that the charging cables and connector tips supplied with your
LAER device are used during charging. Using unapproved accessories
may cause inefficient charging performance of the LAER device.
4. To charge a laptop via the DC port on the LAER device, please refer to the
section entitled ‘Charging your laptop using the LAER device’ on Page 8.
To turn off the LAER device:
Push the power button ‘ ’ for 3 seconds. The power button ‘ ’ will stop
illuminating white light and all peripheral devices connected will stop
charging.
To charge the LAER device:
1. Insert the battery cartridge into the LAER device. Lock the battery
cartridge in position by ensuring the battery locking clips are positioned
towards the centre of the LAER device.
2. Select the correct plug set for your current region (e.g. US, Europe, UK,
Asia) and clip this onto the ARROE AC/DC 60W adapter.
3. Connect one end of the USB-C cable to the ARROE 60W AC/DC adapter
and the other end to USB-C port 1 on the LAER device.
WARNING:
Ensure that the AC/DC adapter and the USB-C charging cable
supplied with your LAER device are used during charging. Using
unapproved accessories may cause inefficient charging
performance of the LAER device.
4. Insert the ARROE 60W AC/DC adapter into the wall socket.
5. It is not necessary to push the power button ‘ ’ to turn on the LAER
device. The LAER device battery will begin to charge automatically once
the charging ARROE adapter is connected. This is signified by the power
button ‘ ’, which will illuminate white light upon connection.
11
3. The ARROE App
1. Find the ARROE mobile application download leaflet which has come
inside the LAER box. Scan the display QR-code for instant access to the
Apple App Store and/or the Google Play Store, where you can download
and install the ARROE app. Alternatively, use your smartphone to search
for ARROE on the Apple App Store or Google Play Store and download
and install the ARROE app.
Once installed find the ARROE app saved to your smartphone’s app screen.
2. Register an account with ARROE.
3. Confirm your account via your email. This will be necessary for future
logins and to download laptop profiles which will be saved locally on
your smartphone for safe charging of your laptop.

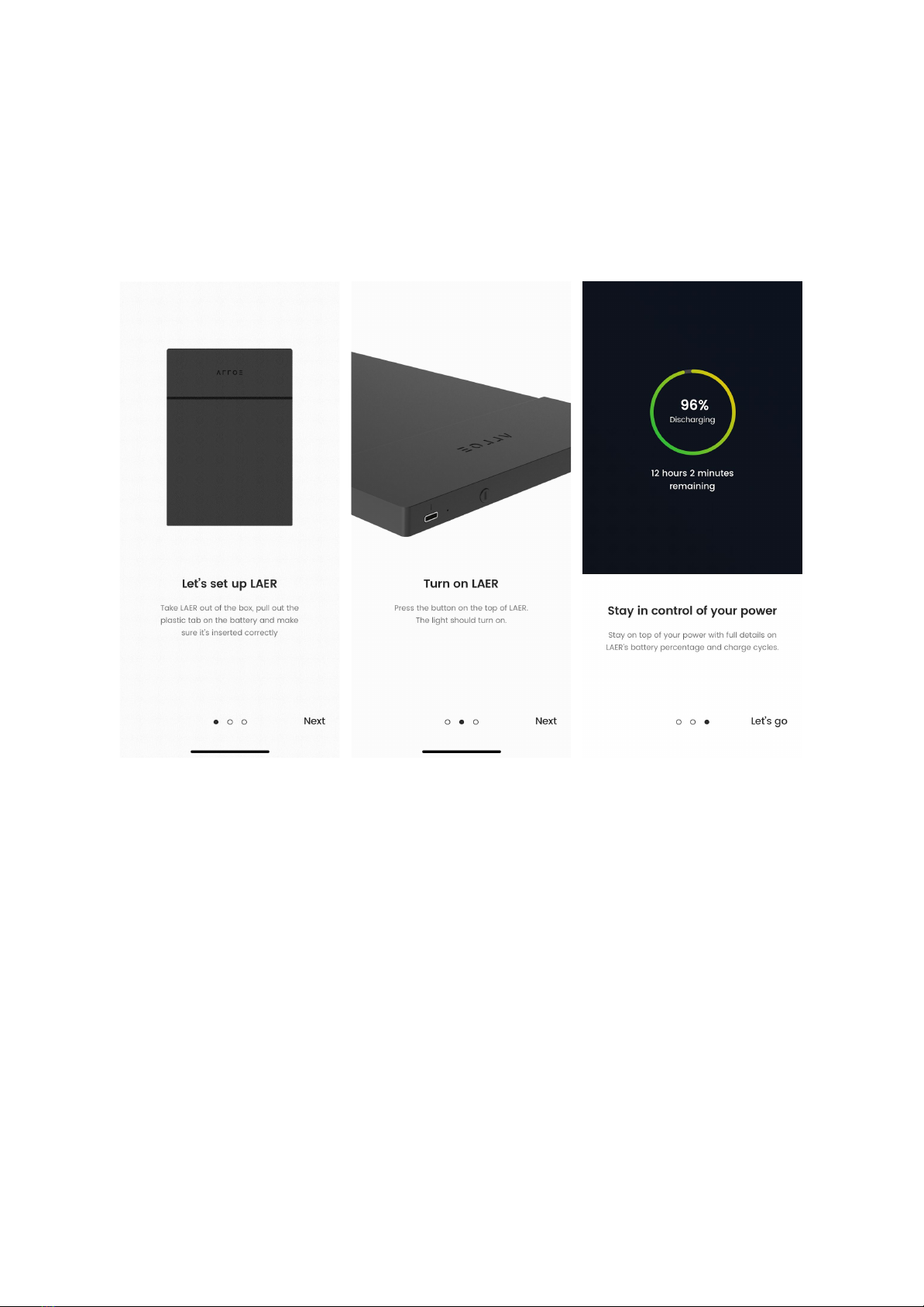

4. Follow the onscreen instructions to learn about your LAER device and
how it operates.
5. Make sure Bluetooth is enabled on your phone. Your phone will pair and
connect to LAER.
The ARROE app will then display LAER’s current status.
6. Charge LAER using a USB-C the USB-C Port 1 toggle button will disappear
and ‘Charging LAER’ will appear.
14
7. Swipe right on the screen or tap the menu key to display various options
within the ARROE app.
8. Customise charging to receive notifications when LAER falls to a user
defined State of Charge (%) and prevent discharging of LAER when
connected to peripheral devices.
The ARROE app user interface is very intuitive. Buttons can be toggled on and off to
enable and disable charging ports when devices are connected.
LAER battery State of Charge will change during charging/discharging.
The ARROE app will calculate how much time is left to either fully charge or fully
discharge the battery cartridge depending on the devices/adapter connected.
9. Swipe left on the ARROE app menu screen to display various properties
of the currently inserted battery cartridge. This presents the size of the
battery cartridge with regards to capacity. The number of battery
charge/discharge cycles are also shown.
10. Activate ‘Sleep mode’ at any time to stop the charging of all connected
peripheral devices. This can be resumed by tapping the same button
once again.
4. Charging your laptop
1. Select the correct laptop connector tip from those supplied in the LAER
box and connect this to the DC to DC cable also supplied.
2. Insert the laptop connector tip cable end into your specific laptop
device and insert the DC to DC cable into the LAER device, using the
5.5 × 2.5mm end.
3. The LAER device is now physically connected to your laptop via the DC
port. To begin charging of your laptop, perform the following steps:

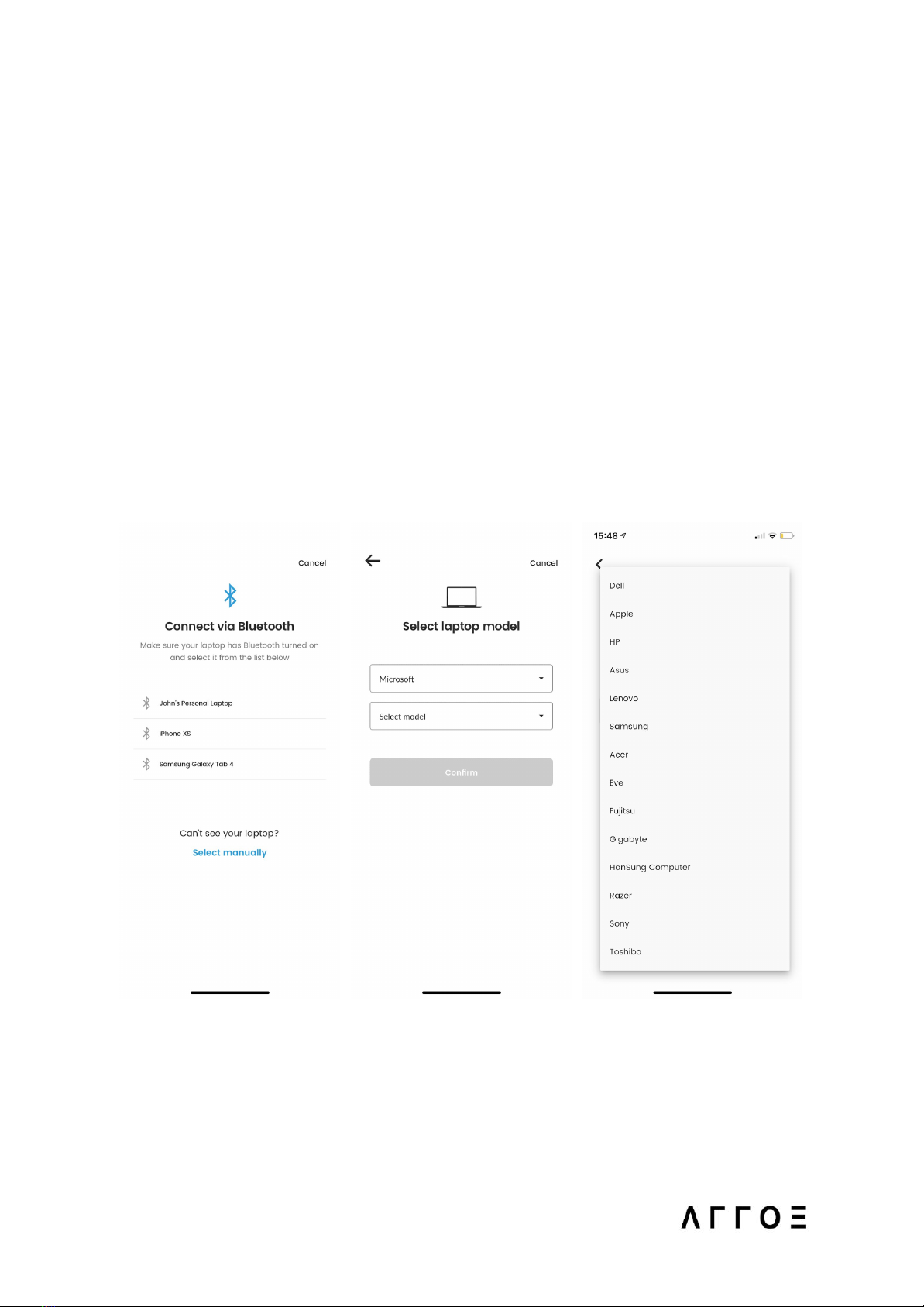

4. Open the ARROE app and tap the ‘Laptop Profiles’ option. You will then
enable Bluetooth on your laptop and connect to the laptop via the
ARROE app.
The ARROE app will automatically retrieve the specific model number of your
laptop. It will then cross check these details with the ARROE database located on a
virtual server. The ARROE app will then send the exact voltage (volts) and current
17
(amps) to LAERs DC port so you can power your laptop safely. It is this exact
voltage (volts) and current (amps) requirement that is essential to prevent
damage to your laptop battery when charging.
If you are unable to connect via Bluetooth:
If you are not able to see your laptop when trying to connect via Bluetooth, select
the ‘Select Manually’ button foud below ‘Can’t see your laptop’.
This option will help you connect your laptop and select the appropriate voltage
and current for charging your laptop by using the ARROE database.
1. Select the laptop manufacturer and laptop model from a dropdown.
18
2. The ARROE app will then request you to use its OCR function to determine
the required voltage and current for your specific laptop. To do this you
will be requested to allow camera permissions.
3. The ARROE app will then request you to scan your laptop charger (power
adapter located between the laptop DC input and the wall plug). The
ARROE app will tell you which characters are required to be in the shot.
This is the DC output voltage and output current coming from the
adapter to the laptop.
4. Once focused, the ARROE app will automatically scan the adapter and
you need to confirm the image quality.
19
5. The ARROE app will automatically cross check these details with the
ARROE database located on a virtual server. It will then request you to
confirm the details retrieved from the scan.
6. If the details are correct, then tap the ‘Confirm details’ button. If the
details are incorrect, tap the ‘These details are incorrect’ link.
7. This will allow you to either rescan the charger or remove the profile.
Scanning the charger again will usually retrieve the correct profile from
the database.
8. In the event that the specific laptop profile is not present on the
database, the details of your laptop will automatically be sent to ARROE
support for approval. While the profile is pending approval it will show as
pending in the app. As soon as ARROE support has approved the profile it
will be automatically added to your user profile and the database for
future users. You will receive a message in the app to notify you of this. If
there is an issue with the profile then you will receive a message in the
app from ARROE support detailing next steps.
9. At any point during this process you can select the option to connect to
ARROE support from the ARROE app. ARROE Support will help you add
your laptop profile.
20
This manual suits for next models
1
Table of contents
Popular Switch manuals by other brands
axing
axing premium-line Series Operation instructions
ADC
ADC ADX Active Digital Cross-Connect ADX200 Specification sheet
Linear Technology
Linear Technology DC326B Demo Manual
Flotec
Flotec FP0018-7D owner's manual
NETGEAR
NETGEAR GS105v5 installation guide
Alcatel-Lucent
Alcatel-Lucent OmniSwitch 6855 Series Getting started guide
