Arrow Storage Products BD88GB Use and care manual

Model No. BD88 MO88 BD88GB
NW88P-A WM88
709980715
Owner's Manual & Assembly Instructions
BY01
Exterior Dimensions Interior Dimensions Door
*Approx. Base (Roof Edge to Roof Edge) (Wall to Wall) Opening
Size Size Width Depth Height Width Depth Height Width Height
8' x 8' 97 1/2" x 92 3/4" 99 3/4" 95 1/4" 67 7/8" 94 3/4" 90" 66 5/8" 43 1/2" 58"
2,4m x 2,3m 247,7 cm x 235,6 cm 253,4 cm 241,9 cm 172,4 cm 240,7 cm 228,6 cm 169,2 cm 110,5 cm 147,3 cm
Storage Area: 59 Sq. Ft. 314 Cu. Ft.
5,5 m28,9 m3
BUILDING DIMENSIONS * Size rounded off to the nearest foot
CAUTION: SOME PARTS HAVE SHARP EDGES. CARE
MUST BE TAKEN WHEN HANDLING THE VARIOUS PIECES
TO AVOID A MISHAP. FOR SAFETY SAKE, PLEASE READ
SAFETY INFORMATION PROVIDED IN THIS MANUAL
BEFORE BEGINNING CONSTRUCTION. WEAR GLOVES
WHEN HANDLING METAL PARTS.
Missing Parts, Questions on Assembly?
Call: 1-800-851-1085 or
[email protected]
Do not return to dealer, they are not
equipped to handle your requests.

Owner's Manual
Before beginning construction, check local building codes regarding footings, location
and other requirements. Study and understand this owner's manual.
Important information and helpful tips will make your construction easier and more
enjoyable.
Assembly Instructions: Instructions are supplied in this manual and contain all
appropriate information for your building model. Review all instructions before you begin,
and during assembly, follow the step sequence carefully for successful results.
Flooring and Anchoring: Your storage building must be anchored to prevent wind
damage. A base is necessary to construct a square and level building. Anchoring and
base materials are not included with your building. We recommend the combined use
of an Arrow Floor Frame Kit and an Arrow Anchoring Kit as an effective method of
securing your building to the ground (Available at your local dealer, Arrow's website
arrowsheds.com or call Arrow's Customer Service department 1-800-851-1085) or you
may construct a base and anchoring system of your choice. Your assembly instructions
provide information on a few methods commonly used to secure and level a storage
building.

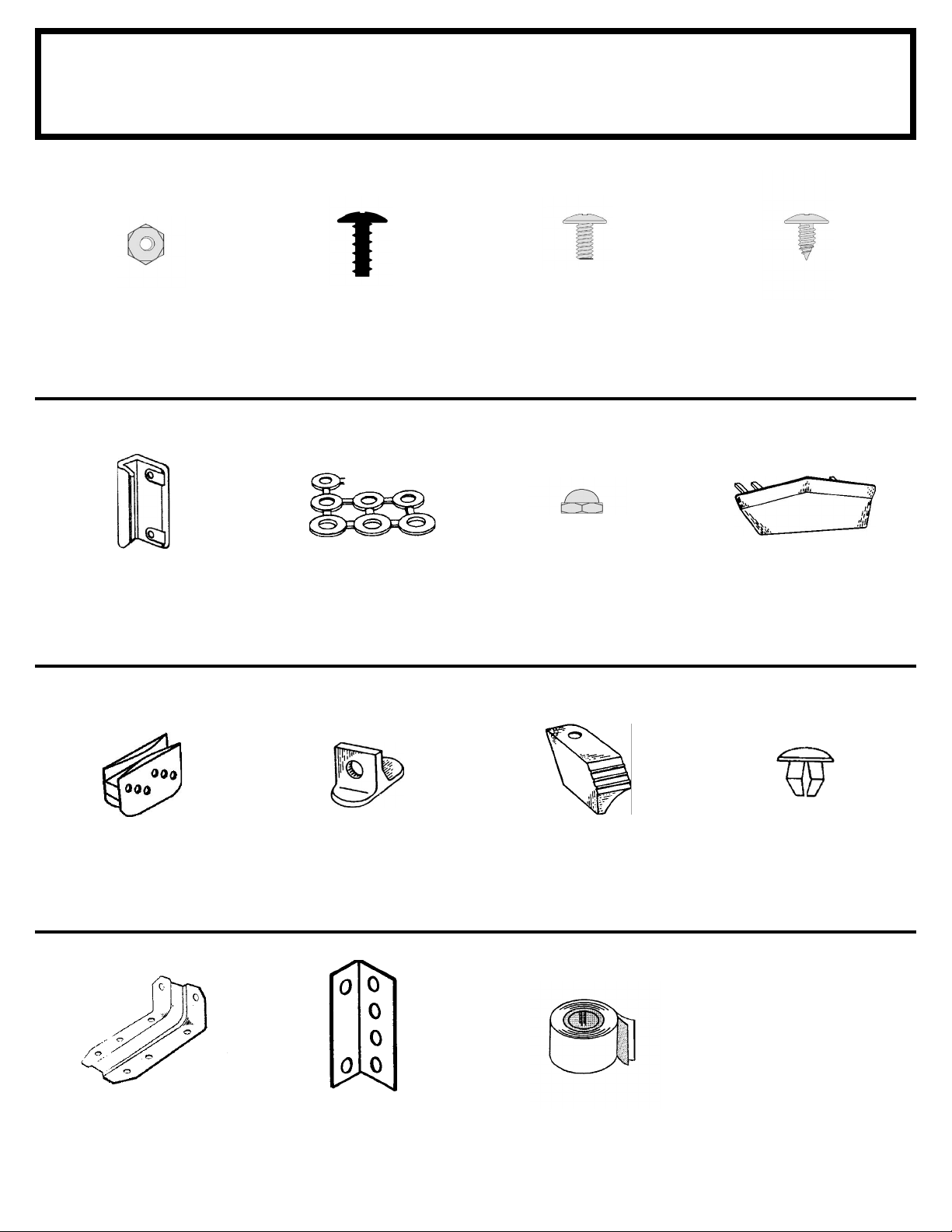

Parts and Parts List: Check to be sure that you have all the necessary parts for
your building.
•All part numbers can be found on the parts. All of these numbers (before the -) must agree with the
numbers on the Parts List page.
•If you fi nd that a part is missing, include the model number of your building and contact:
Arrow Shed, LLC Customer Service Department
1101 North 4th Street Breese, Illinois 62230
•Separate contents of the carton by the part number while reviewing parts list. The fi rst few steps
show how to join related parts to make larger sub assemblies which will be used later.
•Familiarize yourself with the hardware and fasteners for easier use during construction. These are
packaged within the carton. Note that extra fasteners have been supplied for your convenience.
BEFORE YOU BEGIN....
A03
1-800-851-1085 or [email protected]

Selecting and Preparing Your Site: Before assembly, you will want to decide on a
location for your building. The best location is a level area with good drainage.
•Allowenoughworkingspaceforeaseofmovingpartsintopositionduringassembly. Besurethere
will be enough space at entrance for doors to open fully and enough space around the building to
be able to fasten the panel screws from the outside.
•Before you begin the fi rst steps in assembling your parts, a base should be constructed and
an anchoring system should be ready to use.
Watch the Weather: Be sure the day you select to install your building is dry and calm.
Do not attempt to assemble your building on a windy day. Be careful on wet or muddy ground.
Teamwork: Whenever possible, two or more people should work together to assemble
your building. One person can position parts or panels while the other is able to handle the
fasteners and the tools.
Tools and Materials: These are some basic tools and materials you will need for the
construction of your building. Decide which method of anchoring and the type of base you
wish to use in order to form a complete list of the materials you will need.
Base Preparation
• Hammer and Nails
• Spade or Shovel
• Hand Saw / Power Saw
• Lumber and/or Concrete
Optional Time-Savers
• Wrench / Nut Driver
• Electric / Cordless Drill
• Square
• String (for squaring frame)
Required
• Work Gloves
• Step Ladder
• Utility Knife / Scissors
• Pliers
• Carpenter's Level
• Tape Measure
Required
• Eye Goggles
• No. 2 Phillips Screwdriver
(With Hardened Magnetic Tip)
Note: A power screwdriver or vari-
able speed drill with Phillips-tip
attachment can speed assembly by
as much as 40%.
PLAN AHEAD....
A04

Safety precautions are important to follow throughout the construction of your building.
•Care must be taken when handling various
pieces of your building since some contain
sharp edges. Please wear work gloves, eye
protection and long sleeves when assembling
or performing any maintenance on your
building.
•Practice caution with the tools being used in
the assembly of this building. Be familiar with
the operation of all power tools.
•Never concentrate your total weight on the
roof of the building. When using a step ladder
make sure that it is fully open and on even
ground before climbing on it.
•Keep children and pets away from worksite
to avoid distractions and any accidents which
may occur.
•Do not attempt to assemble the building if
parts are missing because any building left
partially assembled may be seriously damaged
by light winds. Call 1-800-851-1085 or assist@
arrowsheds.com
•Do not attempt to assemble the building on a
windy day, because the large panels acting as a
"sail", can be whipped about by the wind making
construction diffi cult and unsafe.
SAFETY FIRST....
A05
safety edge
safety edge
sharp edge
sharp edge

Finish: For long lasting fi nish, periodically clean and wax the exterior surface. Touch-up
scratches as soon as you notice them on your unit. Immediately clean the area with a wire
brush; wash it and apply touch-up paint per manufacturer's recommendation.
Roof: Keep roof clear of leaves and snow with long handled, soft-bristled broom. Heavy
amounts of snow on roof can damage building making it unsafe to enter. In snow country,
Roof Strengthening Kits are available for most Arrow Buildings for added protection against
heavy snow accumulation. Contact Arrow as outlined on the Ordering Accessories page
to place an order.
Doors: Always keep the door tracks clear of dirt and other debris that prevent them from
sliding easily. Lubricate door track annually with furniture polish or silicone spray. Keep
doors closed and locked to prevent wind damage.
Fasteners: Use all washers supplied to protect against weather infi ltration and to protect
the metal from being scratched by screws. Regularly check your building for loose screws,
bolts, nuts, etc. and retighten them as necessary.
Moisture: A plastic sheet (vapor barrier) placed under the entire fl oor area with good
ventilation will reduce condensation.
Other Tips....
• Wash off inked part numbers on coated panels with soap and water.
• Silicone caulking may be used for watertight seals throughout the building.
Keep this Owner's Manual and Assembly Instructions for future reference.
CARE & MAINTENANCE....
A06
Do not store swimming pool chemicals in your building. Combustibles and
corrosives must be stored in air tight approved containers.

ACCESSORIES....
A07
* Some drilling required to fi t buildings without mid-wall bracing.
Model No. SS404
• Makes 8" to 12" (20,3-30,5 cm)
wide shelves in any length.
• Brackets, braces,
hardware included.
Lumber is not included.
Model No. SS900-B
• Grey color
• 3 shelves
• Holds up to 85 lbs. (38 kg)
(even weight distribution)
Heavy-duty, galvanized steel shelf units help organize storage
space. They easily mount on the wall or sit on the fl oor. Fits all
Arrow buildings.*
SHELF UNITS
ATTIC KIT / WORKBENCH KIT
Model No. AT101
Heavy-duty galvanized steel bars that
fi t all 10' (3,0 m) wide Arrow buildings.
They install quickly and easily to
help organize space and create
more useable space as an attic or
workbench. Will hold up to 250 lbs.
(113 kg) evenly distributed.
Some drilling required to fi t buildings without mid-wall bracing.
Model No. AK100
New concrete anchor system permits
anchoring any size Arrow building
directly to a concrete slab. Each kit
contains heavy-duty, hot-dipped
galvanized steel corner gussets and
perimeter clips which fi t over the fl oor
frame and lag bolt into a concrete slab.
Full assembly instructions and a 1/4"
masonary drill bit are included.
TOOL HANGING RACK
Model No. TH100
The perfect tool organizer. Twin
25 1/2" (64,8 cm) steel channels
plus fi ve heavy-duty snap-in
hangers and a small tool holder for
screwdrivers, pliers, etc. Holders
slide along channel for fully
adjustable spacing. Great for
garage, basement, or the back
of any door. Fits all Arrow
storage buildings.
ROOF STRENGTHENING
(heavy snow load) KITS
Extra roof beams and gable braces
designed for added protection against
heavy snow accumulation. Increases
the strength of your roof.

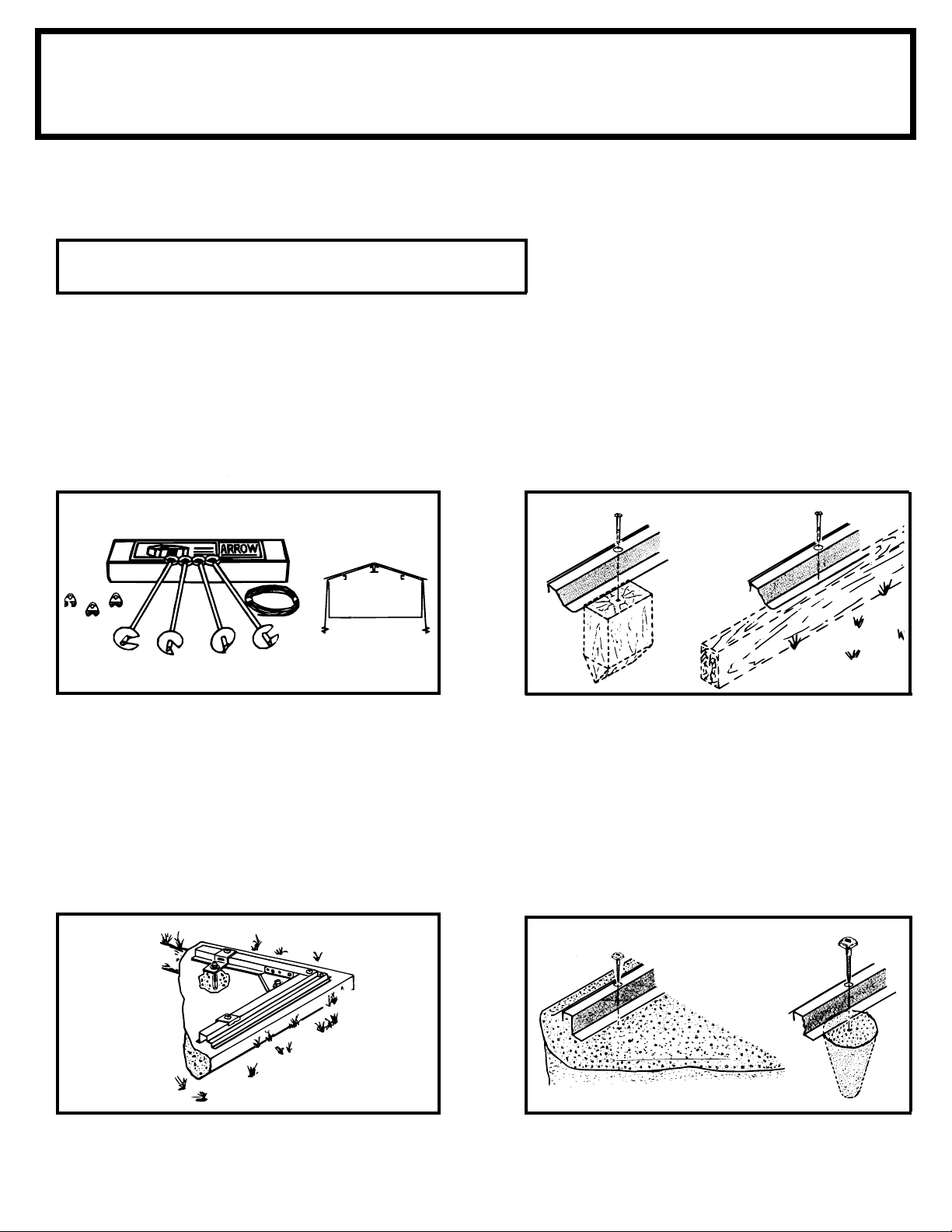

ANCHOR KITS
Model No. AK4
Anchor Kit contains heavy-duty steel
augers, 60' (18 m) of steel cable and
4 cable clamps. No digging or concrete
pouring, just insert cable under roof,
over roof beams, into augers and twist
augers into the ground. For buildings
larger than 10'x9' (3,0 m x 2,6 m), use 2 kits.
FLOOR FRAME KITS
MODELS FB47410, FB5465, FB106-A
FB109-A and FB1014-A
A simple new fl oor frame system made of heavy-duty, hot-dipped
galvanized steel. Use as base for plywood, sand or stone.
Model No. AK600
Earth Anchor Kit anchors any size
Arrow building to the ground.
Each kit contains heavy duty,
hot-dipped galvanized steel
corner gussets and 4 earth anchors.
BEFORE AFTER

We recommend that you purchase accessory items from your local storage building dealer whenever possible;
however, because the full line of accessories is not always available from all dealers, Arrow is offering them
to you on a direct basis.
There are two ways to order Arrow Storage Building Accessories:
SPECIAL NOTE:
If your accessory is shipped via truck line a day time phone number is required to arrange delivery. If no
one is available to sign for the delivery, you may be subject to a re-delivery charge assessed by the carrier.
ORDERING ACCESSORIES....
A08 02/13
Option 1
Accessories can be purchased
through
arrowsheds.com
Option 2
Order accessories by telephone
using your MasterCard or Visa credit card.
Call toll free 1-800-851-1085
(Customer Service).
Allow 2 weeks for delivery.

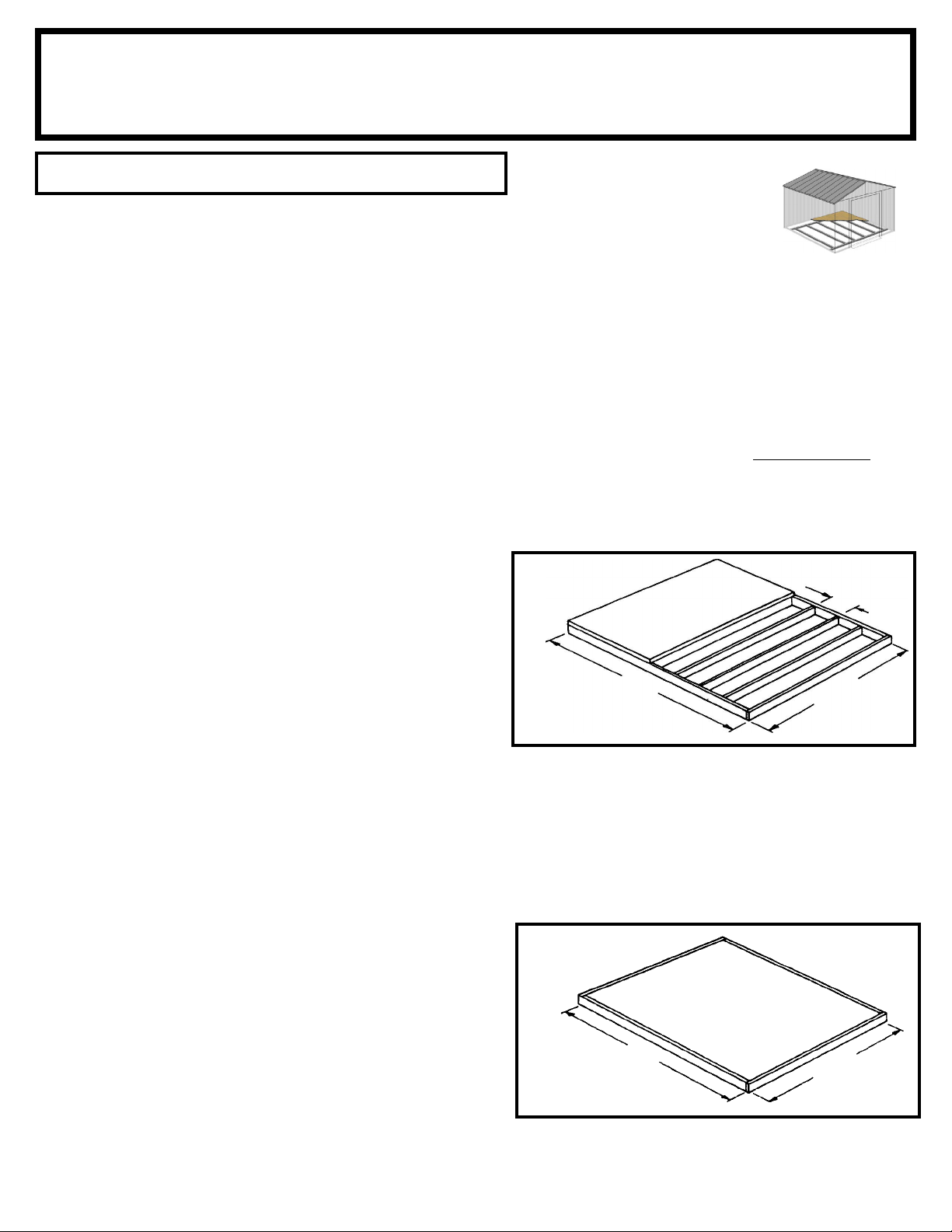

The Base For Your Building
FRONT
(DOOR)
FRONT
(DOOR)
Base
BY09
Note: Finished Slab dimensions, with lumber removed.
OPTION 1: ARROW FLOOR FRAME KIT: (Order No. FB109-A or 68385-A)
Arrow has the best base for your building in this simple kit. It keeps stored items above the ground.
This kit should be used with one of the following:
A. To support a plywood deck B. To be fi lled with sand. We recommend the combined use of
1. an ARROW FLOOR FRAME KIT and 2. an ARROW ANCHORING KIT as an effective method of securing the building to the
ground. Allow 1 - 2 hours for construction.
OPTION 2: Wood Platform
If you decide to build your own base, be sure to select the appropriate materials.
These are the recommended materials for your base:
2 x 4's (38 mm x 89 mm) Pressure Treated Lumber
5/8" (15,5 mm) 4 x 8 (1220 mm x 2440 mm) Plywood-exterior grade NOTE: Pressure Treated Lumber must not be used where
it will make contact with your storage building. The properties of Pressure Treated Lumber will cause accelerated corro-
sion.
If Pressure Treated Lumber comes in contact with your storage building your warranty will be voided.
10 & 4 penny Galvanized Nails Concrete Blocks (optional)
The platform should be level and fl at (free of bumps, ridges etc.)
to provide good support for the building. The necessary materials
may be obtained from your local lumber yard.
To construct the base follow instructions and diagram.
Construct frame (using 10 penny galvanized nails)
Measure 16"/24" (40,6 cm/61,0 cm) sections to construct
inside frame (see diagram)
Secure plywood to frame (using 4 penny galvanized nails)
Allow 6 - 7 hours for construction.
OPTION 3: Concrete Slab
The slab should be at least 4" (10,2 cm) thick. It must be level and fl at to provide good support for the frame.
The following are the recommended materials for your base.
1 x 4's (19 mm x 89 mm) (will be removed once the concrete cures)
Concrete Sheet of 6 mil plastic
 We recommend for a proper strength concrete to use a mix of:
1 part cement 3 parts pea sized gravel 2 1/2 parts clean sand
Prepare the Site/Construct a Base
1. Dig a square, 6" (15,2 cm) deep into the ground (remove grass).
2. Fill up to 4" (10,2 cm) in the square with gravel and tamp fi rm.
3. Cover gravel with a sheet of 6 mil plastic.
4. Construct a wood frame using four planks of 1x4 (19 mm x 89 mm)
lumber.
5. Pour in concrete to fi ll in the hole and the frame giving a
total of 4" (10,2 cm) thick concrete. Be sure surface is level.
Allow 3 - 5 hours for construction and a week for concrete curing time.
Note: Platform/Slab will extend 9/16" (1,4 cm) beyond fl oor
frame on all four sides. Seal this 9/16" (1,4 cm) of wood with
a roofi ng cement (not included), or bevel this 9/16" (1,4 cm) of
concrete when pouring, for good water drainage.
16"/24"
40,6 cm/61,0 cm
92 3/4"
235,6 cm
92 3/4"
235,6 cm
97 1/2"
247,7 cm
97 1/2"
247,7 cm
9

It is important that the entire fl oor frame be anchored after the building is erected.
Below are recommended ways of anchoring.
Anchoring Down The Building
Anchoring
A10
Arrow Anchoring Kit: (Model No. AK100 or 68383)
Recommended for use with the concrete base.
Contains: Corner gussets, perimeter clips, hardware,
1/4" masonary drill bit and installation instruction.
Anchoring into Concrete:
1. For poured concrete slab or footing or patio blocks:
Use 1/4" x 2" (6 mm x 51 mm) Lag Screws.
2. For Anchor Post of Concrete poured after building is
erected: Use 1/4" x 6" (6 mm x 152 mm) Lag Screws.
Arrow Anchoring Kit: (Model No. AK4 or 60298)
Recommended for use with any suggested base.
Contains: 4 Anchors with Cable, Clamps and
installation instruction.
Anchoring into Wood/Post:
Use 1/4" (6 mm) Wood Screws. There are 1/4" (6 mm)
dia. holes provided in the frames for proper anchoring.
OVER THE BEAMS
AND INTO THE GROUND
1. 2.
1. 2.
10

7916
Roof Beam Bracket (4)
66775
Plug (2)
(Packed with Screws)
Remove from bag of screws
and save for the last step
67293
Weather Stripping (1)
66382
Lower Door Guide (4)
66183
Roof Trim Cap
(2 right & 2 left)
66045
Handle (2)
66646
Washer (360)
(9 sheets of 40)
65109
#8-32 Acorn Nut (6)
(Packed with Screws)
67468
Peak Cap (2)
(Arrow Logo)
65004
#8Ax5/16" (8 mm)
Screw (311)
65923
#8-32x3/8" (10 mm)
Bolt (175)
65900A
#10Bx1/2" (13 mm)
Black Screw (8)
(Packed with Screws)
65103
#8-32 Hex Nut (175)
Hardware
BY11
6228
Track Support (2)
66769
Door Slide (4)
11

Part Part Quantity Check
Number Description in Carton List
6615 Rear Wall Angle 2
6617 Door Track Splice 1
10498 Horizontal Door Brace 4
6658 Gable Brace 2
7875 Roof Panel 2
7906 Right Gable 2
7907 Left Gable 2
8486 Ridge Cap 1
8466 Right Roof Panel 2
8467 Left Roof Panel 2
10470 Roof Beam 4
9991 Side Wall Angle 4
9990 Side Wall Channel 4
8485 Left Side Roof Trim 2
8941 Ramp 1
9989 Side Floor Frame 4
9364 Wall Panel 4
9355 Vertical Door Brace 2
Parts List
BY12
12

Part Part Quantity Check
Number Description in Carton List
Parts List
BY13
10488 Right and Left Doors 2
9363 Wall Panel 2
9900 Door Jamb 2
9924 Rear Wall Channel 2
9377 Rear Floor Frame 2
9378 Door Track 2
9379 Front Floor Frame 2
9380 Front Corner Panel 2
9384 Rear Corner Panel 2
8836 Right Side Roof Trim 2
8840 Ridge Cap 1
8995 Wall Panel 2
10471 Roof Beam 8
9978 Roof Panel 4
13

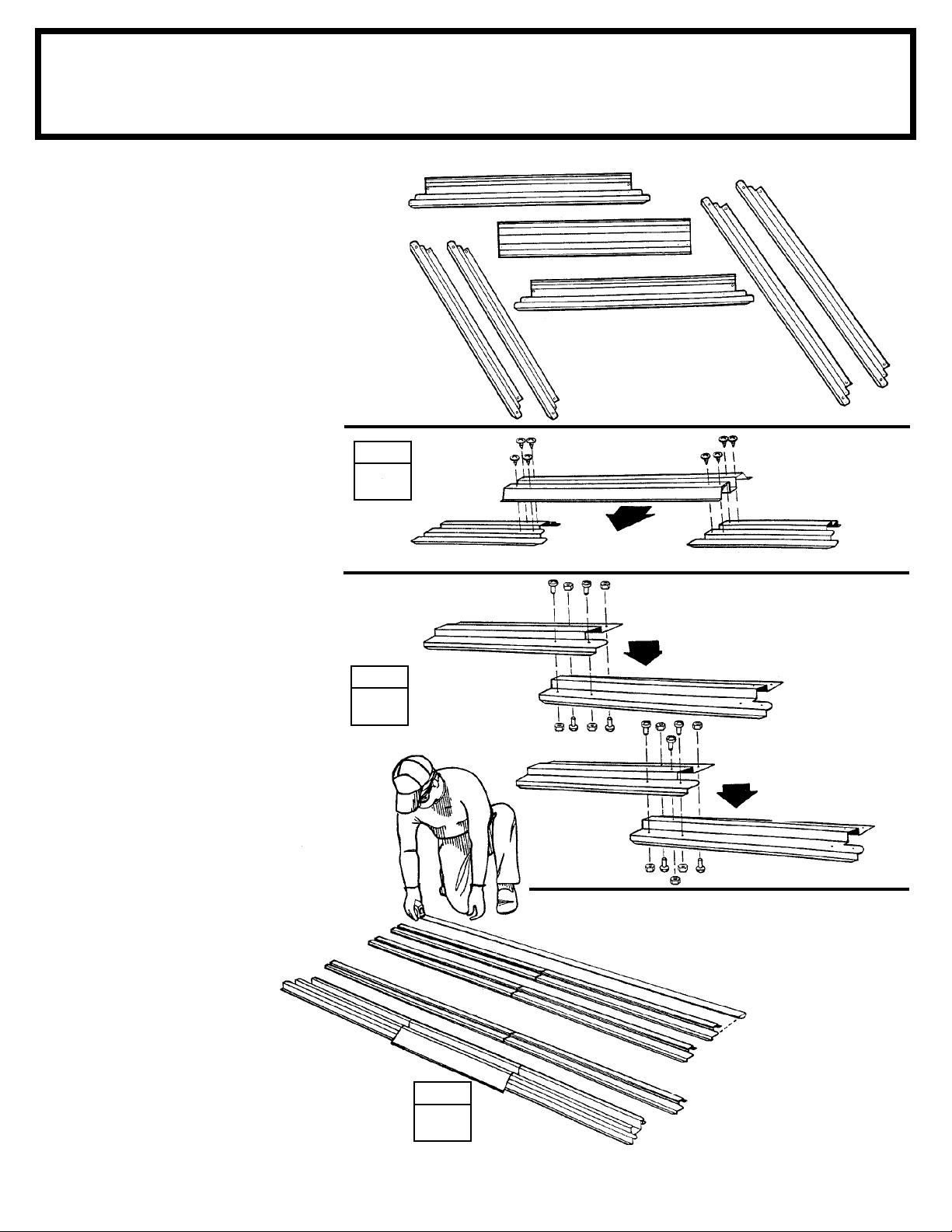

The front fl oor frame is made up of
3 pieces. The side fl oor frames and
the rear fl oor frame are made up of 2
pieces. The holes in these pieces will
align when the pieces are positioned
with correct amount of overlap. The
illustrations below show the proper
overall length for the sides, rear and
front. Proceed as follows:
1 Place the front fl oor frames as
shown. Center the ramp, with drain
holes facing outside, on top of the 2
front fl oor frames. Join the frames by
inserting 8 screws.
2 Overlap the side fl oor frames
and the rear fl oor frames as shown.
The holes in these pieces will align
when the pieces are positioned with
correct amount of overlap. See the
illustrations below for the proper
overall length of the side and rear
fl oor frames. Join the frames by in-
serting 4/5 bolts into each frame set
as shown.
3 Double check the length of each
and set these pieces aside for later
use.
Step 1
BY14
Parts Needed For 
Floor Frame Assemblies
8941 Ramp (1)
9379 Front Floor Frame (2)
9377 Rear Floor Frame (2)
9989 Side Floor Frame (4)
9379
STEP
1
8941
9379
DRAIN HOLES FACE
OUTSIDE
Front Floor
Frame Assembly
95 7/8" 243,5 cm
9377
9989
9379
8941
9379
9989
9989
Side Floor Frame 91 1/8" 231,5 cm
9377 9377
Rear Floor Frame 95 7/8"
243,5 cm
STEP
2
STEP
3
91 1/8" 231,5 cm
91 1/8" 231,5 cm
95 7/8" 243,5 cm
Front & Rear
95 7/8" 243,5 cm
14

Step 2
BY15
Parts Needed For 
Frame Assemblies

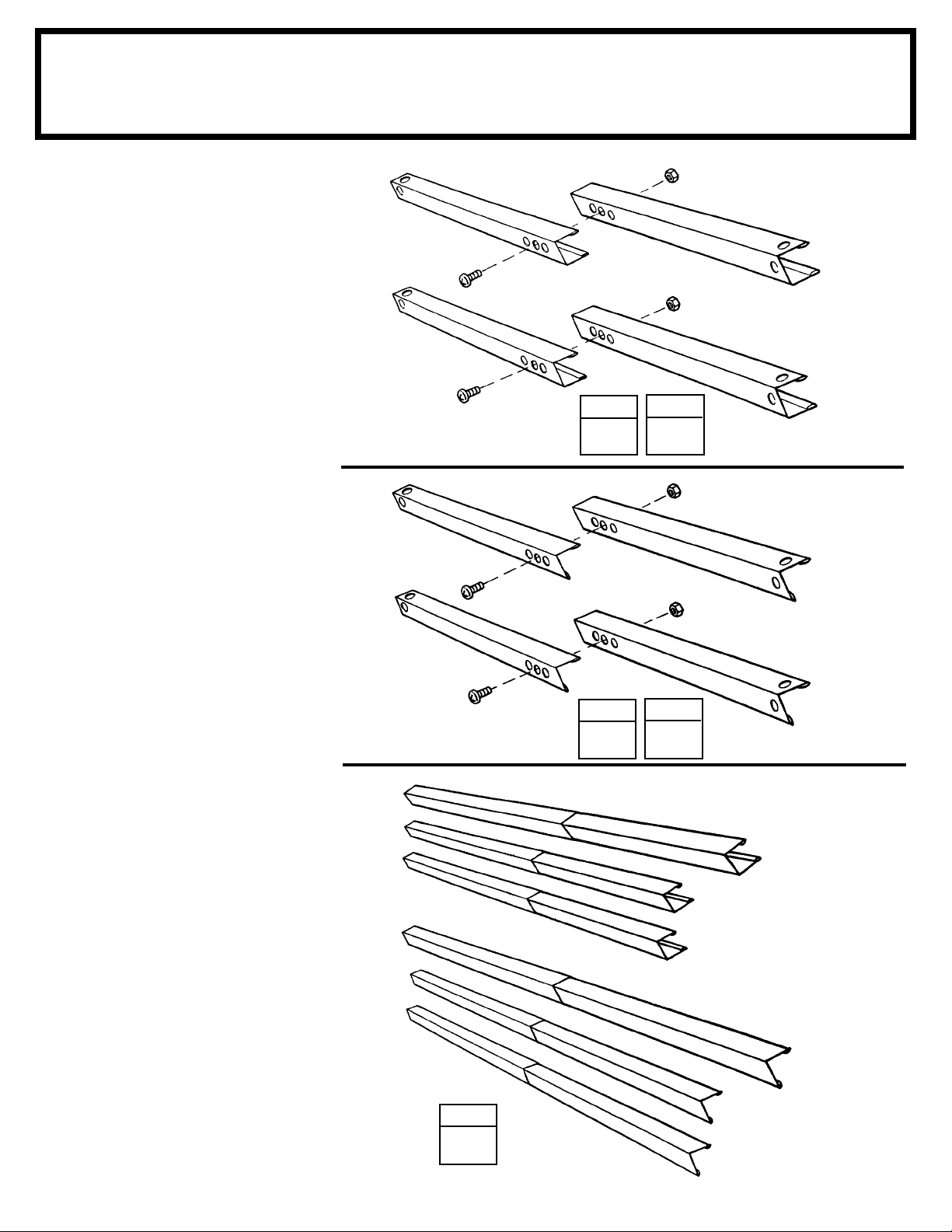

The main frame pieces reinforce
the walls. These pieces will later be
installed in the center and at the top
edge of the side walls and the rear
wall. Proceed as follows:
1 Overlap the rear wall channel
pieces as shown in the fi gure and
fasten the 2 pieces together with 1 bolt
in the center hole (3 holes will align).
2 Make 2 side wall channels by
overlapping the side wall channel
pieces as shown. Fasten each set
together with 1 bolt in the center hole
of each set.
3 Overlap the rear wall angle
pieces as shown in the fi gure and
fasten them together with 1 bolt in
the center hole.
4 Make 2 side wall angles by over-
lapping the side wall angle pieces as
shown. Fasten each set together with
1 bolt in the center hole.
5 Double check the length of each
and set these pieces aside for later
use.
6615 Rear Wall Angle (2)
9924 Rear Wall Channel (2)
9990 Side Wall Channel (4)
9991 Side Wall Angle (4)
STEP
1
Rear Wall Channel
94 5/8" 240,3 cm
STEP
2
9924
9990
Side Wall Channels
89 7/8" 228,3 cm
9990
Rear Wall Angle
94 5/8" 240,3 cm
6615
6615
9991
9991
Side Wall Angles
89 7/8" 228,3 cm
STEP
34
Rear Wall Channel
94 5/8" 240,3 cm
Side Wall Channels
89 7/8" 228,3 cm
Side Wall Angles
89 7/8" 228,3 cm
Rear Wall Angle
94 5/8" 240,3 cm
STEP
5
STEP
9924
15

The roof beams join the 2 gables
and support the roof panels. The
roof assembly is made up of 4 pieces
overlapped back to back at the center.
Hint: These pieces are force-fi tted,
so you may have to press hard to join
them together.
1 Place the end of one roof beam
inside a second roof beam so that the
6 holes [4 holes if 2" (5,1 cm) beam]
in each piece align. Make 2 sets of 4"
(10,2 cm) roof beams and 4 sets of
2" (5,1 cm) roof beams by repeating
this procedure.
Do not insert bolts yet.
2 Take 2 of the pressed-together 4"
(10,2 cm) roof beams and join them as
shown to form the main roof beam as-
sembly. Hold the assembly together
and fasten with 14 bolts and nuts.
Make 1 assembly.
3 Make 2 of the press-together 2"
(5,1 cm) roof beams and join them
as shown to form the roof beam as-
sembly. Hold the assembly together
and fasten with 12 bolts and nuts.
Make 2 assemblies.
4 Set these pieces
aside for later assembly.
Step 3
BY16
Parts Needed For 
Roof Beam Assemblies
10470 Roof Beam (4)
10471 Roof Beam (8)
STEP
1
Assembled
91 7/8" 233,4 cm
2" 5,1 cm
Roof Beam Assembly
at Outer Side of Roof
End
View
91 7/8"
233,4 cm
91 7/8"
233,4 cm
4" 10,2 cm
Roof Beam Assembly at Peak
STEP
2
STEP
3
2" 5,1 cm
10471
Make two sets 4" 10,2 cm
Make four sets 2" 5,1 cm
4" 10,2 cm
10470
2" 5,1 cm
10471
91 7/8" 233,4 cm
4" 10,2 cm
10470
16

NOTE:
Door Track Splice (painted part)
Step 4
B17
Parts Needed For 
Door Track Assembly
6617 Door Track Splice (1)
9378 Door Track (2)

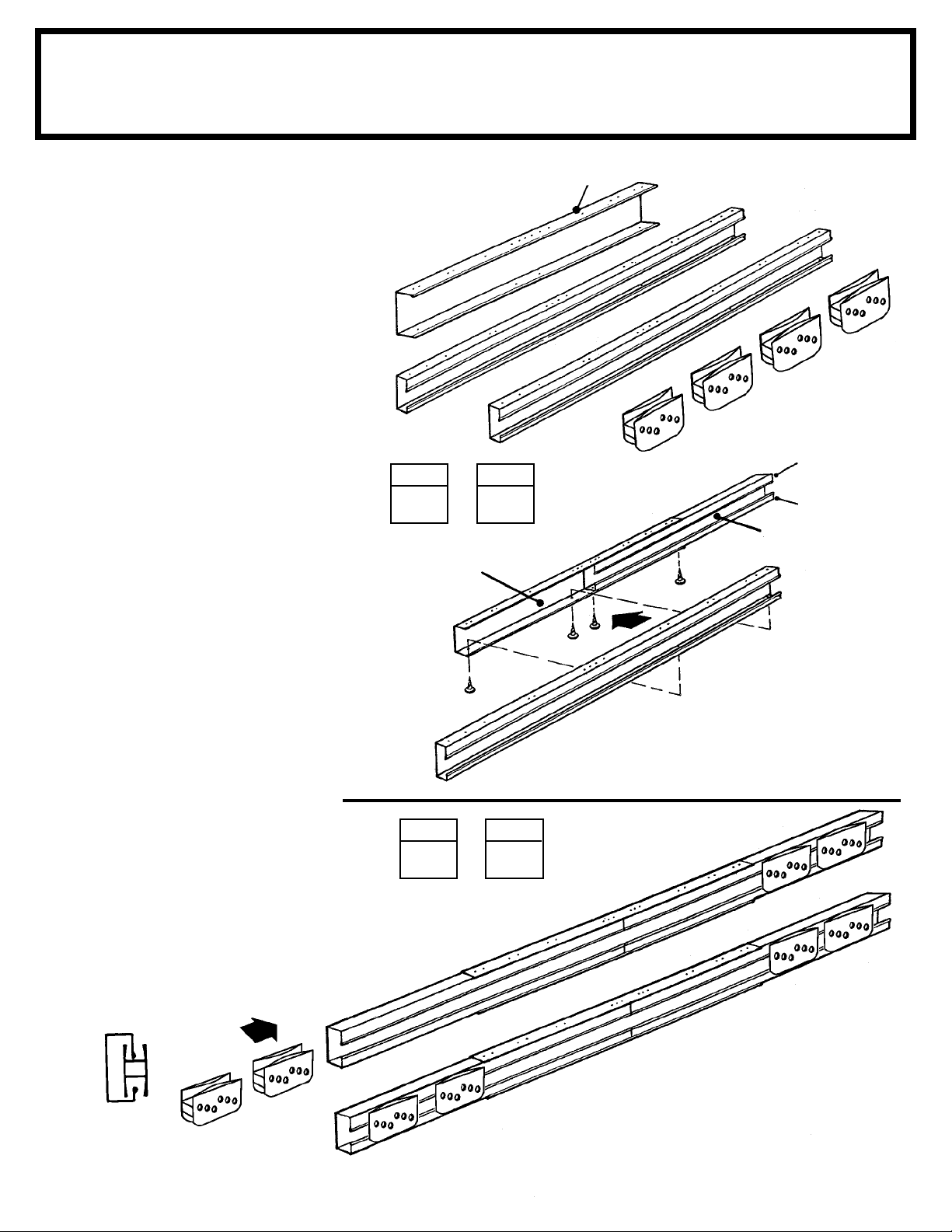

The door track assembly supports the
sliding doors and reinforces the front
wall. It is made up of three pieces.
1 Using the door track splice,
(painted), join the door track
(galvanized) pieces end-to-end as
shown.
2 Insert four screws from the under-
side only.
Hint: The holes in the top side of the
door track assembly are for fastening
the gable to the top of the front wall
in a later step.
3 Position door slides onto the
legs, from the end of door track
assembly, as shown in the end view.
4 Set this piece aside for later use.
66769
STEP
3
94 5/8" 240,3 cm
STEP
4
END VIEW
STEP
1
9378
STEP
2
6617
9378
Long Leg
on Top
Short Leg
on Bottom
9378
9378
6617
66769
94 5/8"
240,3 cm
94 5/8"
240,3 cm
17

Front Floor Assembly (1)
Side Floor Assembly (2)
Rear Floor Assembly (1)
Parts Needed For 
Floor Frame
Step 5
BY18

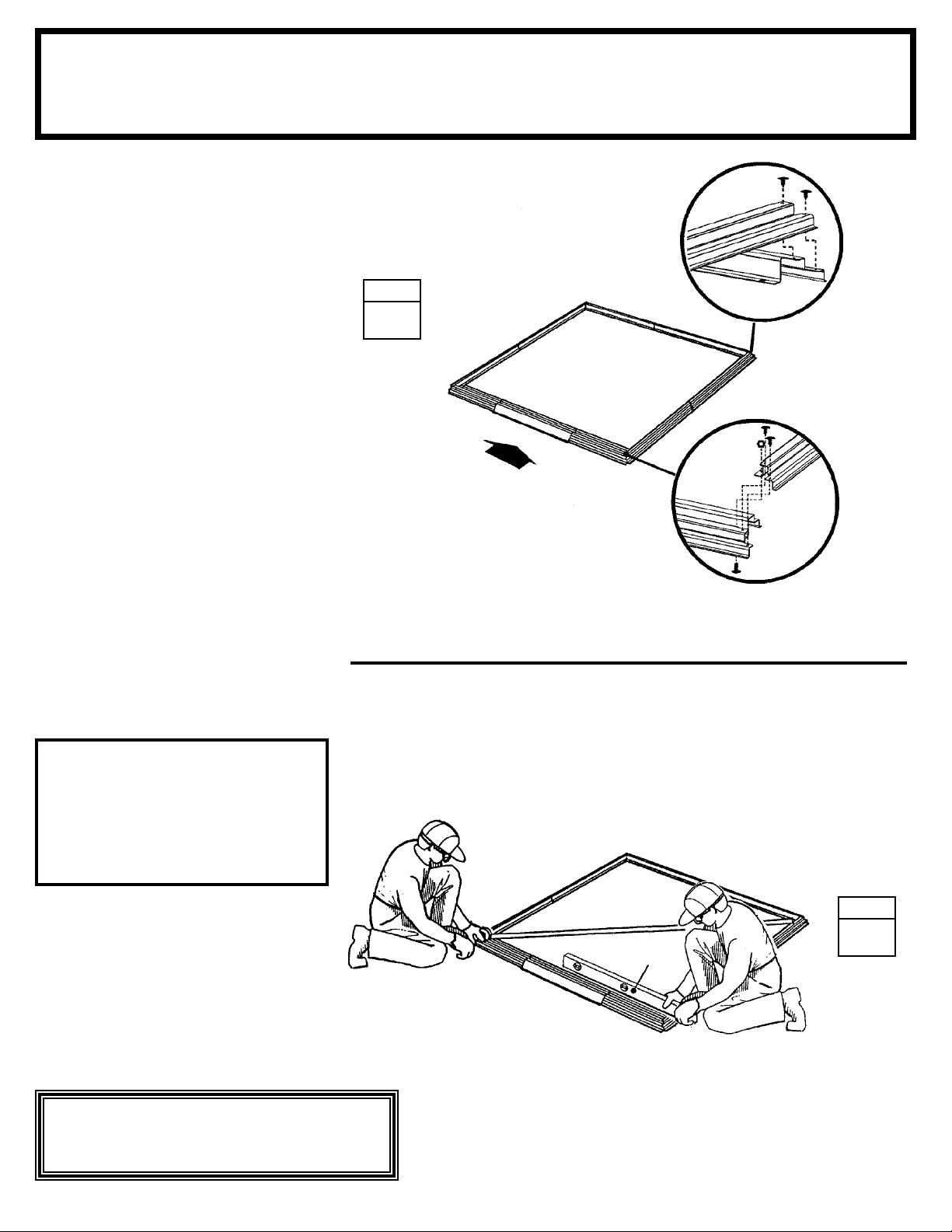

The fl oor frame must be square
and level or holes will not align.
1 Assemble the four corners of
the fl oor frame using two screws at
each corner as shown. At the front
corners fasten bolts through from
the bottom with nuts on top.
2 Measure the fl oor frame diagonally.
When the diagonal measurements
are equal, the fl oor frame is square.
NOTE
If using a wood platform or
concrete slab do not fasten the
fl oor frames to your base at this
time. You will anchor the
building after it is erected.
STEP
1
9989
RIGHT
REAR
9377
Level
9989
RIGHT
FRONT
9379
STEP
2
When Diagonal Measurements
are Equal the Floor Frame
is Square.
FRONT
18

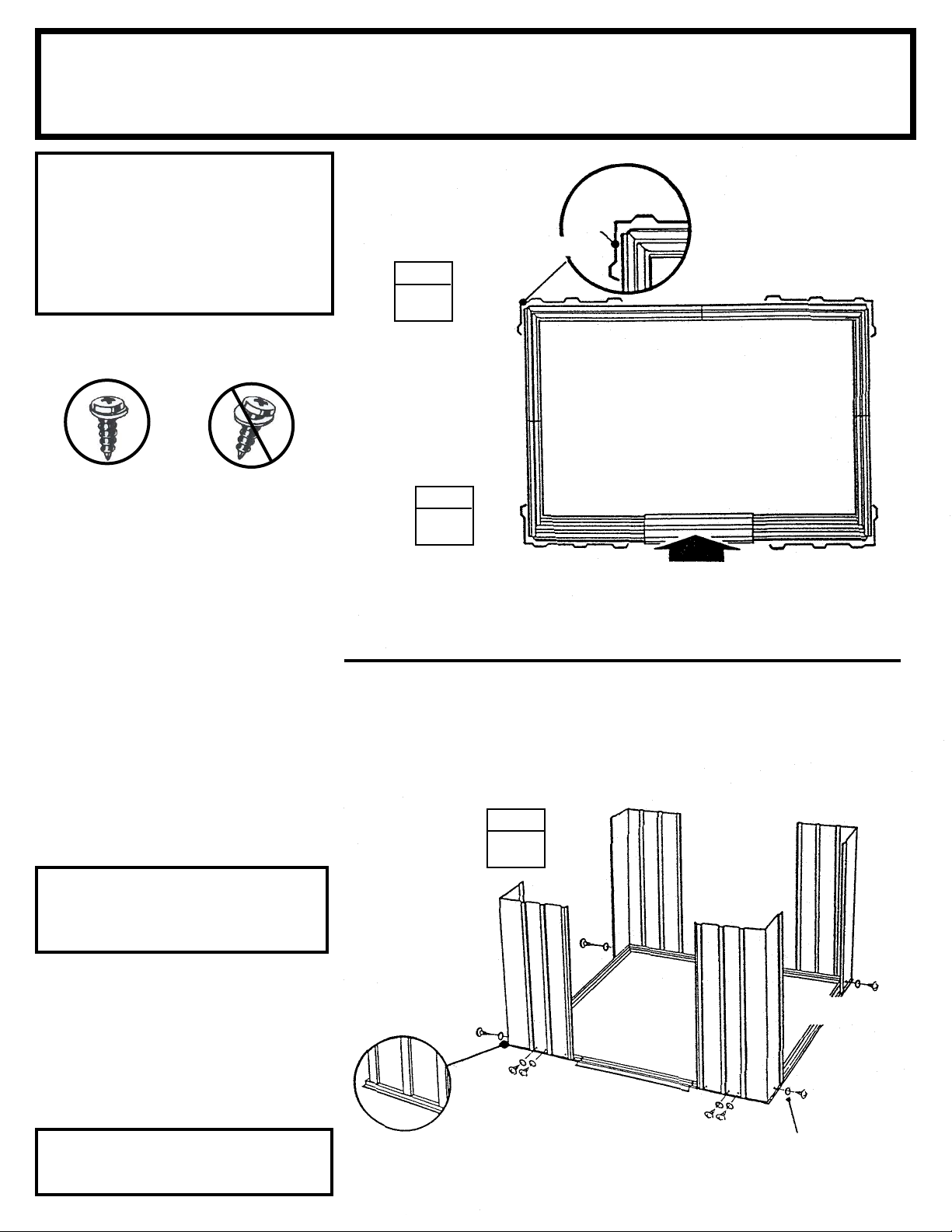

1 Position the rear corner panels
at the rear corners, as shown. The
widest part of each rear corner panel
must be placed along the rear of the
building. Attach the corner panels to
the fl oor frame with 4 screws.
2 Position a front corner panel at
the corner of the fl oor frame as sown.
The widest part of each front corner
panel must be placed along the front
of the building. A small gap will exist
between front corner panel and ramp.
Fasten the corner panel to the fl oor
frame with 3 screws.
NOTE
Be careful to install the correct
panel in each position as shown
9380 Front Wall Panel (2)
9384 Rear Corner Panel (2)
Step 6
BY19
Parts Needed For 
Corners
NOTE
The remainder of the building assembly
requires many hours and more than one
person. Do not continue beyond this
point if you do not have enough time to
complete the assembly today. A partially
assembled building can be severely
damaged by light winds.
Each screw and bolt in the wall
requires a washer.
3 Double-check the part numbers of
the wall panels, before proceeding.
The fl oor frame must be square
and level or holes will not align.
STEP
1
9380
9384
REAR
FRONT
9380
SIDE
TOP VIEW
Wide Side
STEP
3
STEP
2
SIDE
9384
Narrow Side
Washer
Panels rest on
frame as show
9380
9384
9380
9384
CORRECT INCORRECT
19

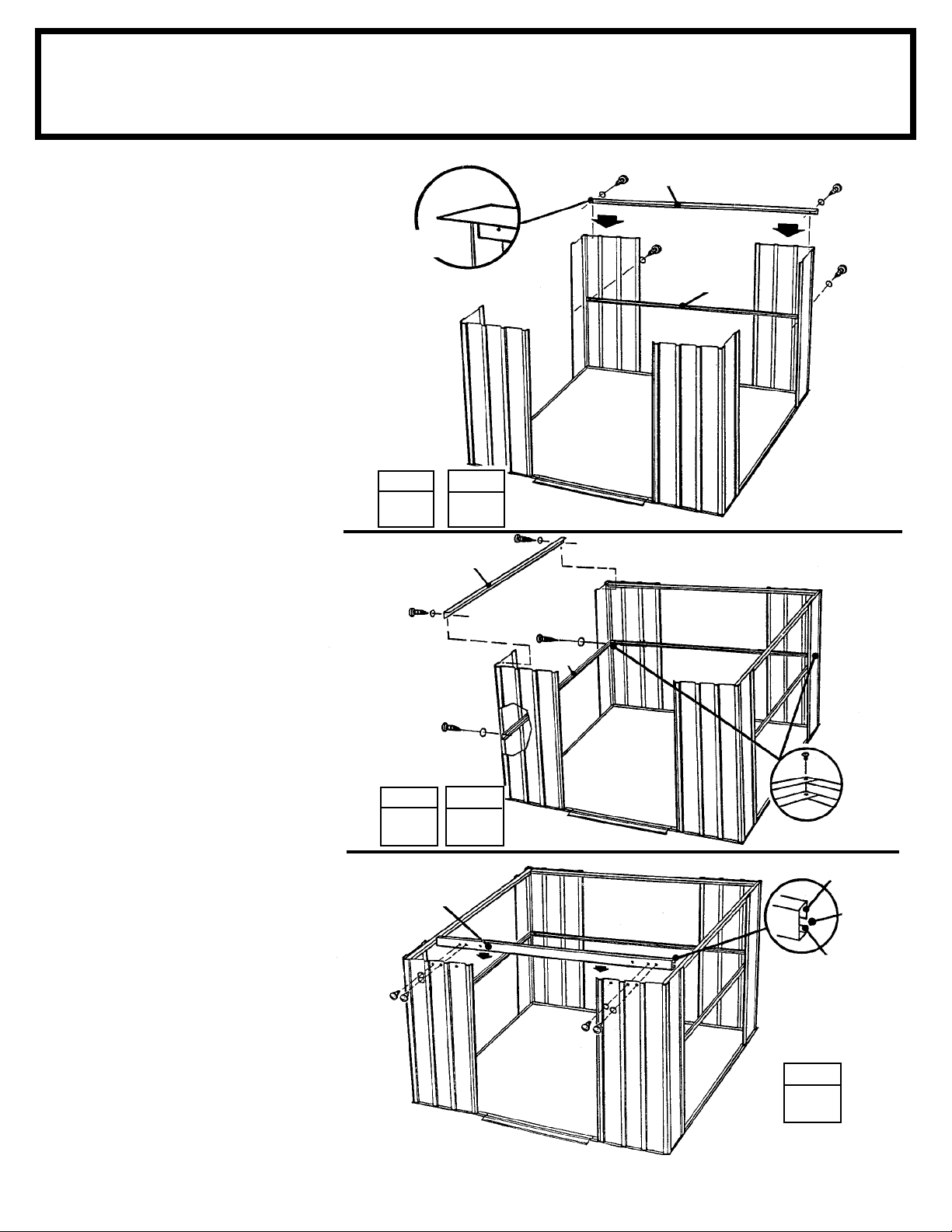

The main frame pieces give rigidity to
the side walls and provide a surface
for attaching the gables which sup-
port the roof.
1 Fasten the rear wall angle as-
sembly across the inside top of the
rear wall using screws.
2 Fasten the rear wall channel as-
sembly across the middle of the rear
wall using screws.
3 Fasten the side wall angle as-
semblies across the inside top of the
side panels using screws. Side wall
angles must overlap rear wall angle
in corners.
4 Fasten the side wall channel as-
semblies across the middle of the
side panels using screws. Fasten
overlaps in rear corners with screws.
5 Fasten the door track assembly
(holes on top) across the top of the
front wall panels using screws. See
the fi gure.
Door Track Assembly (1)
Rear Wall Angle Assembly (1)
Side Wall Angle Assemblies (2)
Rear Wall Channel Assembly (1)
Side Wall Channel Assemblies (2)
Parts Needed For 
Frames
Step 7
BY20
5
Short Leg
on Bottom
STEP
3
Opening
Facing in
STEP
4
Long Leg
on Top
STEP
FRONT
9378
FRONT
9990
9991
FRONT
Wall Angles
Must Face
Inside
Building 9924
6615
1
STEP
2
STEP
Door Track Assembly
20
