Arrow Storage Products 697.68103-B Use and care manual

Owner's Manual &Assembly Instructions
SPl
Model No. CM1014 D
OB1014-B Q 697.68103-B Q
712741204
BUILDING DIMENSIONS * Size rounded off to the nearest foot
CAUTION: SOME PARTS HAVE SHARP EDGES. CARE
MUST BE TAKEN WHEN HANDLING THE VARIOUS PIECES
TO AVOID A MISHAP. FOR SAFETY SAKE, PLEASE READ
SAFETY INFORMATION PROVIDED IN THIS MANUAL
BEFORE BEGINNING CONSTRUCTION. WEAR GLOVES
WHEN HANDLING METAL PARTS.
*Approx. Foundation Storage Area
Size Size Sq. Ft. Cu, Ft.
Exterior Dimensions Interior Dimensions Door
(Roof Edge to Roof Edge) (Wall to Wall) Opening
Width Depth Height Width Depth Height Width Height
10'x14' 121"x1601/4" 129 769 1231/4" 1623/4" 813/8" 1181/4" 1571/2" 801/8" 551/2" 60"
3,0mx4,0m 307cmx407cm 12,0m 2 21,8m 3 313cm 413cm 207cm 300cm 400cm 204cm 141cm 152cm

BEFORE YOU BEGIN....
A2
Owner*s Manual
Before beginning construction, check local building codes regarding footings, location
and other requirements. Study and understand this owner's manual.
Important information and helpful tips will make your construction easier and more
enjoyable.
Assembly Instructions: Instructions are supplied in this manual and contain all
appropriate information for your building model. Review all instructions before you begin,
and during assembly, follow the step sequence carefully for correct results.
Foundation and Anchoring: Your storage building must be anchored to prevent wind
damage. A foundation is also necessary as a base in order to construct a square and level
building. Anchoring and foundation materials are not included with your building. We
recommend the combined use of an Arrow Floor Foundation Kit and an Arrow
Anchoring Kit as an effective method of securing your building to the ground (Available
by mail order or at your local dealer) or you may construct the foundation and anchoring
system of your choice. Your assembly instructions provide information on a few methods
commonly used to secure and level a storage building.
Parts and Parts List: Check to be sure that you have all the necessary parts for your
building.
•All part numbers can be found on the parts. All of these numbers (before the -) must agree with the
numbers on the parts list. The parts list is located on page 12.
•if you find that a part is missing, include the model number of your building and contact:
Arrow Group Industries, Inc. Customer Service Department
Route 50 East Breese, Illinois 62230
1-800-851-1085
,Separate contents of the carton by the part number while reviewing parts list. The first few steps
show how to join related parts to make larger sub assemblies which will be used later.
.Familiarize yourself with the hardware and fasteners for easier use during construction. These are
packaged within the carton. Note that extra fasteners have been supplied for your convenience.
2

PLAN AHEAD....
A3
Watch the Weather: Be sure the day you select to install your building is dry and calm.
Do not attempt to assemble your building on a windy day. Be careful on wet or muddy ground.
Teamwork: Whenever possible, two or more people should work together to assemble
your building. One person can position parts or panels while the other is able to handle the
fasteners and the tools.
Tools and Materials: These are some basic tools and materials you will need for the
construction of your building, Decide which method of anchoring and the type of foundation
you wish to use in order to form a complete list of the materials you will need,
RequiredRequired
Eye Goggles
No. 2 Phillips Screwdriver
With Hardened Magnetic Tip)
Note: A power screwdriver or vari-
able speed drill with Ph/tips-tip at-
tachment can speed assembiy by
as much as 40%
• Work Gloves
•Step Ladder
• Utility Knife /Scissors
• Pliers
•Carpenter's Level
•Tape Measure
Optional Time-Savers
•Wrench /Nut Driver
• Electric /Cordless Drill
•Square
• String (forsquaringframe)
Foundation Preparation
•Hammer and Nails
•Spade or Shovel
• Hand Saw /Power Saw
•Lumber and/or Concrete
Selecting and Preparing Your Site: Before assembly, you will want to decide on
a location for your building. The best location is a level area with good drainage.
.Allow enough working space for ease of moving parts into position during assembly. Be sure there
will be enough space at entrance for doors to open fully and enough space around the building to
be able to fasten the panel screws from the outside.
.Before you begin the first steps Jnassembling your parts, a foundation should be constructed and
an anchoring system should be ready to use.
3

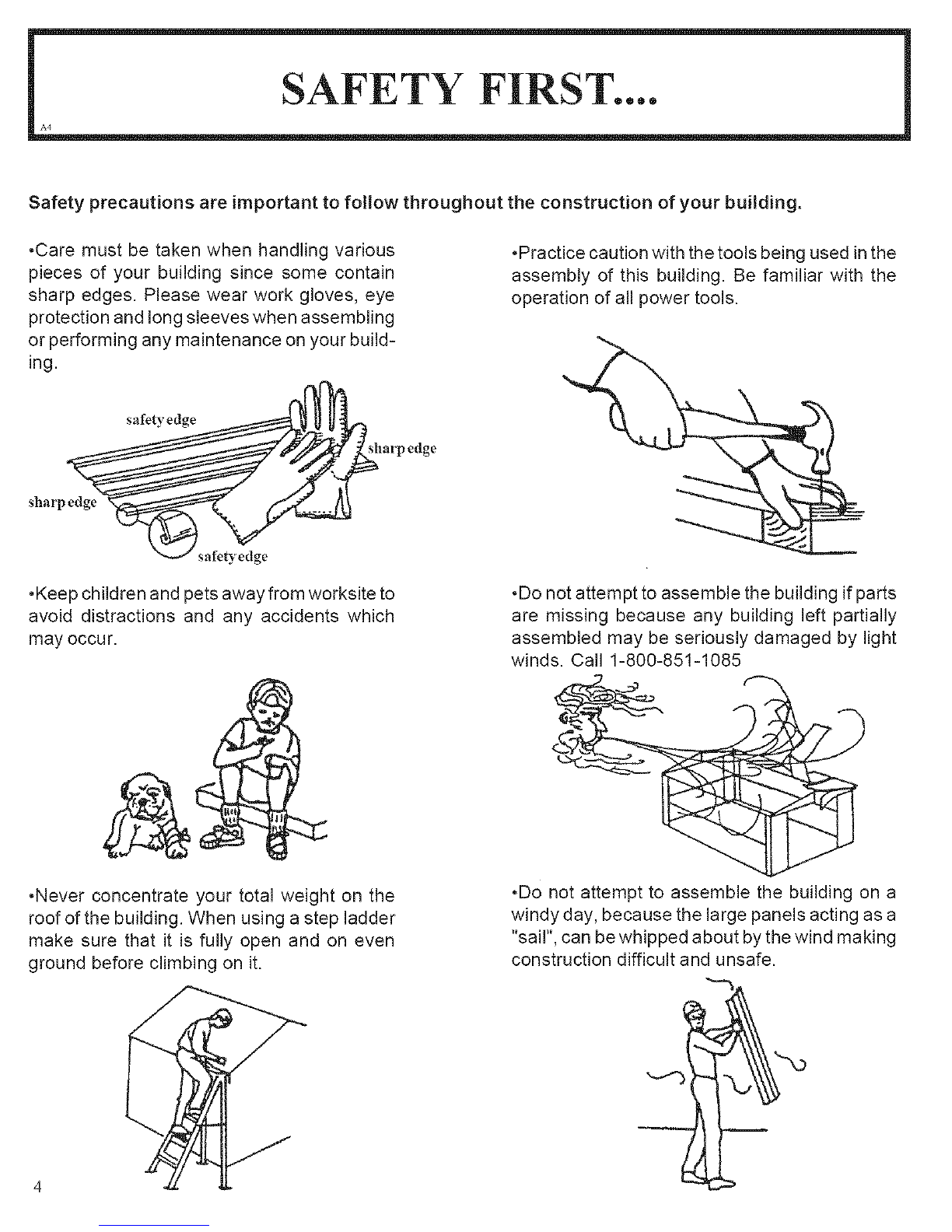

SAFETY FIRST....
A4
Safety precautions are important to follow throughout the construction of your building.
•Care must be taken when handling various
pieces of your building since some contain
sharp edges. Please wear work gloves, eye
protection and long sleeves when assembling
or performing any maintenance on your build-
ing.
•Practice caution with the tools being used in the
assembly of this building. Be familiar with the
operation of all power tools.
safetyedge
sharpedge
sharpedge
safetyedge
•Keep children and pets away from worksite to
avoid distractions and any accidents which
may occur.
?
•Never concentrate your total weight on the
roof of the building. When using a step ladder
make sure that it is fully open and on even
ground before climbing on it.
•Do not attempt to assemble the building if parts
are missing because any building left partially
assembled may be seriously damaged by light
winds. Call 1-800-851-1085
,Do not attempt to assemble the building on a
windy day, because the large panels acting as a
"sair', can be whipped about by the wind making
construction difficult and unsafe.

CARE &MAINTENANCE....
A5 Web
Finish: For long lasting finish, periodically clean and wax the exterior surface. Touch-
up scratches as soon as you notice them on your unit. Immediately clean the area with
a wire brush; wash it and apply touch-up paint per manufacturer's recommendation.
Roof: Keep roof clear of leaves and snow with long handled, soft-bristled broom. Heavy
amounts of snow on roof can damage building making it unsafe to enter. In snow country,
Roof Strengthening Kits are available for most Arrow Buildings for added protection
against heavy snow accumulation.
Doors: Always keep the door tracks clear of dirt and other debris that prevent them from
sliding easily. Lubricate door track annually with furniture polish or silicone spray. Keep
doors closed and locked to prevent wind damage.
Fasteners: Use all washers supplied to protect against weather infiltration and to protect
the metal from being scratched by screws. Regularly check your building for loose screws,
bolts, nuts, etc. and retighten them as necessary.
Moisture: A plastic sheet (vapor barrier) placed under the entire floor area with good
ventilation will reduce condensation.
Other Tips ....
• Wash off inked part numbers on coated panels with soap and water.
• Silicone caulking may be used for watertight seals throughout the building.
_ swimming pool chemicals in your building. Combustiblesand_
corrosives must be stored in air tight approved containers.
Keep this Owner's Manual and Assembly instructions for future reference.

ACCESSORIES....
A6 \VEB
ROOF STRENGTHENING (heavy snow load) KITS Extra roof beams and gable braces
designed for added protection against heavy snow accumulation. Increases the strength of your roof by 50%.
ANCHOR KIT
Model No. AK4
Anchor Kit contains heavy-duty steeI
augers, 60' (18m) of steet cable and 4 cable
clamps. No digging or concrete
pouring, just insert cable under roof,
over roof beams, into augers and twist
augers into the ground. For buildings
larger than 10'x9', use 2 kits.
FLOOR FOUNDATION KITS
MODELS FB47410, FB5465, FB106-A
FB109-A, FB1010 AND FB1014-A
A simple new floor frame system made of heavy-duty, hot-dipped
galvanized steel. Use as foundation for plywood, sand or stone.
TOOL HANGING RACK
Model No. TH100
The perfect tool organizer. Twin
25 1/2" (65cm) steel channels
plus five heavy-duty snap-in I
hangers and a small tool holder for
screwdrivers, pliers, etc. Holders
slide along channel for fully
adjustable spacing. Great for
garage, basement, or the back
of any door. Fits all Arrow
storage buildings.
ANCHOR KIT
Model No. AK100
New concrete anchor system permits
anchoring any size Arrow building
directly to a concrete slab. Each kit
contains heavy-duty, hot-dipped
galvanized steel corner gussets and
perimeter clips which fit over the floor
frame and lag bolt into a concrete slab.
Full assembly instructions and a 1/4"
masonary drill bit are included.
ATTIC KIT /WORKBENCH KIT
Heavy-duty galvanized steel bars that
fit all 10' wide Arrow buildings. They
install quickly and easily to help
organize space and create more
useable space as an attic or
workbench. Will hold up to 250 Ibs.
(113kg) evenly distributed.
Model No. Fits Shipping Weight
AT101 10' Long, 250 lb. (113kg) load+ 16 Ibs. (7kg)
Fits alI Arrow 10' wide buildings.
Must be drilled for use as workbench in Estator.
+ Even weight distribution.
SHELF UNITS
Heavy-duty, galvanized steel shelf units help organize storage
space. They easily mount on the wall or sit on the floor. Fits alI
Arrow buildings.*
%
Model No. SS404
*Makes 8" to 12" (20-30cm)
wide shelves in any length.
* Brackets, braces,
hardware included.
Lumber is not included.
Model No. SS900-A
* Grey color
* 3 shelves
* Holds up to 85 Ibs. (38kg)
(even weight distribution)
* Some drilling required to fit buildings without mid-wall bracing

THIS
PAGE
WAS
LEFT
BLANK
INTENTIONALLY

THIS
PAGE
WAS
LEFT
BLANK
INTENTIONALLY

Foundation
F09
The Foundation For Your Building
OPTION 1: ARROW FLOOR FOUNDATION KIT: (OrderNoFSl0 4-Aor 68387-A)
Arrow has the best base for your building in this simple kit. It keeps stored items above the ground.
This foundation should be used with one of the following:
A. To support a plywood deck 8. To be filled with sand. We recommend the combined use of
1. an ARROW FLOOR FOUNDATION KIT and 2.anARROW ANC NORING KIT as an effective method of securing the building to the
ground. Allow 1 - 2hours for construction.
OPTION 2: Wood Plattbrm
If you decide to build your own foundation, be sure to select the appropriate materials.
These are the recommended materials for your foundation:
O 2 x 4's (5cm x 10cm) Pressure Treated Lumber ® 5/8" (1,Scm) 4 x 8 (122cm x 244cm) Plywood-exterior grade
O 10 & 4 penny Galvanized Nails O Concrete Blocks (optional)
The platform should be level and fiat (free of bumps, ridges etc.)
to provide good support for the building. The necessary materials
may be obtained from your local lumber yard.
To construct the foundation follow instructions and diagram.
Construct frame (using 10 penny galvanized nails)
Measure 16"/24" (40,6cm/61cm) sections to construct
inside frame (see diagram)
Secure plywood to frame (using 4 penny galvanized nails)
Allow 6 - 7 hours for construction.
OPTION 3: Concrete Slab
FRONT *'_
(DOOR)
Note: Platform/Slab will extend 9/t6" (1,4cm) beyond floor
frame on all four sides. Seal this 9/16" of wood with a
roofing cement (not included), or bevel this 9/16" of
concrete when pouring, for good water drainage.
The slab should be at least 3" to 4" (8-10cm) thick. It must be level and flat to provide good support for the frame.
The following are the recommended materials for your foundation.
® 1 x 4's (2,5cm x 1Ocm) (will be removed once the concrete cures)
® Concrete ® Sheet of 6 miI plastic
O We recommend for a proper strength concrete to use a mix of:
1 part cement O 3 parts pea sized gravel O 2 1/2 parts clean sand
Prepare the Site/Construct a Foundation
1. Dig a square, 6" (15cm) deep into the ground (remove grass).
2. FilI up to 4" (10cm) in the square with gravel and tamp firm.
3. Cover gravel with a sheet of 6 mit plastic.
4. Construct a wood frame using four planks of lx4 (2,5cm x 1Ocm)
lumber.
5. Pour in concrete to fill in the hole and the frame giving a
total of 4" (8-1Ocm) thick concrete. Be sure surface is level.
FRONT
(DOOR) _,_
Note: Finished Slab dimensions, with lumber removed.
Allow 3- 5 hours for construction and aweek for concrete curing time. 9

Anchoring
AIO
it is important that the entire floor frame be anchored after the building is erected.
Below are recommended ways of anchoring.
Arrow Anchoring Kit: (Model No. AK4 or 60298) Anchoring into _Vood/Post:
Recommended for use with any suggested base. Use 1/4" Wood Screws. There are 1/4" (O,63cm) dia.
Contains: 4 Anchors with Cable, Clamps and holes provided in the frames for proper anchoring•
installation instruction.
OVERTHE BEABIS
AND iNTO THE GROUND
Arrow Anchoring Kit: (Model No. AK1OOor 88383)
Recommended for use with the concrete foundation•
Contains: Corner gussets, perimeter clips, hardware,
1/4" masonary drill bit and installation instruction•
Anchoring into Concrete:
1. For poured concrete slab or footing or patio blocks:
Use 1/4" x 2" Lag Screws.
2. For Anchor Post of Concrete poured after building is
erected: Use 1/4" x 6" Lag Screws•
10

Hardware
SPll
Remove from bag of screws
and save for the last step
T T T
65900A
65103 #f 0Bxf/2" Black Screw (4) 66923 65004
#8-32 Hex Nut (188) (Packed with Screws) #8-32x3/8" Bolt (188) #8Ax5/16" Screw (438)
66646 65109 67468
66045 Washer (453) #8-32 Acorn Nut (4) Peak Cap (2)
Handle (2) (12 sheets of 40) (Packed with Screws) (Arrow Logo)
66183
66242 66382 RoofTrim Cap 6228
DoorSlide(4) Lower DoorGuide(4) (2 right &21eft) TrackSuppo_(2)
67545 21'
WeatherStripping(1)
11

Parts List
BZ12
Parts in Carton One
Part Part Quantity Check
Number Description in Carton List
8576
8577
6264
7743
9984
9983
8538
8539
9369
9373
6515
6020
3719
6278
6403
6892
6893
6015
6869
6797
9366
Right Gable
Left Gable
Horizontal Door Brace
Roof Panel
Right Roof Panel
Left Roof Panel
Right Door
Left Door
Door Jamb
Front Wall Panel
Wall Panel
Corner Panel
Door Handle Brace
Vertical Door Brace
Door Track Splice
Rt. Side Roof Trim
Lt. Side Roof Trim
Side Roof Trim
Ridge Cap
Ridge Cap
Door Track
2
2
4
8
2
2
1
1
2
2
12
4
2
2
1
2
2
2
1
2
2
12

Parts List
8P13
Parts in Carton Two
Part Part Quantity Check
Number Description in Carton List
5986
10389
9365
6635
Rear Wall Angle
Rear Walt Channel
Front Wall Channel
Roof Beam Bracket
2
2
2
4
10386
10388
10391
10387
8936
9367
9009
9204
8934
Roof Beam
Side Wall Channel
Side Wall Angle
Side Floor Frame
Rear Floor Frame
Front Floor Frame
Gable Brace
Roof Beam Brace
Ramp
8
4
4
4
2
2
2
2
1
13

,m =.
Step 1
$O14
• Parts Needed For ®
Floor Frame Assemblies
O8934 Ramp (1)
O9367 Front Floor Frame (2)
®8938 Rear Floor Frame (2)
O 10387 Side Floor Frame (4)
The front floor frame is made up of
three pieces. The side floor frames
and the rear floor frame are made up
of two pieces. The holes in these
pieces will align when the pieces are
positioned with correct amount of
overlap. The illustrations below show
the proper overall length for the sides,
rear and front. Proceed as follows:
8934
9367
8936
I Place the front floor frames as
shown. Center the ramp, with drain
holes facing outside, on top of the two
front floor frames. Join the frames by
inserting eight screws.
2Overlap the side floor frames and
the rear floor frames as shown. The
holes in these pieces will align when
the pieces are positioned with cor-
rect amount of overlap. See the illus-
trations below for the proper overall
length ofthe side and rear floor frames.
Join the frames by inserting fourlfive
bolts into each frame set as shown.
3Double check the length of each
and set these pieces aside for later
use.
?? f_ Front Floor
?_ 8934 _ Frame Assembly
_#_ 119 3/8" 3,0m
L____.J 9367
_DRAIN HOLES FACE_:.9
OUTSIDE
14

O5986Rear Wall Angle (2)
St p 2 .Parts Needed For ® .10389RearWa,,Cha.ne,(2)
@Frame Assemblies ®10388 Side Wall Channel (4)
O 10391 SideWall Angle {4)
S015
The main frame pieces reinforce the
walls. These pieces will later be in-
stalled in the center and at the top
edge of the side walls and the rear
wall. Proceed as follows:
I I RearWaIIChannel
10389 118 1/8" 3,0m
10389
1 Overlap the rear wall channel
pieces as shown in the figure and
fasten the two pieces together with
eight bolts as shown. 10388
o Ilil ISide Wall Channels
t57 3/8" 4,0m
2Make two side wall channels by
overlapping the side wall channel
pieces as shown. Fasten each set
together with eight bolts as shown.
10388
3Overlap the rear wall angle 5986 RearWallAngle
pieces as shown in the figure and __3,0m
fasten them together with one bolt in
the center hole. _ 5986
4 Make two side wall angles by
overlapping the side wall angle
pieces as shown. Fasten each set
together with one bolt thru the sec-
ond large hole from the end of each
part.
_ o_._Side Wall Angles
Rear Wall ChanneI 118 1/8" 3,0m
Side Wail Channels 157 3/8" 4,0m (2 Assemblies)
5 Set the assemblies aside. You will
use them later.
Rear WailAngIe 118 1/8" 3,Om
15

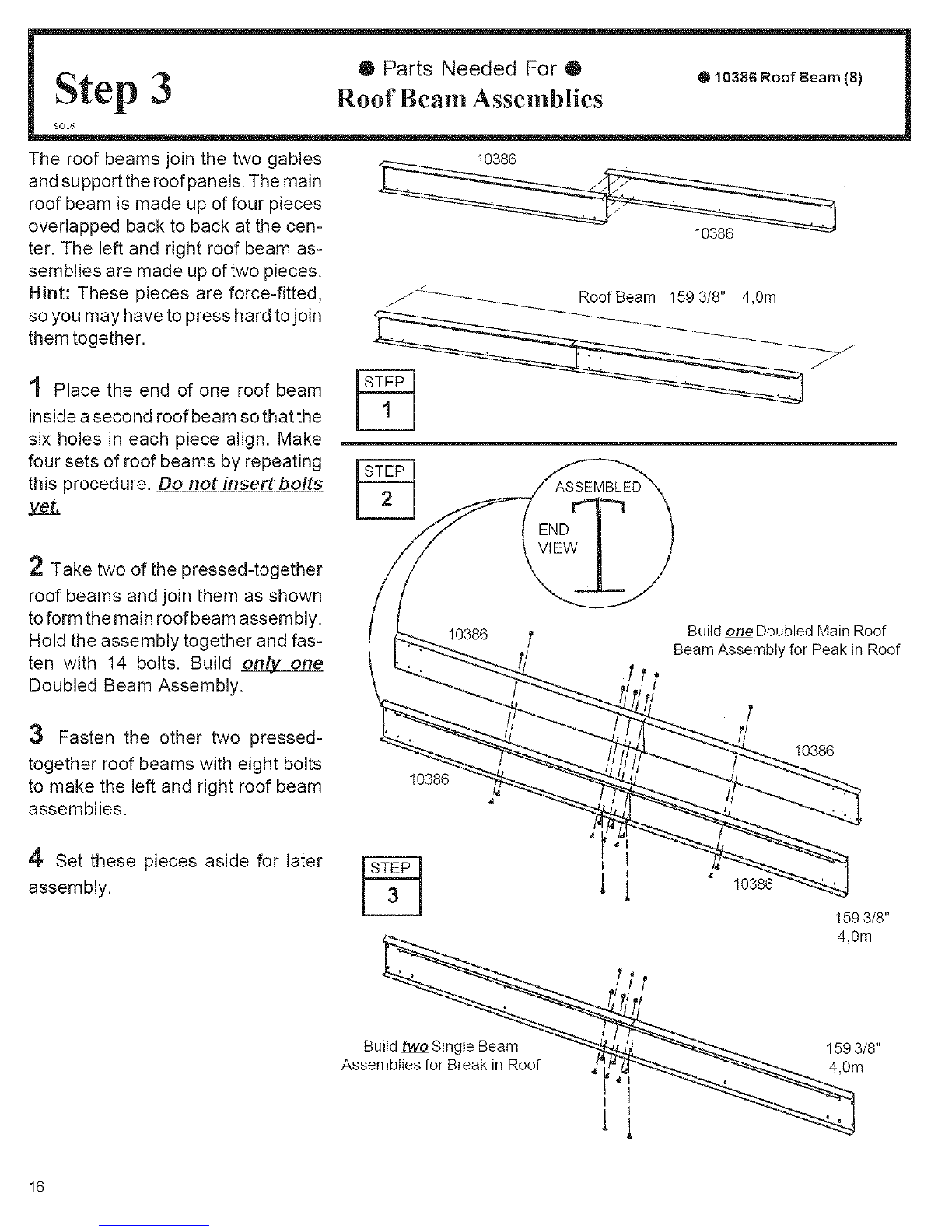

® Parts Needed For ® O10386RoofBeam(8)
Step 3 Roof Beam Assemblies
S016
The roof beams join the two gables 10386
and support the roof panels. The main
roof beam is made up of four pieces
overlapped back to back at the cen-
ter. The left and right roof beam as-
semblies are made up of two pieces.
Hint: These pieces are force-fitted,
so you may have to press hard to join
them together.
10386
_- RoofBeam 1593/8" 4,0m
1 Place the end of one roof beam
inside a second roof beam sothat the
six holes in each piece align. Make
four sets of roof beams by repeating
this procedure. Do not insert bolts
2 Take two of the pressed-together
roof beams and join them as shown
to form the main roof beam assembly.
Hold the assembly together and fas-
ten with 14 bolts. Build only_one
Doubled Beam Assembly.
3 Fasten the other two pressed-
together roof beams with eight bolts
to make the left and right roof beam
assemblies.
4 Set these pieces aside for later
assembly.
10386
10386 Build one Doubled Main Roof
Beam Assembly for Peak in Roof
t
10386
159 3/8"
4,0m
t t
Build two Single Beam
Assemblies for Break in Roof 159 3/8"
4,0m
16

® Parts Needed For • • 6403DoorTrackSplice(1)
Step 4 DooTrack Assembly ®936sDoor, ack(21
S017
NOTE:
Door Track Splice (painted part)
The door track assembly supports
the sliding doors and reinforces the
front wail. Itis made up ofthree pieces.
1 Using the door track splice,
(painted), join the door track
(galvanized) pieces end-to-end as
shown.
2 Insert four screws from the under-
side only.
Hint: The holes in the top sideofthe
door track assembly are for fastening
the gable to the top of the front wail in
a later step.
6403
©©
9366 @ _ 66242
9366 Long Leg
on Top
on Bottom
118 1/8" 3m
3 Position door slides onto the legs,
from the end of door track
assembly, as shown in the end view.
NOTE: Fiat side on top, pins and
holes must be oriented as shown.
4 Set this piece aside for later use.
END VIEW
1!8 1/8" 3m
17

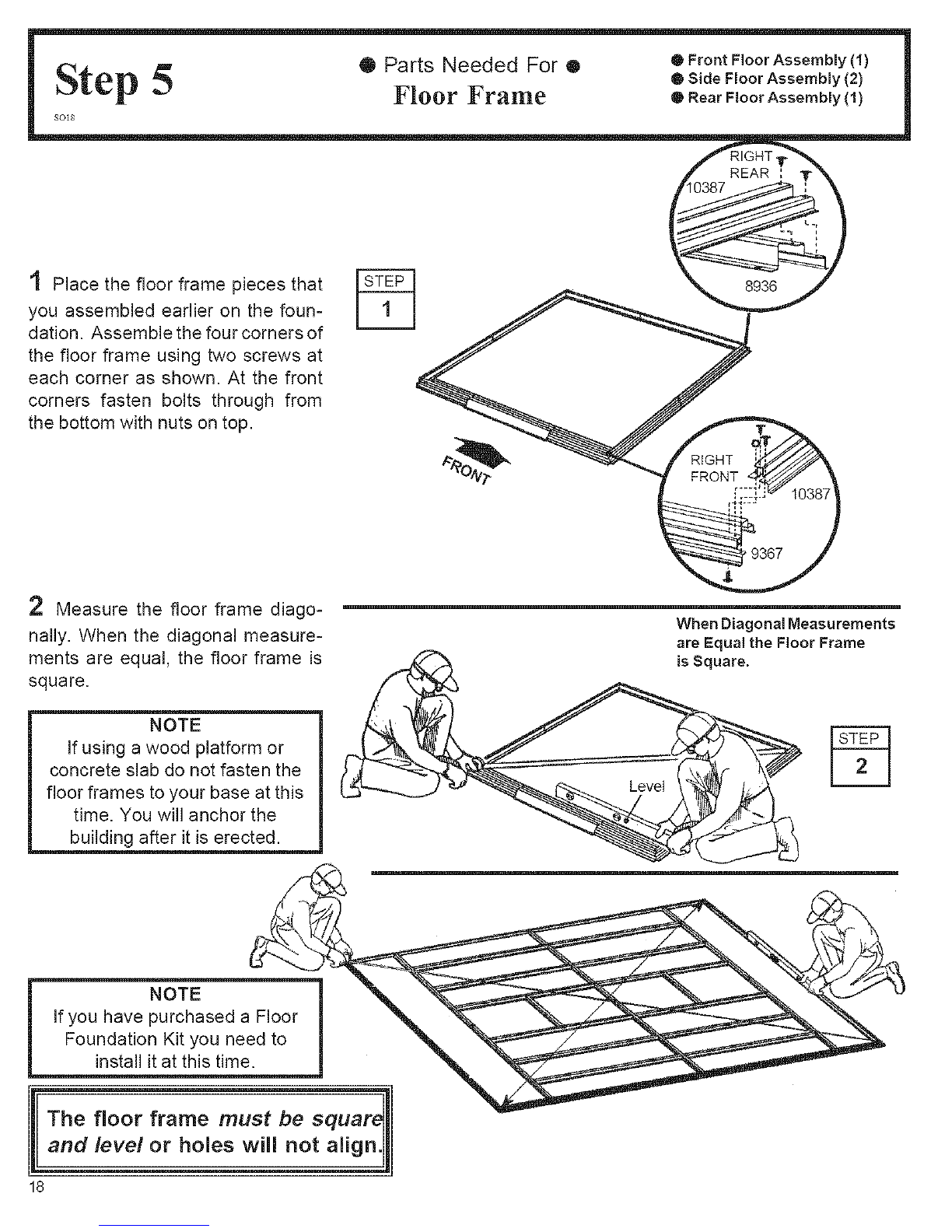

Step 5
S018
® Parts Needed For o
Floor Frame
@ Front Floor Assembly (1)
• Side Floor Assembly (2)
• Rear Floor Assembly (1)
you assembled earlier on the foun- L_ v
dation. Assemble the four corners of
the floor frame using two screws at
each corner as shown. At the front
corners fasten bolts through from
the bottom with nuts on top.
2 Measure the floor frame diago-
nally. When the diagonal measure-
ments are equal, the floor frame is
square.
NOTE
If using a wood platform or
concrete slab do not fasten the
floor frames to your base at this
time. You will anchor the
building after it is erected,
'9367
When Diagonal Measurements
are Equal the Floor Frame
is Square.
NOTE
If you have purchased a Floor
Foundation Kit you need to
install it at this time.
18

Step 6 ® Parts Needed For ® Corners
•6515 Wall Panel (2)
•9373 Front Wall Panel (2)
O 6020 Corner Panel (4)
S019
NOTE
The remainder of the building assembly
requires many hours and more than one
person. Do not continue beyond this point
if you do not have enough time to com-
plete the assembly today. A partially
assembled building can be severely
damaged by light winds.
Each screw and bolt in the wall re-
quires a washer.
I Position a corner panel at the
corner of the floor frame as shown.
The widest part of each corner panel
must be placed along the side of the
building for all four corners. Fasten
the corner panel to the floor frame
with one screw.
Support the corner panel with a step
ladder until a wall panel is attached.
2 Attach the front wall panels to the
front corner panels, as shown. A small
gap will exist between front wall panel
and ramp.
3Attach the wall panels to the rear
corner panels, as shown.
NOTE
Be careful to install the correct
panel in each position as shown
4Double-check the part numbers of
the wall panels, before proceeding.
Narrow
Side
Wide Side
SIDE
6020
TOP VIEW
6020
SIDE
6020
FRONT
6515 I_:_
6020 65t5
6020
6020
9373
IThe floor frame must be square
"_ Washer
19

Step 7.Parts Needed For ® ORearWallChannelAssemNy(1)
_/_id Fl'*_]i_leS 0 Side Wall Channel Assembly (2)
S020
The mid frame pieces give rigidity to
the side and rear walls.
1 Fasten the rear wal! channel
across the middle of the rear wall
using screws.
2 Fasten the side wall channels
across the middle of the side panels
using screws. Fasten overlaps in
rear corners with bolts and nuts, at
two locations. See the figure.
NOTE
The wall channels behind the
front wall panels will be installed
in a later step.
10388
FRONT
2O
