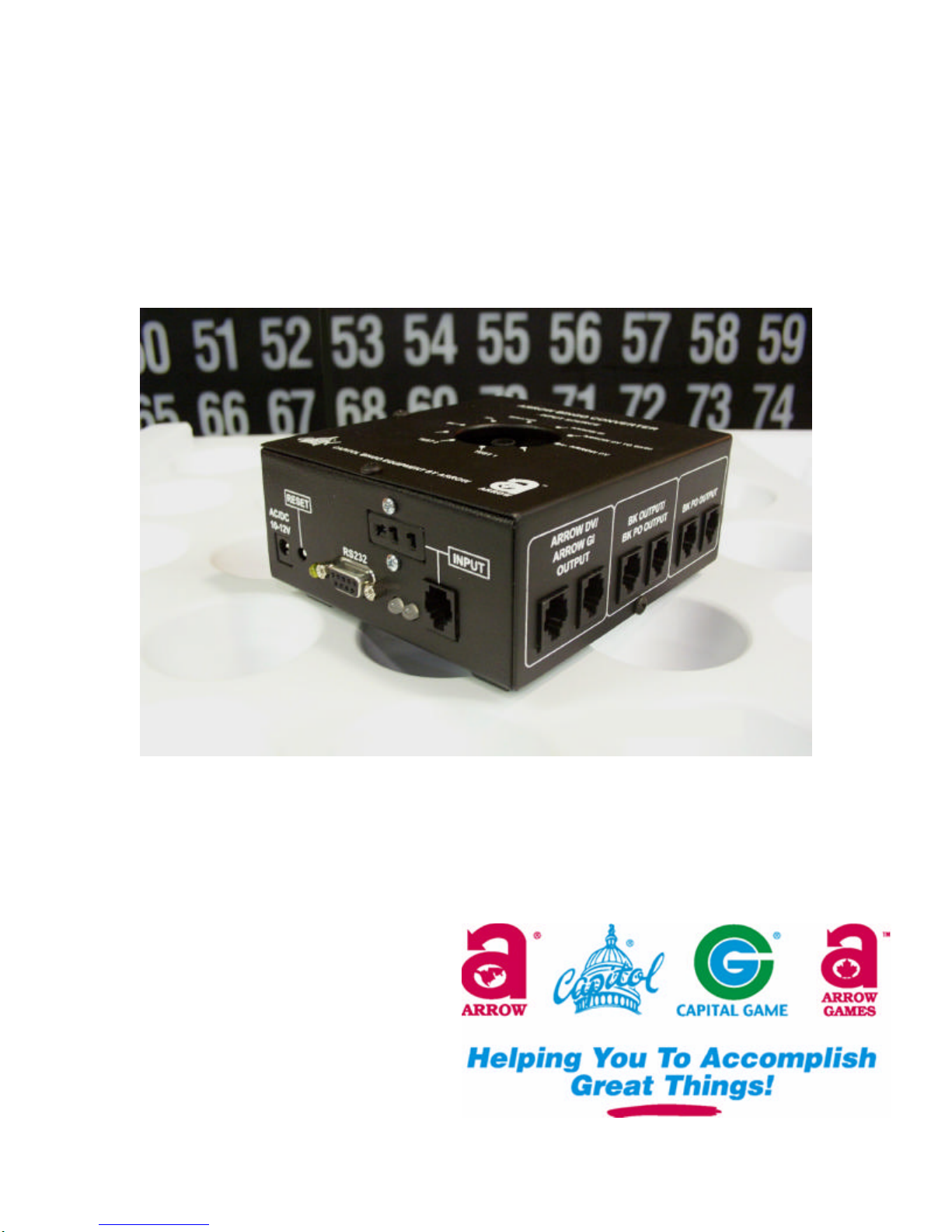

ARROW BINGO CONVERTER
Operator’s Manual
______________________________________________________

Arrow International, Inc.
2

Arrow International, Inc.
3
Introduction
The Arrow Bingo converter is a state of the art systems conversion and testing
tool. The converter allows non compatible bingo systems to work with each
other. Most bingo systems can be upgraded or added to with out changing the
existing flashboards. As a testing tool the Arrow Bingo Converter has two built in
diagnostic test patterns that will test flashboards without the need for a console.
The unit also has easy to read status indicator lights that show the condition of
the console input signal.
This manual will guide you through installation of the Arrow Bingo Converter and
how to use itin stand alone test mode.
Table of Contents
________________________________________________
Introduction
SECTION 1
Electrical Specifications 1.0
Supported Systems 1.1
Contacting Service 1.2
Damage Action Process 1.3
SECTION 2
Controls and indicators 2.0
Set Up 2.1
Outputs 2.2
Accessories 2.3
Limited Warranty 2.4

Arrow International, Inc.
4

Arrow International, Inc.
5
1.0 Electrical Specifications
Environment:
Indoor use only, no condensation
Recommended Operating Temperature: 15C to 35C (59F to 95F)
Storage temperature: -5C to 45C (23F to 113F)
Regulatory:
C-UL US Listing (pending)
Electrical:
Flashboard outputs:
0 to 5V output, up to 150ma sink or source, short circuit and ESD protected
Fused for severe damage
Power Supply
Input: 120 VAC 60Hz Output: 10 VAC 500ma
1.1 Supported Systems
Arrow International TPI Bingo King
______________________ ____ ____________
Statesman System 80 BK A systems
Presidential System 90 BK B systems
Senator System 100
1.2Contacting Service
For Service information or technical assistance, contact the
Arrow Technical Assistance Center1-800-277-6214
Section
1

Arrow International, Inc.
6
1.3Damage Action Process
Your Arrow Bingo Converter contains delicate electronic equipment. It is imperative that you thoroughly
inspect the contents of each package before accepting product delivery from the carrier.
In case of severe damage, refuse the equipment from the carrier. Contact your distributor or Arrow
Internationalfor immediate replacement.
In case of damage, make a note on the bill of lading before accepting, take a photo of the damage, and keep
the packaging to aid in recovering the amount of claim against the carrier.
If the product is damaged but acceptable, take a photo before and after unpacking as a record of the damage
and contact the carrier’s agent immediately for inspection. Be sure to obtain a copy of the inspection report
for your records.
If these precautions are not taken, we cannot assistyou in recovering the amount of the claim against the
carrier.

Arrow International, Inc.
7
2.0 Controls and Indicators
Figure 2.0
The Arrow Bingo Converter is user friendly and simple to use. The diagram above shows the
basic user controls.
Senator--------------------------Arrow International Senator Bingo console
TPI------------------------------- Trade Pro Bingo Console. (See chart in section 1.1 for
a list of supported systems)
BK-------------------------------- Bingo King console. (See chart in section 1.1 for a
list of supported systems)
Arrow G.I. --------------------- Arrow International Presidential Bingo Console
Arrow DV to BK 90--------- Statesman 90 number console to Bingo King 90 number flashboard
Arrow DV-----------------------Arrow International Statesman Bingo console
Test 2--------------------------- Tests all flashboard types with the column and row test pattern
Test 1--------------------------- Tests all flashboard types with the all lamps on all lamps off pattern
Section
2

Arrow International, Inc.
8

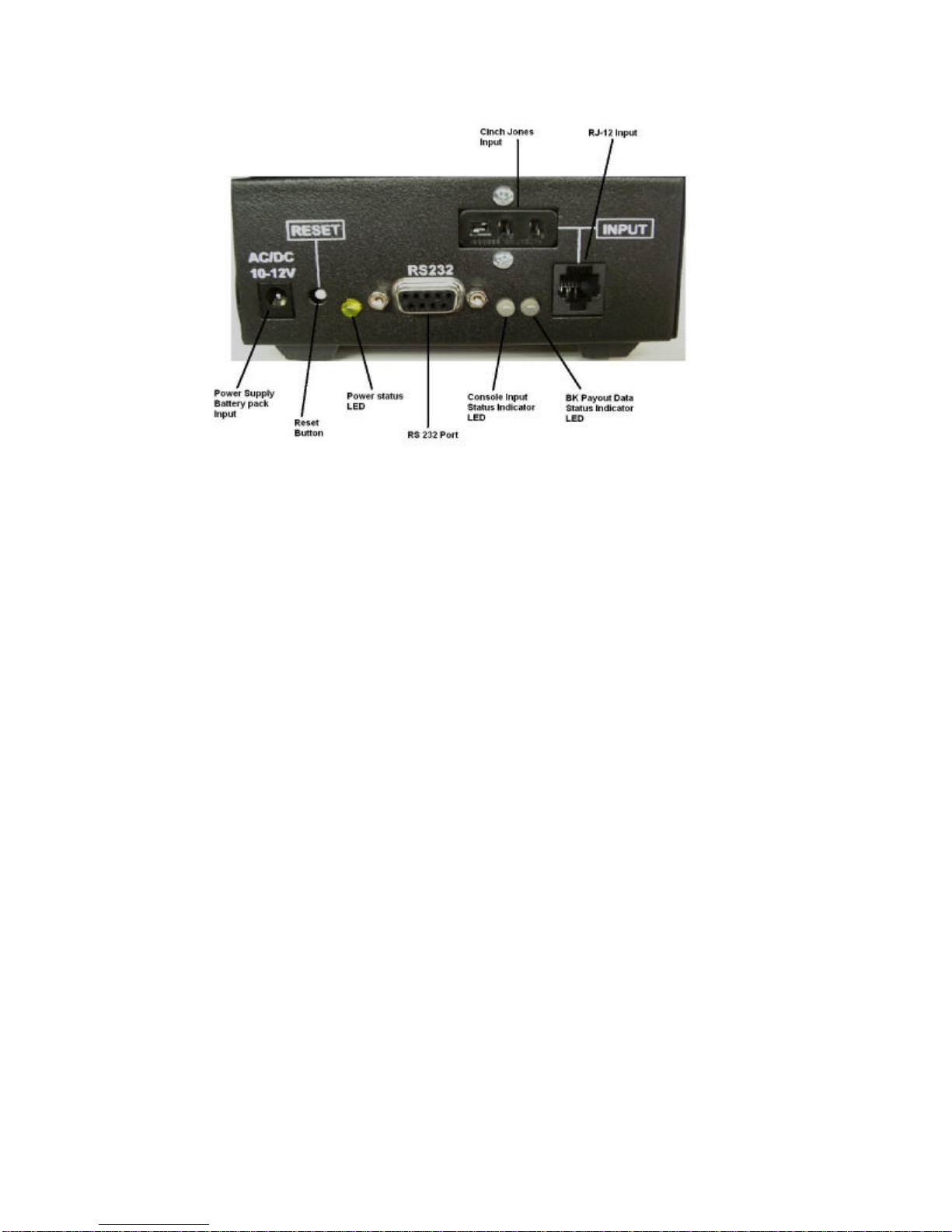

Figure 2.1
Figure 2.1 illustrates the input and status panel of the Arrow Bingo Converter. This panel
consists of the following:
Power Input------ Receptacle for the external power supply or the (optional) battery pack.
Reset Button---- Resets the Arrow Bingo Converter
Power Indicator LED----- Illuminates Yellow when proper voltage is applied to the unit.
RS 232 Interface---- Allows the Arrow bingo converter to communicate with a PC. (Optional)
Console Input Status LED---- Green = Good Signal, Red = No data. These indicators will blink
red and green when the unit is in flashboard test mode.
INPUT----- Console input. The input section consists of 1 RJ-12 and 1 Cinch Jones input. Only
one input can be used at any time.

Arrow International, Inc.
9
2.1 Set up
To set up the Arrow Bingo Converter for use, Follow the procedure below andrefer to figure 2.2.
1. Plug in the external power supply
2. Press the reset button on the Arrow Bingo Converter
3. Set the selector knob to the type of input you have
4. Connect input cable between the bingo output of the console and the console input of
the converter
5. Connect the flashboard cable to the appropriate output on the converter
The Arrow Bingo Converter only requires that the console input be selected in order to drive all of
the supported flashboard types. This means that a single console can drive all the supported
flashboardssimultaneously!
Figure 2.2
To use the Arrow Bingo Converter as a test unit, select either of the test patterns. The test
function does not require a console input. The unit can act as a standalone flashboard tester
using either the external power supply or the (optional) battery pack. To test the console output,
connect the console bingo output to the Arrow Bingo Converter input. Refer to the input status
indicator chart on page 7.

Arrow International, Inc.
10
2.2 Outputs
The Arrow Bingo Converter has two output panels. The main output panel consists of 6 RJ-12
connectors. The secondary sets are the dedicated senator and TPI outputs.
Figure 2.3 Figure 2.4
The set of BK data and Payout outputs are duel purpose. Each output puts out both the BK data and
the BK prize payout data. This has the advantage of running only one data cable to the BK prize
payout flashboards. To break the signal back out, use aData Cable Splitter listed below.
2.3Accessories
The following list contains the accessories that are available for
the Arrow Bingo Converter. Please contact the Arrow Technical
Assistance Center at 1800-277-6214 for more information.
1234567 Power supply
1234567 Battery Pack
1234567 Bingo King input cable
445001004 Arrow input cable adapter (RJ-12)
445001003 Arrow input cable (cinch Jones)
46253 Arrow flashboard Cheater (3 to 6 pin)
1234567 PC accessory pack
1234567 RS 232 cable
1234567 RJ-12 Data cable splitter

Arrow International, Inc.
11
2.3Limited Warranty
